Alcolizer LE 5 User manual

REF: LE5 Calibration Instructions_Whole Units V5 Page 1 © Alcolizer Technology
LE 5 Calibration Instruction
For Whole Units
Di
Disclaimer –Internal Document note to reader
This document is intended for use within Alcolizer Technology only.
The contents of this document are not to be disclosed to parties outside of the Company
without permission from the appropriate Department Manager.
CHANGE STATUS
Version Number
Reason for Issue
Date
Authority
V1
Document release
March 2015
General Manager
V2
Updated process and template
Oct 2016
General Manager
V3
Update product images
March 2017
General Manager
V4
Section 7: corrected fuel cell
voltage.
Section 9: Added procedure to
check calibration remain days.
Moved section 11.3 to section 10.
Section 14: check of remain days
modified.
April 2017
General Manager

REF: LE5 Calibration Instructions_Whole Units V5 Page 2 © Alcolizer Technology
V5
Modified order between sections
4, 5 and 6.
Section 5: removed password.
Section 7: modified backup batt.
voltage.
Section 9: removed minimum
.backup battery voltage.
May 2017
General Manager

REF: LE5 Calibration Instructions_Whole Units V5 Page 3 © Alcolizer Technology
Contents
1Introduction ......................................................................................................................... 4
2Getting Started..................................................................................................................... 4
3Serial Number ...................................................................................................................... 4
4Check Firmware ................................................................................................................... 4
5Alcoconnect ......................................................................................................................... 5
6Authorisation Calibration Key (AuthKey Cal)....................................................................... 5
7Check Unit Parameters –System Check Menu.................................................................... 5
8Calibration............................................................................................................................ 6
8.1 Calibration Gas Value Input........................................................................................... 6
8.2 Calibrate ........................................................................................................................ 7
9Displaying Calibration Results.............................................................................................. 9
10 Post Calibration Check ....................................................................................................... 10
11 Going Back ......................................................................................................................... 10
12 Additional Information ...................................................................................................... 10
12.1 Calibration Lock Out ................................................................................................ 10
12.2 Dry gas Calibration................................................................................................... 10
13 Gas Configurations Setup................................................................................................... 10
13.1 Dry Gas setup........................................................................................................... 10
14 LE 5 Final Check List ........................................................................................................... 11

REF: LE5 Calibration Instructions_Whole Units V5 Page 4 © Alcolizer Technology
1Introduction
This Calibration Manual details the procedures for performing the calibration of the
Alcolizer LE 5 alcohol breath testing device.
This Calibration Manual is divided into various Sections and Sub-sections to enable the
authorised calibration technician to access the required information with ease. It includes
Cautions and Notes applicable to calibrating the LE 5 device.
IMPORTANT NOTE
Calibration of the Alcolizer LE 5 device should only be performed by a qualified technical person
using certified alcohol solutions dry gas standards.
2Getting Started
Prior to beginning the calibration procedure, ensure the following steps are taken and
precautions adhered too:
Read the entire manual carefully before calibrating the device for the first time.
Ensure the device has at least 3 bars or battery power prior to calibration.
If a dry gas standard is being used, ensure that the gas reference value has being
certified and a certification certificate is attached to the cylinder.
NOTE
Fuel cell sensors have different sensitivity parameters to wet and dry reference gas standards, a
correction factor must be applied when using dry gas as the calibration standard to correctly correlate
with wet gas solution standard.
3Serial Number
Turn the unit on and record the days to cal and the battery bars on the record sheet.
Record the serial number found on the back of the unit onto the record sheet.
Replace any damaged or faded serial number stickers.
4Check Firmware
Enter the ‘About’ menu and press the main button until the unit’s details are
displayed.
The firmware version will be displayed for both the SM and MM. Check that it is the
latest version.
If it is not the latest, update using Alcoconnect toolbox.
Record the number of days until calibration is due if any.

REF: LE5 Calibration Instructions_Whole Units V5 Page 5 © Alcolizer Technology
5Alcoconnect
Plug in USB into port on unit
Open Alcoconnect
Type in technician password and press enter
Click on the ‘Technician’menu and then select ‘Check for Firmware Upgrades’
Note: To this function work, the ‘Firmware Upgrade Location’ must be pointing to
the folder with the latest firmware versions.
If outdated firmware versions are detected, select ‘Upload’ to upgrade device.
A code error 32 will in most cases be displayed after update. Reset the unit by
holding down all three buttons at the same time for several seconds then release.
Main screen should appear again.
While still connected to Alcoconnect, sync the date and time to the PC using SET
TIME option.
Note: Upload the firmware first before the date as the firmware change and
change the time and date.
Turn unit off and on again.
Go back into the ‘About Menu and make sure the correct firmware did in fact load.
6Authorisation Calibration Key (AuthKey Cal)
Activate the AuthKey Cal as follows:
Switch on LE 5 unit.
Insert the LE 5 AuthKey Cal USB security key into USB port. The security key symbol
will be displayed on the display screen when the connection is recognised
7Check Unit Parameters –System Check Menu
Check that the serial number in the About menu matches the back of unit
Enter the Special Access Menu, then Enter into the Technician menu, and select the
System Check option.
Back up battery must be at 2.75V or higher
Press the main button on the back up battery option and listen for a good sounding
click.
Attach unit to the manometer and check for leaks. Should be about 11-15mls/L.
Fuel cell temp must be ±2°C that of ambient air temp
Check that the Fuel cell voltage is stable and not fluctuating
Fuel cell voltage should be no less than 0.01V and no more than 0.15V.
Select the ‘Back’ option

REF: LE5 Calibration Instructions_Whole Units V5 Page 6 © Alcolizer Technology
8Calibration
8.1 Calibration Gas Value Input
Input the reference gas calibration value into Calibration Gas menu as follows:
Press the Test key to open the Calibration Gas menu input function (refer Figure 1).

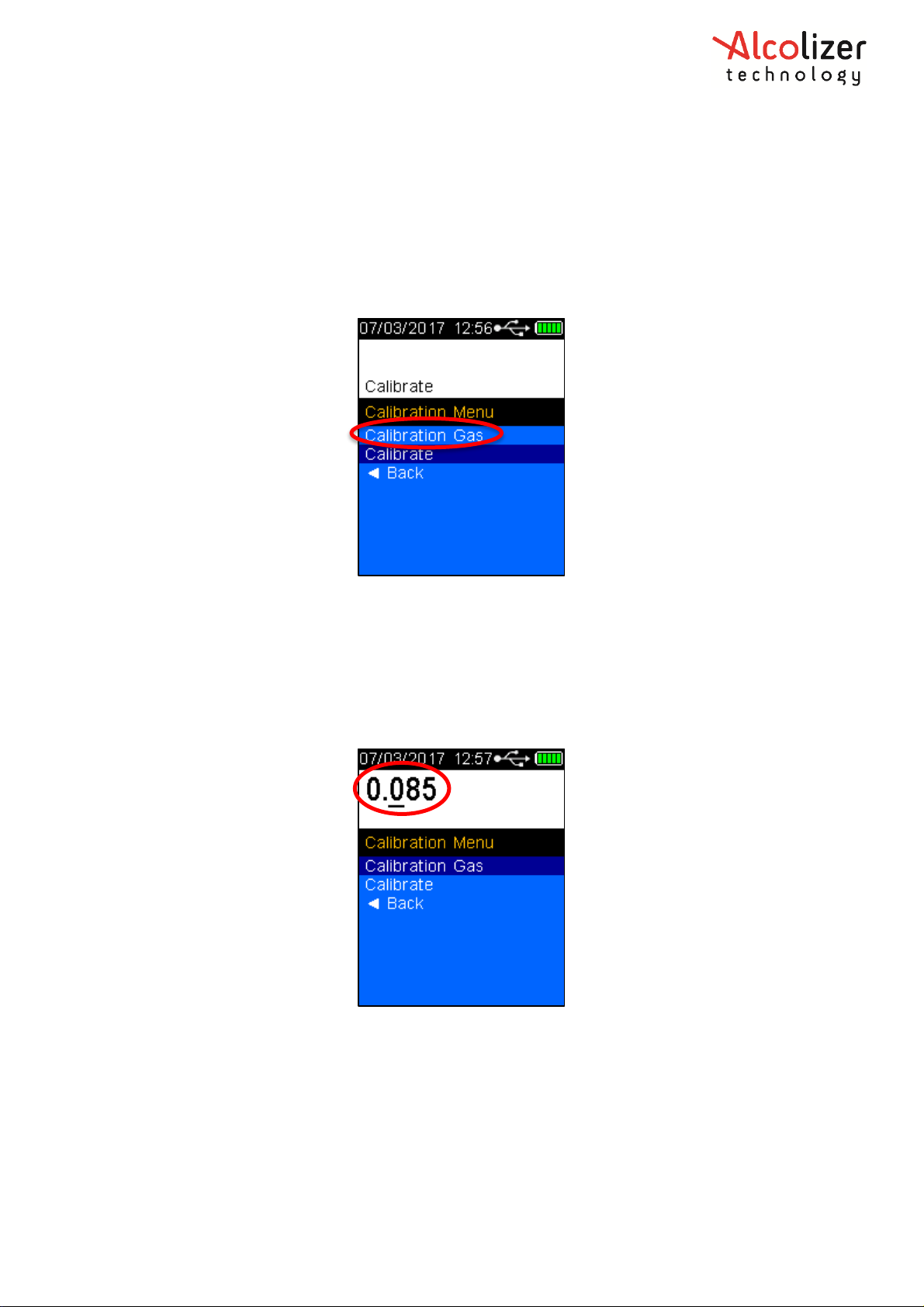

Figure 1 - Calibration Gas
Press the Test key again to start input function. The calibration gas first digit value
(underlined) can be changed by pressing either of the Up/down keys to required first
digit number value (refer Figure 2).
Figure 2 - Setting Calibration Gas Value
Press the Test key to accept the entered value and to proceed to the next digit
number input value.
Repeat the above procedure to set and accept each digit’s calibration gas value to
the required (currently used) Wet or Dry gas calibration reference standard e.g.
0.100g/100mL (refer Figure 3).

REF: LE5 Calibration Instructions_Whole Units V5 Page 7 © Alcolizer Technology

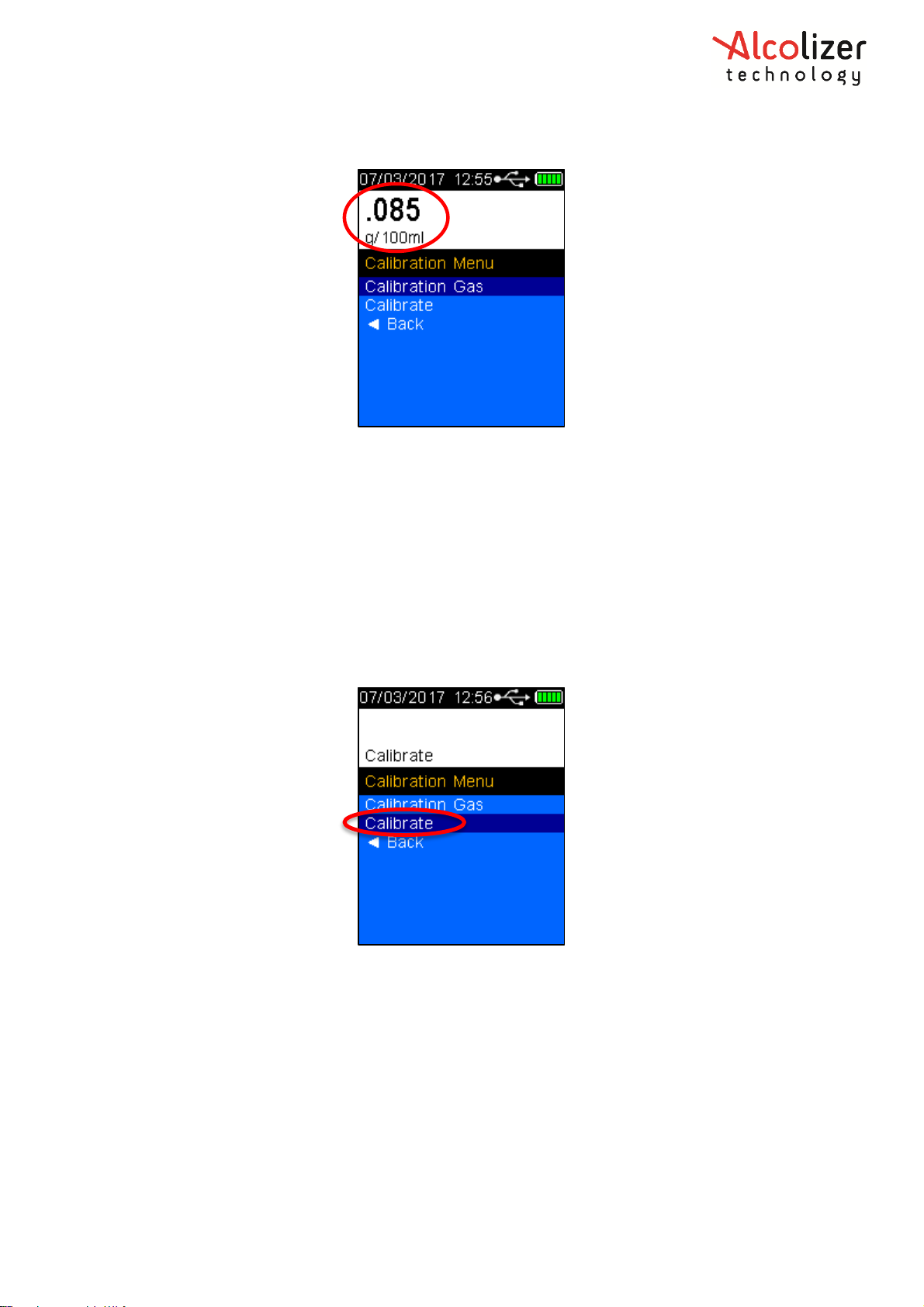

Figure 3 - Cal Reference Standard Set
8.2 Calibrate
Perform calibration as follows:
Install a fresh mouthpiece onto the device
Connect appropriate calibration reference solution to mouthpiece inlet.
Press either of the Up/down keys to scroll to the Calibrate menu function (refer
Figure 4).
Figure 4 –Calibrate
Press the Test key to start the Calibrate process.
The device will display Please Wait… while performing an internal self-check.
After the internal self-check is completed the Ready screen will be displayed (refer
Figure 5 - Self check underway (Please Wait...) and Ready messages


If the self-check is unsuccessful error code 6 will be displayed. If the error code is
shown, consult Alcolizer LE 5 Maintenance Manual).

REF: LE5 Calibration Instructions_Whole Units V5 Page 8 © Alcolizer Technology

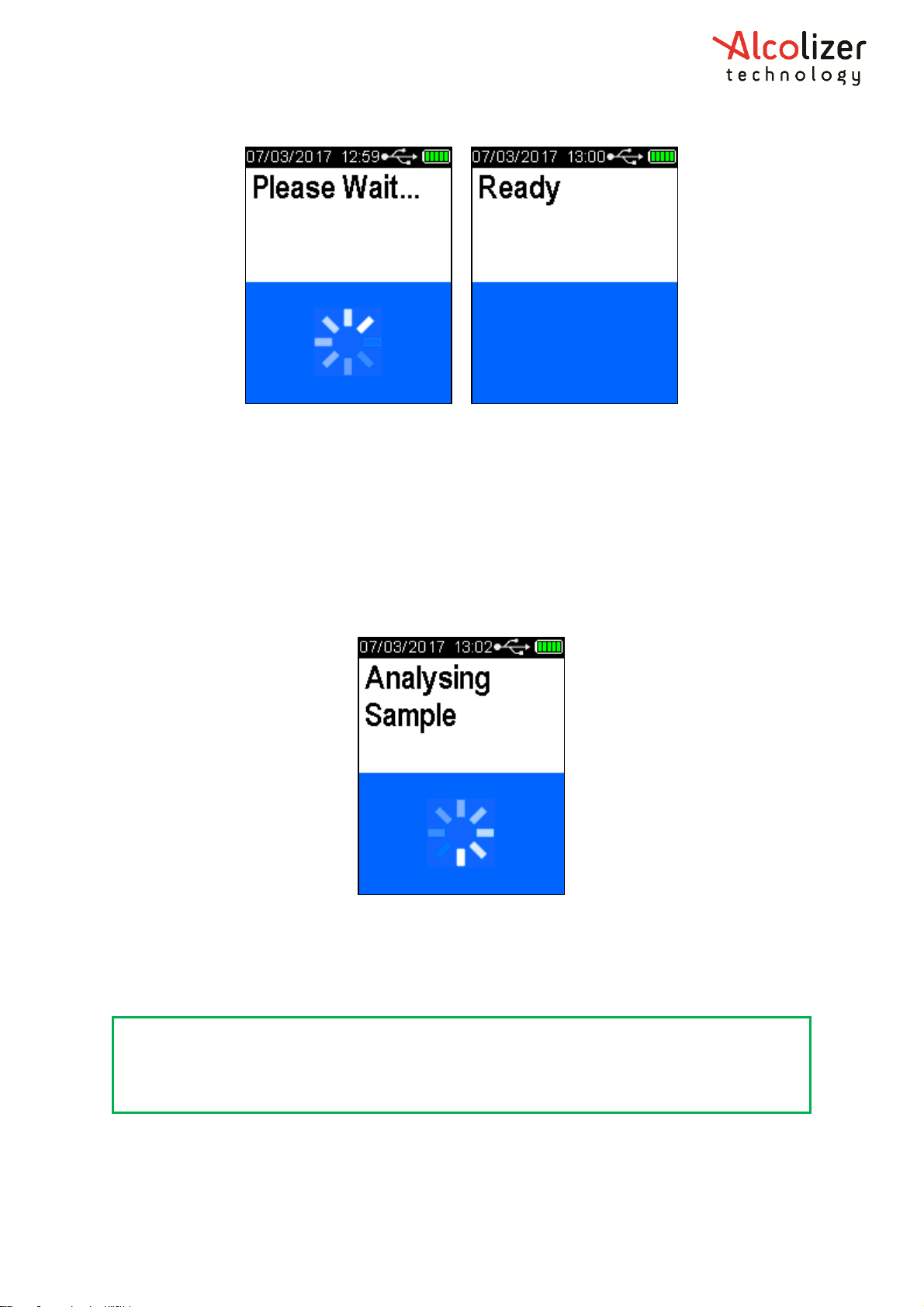

Figure 5 - Self check underway (Please Wait...) and Ready messages
Press the Test key to start the calibration sequence. The device displays a
countdown sequence: 13 - 12 - 11 - 10 etc. at one second intervals.
Turn on the calibration gas flow when the count is approximately 10 or 9.
When the countdown reaches 0, the device will take a sample of the calibration gas
and a beep sound will be heard. The Analysing Sample screen will be displayed
(refer Figure 6).
Figure 6 - Analysing Sample message
Turn off the calibration gas flow after the device has taken a sample and the beep
tone has ceased.
NOTE
If the calibration process is unsuccessful, error code 43 will be displayed. Consult Alcolizer
Technology for further technical advice on 1300 789 908.

REF: LE5 Calibration Instructions_Whole Units V5 Page 9 © Alcolizer Technology
9Displaying Calibration Results
The results of the calibration are displayed on the screen. The table below describes what
each message means.
The new GAIN needs to be recorded on the data sheet.
Screen Message
Description of Results
Pre-Cal Result
Displays the calibration gas reading for the
old gain figure value
New Gain
Displays the new calibration gain figure
value
Reference Gas
The calibration reference gas value (as
entered above)
Backup Battery
Displays the backup battery voltage level.
Recovering
Displays the fuel cell recovery period
Press Key to
continue
Press either the Test or Up/Down keys to
return the device to the calibration menu
display screen
NOTE
If the device has been used or calibrated within the last 24 hours, a calibration lockout message will display,
preventing calibration of device for the period displayed (refer Figure 7 - Calibration Lockout message).
Figure 7 - Calibration Lockout message
Turn device off and then on.
Enter the ‘About’ menu and press the main button until the unit’s details are
displayed.
Check if device displays the correct remain days to next calibration.

REF: LE5 Calibration Instructions_Whole Units V5 Page 10 © Alcolizer Technology
10 Post Calibration Check
It is recommended that a calibration check be performed after a calibration procedure to
verify calibration accuracy. The recommended sequence is:
1st calibration solution test.
1st zero test.
2nd calibration solution test.
2nd zero test.
3rd and final calibration solution test.
For these post calibration checks conducted in normal operation mode.
All readings should be between ±5 percent of the calibration solution value.
Make sure you blow a zero value through the unit as the last test to zero off the screen.
Clean and fully charge all units before returning to the customer.
11 Going Back
To revert back to previous operation screen, perform the following steps:
Press either of the Up/down keys to scroll to the Back menu function.
Press the Test key to revert back to previous menu or operation screen.
12 Additional Information
12.1 Calibration Lock Out
This is a pre-set time period in which a calibration of the device will not be allowed if the
device’s last test was a positive result and the calibration lockout time period from that test
has not elapsed (timed out) (refer Figure 7).
12.2 Dry gas Calibration
As fuel cells have a small sensitivity differential between wet and dry gas readings, a
correction factor must be applied to dry gas calibration values so that correlation between
wet and dry readings are the same.
Consult Alcolizer Technology for technical advice on this issue.
13 Gas Configurations Setup
13.1 Dry Gas setup
The recommended dry gas setup for in-house and field use is as follows
Ensure gas is Dry reference gas 200–220PPM Ethanol (BAC: 0.081-0.090g/100ml).
Turn valve on (1 turn anticlockwise) to commence calibration procedure. Ensure
valve is turned off (clockwise) after completion of calibration procedure.
Ensure blue tube to mouthpiece connection is a friction fit (finger tight).
Set flow-rate on Pre-set flow rate valve to approximately 10-12lts/min.

REF: LE5 Calibration Instructions_Whole Units V5 Page 11 © Alcolizer Technology
Press On/Off push button to start gas flow and release to stop.
14 LE 5 Final Check List
Task
Completed
Device is charged prior to calibration
Yes / No
Serial number has been recorded
Yes / No
Firmware has been checked and upgraded if required
Yes / No
The serial number has been crossed checked
Yes / No
Fuel cell voltage is stable and not out of range
Yes / No
Back up battery has 2.8+ volts
Yes / No
Fuel cell temp is correct ±2°C
Yes / No
The device temp is correct ±2°C
Yes / No
Initial gain has been recorded
Yes / No
Pump has been checked, clicking sound and for leaking
Yes / No
Check that gas reference used has a certificate attached to cylinder
Yes / No
Calibration gas value has been set in service menu
Yes / No
Device has been calibrated
Yes / No
New gain has been recorded
Yes / No
Post calibration checks have been completed, passed and recorded
Yes / No
The unit has been given a final zero test
Yes / No
The unit now displays the correct calibration remain days depending on location
Yes / No
The unit has been cleaned and charged fully
Yes / No
