Alcolizer HH3 User manual

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 1 © Alcolizer Technology
Uncontrolled when printed
Alcolizer HH3 Alcohol Tester User Manual
User Manual
Disclaimer –External Documents note to reader
The BrAC reading obtained by correct use of this device is only considered accurate at the time of testing.
Great care has been taken to ensure the accuracy of each reading.
Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action
or claim arising from the reading produced by this device, whether used correctly or incorrectly.

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 2 © Alcolizer Technology
Uncontrolled when printed
Contents
1INTRODUCTION..................................................................................................................4
2DESCRIPTION OF HH3 ........................................................................................................4
Equipment Overview...................................................................................................4
Device Overview..........................................................................................................4
2.2.1 Test Key................................................................................................................5
2.2.2 Trans reflective (TFT) Mono Graphics Display.....................................................5
2.2.3 Mouthpiece Locator and Sample Inlet Spigot .....................................................5
2.2.4 Up and Down Arrow Keys ....................................................................................6
2.2.5 USB Port ...............................................................................................................6
2.2.6 Battery Charger Port............................................................................................6
3OPERATING INSTRUCTIONS ...............................................................................................6
General Information....................................................................................................6
3.1.1 Cleaning Requirements.............................................................................................7
Testing Types...............................................................................................................7
Mouthpieces................................................................................................................7
Charging the Battery ...................................................................................................8
Turning On Device.......................................................................................................9
Testing.........................................................................................................................9
3.6.1 Mouthpiece Testing .............................................................................................9
3.6.2 Taking a Mouthpiece Breath Sample.................................................................10
3.6.3 Analysing a Mouthpiece Breath Sample............................................................12
3.6.4 Passive Testing...................................................................................................13
3.6.5 Taking a Passive Breath Sample.........................................................................14
3.6.6 Analysing a Passive Breath Sample....................................................................15
Shutting Down...........................................................................................................16
4RECORDS ..........................................................................................................................16
5CALIBRATION....................................................................................................................17
6SPECIFICATIONS ...............................................................................................................18
7ALCOCONNECT.................................................................................................................18
Installing Alcoconnect Software................................................................................18
Using AlcoCONNECT..................................................................................................19

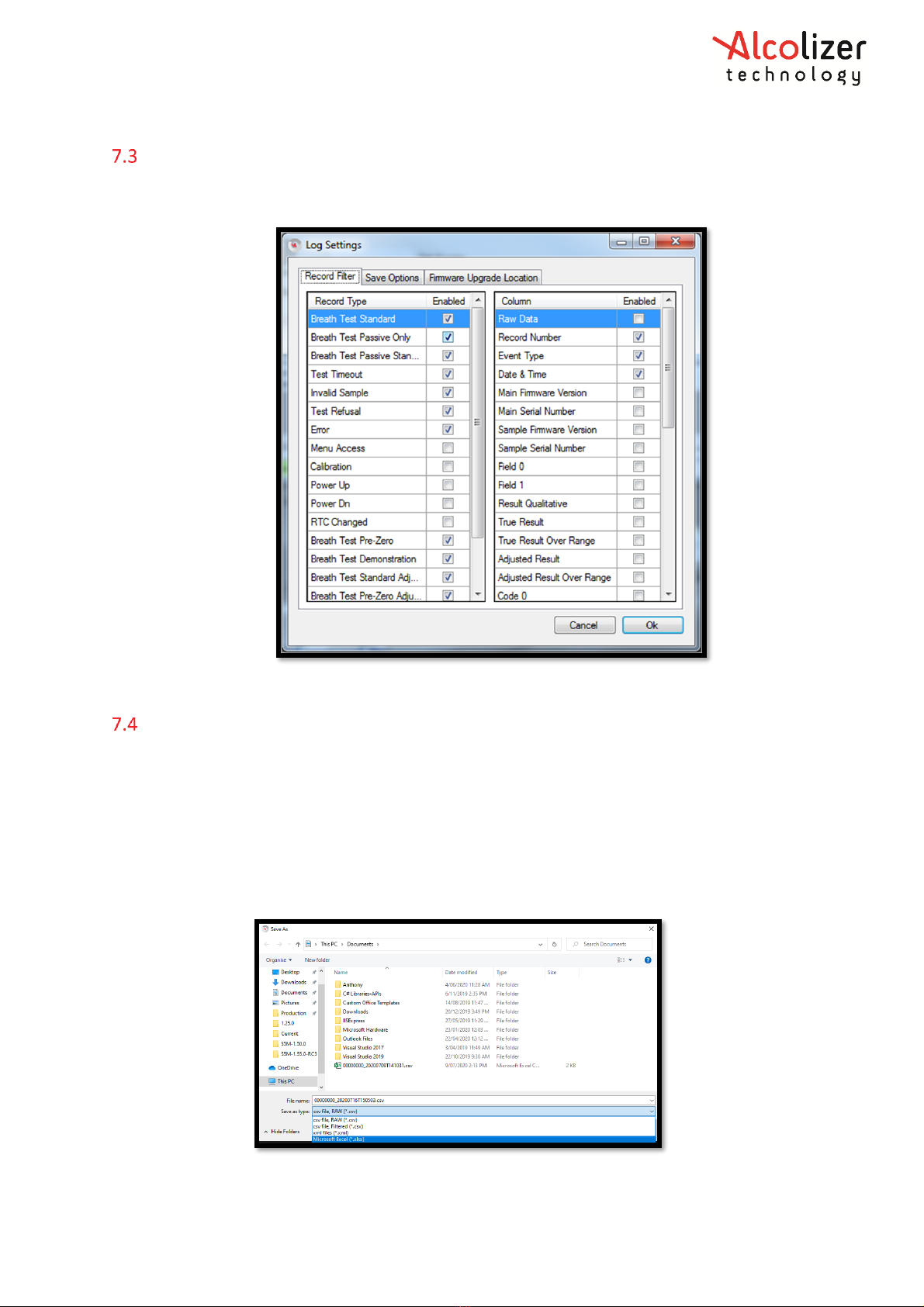

Filtering Data.............................................................................................................20
Saving Event Logs ......................................................................................................20
Controlling Access to Data ........................................................................................21

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 3 © Alcolizer Technology
Uncontrolled when printed
Setting the date and time .........................................................................................22
7.6.1 PC Clock..............................................................................................................23
7.6.2 Set Clock Manually.............................................................................................23

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 4 © Alcolizer Technology
Uncontrolled when printed
1INTRODUCTION
This User Manual details the operation of the Alcolizer HH3 alcohol breath testing device
and AlcoCONNECT software for managing and analysing breath test results.
This User Manual is divided into various Sections and Sub-sections to enable the user to
access the required information with ease. It includes Cautions and Notes applicable to the
HH3 device and a Specifications table.
2DESCRIPTION OF HH3
Equipment Overview
The HH3 Equipment List includes the following items:
•HH3 handheld device,
•USB cable,
•Battery Charger,
•User Manual
•Downloadable AlcoCONNECT software
•Carry bag or metal case (optional), and
•Neoprene cover (optional).
Device Overview
The HH3 is a handheld device consisting of a hard plastic outer case, rubberised hand grip,
wrist strap and the following user displays, buttons and adaptor sockets (refer Figure 1):
•Test Key,
•Trans reflective (TFT) mono Graphics Display,
•Mouthpiece Locator and Sample Inlet Spigot,
•Up and Down Arrow Keys,
•USB Port, and
•Battery Charging Port.
Note
This User manual is applicable to the Alcolizer HH3 alcohol tester certified to
AS3547:2019.

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 5 © Alcolizer Technology
Uncontrolled when printed
Battery Charging Port

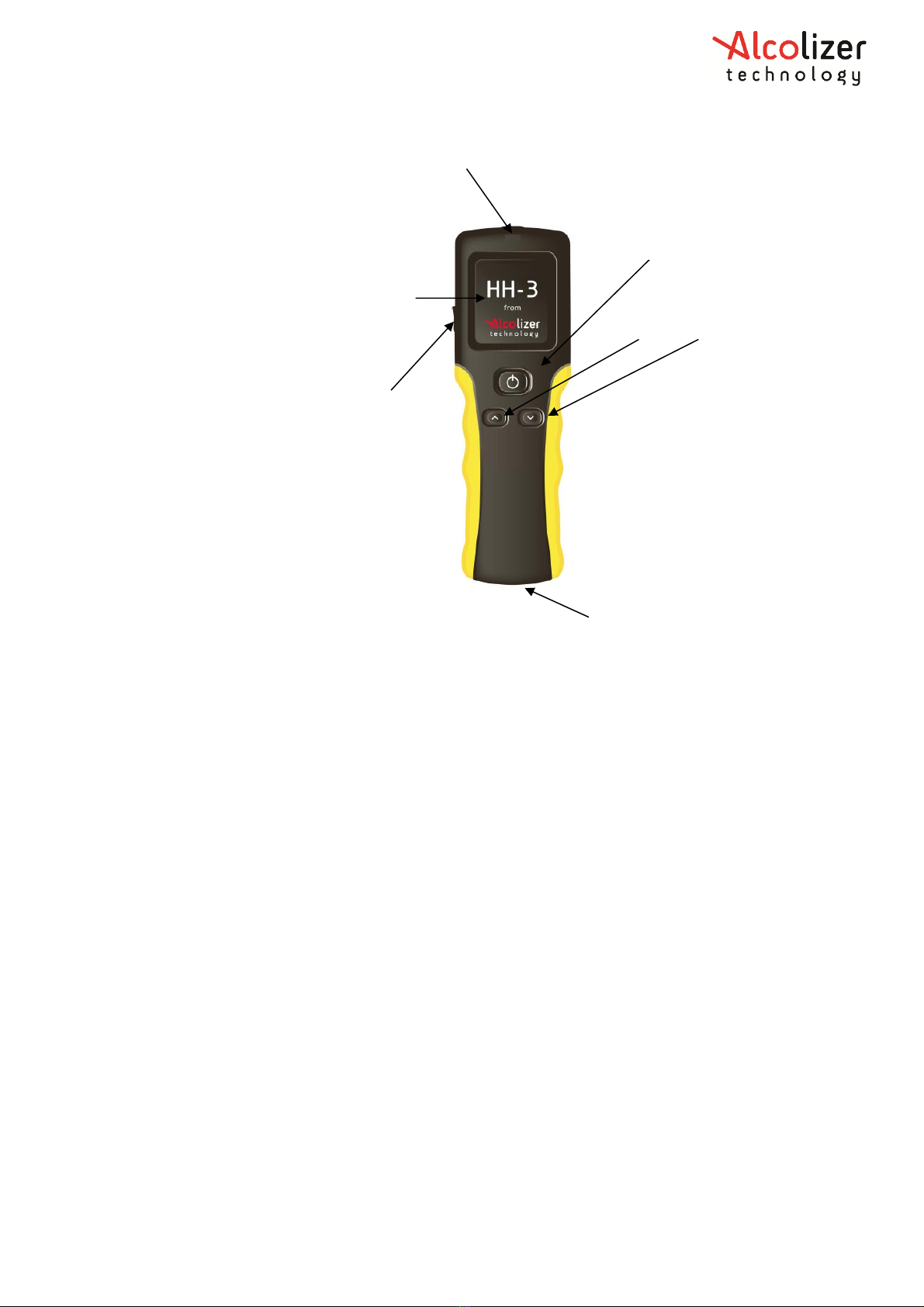

Figure 1 - User Display, Buttons and Adapter Sockets
2.2.1 Test Key
The Test Key activates selected functions.
2.2.2 Trans reflective (TFT) Mono Graphics Display
Displays the various functions of the device including:
•Welcome screen which includes days remaining till next calibration;
•Various Test modes (Mouthpiece or Passive, refer paragraph 3.2);
•Ready notification;
•Blow notification including progress bar; and
•Records information.
These and other displays are explained in the Operating Instructions Section.
2.2.3 Mouthpiece Locator and Sample Inlet Spigot
The disposable mouthpiece (sample tube) is located on the Mouthpiece Locator which
surrounds the Sample Inlet Spigot (refer Figure 2).
Test Key (
1. Test Key
2. TFT Graphics Display
4. Up and Down Arrow Keys
3. Mouthpiece Locator and Sample Inlet Spigot
5. USB Port
6. Battery Charging Port

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 6 © Alcolizer Technology
Uncontrolled when printed

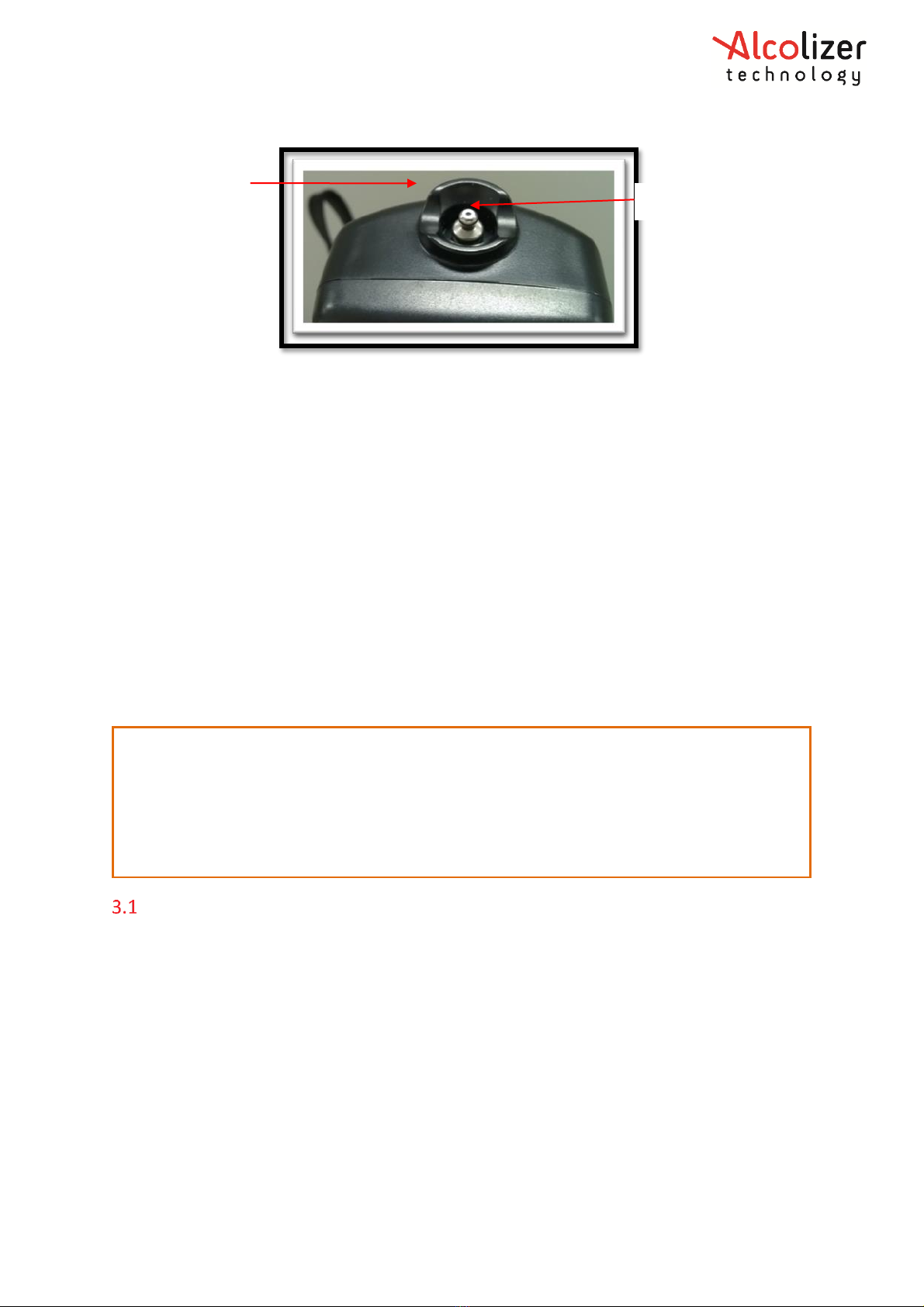

Figure 2 - Mouthpiece locator and Sample inlet spigot
2.2.4 Up and Down Arrow Keys
The Up and Down Arrow keys allow access to various sub menus. Operation of the Down
arrow also facilitates access to the off function (refer to the Operating Instructions Section).
2.2.5 USB Port
The USB Port facilitates the connection of the device to a USB equipped computer using the
USB cable included with the device. Refer to Section 7 for instructions on using the
Alcoconnect toolbox.
2.2.6 Battery Charger Port
The Battery Charging Port is located at the base of the device under the wrist strap bracket
and facilitates connection to the battery charger included with the device.
3OPERATING INSTRUCTIONS
General Information
The following information should be observed when conducting breath test analysis using
this device:
•Operators should use the appropriate personal protective equipment (PPE) when
conducting a test –gloves, mask, protective eyewear or full-face mask based on the
situation.
•For accurate testing results, food, beverages, medications, smoking, vaping or
substances that contain alcohol should not be consumed for at least 15 minutes
prior to testing.
•Allow 15 minutes for any potential interfering alcohol to be cleared from the donor
before testing again.
CAUTION
While the HH3 is a robust device, it does contain sensitive instrumentation and should
not be subject to rough handling or become submerged in water.
Do not store device in direct sunlight or places where extreme temperature conditions
can occur.
Sample Inlet Spigot
Mouthpiece Locator

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 7 © Alcolizer Technology
Uncontrolled when printed
•Breath alcohol concentration can continue to rise for up to 2 hours after the
cessation of drinking and care should be taken if a result close to the designated
breath alcohol concentration is indicated.
•When a high breath alcohol level has been reached, it can take 10 hours or more for
the breath alcohol level to return to zero.
•If the test result is above the operational maximum limit, a plus sign (+) after the
result will be displayed.
3.1.1 Cleaning Requirements
•We recommend that appropriate PPE be used during the cleaning process eg; gloves
•The instrument should be cleaned with a soft cloth and antibacterial spray or anti-
bacterial wipes. It is recommended that the instrument is turned off before cleaning.
•The outside of the instrument can be cleaned by wiping it over with a soft moist
cloth followed by a soft dry cloth.
•Screen –the screen of the instrument can be cleaned by wiping it over with a soft
moist cloth followed by a soft dry cloth.
•Ensure the Spigot Inlet is not blocked.
•Do not use alcohol based cleaners.
•Do not use harsh cleaning agents, abrasive cleaning pads or chemicals.
•Dispose of mouthpieces after use into a bin, this can be done by easily ‘tapping’ the
mouthpiece on the edge of the bin and it will ‘pop’ off. Ensure gloves and PPE are
used during this process
Testing Types
The HH3 can perform both Mouthpiece and Passive BrAC testing. Mouthpiece testing
provides a BrAC reading in g/210L and Passive testing will display the presence of alcohol in
breath. Following a Passive test that indicates the presence of alcohol, a Mouthpiece test
should then be performed if an accurate BrAC is required.
Mouthpieces
There are two types of Mouthpieces available for use on the HH3 (refer Figure 3). These are
the:
•Spit Trap Non Return Valve Mouthpiece, and
•Standard Spigot Locator Mouthpiece.

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 8 © Alcolizer Technology
Uncontrolled when printed

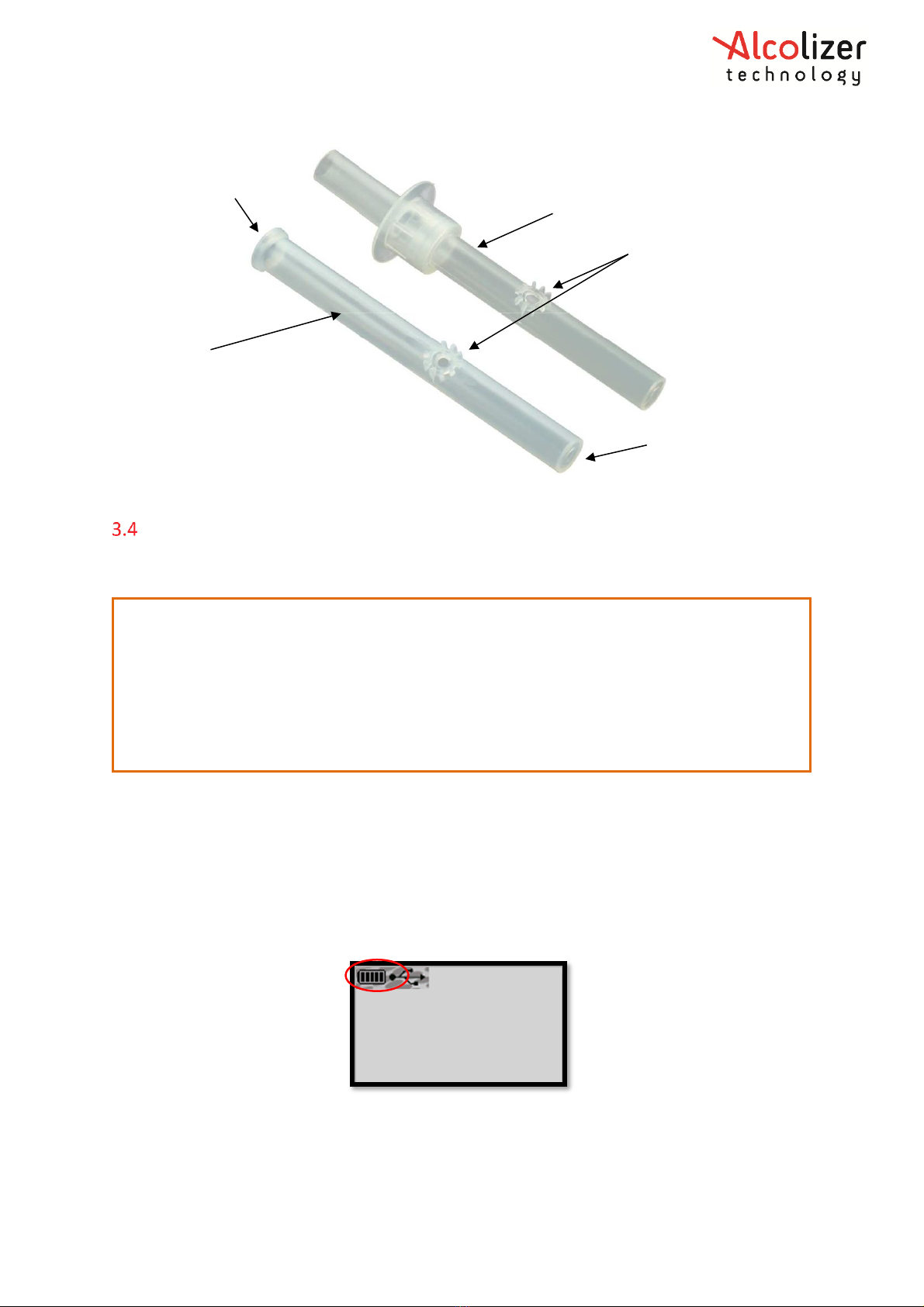

Figure 3 - Mouthpiece Types
Charging the Battery
Prior to initial use, the HH3 battery should be fully charged. The battery charge cycle may
take up to two hours.
Charge the battery as follows:
•Connect the charger DC socket to the HH3 battery charger port (refer Figure 1).
•Connect the AC plug to a suitable power supply and switch on power.
The device will automatically start and charging will be displayed. Testing is not available
during charging.
When the battery is fully charged, the battery condition indicator on the TFT Graphics
Display will display five bars (refer Figure 4).
Figure 4 - Battery Condition Indicator
Recharge the battery when the battery condition indicator shows one bar to ensure testing
will not be interrupted by a flat battery. The device cannot be used for testing during
charging but can be used for accessing Records (refer Section 4).
CAUTION
The battery in the HH3 device is a Li-ION battery. As such it should not be tampered with
in anyway. Should any problems occur that are related to the battery, contact your local
Alcolizer representative for advice (1300 789 908).
Only use the battery charger supplied with the Alcolizer supplied kit. Use of non Alcolizer
battery charges could damage the device and render it inoperative.
Mouthpiece
Sample Inlet Port
Spit Trap Non Return Valve
Mouthpiece
Standard Spigot Locator
Mouthpiece
Ribbed end
Non ribbed end

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 9 © Alcolizer Technology
Uncontrolled when printed
Turning On Device
Turn the device on by depressing either the Test key or Up/down buttons. A company logo
screen will appear for a period of five seconds prior to the test screen displaying. The logo
screen can be terminated sooner by pressing either the Test key or Up/down buttons a
second time. The device certification, serial number, Firmware, date, time and days
remaining till next calibration will be displayed (refer Figure 5).
Figure 5 - Start Display Information
After about six seconds, the Display will show Start Mouthpiece Test and a down arrow
(refer Figure 6).
Figure 6 - Start Mouthpiece Test messa
Testing
3.6.1 Mouthpiece Testing
NOTE
To view the start screen for longer, hold the Test key down continuously.
CAUTION
To maintain a healthy sampling environment, the following procedures must be strictly
adhered to.

REF: Alcolizer HH3 Alcohol Tester User Manual V6 Page 10 © Alcolizer Technology
Uncontrolled when printed
Attach the mouthpiece to the device as follows:
•Grasp the mouthpiece at the non-ribbed end and tear the plastic wrapping from the
ribbed end, downwards to expose the sample inlet hole.
•Locate the mouthpiece sample inlet port over the mouthpiece locator in line with
the recesses that surround the spigot (refer Figure 7).
•Press the mouthpiece sample inlet port onto the locator until it is attached securely
(refer Figure 8). The orientation of the mouthpiece will not affect the sampling.
•Remove the remaining portion of the plastic wrap just prior to testing to ensure
hygienic use.
•A new mouthpiece must be used for each mouthpiece test.
Figure 7 - Locating the Mouthpiece
Figure 8 - Mouthpiece correctly positioned

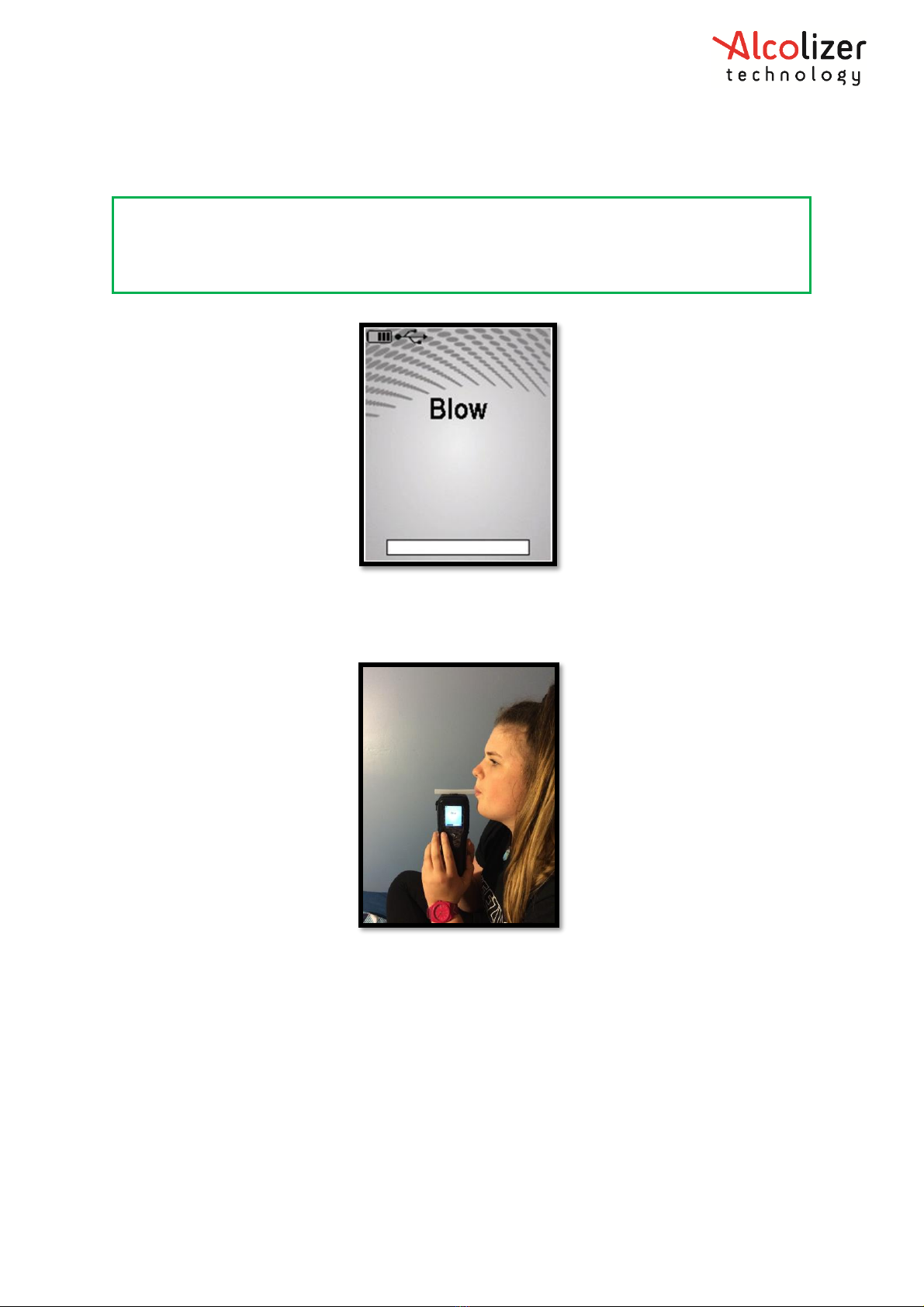

3.6.2 Taking a Mouthpiece Breath Sample
Perform a Mouthpiece Test as follows:
NOTE
Before taking a breath sample, ensure the subject has not consumed alcohol for at least
15 minutes.

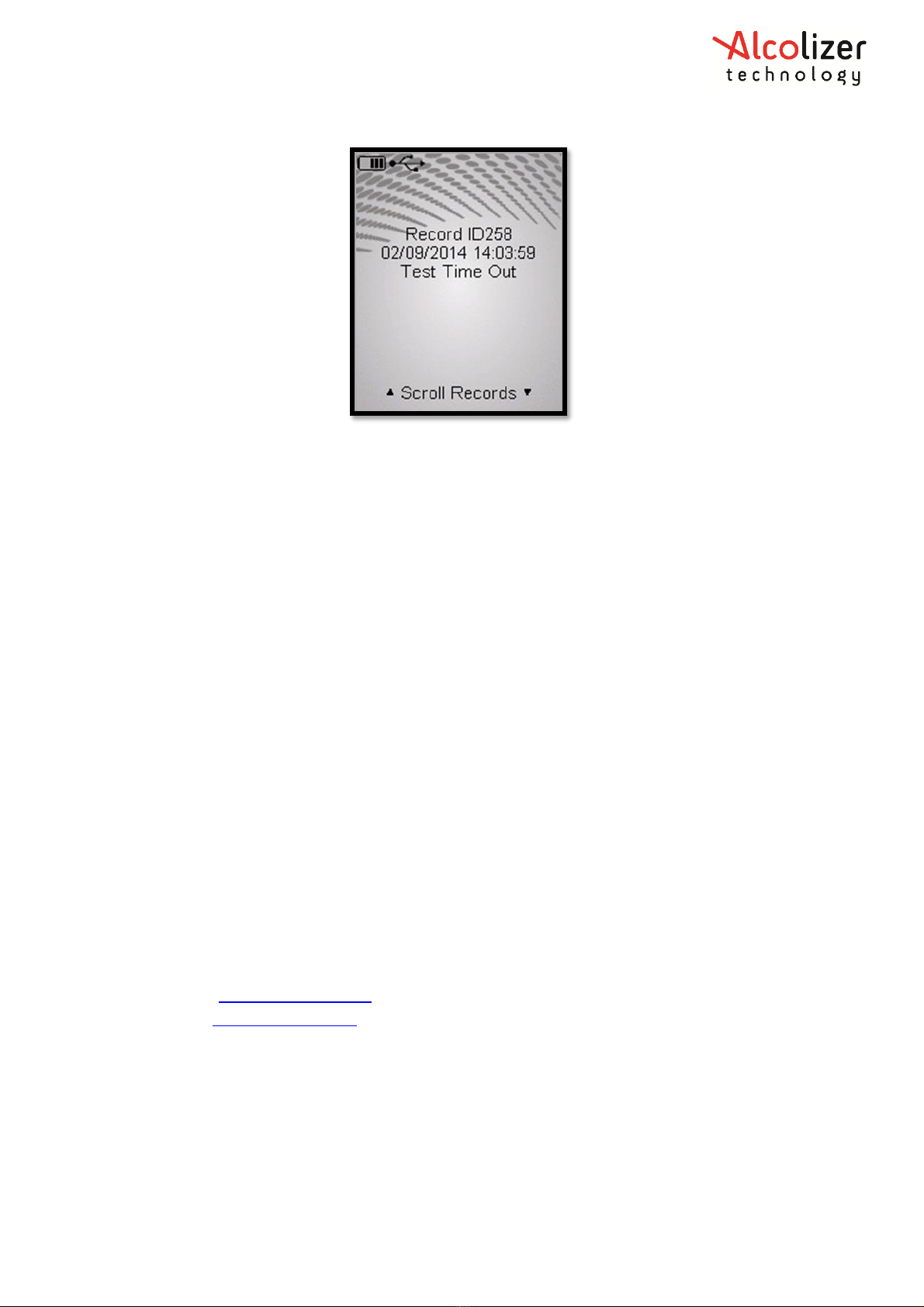

If any step in a breath test sequence is not completed or the device is left idle for a
prolonged period of time, then the device will terminate the breath test and display Test
timed out. The device will return to the Start Mouthpiece Test display
The standard breath test time out period is 60 seconds. If a test time out does occur
during a breath test, a new breath test must be performed.
