Alfalaval Toftejorg TZ-89 User manual

Instruction Manual
Toftejorg TZ-89
IM-TE91A500-EN4
ESE01837EN
Date of issue: January 13, 2015
First published: 1989
Original manual

Instruction Manual, Toftejorg TZ-89 Page 1
IM-TE91A500-EN4
Contents
Contents ............................................................................................................... 1
Introduction ........................................................................................................... 3
Intended Use ........................................................................................................ 4
Patents and trademarks ........................................................................................ 4
General Description .............................................................................................. 5
Functioning ......................................................................................................................... 5
Standard Configurations ..................................................................................................... 6
Technical Data ...................................................................................................... 8
Performance Data ............................................................................................................... 9
Installation and Normal Operation ......................................................................... 10
General Installation Instructions ........................................................................................ 10
Normal Operation.............................................................................................................. 11
Preventive Maintenance ...................................................................................... 12
Recommended Preventive Maintenance .......................................................................... 12
Dismantling and Assembling ............................................................................... 14
Main Assembly.................................................................................................................. 14
Gear Unit .......................................................................................................................... 16
Cleaner Head .................................................................................................................... 18
General Information ............................................................................................ 21
How to Order Spare Parts................................................................................................. 21
Service and Repair ........................................................................................................... 21
How to contact Alfa Laval Tank Equipment ...................................................................... 21
Exploded View Drawing ...................................................................................... 22
Reference List of Parts, Toftejorg TZ-89 .............................................................. 23
Spare Part Kits, Service Kits and Tools ............................................................... 25
Spare Part Kit for Toftejorg TZ-89, Article No. TE20A299 ................................................ 25
Spare Part Kit for Toftejorg TZ-89LF, Article No. TE20A297 ............................................ 25
Service Kit for Toftejorg TZ-89, Article No. TE20A285...................................................... 25
Service Kit for Toftejorg TZ-89LF, Article No. TE20A286 ................................................. 25
Tools ................................................................................................................................. 25

Instruction Manual, Toftejorg TZ-89 Page 3
IM-TE91A500-EN4
Introduction
This manual has been prepared as a guide for the persons who will be operating and maintaining your tank
cleaning machine.
The key to long life for your tank cleaning machine is a carefully planned system for preventive maintenance;
you must appreciate that a tank cleaning machine which has a rough and dirty job to do will need more
frequent attention than one working under ideal conditions.
Note: Get the best and most economical performance from your tank cleaning machine. Insufficient
preventive maintenance means poor performance, unscheduled stops, shorter lifetime and extra costs. Good
preventive maintenance on the contrary means good performance, no unscheduled stops and superior total
economy.
The information in this manual is simple to follow, but should you require further assistance, our Customer
Service Department and world-wide net of Distributors will be pleased to help you. Please quote the type,
article and serial number with all your enquiries; this will help us to help you. The type, article and serial
number are placed on the gear house of the tank cleaning machine.
Note: The illustrations and specifications contained in this manual were effective at the date of printing.
However, as continuous improvements are our policy, we reserve the right to alter or modify any unit
specification on any product without prior notice or any obligation.

Page 4 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Intended Use
It is to be verified by the end-user:
- that the tank cleaning machine is in conformity with respect to tank, vessel or container size in
which it will be used.
- that the construction materials (both metallic and non-metallic) are compatibility with product,
flushing media, cleaning media, temperatures and pressure under the intended use.
Patents and trademarks
This Instruction Manual is published by Alfa Laval Kolding A/S without any warranty. Improvements and
changes to this Instruction Manual may at any time be made by Alfa Laval Kolding A/S without prior notice.
Such changes will, however, be incorporated in new editions of this Instruction Manual.
© Alfa Laval Kolding A/S. All rights reserved.
The Alfa Laval logotype is a trademark or a registered trademark of Alfa Laval Corporate AB. "Toftejorg" is a
trademark or registered trademark of Alfa Laval Kolding A/S. Other products or company names mentioned
herein may be the trademarks of their respective owners. Any rights not expressly granted herein are
reserved
© Alfa Laval Corporate AB
This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing
intellectual property and thereto related rights. It is the responsibility of the user of this document to comply
with all applicable intellectual property laws. Without limiting any rights related to this document, no part of
this document may be copied, reproduced or transmitted in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of
Alfa Laval Corporate AB. Alfa Laval Corporate AB will enforce its rights related to this document to the fullest
extent of the law, including the seeking of criminal prosecution.

Instruction Manual, Toftejorg TZ-89 Page 5
IM-TE91A500-EN4
General Description
The Toftejorg TZ-89 is a media driven and media lubricated tank cleaning machine. No lubricating
substances such as oil or grease are used. All materials are selected for contact with food.
Functioning
The flow of the cleaning fluid passes through a guide
and a turbine, which accordingly is set into rotation.
Through a gear set and a driver tube, the turbine
rotation is transmitted to the Cleaner Head.
The 90O Angle gear in the Cleaner Head transmits the
rotation from the gear unit to a horizontal rotation of
the Cleaner Head body and a vertical rotation of the
Nozzle head.
The combined motion of the Cleaner head and the
Nozzle head ensures a fully indexed tank cleaning
coverage. After 5 1/8 (for 2 nozzle version: 10 1/4)
revolutions of the Nozzle head, corresponding to 4 7/8
(for 2 nozzle version: 9 3/4) revolutions of the cleaner
head, a coarse cleaning pattern is laid out on the tank
surface and the first cycle has been made. During the
following cycles, this pattern is repeated 7 (for 2
nozzle version: 3) times, each of which is displaced
and the pattern gradually becomes more dense. After
8 (for 2 nozzle version: 4) cycles - a total of 41
revolutions of the Nozzle head (39 revolutions of the
Cleaner head), a complete cleaning pattern has been
laid out, and the first pattern is repeated.

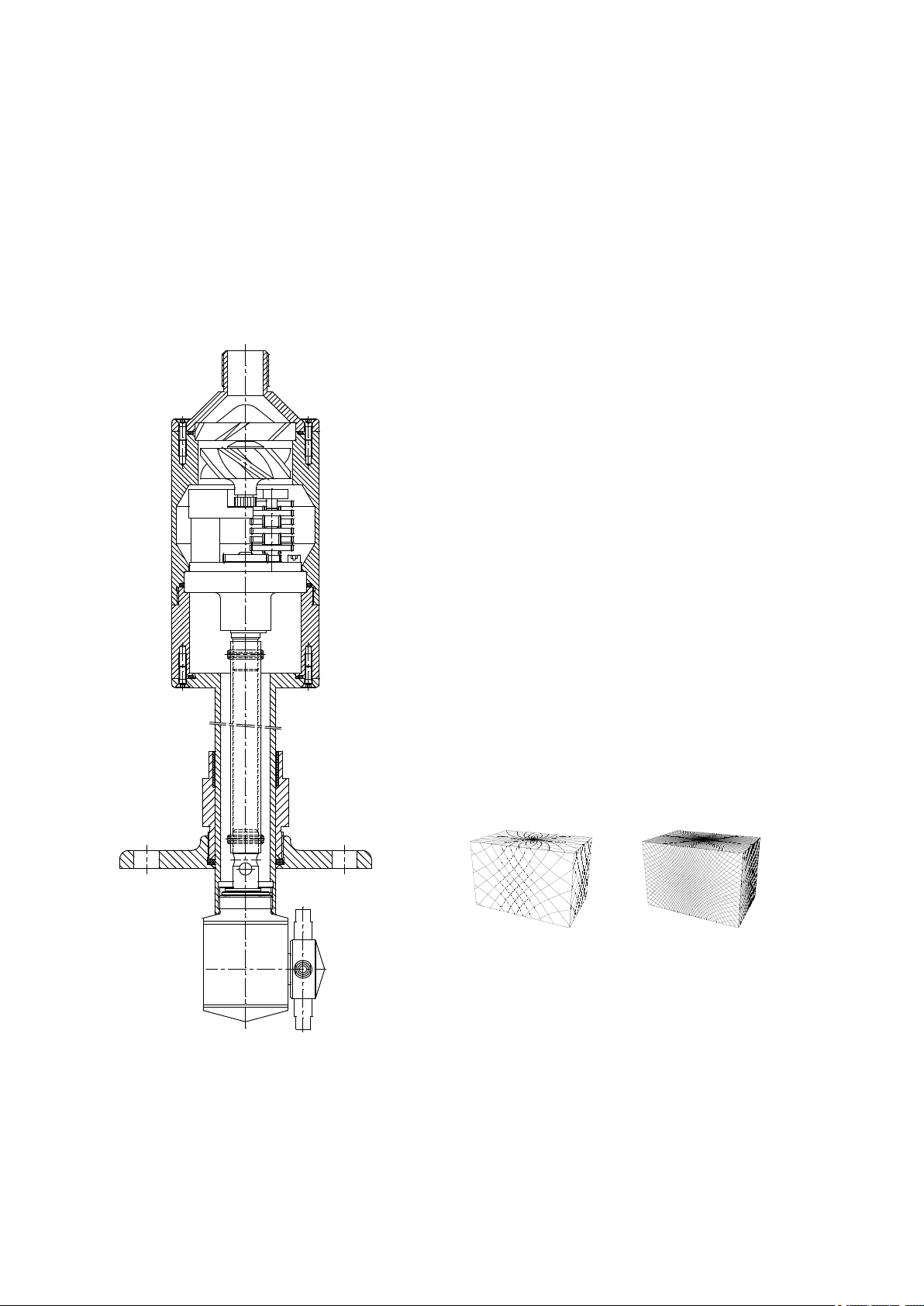

A complete cleaning pattern is illustrated below for a
square tank with the machine placed in the centre:
1. Cycle
Complete pattern

Page 6 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
General Description (continued)
Standard Configurations
Machine
Article No.
Inlet connection
Tank Connections
Length
TJ TZ-89
TE20A000
3/4" BSP
50ND6 DIN 2501
1020 mm
TJ TZ-89
TE20A003
1” Clamp
3” Clamp
1020 mm
TJ TZ-89L
TE20A004
3/4" BSP
50ND6 DIN 2501
1020 mm
TJ TZ-89L
TE20A006
1” Clamp
3” Clamp
1020 mm
TJ TZ-89L
=
Standard version 4x4 mm nozzles
TJ TZ-89L
=
"Low flow" 2x2.5 mm nozzles
Toftejorg TZ-89L is designed for small tanks, cleaning with low flow, fast rotation and has only 2 nozzles.

Instruction Manual, Toftejorg TZ-89 Page 7
IM-TE91A500-EN4
General Description (continued)
Options
Inlet
Tank
Machine
Article No.
Connection
Connection
Length
TJ TZ-89
TE20A030
3/4"BSP
50ND6 DIN
350 mm
TJ TZ-89
TE20A031
3/4"BSP
50ND6 DIN
500 mm
TJ TZ-89
TE20A032
3/4"BSP
50ND6 DIN
750 mm
TJ TZ-89
TE20A033
3/4"BSP
50ND6 DIN
1270 mm
TJ TZ-89
TE20A034
3/4"BSP
50ND6 DIN
1500 mm
TJ TZ-89
TE20A002
3/4"NPT
3" ANSI
1020 mm
TJ TZ-89
TE20A040
3/4"NPT
3" ANSI
350 mm
TJ TZ-89
TE20A041
3/4"NPT
3" ANSI
500 mm
TJ TZ-89
TE20A042
3/4"NPT
3" ANSI
750 mm
TJ TZ-89
TE20A043
3/4"NPT
3" ANSI
1270 mm
TJ TZ-89
TE20A044
3/4"NPT
3" ANSI
1500 mm
TJ TZ-89
TE20A050
1” Clamp
3" clamp
350 mm
TJ TZ-89
TE20A051
1” Clamp
3" clamp
500 mm
TJ TZ-89
TE20A052
1” Clamp
3" clamp
750 mm
TJ TZ-89
TE20A053
1” Clamp
3" clamp
1270 mm
TJ TZ-89
TE20A054
1” Clamp
3" clamp
1500 mm
TJ TZ-89L
TE20A060
3/4"BSP
50ND6 DIN
350 mm
TJ TZ-89L
TE20A061
3/4"BSP
50ND6 DIN
500 mm
TJ TZ-89L
TE20A062
3/4"BSP
50ND6 DIN
750 mm
TJ TZ-89L
TE20A063
3/4"BSP
50ND6 DIN
1270 mm
TJ TZ-89L
TE20A064
3/4"BSP
50ND6 DIN
1500 mm
TJ TZ-89L
TE20A005
3/4"NPT
3" ANSI
1020 mm
TJ TZ-89L
TE20A070
3/4"NPT
3" ANSI
350 mm
TJ TZ-89L
TE20A071
3/4"NPT
3" ANSI
500 mm
TJ TZ-89L
TE20A072
3/4"NPT
3" ANSI
750 mm
TJ TZ-89L
TE20A073
3/4"NPT
3" ANSI
1270 mm
TJ TZ-89L
TE20A074
3/4"NPT
3" ANSI
1500 mm
TJ TZ-89L
TE20A080
1” Clamp
3" clamp
350 mm
TJ TZ-89L
TE20A081
1” Clamp
3" clamp
500 mm
TJ TZ-89L
TE20A082
1” Clamp
3" clamp
750 mm
TJ TZ-89L
TE20A083
1” Clamp
3" clamp
1270 mm
TJ TZ-89L
TE20A084
1” Clamp
3" clamp
1500 mm
Special version with PEEK Guide and Turbine Wheel: TE20AXXX-15.

Page 8 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Technical Data
Weight of machine
:
7,0 kgs (15,4 lb)
Working pressure
:
2-7 bar (30-100 psi)
Materials
:
AISI 316L, AISI 316, SAF2205 (UNS 31803) PEEK,
PTFE, FEP/Silicone
Principal Dimensions in mm
Minimum diameter of hole
in tank for cleaning head
to pass through:

Instruction Manual, Toftejorg TZ-89 Page 9
IM-TE91A500-EN4
Technical Data (continued)
Performance Data
Flow Rate 1
Capacity
Throw length
Note: Throw lengths are measured as horizontal
throw length at static condition. Vertical throw
length upwards is approx. 1/3 less.
Effective throw length is defined as impact centre
of jet 250 mm water column (50 lbs/sq.ft).
Effective throw length varies depending on jet
transverse speed over surface, substance to be
removed, cleaning procedure and agent.
The inlet pressure has been taken immediately
before the machine inlet. In order to achieve the
performance indicated in the curves, the pressure
drop in the supply lines between pump and
machine must be taken into consideration.
Cleaning Time, Complete Pattern

Page 10 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Installation and Normal Operation
General Installation Instructions
The Toftejorg TZ-89 is designed to be installed in a vertical upright position, however, the machine can
operate horizontally or in any desired angle position.
The machine is equipped with a sliding and locking type flange connection, permitting to adjust the
protruding of the cleaning head into the tank from 65 - 766 mm for the standard configuration. For the
optional lengths, the max. protuding varies with the length.
It is recommended to install a filter with mesh size 250 µm (0,01") in the supply line in order to avoid
particles, scale, etc. from clogging inside the machine. It is essential to avoid fine solid particles, such as fine
sand, in the cleaning fluid as they will increase wear considerably. This is particular important in case of
recirculation.
It is recommended that the fluid valve fitted is of a type that prevents hydraulic shocks, which may cause
severe damage to the entire installation.
Before installation, all supply lines and valves must be flushed to remove remains of welding electrodes,
grinding dust, scale and other foreign matter.
Note: Do not try to turn Nozzle head by hand, since this will damage the Gear. Nozzle head can be turned
by blowing air from an air pistol through the inlet connection.
Note: The machine shall be installed in accordance with national regulations for safety and other relevant
regulations and standards. Precautions shall be made to prevent starting of the cleaning operation, while
personnel are inside the tank or otherwise can be hit by jets from the nozzles. In EU-countries the complete
system must fulfil the EU-machine directive and shall be CE-marked.
Warning:
If the machine is used in potential explosive atmospheres, tapes or joint sealing compounds
which are electrical insulators must not be used on threads or joints. In addition, connecting
pipe work, must be electrically conductive and earthed to the tank structure.
This is essential to avoid the build-up of static electricity on the machine.

Instruction Manual, Toftejorg TZ-89 Page 11
IM-TE91A500-EN4
Installation and Normal Operation (continued)
Normal Operation
Pressure
In order to protect the machine, your pipe and valve installation, etc. against damage:
Avoid hydraulic shocks! Put on pressure gradually!
Recommended working pressure: 3 - 6 bar (44 - 87 psi). Too high pressure will increase consumption of
wear parts.
Cleaning Media
Use only cleaning fluids, which are compatible with Stainless Steel AISI 316/316L, SAF2205, FEP/Silicone,
PEEK and PTFE. Please note that PEEK is not resistant to concentrated sulfuric acid. Normal detergents,
moderate solutions of acids and alkalics are acceptable as well as a number of solvents at ambient
temperature during cleaning. Aggressive chemicals, excessive concentrations of chemicals at elevated
temperatures as well as certain dissolvents and hydrochlorides should be avoided. If you are in doubt,
contact your local Alfa Laval Tank Equipment sales office.
After-Use Cleaning
Cleaning solutions must never be allowed to dry out in the machine, due to possible "salting out" or "scaling"
of the cleaning ingredient. Therefore, the machine should always be flushed with fresh water after it has
been used. The machine is self-draining.

Page 12 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Preventive Maintenance
In order to keep your tank cleaning machine servicing you as an efficient tool in your tank cleaning
operations, it is essential to maintain its high performance by following a simple preventive maintenance
programme.
Good maintenance is careful and regular attention!
The following recommended preventive maintenance is based on tank cleaning machines working in
average conditions. However, you will appreciate that a tank cleaning machine, which has a rough and dirty
job to do, will need more frequent attention than one working in ideal conditions. We trust that you will adjust
your maintenance programme to suit.
Recommended Preventive Maintenance
Every 300 work hours disassemble the machine according to the instruction "Dismantling and Assembling"
(page 14-19).
Clean material build-up and deposits from the internal parts. Inspect and clean the individual parts with
Scotch-brite, S-Ultrafine, or chemical cleaner. Do not wipe with cotton waste, use always a non-fluffing cloth.
Special attention must be directed to the wear parts. To check which parts that are wear parts, please see
Reference Lists of Parts, page 23-24. Replace worn or damaged parts.
When holding components in a vice, use lead or aluminium jaws or jaws made from other soft material. If it is
necessary to knock any components, use a plastic hammer.
Never place parts directly on dirty floors or tables. Always place the parts on a piece of cloth, cardboard, etc.
Always perform all assembly/disassembly steps in the order described in this manual. Never assemble
components without previous cleaning. Work in a well-lighted work area.
Note: Recommended tightening torque for all screws: 4-5 Nm.

Instruction Manual, Toftejorg TZ-89 Page 13
IM-TE91A500-EN4
- Blank -

Page 14 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Dismantling and Assembling
Main Assembly
Important: The Cleaner head must never be unscrewed before the Gear unit has been taken out.
Dismantling
1. Remove Screws (pos. 1). Lift off Inlet connection (pos. 2)
2. Lift off Guide (pos. 3) and remove O-ring (pos. 4)
3. Unscrew Gear house (pos. 5). Lift off the complete Gear unit (pos. 7) and remove O-ring (pos. 6)
4. Lift out the Driver tube (pos. 12). Unscrew Cleaner head (pos. 16) with a hook-spanner
5. After unscrewing the Pointed screw (pos. 13.2), unscrew Tank Connection (pos. 14) by turning Flange
guide (pos. 13) and holding (pos.14)
6. Remove (pos. 14), Flange guide (pos. 13) and O-ring (pos. 15)
7. Remove screws (pos. 1), take off Gear house lower part (pos. 8) and O-ring (pos. 4)
For normal inspection and repair only steps 4.-7. are necessary.
Reassembling
1. Place the O-ring (pos. 4) in the O-ring groove on Gear house lower part (pos. 8). Mount Gear house
lower part on Centre tube (pos. 11)
2. Mount Screws (pos. 1) and tighten crosswise.
3. Slide on Flange guide (pos. 13), O-ring (pos. 15), and Tank connection (pos. 14) to Centre Tube (pos.
11). Connect Flange guide and Flange, and tighten. Tighten the Pointed screw (pos. 13.2).
4. Insert Driver tube (pos. 12) in Centre tube (pos. 11). Connect Driver tube and Cleaner head (pos. 16),
screw on Cleaner head and tighten with hook-spanner.
5. Mount Gear unit (pos. 7). Make sure that Tubular rivet meshes into slot in Driver tube.
6. Place O-ring (pos. 6), mount Gear house (pos. 5) and tighten O-ring (pos. 4), Guide (pos. 3) and Inlet
Connection (pos. 2).
7. Mount Screws (pos. 1) and tighten crosswise.

Instruction Manual, Toftejorg TZ-89 Page 15
IM-TE91A500-EN4
Dismantling and Assembling (continued)
Main Assembly (continued)

Page 16 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Dismantling and Assembling (continued)
Gear Unit
Dismantling
1. Screw off Turbine shaft (pos. 7.1) and take off Turbine wheel (pos. 7.2)
2. Unscrew Screw (pos. 7.3) and lift off Transverse (pos. 7.4)
3. Remove Distance bush (pos. 7.5), Gear wheel (pos. 7.6) and Gear wheel (pos. 7.7)
4. Unscrew the Screws (pos. 7.13) and lift off Gear frame (pos. 7.14)
5. Carefully knock out Tubular Rivet (pos. 7.12)
6. Take off the Circlip (pos. 7.16)
7. Push out Drive shaft (pos. 7.11) with Bearing bush (pos. 7.10) and Traction wheel (pos. 7.9)
8. Unscrew Traction wheel (pos. 7.9) Note: Left hand thread and remove Bearing bush (pos. 7.10)
Reassembling
1. Place Bearing bush (pos. 7.10) on Drive shaft (pos. 7.11) and screw on Traction wheel (pos. 7.9) (Left
hand thread).
2. Mount the assembled Drive shaft in Bearing plate (pos. 7.15)
3. Mount the Circlip (pos. 7.16) on the Bearing bush (pos. 7.10)
4. Mount Tubular Rivet (pos. 7.12)
5. Mount Gear frame (pos. 7.14) and secure with Screws (pos. 7.13)
6. Mount Distance bush (pos. 7.5) on the one shaft and Stainless Steel Gear wheel (pos. 7.7) on the other
(N/A in Toftejorg TZ-89L). Mount Gear wheels (pos. 7.6)
7. Mount Transverse (pos. 7.4) and secure with Screw (pos. 7.3), while holding Transverse.
8. Mount Turbine wheel (pos. 7.2) and Turbine shaft (pos. 7.1). Tighten Turbine shaft with a screwdriver.

Instruction Manual, Toftejorg TZ-89 Page 17
IM-TE91A500-EN4
Dismantling and Assembling (continued)
Gear Unit (continued)

Page 18 Instruction Manual, Toftejorg TZ-89
IM-TE91A500-EN4
Dismantling and Assembling (continued)
Cleaner Head
Dismantling
1. Knock out Tubular Rivet (pos. 16.12)
2. Unscrew the Nozzle head (pos. 16.11) with Nozzles (pos. 16.10). Insert a screwdriver inside the shaft
for Cleaner Head (pos. 16.18) into hole in Rotor (pos. 16.17), turn the Nozzle Head (pos. 16.11) anti-
clockwise.
3. Remove Circlip (pos. 16.1)
4. Remove Bearing washer (pos. 16.2). Take out the Balls (pos. 16.3)
5. Lift off Stator (pos. 16.6) including the Bearing washer (pos. 16.4) and the Bush for stator (pos. 16.5)
6. Withdraw the Bearing washer (pos. 16.4) and the Bush for stator (pos. 16.5)
7. Lift off Sleeve (pos. 16.8). Remove the two Bushes (pos. 16.7)
8. Unscrew Screw (pos. 16.13), remove Spring washer (pos. 16.14) and Washer (pos. 16.15). Insert a
screwdriver inside the shaft for Cleaner head (pos. 16.18) into hole in Rotor (pos. 16.17) to avoid
rotation of Rotor.
9. Remove Rotor (pos. 16.17). If worn, replace the two Bushes (pos. 16.16)
Important: The two Bushes are press fitted and held by barbs. They will be damaged by withdrawing.
Only withdraw Bushes if they are to be replaced.
Reassembling
1. Mount the new Bushes (pos. 16.16) in shaft for Cleaner head (pos. 16.18)
2. Mount Rotor (pos. 16.17), Washer (pos. 16.15), Spring washer (pos. 16.14) and Screw (pos. 16.13) and
tighten. To secure Rotor against rotation insert a screwdriver through shaft for Cleaner head into a hole
in the rotor.
3. Mount the two Bushes (pos. 16.7)
4. Locate Sleeve on shaft for Cleaner head (pos. 16.18)
5. Mount the Bush for stator (pos. 16.5) and Bearing washer (pos. 16.4) in the Stator (pos. 16.6)
6. Mount Stator (pos. 16.6)
7. Place the Balls (pos. 16.3) in the Stator (pos. 16.6)
8. Mount Bearing washer (pos. 16.4) and Circlip (pos. 16.1)
9. Screw on Nozzle head (pos. 16.11) and tighten. To secure Rotor against rotation, insert a screwdriver
through shaft for Cleaner head into a hole in the Rotor.
10. Mount Tubular Rivet (pos. 16.12).
