Alfalaval Toftejorg SaniMidget SB User manual

Covering: Standard Machines
3-A standard version (clip-on & weld-on). UltraPure standard version (clip-on & weld-on)
Machines delivered with ATEX Certification in accordance with Directive 94/9/EC valid until 2016-04-19/
Directive 2014/34/EU valid from 2016-04-20. Q-doc - Equipment Doc (3.1 Inspection Certificate - EN 10204).
Q-doc - Qualification Doc (Qualification Documentation, FAT/SAT)
TE91A720-EN9. First published: 2009-09
ESE01844-EN9 2016-01
Original manual
Instruction Manual
Alfa Laval Toftejorg™ SaniMidget SB, SaniMagnum SB & SaniMega SB

Table of contents
The information herein is correct at the time of issue but may be subject to change without prior notice
1. EC/EU Declaration of Conformity .................................................................. 5
2. Safety .................................................................................................... 6
2.1. Important information ............................................................................. 6
2.2. Warning signs ..................................................................................... 6
3. Introduction ............................................................................................ 7
3.1. Introduction ........................................................................................ 7
3.2. Intended Use ...................................................................................... 7
3.3. Patents and Trademarks ......................................................................... 8
3.4. Quality System .................................................................................... 8
3.5. Marking ............................................................................................ 8
3.6. ATEX Marking ..................................................................................... 9
4. Installation .............................................................................................. 10
4.1. General Description ............................................................................... 10
4.2. Functioning ........................................................................................ 10
4.3. General Installation Instructions ................................................................. 11
4.4. General Safety Precautions ...................................................................... 13
4.5. Special Conditions for Safe Use in Accordance with ATEX Certification .................... 13
4.6. Installation ......................................................................................... 14
4.7. Assembly .......................................................................................... 15
5. Operation ............................................................................................... 18
5.1. Normal Operation ................................................................................. 18
6. Maintenance ........................................................................................... 19
6.1. Recommended Service Intervals ................................................................ 19
6.2. Service and Repair of ATEX Approved Machines .............................................. 20
6.3. Service and Repair of Machines Ordered with Alfa Laval Q-doc ............................. 20
6.4. Dissassembly ...................................................................................... 21
6.5. Reassembly ....................................................................................... 21
7. Technical Data ......................................................................................... 22
7.1. Alfa Laval Toftejorg SaniMidget SB .............................................................. 22
7.2. Alfa Laval Toftejorg SaniMagnum SB ........................................................... 24
7.3. Alfa Laval Toftejorg SaniMega SB and SaniMega SB HF ..................................... 26
8. Parts Lists and Drawing .............................................................................. 28
8.1. Part lists for Alfa Laval Toftejorg SaniMxxxx SB ................................................ 28
8.2. Part lists for Alfa Laval Toftejorg SaniMidget SB UltraPure ................................... 28
9. Product Programme .................................................................................. 29
9.1. Standard Configurations ......................................................................... 29
9.2. Available add-ons ................................................................................. 30
10. General Information ................................................................................... 31
10.1.Service & Repair .................................................................................. 31
10.2.How to contact Alfa Laval Tank Equipment .................................................... 31
11. Miscellaneous .......................................................................................... 32
11.1.Declaration of Conformity with EN 10204 ...................................................... 32
11.2.Declaration of Compliance for Food Contact Materials ....................................... 34
3

Table of contents
The information herein is correct at the time of issue but may be subject to change without prior notice
11.3.EHEDG Certificate of Compliance .............................................................. 35
11.4.ATEX - Special Conditions for Safe Use ........................................................ 36
4

1 EC/EU Declaration of Conformity
The Designated Company
Alfa Laval Kolding A/S
Company Name
Albuen 31, DK-6000 Kolding, Denmark
Address
[phone]
Phone No.
hereby declare that
Tank Cleaning Machine Alfa Laval
Designation
Toftejorg SaniMidget SB, SaniMagnum SB & SaniMega SB
Type
From serial number 2015-0001 to 2030-99999
is in conformity with the following directive with amendments:
Machinery Directive 2006/42/EC
DS/EN ISO 12100:2011
The Pressure Directive 97/23/EC
According to its own volume and the rated pressure range, the product is regarded an Article 3, paragraph 3 Equipment
FDA 21CFR§177
Regulation (EC) 1935/2004
Equipment Explosive Atmospheres (ATEX) Directive 94/9/EC, valid until 2016-04-19
Equipment Explosive Atmospheres (ATEX) Directive 2014/34/EU valid from 2016-04-20
(Applicable for machine certified as category 1 and 2 component, see machine engraving)
DS/EN 13463-1:2009, DS/EN 13463-5:2011
DS/EN ISO/IEC 80079-34:2011, Annex A, paragraph A.5.3 Rotating machines
EC Type Examination Certificate no. Baseefa10ATEX0187X
Marking: II 1 GD c T188ºCTamb0ºC to 150ºC
Baseefa Ltd., Certification body number 1180, Rockhead Business Park, Staden Lane, Buxton, Derbyshire SK17 9RZ, United Kingdom
The person authorised to compile the technical file is the signer of this document
Global Product Quality Manager
Pumps, Valves, Fittings and Tank Equipment Lars Kruse Andersen
Title Name Signature
ATEX Responsible Engineer Denniz Høxbroe
Title Name Signature
Kolding 2016-01-22
Place Date
(This Declaration of Conformity replaces Declaration of Conformity dated 2016-01-01)
5

2 Safety
Unsafe practices and other important information are emphasized in this manual.
Warnings are emphasized by means of special signs.
Always read the manual before using the tank cleaning machine!
2.1 Important information
WARNING
Indicates that special procedures must be followed to avoid serious personal injury.
CAUTION
Indicates that special procedures must be followed to avoid damage to the tank cleaning machine
NOTE
Indicates important information to simplify or clarify procedures.
2.2 Warning signs
General warning:
6

3 Introduction
3.1 Introduction
This manual has been prepared as a guide for installing, operating and maintaining your Alfa Laval Toftejorg Rotary Spray Head
tank cleaning machine. Should you require further assistance, our Technical Sales Support department and worldwide net of
sales offices are pleased to help you. Please quote the type, article and serial numbers with all of your enquiries; this helps us to
help you.
This manual covers the Alfa Laval Alfa Laval Toftejorg SaniMxxxx SB (Slide Bearing) series that consists of four main product
series; the Alfa Laval Toftejorg SaniMidget SB, the Alfa Laval Toftejorg SaniMidget SB UltraPure, the Alfa Laval Toftejorg SaniMag-
num SB and the Alfa Laval Toftejorg SaniMega SB. All versions are similar in design. Differences are in material selection for the
rotor and dimensions.
The Alfa Laval Toftejorg SaniMidget SB UltraPure is equipped with a rotor made from USP Class VI certified material and the Alfa
Laval Toftejorg SaniMxxxx SB is equipped with a rotor made from material that meets the 3-A Sanitary Standard 20-25. The
USP Class VI polymer used has not been part of the 3-A Third Party Verification (TPV). Consequently the Alfa Laval Toftejorg
SaniMidget SB UltraPure has not been verified to meet 3-A Sanitary Standards.
Important
information:
Before installing the machine and setting it into operation, carefully read the General Installation Instructions
(page 11), the special conditions for safe use in accordance with ATEX Certification Directive 94/9/EC valid until
2016-04-19/Directive 2014/34/EU valid from 2016-04-20 (page 13) and the General Safety Precautions (page
13) and take all necessary precautions according to your application and local regulations.
NOTE
The illustrations and specifications contained in this manual were effective at the date of printing. However, as continuous
improvements are our policy, we reserve the right to alter or modify any unit specification on any product without prior notice or
any obligation
The English version of the instruction manual is the original manual. We make reservations in regard to possible mistranslations in
language versions of the instruction manual. In case of doubt, the English version of the instruction manual applies.
3.2 Intended Use
End-user should verify:
- that the tank cleaning machine is in conformity with respect to tank, vessel or container size in which it is used.
- that the construction materials (both metallic and non-metallic) are compatibility with product, flushing media, cleaning
media, temperatures and pressure under the intended use.
Important
information:
Liquid inlet pressure:Max.4bar.
Do not steam: Steaming through the Rotary Spray Head may result in excessive high rotation speed of the
cleaner and cause severe wear of the ball bearing and/or damage to the cleaner.
See General Installation Instructions on page 11 of this manual for information on recommended installation position.
7

3 Introduction
3.3 Patents and Trademarks
This Instruction Manual is published by Alfa Laval Kolding A/S without any warranty. Improvements and changes to this
Instruction Manual may at any time be made by Alfa Laval Kolding A/S without prior notice. Such changes will, however,
be incorporated in new editions of this Instruction Manual.
Alfa Laval, Kolding A/S. All rights reserved.
The Alfa Laval logotype is a trademark or a registered trademark of Alfa Laval Corporate AB. "Toftejorg" is a trademark or
registered trademark of Alfa Laval Kolding A/S. The Alfa Laval Toftejorg™ SaniMxxx SB series product has patent in the US (US
8.137.481). Other products or company names mentioned herein may be the trademarks of their respective owners. Any
rights not expressly granted herein are reserved.
3.4 Quality System
The Alfa Laval Toftejorg SaniMxxxx SB and Alfa Laval Toftejorg SaniMidget SB UltraPure are designed to meet 3-A Sanitary
Standards as well as the guidelines of the European Hygienic Design Group (EHEDG) and thus comply with requirements to
design, materials, finish and documentation.
Third Party Verification (TPV) shows that the Alfa Laval Toftejorg SaniMxxxx SB meets the requirements of the 3-A Sanitary
Standard 78-01 and EHEDG certificate of cleanability according to EHEDG doc. 2 shows the machines self cleanability
features. All machines are produced according to Alfa Laval Kolding’s ISO 9001 international Standard certified quality system.
3.5 Marking
Alfa Laval tank cleaning machines are all marked to allow recognition of machine type, machine name, Serial number and
manufacturing address. The marking is placed on the body of the tank cleaning machine.
4114-0012
4114-0013
8

3 Introduction

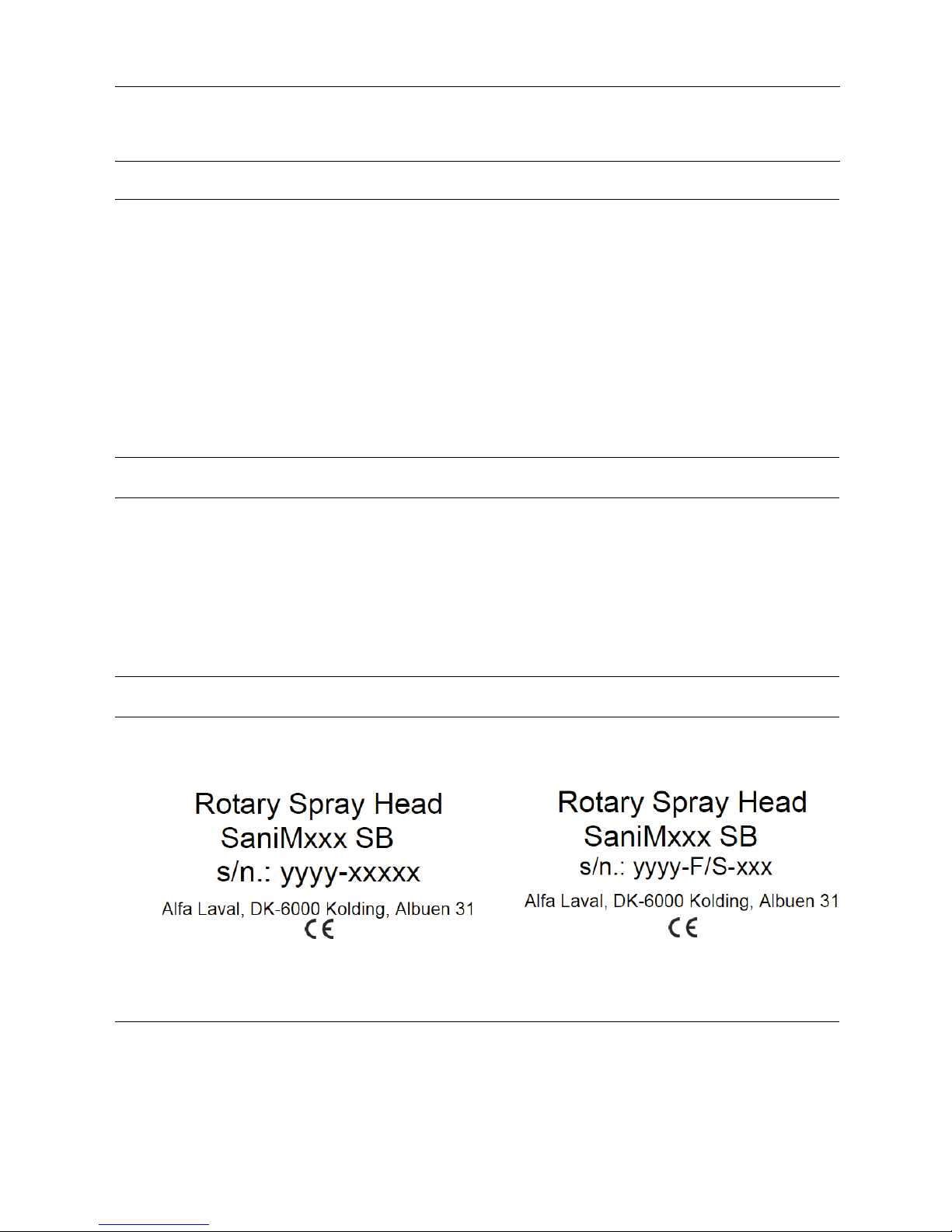

3.6 ATEX Marking
Alfa Laval tank cleaning machines are all marked to allow recognition of machine type, machine name, Serial number and
manufacturing address. The marking is placed on the body of the tank cleaning machine.
4114-0014 4114-0015
Serial number explanation
Machines supplied with or without normal documentation:
yyyy-xxxxx: serial number
yyyy: year
xxxxx: 5 digit sequential number
Serial number explanation
Machines supplied with Qualification Documentation package incl. FAT-SAT
yyyy-F/S-xxx: serial number
yyyy: year
xxxx: 3digit sequential number
Changes to the machines are not allowed without approval by the person responsible for the ATEX certification at Alfa Laval
Tank Equipment. If changes are made – or spare parts other than Alfa Laval original spare parts are used - the EC Type
Examination certification (the ATEX Directive) is no longer valid.
Important ATEX
information:
See also page 20 ff regarding special conditions for repair of ATEX certified machines.
9

4 Installation
4.1 General Description
The Alfa Laval Toftejorg SaniMxxxx SB series are tank cleaning machines intended for industrial use in closed tanks, vessels
and containers under typical CIP procedures. They have a broad range of application areas within pharmaceutical, food,
dairy and chemical industries.
The Alfa Laval Toftejorg SaniMxxxx SB is a sanitary cleaning device of the rotating fan spray type for permanent installation
that provides either a 270° upward cleaning pattern or a 360° cleaning pattern. The machine is designed to be completely
self-cleaning as proven by the EHEDG test method. If Installed according to the description on page 11, the Alfa Laval Toftejorg
SaniMxxxx SB is completely self-draining in the shown position and completely inspectable. All product contact surfaces are
AISI 316L stainless steel or polymer material that conforms to FDA21CFR§177 and EU 10/2011. For the Alfa Laval Toftejorg
SaniMxxxx SB plastic material that meets the requirements of 3-A Sanitary Standard 20-25 is used. For the Alfa Laval Toftejorg
SaniMidget SB/UltraPure a USP Class VI plastic material is used.
The unique design is totally free of weldings, threads, screws and press-fits to facilitate self-cleanability. The cleaning device
is lubricated by the cleaning media. No oil, grease or other lubricants are used.
The Alfa Laval Toftejorg SaniMxxxx SB is designed for use in pharmaceutical, biotechnological, food and dairy processing
applications. It may be used in reactors, mixing/processing tanks, spray dryers and other process equipment with a volume
from 7.5-220 m³ (2-60,000 US gallons)*. For larger volumes, multiple Alfa Laval Toftejorg SaniMxxxx SB’s may be applied.
* to comply with EU 10/2011 the minimum batch size should be considered. For more information see Declaration of
EU 10/2011 conformance page 34.
Application assistance and recommendations for optimal position is available.
4.2 Functioning
The flow of cleaning media comes through the down-pipe, flushes the connector and exists through the bearing surfaces, slots
and leakage passages. This causes the head of the Alfa Laval Toftejorg SaniMxxxx SB to rotate, with fans of water laid out in a
swirling pattern on the entire perimeter exposed to the spray pattern. This generates a vibrating impact in the impact pattern
and a dynamic cascading flow that covers all internal surfaces of the tank, vessel or reactor.
The Alfa Laval Toftejorg SaniMxxxx SB is (as the rest of the UltraPure and Sani portfolio) designed according to GMP – compliant
materials, self-cleaning and drainable. The self-cleaning featureofthedeviceisduetotheuniquedesignthatincludescleaning
of the downpipe. The device is designed with no hindrance to gravity draining. The patented easy assembly and disassembly of
the device allows for only one clip to be used and without any press fits. Upon removing the clip this ensures that no parts can
fall into the tank (the Alfa Laval Toftejorg SaniMxxxx SB must be held in one hand and the clip in the other hand).
Spray pattern
360°270°up
10

4 Installation
4.3 General Installation Instructions
It is recommended to install a filter with mesh size 250 µm (0.01”) in the supply line to avoid particles, scale etc. from clogging
the inside of the cleaner. However, particles up to 0.8 mm can pass the cleaning slots in the rotor.
Before installation, all supply lines and valves must be thoroughly flushed to remove remains from welding, grinding dust,
scale and other foreign matter. During handling and installation handle the machine with care in order not to damage the
fine surface of the machine.
Randomly selected Alfa Laval Toftejorg SaniMxxxx SB machines are tested at the factory before shipping, in accordance
with “Test Requirements for SaniMxxxx SB”.
Note: The machine shall be installed in accordance with national regulations for safety and other relevant regulations and
standards. In EU-countries the complete system must fulfil the EU-Machinery Directive and depending of application, the
EU-Pressure Equipment Directive, the EU-ATEX Directive and other relevant Directives.
1Connector
2 Rotor
3Stator
4Clip
4114-0016
11

4 Installation

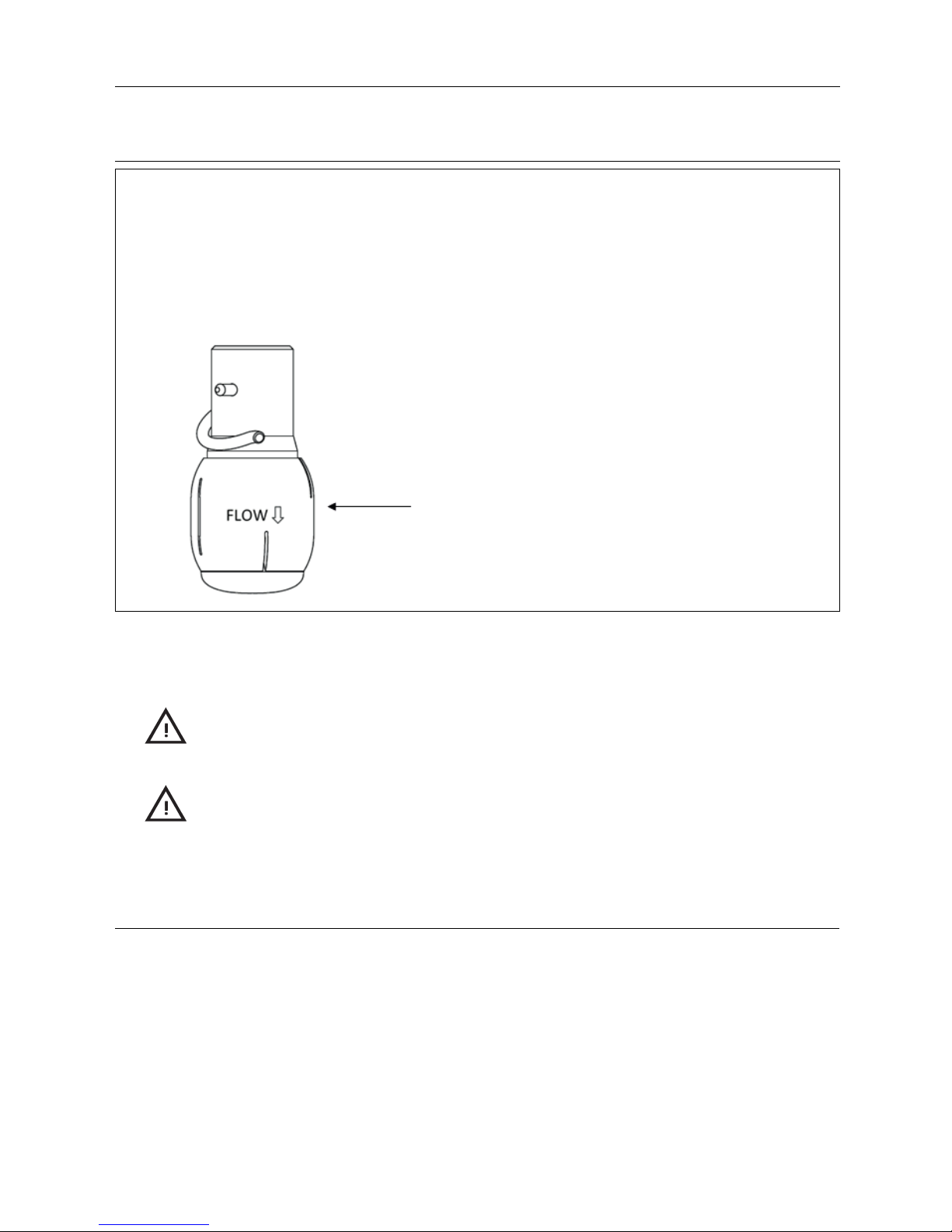

Note: Only valid for Alfa Laval Toftejorg SaniMidget SB:
Please note that when doing installation or re-assembly, the rotor must be placed correctly according to below drawing in
order to ensure normal operation.
The arrow on the rotor shows the flow direction.
Correct orientation of rotor
Note: Flow direction
4114-0017
Important
information:
Recommended installation position:
The Rotary Spray Head tank cleaning machine should be installed in vertical position (upright or upside
down). If the machine is installed in any angle to vertical, the life time may vary. If installing at an angle to
vertical, ensure that the clip cannot fall out by gravity. To maintain drainability, the device should not be
tilted more than 25° to vertical.
ATEX Warning If the machine is used in potential explosive atmospheres, tapes or joint sealing compounds which are
electrical insulators must not be used on threads or joints, unless an electrical connection is otherwise
established to ensure an effective earthing. In addition, connecting pipe work, must be electrically conductive
and earthed to the tank structure. The resistance between the nozzles and the tank structure should not
exceed 20,000 Ohm. This is essential to avoid the build-up of static electricity on the machine.
For further information see til IEC/TS 60079-32-1:2013, guidance and recommendations for the avoidance of
hazards due to static electricity.
12

4 Installation
4.4 General Safety Precautions
The Alfa Laval Toftejorg SaniMxxxx SB is intended for use inside a tank only, and must not be operated in open air or when the
tank is open.
Warning: Precautions shall be made to prevent starting the cleaning operation, while personnel are inside the tank or
otherwise can be hit by water jets from the cleaner head.
Warning: In case potentially explosive liquids are used, precautions should be taken against incidental creation of an
explosive mixture with oxygen in the tank atmosphere.
4.5 Special Conditions for Safe Use in Accordance with ATEX Certification
Directive 94/9/EC valid until 2016-04-19
Directive 2014/34/EU valid from 2016-04-20
ATEX Warning: The unit may be operated, in a hazardous area, only when filled with the process fluid.
ATEX Warning: Working temperature max.:
The maximum permitted process fluid temperature and ambient temperature when the machine is operating
is 95°C.
Ambient temperature:
When the machine is not operating, the maximum permitted ambient temperature is 150°C.
ATEX Warning: The maximum permitted process fluid pressure is 3 bar.
ATEX Warning: The unit must not be operated in a vessel having an enclosed volume of greater than 100m3.
Tanks larger than 100 m³:
To use Tank Cleaning Machines in tanks larger than 100m³ is possible under certain conditions.
It is necessary to know the current factors such as tank size, cleaning solvent and product.
Additives can be used in the cleaning solvent, or, for example, the tank can be filled with nitrogen. The basic
rules are described in the guide "IEC/TS 60079-32-1:2013“.
Following a guidance document such as "IEC/TS 60079-32-1:2013“ to establish safe use of machinery and
process is the users own responsibility and is not covered by the ATEX certification for this product.
In addition to the above mentioned precautions relating to the ATEX guidelines Directive 94/9/EC valid until
2016-04-19/Directive 2014/34/EU valid from 2016-04-20, the Safety Precautions on page 13 must be observed.
13

4 Installation
4.6 Installation
The Alfa Laval Toftejorg SaniMxxxx SB clip-on versions are installed on:
1” BPE US down pipe (16B102-xx or 16B132-xx)
1½” BPE US down pipe (16B152-xx or 16B182-xx or 17Bxxx-xx)
2” BPE US down pipe (18Bxxx-xx)
The Alfa Laval Toftejorg SaniMxxxx SB weld-on versions are installed on:
1” BPE US down pipe (16B203-xx or 16B233-xx)
1”ISO down pipe (16B202-xx or 16B232-xx)
DIN Range 1 Ø28 down pipe (16B102-xx or 16B132-xx)
1½” BPE US down pipe (17B203-x0 or 17B233-x0)
2” BPE US down pipe (18B203-x0, or 18B233-x0, or 18B263-x0, or 18B293-x0)
Correct down-pipe dimensions are important to ensure volumetric flow rates as provided in this manual. Clip-on hole centre for
1” must be less than 15 mm (0.59”) from the bottom end (recommended 13-15 mm – 0.51”-0.59”) of the down-pipe and for the
1½” and 2” less than 34 mm (1.33”) from the bottom end (recommended 30-34 mm – 1.18”-1.33”). For weld-on versions no
clip hole is needed – the connector (containing the clip hole) is welded on the end of the down pipe.
Important
information:
Alfa Laval Toftejorg SaniMxxxx SB weld-on versions:
To continue to meet the requirements of the 3-A Sanitary Standard 78-01, the weld-on version shall be
welded onto the end of a straight down pipe. This straight down pipe shall be connected to the supply
system in a dismountable manner. This shall allow for easy disassembly and reassembly (e.g. a sanitary
clamp coupling) to allow visual inspection (through the down pipe) of the inside of the down pipe and the
inside of the connector. Welding must be performed according to relevant 3-A Sanitary Standard.
14

4 Installation
4.7 Assembly
The Alfa Laval Toftejorg SaniMxxxx SB itself is assembled as follows (for the weld-on version, weld the connector onto the down
pipe as explained above):
1. Insert the cylindrical end of the stator (3) through the Rotor (2). If the logo is upside down then the rotor is wrongly orientated
(see below for correct orientation of logo).
Note: The arrow on the rotor shows the flow direction
4114-0018
2. The cylindrical end of the stator (3) is then inserted into the centre hole of the Connector (1). The stator can be inserted to its
full extent in one position only. When the stator is fully inserted into the connector, the rotor (2) will be fixed between the
bearing surface of the stator and connector
4114-0019
A
A: Down pipe if weld-on version
15

4 Installation

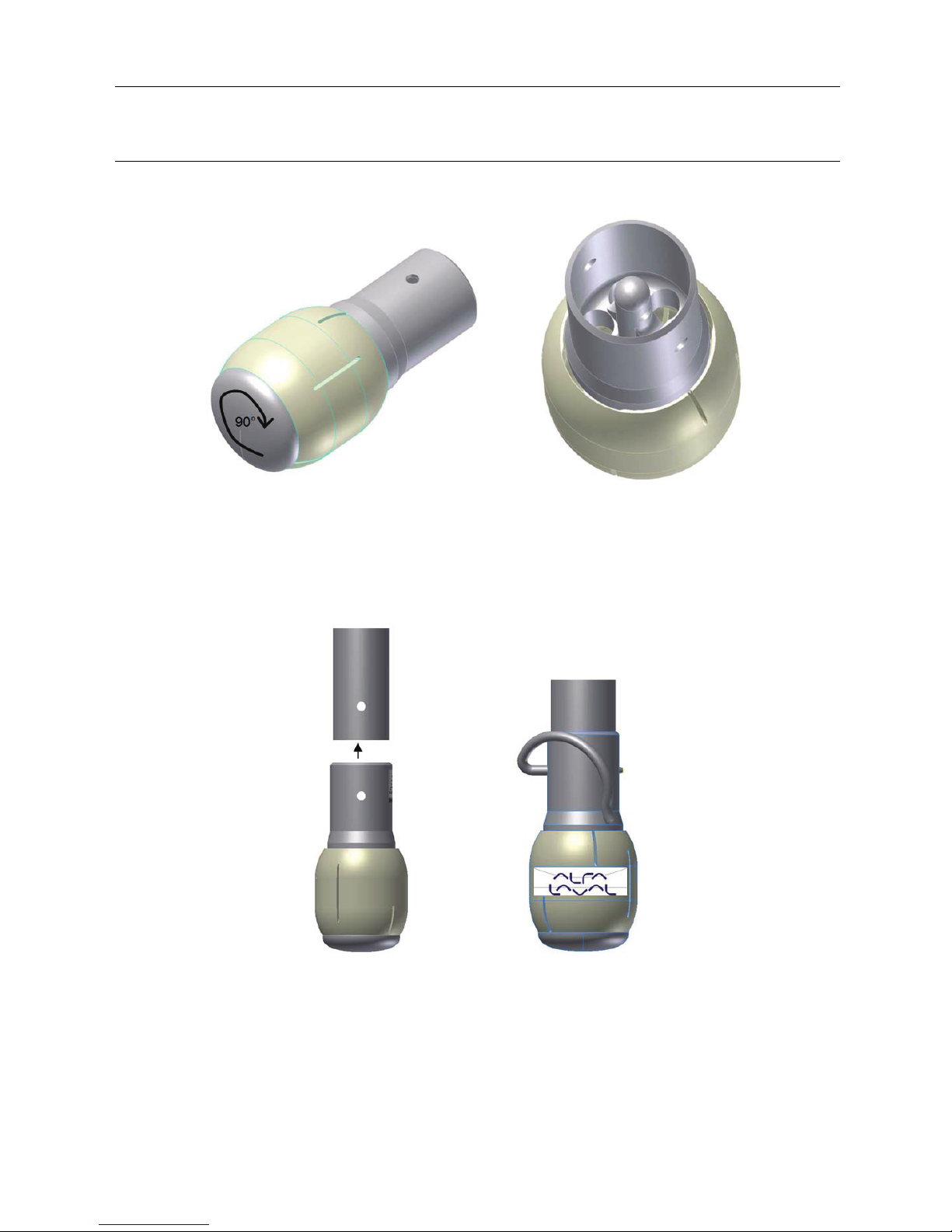

3. Having inserted the stator (3) into the connector (1) turn the stator 90° to align the hole in the cylindrical end of the stator with
the holes in the connector.
4114-0020
4. Weld-on version: Insert the clip (4) through the hole in one side of the connector (1), through the hole in the stator (3)
and through the hole on the other side of the connector.
Clip-on version:Holding the machine in one hand (hand below the stator) slide the Alfa Laval Toftejorg SaniMxxx SB onto the
downpipe. Align the clip holes in the connector (1) with the clip holes in the down pipe, while mounting the clip through
the hole in the connector, the down pipe, the stator (3), the other side of the down pipe and finally out through the other
side of the connector.
4114-0021
Hold hand here
16

4 Installation

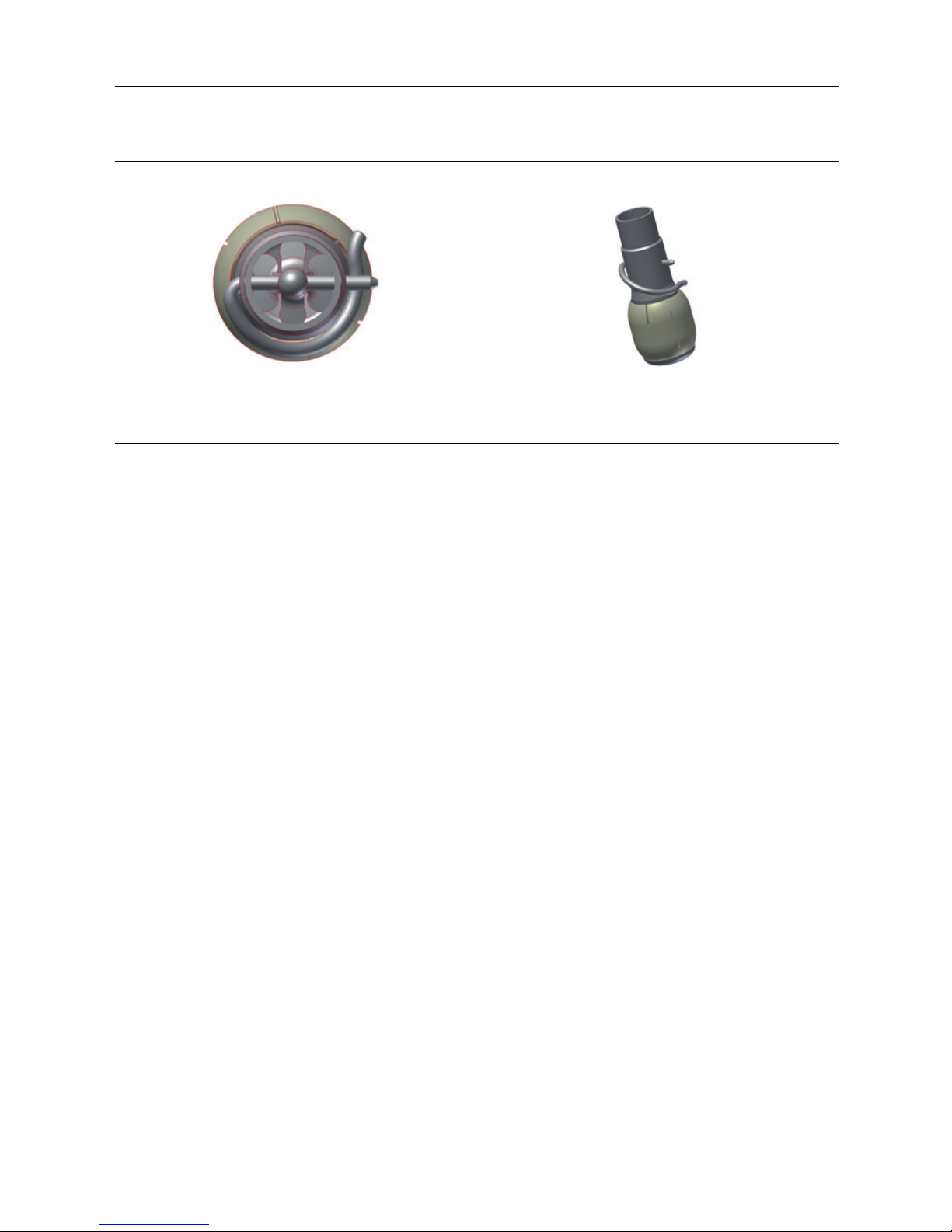

5. Twist the clip (4) around the connector (1) to secure it around the connector.
4114-0022
4114-0023
6. Check that the rotor (2) can be rotated freely by turning it with your fingers.
17

5Operation
5.1 Normal Operation
Cleaning Media
Use only media compatible with Stainless Steel AISI 316L and PEEK. Normal detergents, moderate solutions of acids and
alkalics are acceptable. Aggressive chemicals, excessive concentrations of chemicals at elevated temperatures, as well as
certain solvents hydrochlorides should be avoided. If in doubt, contact your local Alfa Laval sales office.
Note: PEEK is not resistant to concentrated sulphuric acid.
Temperature:
The machine is designed to operate with cleaning media at temperatures up to 95°C (203°F). However, it withstands
temperatures up to 150°C (304°F) inside the tank.
ATEX Warning: Atmosphere/surface temperature:
In potentially explosive atmospheres, the temperature must not exceed the maximum surface temperature
according to the temperature class for the combustible gas or liquid.
ATEX Warning: Steam cleaning
Tanks with capacities greater than 100 m3that could contain a flammable atmosphere should not be steam
cleaned, as steam issuing from a nozzle could contain charged droplets.
Tanks smaller than this may be steam cleaned providing that: the steam nozzles and other metal parts of
the system are reliably earthed and grounded to the tank structure.
Pressure:
Please make sure that the connections are correctly mounted before opening of the washing valve. Apply pressure gradually in
order to avoid hydraulic shocks, which might stress mechanical parts in the Alfa Laval Toftejorg SaniMxxxx SB cleaner. Max.
pressure difference is 4.0 bar. Ideally, use a frequency controlled pump with gradually increase of pumping speed.
ATEX Warning: Steam cleaning pressure
If stream cleaning is done through the machine, the steam pressure must not cause the machine to rotate.
ATEX Warning: Draining
If the machine is drained using compressed air, then the compressed air pressure must not cause the
machine to rotate.
After-use cleaning:
After use flush the machine with fresh water. Cleaning media should never allow to dry or settle in the system due to possible
"salting out" or "scaling" of the cleaning media. If cleaning media contains volatile chloride solvents, it is recommended not to
flushwithwa
ter after use, as this might create hydrochloric acid.
Warning: Hot chemicals and steam under pressure may be used for cleaning and sterilising. Protect against scalding
and burning. Never tamper with or try to open clamps or other connections while system is in operation.
Make sure that system is de-pressurised and drained before disassembly.
18

6 Maintenance
In order to keep the tank cleaning machine servicing as an efficient tool in the tank cleaning operations, it is essential to
maintain its high performance by following a simple preventive maintenance programme, which will help keep the tank cleaning
machine in good condition
Good maintenance is careful and regular attention!
6.1 Recommended Service Intervals
The design of the Alfa Laval Toftejorg SaniMxxxx SB asks for little maintenance, as there are no rotating parts in direct contact
with stationary parts. It is recommended that inspection is performed after each 500 running hours.
For continuous surveillance of the Alfa Laval Toftejorg SaniMxxxx SB, monitor and log the volumetric flow rate. If the volumetric
flow rate increases or decreases by more than 15% over time this could be a sign of wear or blockage of the flow path in certain
parts of the machine and the machine should be inspected.
A service consists of:
0. At a pressure of 0.3 bar open a hatch in the tank to verify rotation and liquid fans are emerging from all slots. ATTENTION:
Use only pure water at normal temperature for safety reasons.
If needed proceed to 1).
1. Un-install the machine (as described on the following pages).
2. Visual inspection for foreign objects. Remove any objects and clean before rotation verification.
3. Visual inspect the bearing surfaces, the holes for the clip-on connection and the width of the slots in the rotor.
4. In case of machine wear, the parts worn down are to be replaced.
5. Look for wear of the slots in the spray head. Recommendation: Replace rotor if slot width (slot at equator on rotor) exceeds
SaniMidget SB: 1.2 mm, SaniMagnum SB: 3.2 mm, SaniMega SB 4.2 mm and SaniMega SB high flow version 5.2 mm, as
throw length decreases and flow rate increases.
6. Reinstall machine.
7. Fill in the Service Log.
Lists of parts included in the machines are provided on page 28.
19

6 Maintenance
6.2 Service and Repair of ATEX Approved Machines
All service and repair of ATEX certified machines can be performed by Alfa Laval Tank Equipment, Kolding, Denmark or by an
Alfa Laval service center approved by Alfa Laval Tank Equipment.
In order to ensure compliance with the ATEX regulations and keep the machine ATEX certification valid the service
or repair must be performed by an authorized person with knowledge of the ATEX requirements and regulations.
All spare parts must be original Alfa Laval spare parts and the repair or service must be done according to the
instructions in the related manual.
ATEX
Warning:
If a customer wishes to carry out service or repair himself, it is the responsibility of the repair shop to ensure
that the ATEX requirements are met in any way possible. After performing service or repair, the repair shop thus
carries the full responsibility for traceability of all relevant documents in order to ensuring the retention of the
ATEX certification of the machine.
6.3 Service and Repair of Machines Ordered with Alfa Laval Q-doc
In order to ensure full traceability and to obtain full test documentation (FAT: Factory Acceptance Test), it is necessary to order
anewRotarySpray Head machine with Alfa Laval Q-doc. The new Rotary Spray Head machine will be manufactured and
tested (FAT) and shipped to the customer with new Alfa Laval Q-doc for further qualification (SAT: Site Acceptance Test) and
validation (PV: Process Validation).
20
