ALFRA ROTABEST RB50X User manual

IOifltEN EHTI>IIATEli
Bedienungsanleitung I Operation Instructions I Manuel d'utilisation I
Manual de instrucciones ·
ALFRA ROTABEST RBSOX
4D Metallkernbohrmaschine
CD Metal Core Drilling Machine
4D Perceuse a socle magmHique
4D Taladro electromagnetico
Artlkel Nr . 18750 I Prod.-No. 18750 I Art .-no18750 I N2 de producto 18750

Safety instructions
&
&
~
During drilling operations on walls and ceilings, the metal core drilling machine must be
safeguarded with the included safety chain. The magnetic adhesion is not maintained In case of
a failure of circuit.
The
cut core will be ejected automatically by the ejector pin. The ejector pin could possibly
break in case of improper use.
Only use undamaged power cord and extension cords and regularly check on damages.
Danger
of an electric shock!
Power
supply and voltage details at the device must correspond.
When working
with this device, wear the following protection equipment:
Safety goggles, appropriate footwear, ear protection, hair net
{for long hair), possibly also apron
and safety helmet.
The place
of installation for the magnet foot must be clean and rustfree. Remove lacquer and
filler.
Do not execute any electric welding on the workpiece on which the Metal Core Drilling Machine
is used.
Prior
to all operations mount coolant unit.
Specified conditions
of use
This device is destined to cut material with magnetisable surface with core cutters and twist drills in sheltered
environment for commercial use
in industry and craft. The device is suitable for drilling vertical, horizontal and
overhead.

Technical Data
Prod.- No:
Name:
Input:
Load rpm:
Tool holder:
Voltage:
Boring 0 max. in steel
-Core cutter:
-Twist drills:
Stroke:
Size of magnet foot:
Magnetic adhesion:
Tool force (on 10 mm steel):
Min. material thickness:
Weight:
Standard scope of supply
18750
Rotabest RB50X
1200 Watt
250 I 450 rpm
MT2
230 V 50/60 Hz
12 -50 mm ; 15/
32 " - 2"
up to 0 16 mm DIN 338
190 mm + 100 mm adjustable height on slide
7,5" + 3,9" adjustable height on slide
92 x 220 mm ; 3,6" x 8,
7"
11.000 N ; 2500 lbs
3500 N ; 800 lbs
6mm
15 kg; 33,51bs
• Transport case (prod.-no. 189412035)
• MT-2 arbor (prod.-no. 18001)
• Coolant ALFRA BIO 4000 (prod.-no.
21 040)
• Safety belt (prod.-no. 189490501)
• Allen
key 2,5 mm DIN911 -2,5
• Allen key 4,0 mm DIN911 -4,0
• Allen key 6,0 mm DIN911 -6,0

_,
Description
The magnetic core drilling machine can
be fixed with a switchable electromagnet on ferromagnetic workpieces.
The electromagnet and the motor can be switched on and off wi
th the large buttons of the control panel.
The LED above the front panel shows the operating status of the machine and the adhesive force of the magnet.
A self-adjusting dovetail guide on which the motor
is mounted can be adjusted in height with the star handle or be
locked with a slide. On the back of the machine is the nameplate and an attachment for the enclosed Allen keys.
A) Motor
E) Recess for safety belt
1- Magnet ON
B) MT2-arbor F) Control panel 2- Motor ON
C) Adjustable screws to adjust the slide G) Signal LED 3 - Magnet OFF
D) Magnetfoot H) Spindle
4- Motor OFF
2
Qj
"E
Q)
>
c
Q)
~
:Q
.c.
E
E
8
0
0 I
::E
...
.0
:J
I
I I
E I
E I
i
0 I
o-
I
I
II. 92
1 81

Switching on and off
• Check connecting line and plug on damages first.
• Push the button MAGNET ON so that the magnet adheres and the grip of the drill stand is ensured.
• Check the display of the signal LED above the control pane
l.
• Push the button MOTOR ON to start the motor.
• To switch the machine off proceed in reverse order, MOTOR OFF and then MAGNET OFF.
• For non-magnetisable materials use the Rotabest Vacubest (Prod.-No. 18150).
• When working on walls and ceilings secure the machine with the safety belt.
At this work we recommend cooling the tool with a coolant spray. For example Alfra 810 4000, prod. No. 21040.
Sign
al LED
The LED above the control panel shows the operat
in g status of the machine and the adhesive force of the magnet.
LED aus Magnet off.
Motor off.
LED grun Magnet
on and sufficient adhesive force.
Motor can be switched on/off as desired.
LED rot 1- Magnet on and very low adhesion. Work only with very low feed.
Motor can be switched on/off as desired.
LED rot Magnet
on and insufficient adhesion.
Motor cannot be activated or motor emergency stop.

Motoremergency stop
The core drilling machine has an automatic emergency stop. If the magnet, while working with running motor, is
pushed off the ferromagnetic workpiece by overload, vibrations or other causes and an air gap occurs between
magnetfoot and workpiece, the motor will be deactivated automatically and the magnet-LED is steady red. The
motor though will not be slowed down!
~ A restart of the machine is only possible a~er switching the magnet on and off.
How
to work with annular cutters
• Push ejector pin (center pin) through head of annular cutter.
• Core drills with Weldon shank are tightened with clamping screws (DIN 913) on both clamping surfaces.
• First place annular cutter with ejector pin on a marked centre or marking.
• Set the cutter and spot-drill, until the entire cut edge
is formed as a circle.
• During the drilling process, the cutter should be cooled permanently. Optimal cooling
is possible by internal
cooling with our coolant unit.
• During the drilling process, do not stop the motor. After the drilling process, draw back the cutter with running
motor.
• Remove chips and core after each dril
li ng.
£ Remove chips with chip-remover. Do not touch with bare hands. Danger of Injury!
How
to work with twist drills
• The drill chuck with Weldon shank is only to be used with twist drills up to a diameter of 13 mm.
• Insert drill chuck with MT2 tool holder
in the drill spindle.
• Insert twist drill
in drill chuck and tighten.

Cleaning
Pull plug prior to cleaning. Danger of injury by unintentional switching on.
• Clean the outside of the motor by means of dry compressed air.
• Check connecting lines on damages.
• Clean and grease sliding surfaces regularly.
• Carbon brushes should be replaced after appr. 250 hours runni
ng time.
• After the work is finished we recommend to store the metal core drilling machine in the transport case in a
lying position.
Maintenance and repair
Maintenance, checks and repairs are only to
be made by electronic specialists according to the valid regulations of
the respective country.
8 Onlyuse genuine ALFRA spare parts.
~ Spare part list at the end of this operation manual.
The metal core drilling machine Alfra Rotabest should be serviced after appr. 250 hours running time by our Alfra
workshop or appointed dealers. The Gear oil (Lubcon, Turmogearoil
PE 150 300m!) should be exchanged as well
as the brushes.

CE Declaration of Conformity
Herewith we
Alfred Raith GmbH
2. lndustriestr. 10
68766 Hockenheim
declare that the Metal Core Drilling Machine
ALFRA Rotabest RB50X
corresponds to the following standards:
Machine standard: 2006/42/
EG
Low voltage standard: 2006/95/EG
Electro-magnetic compatibility (EMC): 2004/108/EG
Following standards or standard documents were applied:
EMC-standard:
EN 55014-1 :2006
EN 55014-2:1997+A1:2001
EN 61000-3-2:2006
EN 61 003-3-3:1995+A1:2001 +A2:2005
Documentation:
~ ~
Cornelia Dorn
Hockenheim, 26.11.2012
1!!1
Markus A. Doring
(Managing Director)

Ersatzteile I Spare Parts I Pieces de rechange
24
'
~16
27
15
14
30
~
12
.... ~
335 2\ !t
\ ~
~
I
I
6:::1 • 0 48
I
4~
36 35
9
17
)~ ~~ ~ f:''• Artike~~ 1~~~
1a 20 Stand 05/2012
.Anderungen vorbehalten

Pos Menge Art. Nr.
Beschreibung Description
1 1 189401080 Standergehause RB
SOX - BOX
housing
2 1 189412054 Federblech spring steel plate
3 1 189412056 Messing Profil -rechts- brass profile
-right-
4 1 189412057 Messing Profil -links- brass profile
-left-
5 1 189412051 Schlitten orange L250 slide orange L250
6 1 189501056 Zahnstange
-21 Omm-
rack -21 Omm-
7 3 DIN912-M5X18-8.8
Zy li nderschra.ube cylinder screw
8 3 DIN7980-5-ST Ferderring spring washer
9 2 IS07380F-M5X10-10.9 Flachrundrachraube SW roundhead screw SW
10 1 DIN912-M8X80-8.8 Zylinderschraube cylinder screw
11 1 DIN7980-8-ST Ferderring spring washer
12 1 189501076 Befestigungsstein motor fixing part
13 1 DIN913-M5X10-45H Gewindestift set screw
14 1 18109.MK-SCHWARZ Motor AHB 20/2 230 Volt Motor AHB 20/2 230 Volt
14 1 18109.110MK-SCHWARZ Motor AHB 20/2
11 0 Volt Motor AHB 20/2 110 Volt
15
1 189501077 Flanschstuck EHN 20 flange piece EHN 20
16
1 189490611 Kabelverschraubung M 16 cable gland M16
17 1 189412011 Magnet
sox kpl. magnet SOX cpl.
18 5 DIN912-M6X50-8.8 Zylinderschraube cylinder screw
19 6 DIN7980-6-ST Ferderring spring washer
20 1 DIN912-M6X40-8.8 Zylinderschraube cylinder screw
21 2 189412055 Blech fur Schieber plate for slider
22 1 189501078 Schieber slider
23 1 189301080 Federndes Druckstlick resilient pressure piece
24 1 DIN6799-019,0 Sicherungsri
ng
locking ring
25 1 DIN988-25X35X0,5 Passscheibe shim ring
26 1 DIN988-25X35X1,0 Passscheibe shim ring
27 2 189490503 Gleitlager bush bearing
28 1 DIN988-25X35X2,0 Passscheibe shim ring
29 1 189501056 Ritzelwelle pinion shaft
30 3 189501060 Speichen kpl. spokes cpl.
31
4 DIN1476-M2,5x8,0 Kerbnagel grooved drive stud
32 1 189852113 Typensch
il d name plate
33 1 DIN911-6 6-Kt. Winkelschraubendreher Allen key
34 1 189412070 Magnet
fOr lnbusschli.issel magnet for allen key
35 6 IS07380-M4X12-10.9 Flachrundschrauben ISO 7380 round head screw
36 1 189401056 Folienabdeckung foil cover
37 1 189401055 Kunststoffgehause -flach- plastic case-flat-
38 1 189412058 Leiterplatte RBX
m. Sensor 230V PCB RBX with sensor
38 1 189412058.110 Leiterplatte RBX
m. Sensor 230V PCB RBX with sensor
39 3 DIN125-A3,2-140HV-ST Scheibe washer
40 3 DIN7981 -M2,9X16 Linsenkopfblech-schraube lensheadscrew
41
2 189401061 Winkei-Fiachsteckhulsen (blau) angle receptacle for tabs
42 4 189401060 Winkei-Fiachsteckhulsen (rot) angle receptacle for tabs
43
1 189412068 Stecklinse lens
44 1 189490613 Kabelverschraubung M16 cable gland M16
45 6 DIN913-M5X16-45H Gewindestift set screw
46 10 IS07380-M4X8-10.9 Flachrundschraube ISO 7380 round head screw
47 1 189490604 Knickschutztlille tension relief
48 1 189412071 Kabel mit Stecker 230V cable with plug
49 1 189-28038B Helukabel Helukabel
50 1 189490607 Kabelb
in der cable strap
51 1 189412069 Kabelhalter (schwarz) cable holder (black)
52 1 DIN6798-A4,3-FST Facherscheibe serrated washer

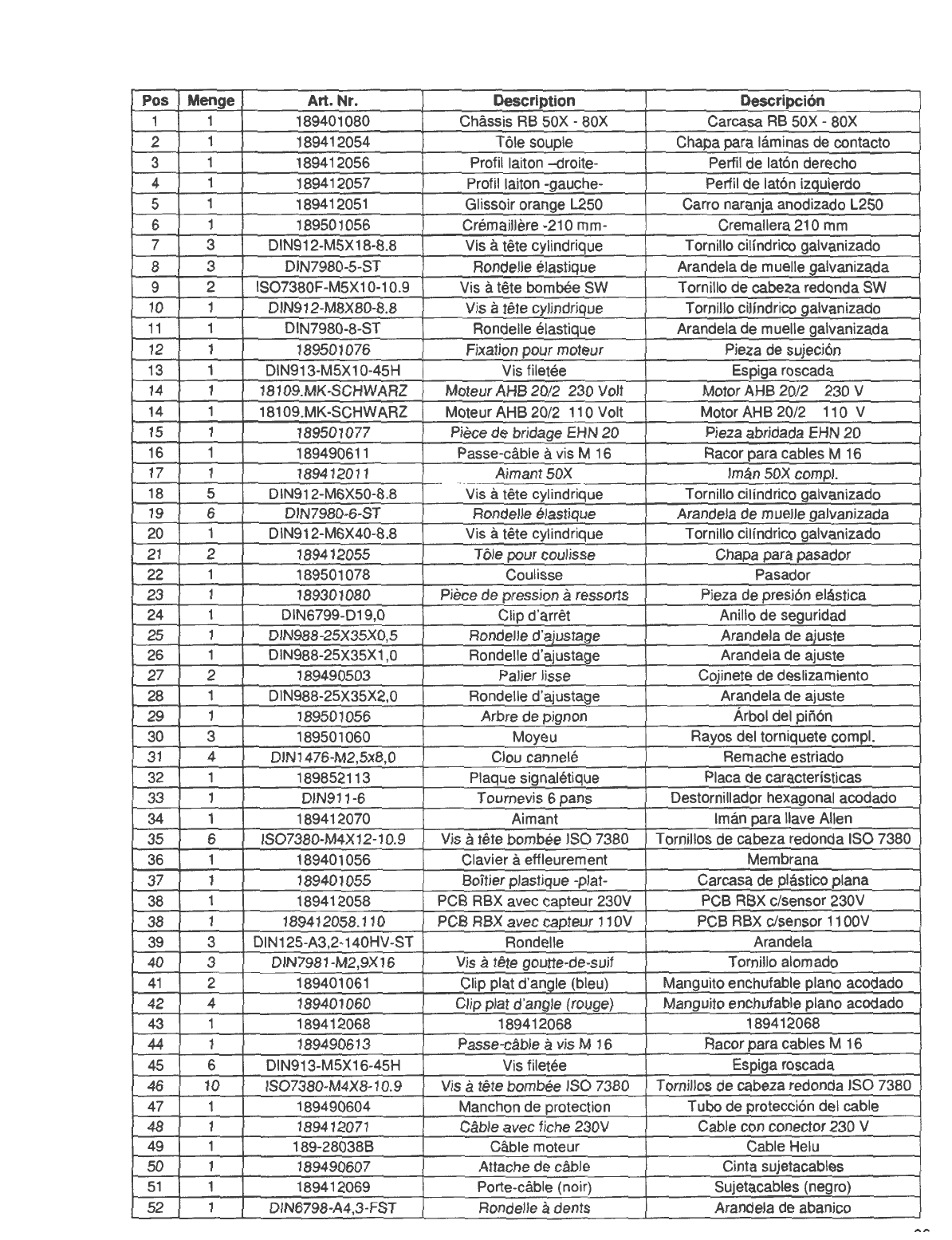

Pos Menge
Art. Nr.
Description Descripcion
1 1
1B94010BO Chassis RB SOX - BOX Carcasa RB SOX - BOX
2 1 189412054 Tole souple Chapa para laminas de contacto
3 1 189412056 Profil laiton
-droite -Perfil de laton derecho
4 1 189412057 Profil laiton -gauche-Perfil de laton izquierdo
5 1 189412051 Glissoir orange L250 Carro naranja anodizado L250
6 1 189501056 Cremaillere -
21 omm-Cremallera 210 mm
7 3 DIN912-M5X18-8.8 Vis atete cyli
f1dr ique Tornillo cillndrico galvanizado
8 3 DIN7980-5-ST Rondelle el
aSt ique Arandela de muelle galvanizada
9 2 IS07380F-M5X10-10.9 Vis atete bombee SW Tornillo de cabeza redonda SW
10
1 DIN912-M8X80-8.8 Vis atete cylindrique Tornillo cilfndrico galvanizado
11
1 DIN7980-8-ST Rondelle elastique Arandela de muelle galvanizada
12 1 1B9501076 Fixation pour moteur Pieza de sujeci6n
13 1 DIN913-M5X10-45H Vis filetee Espiga roscada
14
1 181 09.MK-SCHWARZ Moteur AHB 20/2 230 Volt Motor AHB 20/2
230V
14 1 18109.MK-SCHWARZ Moteur AHB 20/2 110 Volt Motor AHB 20/2 110 v
15 1 1B9501077 Piece de bridage EHN 20 Pieza abridada EHN 20
16
1 189490611 Passe-cable avis M 16 Racor para cables M 16
17
1 189412011 Aimant
SOX lman sox compl.
18
5 DIN912-M6X50-8.8 Vis atete cylindrique Tornillo cilindrico galvanizado
19
6 DIN7980-6-ST Rondelle elastique Arandela de muelle galvanizada
20
1 DIN912-M6X40-8.8 Vis atete cylindrique Tornillo cilindrico galvanizado
21
2 1B9412055 Tole pour coulisse Chapa para pasador
22 1 189501078 Coulisse Pasador
23 1 1B9301080 Piece de pression aressorts Pieza de presion elastica
24 1 DIN6799-D19,0 Clip d'arret Anillo de seguridad
25
1 DIN988-25X35X0,5 Rondelle d'ajustage Arandela de ajuste
26
1 DIN988-25X35X1 ,0 Rondelle d'ajustage Arandela de ajuste
27 2 189490503 Palier lisse Cojinete de deslizamiento
2B
1 DIN988-25X35X2,0 Rondelle d'a justage Arandela de ajuste
29 1 189501056 Arbre de pignon Arbol del pifi6n
30
3 189501060 Moyeu Rayos del torniquete compl.
31 4 DIN1476-M2,5x8,0 Clou cannele Remache estriado
32 1 189852113 Plaque signaletique Placa de caracteristicas
33
1 DIN911-6 Tournevis 6 pans Destornillador hexagonal acodado
34 1 189412070 Aimant lman para llave Allen
35 6 IS07380-M4X12-10.9 Vis atete bombee ISO 7380 Tornillos de cabeza redonda ISO 7380
36
1 189401056 Clavier aeffleurement Membrana
37 1 189401055 Saltier plastique -plat- Carcasa de plastico plana
38 1 18941205B PCB RBX avec capteur 230V PCB RBX c/sensor 230V
38 1 1B9412058.
11 0 PCB RBX avec capteur
11 OV PCB RBX c/sensor 11 OOV
39 3 DIN125-A3,2-140HV-ST Rondelle Arandela
40 3 DIN7981-M2,9X16 Vis atete goutte-de-suif Tornillo alomado
41 2 1B9401061 Clip plat d'angle (bleu) Manguito enchufable plano acodado
42 4 189401060 Clip plat d'angle (rouge) Manguito enchufable plano acodado
43 1 189412068 189412068 1B9412068
44 1 189490613 Passe-cable avis M 16
Racor para cables M 16
45 6 DIN913-M5X16-45H Vis filetee Espiga roscada
46 10 IS07380-M4X8-10.9 Vis atete bombee ISO 7380 Tornillos de cabeza redonda ISO 7380
47 1 189490604 Manchon de protection Tubo de protecci6n del cable
48 1 189412071 Cable avec fiche 230V Cable con conector 230 V
49 1 189-280388 Cable moteur Cable Helu
50 1 189490607 Attache de cable Cinta sujetacables
51 1 189412069 Porte-cable (noir) Sujetacables (negro)
52 1 DIN6798-A4,3-FST Rondelle adents Arandela de abanico

Motor AH B 20 /2
Explosionszeichnung
AHB 20/2
s
~
I
20

StOckllste Motor AHB 20/2
Pos Menge Art. Nr. Beschreibung Description
1 1 189502070 Motorkappe cap for motor housing
2 4 189622018 Blechschraube 4,8 x 45 tappingscrew 4,8 x 45
3 1 189502085.110 Anker 110 V armature, compl.
11 0 V
3 1 189502085 Anker 230 V armature, comp
l. 230 V
4 1 189812011 Rillenkugellager 608 2Z deep groove ball bearing
5 1 189601017 Sicherungsring 28/1,2 retaining ring
6 2 189502053 Kohleburstenhalter carbon brush holder
7 2 189502054
Ko h lebO rsten carbon brush
8 4 189622009 Federscheibe
84 gewellt spring discs
9 4 189622010 Gewindefurchschraube CM4x12 screws
10 1 189502092 Seeger-Sprengri ng SW10 circlip
11 1 189502011 Steckkerbstift 4x12 dowel pin
12 2 189502057
0-Ring 22x2,5 o-ring
13 4 189502073 Blechschraube HC 4,8x60 screw
14 1 189601098 Rillenkugellager
6001 2RS deep groove ball bearing
15
1 189411084 Getriebelagersch
il d gear box flange
16
1 189502088 Getriebegehause gearbox
17
1 189502017 Zwischenrad 44 Z intermediate gear
18 1 189502090 Welle mit 2 Ritzeln
11 /1 7 shaft with two gears
19
1 189502091 Dichthulse bushing
20 1 189502087 Wellendichtring KEIV 15x21x3 rotary shaft seal
21
1 189502021 Rillenkugellager 6203 2RS deep groove ball bearing
23 1 189502078 Arbeitsspindel motor spindle
31
1 189411085 Rillenkugellager 6904 2RS deep groove ba
ll bearing
32 1 189502052 Spindelrad spindel gear
33 1 189502033 PaBfeder A5x5x12 feather key
34 1 189502034 PaBscheibe 15/22x0,2 washer
35 1 189502035 Sicherungsri
ng 15 /1 retaining ring
36 1 189502036 Welle fur Zahnradblock 13Z shaftf. rackblock
37 1 189411086 Rillenkugellager 608 deep groove ball bearing
38 1 189502095 Zahnradblock gear block
39 1 189622055 PaBfeder A5x5x28 feather key
40 3 189302098 Nadelhulse HK0810 needle bearing
42 1 189502042 Luftleitring fan shroud
43 2 189502043 Blechschraube C 3,9x60 screw
44 189502055.110 Feld kpl.
11 OV
field cpl.
44 1 189502055 Feld kpl. 230V field cpl.
45 1 189411087 Motorgehause motorhousing
46 1 189502065 Entst6rkondensator interference capacitor
49 1 189502096
0-Ring 85x1 ,78 o-ring
50 1 189411088 Schaltknopf gear shift knob
51 1 189502098 Sicherungsri ng 26/1,2 retaining ring
52 1 189502099 Zylinderstift 3m6x10 Pin
53 1 189502100 Schaltbolz
en
control pin
54 1 189502101 Rastbolzen locking pin
55 1 189502102 We
ll endichtung WAS 20x35x7 rotary shaft seal

Pos Menge Art. Nr.
Description Descripci6n
1 1 189502070 couvercle de moteur Tapa
2 4 189622018 vis 4,8 x 45
mm Tornillo para chapa HC 4,8x45
3 1 189502085.110 induit comp
l. 11 0 V Rotor, campi. 230V
3 1 189502085 induit compl. 230 V Rotor, compl.
11 OV
4 1 189812011 roulement a
bi ll e Rodamiento rfgido de bolas 608.2Z
5 1 189601017 circ
li p exterieur Anillo de seguridad 28/1,2
6 2 189502053 support due charbon Portaescobillas, compl.
7 2 189502054 charbon Escobillas de carb6n, compl. 6,3x10x18
8 4 189622009 rondelle aressort Arandela elastica ondulada
84
9 4 189622010 vis taraudeuse Tornillo roscante ZM4x12
10 1 189502092 circlip exterieur Anillo de retenci6n Seeger SW 10
11
1 189502011 goupille cannelee Pasador estriado 4x12
12 2 189502057 joint torique Junta t6rica 22x2,5
13 4 189502073 vis atole Tornillo para chapa HC 4,8x60
14 1 189601098 roulement abille Rodamiento rfgido de bolas
6001 2RS
15 1 189411084 couvre-engrenage Placa de cojinete del engranaje
16 1 189502088 boite de vitesse Carcasa del engranaje
17 1 189502017 roue dentee intermediaire Pin6n intermedio
44d.
18 1 189502090 arbre avec deux pignon Eje con 2 pinones
11 / 17d.
19 1 189502091 douille d'etancheite Manguito de obturaci6n
20 1 189502087 joint alevre avec ressort Reten radial de eje KEIV 15x21x3
21 1 189502021 roulement ab
ill e Rodamiento rfgido de bolas 6203 2RS
23 1 189502078 broche Husillo de trabajo
31 1 189411085 roulement abille Rodamiento rfgido de bolas 6904 2RS
32 1 189502052 roue dentee Pinon 45 d.
33 1 189502033 clavette parallele Chaveta de ajuste A5x5x12
34 1 189502034 rondelie Arandela de ajuste
15 /22x0,2
35 1 189502035 circlip exterieur Anil
lo de seguridad
15 /1
36 1 189502036 axe du bloc des roues dentees Eje para bloque de ruedas dentadas 13 d.
37 1 189411086 roulement abille Rodamiento rfgido de bolas 608
38 1 189502095 pignon Bloque de ruedas dentadas 34/40 d.
39 1 189622055 clavette
paralh~ le
Chaveta de ajuste A5x5x28
40 3 189302098 roulement aaigu ill es Casquillo de agujas HK 0810
42 1 189502042 rondelle de ventilation Anillo conductor de aire
43 2 189502043 vis atole Tornillo para chapa C 3,9x60
44 189502055.110 induit complet
11 OV
Anillo polar, com pl. 11 OV
44 1 189502055 induit complet 230V Anillo polar, compl. 230V
45 1 189411087 carcasse de moteur Carcasa de motor,
46 1 189502065 condensateur d'antiparasitage Capacitor antiparasitario
49 1 189502096 joint torique Junta t6rica 85x1,78
50 1 189411088 interrupteur de commande Bot6n
51
1 189502098 circ
li p exterieur Anillo de seguridad 26/1
,2
52 1 189502099 cheville cylinderique Pasador cilfndrico 3m6x10
53 1 189502100 boulon de mise au point Perno fijador
54 1 189502101 boulon d'arret Perno de retenci6n
55 1 189502102 joint a'levre avec ressort
RetEm radial de eje WAS 20x35x7 39
