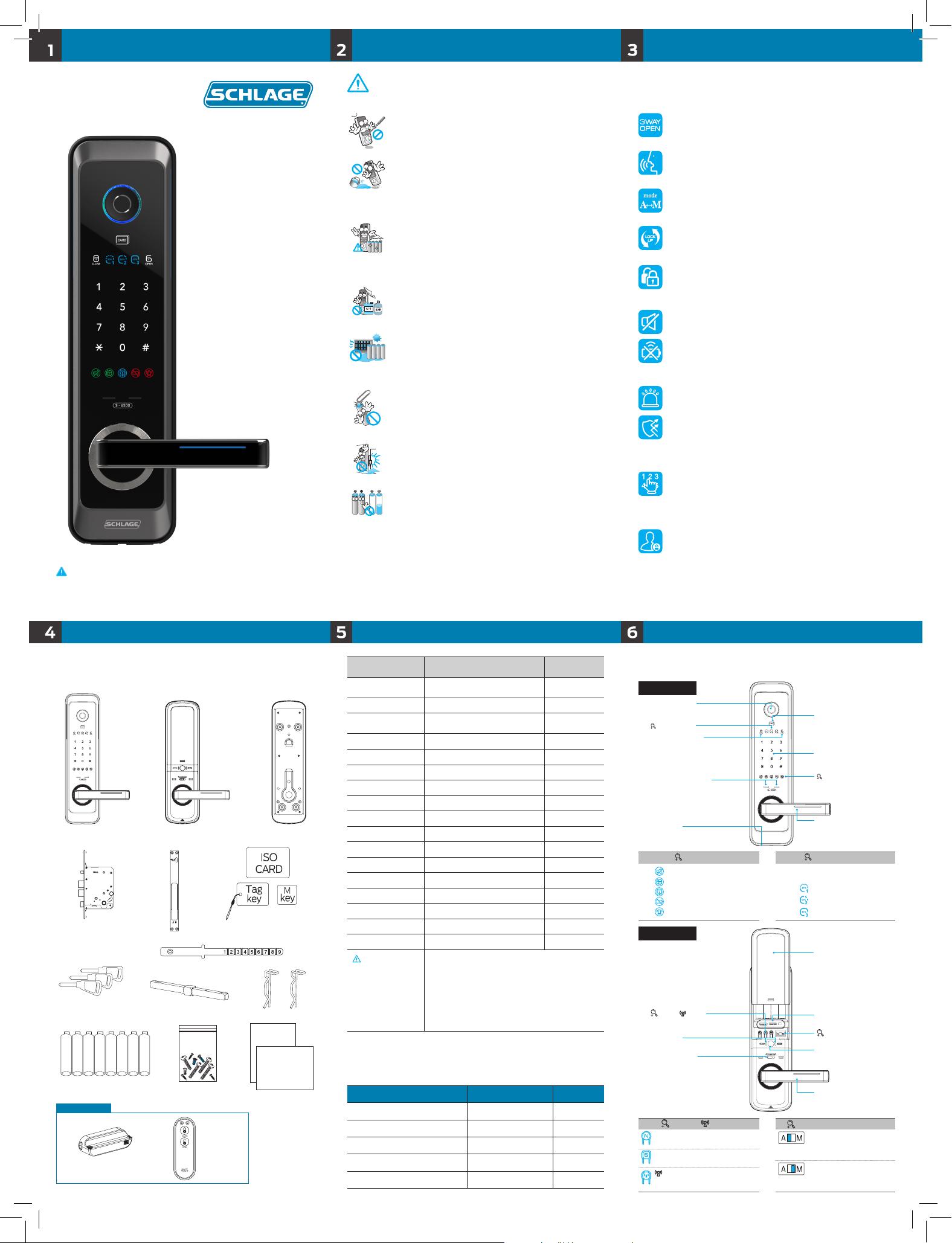

Allegion SCHLAGE S-6500 User manual

Product features
Product composition and components Name and function of each part
N : Registration / delete of PIN code, Card
/ Fob,fingerprint in normal mode
S : Registration / delete of PIN code, Card /
Fob, fingerprint in safety mode
( Communication function) :
To register or delete optional
communication module
[N], [S], [ ] button Auto/Manual mode switch
Auto lock
[Auto lock]mode, door will be locked
automatically after closing.
Manual lock
[Manual lock] mode, door will be locked with
pressing manual lock button after closing.

Can open the door at anytime only by
pulling down this handle.
󾖴
Push up to open the battery cover.
󾖴󾖴
Button to lock the door by manual at
manual locking mode.
󾖴 󾖴󾖽󾖴󾖴󾖴
󾗁󾖴󾖴󾗂󾖴
Slide switch
󾖴󾖴
[N], [S], [ ] Button
1. Front Ass`y
2. Back Ass`y
Mute function
Double lock function
Wireless interlock
Battery replacement indicator
Trespass alarm function
Indicate operation status and
checking battery capacity.
Remaining battery 20%
Remaining battery 50%
Remaining battery 80%
Status indicator
Window icon
Name Product speci󽗉cation Remark
① Front Ass`y 86.6mm(W) X 331mm(H) X 30mm(D) Including rubber
pad
② Back Ass`y 82mm(W) X 310mm(H) X 33.7mm(D)
③ Back bracket 88mm(W) X 316mm(H) X 9.2mm(D) Including rubber
pad
④ Mortise lock 105.4mm(W) X 240mm(H) X 24mm(D)
⑤ Strike 24mm(W) X 240mm(H) X 4.5mm(D)
⑥ Card / Fob ISO card, Tag key, Mobile tag key
⑦ Emergency key 3 EA
⑧ Key tail plate 1 EA
⑨ Handle shaft 101.7mm(W) X 8mm(H) X 8mm(D)
⑩ Handle shaft clip 2 EA
⑪ Battery 1.5V 'AA' Size LR6 Alkaline, 8ea(DC 6V)
⑫ Screws 1 set
⑬ User manual Main User manual
⑭ Installation template
Using for making hole at the door
⑮ Communication pack
Communication pack
Optional
⑯
Remote key
Remote key Optional
※
Installation condition Door thickness 40~90mm
High
temperature
warning
ㆍWorking temperature : -15~55 C
ㆍSensor working temperature(high): 60 C +- 5 C
If a high temperature is detected that may cause a 󽗉re, the
alarm will sound with a beeping sound for safety reasons.
If the Inside body is exposed to direct sunlight for a long
time and exceeds the set temperature, a beep will be
generated to protect the user. High temperature detection
also works with Double locking function.
Safety precautions
Handle
Can open the door by pushing
down it after pressing PIN code
or touching Card / Fob or
fingerprint.
󾖴󾖴
Touch the registered fingerprint on sensor and
then open the door. 󾖴󾖽󾖴󾖴󾖴
Touch the registered Card / Fob to
open the door.
󾖴󾖽󾖴󾖴
Indicate lock / unlock status.
Touch type numeric pad
󾖴
open the door with emergency key by manual.
󾖴
󾖴󾖴
󾖴󾖴󾖴
󾖴
when battery does not operate, product may
be operated and unlocked by contacting 9V on
terminal located outside.
Factory setting
Item Setting Status Ref.page
Auto/Manual lock mode [Auto lock] 8
Language (English/Chinese) English 11
Normal mode / Security Mode Normal mode 9-10
Voice guide volume (1~3 level) 3 level [Maximum] 7
Beef sound level (1~8 level) 8 level 7
①
④ ⑤ ⑥
⑦ ⑧
③②
⑮
Optional parts
⑯
S-6500
TOUCHPAD DIGITAL
DOOR LOCK
WITH FINGERPRINT READER
USER MANUAL
Notice
Please read this manual before installation and operation.
Remote key 
(RP-20)
Communication pack
(RXP-10)
⑨
⑫
⑩
⑬
Screws
⑭
⑪
User
manual
Installation
template
󾖴󾖴󾖴󾖴󾖴󾖴󾖼
Disassembling the door lock may damage the product. Damage to
the product caused by unauthorised persons may void the warranty.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖼
If the product is exposed to water or liquids, please wipe the
moisture off with a soft cloth. If moisture or foreign materials
penetrate the product, remove the batteries immediately.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖽󾖼
If leakage is discovered, please wipe out with a dry cloth and replace
with new batteries. In case of exposure to leakage, wash affected
skin area with soap and water immediately.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖴󾖴󾖴󾖺󾖴󾖴󾖴󾖼
Such materials may damage the surface of the lock or cause a fire.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖴󾖴󾖴󾖴󾖺󾖴󾖴󾖴
󾖴󾖴󾖴󾖺󾖴󾖴󾖴󾖴󾖼
Do not use damaged batteries.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖴󾖴󾖴󾖴󾖴󾖺󾖴󾖴󾖴󾖴
󾖴󾖺󾖴󾖴󾖴󾖴󾖴󾖴
󾖼
󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴󾖴
󾖴󾖴󾖼
It may damage the product or cause a malfunction.
󾖴󾖴󾖴󾖴󾖴󾖴󾖺󾖴󾖴󾖴󾖴
󾖴󾖴󾖼
Ensure the + and - ends of the batteries are positioned correctly.
Incorrect positioning may cause leaks and/or an explosion.
󾖴󾖴󾖼󾖴󾖸󾖴󾖺󾖴󾖴󾖽󾖴󾖺󾖴
󾖹
Available to use PIN code as well as Card / Fob and fingerprint.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴
Voice guide (operation status, menu selection.) and provide 3 step
volume control system.
󾖴󾖴󾖴󾖴󾖽󾖴󾖴󾖴󾖴
Automatic and manual locking mode set is possible with simple
switch operation from Inside.
󾖴󾖴
If users do not open the door after unlocking the device it will lock
itself automatically.
󾖴󾖴
When double lock function is activated, the door cannot be opened
from the outside, even with the registered card, PIN code or
fingerprint. Override key can still be used.
󾖴
Door will not emit any sound when mute is activated.
󾖴󾖴󾖴󾖴󾖴󾖴󾖴

Easy to check battery status with three step level indicator and
alarm when battery replacement is required.
󾖴󾖴
When the door is opened by force an alarm will sound.
󾖴󾖴󾖴
After multiple incorrect attempted entries an alarm will sound and
all the functions of the lock will be suspended for three minutes.
The alarm activates after three incorrect PIN/card entries and five
incorrect fingerprint entries.
󾖴󾖴
When you enter your home with other people, you may not want
to show your PIN code to them. In this case, you may press any
numbers randomly and then enter your PIN code at the end and you
will still gain access.
󾖴󾖽󾖴
Normal mode is ideal for new users or low security environments
Safety mode provides a higher security level via use of a manager
PIN code. Allows individual register and delete function which is not
provided in normal mode.

Description shortcut icons How to lock from Inside
(Auto locking / Manual locking)
When the door is closed, it will be locked
automatically.
If the door is not opened within 7 seconds
after input secret code, it will be relocked
automatically to protect user`s property.
1. Auto locking function 2. Auto relocking system
How to lock from inside
1. In Auto locking mode
When the door is closed, door is locked
with beep sound with voice guide
automatically.
2. In Manual locking mode
After closing door, press [open/close] button,
then door is locked with beep sound with
voice guide.
ㆍ Before closing the door, make sure that deadbolt is not extrude.
Note
The lamp
flashes when
the door is
locked.
♪BikBik~Biririk
The lamp
flashes when
the door is
locked.
♪~Biririk
˙ Please con󽗉rm that the door is properly closed. 
(Setting of double Locking mode is available when the door is closed.)
˙ With pulling down handle from Inside,double locking mode shall be released automatically.
˙ If the sound is set to mute, there is no status sound. only indicating lamp is 󽗊ickering.
Note
How to set double locking function
or
Double locking 
Cancel
1. 
Double lock button
move right side
2. Pulling down this
handle
Double locking 
Set up
1. 
Double lock button
move left side
1. [Double locking] Set up 2. [Double locking] Cancel
English
3 C or #1
Chinese
3 C or #2
How to select the language
: [N] button
C
: PIN code : Trespass alarm
: [S] button : Card / Fob : Unlock
: [ ] button : 9V alkaline battery(6LF22) : Lock
#
: [#] button
UC
: User code
: Touch the front pad
MC : Manager code
: [Communication
function] button
RC
: Registration code
RAN
DOM
CODE
: Random code
※ Normal mode : [N] button / Safety mode : [S] button
How to replace battery
If battery lamp in RED is 󽗊ickering with sound, separate battery cover, and replace all 4 battery
to new one, 6V(1.5V "AA" size LR6 Alkaline)
How to apply external power in the emergency
PIN code
C
Card /
Fob
How to unlock / lock from outdoor
How to unlock from outdoor
PIN code
C
Card / Fob Fingerprint
How to unlock from outdoor (Mute function)
PIN code

OFF C
Card / Fob

OFF
How to lock [Auto lock / Manual lock] from out door
Auto lock
※ If the door is not closed correctly, warning sound can be
caused. Please check and con󽗉rm the door closing status.
Manual lock
0
How to set auto locking / manual locking
Auto lock
In Auto locking mode, door will be locked automatically after
closing.
In Manual locking mode, door will be locked with pressing manual
lock button after closing.
* Please do the change/registration of new code at door opened
status to prevent unintentional locking.
Manual lock
How to use random security coding function
Usage
RAN
DOM
CODE C
2. How to register remote key & to unlock / to lock
ㆍRemote key : 5 EA
: [Communication function] button : Remote unlock : Remote lock
C
: PIN code
To register / to delete remote key (Communication pack)
REG. Remote key
1Cor # or
DEL. All 
remote key
2Cor #
How to lock/unlock by remote key
Unlock Lock
※ Repeat Highlighted part for continuous register or delete.
Installing communication pack
1.  Open the inner battery cover then remove the battery
2.
 Install the communication pack on the connected
terminal
3.
 Insert batteries after confirming the direction of 
and
4. Sound is heard when mounted correctly
Caution
Please fit the socket in the correct
orientation.
1. How to install the communication pack
Communication pack
(RXP-10)
※ 1 ea battery is equipped.
※ To replace battery, open the back cover.
When purchasing wireless communication
pack and remote key package separately
and equipping it. Remote key may be used
in conjunction.
Remote key
(RP-20)
1.5v ‘AAA’ size 
alkaline 
battery 1 ea
Indicate lamp
[Lock] button
[Unlock] button
Communication pack / Remote key
[Optional]
Additional function
How to control voice guide volume
Min. volume
#Cor #1
1
Mid. volume 2
Max. volume 3
Guest PIN code (Temporary use)
REG. #Cor #2RC #RC #
How to control operation volume
Vol. up
#Cor # 3
7
Vol. down 9
Status checking guide
Voice guide #Cor #4
Check battery capacity
Checking the
battery
#Cor #5
Warning function against Illegal entry or hacking
Operate
Wrong PIN code three times/unregistered card three times/
unregistered 󽗉ngerprint 󽗉ve times
Warning alarm function against forced entry
PIN code CCard / Fob
ㆍ Normal mode : ideal for new users or low security environments
ㆍ Safety mode : higher security level via use of a manager PIN code. Provides individual register and delete
function
ㆍPIN code: 10 entries (6-12 digits) / Card / Fob: 20 entries / 
Fingerprint : 50 entries
: [N] button : [S] button : Card / Fob : Fingerprint
UC : User code MC : Manager code RC :
Registration c ode
How to change from normal mode to safety mode
1234567891011
Safety mode
3"Sec UC #MC #MC #
How to change from safety mode to normal mode
Normal mode
3"Sec MC #UC #UC #
How to change Normal mode / Safety mode
Normal mode
12345678910
REG.
PIN code
1 4 RC ㆍㆍㆍ
Card / Fob
1 5 ㆍㆍㆍ
Fingerprint
1 6
DEL.
All 
Card / Fob
2 5
All 
Fingerprint
2 6
※ Repeat highlighted part of diagram above for continuous register or delete
Safety mode
Warning : Please do not forget manager code. 
If you forget this number should contact to your local agency.
ㆍPIN code: 10 entries (6-12 digits) / Card / Fob: 20 entries / 
Fingerprint : 50 entries
: [N] button : [S] button : Card / Fob : Fingerprint
UC : User code MC : Manager code RC :
Registration Code
Safety mode
1 2 3 4 5 6 7 8 9 10 11 12
REG.
PIN code
1 4 MC or #RC
Card / Fob
1 5 MC or #
Card
Registration
Number(2digits)
#
Finger
print
1 6 MC or #
Finger print
Registration 
Number(2 digits)
3 times
#
DEL.
All 
Card / Fob
2 5 MC or #
Individual
Card / Fob
3 5 MC or #
Card
Registration
Number(2digits)
#
All 
Fingerprint
2 6 MC or #
Individual
Fingerprint
3 6 MC or #
Finger print
Registration 
Number(2 digits)
#
Safety mode (Manager)
Change Manager
code
8 4 MC or #RC #RC #
REG.
Manager
Card / Fob
8 5 MC or # #
DEL.
All manager 
Card / Fob
8 6 MC or #5
※ Repeat highlighted part for continuous register or delete
About AllegionTM
Allegion (NYSE:ALLE) is a global pioneer
in safety and security, with leading
brands like Briton®, CISA®, LCN®, Schlage®
and Von Duprin®. Focusing on security
around the door and adjacent areas,
Allegion produces a range of solutions
for homes, businesses, schools and other
institutions. Allegion is a almost 130
countries.
$2 billion company, with products sold
in For more, visit www.allegion.com
Normal mode
