Allen + Roth 144723 User manual

ITEM #3730313
MODEL #144723/28MMP7409-PG77
ELECTRIC FIREPLACE TV STAND
Español p. 23
Serial Number: Purchase Date:
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit
www.lowespartsplus.com.
allen + roth and logo design are trademarks or
registered trademarks of LF, LLC.
All rights reserved.
AS21004

2
23MMP3101REV1.0
28MMP7409REV1.0
PRODUCT SPECIFICATIONS
TABLE OF CONTENTS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
Product Specications .......................................................................................................2
Safety Information..............................................................................................................3
Maximum Load...................................................................................................................5
Package Contents..............................................................................................................6
Hardware Contents............................................................................................................7
Preparation.........................................................................................................................8
Assembly Instructions........................................................................................................8
Operating Instructions......................................................................................................14
Troubleshooting...............................................................................................................16
FCC/IC Information..........................................................................................................18
Care and Maintenance.....................................................................................................18
Warranty...........................................................................................................................19
Battery Replacement........................................................................................................20
Replacement Parts List....................................................................................................21

3
23MMP3101REV1.0
28MMP7409REV1.0
SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to reduce
the risk of re, electrical shock, and injury to persons including the following:
1. Read all instructions before using this appliance.
2. DANGER – High temperatures may be generated under certain abnormal
conditions. Do not partially or fully cover or obstruct the front of this heater.
WARNING: In order to avoid overheating, do not cover the heater.
3. CAUTION: Never leave the heater operating unattended. Extreme caution
is necessary if unsupervised children or people of reduced physical or mental
capabilities are nearby.
4. The appliance is not to be used by children or persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction.
5. Always unplug this appliance when not in use.
6. Do not operate any heater with a damaged cord or plug or after the appliance
malfunctions, or if it has been dropped or damaged in any manner.
7. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate this appliance where it may fall into a bathtub
or other water container.
10.Do not run cord under carpeting. Do not cover cord with throw rugs, runners
or the like. Arrange cord away from tra󰀩c areas and where it will not be tripped
over.
11.To disconnect this appliance, turn controls to the o󰀨 position, then remove
plug from outlet.

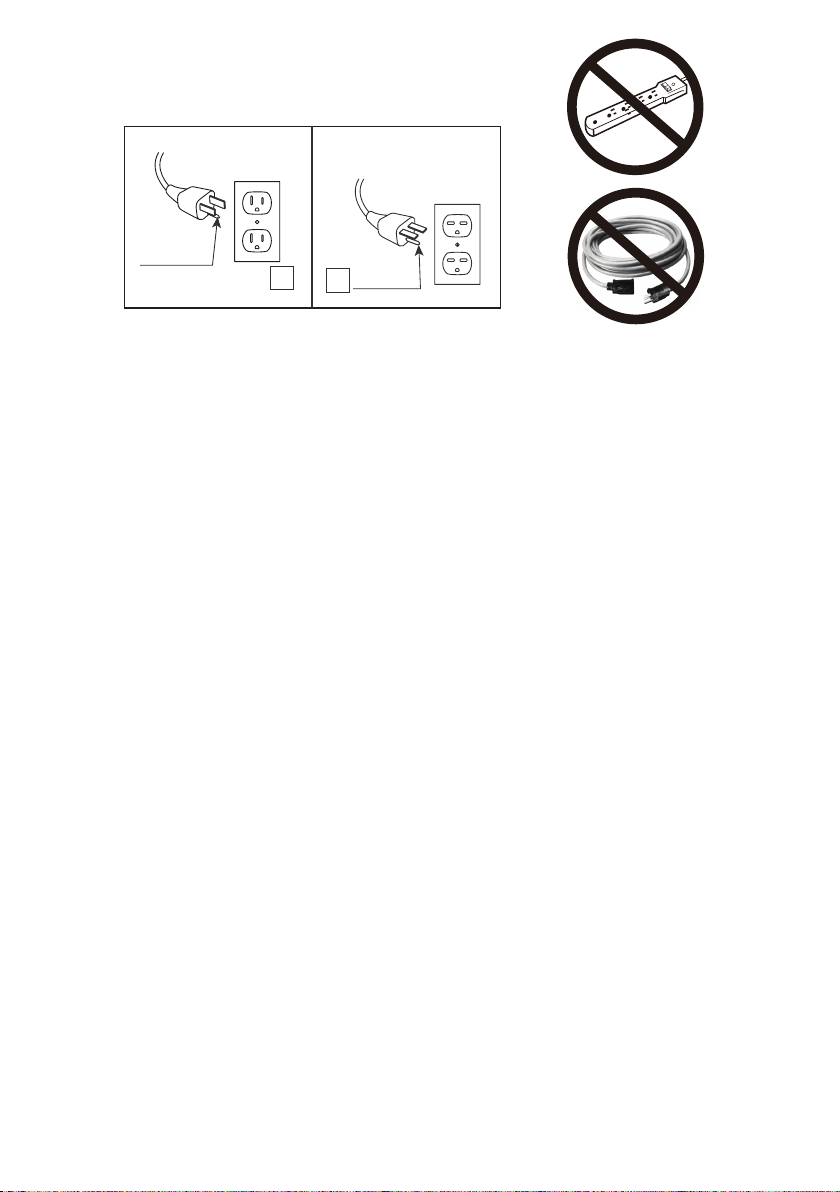

12.Connect to properly grounded outlets only. This heater is for use on 120 volts.
The cord has a plug as shown at A in Fig.1 Do not use a 2 prong adapters.
Never use with an extension cord or relocatable power tap (outlet/power strip).

4
23MMP3101REV1.0
28MMP7409REV1.0
13.This appliance, when installed, must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the current CSA C22.1
Canadian Electrical Code or for U.S.A. installations, follow local codes and the
National Electrical Code, ANSI/NFPA NO.70.
14. Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or re, or damage the appliance.
15. To prevent a possible re, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where opening may become blocked.
16.This appliance has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint or ammable liquids are used or stored. This replace
should not be used as a drying rack for clothing. Christmas stockings or
decorations should not be hung in the area of it.
17.Use this appliance only as described in the manual. Any other use not
recommended by the manufacturer may cause re, electric shock or injury
to persons.
18.This heater may include a visual alarm to warn that parts of the heater are
getting excessively hot. If the alarm ashes immediately turn the heater o󰀨
and inspect for any objects on or adjacent to the heater that may cause high
temperatures.
DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING!
SAVE THESE INSTRUCTIONS
ABFig.1

5
23MMP3101REV1.0
28MMP7409REV1.0

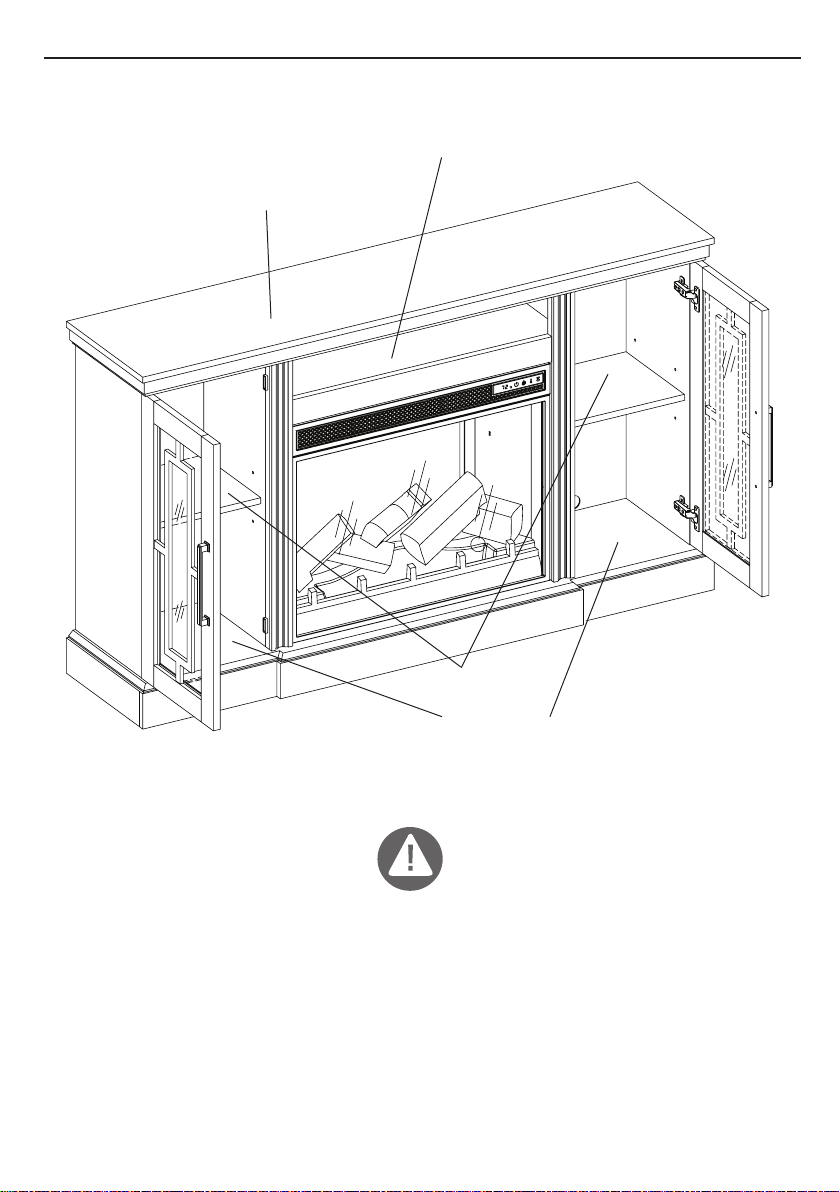

MAXIMUM LOAD
MAXIMUM LOAD
27.3 kg / 60 lb
MAXIMUM LOAD
13.6 kg / 30 lb
MAXIMUM LOAD
6.8 kg / 15 lb
MAXIMUM LOAD
9.1 kg / 20 lb
WARNING
Loads heavier than the maximum weights specied may result in instability, causing tip over
resulting in death or serious injury.

6
23MMP3101REV1.0
28MMP7409REV1.0

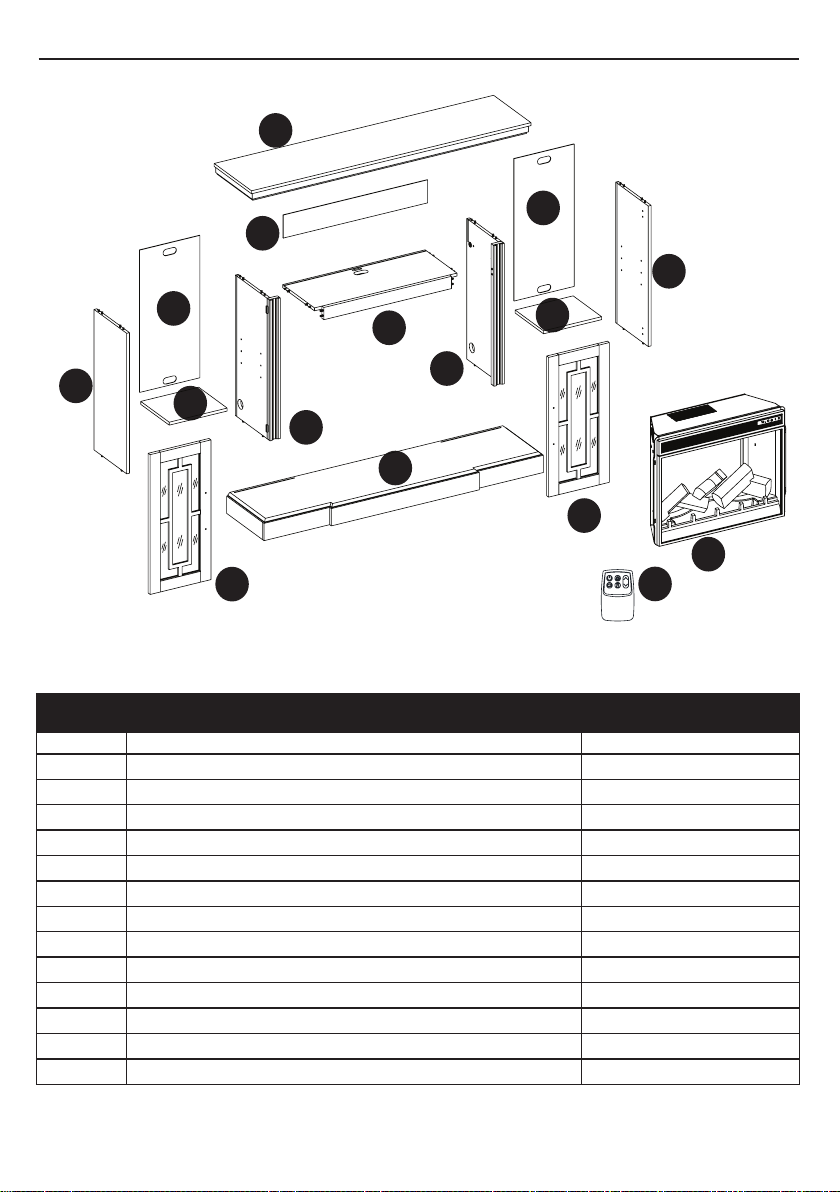

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Base 1
B Center Shelf 1
C Left Inside Panel 1
D Right Inside Panel 1
E Left Side Panel 1
F Right Side Panel 1
GMantel Top 1
H Back Side Panels 2
I Center Back Panel 1
J Left Door 1
K Right Door 1
LAdjustable Shelf 2
M Electric Fireplace Insert 1
N Remote 1
B
E
F
G
H
H
I
J
K
L
L
M
N
A
C
D

7
23MMP3101REV1.0
28MMP7409REV1.0

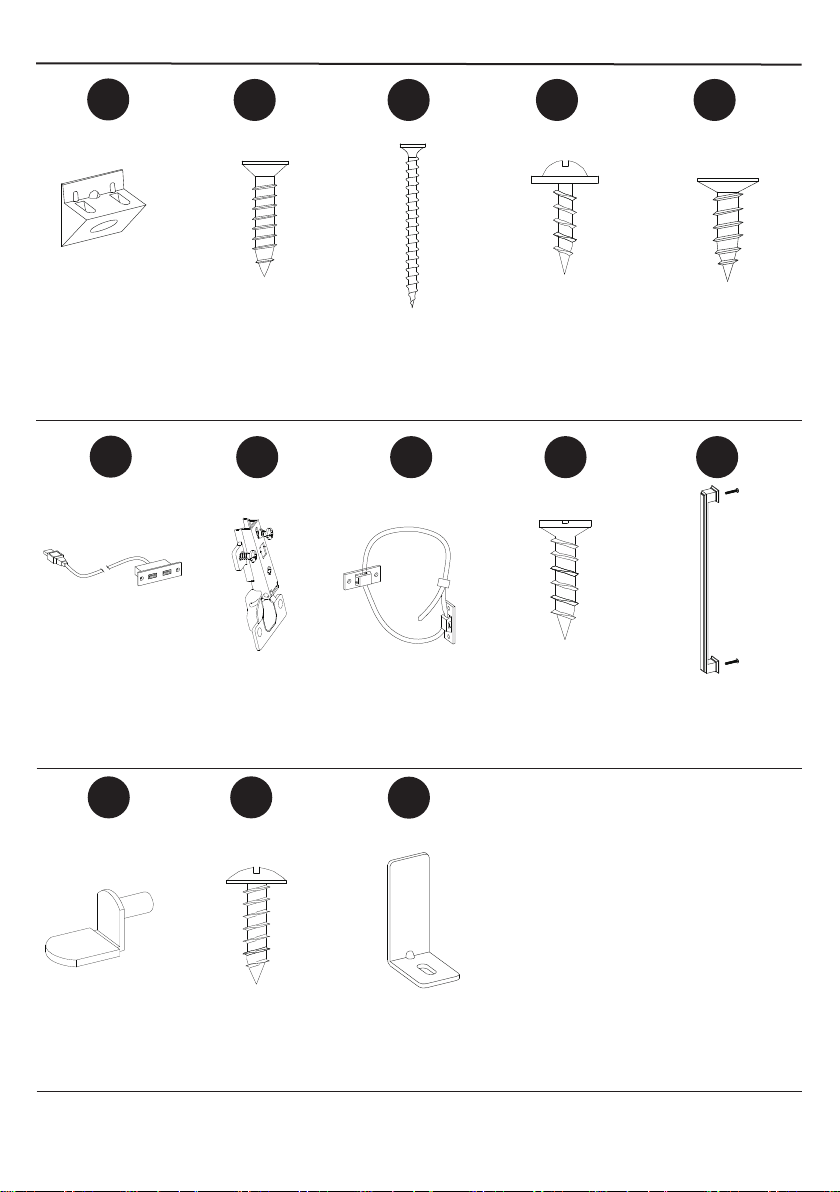

HARDWARE CONTENTS
Euro Hinge
Qty: 1 Qty: 4
Qty: 8
Qty: 1
Qty:8 Qty:2 Qty:2
Qty: 2
Qty: 8
Qty: 2
Qty: 2
AA
FF
KK LL MM
BB
GG
CC
HH
DD
II
EE
JJ
Tipping Restraint Hardware
Shelf Pin
M4x50mm M3x12mm
M3.5x15mm
M4x15mm
M3x12mm
Screw
USB Output Handle
Screw Metal Panel Bracket
Screw
Screw
Screw
Qty:16 Qty:16
M3x19mm
Screw
Back Panel Bracket

8
23MMP3101REV1.0
28MMP7409REV1.0
ASSEMBLY INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not at-
tempt to assemble, install or operate the product. To protect the product from possible scratch-
es, please assemble the parts on a scratch-free surface.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Phillips screwdriver, scissors and utility knife.
C
B
D
1
1. Assembling the center
• Locate the Center Shelf (B) and align between
the Left and Right Inside Panels (C and D).
• Push together, inserting the pre-installed
screws on the Center Shelf (B) into the holes
on the Left and Right Inside Panels (C and D)
as shown.
• Secure the panels in place by tightening the
fasteners on the Left and Right Inside Panels
(C and D) with a Phillips screwdriver as shown.
A
CC
Hardware Used
x 4
Screw
2
M4x50mm
2. Attaching the base
• Locate the Base (A) and align the Base (A) with
of the center assembly.
• Insert Screws (CC) through the Base (A) and
into the pre-drilled holes on the edges of the
center assembly as shown.
• Tighten all screws using a Phillips screwdriver.

9
23MMP3101REV1.0
28MMP7409REV1.0
F
E
CC
DD
x 4
x 2
Screw
Screw
Hardware Used
Hardware Used
3
4
EE
FF
Hardware Used
x 2
x 1
Screw
5
ASSEMBLY INSTRUCTIONS
USB Output
M3x12mm
M4x50mm
M3x12mm
5. Installing the USB port
• Slide the USB output (FF) through the opening
in the center shelf.
• Carefully secure the USB output (FF) in place
using Screws (EE) and a Phillips screwdriver.
3. Attaching the side panels
• Locate the Left and Right Side Panels (E and F).
• Align the Left and Right Side Panels (E and F)
with the Base.
• Insert Screws (CC) through the Base and into
the pre-drilled holes on the edges of the Left and
Right Side Panels (E and F) as shown.
4. Securing the surround brackets
• Find the pre-attached metal plate bracket
behind the top surround rail. Rotate the bracket
to span the joint of the top surround rail and
side surround rail.
• Secure the surround bracket with a Screw (DD).
• Repeat to secure both sides.

10
23MMP3101REV1.0
28MMP7409REV1.0
6
H
I
G
H
7
ASSEMBLY INSTRUCTIONS
6. Attaching the back panels
• Locate the Back Side Panels (H) and the Center
Back Panel (I).
• Slide the Back Side Panels (H) into the grooves
between the inner and outer side panels as
shown. Slide all the way down until the Back
Side Panels (H) meet the bottom shelf.
• Slide the Center Back Panel (I) into the grooves
between the inside panels. Slide all the way
down until the Center Back Panel (I) meets the
bottom of the center shelf.
7. Attaching the top panel
• Locate the Mantel Top (G) and align the
pre-installed screws with the screw holes on
the top edges of the main assembly.
• After inserting the screws into the holes, tighten
the fasteners from underneath the Mantel Top
(G) using a Phillips Screwdriver as shown.
8
Hardware Used
AA
BB
x 16
x 16
Screw
Back Panel Bracket
M3x19mm
8. Securing the back panels
• Place the Back Panel Brackets (AA) between
the back panels and the grooves of the
assembly as shown.
• Fasten each Back Panel Bracket (AA) using
Screws (BB). Repeat until all brackets are in
place as indicated by the diagram.

11
23MMP3101REV1.0
28MMP7409REV1.0
GG
JJ
II
Hardware Used
Hardware Used
x 4
x 2
x 8
9
10
K
K
J
J
ASSEMBLY INSTRUCTIONS
Euro Hinge
Screw
Handle
M3.5x15mm
9. Preparing the doors
• Locate the Left Door (J) and Right Door (K).
• Secure Euro Hinges (GG) to the Left Door (J)
using Screws (II) on both the upper and lower
hinge as indicated.
• Repeat steps on the Right Door (K).
10. Attaching the door handles
• Each door Handle (JJ) has pre-attached screws.
Remove these screws and place handles over
the pre-drilled holes in the Left Door (J).
• Place the pre-attached screws on the other side
of the Left Door (J) and tighten with a Phillips
screwdriver through the door and into the
handle.
• Repeat steps for the Right Door (K).
K
J
11
11. Attaching the doors
• Attach the previously installed Euro hinges on
the Left Door (J) onto the inside of the left side
panel of the main assembly as shown.
• Secure by tightening the pre-attached screws
on the hinges into the pre-drilled holes in the
side panel.
• Repeat to attach the Right Door (K).

12
23MMP3101REV1.0
28MMP7409REV1.0
M
L
KK
Hardware Used
x 8
12
13
ASSEMBLY INSTRUCTIONS
Shelf Pin
12. Inserting the adjustable shelves
• Locate the two Adjustable Shelves (L).
• Insert the Shelf Pins (KK) into the pre-drilled
holes on the inside of each cabinet side panel
at your desired height. Align all pins to the same
height to ensure your shelf is level.
• Rest each Adjustable Shelf (L) on the Shelf Pins
(KK) as shown.

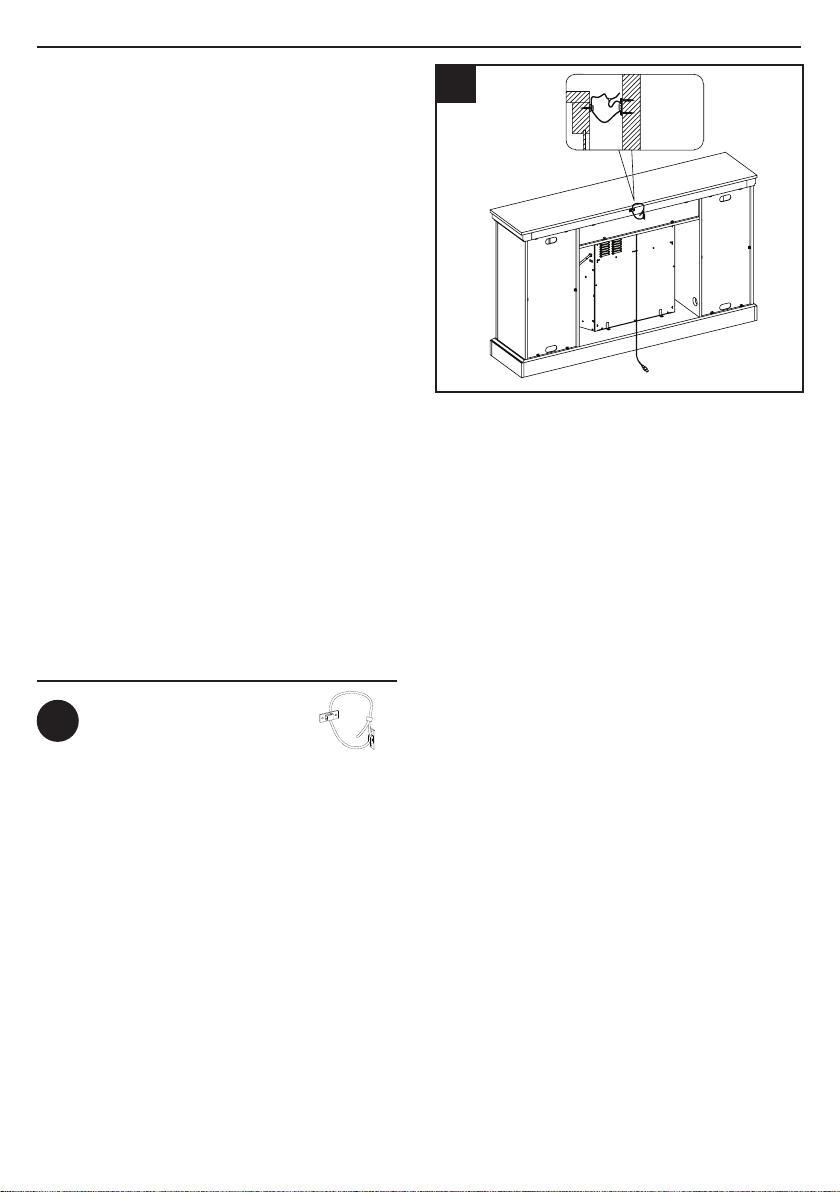

13. Installing the replace insert
• Carefully lift the Fireplace Insert (M) into the
back of the unit and center in the replace
insert opening.
• Do not drag the replace insert across the base
as it may scratch your unit.
14
LL
MM
Hardware Used
x 2
x 2
Screw
Metal Panel Bracket
M4x15mm
14. Securing the replace insert
• Align the Metal Panel Brackets (MM) behind
the Fireplace Insert and above the pre-drilled
holes in the Base.
• Secure with the mounting Screws (LL) on both
sides.

13
23MMP3101REV1.0
28MMP7409REV1.0
15. Installing the tip restraint hardware
• When the Tipping Restraint Hardware (HH) is
properly installed, it can provide protection
against unexpected tipping of the Unit due to
small tremors, bumps or climbing.
• Each Tipping Restraint Hardware (HH) includes
one Unit Anchor, one Wall Anchor, one Anchor
Tether, and four Anchor Screws. Use these to
complete the following steps for a proper
installation.
• Locate a secure wall stud behind the unit closest
to left side.
• Align the Unit Anchor with a wall stud and attach
with two Anchor Screws using a Philips Screw-
driver. The Anchor Screws must pass through
the Top Assembly for proper installation.
• Align the Wall Anchor in the center of the wall stud, at level with the Unit Anchor, and attach with
two Anchor Screws using a Philips Screwdriver.
• On the Anchor Tether, detach the cable from the connector and loop the loose cable through
the eyelets on the Wall Anchor and Unit Anchor. Reattach the loose cable to the connector,
but do not tighten.
• Locate a secure wall stud behind the unit closest to the right side and repeat the steps above.
• Tighten both Anchor Tethers by pulling the cable the through connector.
NOTE: Installation of the Tipping Restraint Hardware (HH) will provide a small space between the wall
and the unit. This will allow you to run power cords and connector cables to your television or other
devices placed on top of the unit.
WARNING: Installing the Tipping Restraint Hardware will help prevent accidents or damage to the unit.
HH
Hardware Used
x 1
15
ASSEMBLY INSTRUCTIONS
Tipping Restraint Hardware

14
23MMP3101REV1.0
28MMP7409REV1.0

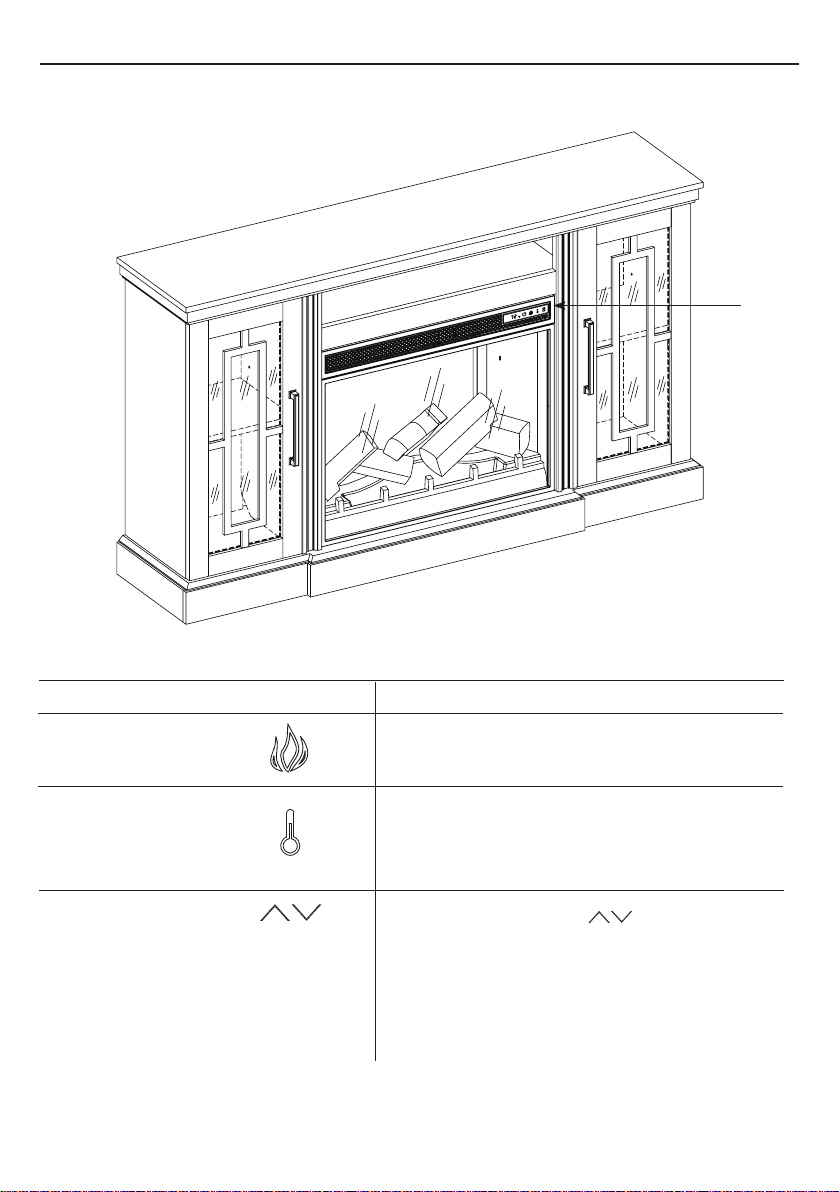

OPERATING INSTRUCTIONS
FUNCTION
FLAME
There are 5 brightness levels that can be selected
and OFF (00) setting. Settings F5 - F1 decrease in
brightness.
Press the heater button on the control panel to turn
on/o󰀨 (00) and adjust the heater setting.
To change between °F and °C, press and hold the
HEATER button on the control panel for 3 seconds.
HEATER
ICON DESCRIPTION
CONTROL
PANEL
LOCATION
The up and down buttons“ ” on the remote
will increase / decrease temperature setting.
The thermostat setting range is 62°F - 82°F( 17°C -
27°C) or continuously ON.
The thermostat is adjustable by 2°F or 1°C
increments.
TEMPERATURE
INCREASE / DECREASE

15
23MMP3101REV1.0
28MMP7409REV1.0
OPERATING INSTRUCTIONS
FUNCTION
Pressing the timer button will cycle through the
timer settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H,
6H, 7H, 8H, 9H and OFF (00).
The ame speed is only adjustable from the
remote control. Each ame setting has 5 speed
options available. Setting 1 is slowest ranging up
to setting 5 which is the fastest.
TIMER
ICON DESCRIPTION
FLAME SPEED
This product is equipped with a Safer Plug®; an
advanced safety device that helps prevent electrical
res caused from faulty outlets.
Overloading of outlets, adapters and surge
protectors may cause overheating, damage, and
increase risk of res. Safer Plug®continuously
monitors the temperature in the plug and outlet
and will turn o󰀨 the heater to prevent unsafe outlet
overheating.
If the Safer Plug®cuts the power due to unsafe
conditions it will show an “ ”message on the
screen. If this occurs the Safer Plug®has prevented
a potentially unsafe condition.
To reset the device if this occurs, rst allow the
plug to cool down. Once the plug has cooled down,
unplug the device and wait 5 seconds, then plug
back in and continue to use normally.
If the Safer Plug®continues to activate your outlet
may be faulty. Check your heater cord and plug
connections. Faulty wall outlet connections or loose
plugs can cause the outlet or plug to overheat. Be
sure the plug ts tight in the outlet. Heaters draw
more current than small appliances, so overheating
of the outlet may occur even if it has not occurred
with the use of other appliances. During use check
frequently to determine if your plug, outlet or
faceplate is HOT! If so, discontinue use of the heater
and have a qualied electrician check and/or replace
the faulty outlet(s).
SAFER PLUG®

16
23MMP3101REV1.0
28MMP7409REV1.0
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Display shows “ ” The thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back
panel of the replace and check that
the thermostat is plugged into the main
circuit board. If this does not solve the
problem contact customer service for a
replacement thermostat sensor.
Display shows “ ”
The thermostat sensor
short circuited.
Contact customer service for a
replacement thermostat sensor.
Display shows “ ” Manual Reset overheat
protection has triggered.
Inspect the heater and check that the
air inlets and outlets are not blocked
as this may cause overheating. Unplug
the heater for 30 minutes and allow
it to cool down. Re-plug and operate.
Monitor the heater for signs of
overheating. If the problem persists,
discontinue use of the heater and
contact customer service.
Display shows “ ” Normal operation.
Check your heater cord and plug
connections. Faulty wall outlet
connections or loose plugs can cause
the outlet or plug to overheat. Be sure
the plug ts tight in the outlet. Heaters
draw more current than small
appliances, overheating of the outlet
may occur even if it has not occurred
with the use of other appliances.
During use check frequently to
determine if your plug outlet or
faceplate is HOT! If so, discontinue
use of the heater and have a qualied
electrician check and/or replace the
faulty outlet(s).
Heater does not blow warm
air. Cool down cycle.
Normal operation, will continue to
run
for less than one minute
before
shutting down. Times will vary based
on temperatures. During this time cool
air will blow.
No power, logs do not
glow. No power to the unit
Check that unit is plugged into a
standard 120V outlet. Press power
button several times, make sure power
is set at "ON" position.
Logs glow, but no
ame e󰀨ect. Flame e󰀨ect turned o󰀨 Press ame button several times.

17
23MMP3101REV1.0
28MMP7409REV1.0
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Heater does not blow
warm air.
Thermostat setting is
preventing heater from
turning on.
Adjust the temperature settings to
ensure that the thermostat is set higher
than the current room temperature.
Flame e󰀨ect works but heat-
er function does not and the
emberbed ashes when the
heater button is pressed.
The heater is disabled.
With the power on press and hold the
POWER button on the control panel for
10 seconds. Once re-enabled the
emberbed lights will ash multiple times.
Remote Control is not
working.
No batteries Change the remote batteries.
Poor Signal
Operate remote transmitter at a slow
measured pace.
Press the remote control buttons with
an even motion and gentle pressure.
Repeatedly pressing buttons in rapid
succession may cause the transmitter
to malfunction.
Distance
Operate the remote at a distance less
than 20 feet from the front of the
appliance; point the remote at the
control panel.
TROUBLESHOOTING

18
23MMP3101REV1.0
28MMP7409REV1.0
Warning: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
• Clean the trim using a soft cloth, slightly dampened with citrus oil based product and bu󰀨
with a clean soft cloth.
• Citrus oil based products are recommended for cleaning and can be found at
supermarkets or hardware stores.
• WARNING: Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of re, electrical shock and injury to persons.
• WARNING: Disconnect power before attempting any maintenance or cleaning to reduce
the risk of re, electrical shock or personal injury.
FCC/IC INFORMATION
CARE AND MAINTENANCE

19
23MMP3101REV1.0
28MMP7409REV1.0
FCC/IC INFORMATION
CARE AND MAINTENANCE
The manufacturer warrants that your new Electric Fireplace is free from manufacturing and
material defects for a period of one year from date of purchase, subject to the following
conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating
instructions furnished with the product at all times. Any unauthorized repair, alteration,
willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the
purchase was made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in
material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this
warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not be
covered by this warranty, nor shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of the use, or inability to use the product, except
as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components
and accessories, or any obligations/liabilities on the part of the manufacturer are hereby
expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its
behalf, any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in
conjunction with the installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which
vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or
misuse of the product.
c. You do not have the original receipt of purchase.
1-YEAR LIMITED WARRANTY

20
23MMP3101REV1.0
28MMP7409REV1.0
REPLACING THE REMOTE CONTROL BATTERIES:
NOTE: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon zinc), or rechargeable (nicad, ni-mh, etc.) batteries.
CAUTION:
• Do not ingest batteries.
• Non-rechargeable batteries are not to be recharged.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the product.
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Remove used batteries promptly.
AAA 1.5V
AAA 1.5V
NOTE: Battery disposal
Please always dispose of batteries
at a suitable recycling point.
