Allen + Roth LWS44PSD User manual

1
DESK
ITEM #4143022
MODEL #LWS44PSD
AS21731
Français p. 14
Español p. 27
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
allen + roth®is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at
[email protected].
welcoming • sophisticated • inspiring

2
TABLE OF CONTENTS
Cam lock System Operation............................................................................................... 2
Package Contents............................................................................................................... 3
Hardware Contents...............................................................................................................4
Safety Information............................................................................................................... 5
Preparation ......................................................................................................................... 5
Assembly Instructions.......................................................................................................... 6
Care and Maintenance ....................................................................................................... 11
Limited Lifetime Warranty.................................................................................................. 11
Replacement Parts List ................................................................................................... 12

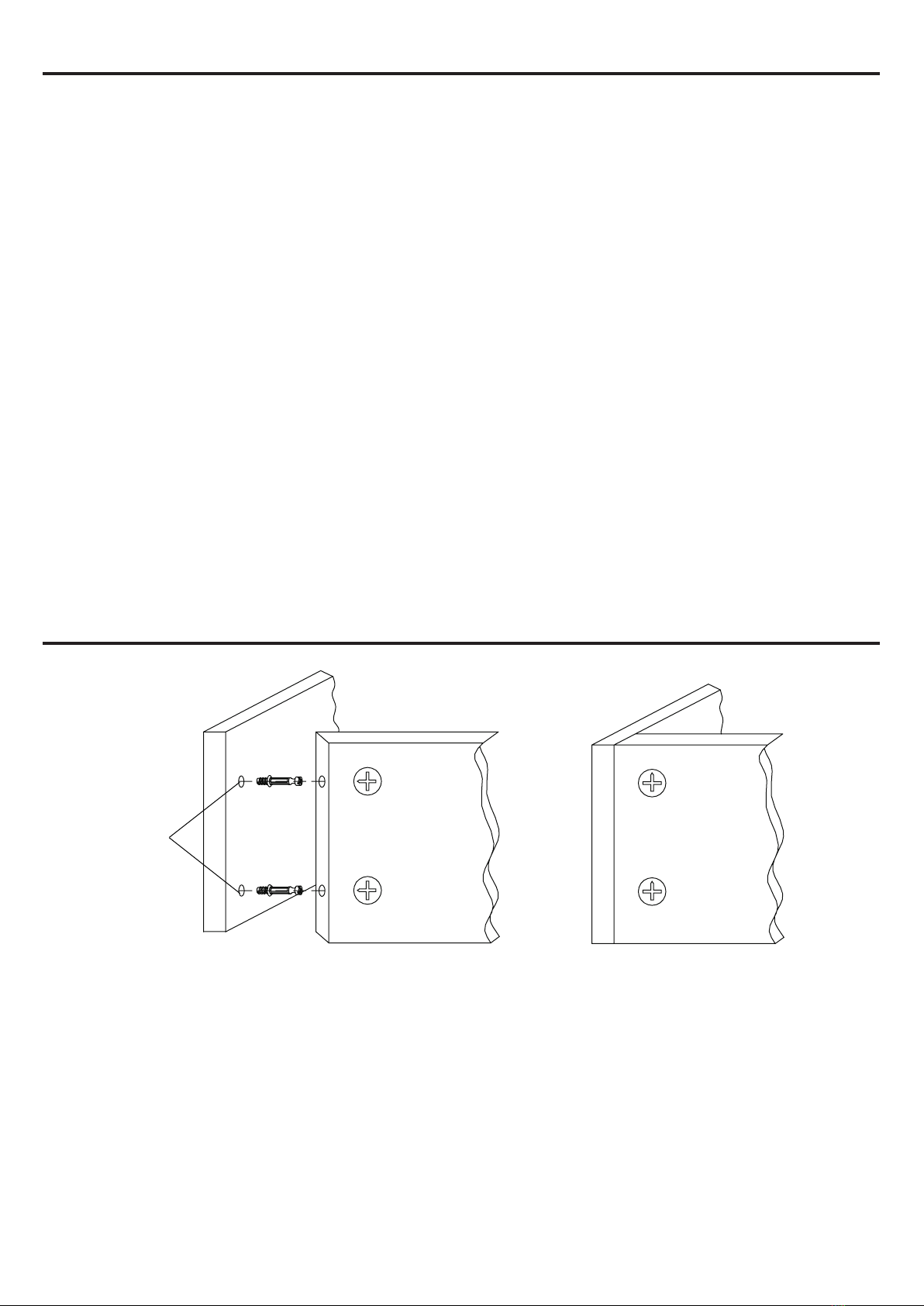

CAM LOCK SYSTEM OPERATION
1. Screw cam bolts into the predrilled small holes on panel.
2. Insert cam lock into predrilled large hole on panel.
3. Make sure the arrow on the cam lock is pointed toward the cam bolts.
4. Connect both panels together, making sure cam bolts goes into predrilled hole on
the end of panel with cam lock.
5. Once cam bolts is connected inside cam lock, take Phillips screwdriver and tighten
cam lock clockwise.
DETAIL A DETAIL B
THREADED
INSERT
LOCKED POSITION
PANELPANEL
Cam Bolts
CAM LOCK

3

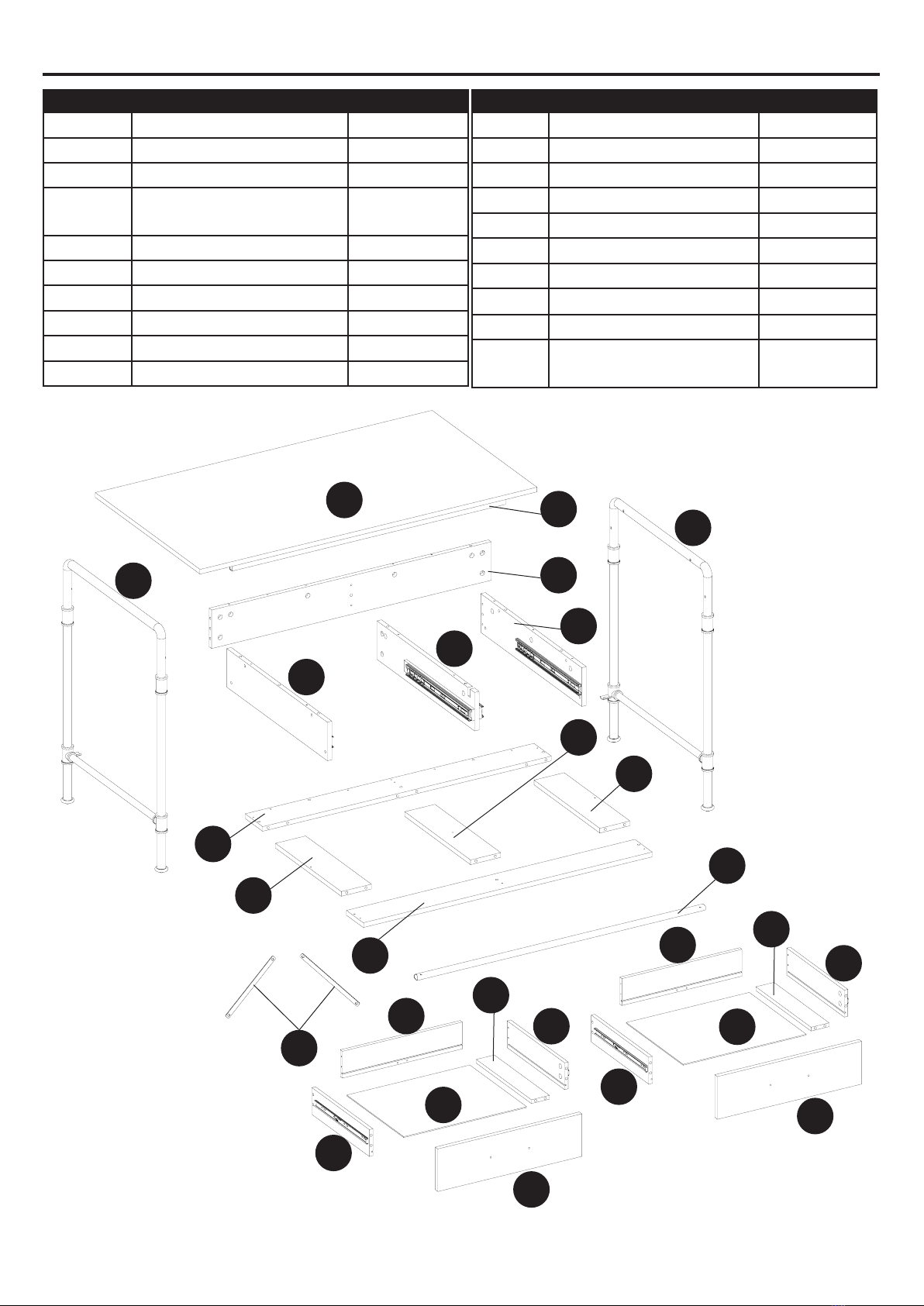

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Top Panel 1
B Left Side Frame 1
C Right Side Frame 1
DMetal Support Tube 1
E Back Panel 1
F Left Side Panel 1
G Right Side Panel 1
H Partition Panel 1
I Bottom Back Rail 1
J Bottom Front Rail 1
PART DESCRIPTION QUANTITY
K Bottom Side Rail 2
L Bottom Center Rail 1
M Back Stretcher 1
N Drawer Left 2
O Drawer Right 2
P Drawer Back 2
Q Drawer Bottom 2
R Drawer Stretcher 2
S Drawer Front 2
T Metal support plate 2
A
F
C
D
I
J
O
O
K
K
E
H
G
B
M
L
N
N
P
P
Q
Q
R
R
S
S
T

4

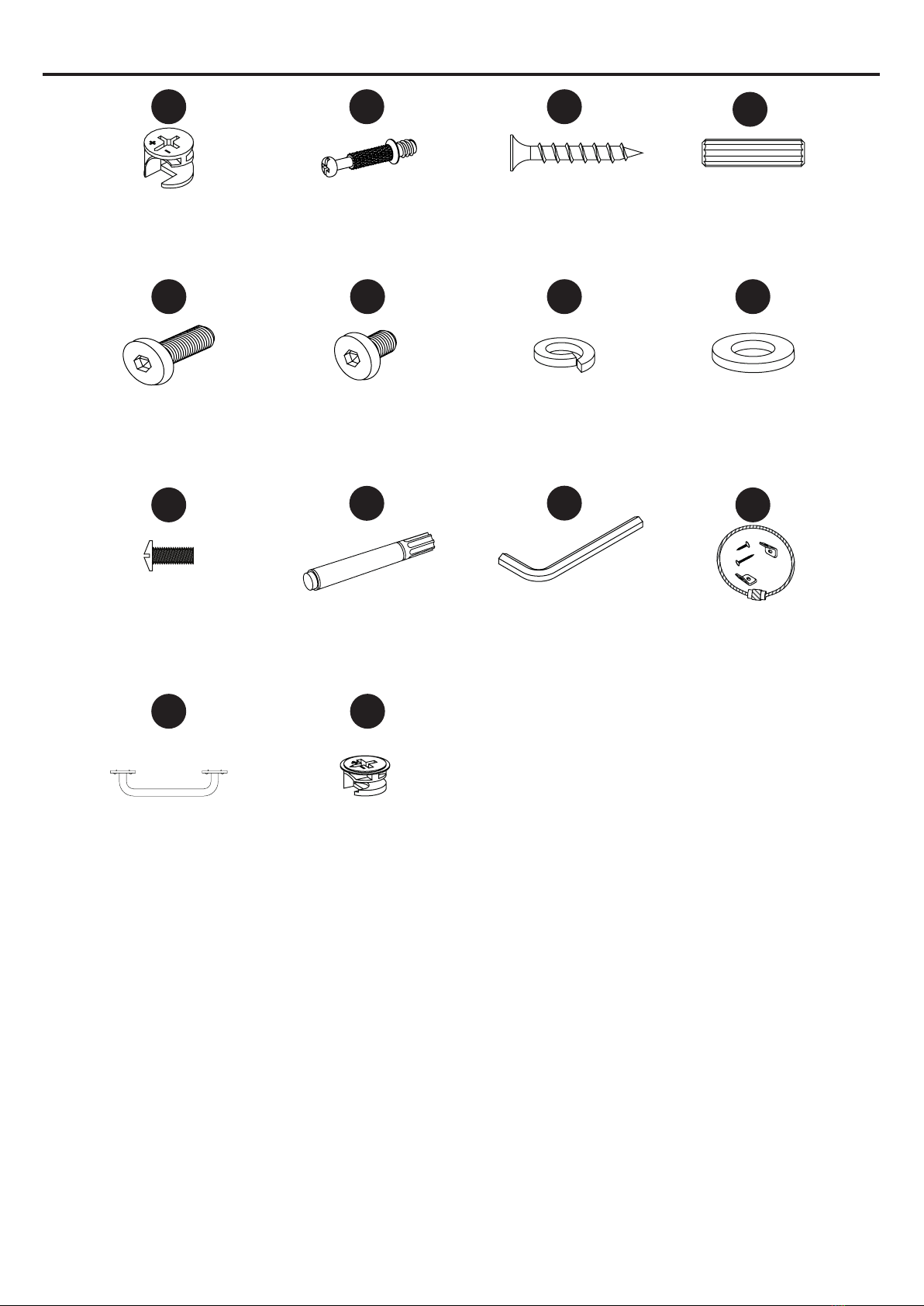

HARDWARE CONTENTS (shown not actual size)
Large Cam Lock
Qty. 18
Small Cam Lock
Qty. 12
1/4”x 15mm Bolt
Qty. 6
Handle
Qty. 2
Tipping Restraint
Hardware
Qty. 1 set
AA
FF
II
MM NN
BB
GG
JJ
DD
CC
HHEE
KK LL
Cam Bolt
Qty. 30
Touch-up Pen
Qty. 1
5/32” x 15mm Bolt
Qty. 4
Wood Dowel
Qty. 31
M3 x 38mm Screw
Qty. 26
1/4”x 32mm Bolt
Qty. 8
Allen Wrench
Qty. 1
1/4” Lock Washer
Qty. 8
1/4” Flat Washer
Qty. 8

5
PREPARATION
Please read the instruction sheets completely before assembly. Examine all packaging material before
discarding carton. Remove any remaining staples from the carton before discarding. Remove all parts
from carton and separate into groups as indicated on part list. Please ensure all parts are included
prior to assembly. Use of power tools must be with caution and ensuring setting at low-torque, avoid
damaging the wood panels.
Estimated Assembly Time: 60 minutes.
Tools Required for Assembly: Phillips screwdriver, stud nder, marking pencil, tape measure, power
drill and drill bits.
SAFETY INFORMATION
Please read and understand this entire manual before attemting to assemble or install the product.
1. Please read the Assembly Instructions prior to assembling the unit.
2. To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
3. Keep all hardware and parts out of the reach of children.
4. Please wait until all steps are completed before fully tightening bolts.
5. Make sure all bolts and screws are tightly fastened before the unit is used.
6. Check that all bolts, screws are tight at least every 3 months or as needed.
WARNING
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM WEIGHTS INDICATED. USE
WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHTS INDICATED MAY RESULT IN
INSTABILITY CAUSING POSSIBLE INJURY. DISTRIBUTE WEIGHT EVENLY.
TOP MAXIMUM:
90.9kg / 200 lb
EVENLY DISTRIBUTED.
DRAWER MAXIMUM:
13.6kg / 30 lb
EVENLY DISTRIBUTED.
ENTIRE UNIT MAXIMUM
WEIGHT CAPACITY:
118.2kg / 260 lb
EVENLY DISTRIBUTED

6

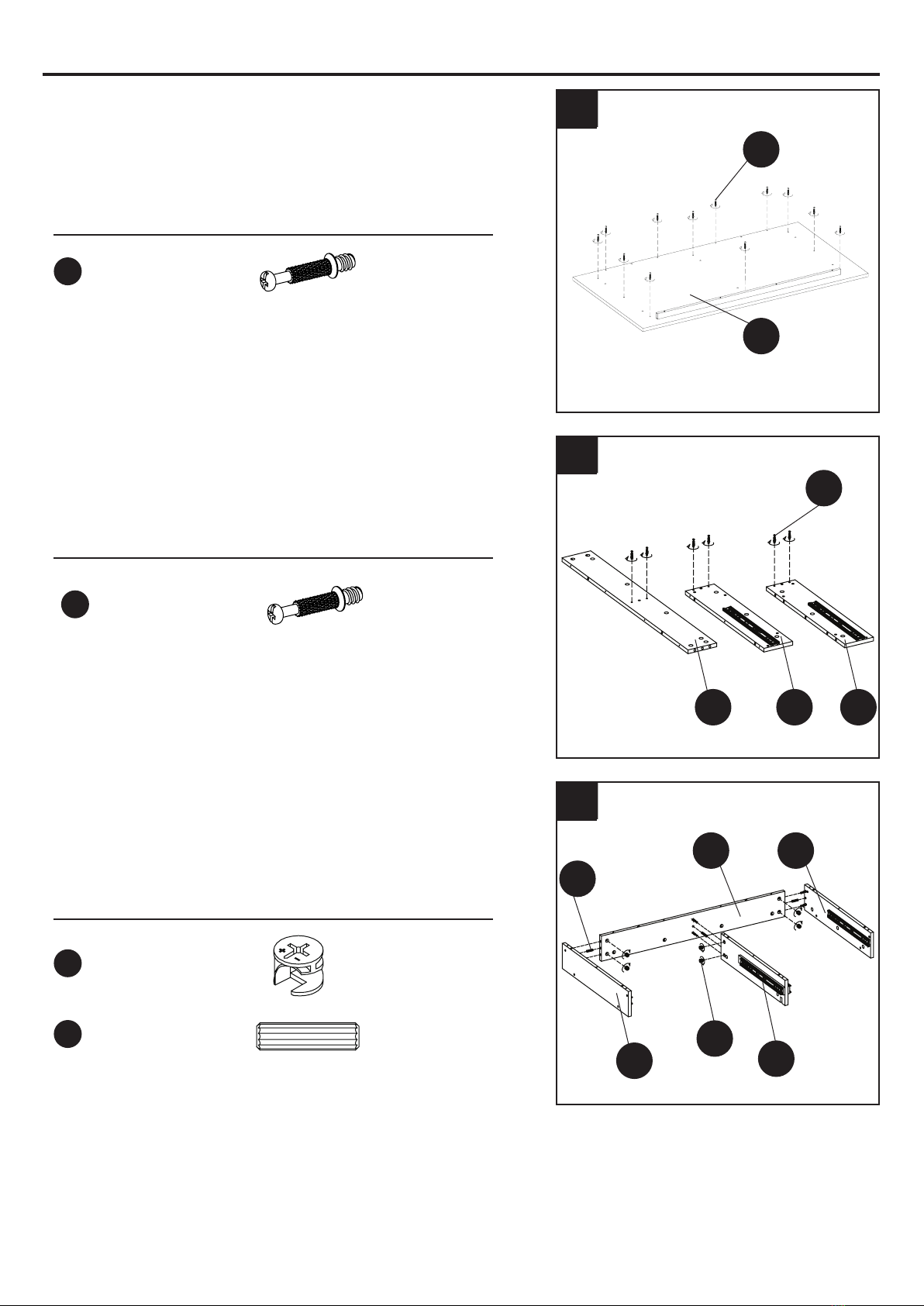

ASSEMBLY INSTRUCTIONS
Hardware Used
1
2
3
2. Insert cam bolts (BB) into back panel (E), left side panel
(F), right side panel (G).
3. Attach left side panel (F), right side panel (G), partition
panel (H) to back panel (E), using large cam lock (AA) and
wood dowel (DD).
Hardware Used
1. Insert cam bolts (BB) into top panel (A).
BB Cam Bolt x12
AA
DD
Large Cam Lock
Wood Dowel
x 6
x 3
BB
A
BB Cam Bolt x6
BB
E G F
GH
AA
E
DD
F
Hardware Used

7
ASSEMBLY INSTRUCTIONS
4
5
6
Hardware Used
Hardware Used
Hardware Used
4. Attach xed left side panel (F), right side panel (G),
partition panel (H), back panel (E) to top panel (A), using
large cam lock (AA) and wood dowel (DD).
5. Attach the left side frame (B) to the left side panel (F), and
right side frame (C) to right side panel (G), using 1/4” x 32
mm bolt (EE), 1/4” lock washer (GG) and 1/4” at washer
(HH), and then attach back stretcher (M) to left side frame
(B) and right side frame (C), using 1/4” x 15 mm bolt (FF),
tighten with allen wrench (KK).
NOTE: DO NOT fully tighten all bolts until you nish
assembling all parts. Once assembled, go back and fully
tighten all bolts. This will make the assembly easier.
6. Insert wood dowel (DD) into bottom back rail (I), bottom
front rail (J), bottom side rail (K), bottom center rail (L).
EE
GG
HH
KK
1/4”x 32 mm Bolt
1/4” Lock Washer
1/4” Flat Washer
Allen Wrench
x8
x8
x8
x1
AA
DD
Large Cam Lock
Wood Dowel
x 12
x 8
A
DD
E
H
GAA
F
FF 1/4”x 15 mm Bolt x2
B
M
CG
F
EE
GG HH
KK FF
DD Wood Dowel x 12
ILK
K
DD J

8
ASSEMBLY INSTRUCTIONS
7
8
9
7. Attach bottom back rail (I), bottom front rail (J), bottom
side rail (K), bottom center rail (L) to xed left side panel
(F), right side panel (G), partition panel (H), back panel (E),
using wood dowel (DD) and M3 x 38 mm screws (CC).
8. Attach metal support plate (T) to back stretcher (M), left
side frame (B) and right side frame (C), using 1/4” x 15 mm
bolt (FF), tighten with allen wrench (KK).
9. Insert cam bolts (BB) into drawer front (S).
Hardware Used
Hardware Used
CC M3 x 38mm Screw x14
CC
DD
KK FF
BB
DD Wood Dowel x 8
IL
K
J
F
H
EG
C
S
B
MT
KK Allen Wrench x1
FF 1/4”x 15 mm Bolt x4
Hardware Used
BB Cam Bolt x12

9
ASSEMBLY INSTRUCTIONS
10
11
12
Hardware Used
Hardware Used
10. Attach drawer left (N) and drawer right (O) to drawer
back (P), tighten with M3 x 38 mm screws (CC).
11. Insert drawer bottom (Q) into drawer left (N), drawer
right (O) and drawer back (P).
12. Attach drawer front (S) and drawer stretcher (R) to draw-
er left (N), drawer right (O) and drawer back (P), using M3 x
38 mm screws (CC) and small cam locks (NN).
CC M3 x 38mm Screw x8
CC
O
OP
P
Q
N
N
N P
SO R
CC
NN
NN
CC
Small Cam Lock
M3 x 38mm Screw
x4
x4
X2
X2
X2

10
13
13. Attach handle (MM) to drawer front (S) using
5/32” x 15 mm bolts (II).
Using small cam lock (NN) to tighten the drawer front (S),
dawer left (N) and drawer right (O).
ASSEMBLY INSTRUCTIONS
NNII S
MM
Hardware Used
II 5/32” x 15 mm Bolt x4
14
14. Insert the drawer into the assembly by pressing down
the release levers on the slide runners and sliding the draw-
er into the tracks of slides.
15
Hardware Used
15. Locate and mark wooden studs where the unit is to be
installed. Drill a 1/8” pilot hole on the wooden stud
approximately 3” below the height of unit top. Attach one
bracket (a) securely with screw (c) into the pilot hole on
the wall. Attach the other bracket (a) with screw (d) to the
back edge of unit top in line with the bracket (a) on the wall.
Adjust oor levelers to level the unit against the wall where
desired. Put the male end of the steel cable (b) through
each bracket (a). Securely connect both ends together by
turning the female connector clockwise.
LL Tipping Restraint Hardware x1
Wooden Stud
Wall
b
b
a
a
c
d
X2
NN
MM
Small Cam Lock
Handle
x8
x2 O
N

11
CARE AND MAINTENANCE
• Use a soft, clean cloth that will not scratch the surface when dusting.
• Use of furniture polishes is not necessary. Should you choose to use polishes, test rst in an
inconspicuous area.
• Using solvents of any kind on your furniture may damage the nish.
• Never use water to clean your furniture as it may cause damage to the nish.
• Always use coasters under beverage glasses and owerpots.
• Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid
rubbing.
• Always use protective pads under hot dishes and plates. Heat can cause chemical changes that
may create spotting within the furniture nish.
• Stains or marks from crayons or ink markers will be di󰀩cult to remove.
• In the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
• Check bolts/nuts periodically and tighten them if necessary.
• Touch-up Pen (JJ) has been provided to repair any small nicks or scratches that may occur
during assembly or shipping.
LIMITED LIFETIME WARRANTY
This product is warranted to the original purchaser. If there is a failure in this unit due to defects
in materials or workmanship, the manufacturer will repair or replace this item at our discretion
without charge. Warranty is void if product has been assembled incorrectly, misused, abused by
overloading, altered in any way or damaged due to accident. This warranty is not transferable and
does not cover chipping, aking, scratches, rust, dents, or other damages to the surfaces of this
product. Responsibility of the manufacturer is limited to repair or replacement of this product. The
manufacturer is not responsible for consequential, incidental, or other damages or losses resulting
from product failure.
This warranty is in lieu of all other expressed warranties. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation may not apply to you. This
warranty gives you specic legal rights and you may have other rights which vary from state to state.

12
PART DESCRIPTION PART #
A Top Panel 00LWS44PSD-01
B Left Side Frame 00LWS44PSD-02
C Right Side Frame 00LWS44PSD-03
DMetal Support Tube 00LWS44PSD-04
E Back Panel 00LWS44PSD-05
F Left Side Panel 00LWS44PSD-06
G Right Side Panel 00LWS44PSD-07
H Partition Panel 00LWS44PSD-08
I Bottom Back Rail 00LWS44PSD-09
J Bottom Front Rail 00LWS44PSD-10
K Bottom Side Rail 00LWS44PSD-11
L Bottom Center Rail 00LWS44PSD-12
M Back Stretcher 00LWS44PSD-13
N Drawer Left 00LWS44PSD-14
O Drawer Right 00LWS44PSD-15
P Drawer Back 00LWS44PSD-16
Q Drawer Bottom 00LWS44PSD-17
R Drawer Stretcher 00LWS44PSD-18
S Drawer Front 00LWS44PSD-19
T Metal support plate 00LWS44PSD-20
AA Large Cam Lock 00LWS44PSD-21
BB Cam Bolt 00LWS44PSD-22
CC M3 x 38mm Screw 00LWS44PSD-23
DD Wood Dowel 00LWS44PSD-24
EE 1/4” x 32 mm Bolt 00LWS44PSD-25
FF 1/4” x 15 mm Bolt 00LWS44PSD-26
GG 1/4” Lock Washer 00LWS44PSD-27
HH 1/4” Flat Washer 00LWS44PSD-28
II 5/32” x 15mm Bolt 00LWS44PSD-29
JJ Touch-up Pen 00LWS44PSD-30
KK Allen Wrench 00LWS44PSD-31
LL Tipping Restraint Hardware 00LWS44PSD-32
MM Handle 00LWS44PSD-33
NN Small Cam Lock 00LWS44PSD-34
OO Floor Leveler 00LWS44PSD-35
PP Drawer slides 00LWS44PSD-36
QQ Complete Hardware 00LWS44PSD-37
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].

13
Printed in VietnamDate: 2021-11-15 Rev. 0001-A
AA
FF JJ
BB
GG
KK
DDCC
HH
LL
EE
II
MM NN OO PP
REPLACEMENT PARTS LIST
ABCD
EFGH
IJKL
MNOP
QRST

14
BUREAU
ARTICLE NO 4143022
MODÈLE NO LWS44PSD
AS21731
Français p. 14
Español p. 27
ATTACH YOUR RECEIPT HERE
welcoming • sophisticated • inspiring
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant,
appelez notre service à la clientèle au 1 866 439-9800, entre 8 h et 20 h (HNE), du lundi au dimanche.
Vous pouvez également nous contacter à [email protected].

15
TABLE DES MATIÈRES
Fonctionnement du système Camloc .............................................................................. 15
Contenu de l’emballage..................................................................................................... 16
Contenu de la quincaillerie................................................................................................ 17
Consignes de sécurité....................................................................................................... 18
Préparation ....................................................................................................................... 18
Instructions de montage.................................................................................................... 19
Soin et entretien ................................................................................................................ 24
Garantie limitée à vie......................................................................................................... 24
Liste des pièces de remplacement.................................................................................... 25
FONCTIONNEMENT DU SYSTÈME CAMLOC
1. Vissez les vis Camloc dans les petits trous déjà percés sur le panneau.
2. Insérez les attaches Camloc dans les grands trous déjà percés sur le panneau.
3. Assurez-vous que les èches sur les attaches Camloc pointent vers les vis Camloc.
4. Reliez les deux panneaux ensemble, en vous assurant que les vis Camloc s’in-
sèrent correctement dans les trous déjà percés situés à l’extrémité du panneau sur
lequel sont installées les attaches Camloc.
5. Une fois les vis Camloc insérées dans les attaches Camloc, serrez les attaches
Camloc dans le sens des aiguilles d’une montre à l’aide d’un tournevis cruciforme.
DÉTAIL A DÉTAIL B
TIGE
FILETÉE
POSITION DE
VERROUILLAGE
PANNEAUPANNEAU
Vis Camloc
ATTACHE
CAMLOC

16
PIÈCE DESCRIPTION QUANTITÉ
A Panneau supérieur 1
B Cadre latéral gauche 1
C Cadre latéral droit 1
D Tube de support
métallique
1
E Panneau arrière 1
F Panneau latéral gauche 1
G Panneau latéral droit 1
H Panneau de séparation 1
I Rail arrière inférieur 1
J Rail frontal inférieur 1
PIÈCE DESCRIPTION QUANTITÉ
K Rail latéral inférieur 2
L Rail central inférieur 1
M Traverse arrière 1
N Tiroir gauche 2
O Tiroir droit 2
P Tiroir arrière 2
Q Tiroir Bas 2
R Tiroir tendeur 2
S Front du tiroir 2
T Plaque de support en
métal
2
CONTENU DE L’EMBALLAGE
A
F
C
D
I
J
O
O
K
K
E
H
G
B
M
L
N
N
P
P
Q
Q
R
R
S
S
T

17
Grande
attache Camloc
Qty. 18
Petite attache
Camloc
Qty. 12
Boulon
1/4”x 15 mm
Qty. 6
Poignée
Qty. 2
Quincaillerie anti-
basculement
Qty. 1 set
AA
FF
II
MM NN
BB
GG
JJ
DD
CC
HHEE
KK LL
Vis Camloc
Qty. 30
Crayon à retouche
Qty. 1
Boulon
5/32” x 15 mm
Qty. 4
Goujon de bois
Qty. 31
Vis
M3 x 38 mm
Qty. 26
Boulon
1/4”x 32 mm
Qty. 8
Clé Allen
Qty. 1
1/4” Rondelle de
blocage
Qty. 8
1/4” Rondelle plate
Qty. 8
CONTENU DE LA QUINCAILLERIE (non illustrée à la grandeur réelle)

18
CAPACITÉ MAXIMALE
DE PANNEAU SUPÉRIEUR:
90.9kg / 200 lb
RÉPARTIS ÉGALEMENT.
CAPACITÉ MAXIMALE
DE TIROIR:
13.6kg / 30 lb
RÉPARTIS ÉGALEMENT.
CAPACITÉ MAXIMALE DE
L’UNITÉ:
118.2kg / 260 lb
RÉPARTIS ÉGALEMENT.
Lire et comprendre le présent guide avant de monter ou d’installer le produit.
1. Lire les Instructions de montage avant d’assembler l’unité.
2. Pour éviter les dommages, assembler l’unité sur une surface solide, de niveau et non
abrasive.
3. Garder toute la quincaillerie et les pièces hors de portée des enfants.
4. Attendre que toutes les étapes soient complétées avant de serrer les boulons à fond.
5. S’assurer que tous les boulons et les vis soient solidement  xés avant d’utiliser l’unité.
6. S’assurer tous les trois mois ou au besoin que les boulons, les vis soient solides.
CONSIGNES DE SÉCURITÉ
AVERTISSEMENT
CETTE UNITÉ DOIT ÊTRE UTILISÉE UNIQUEMENT SELON LES POIDS MAXIMAUX INDIQUÉS.
L’UTILISATION AVEC DES PRODUITS PLUS LOURDS QUE LES LIMITES MENTIONNÉES PEUT
CAUSER DE L’INSTABILITÉ ET DES BLESSURES. RÉPARTIR LE POIDS ÉGALEMENT.
Avant de débuter le montage de ce produit, s’assurer d’avoir toutes les pièces indiquées. Comparer
les pièces avec la liste du contenu de l’emballage et de la quincaillerie. En cas de pièce manquante
ou endommagée, ne pas tenter de monter le produit.
Durée approximative du montage : 60 minutes.
Outils nécessaires pour l’assemblage: tournevis cruciforme, détecteur de montants, crayon, ruban à
mesurer, perceuse électrique, foret.
PRÉPARATION

19
INSTRUCTIONS DE MONTAGE
Quincaillerie utilisée
1
2
3
2. Insérer les vis camloc (BB) dans le panneau arrière (E),
le panneau latéral gauche (F), le panneau latéral droit (G).
3. Fixer le panneau latéral gauche (F), le panneau latéral
droit (G), le panneau de séparation (H) au panneau arrière
(E), à l’aide d’un grande attache camloc (AA) et d’une gou-
jon de bois (DD).
Quincaillerie utilisée
1. Insérer les vis camloc (BB) dans le panneau supérieur
(A).
BB Vis Camloc x12
AA
DD
Grande attache Camloc
Goujon de bois
x 6
x 3
BB Vis Camloc x6
BB
E G F
GH
AA
E
DD
F
Quincaillerie utilisée
BB
A

20
INSTRUCTIONS DE MONTAGE
4
5
6
Quincaillerie utilisée
Quincaillerie utilisée
Quincaillerie utilisée
4. Fixez le panneau latéral gauche (F), le panneau latéral
droit (G), le panneau de séparation (H), le panneau arrière
(E) au panneau supérieur (A), à l’aide d’un grande attache
camloc (AA) et d’une goujon de bois (DD).
5. Fixez le cadre latéral gauche (B) au panneau latéral
gauche (F), et le cadre latéral droit (C) au panneau latéral
droit (G), à l’aide d’un boulon 1/4” x 32 mm (EE), d’une ron-
delle de blocage 1/4” (GG) et d’une rondelle plate 1/4” (HH),
puis xez le traverse arrière (M) au cadre latéral gauche (B)
et au cadre latéral droit (C), à l’aide d’un boulon 1/4” x 15
mm (FF), serrez-le avec une clé allen (KK).
REMARQUE : NE PAS SERRER complètement tous les
boulons avant d’avoir ni d’assembler toutes les pièces.
Revenez en arrière et serrez complètement tous les boulons
une fois l’assemblage terminé. L’assemblage sera ainsi plus
facile.
6. Insérer la goujon de bois (DD) dans le rail arrière inférieur
(I), le rail frontal inférieur (J), le rail latéral inférieur (K) et le
rail central inférieur (L).
EE
GG
HH
KK
Boulon 1/4”x 32 mm
1/4” Rondelle de blocage
1/4” Rondelle plate
Clé Allen
x8
x8
x8
x1
AA
DD
Grande attache Camloc
Goujon de bois
x 12
x 8
A
DD
E
H
GAA
F
FF Boulon 1/4”x 15 mm x2
B
M
CG
F
EE
GG HH
KK FF
DD Goujon de bois x 12
ILK
K
DD J
