Allen + Roth 1652VA-18-200 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
ALLEN + ROTH and logo design are trademarks or registered
trademarks of LF, LLC. All rights reserved.
welcoming • sophisticated • inspiring
SM20485
ITEM #2694511
Español p. 10
MODEL #1652VA-18-200
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at [email protected] or visit www.lowespartsplus.com.
18-IN VANITY
WITH TOP

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Instructions...........................................................................................................................3
Preparation......................................................................................................................................4
Assembly or Installation Instructions...............................................................................................4
Care and Maintenance.....................................................................................................................8
Warranty..........................................................................................................................................8
Replacement Parts List...................................................................................................................9

3

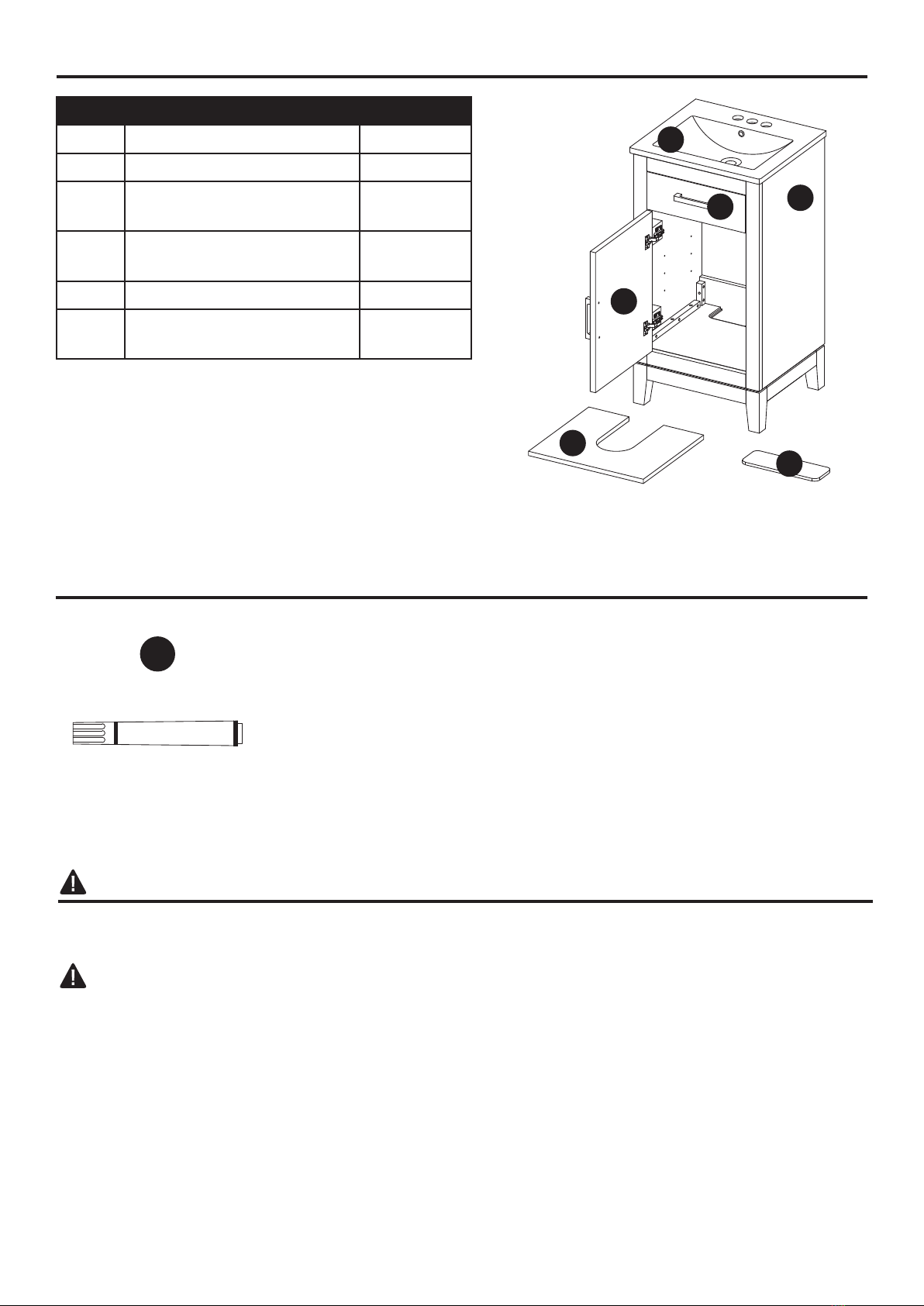

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• There are several assembly steps, including unpacking, that require two adults.
CAUTION
• DO NOT try to pry off top from vanity, as damage to top or vanity may occur.
• Follow these instructions closely, take your time, and use care while assembling this vanity.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY
A Vanity 1
B Top 1
CTip-out Door (preassembled
to Vanity (A)) 1
DDoor (preassembled
to Vanity (A)) 1
E Shelf 1
FFloor Plumbing
Cutout Lid 1
AA
Touch Up Pen
Qty. 1
A
B
C
D
EF

4
INSTALLATION INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Installation Time: 30 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors,
silicone caulk, power drill with drill bit
Helpful Tools (not included): Measuring tape, level
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.

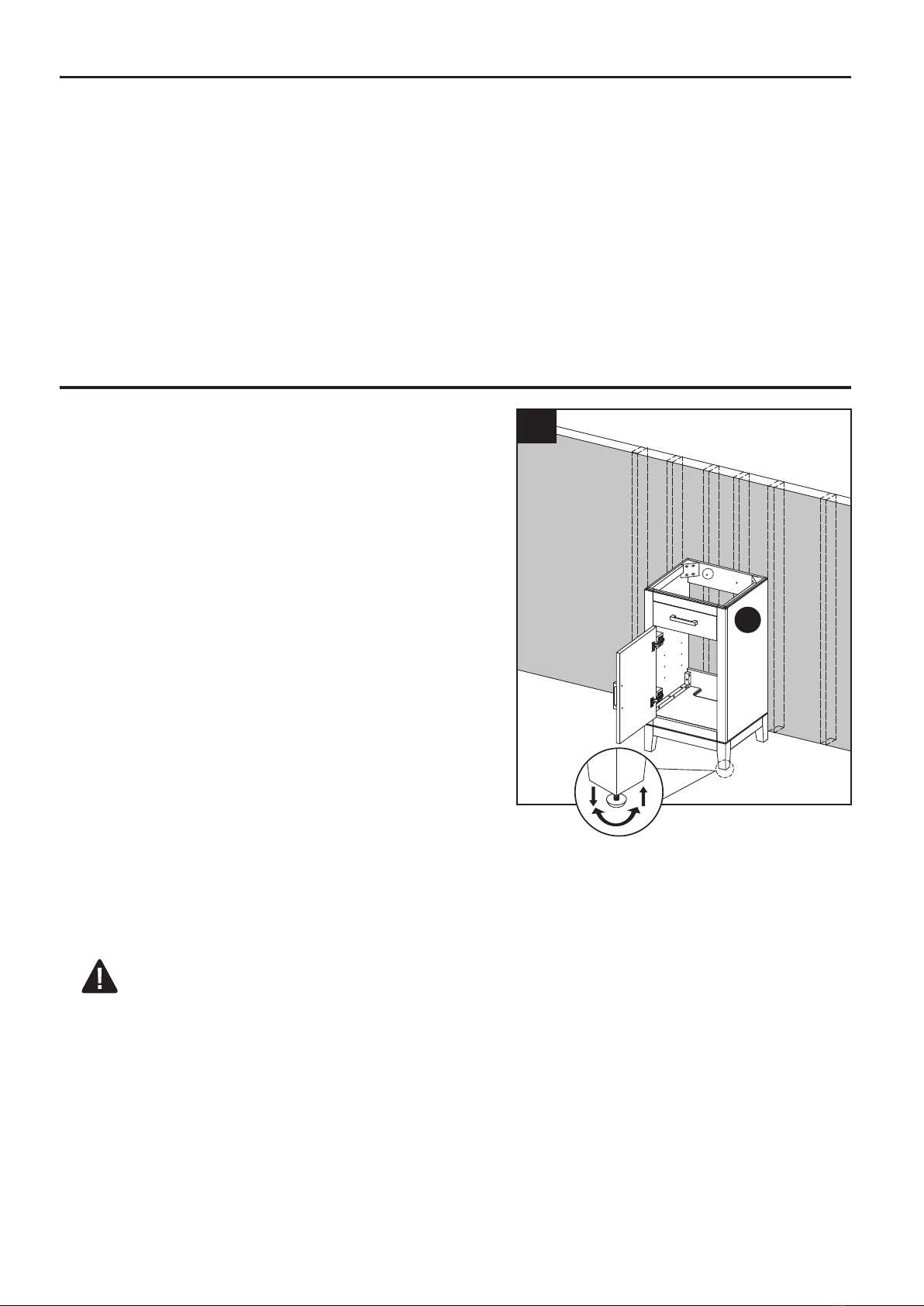

1. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 1). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
1
A

5
INSTALLATION INSTRUCTIONS

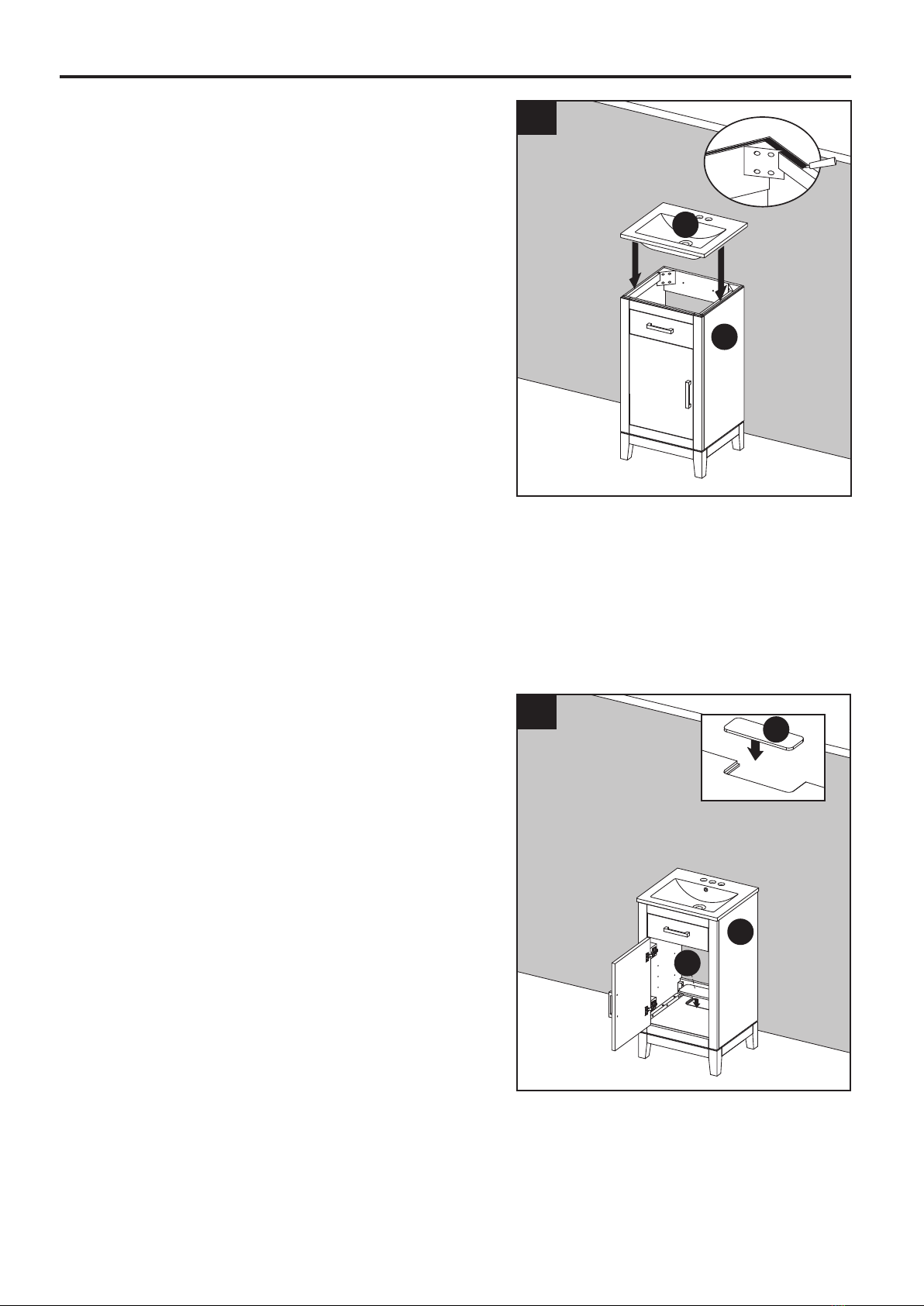

3. The back of the vanity is open for accessibility
for drain(s) and water line(s) hookup. If your
plumbing comes out of the back wall, insert
the floor plumbing cutout lid (F), as shown in
Illustration 3. This will close the hole and
increase your storage space.
If your plumbing comes out of the floor, this
hole provides accessibility for drain and water
line hookup.
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 2.
2.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
2
1
2
A
B
2
3F
F
A

6
INSTALLATION INSTRUCTIONS

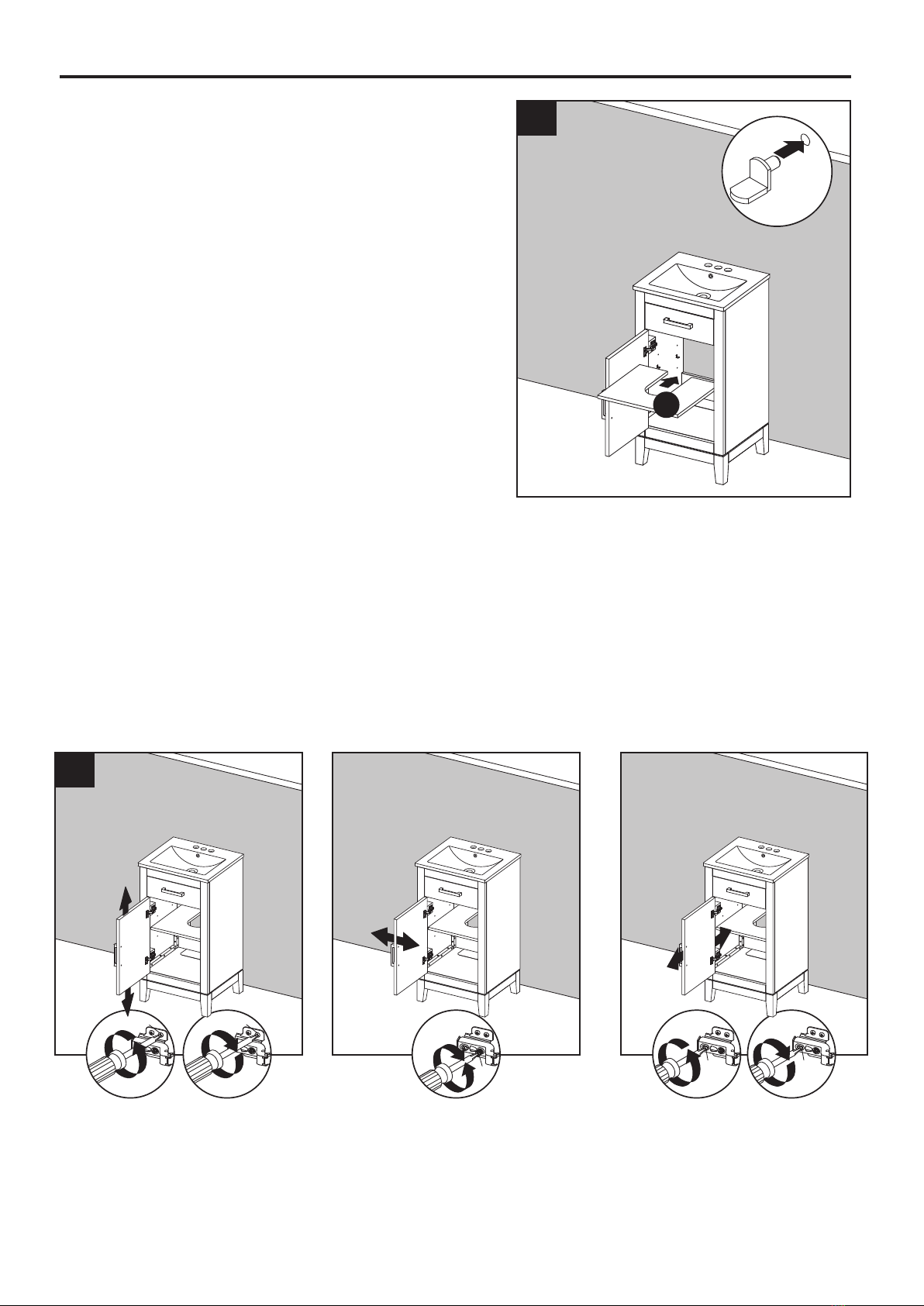

4. From the front of the assembly, insert shelf
pins at desired height, ensuring they are
level. Place shelf (E) on top of shelf pins.
5.
If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
4
1
E
2
5
b
1
1
c
1
c
3
a
1
a
3
2
2
22
22

7
INSTALLATION INSTRUCTIONS

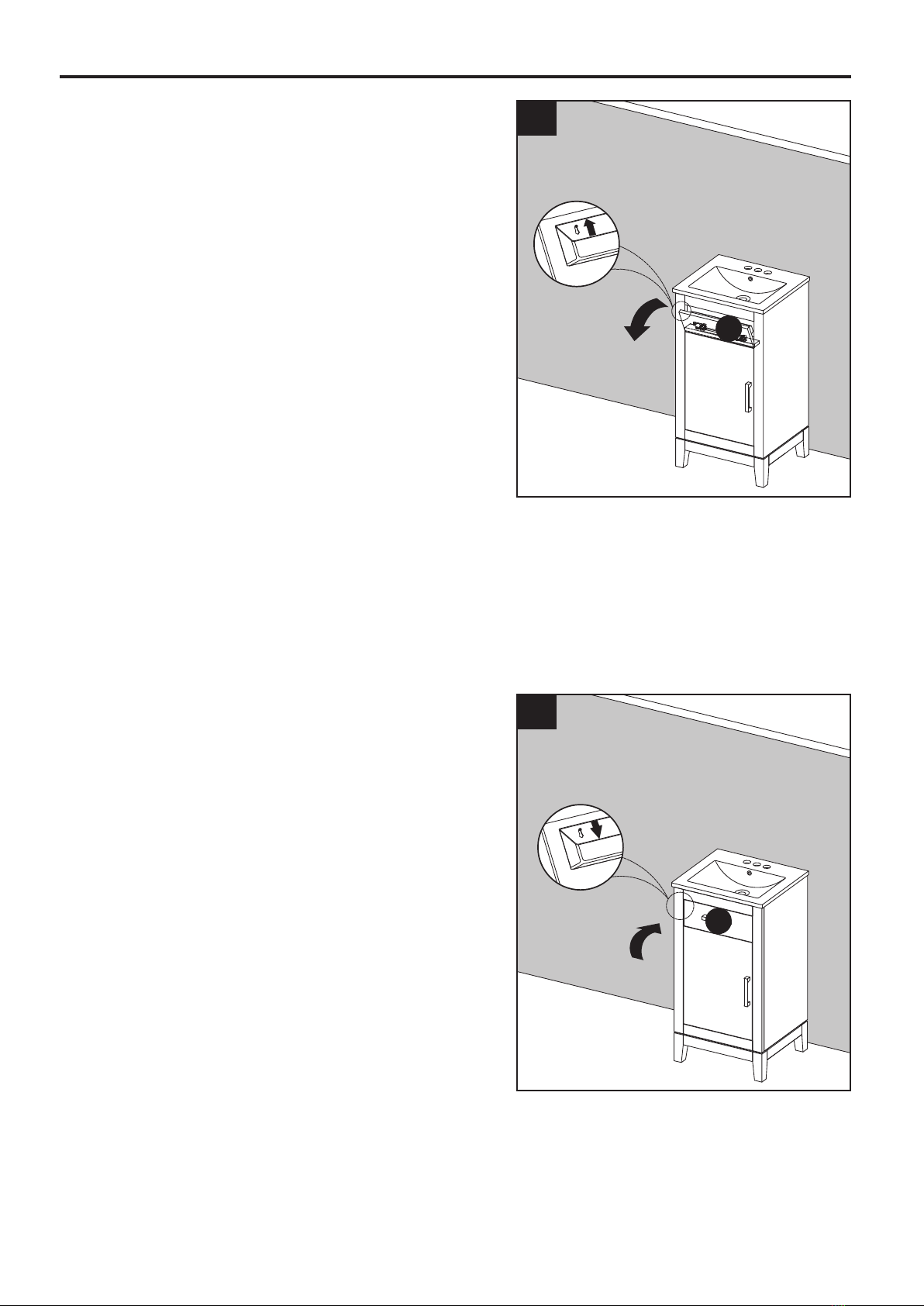

6.
Gently open the top tip-out door (C).
7. Gently push up to close the top tip-out door (C).
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to
complete the installation.
6
2
1
C
7
1
2
C

8
CARE AND MAINTENANCE
WARRANTY
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The ceramic top can be cleaned using standard ceramic cleaning agents available at your local
supplier.
• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch. Rub off excess
colorant promptly with a soft cloth.
The manufacturer warrants this item against defects in materials and workmanship for a period
of one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer is not accountable whatsoever for product installation during the warranty period.
There is no further expressed warranty. The manufacturer shall not be legally responsible for
incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. The manufacturer disclaims any and
all implied warranties.

9

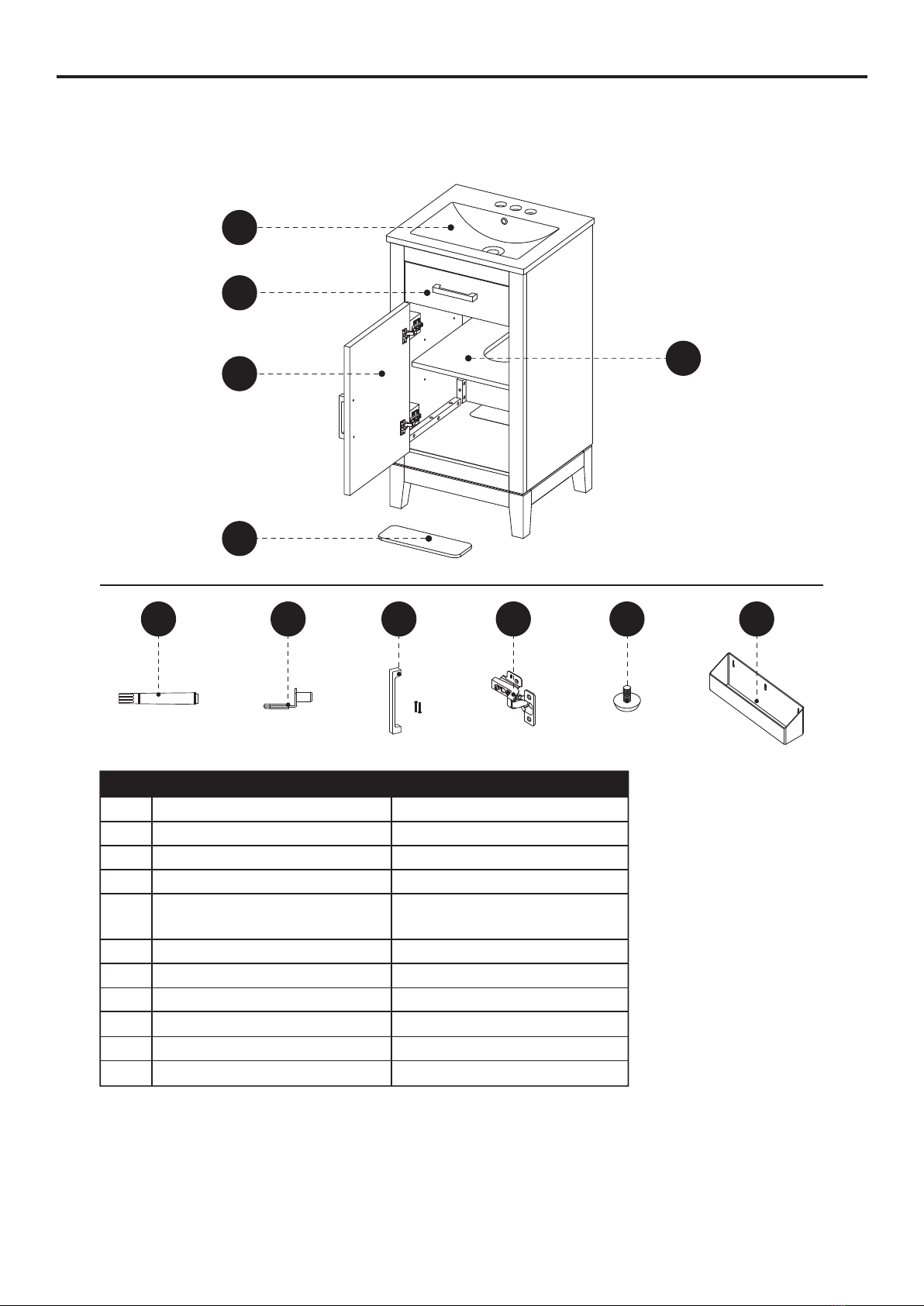

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected] or visit
www.lowespartsplus.com.
ALLEN + ROTH and logo design are trademarks or registered
trademarks of LF, LLC. All rights reserved.
Printed in Vietnam
AA Touch-up pen OX-0180Z
1652VA-S BN HANDLE
T-1007
CC Pull (with screw)
B1044
BB Shelf Pin
DD
Leveler
C-90-107
EE
1652VA-18-PLASTIC TRAYPlastic TrayFF
Hinge
PART DESCRIPTION PART#
B
Door
1652VA-18 TOP
D 1652VA-18-200 DOOR
E Shelf 1652VA-18-200-SHELF
200 FP LID
F Floor Plumbing Cutout Lid
Top
C 1652VA-18-200-TIP-OUT DOOR
Tip-out Door
C
F
D
B
E
BBAA CC DD EE FF

10
ADJUNTE SU RECIBO AQUÍ
Número de serie__________________ Fecha de compra__________________
ALLEN + ROTH y el diseño del logo son marcas comerciales
o marcas registradas de LF, LLC. Todos los derechos reservados.
welcoming • sophisticated • inspiring
ARTÍCULO #2694511
MODELO #1652VA-18-200
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro Departamento
de Servicio al Cliente al 1-866-439-9800, de lunes a domingo de 8 a.m. a 8 p.m., hora estándar del Este.
También puede ponerse en contacto con nosotros en [email protected] o visitar
www.lowespartsplus.com.
45,72 CM TOCADOR
CON CUBIERTA
