Allen + Roth RGWVT3039D User manual

ITEM #2694600
RIGSBY 30-IN VANITY WITH TOP
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
Français p. 9
Español p. 17
welcoming • sophisticated • inspiring
1
Model #RGWVT3039D
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m. EST, Monday - Sunday.
You could also contact us at [email protected] or visit www.lowespartsplus.com.
allen + roth®and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
SM20658

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or install this product.
WARNING
•Keep small parts away from children.
•Installing the item will require more than one person.
CAUTION
•DO NOT try to pry off top from vanity. Damage to top or vanity may occur.
• Use care when assembling the vanity; take your time and follow the assembly instructions closely
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

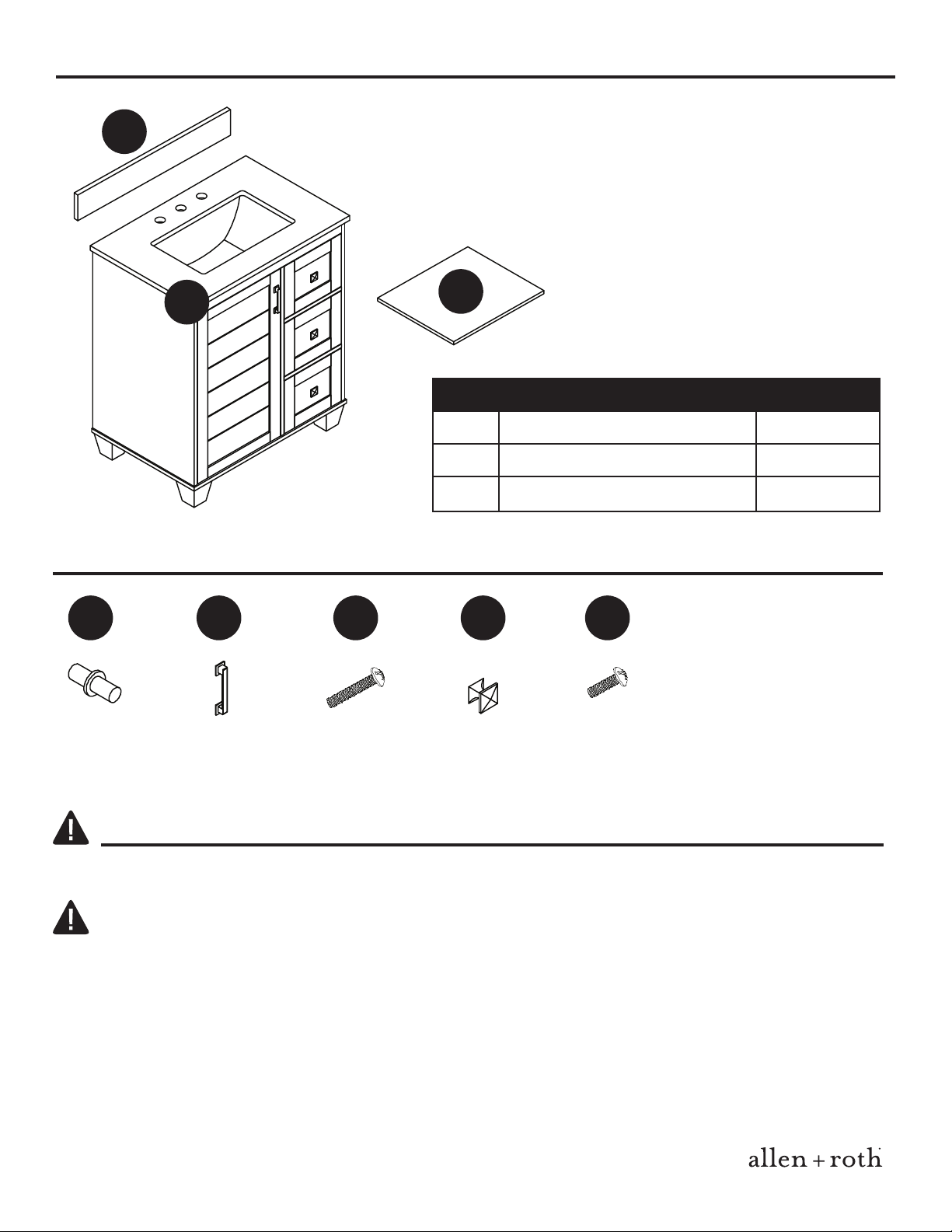

HARDWARE CONTENTS
Handle
Qty: 1
Shelf Pin
Qty: 4
PART DESCRIPTION QUANTITY
A Vanity with Top and Hardware 1
B Backsplash 1
C Interior Adjustable Shelf 1
PACKAGE CONTENTS
Knob
Qty: 3
AC
B
BBAA DD
Short Screw
Qty: 3
EE
Long Screw
Qty: 2
CC

3
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Installation Time: 10 minutes (24 hours for adhesive to dry).
Tools Required for Installation (not included): Silicone compound, Philips Head Screwdriver.
1
INSTALLATION INSTRUCTIONS
Step 1: Backsplash Installation
1. To mount the backsplash (B) to the wall,
apply a thin bead of silicone compound
(not included) to the unpolished back
side and bottom of the backsplash (B).
Position backsplash (B) as shown onto
vanity top (A) and against the wall.
Clean any excess silicone compound
before allowing to dry.
A
B

4
INSTALLATION INSTRUCTIONS

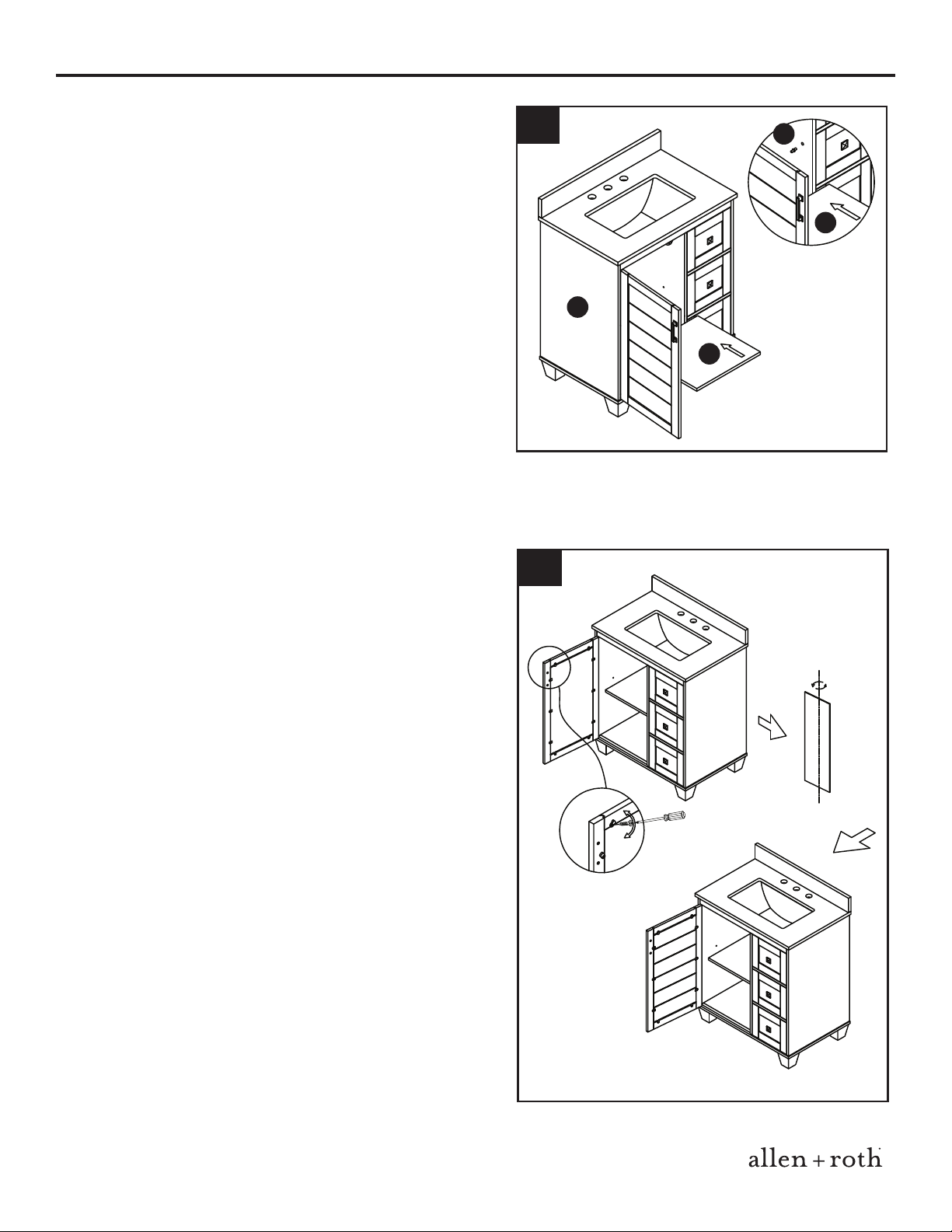

Step 2: Installing the Shelf
Step 3: Door Insert Panel Installation
2
3
3a. The door panels are reversible.
3b. The doors of this un
it are shipped with the
trim facing the front of the unit. You can
keep the doors as they are, or reverse the
insert panel with the flat panel forward,
depending on the desired configuration.
2.
Insert four shelf pins (AA) into the four
pre-drilled holes at the desired height inside
the vanity (A) compartment. Slide the shelf
(C) into the compartment above the pins
(AA).
A
C
AA
C

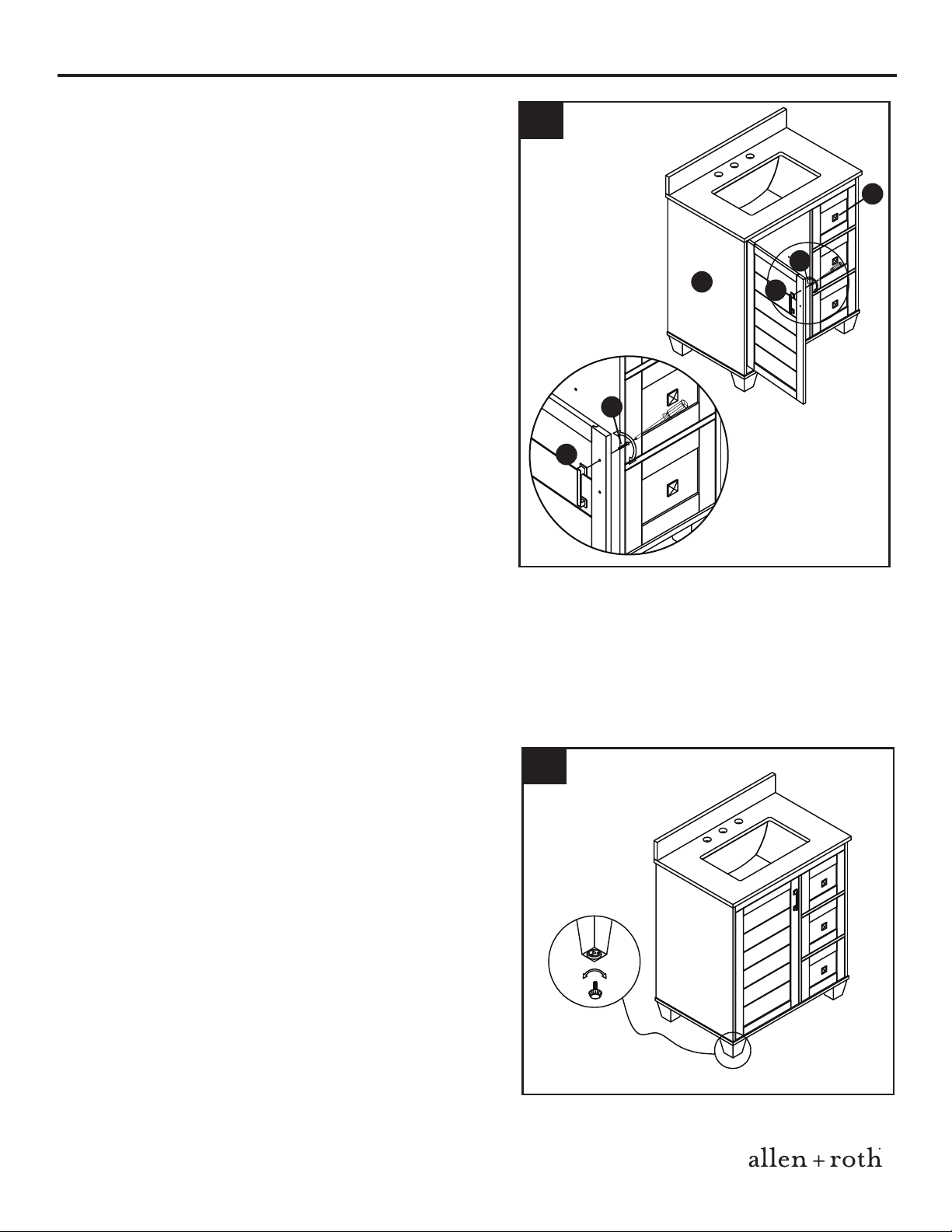

Step 5: Adjustable Level.
5
INSTALLATION INSTRUCTIONS
Step 4: Optional Hardware Installation
4
5
5. In case of uneven floors, floor levelers are
provided at the bottom of the vanity.
If necessary, adjust floor levelers by hand to
correct tilting and/ or level doors.
4. This unit is shipped with hardware already
attached. If desired, you can replace it with
the optional finish hardware included.
Remove and replace door handles (BB)
with Philips head screwdriver and long screws
(CC) and drawer knobs (DD) with Philips head
screwdriver and short screws (EE).
CC
CC
BB
BB
A
DD

INSTALLATION INSTRUCTIONS
6
6

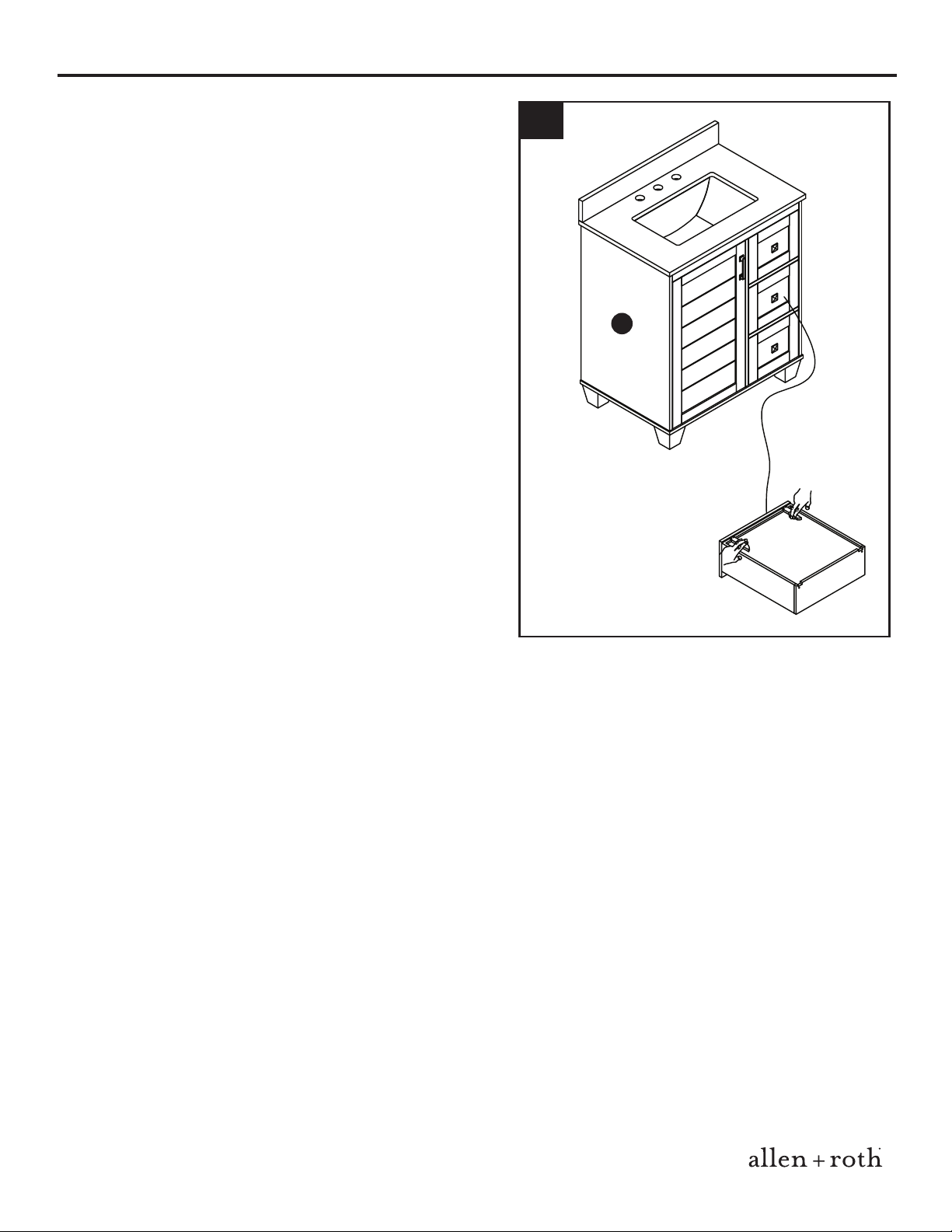

Step 6: Optional Drawer Removal
6a. Fully extend the drawer.
6b. Pull the two latches outward on the
underside of the drawer to release the lock.
6c. Simultaneously tilt and lift the drawer
upwards to pull it out of the cabinet (A).
A

CARE AND MAINTENANCE
IMPORTANT
WARRANTY
• Use caution placing items such as soap or any fragranced material on the stone surface. Use a
soap dish, coaster or similar item to protect the surface if placing any soap of fragranced products
on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other acids
as these may cause damage to the stone surface.
• Stone care products are available at your local home center store. Follow the manufacturer's
directions on how to use.
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard stone vanity top cleaning agents available at your
local supplier.
The manufacturer provides a one year limited warranty for residential use that the vanity combo will
be free from manufacturing defects, provided the original purchaser resides in or owns the home of
installation, and provided the vanity combo is installed and maintained according to the installation
and maintenance instructions contained within and supplied by the manufacturer. The liability will
be limited to cost of products only. This warranty is in lieu of any other express warranties. This
warranty applies only to the original purchaser. This warranty does not apply to any damage on the
product by accident, misuse, or modified, improper installation or by affixing accessories not
produced by the manufacturer. There is no further expressed warranty. The manufacturer shall not
be legally responsible for incidental, consequential or special damages arising at or in connection
with product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.
7

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m. EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
8
allen + roth®and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
PART DESCRIPTION PART NUMBER
B Backsplash PB-LLRGB-BS30
C Interior Adjustable Shelf PB-RGWVT3039D-SHELF
D Door PB-RGWVT3039D-DOOR
ETop Drawer Box PB-RGWVT30_36-UPDRW
FLower Drawer Box PB-RGWVT30_36MIDBTM-48DRW
AA Shelf Pin PB-SHELF PIN-H015
EE Door Handle with Screws (Matte Black) PB-HANDLE-H006
GG Slow Close Hinge with Screws PB-HINGE-H002
FF Drawer Knob with Screw (Matte Black) PB-KNOB-H007
Leveler PB-LEGS-H003
HH
Plastic Holder with Screw PB-DR HOLDER-H010
II
Touch-up Pen PB-TOUCH UP PEN-H011
JJ
KK
LL
MM
Door Handle with Screw (Brushed Nickel) PB-HANDLE-H008
Drawer Knob with Screw (Brushed Nickel)
Slow Close Drawer Undermount Slides
PB-KNOB-H009
PB-SCDRW SLIDE-H001
B C AA
HH JJ
D
Brushed
Nickel
KKGG II
Matte Black
EE
Matte Black
FF
Brushed
Nickel
LL
FE
MM

ARTICLE #2694600
MEUBLE-LAVABO AVEC COMPTOIR
RIGSBY DE 76,2 CM
welcoming • sophisticated • inspiring
9
Modèle #RGWVT3039D
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au
détaillant, appelez notre service à la clientèle au 1 866 439-9800, entre 8 h et 20 h (HNE), du lundi
au dimanche. Vous pouvez également communiquer avec nous à l’adresse [email protected]
ou visiter le site www.lowespartsplus.com.
allen + roth®et le logo sont des marques de commerce ou des
marques de commerce déposées de LF, LLC. Tous droits réservés.

10
Poignée
Qté : 1
Taquet
Qté : 4
CONSIGNES DE SÉCURITÉ
Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter d’assembler ou
d’installer cet article.
AVERTISSEMENT
• Tenez les petites pièces hors de la portée des enfants.
• Demandez l’aide d’une autre personne pour installer l’article.
ATTENTION
•NE tentez PAS de retirer le comptoir du meuble-lavabo. Vous risqueriez d’endommager le comptoir
ou le meuble-lavabo.
• Soyez prudent lors de l’assemblage du meuble-lavabo; prenez votre temps et suivez minutieusement
les instructions pour l’assemblage.
VEUILLEZ CONSERVER CES INSTRUCTIONS POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT

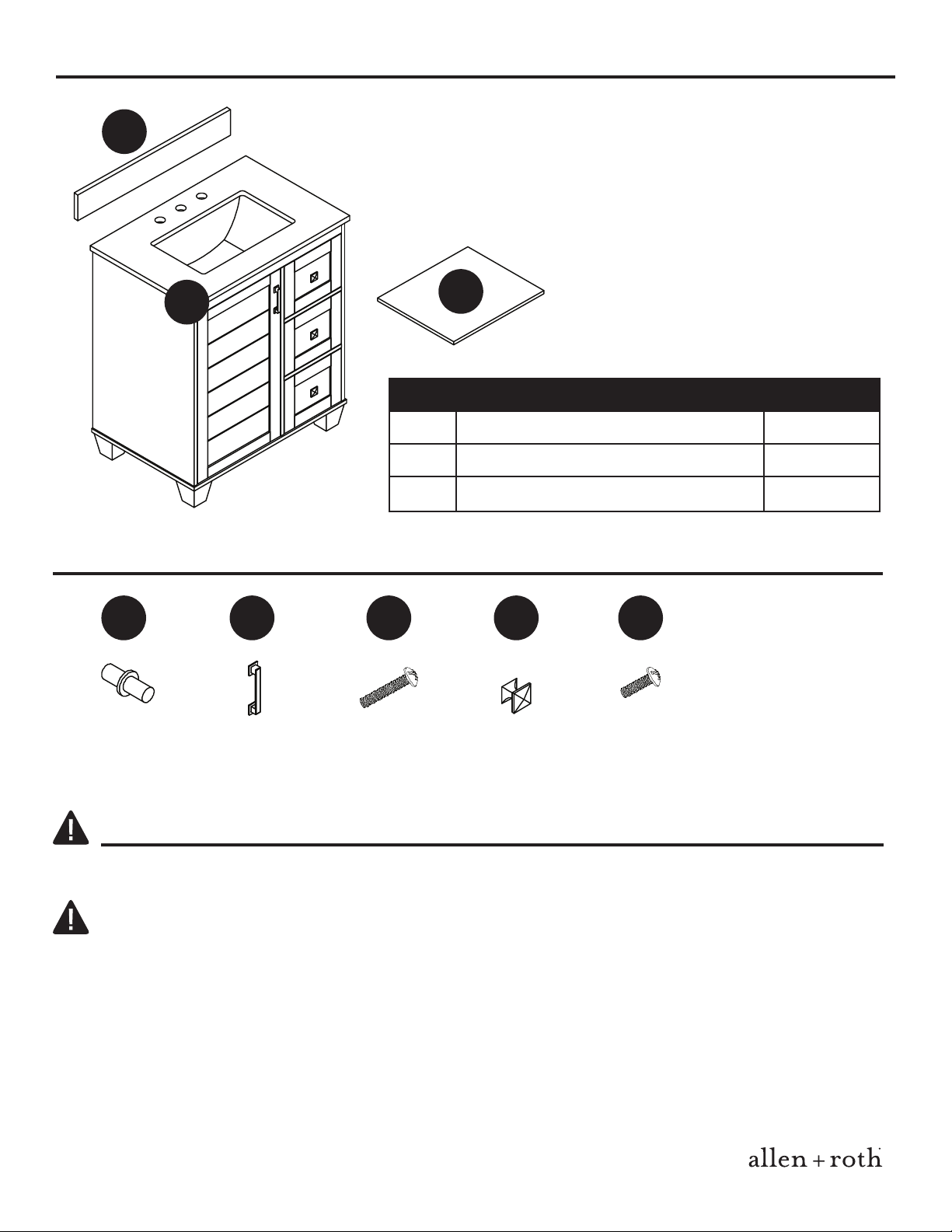

QUINCAILLERIE INCLUSE
PIÈCE DESCRIPTION QUANTITÉ
A Meuble-lavabo avec comptoir
et quincaillerie
1
B Dosseret 1
C Tablette intérieure ajustable 1
CONTENU DE L’EMBALLAGE
Bouton
Qté : 3
AC
B
BBAA DD
Vis courte
Qté : 3
EE
Vis longue
Qté : 2
CC
