Allen + Roth RIAN 30 SU User manual

PAGE 1

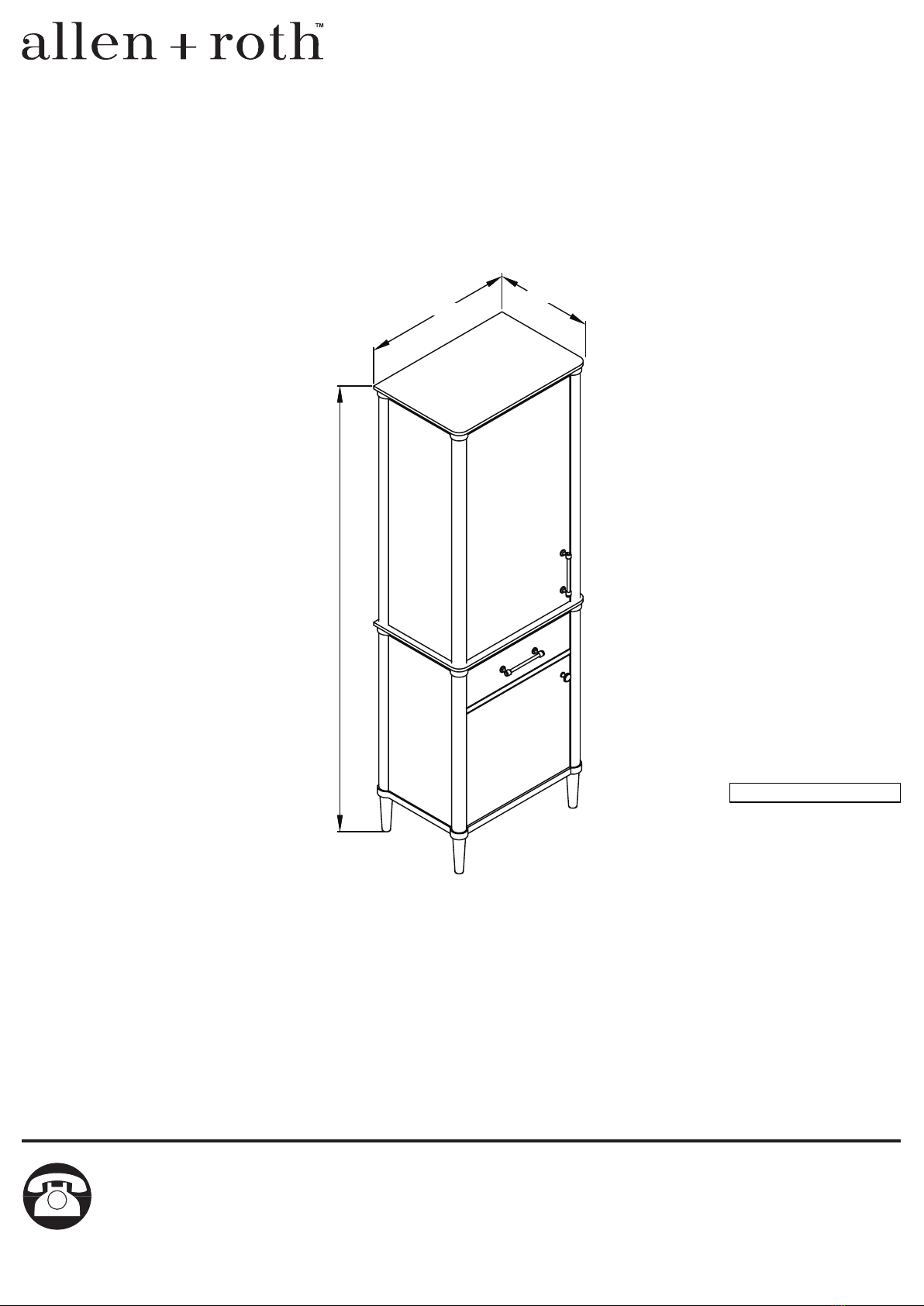

RIAN 30 SU
Measures: inch [millimeter]
ITEM #: 5288438
ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All
Rights Reserved
ALLEN + ROTH et son logo sont des marques commerciales ou des marques déposées de
LF, LLC. Tous droits réservés
ALLEN + ROTH y el diseño del logo son marcas comerciales o marcas registradas de LF,
LLC. Todos los derechos reservados
MODEL#: RIAN SU-WW
24” [610] 16” [406]
72 1/4” [1836]
Unique Identier (UID): _________________________ Purchase Date: ________________________
2023-03-09
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You may also contact us anytime at [email protected].

PAGE 2
TABLE OF CONTENTS
PACKAGE CONTENTS.................................................................................................................................................3
HARDWARE CONTENTS.............................................................................................................................................4
TOOLS REQUIRED.......................................................................................................................................................4
SAFETY INFORMATION...............................................................................................................................................5
PREPARATION..............................................................................................................................................................5
ASSEMBLY INSTRUCTIONS........................................................................................................................................6
HOW TO ADJUST THE DRAWER................................................................................................................................8
SHELF ADJUSTMENT...................................................................................................................................................9
HOW TOADJUST THE DOOR’S POSITION................................................................................................................10
CARE AND MAINTENANCE.......................................................................................................................................11
WARRANTY.................................................................................................................................................................11

PAGE 3
B
A
C
G
F
E

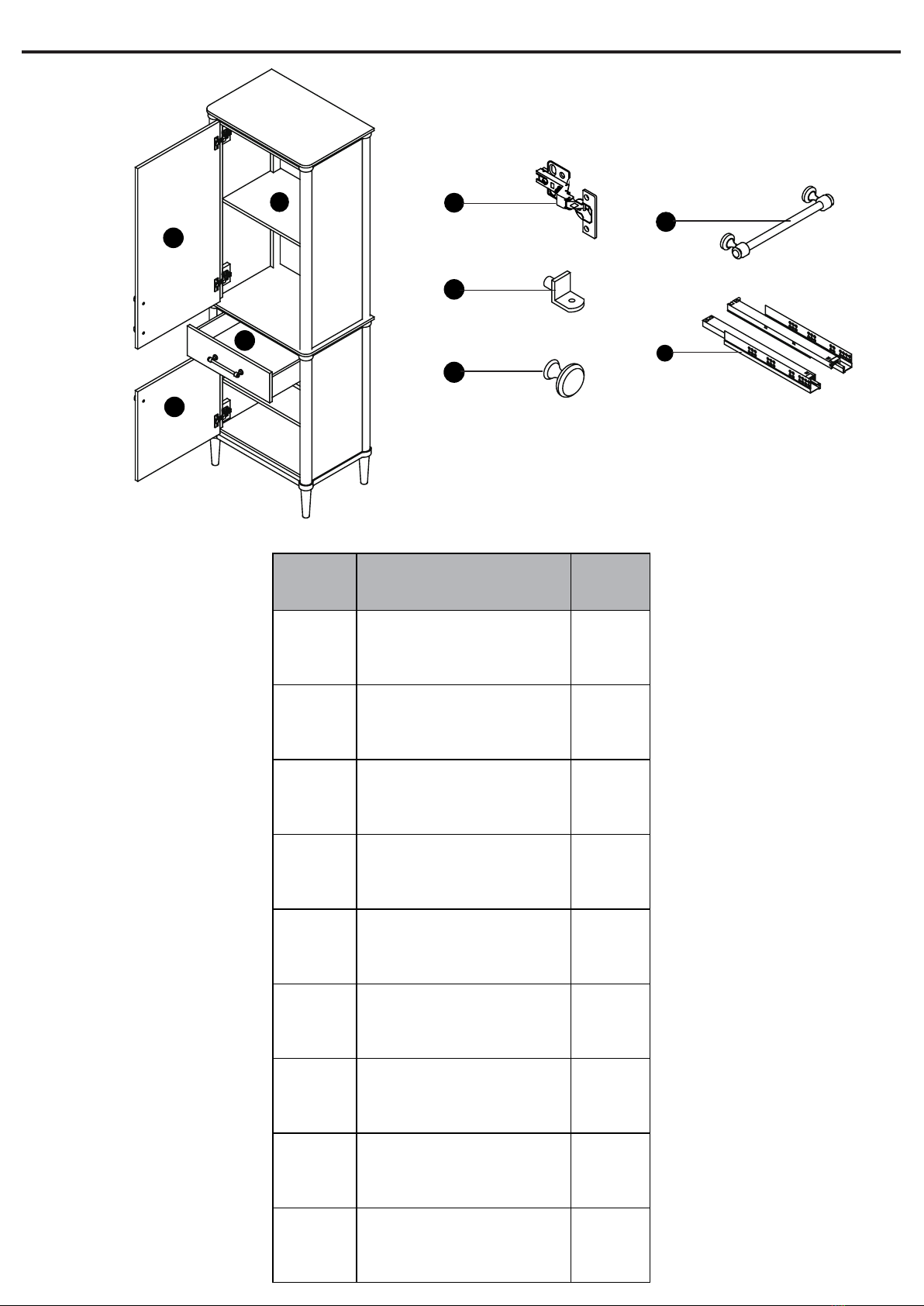

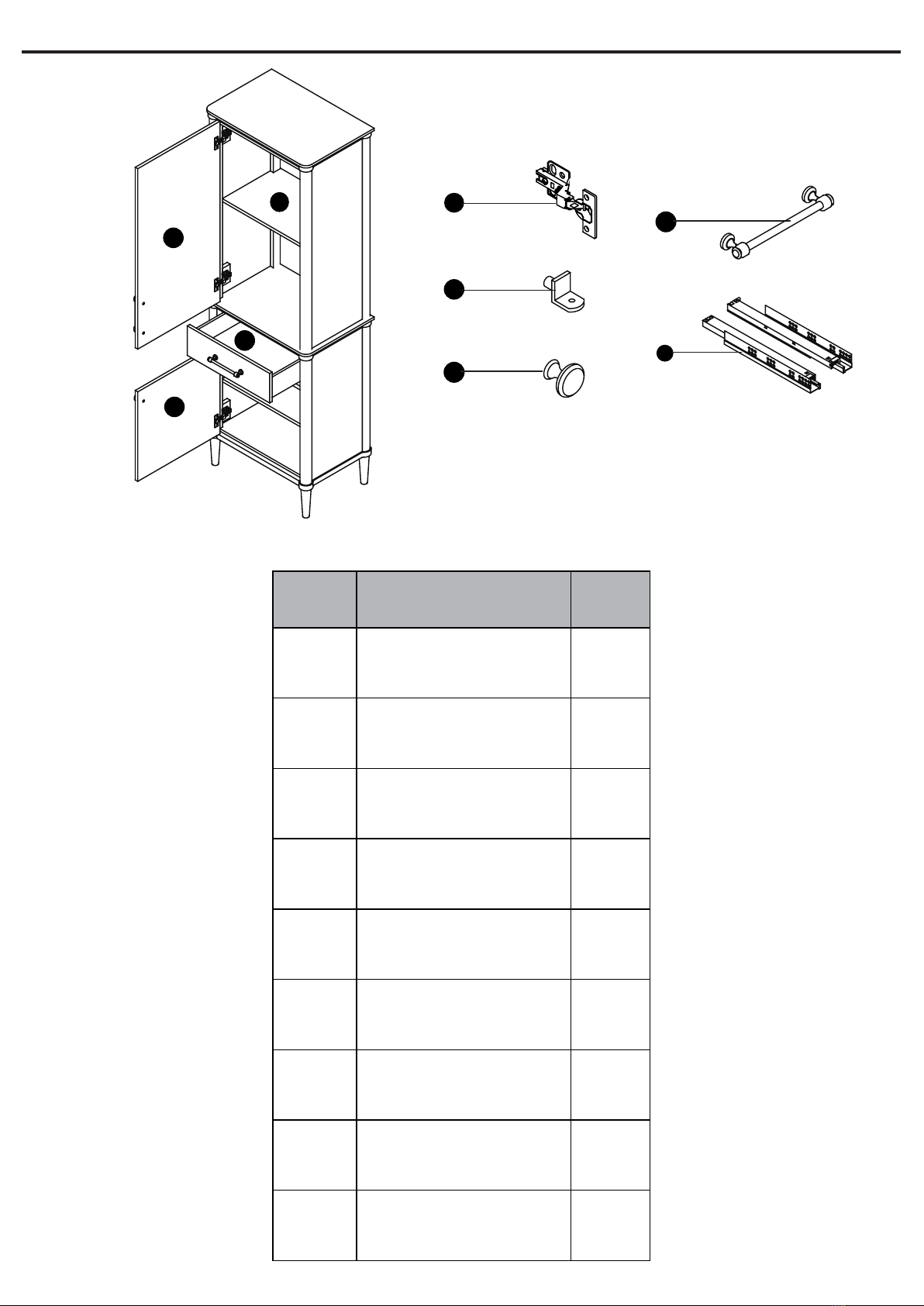

PART # DESCRIPTION QUANTITY
ADoor (big) 1
BAdjustable shelf 2
CDrawer 1
DDoor (small) 1
E Hinge (door) 4
FShelf holder 8
GKnob 1
HHandle 2
IDrawer glides 1
PACKAGE CONTENTS
H
D
I

PAGE 4

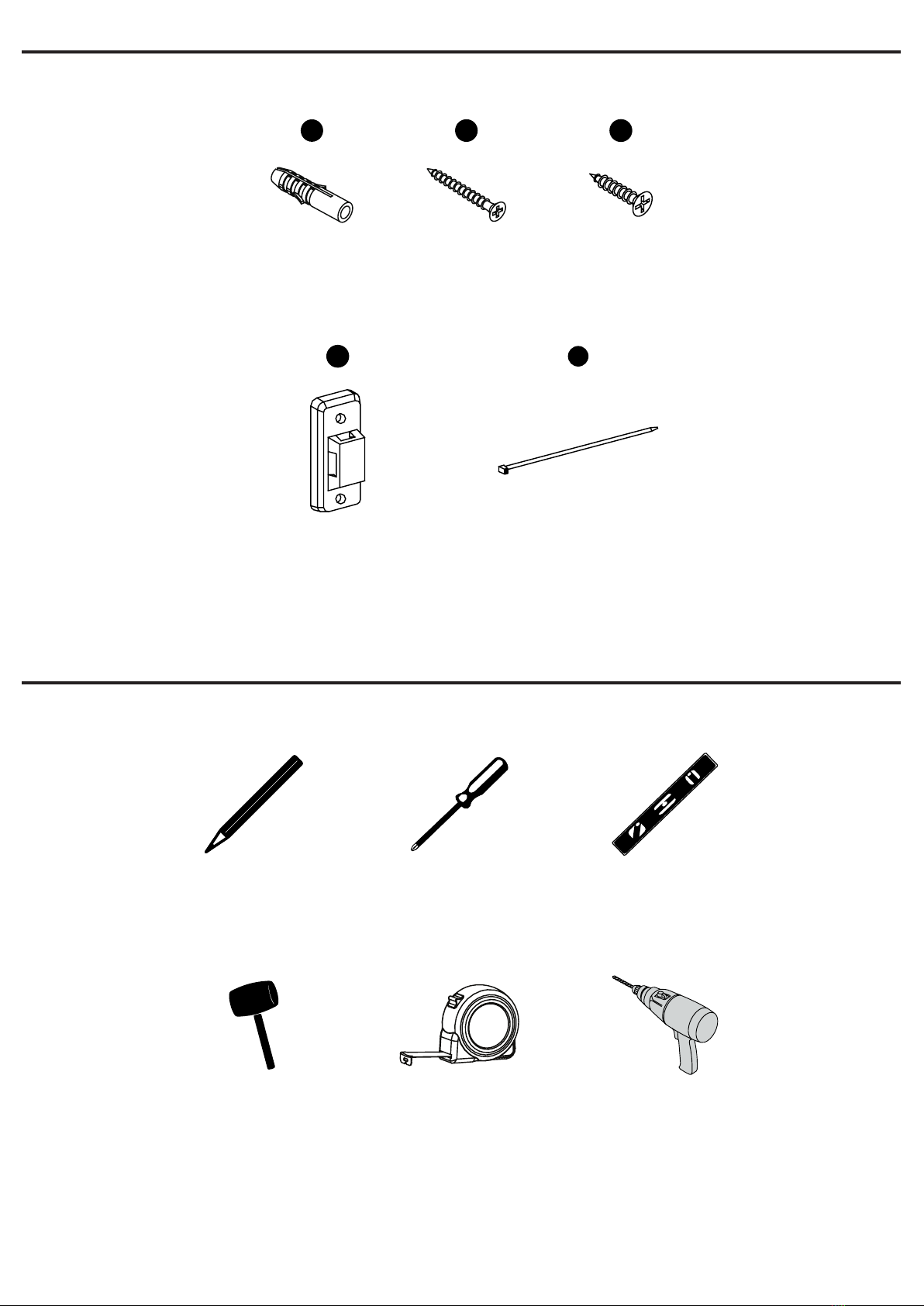

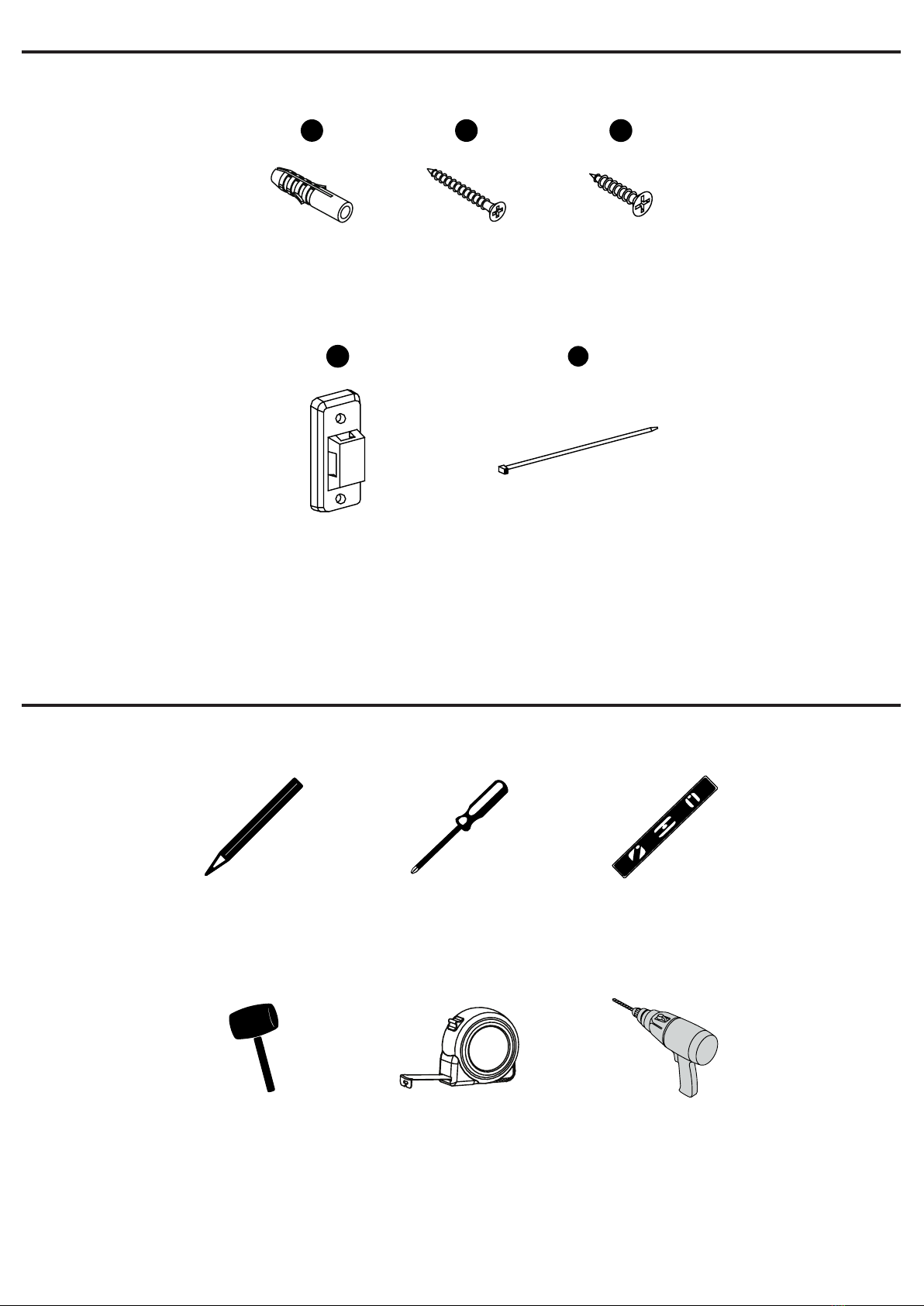

TOOLS REQUIRED (not supplied)
HARDWARE CONTENTS
AA BB
Wall Anchor
ø9x30mm
2x
Screw
ST4x32mm
2x
Pencil Screwdriver Level
Measuring TapeRubber mallet Drill
CC
DD EE
Screw
ST4x20mm
2x
Tip-over restraint
2x
Strap
1x

PAGE 5
SAFETY INFORMATION
• Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Keep small parts away from children during assembly.
• Failure to follow warnings and cautions could result in serious injury.
WARNING
• Read these instructions carefully and keep in a safe place.
• Adult assembly required.
• Do not over tighten connectors (screws, bolts, etc.) Overtightening can lead to product damage.
• Small parts may present choking hazard prior to assembly.
• Do not stand, step or climb on unit.
CAUTION
• Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. If parts are missing,
contact The DISTRIBUTOR to obtain any missing parts.
• Using abrasive cleansers will damage the surface.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or
damaged, do not attempt to assemble the product.
TIP OVER HAZARD WARNING
• Unit must be placed on a level surface or leveled with included hardware (when applicable).
• Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
• For safety reasons, it is imperative that this unit be mounted on the wall or oor.
• Do not use without installing the tip restraint.
• Unit can tip over causing severe injury or death.
• Never open more than one drawer at a time.
• Do not exceed the recommended weight limits.
• Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
• Before cutting, drilling or hammering into any wall or oor surface, verify the location of electrical, plumbing and gas lines. Cutting may cause
serious injury.

PAGE 6

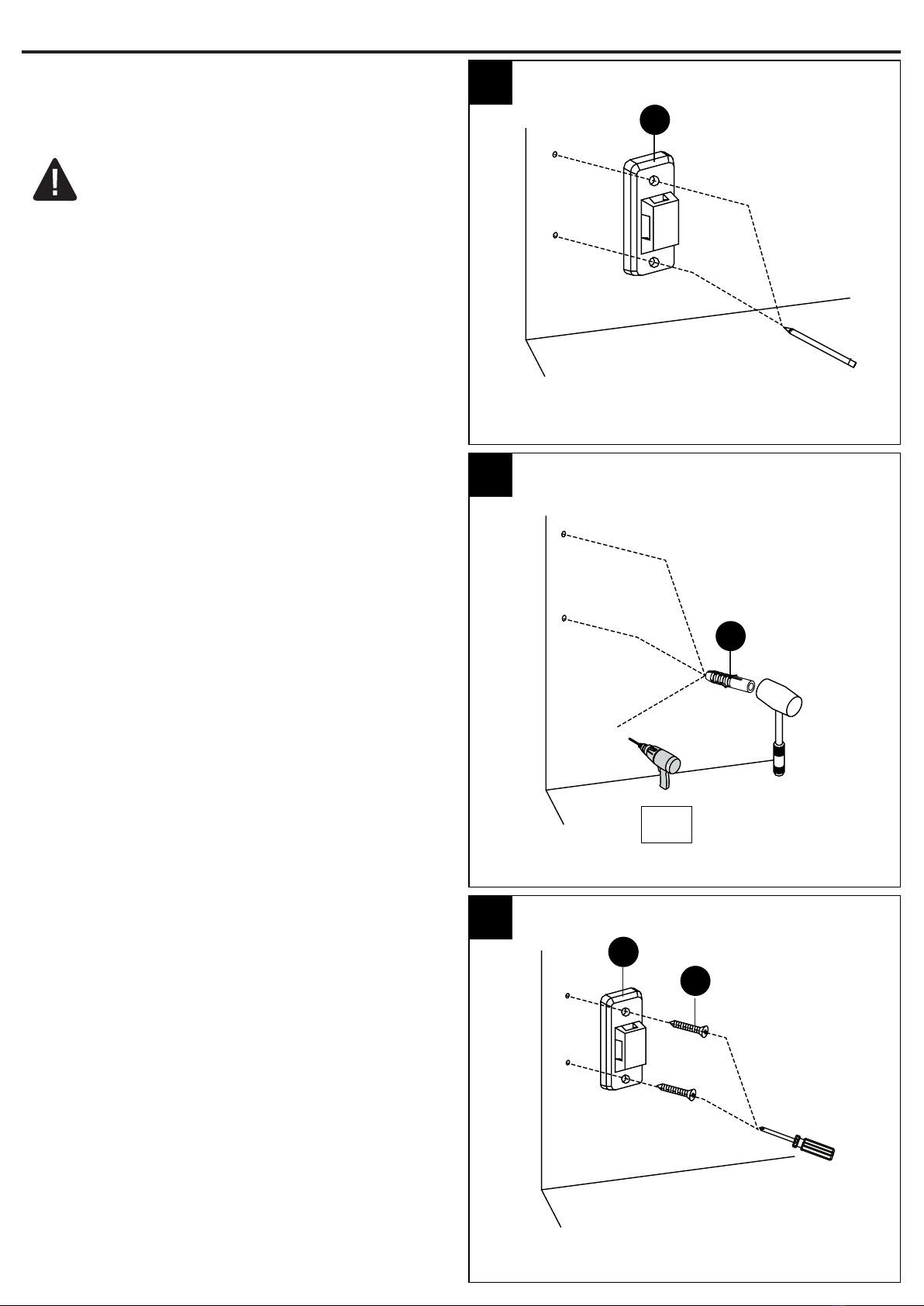

1. Place the tip-over restraint (DD) on the wall at a proper height,
mark the positions of the holes onto the wall. 1
2
3
ASSEMBLY INSTRUCTIONS
ø5/16”
8mm
DD
DD
AA
BB
3. Install the tip-over restraint onto the wall with screws (BB).
WARNING: Customer must install the tip-over restraints provided.
Serious or fatal crushing injuries can occur from furniture tip-over.
Use of tip-over restraints may only reduce, but not eliminate, the risk
of tip-over.
• 2. Gypsum wallboard or concrete walls: Drill pilot holes in the
marked locations with a ø 5/16” (8 mm) drill bit. Insert the wall
anchors (AA) using a rubber mallet until the wall anchors are ush
with the wall.
• 2. Solid wood walls: Drill pilot holes in the marked locations with a
ø 1/16” (2 mm) drill bit. Wall anchors are not necessary.

PAGE 7
4. Install the other tip-over restraint on back of the side unit at a
proper height with the screws (CC). 4
5
ASSEMBLY INSTRUCTIONS
DD
5. Connect the 2 tip-over restraints with the strap.
CC

PAGE 8

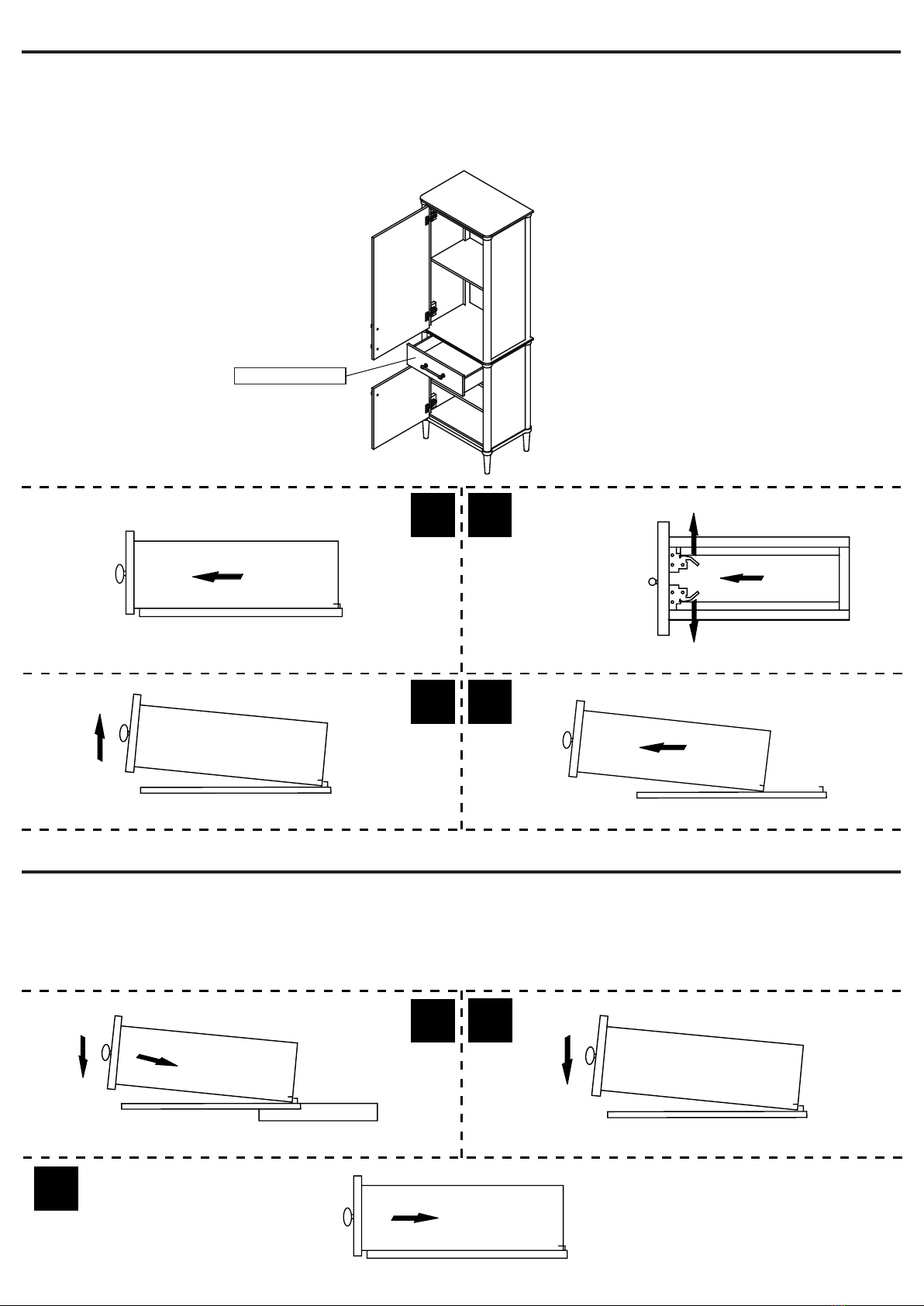

*If necessary, each drawer is designed to be removed or replaced:
DRAWER REMOVAL:
6.1. Pull out the drawer until the lock pins located at the bottom of the drawer are easy to reach.
6.2. Pull out the lock pins located at the bottom of the drawer to the sides to release the pins.
6.3. Lift the drawer from the front side.
6.4. Pull out the drawer to remove it.
7.1 7.2
7.3
DRAWER INSTALLATION:
7.1. Place the drawer back in rst so that the drawer slides into the glide tab.
7.2. Put down and insert the drawer into the glides.
7.3. Completely slide in the drawer, then the drawer will automatically click in place.
6.1
6.3
6.2
6.4
Bottom View
Drawer
HOW TO ADJUST THE DRAWER

PAGE 9
*Each shelf can be removed or repositioned to create more space:
8.1. Uninstall the screws and remove the shelf (B).
8.2. Pull out the shelf holders (F).
9.1. Select your desired location and push the shelf holder (F) into place on both the right and left sides.
9.2. Place the shelf (B) onto the shelf holders (F). Make sure the shelf is properly level, and use screws to secure the shelf to the shelf
holder.
9.1
8.1
9.2
8.2
SHELF ADJUSTMENT (HOW TO REMOVE)
SHELF ADJUSTMENT (HOW TO INSTALL)

PAGE 10
1
2
3

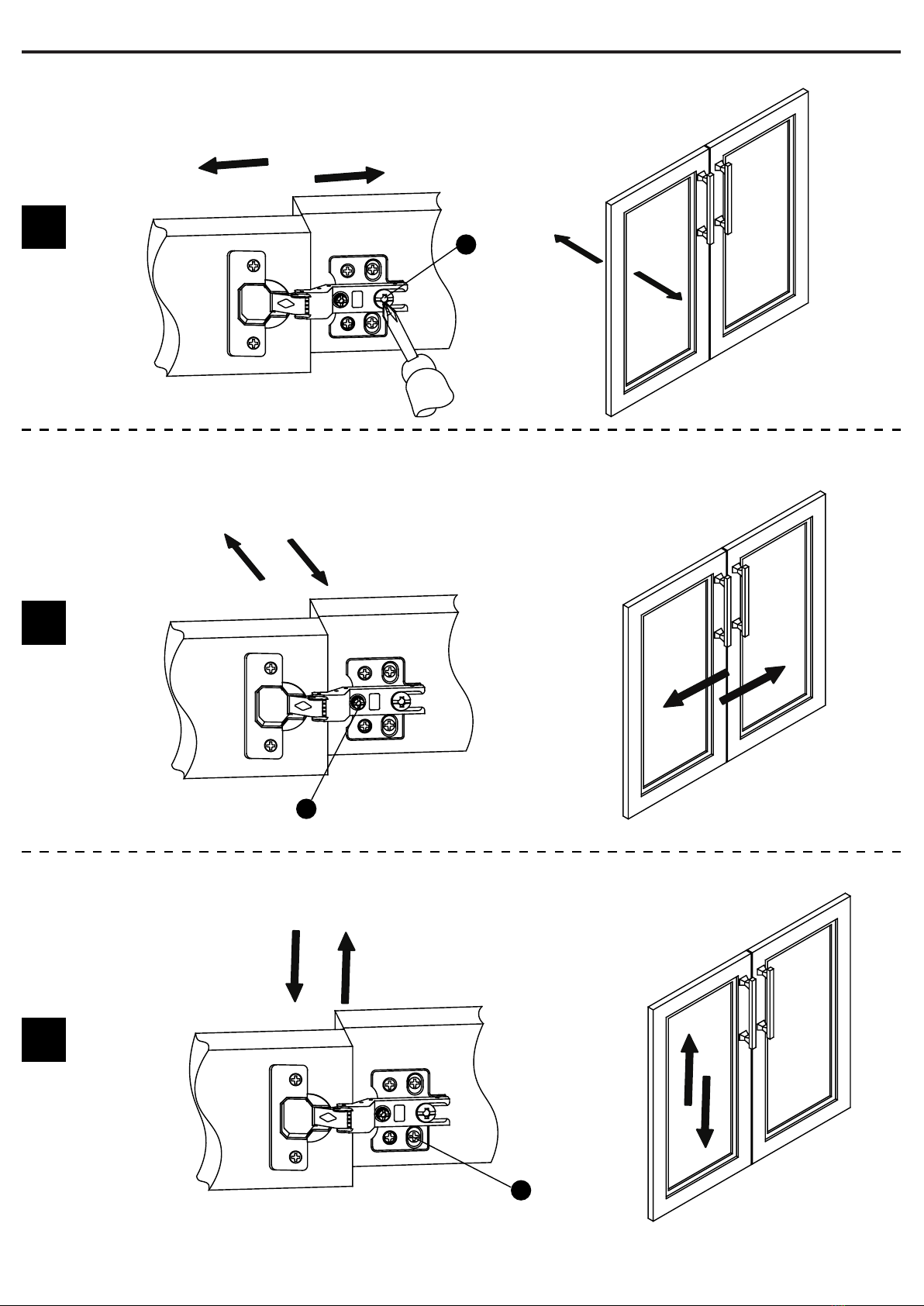

To adjust the door front In and Out in-depth, rotate the adjustment screw (A).
A
B
C
In
Out
To adjust the door front Left and Right, rotate the adjustment screw (B).
Left
Right
To adjust the door front Up and Down in height, rotate the adjustment screw (C).
Down
Up
In
Out
Right
Left
Up
Down
HOW TO ADJUST THE DOOR’S POSITION

PAGE 11
• For daily maintenance, use a wet cloth and a soft liquid cleaner.
• Never use abrasive cleaners or strong bleach, scrapers, metallic brushes, or other objects or any products which can graze or tarnish
surfaces.
Touch-up pen (applicable to paper laminated nish only): Shake the pen a few times before use. Press the tip down and hold it for 3-10
seconds to release the paint. Repeat these steps several times until the paint is completely absorbed by the brush head. Once the paint is
released, apply it to the desired location.
CARE AND MAINTENANCE
LIMITED 1 YEAR WARRANTY
This warranty extends only to the original owner user for personal household use only. For commercial uses, additional limitations may apply.
• The DISTRIBUTOR warrants your satisfaction with each product. Should any product not meet your satisfaction due to a visual defect,
simply return it to your retailer with the original packaging, PRIOR TO INSTALLATION, for a replacement.
• The DISTRIBUTOR warrants, products to be free from defects in workmanship and materials under normal use and service for a period
of one (1) year.
• The DISTRIBUTOR will, at its election, repair, replace, or make appropriate adjustment where the DISTRIBUTOR optional inspection
discloses any such defects occurring in normal usage within the warranty periods.
• Please note that the DISTRIBUTOR is not responsible for installation or removal costs.
• Modication of any product’s components may void the warranty. This warranty does not cover any claim arising from abuse, misuse,
negligence, accident, improper installation or operation on the part of the purchaser. This warranty is void if the DISTRIBUTOR’s product
is subject to alterations, or if repairs were done to the product.
• This warranty does not extend to any components installed by dealers, installers or by any party other than the DISTRIBUTOR.
• Implied warranties, including that of merchantability or tness for a particular purpose, are expressly limited in duration to the duration of
this warranty.
• The DISTRIBUTOR disclaims any liability for special, incidental or consequential damages.
THE SOLE REMEDY PROVIDED BY THIS WARRANTY IS THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS.
THIS WARRANTY DOES NOT COVER THE COST OF REMOVAL OR INSTALLATION OF NEW PRODUCTS. THE WARRANTY WILL BE
VOID IF THIS ITEM IS INSTALLED WITH OBVIOUS VISUAL DEFECTS.
WARRANTY
Printed in Vietnam

PAGE 12
RIAN 30 SU
Medidas: pulgada [milímetro]
ARTÍCULO #: 5288438
ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All
Rights Reserved
ALLEN + ROTH et son logo sont des marques commerciales ou des marques déposées de
LF, LLC. Tous droits réservés
ALLEN + ROTH y el diseño del logo son marcas comerciales o marcas registradas de LF,
LLC. Todos los derechos reservados
MODELO #: RIAN SU-WW
24” [610] 16” [406]
72 1/4” [1836]
Identicador único (UID): _________________________ Fecha de compra: ________________________
2023-03-09
Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 866-439-9800, de lunes a domingo de 8 a.m. a 8 p.m., hora
estándar del Este.
También puede ponerse en contacto con nosotros en cualquier momento en [email protected].

PAGE 13
ÍNDICE
CONTENIDO DEL PAQUETE.....................................................................................................................................14
ADITAMENTOS...........................................................................................................................................................15
HERRAMIENTAS NECESARIAS................................................................................................................................15
INFORMACIÓN DE SEGURIDAD...............................................................................................................................16
PREPARACIÓN...........................................................................................................................................................16
INSTRUCCIONES DE ENSAMBLAJE........................................................................................................................17
CÓMO AJUSTAR LA GAVETA....................................................................................................................................19
AJUSTE DE LA ESTANTERÍA....................................................................................................................................20
CÓMO AJUSTAR LA POSICIÓN DE LA PUERTA.....................................................................................................21
CUIDADO Y MANTENIMIENTO..................................................................................................................................22
GARANTÍA .................................................................................................................................................................22

PAGE 14
CONTENIDO DEL PAQUETE
PIEZA # DESCRIPCIÓN CANTIDAD
APuerta (grande) 1
BEstante ajustable 2
CGaveta 1
D Puerta (pequeño) 1
EBisagra (puerta) 4
FSoporte de estante 8
GManija 1
HManija 2
IDiapositiva 1
B
A
C
G
F
E
H
D
I

PAGE 15
ADITAMENTOS
HERRAMIENTAS NECESARIAS (no incluidas)
Lápiz Destornillador Nivel
Cinta métricaMazo de goma Taladro
AA BB
Ancla de expansión de pared
ø9x30mm
2x
Tornillo
ST4x32mm
2x
CC
DD EE
Tornillo
ST4x20mm
2x
Dispositivo de restricción de volteo
2x
Cinta
1x

PAGE 16
INFORMACIÓN DE SEGURIDAD
• Lea y comprenda este manual en su totalidad antes de intentar montar, utilizar o instalar el producto.
• Mantenga las piezas pequeñas fuera del alcance de los niños durante el montaje.
• El incumplimiento de las advertencias y precauciones puede provocar lesiones graves.
ADVERTENCIA
• Lea atentamente estas instrucciones y guárdelas en un lugar seguro.
• Se requiere el montaje por parte de un adulto.
• No apriete excesivamente los conectores (tornillos, pernos, etc.) El apriete excesivo puede dañar el producto.
• Las piezas pequeñas pueden presentar peligro de asxia antes del montaje.
• No se pare, pise ni se suba a la unidad.
PRECAUCIÓN
• Asegúrese de revisar cuidadosamente todos los materiales de embalaje en busca de piezas pequeñas que puedan haberse soltado dentro de la
caja durante el envío. Si faltan piezas, póngase en contacto con El DISTRIBUIDOR para obtenerlas.
• El uso de limpiadores abrasivos dañará la supercie.
PREPARACIÓN
Antes de empezar a montar el producto, asegúrese de que están todas las piezas. Compare las piezas con la lista de contenido del paquete. Si
falta alguna pieza o está dañada, no intente ensamblar el producto.
ADVERTENCIA DE PELIGRO DE VUELCO

PAGE 17
INSTRUCCIONES DE ENSAMBLAJE
1. Coloque el antivuelco (DD) en la pared a una altura adecuada,
marque las posiciones de los oricios en la pared. 1
2
3
ø5/16”
8mm
DD
DD
AA
BB
3. Instale la contención antivuelcos en la pared con los tornillos
(BB).
ADVERTENCIA: el cliente debe instalar los retenedores de
vuelco suministrados.
El vuelco del mueble puede provocar lesiones graves o mortales
por aplastamiento.
El uso de dispositivos de retención sólo puede reducir, pero no
eliminar, el riesgo de vuelco.
• 2. Paredes de paneles de yeso o de cemento: taladre oricios
piloto en las ubicaciones marcadas con una broca de ø 5/16” (8
mm). Inserte los anclajes de pared (AA) utilizando un mazo de
goma hasta que los anclajes de pared queden a ras de la pared.
• 2. Paredes de madera maciza: taladre oricios piloto en los
lugares marcados con una broca de ø 1/16” (2 mm). No se
necesitan anclas de expansión de pared.

PAGE 18
INSTRUCCIONES DE ENSAMBLAJE
4. Instale la otra contención antivuelcos en la parte posterior de la
unidad lateral a una altura adecuada con los tornillos (CC). 4
5
5. Conecte las 2 contenciones antivuelcos con la correa.
DD
CC

PAGE 19
*Si es necesario, cada gaveta está diseñada para poder retirarla o reemplazarla:
RETIRADA DE LA GAVETA:
6.1. Extraiga la gaveta hasta que los pasadores de bloqueo ubicados en la parte inferior de la gaveta sean fáciles de alcanzar.
6.2. Tire de los pasadores de bloqueo situados en la parte inferior de la gaveta hacia los lados para liberar los pasadores.
6.3. Levante la gaveta desde el lado frontal.
6.4. Tire de la gaveta para retirarla.
7.1 7.2
7.3
INSTALACIÓN DE LA GAVETA:
7.1. Coloque primero la gaveta para que se deslice en la lengüeta de deslizamiento.
7.2. Baje e introduzca la gaveta en los deslizadores.
7.3. Deslice completamente la gaveta, luego la gaveta encajará automáticamente en su lugar.
6.1
6.3
6.2
6.4
Vista inferior
CÓMO AJUSTAR LA GAVETA
Gaveta

PAGE 20
*Cada estante se puede retirar o reubicar para crear más espacio:
8.1. Desmonte los tornillos y retire el estante (B).
8.2. Extraiga los soportes de los estantes (F).
9.1. Seleccione la ubicación deseada y empuje el soporte del estante (F) en su lugar, tanto en el lado derecho como en el izquierdo.
9.2. Coloque el estante (B) en los soportes de estante (F). Asegúrese de que el estante esté bien nivelado y utilice tornillos para jar el
estante al soporte.
9.1
8.1
9.2
8.2
AJUSTE DE LA ESTANTERÍA (CÓMO QUITARLA)
AJUSTE DEL ESTANTE (CÓMO INSTALAR)
