Allen + Roth WATSON 1954VA-60-278-900-UM User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
60-IN VANITY WITH TOP
ITEM #4136405; 4136406; 4136407; 4136408; 4136409; 4136410; 4136411; 4136412; 4136413; 4136414;
4136415; 4136416
MODEL #1954VA-60-278-900-UM; 1954VA-60-278-901-UM; 1954VA-60-278-925-UM; 1954VA-60-278-926-UM;
1954VA-60-279-900-UM; 1954VA-60-279-901-UM; 1954VA-60-279-925-UM; 1954VA-60-279-926-UM;
1954VA-60-291-900-UM; 1954VA-60-291-901-UM; 1954VA-60-291-925-UM; 1954VA-60-291-926-UM
1954VA-60-278-900-UM AR 60-IN WATSON WASHED NATURAL OAK VANITY W/CARRARA MARBLE TOP
1954VA-60-278-901-UM AR 60-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED WHITE TOP
1954VA-60-278-925-UM AR 60-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED CARRARA TOP
1954VA-60-278-926-UM AR 60-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED CALACATTA TOP
1954VA-60-279-900-UM AR 60-IN WATSON SANDSTORM OAK VANITY W/CARRARA MARBLE TOP
1954VA-60-279-901-UM AR 60-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED WHITE TOP
1954VA-60-279-925-UM AR 60-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED CARRARA TOP
1954VA-60-279-926-UM AR 60-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED CALACATTA TOP
1954VA-60-291-900-UM AR 60-IN WATSON PEBBLE OAK VANITY W/CARRARA MARBLE TOP
1954VA-60-291-901-UM AR 60-IN WATSON PEBBLE OAK VANITY W/ENGINEERED WHITE TOP
1954VA-60-291-925-UM AR 60-IN WATSON PEBBLE OAK VANITY W/ENGINEERED CARRARA TOP
1954VA-60-291-926-UM AR 60-IN WATSON PEBBLE OAK VANITY W/ENGINEERED CALACATTA TOP
MODEL NUMBER DESCRIPTION
welcoming • sophisticated • inspiring

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Instructions...........................................................................................................................3
Preparation......................................................................................................................................4
Assembly or Installation Instructions...............................................................................................4
Care and Maintenance..................................................................................................................11
Warranty........................................................................................................................................11
Replacement Parts List.................................................................................................................12

3

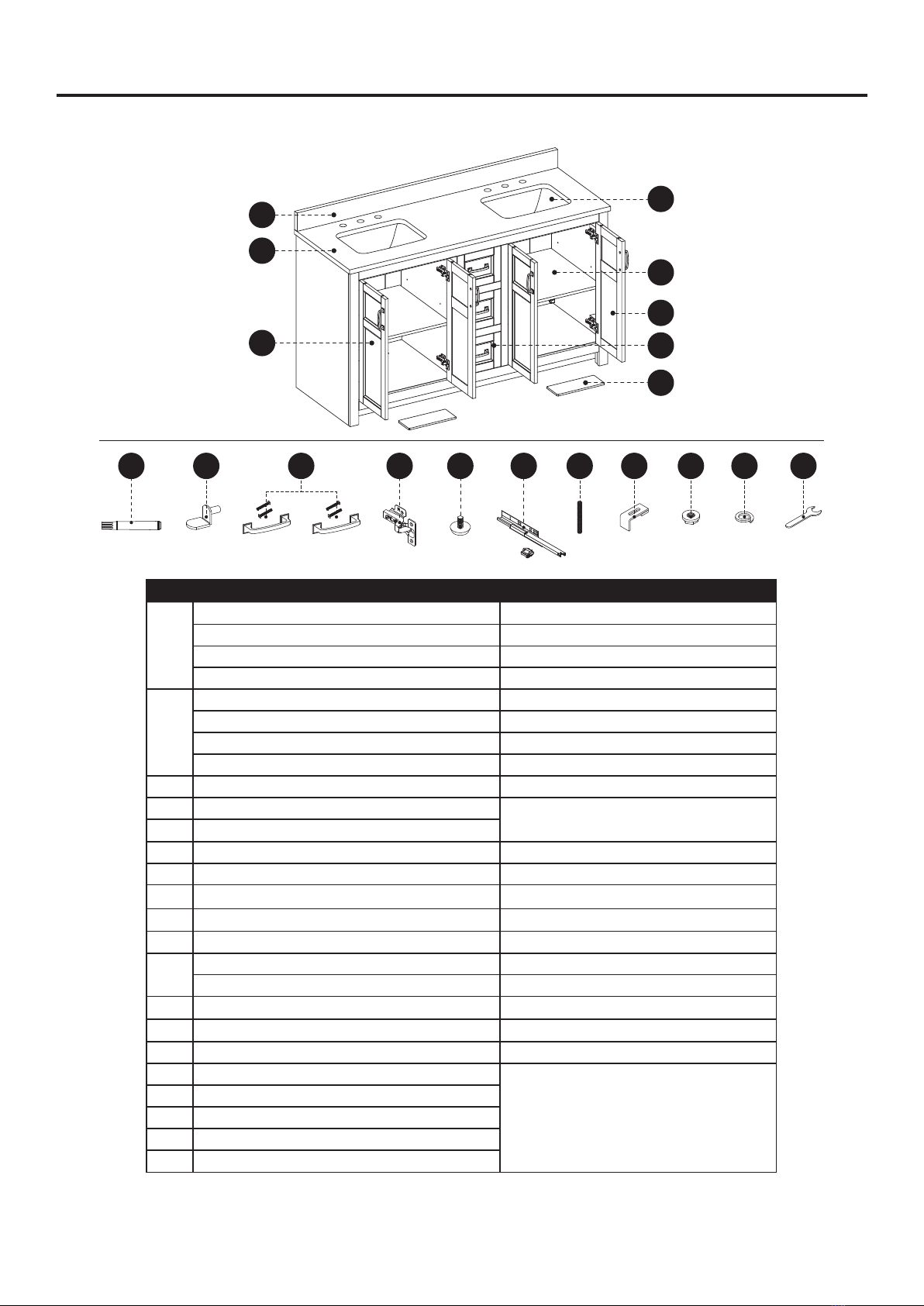

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS (Undermount Sink)
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• There are several assembly steps, including unpacking, that require two adults.
CAUTION
• Follow these instructions closely, take your time, and use care while assembling this vanity.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY CARTON
A Vanity 1
B Top 1
C Backsplash 1
D Sink 2
E
Left Door
(preassembled
to vanity (A))
2
F
Right Door
(preassembled
to vanity (A))
2
G Shelf 2
HFloor Plumbing
Cutout Lid 2
Box 2 of 3
Box 1 of 3
Box 3 of 3
Box 2 of 3
B
C
D
D
A
EF
G
G
H
H
E
F
AA
Touch Up Pen
Qty. 1
GG HH II JJ KK
Lock Washer
Qty. 8
Nut
Qty. 8
Wrench
Qty. 1
Bolt
Qty. 8
Sink Bracket
Qty. 8
CC
Handle (2 Options)
Matte Black (Qty. 7)
Brushed Nickel (Qty. 7)
BB
Shelf Pin
Qty. 8

4
INSTALLATION INSTRUCTIONS (Undermount Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.

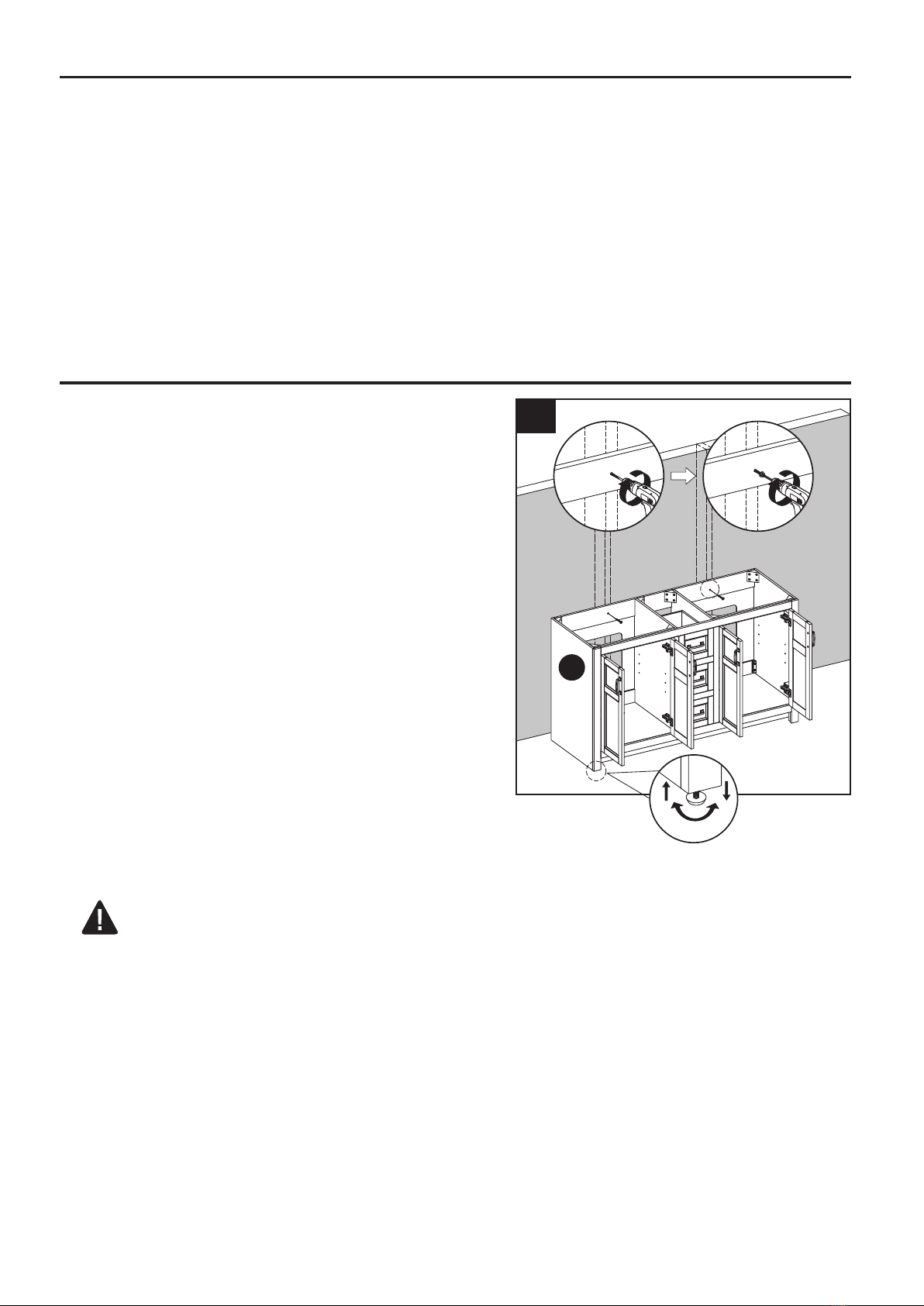

1. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 1). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
1
12
A

5
INSTALLATION INSTRUCTIONS (Undermount Sink)
2. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
3. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Repeat for the remaining sink.
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.
2
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
Foam sheet
C
B
BACK
FRONT
BACK
FRONT
B
BACK
FRONT
BACK
FRONT
Foam sheet
1
2
1
2
B
BACK
FRONT
BACK
FRONT
Hardware
Pack
Hardware
Pack
3
BACK
1
2
2
2
2
BACK
BACK
BACK
BACK
D
D
B
Sink Lip
Top
BACK
BACK

6
INSTALLATION INSTRUCTIONS (Undermount Sink)
Hardware Used
Bolt x 8

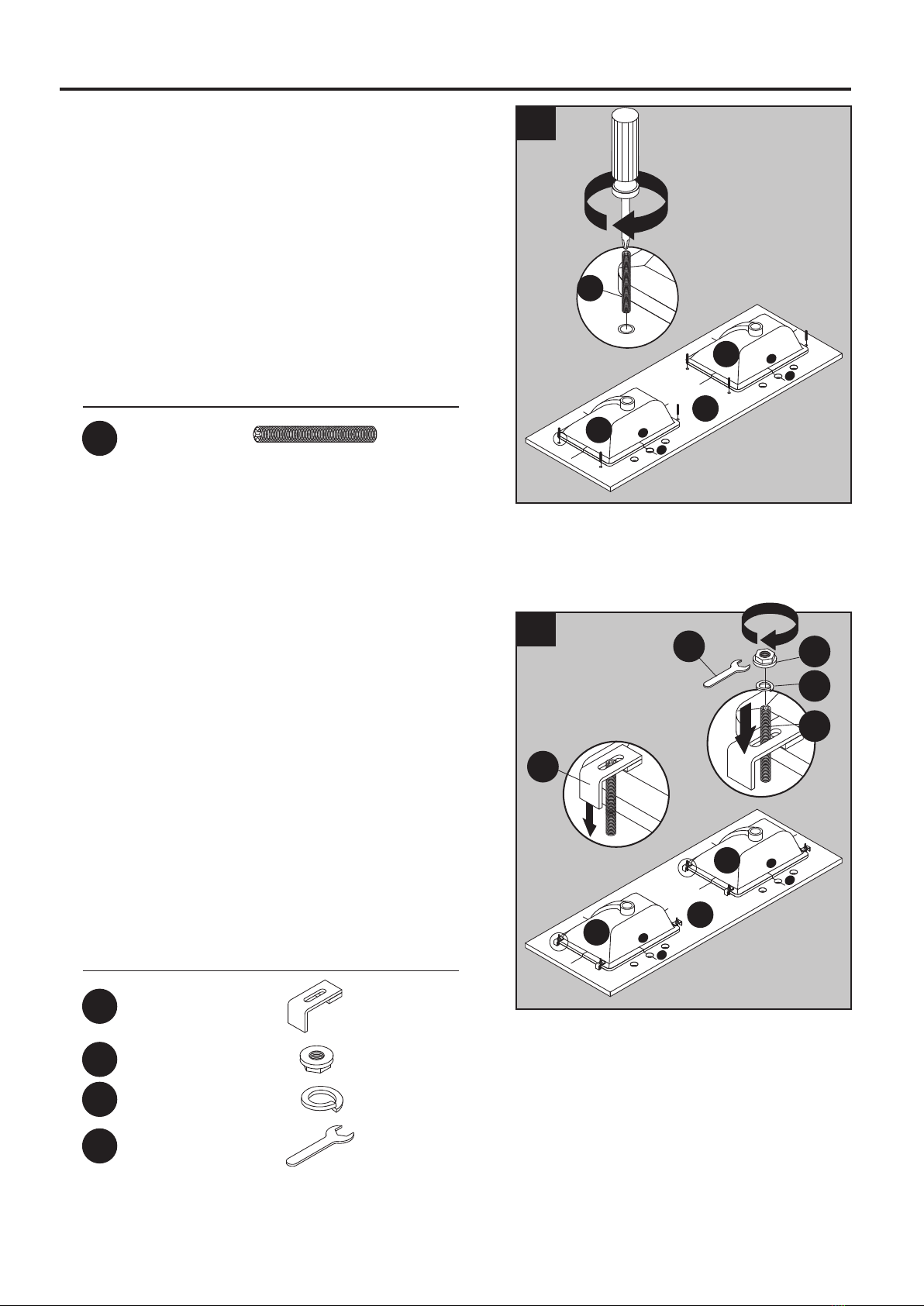

4. Screw bolts (GG) into the threaded holes of
stone top (B).
Hardware Used
Sink bracket x 8
Nut x 8
x 8Lock Washer
5. Lower the sink brackets (HH) over the bolts
(GG) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (JJ) over bolts (GG) and
secure with nuts (II). Hand tighten nuts (II)
with included wrench (KK).
DO NOT OVER TIGHTEN!
Repeat for the remaining sink.
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
GG
HH
II
JJ
Wrench x 1
KK
4
GG
BACK
BACK
BACK
BACK
B
D
D
5
3
II
JJ
GG
KK
2
HH
1
D
D
B
BACK
BACK
BACK
BACK

7
INSTALLATION INSTRUCTIONS (Undermount Sink)
7. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 6.
6.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
7
1
22
C
B
6
1
2
2
A
B

8
INSTALLATION INSTRUCTIONS (Undermount Sink)
8. The back of the vanity is open for accessibility
for drain(s) and water line(s) hookup. If your
plumbing comes out of the back wall, insert
the floor plumbing cutout lids (H), as shown in
Illustration 8. This will close the holes and
increase your storage space.
If your plumbing comes out of the floor, these
holes provide accessibility for drain and water
line hookup.
8
H
H
H
A
9
BB
1
G
2
G
2
BB
9. Insert shelf pins (BB) at desired height, ensuring
they are level. Place shelf (G) on top of shelf
pins (BB).
Repeat for the remaining shelf (G).
Hardware Used
Shelf Pin x 8

9
INSTALLATION INSTRUCTIONS (Undermount Sink)

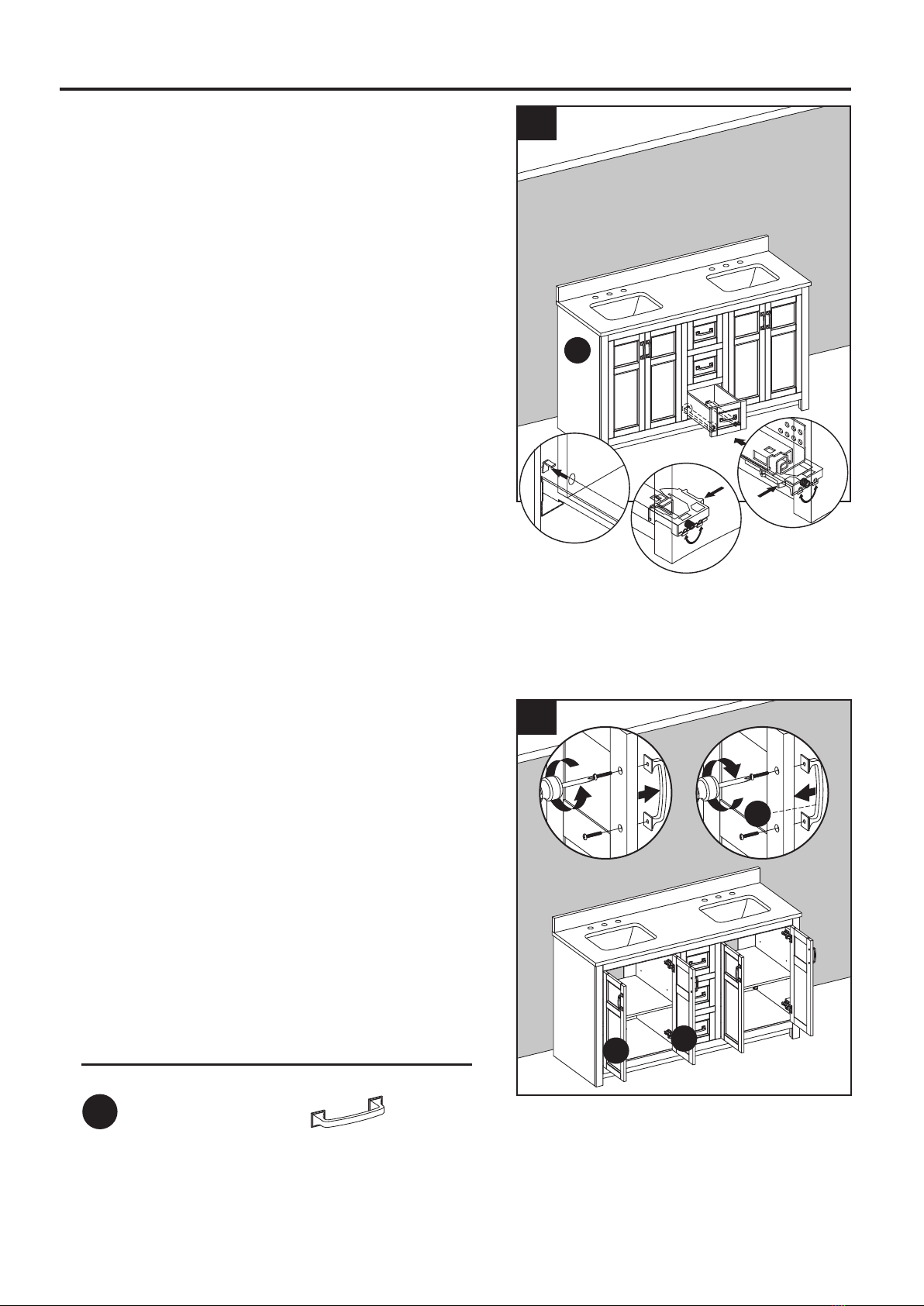

11. To remove drawers preassembled in vanity (A),
fully extend drawers. Locate plastic levers on
metal glide tracks at left and right sides of
drawer box.
To disengage drawer box from glides, push on
plastic levers. Then, gently lift drawer up to
remove it from vanity (A).
10.

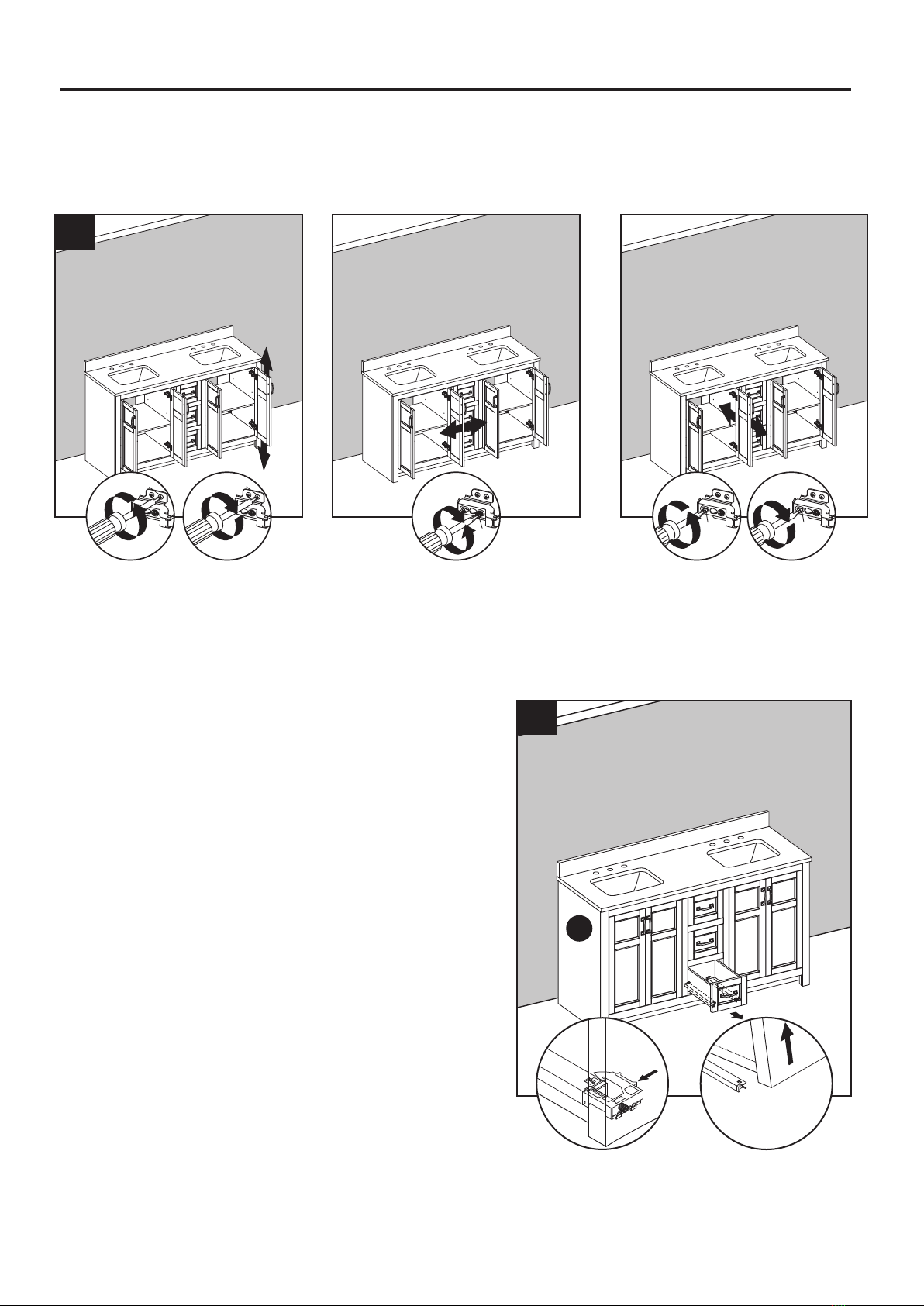

If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
10
2
2
22
2
2
b
1
1
c
1
c
3
a
1
a
3
11
A
12

10
INSTALLATION INSTRUCTIONS (Undermount Sink)
12. To reinstall drawers into vanity (A), fully extend
metal glide tracks. Gently lower and slide
drawer box into rear glide catch. Next lower
drawer box down to completely rest on
extended glides. Then, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height, spin
the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right-side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
12
A
3
2
1
13
EF
1CC
2
CC
Hardware Used
Handle x 7
13. One set of handles (CC) are packaged
separately in the box. If you would like to
switch handles, simply remove the existing
handles and attach the other finish, as
illustrated in the diagram.
Note: This vanity base comes with two
different door/drawer handle options.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
