Allen + Roth WHITTAKER LPWVT6039D User manual

ITEM #3621168
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE Français p. 8
Español p. 15
welcoming • sophisticated • inspiring
1
Model #LPWVT6039D
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m. EST, Monday - Sunday.
You could also contact us at [email protected] or visit www.lowespartsplus.com.
allen + roth®and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
WHITTAKER 60-IN VANITY WITH TOP
SM20743

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or install this product.
WARNING
•Keep small parts away from children.
•Installing the item will require more than one person.
CAUTION
•DO NOT try to pry off top from vanity. Damage to top or vanity may occur.
• Use care when assembling the vanity; take your time and follow the assembly instructions closely
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HARDWARE CONTENTS
Handle
Qty: 8
PART DESCRIPTION QUANTITY

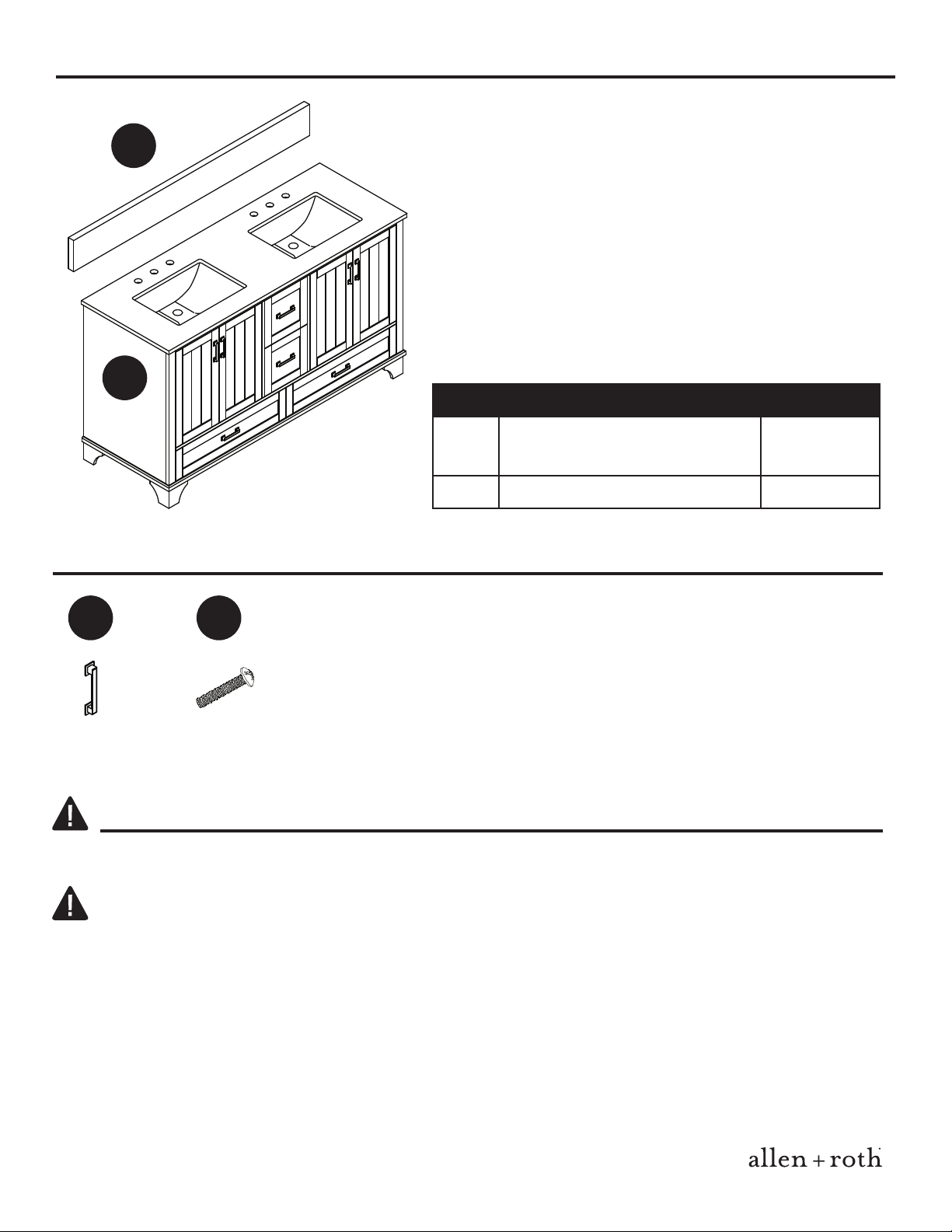

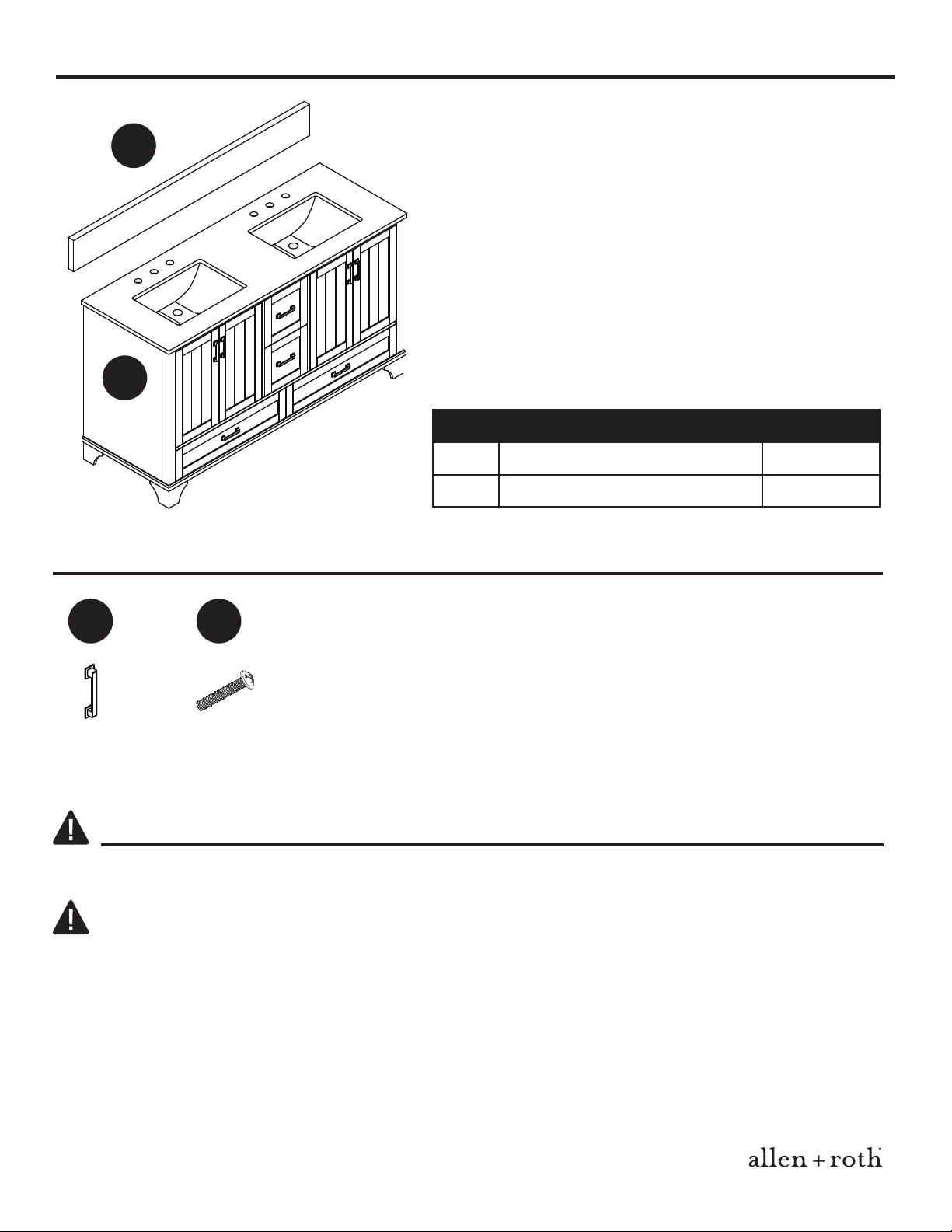

A Vanity with Top and Hardware 1
B Backsplash 1
PACKAGE CONTENTS
A
B
BBAA
Screw
Qty: 16

3
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Installation Time: 10 minutes (24 hours for adhesive to dry).
Tools Required for Installation (not included): Silicone compound, Philips Head Screwdriver.
1
INSTALLATION INSTRUCTIONS

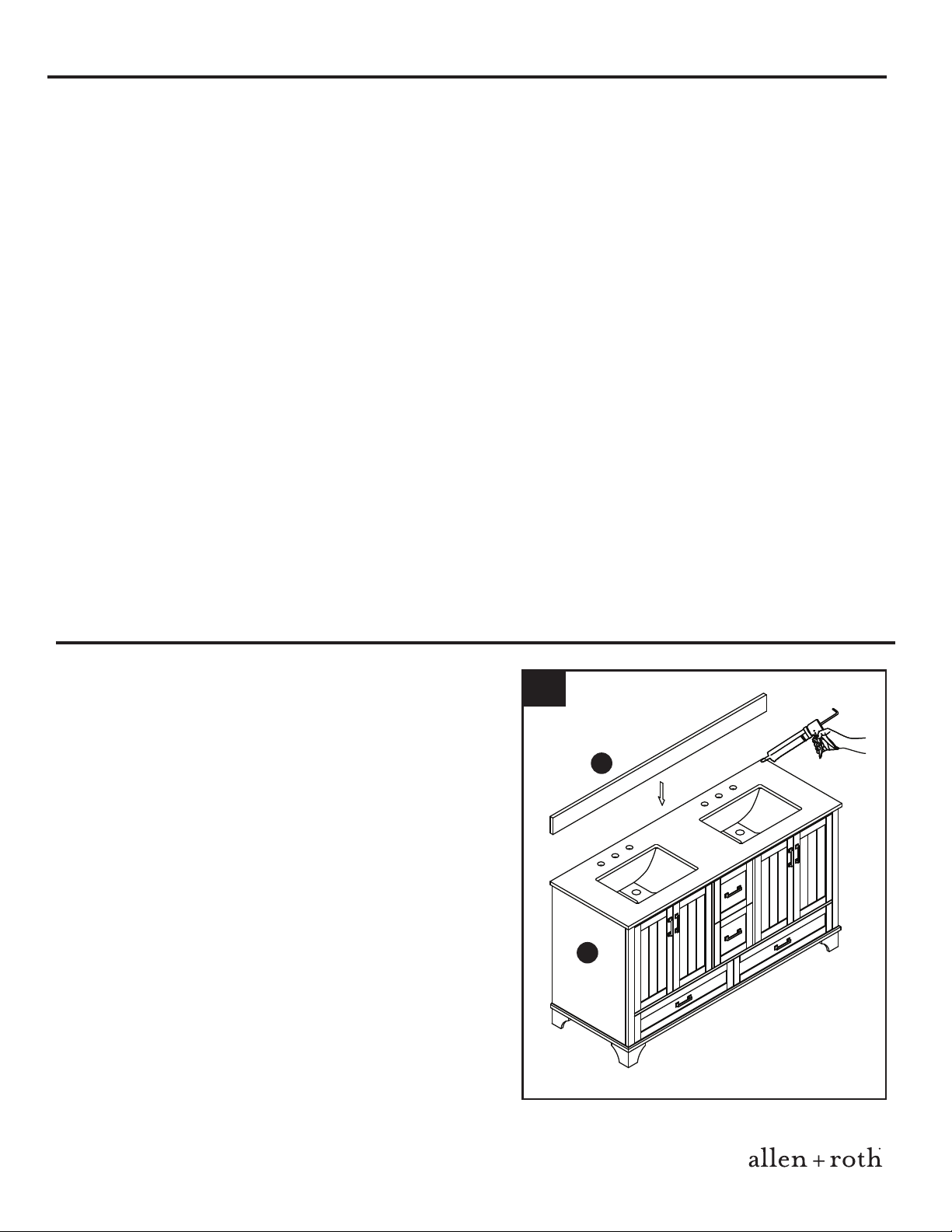

Step 1: Backsplash Installation
1. To mount the backsplash (B) to the wall,
apply a thin bead of silicone compound
(not included) to the unpolished back
side and bottom of the backsplash (B).
Position backsplash (B) as shown onto
vanity top (A) and against the wall.
Clean any excess silicone compound
before allowing to dry.
A
B

3
INSTALLATION INSTRUCTIONS
Step 2: Optional Hardware Installation
2
4
Step 3: Adjustable Level.
3. In case of uneven floors, floor levelers are
provided at the bottom of the vanity.
If necessary, adjust floor levelers by hand to
correct tilting and/ or level doors.
2. This unit is shipped with hardware already
attached. If desired, you can replace it with
the optional finish hardware included.
Remove and replace handles (AA) with
Philips head screwdriver and screws (BB).
AA
BB
A

INSTALLATION INSTRUCTIONS
4
5
Step 4: Optional Drawer Removal
4a. Fully extend the drawer.
4b. Pull the two latches outward on the
underside of the drawer to release the lock.
4c. Simultaneously tilt and lift the drawer
upwards to pull it out of the cabinet (A).
A

CARE AND MAINTENANCE
IMPORTANT
WARRANTY
• Use caution placing items such as soap or any fragranced material on the stone surface. Use a
soap dish, coaster or similar item to protect the surface if placing any soap of fragranced products
on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other acids
as these may cause damage to the stone surface.
• Stone care products are available at your local home center store. Follow the manufacturer's
directions on how to use.
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard stone vanity top cleaning agents available at your
local supplier.
The manufacturer provides a one year limited warranty for residential use that the vanity combo will
be free from manufacturing defects, provided the original purchaser resides in or owns the home of
installation, and provided the vanity combo is installed and maintained according to the installation
and maintenance instructions contained within and supplied by the manufacturer. The liability will
be limited to cost of products only. This warranty is in lieu of any other express warranties. This
warranty applies only to the original purchaser. This warranty does not apply to any damage on the
product by accident, misuse, or modified, improper installation or by affixing accessories not
produced by the manufacturer. There is no further expressed warranty. The manufacturer shall not
be legally responsible for incidental, consequential or special damages arising at or in connection
with product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.
6

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m. EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
7
allen + roth®and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.

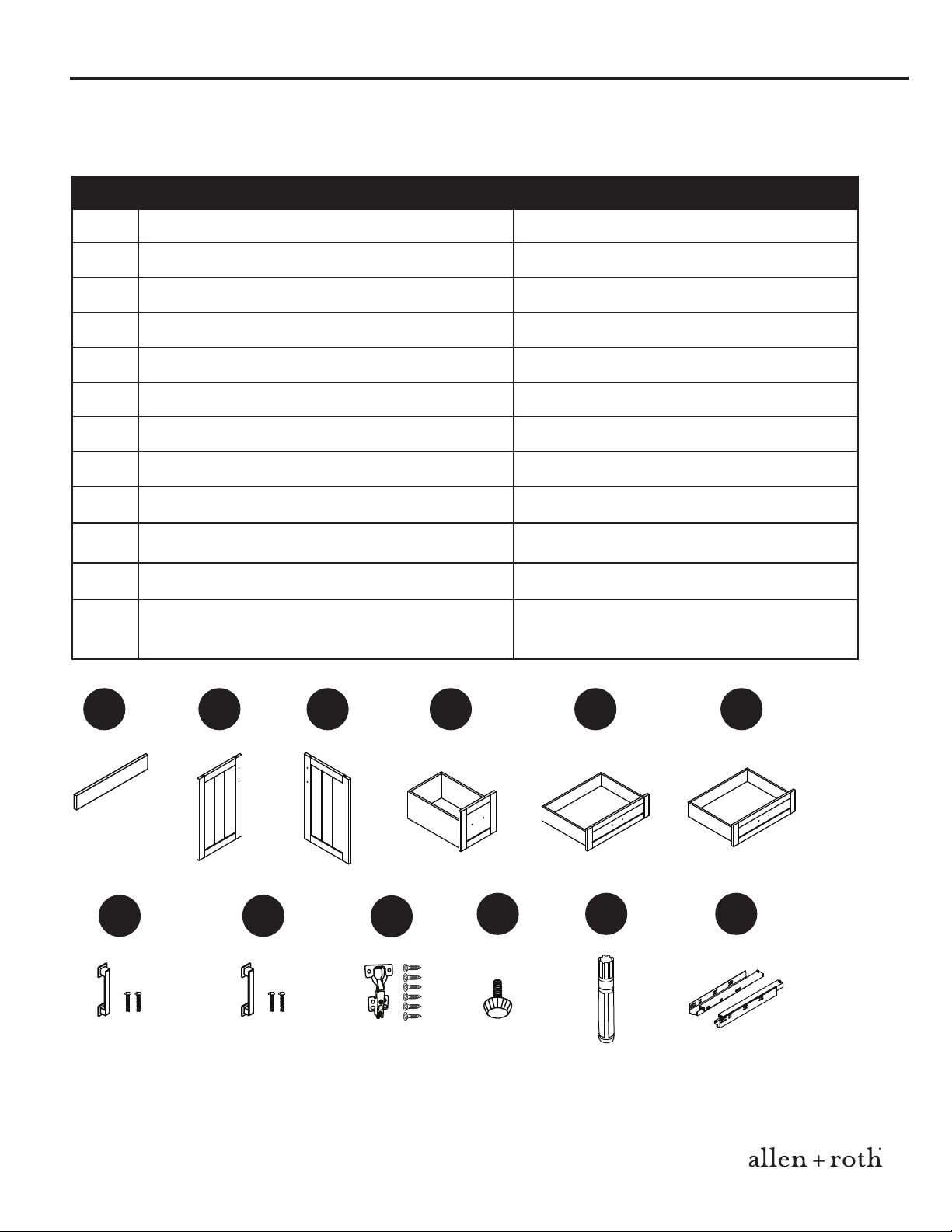

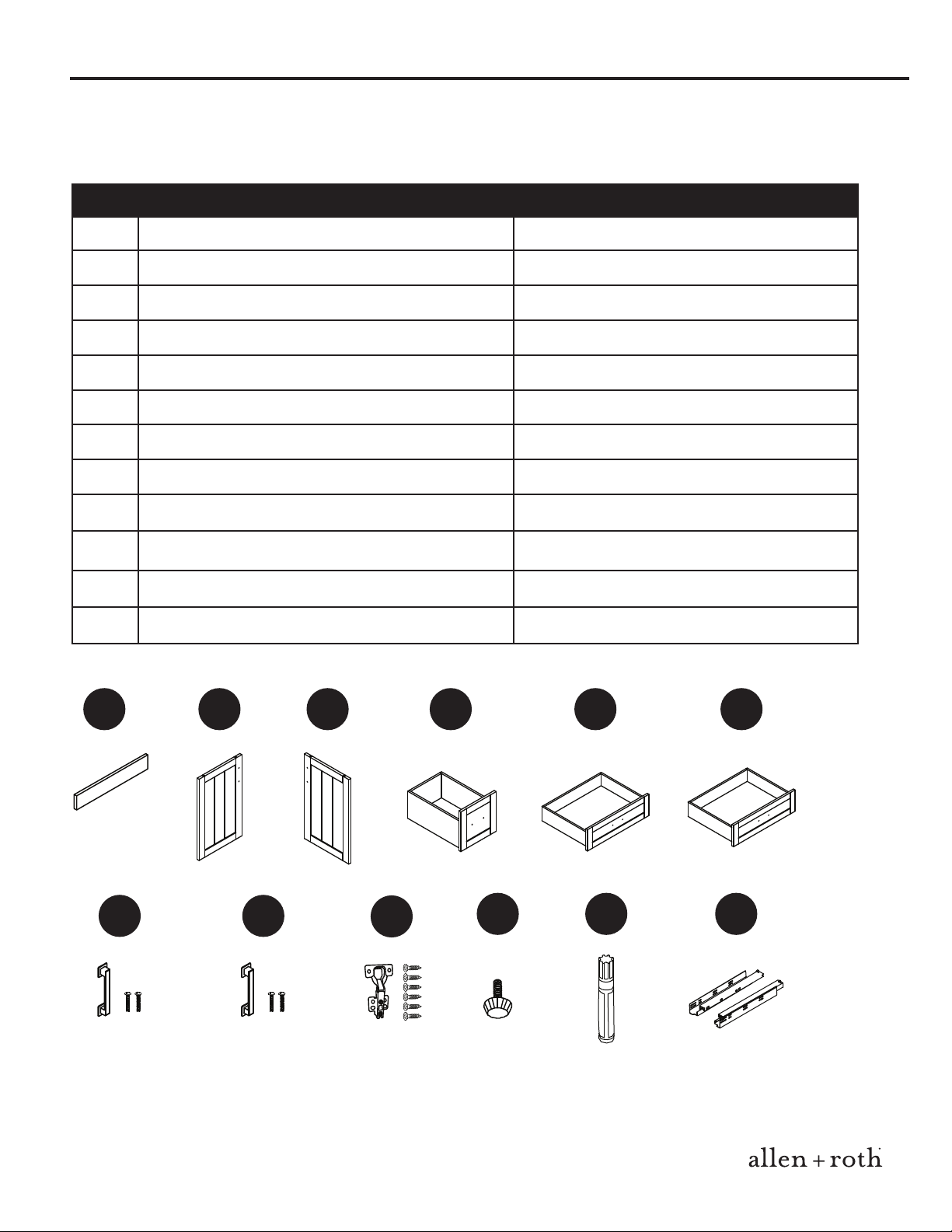

PART DESCRIPTION PART NUMBER
B Backsplash PB-LPWVT6039D-BS
D Right Door PB-LPWVT6039D-RD
C Left Door PB-LPWVT6039D-LD
E
G
H
PB-LPWVT6039D-UPDRW
PB-LPWVT6039D-BLDRW
PB-LPWVT6039D-BRDRW
CC Handle with Screws (Matte Black) PB-HANDLE-H006
DD Handle with Screws (Brushed Nickel) PB-HANDLE-H008
EE Slow Close Hinge with Screws PB-HINGE-H002
Leveler PB-LEGS-H003FF
Touch-up Pen PB-TOUCH UP PEN-H011GG
HH Slow Close Drawer Undermount Slides PB-SCDRW SLIDE-H001
B
FF GG
EE
CC
Matte Black
DD
Brushed Nickel
HH
CDE F G
Upper Drawer
Bottom Left Drawer
Bottom Right Drawer

welcoming • sophisticated • inspiring
ARTICLE #3621168
MEUBLE-LAVABO AVEC COMPTOIR
WHITTAKER DE 152,4 CM
JOIGNEZ VOTRE REÇU ICI
8
Modèle #LPWVT6039D
allen + roth®et le logo sont des marques de commerce ou des
marques de commerce déposées de LF, LLC. Tous droits réservés.
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au
détaillant, appelez notre service à la clientèle au 1 866 439-9800, entre 8 h et 20 h (HNE), du lundi
au dimanche. Vous pouvez également communiquer avec nous à l’adresse [email protected]
ou visiter le site www.lowespartsplus.com.

A
B
CONTENU DE L’EMBALLAGE
PIÈCE DESCRIPTION QUANTITÉ
AMeuble-lavabo avec comptoir
et quincaillerie
1
B Dosseret 1
QUINCAILLERIE INCLUSE
Poignée
Qté : 8
BBAA
Vis
Qté : 16
9
CONSIGNES DE SÉCURITÉ
Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter d’assembler ou
d’installer cet article.
AVERTISSEMENT
• Tenez les petites pièces hors de la portée des enfants.
• Demandez l’aide d’une autre personne pour installer l’article.
ATTENTION
•NE tentez PAS de retirer le comptoir du meuble-lavabo. Vous risqueriez d’endommager
le comptoir ou le meuble-lavabo.
• Soyez prudent lors de l’assemblage du meuble-lavabo; prenez votre temps et suivez minutieusement
les instructions pour l’assemblage.
VEUILLEZ CONSERVER CES INSTRUCTIONS POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

1
A
B
10
PRÉPARATION
INSTRUCTIONS POUR L’INSTALLATION
Étape 1 : Installation du dosseret
1. Pour installer le dosseret (B) au mur,
appliquez un mince trait de composé de
silicone (non inclus) sur les surfaces
arrière et inférieure non polies du
dosseret (B). Placez le dosseret (B) sur
le comptoir du meuble-lavabo (A) et
contre le mur. Éliminez tout excédent de
composé de silicone, puis laissez
sécher.
Temps d’installation approximatif : 10 minutes (24 heures pour le séchage de l’adhésif).
Outils nécessaires pour l’installation (non inclus) : composé de silicone, tournevis cruciforme.
Avant de commencer l’assemblage de l’article, assurez-vous d’avoir toutes les pièces. Comparez le
contenu de l’emballage avec la liste de la quincaillerie incluse. S’il y a des pièces manquantes ou
endommagées, ne tentez pas d’assembler l’article.
