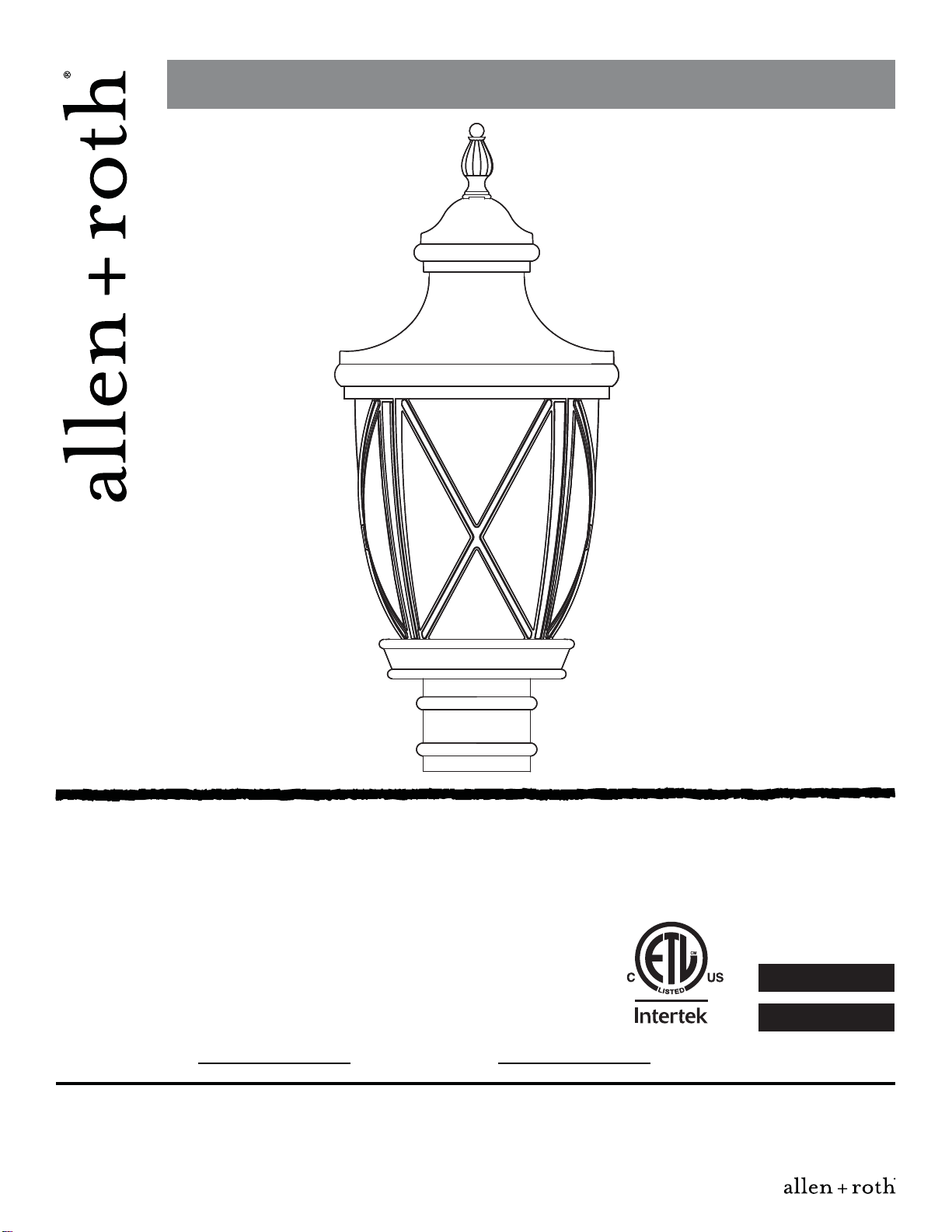

Allen + Roth 39428 User manual

1Lowes.com/allenandroth
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. – 6 p.m., EST, Monday - Thursday, 8 a.m. – 5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
EB15189
POST LANTERN
Français p. 8
Español p. 15
ITEM #0398465
MODEL #39428
welcoming • sophisticated • inspiring
allen + roth®is a registered trademark
of LF, LLC. All Rights Reserved.

Fixture Top (preassembled to Fixture Shade (B)) 1
Fixture Shade (preassembled to Fixture Base (C)) 1
Fixture Base 1
Coupling (preassembled to Fixture Shade (B)) 1
Finial 1
Socket (preassembled to Fixture Base (C)) 3
Threaded Nipple 1
Cap Ring 1
Decorative Cap 1
A
B
C
D
E
F
G
H
I
PART DESCRIPTION QUANTITY

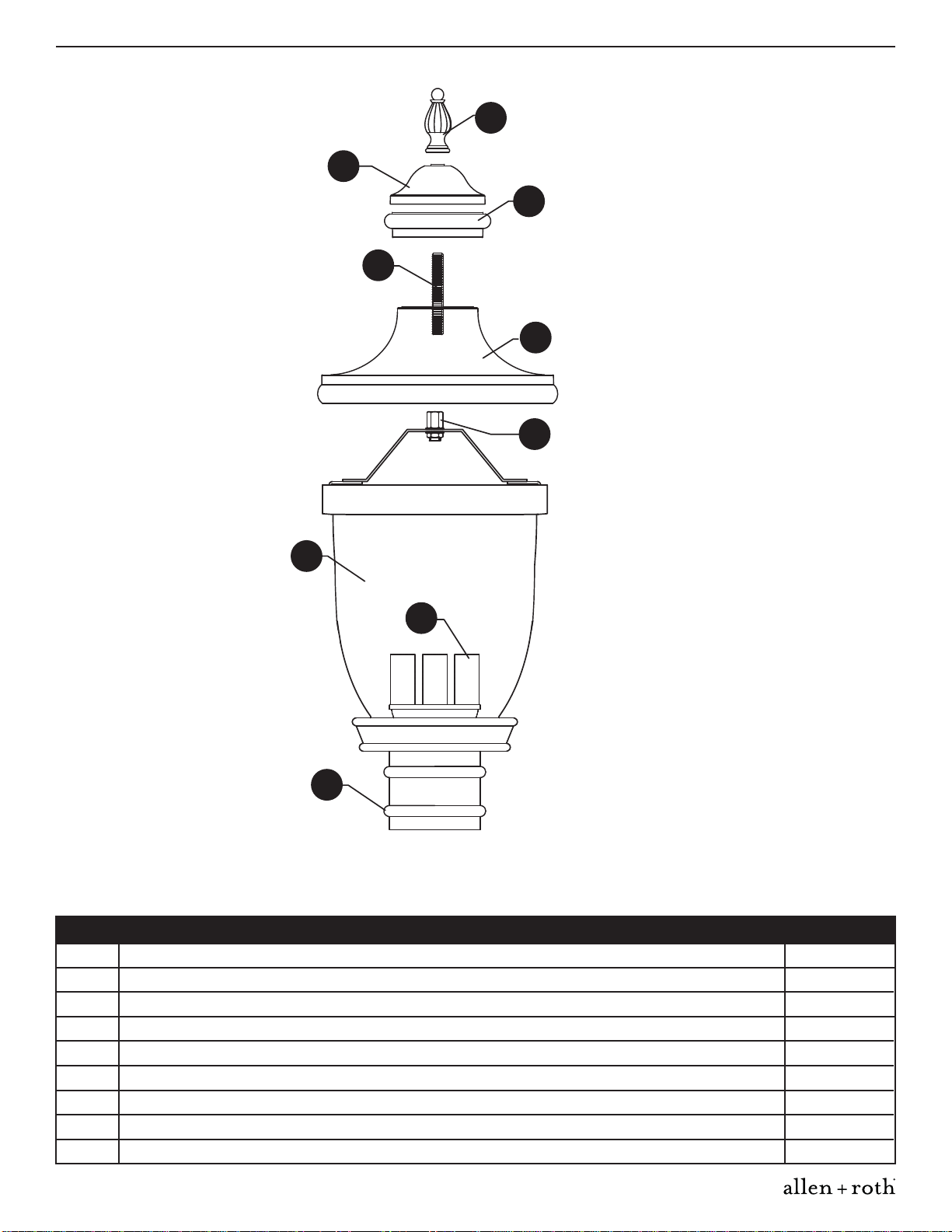

PACKAGE CONTENTS
2
B
C
D
A
H
E
G
I
F
Lowes.com/allenandroth

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Place the main power switch in the “OFF” position and unscrew the fuse(s), or switch “OFF” the
circuit breaker switch(es), that control the power to the fixture or room you are working in.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain,
place it in the "OFF" position.
• Do not use bulbs with wattage greater than specified on this fixture.
• California Prop. 65: This lighting fixture contains chemicals known to the state of California to
cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.
CAUTION
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, contact a licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
ETL listing and/or C.S.A. certification of this fixture.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated assembly time: 30 minutes to 1 hour
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses.
3

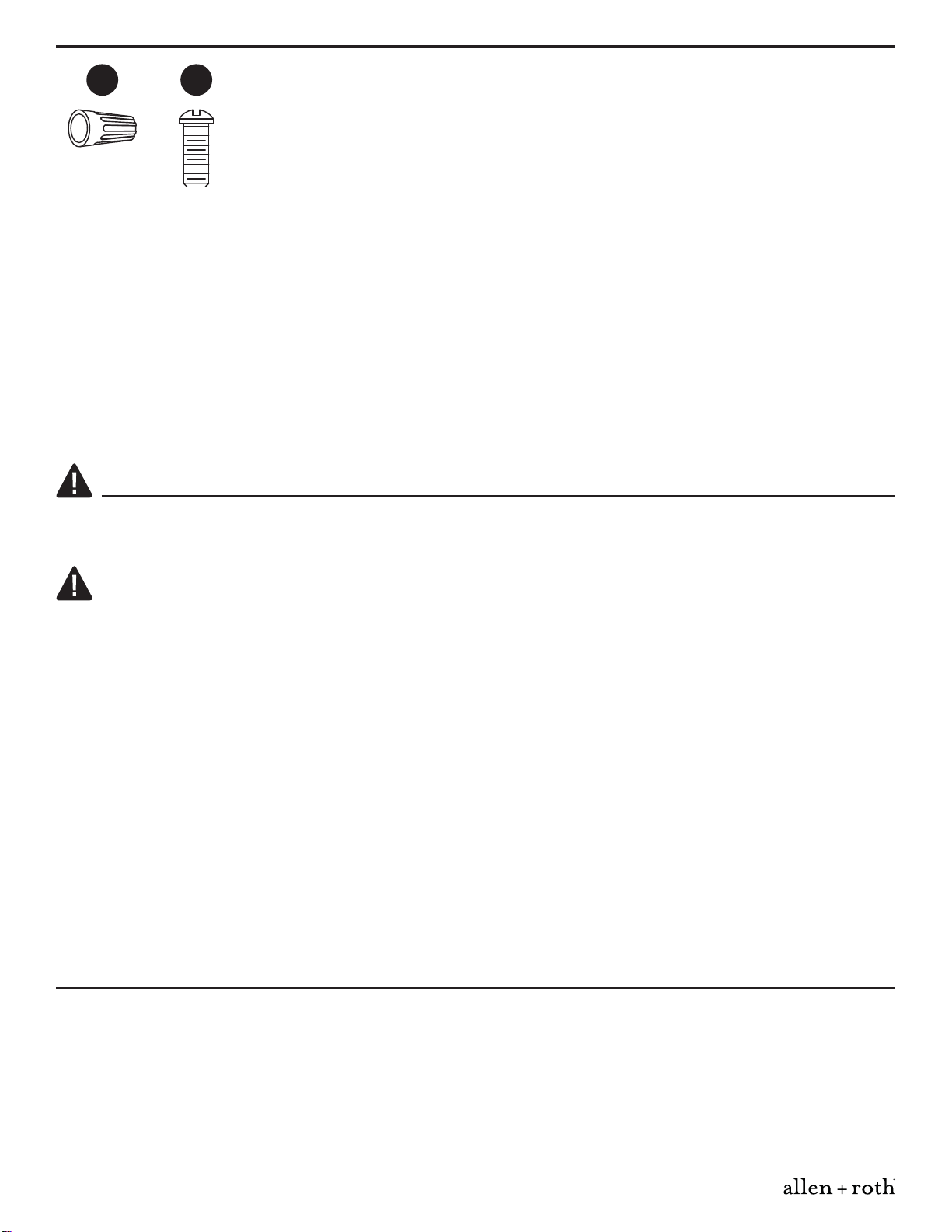

HARDWARE CONTENTS (shown actual size)
Lowes.com/allenandroth
Wire
Connector
AA
Post
Screw
BB
Qty: 3
Qty: 3

ASSEMBLY INSTRUCTIONS
4
Post
Screw
2. Secure fixture base (C) to post (not included)
with post screws (BB).
x 3
BB
Lowes.com/allenandroth
Hardware Used
Hardware Used
x 3Wire Connector
AA
1. Wire connection guide:
Ground wire:
•For installation in the United States:
Connect ground wire from fixture to ground
wire from post. Secure with wire nut (AA).
Supply wires:
• Connect the Neutral (White) supply wire from
the outlet box to the Neutral fixture wire
(White or Parallel Cord “D” shaped and
ribbed).
• Connect the Hot (Black) supply wire from the
outlet box to the Hot fixture wire (Black or
Parallel Cord round and smooth).
NOTE:
Fixture wires will either be:
• Black and White.
• Parallel Cord SPT-1 lamp wire with one
round smooth wire and one “D” shaped
ribbed wire.
2
BB
C
Post
1a
BARE COPPER,
OR GREEN
GROUND
SUPPLY WIRE
BARE COPPER,
OR GREEN
GROUND
FIXTURE
WIRE
BLACK FIXTURE
WIRE
OR
WHITE FIXTURE
WIRE
BLACK SUPPLY
WIRE
BLACK SUPPLY
WIRE
PARALLEL
FIXTURE CORD
(ROUND AND
SMOOTH)
PARALLEL FIXTURE
CORD (“D” SHAPED
AND RIDGED )
WHITE SUPPLY
WIRE
WHITE SUPPLY
WIRE
AA
1b
AA

ASSEMBLY INSTRUCTIONS
5

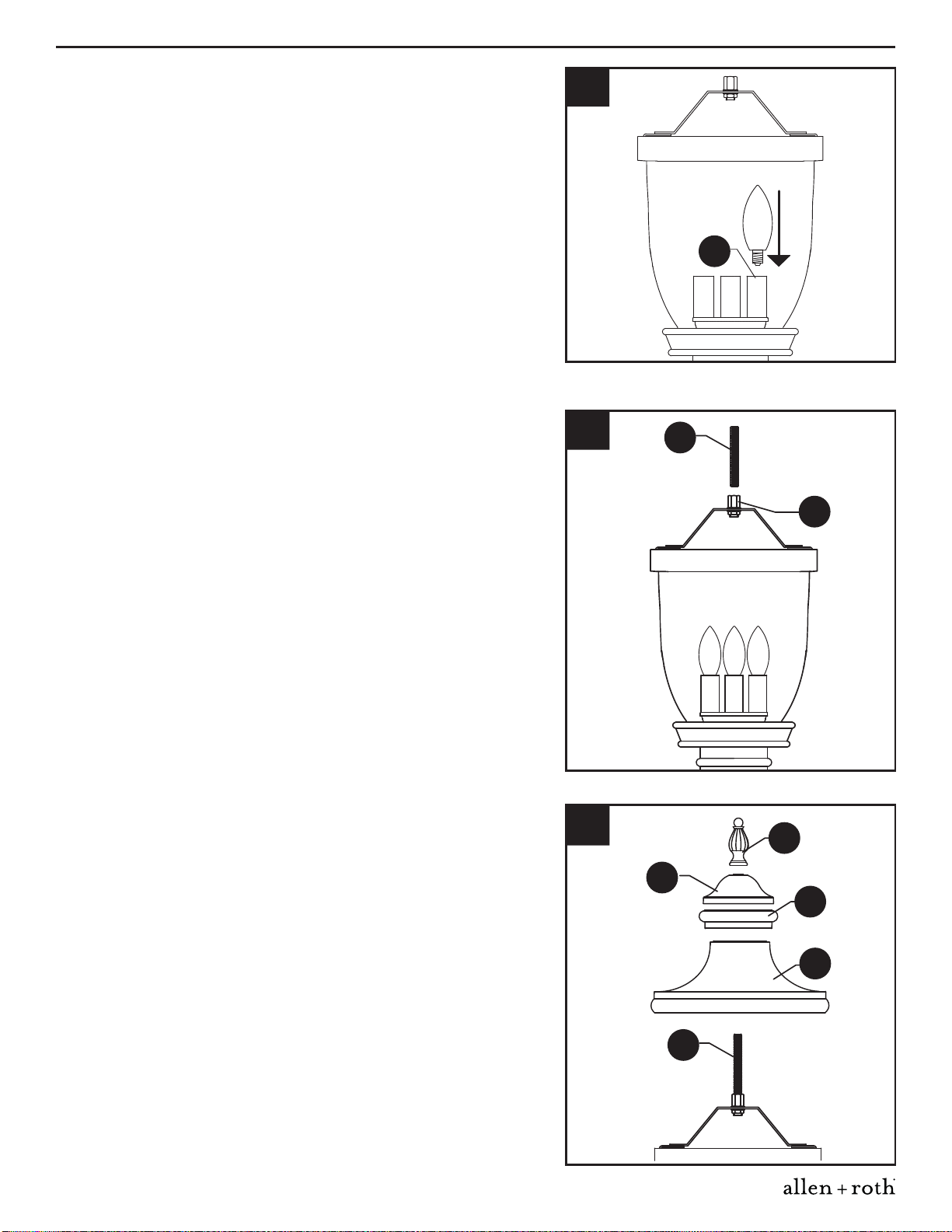

3. Insert bulb (not included) into socket (F). Use 60-watt
max. candelabra-base incandescent bulbs or CFL
equivalent.
5. Pass fixture top (A), cap ring (H) and decorative
cap (I) over threaded nipple (G) and secure with
finial (E).
4. Screw threaded nipple (G) into coupling (D).
Lowes.com/allenandroth
5
A
H
E
G
I
D
G
4
3
F

TROUBLESHOOTING
Fixture does not light. 1. Fixture may be wired incorrectly.
2. Worn or broken bulb. 2. Replace bulb.
1. Check wiring.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
• Always be certain that electric current is turned off before cleaning this item.
• Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on
fixture, as it will damage the metal finish.
• Glass shade may be washed in a towel-lined sink with warm water and mild soap. Do not wash
shade in an automatic dishwasher.
The Distributor warrants that its products will be free from defects in material and workmanship for
one (1) year from the date of purchase by the Original Purchaser.
To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly
defective parts or products to the authorized Distributor the product was purchased from with PROOF
OF PURCHASE, Original Purchaser’s name and return address and a description of the claimed
product defect.
If any of the warranted products are found by Distributor, in its sole discretion, to be defective, such
products will, at Distributor’s sole option and cost, be replaced, repaired or refunded less an amount
directly attributable to Original Purchaser’s prior use of the product. Distributor will return the repaired
or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to
remove or install any defective, repaired or replaced product.
The parties hereto expressly agree that Original Purchaser’s sole and exclusive remedy against
Distributor shall be for the repair, replacement or refund of defective products as provided herein.
This warranty extends only to product ownership by the Original Purchaser; is not transferable
whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to
own the product.
CARE AND MAINTENANCE
6
WARRANTY
Lowes.com/allenandroth

This warranty does not apply to any products that have been subjected to misuse, mishandling,
misapplication, connected to voltage at more than 5% above standard North American voltage,
unusual use (including but not limited to use in an environment where the annual average ambient
operating temperature is below 27ºF or above 95ºF), neglect (including but not limited to improper
maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow
the Product’s written instructions for normal use and care, improper packaging of products returned to
the Distributor, modification (including but not limited to use of unauthorized parts or attachments), or
adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air
will void any and all warranties on exterior finishes. This warranty only applies when all components,
including transformers, have been provided by the Distributor. Substituting another manufacturer’s
product and/or components will render the warranty completely void.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOTAPPLY TO YOU.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR
PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED
TO,AND THE DISTRIBUTOR SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF
PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO
REPUTATION AND/OR LOSS OF CUSTOMERS.
Wire Connector WC001
Post Screw P-SCREW-AB
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. – 6 p.m.,
EST, Monday - Thursday, 8 a.m. – 5 p.m., EST, Friday.
WARRANTY (continued)
7

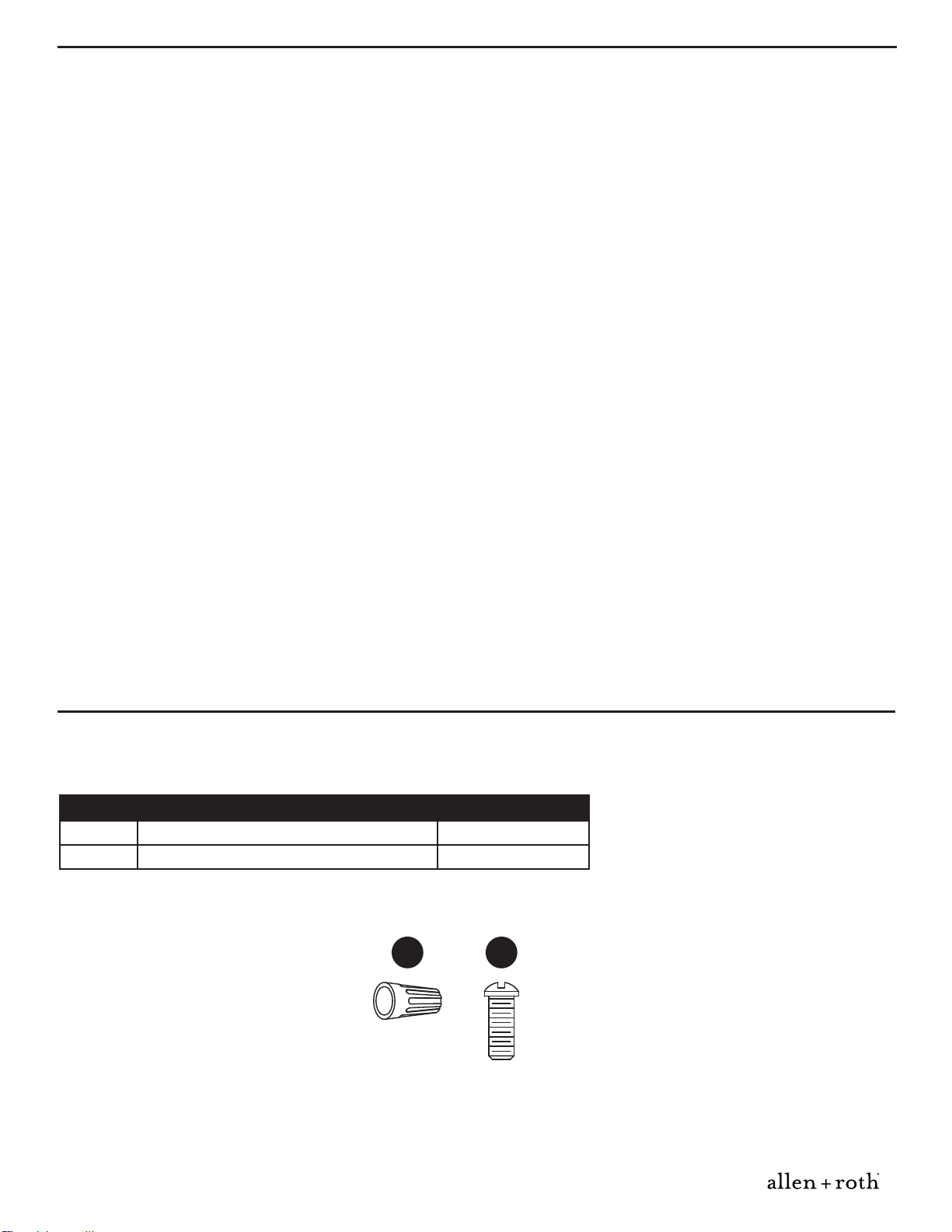

REPLACEMENT PARTS LIST
AA
BB
PART DESCRIPTION PART #
Printed in China
Lowes.com/allenandroth
allen + roth®is a registered trademark
of LF, LLC. All rights reserved.
Rev. 07-27-15
AA BB

8Lowes.com/allenandroth

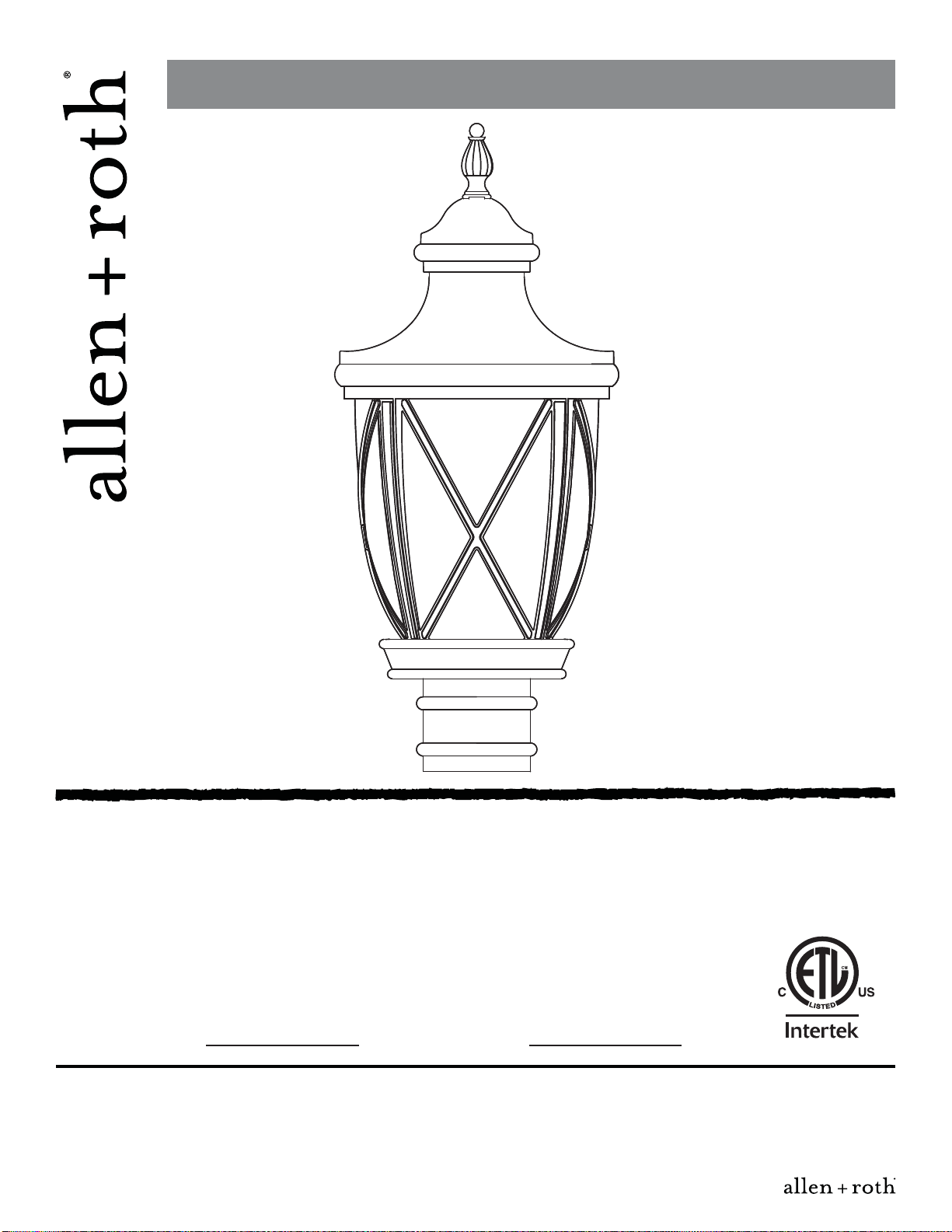

LAMPADAIRE
ARTICLE #0398465
MODÈLE #39428
welcoming • sophisticated • inspiring
allen + roth est une marque de commerce déposée
de LF, LLC. Tous droits réservés.
®
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant,
appelez notre service à la clientèle au 1 866 439-9800, entre 8 h et 18 h (HNE), du lundi au jeudi, ou
entre 8 h et 17 h (HNE) le vendredi.
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat

Partie supérieure du luminaire (préassemblé à l’abat-jour du luminaire [B]) 1
Abat-jour du luminaire (préassemblé à la base du luminaire [C]) 1
Base du luminaire 1
Raccord (préassemblé à l’abat-jour du luminaire [B]) 1
Embout 1
Douille (préassemblée à la base du luminaire [C]) 3
Tige filetée 1
Anneau du capuchon 1
Capuchon décoratif 1
A
B
C
D
E
F
G
H
I
PIÈCE DESCRIPTION QUANTITÉ
CONTENU DE L’EMBALLAGE
9
B
C
D
A
H
E
G
I
F
Lowes.com/allenandroth

10

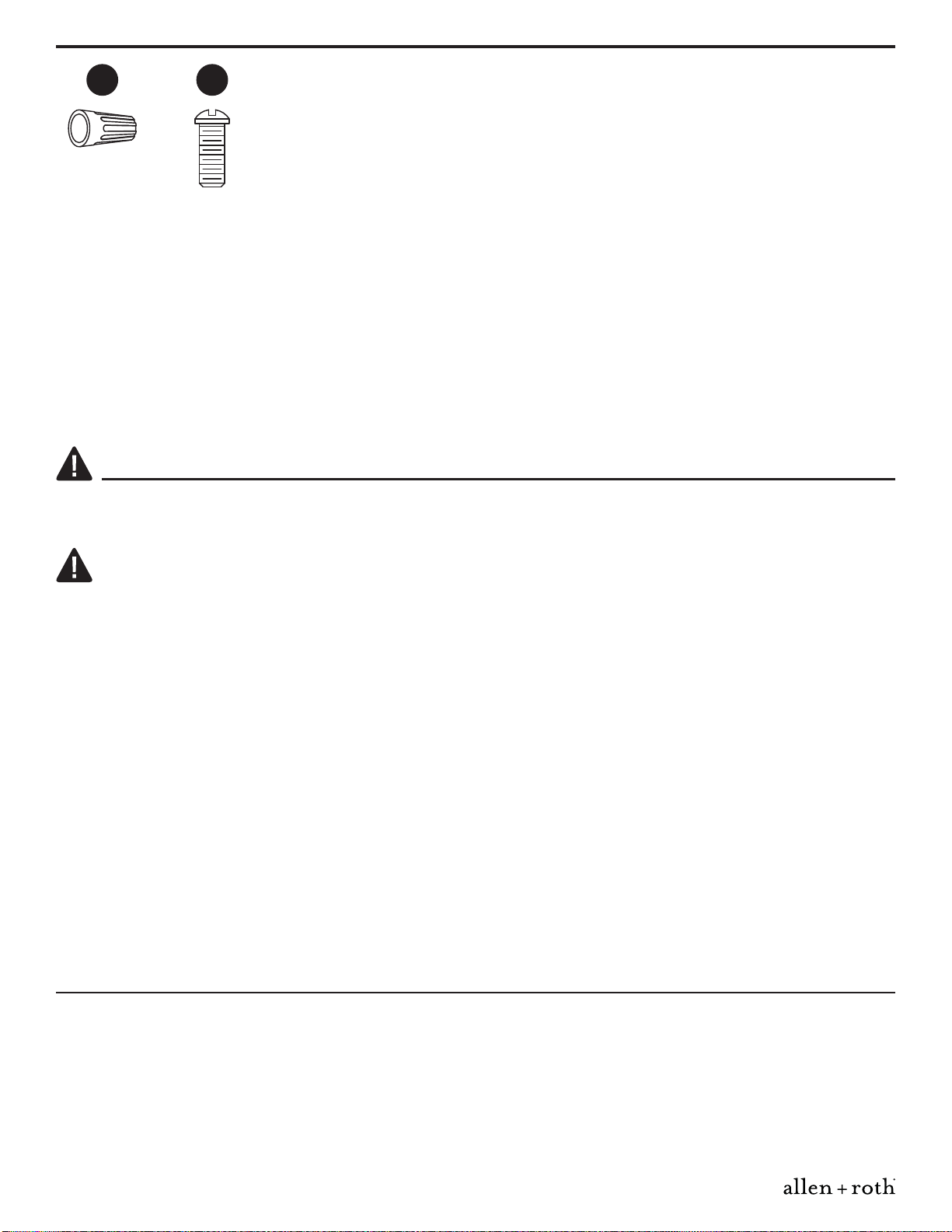

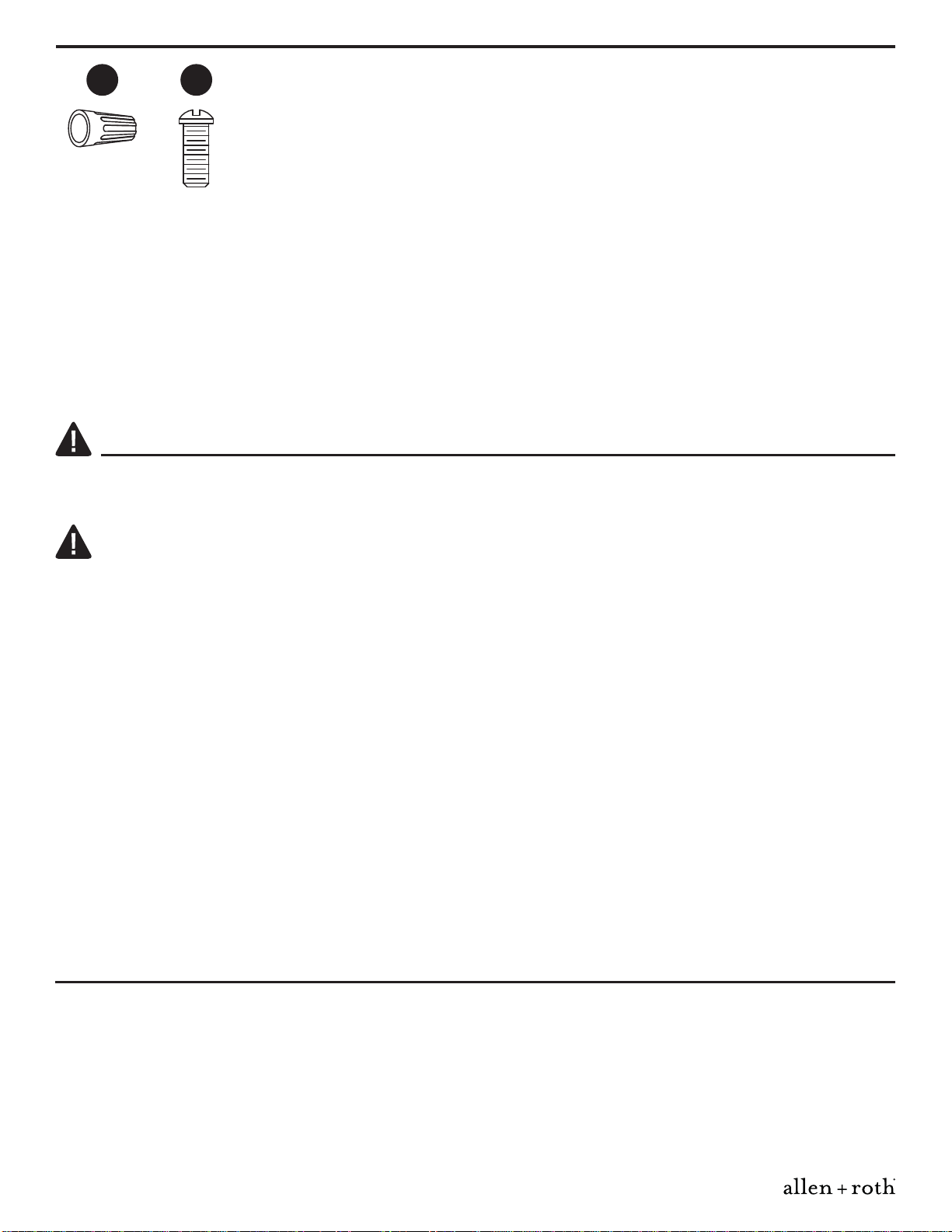

QUINCAILLERIE INCLUSE (grandeur réelle)
Lowes.com/allenandroth
Capuchon
de connexion
AA
Vis pour
poteau
BB
Qté : 3
Qté : 3
CONSIGNES DE SÉCURITÉ
Veuillez vous assurer de lire et de comprendre l’intégralité du présent guide avant d’assembler,
d’utiliser ou d’installer ce produit.
AVERTISSEMENT
• IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez
l’interrupteur principal en position d’arrêt (« OFF »).
• Placez l’interrupteur mural en position d’arrêt (« OFF »). Si le luminaire à remplacer est doté d’un
interrupteur à bouton ou à chaîne, placez-le en position d’arrêt (« OFF »).
• N’utilisez pas d’ampoules dont la puissance dépasse la puissance nominale indiquée sur ce
luminaire.
• Ce luminaire contient des produits chimiques reconnus par l’État de la Californie comme étant la
cause de cancers, d’anomalies congénitales et d’autres problèmes liés aux fonctions
reproductrices. Lavez-vous les mains après l’avoir manipulé.
ATTENTION
• Si vous avez des doutes à propos de l’installation, ou si le luminaire ne fonctionne pas
correctement, veuillez communiquer avec un électricien qualifié.
• Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez
pas les pièces, n'en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le
non-respect de ces instructions peut annuler l’homologation ETL du luminaire.
PRÉPARATION
Avant de commencer l’assemblage du produit, assurez-vous que toutes les pièces sont présentes.
Comparez les pièces avec la liste du contenu de l’emballage et la liste de la quincaillerie. En cas de
pièces manquantes ou endommagées, ne tentez pas d’assembler le produit.
Temps d’assemblage approximatif : de 30 à 60 minutes.
Outils nécessaires pour l’assemblage (non inclus) : tournevis cruciforme, tournevis à tête plate,
pinces à dénuder, ruban isolant, escabeau, lunettes de sécurité.
