Allen + Roth L-GZ604PCO-F 0697455 User manual

1
Lowes.com/allenandroth
wAH?KIEJCOKLDEOPE?=PA@EJOLENEJC
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
ITEM #0697455
MODEL #L-GZ604PCO-F
Français p. 21
HARDTOP GAZEBO
EB15499
allen + roth ® is a registered trademark of LF, LLC.
All rights reserved.

2
TABLE OF CONTENTS
Package Contents .............................................................................................................................. 3
Hardware Contents ............................................................................................................................ 5
Safety Information ............................................................................................................................. 6
Preparation .......................................................................................................................................... 6
Assembly Instructions ...................................................................................................................... 7
Care and Maintenance ...................................................................................................................... 17
Warranty .............................................................................................................................................. 17

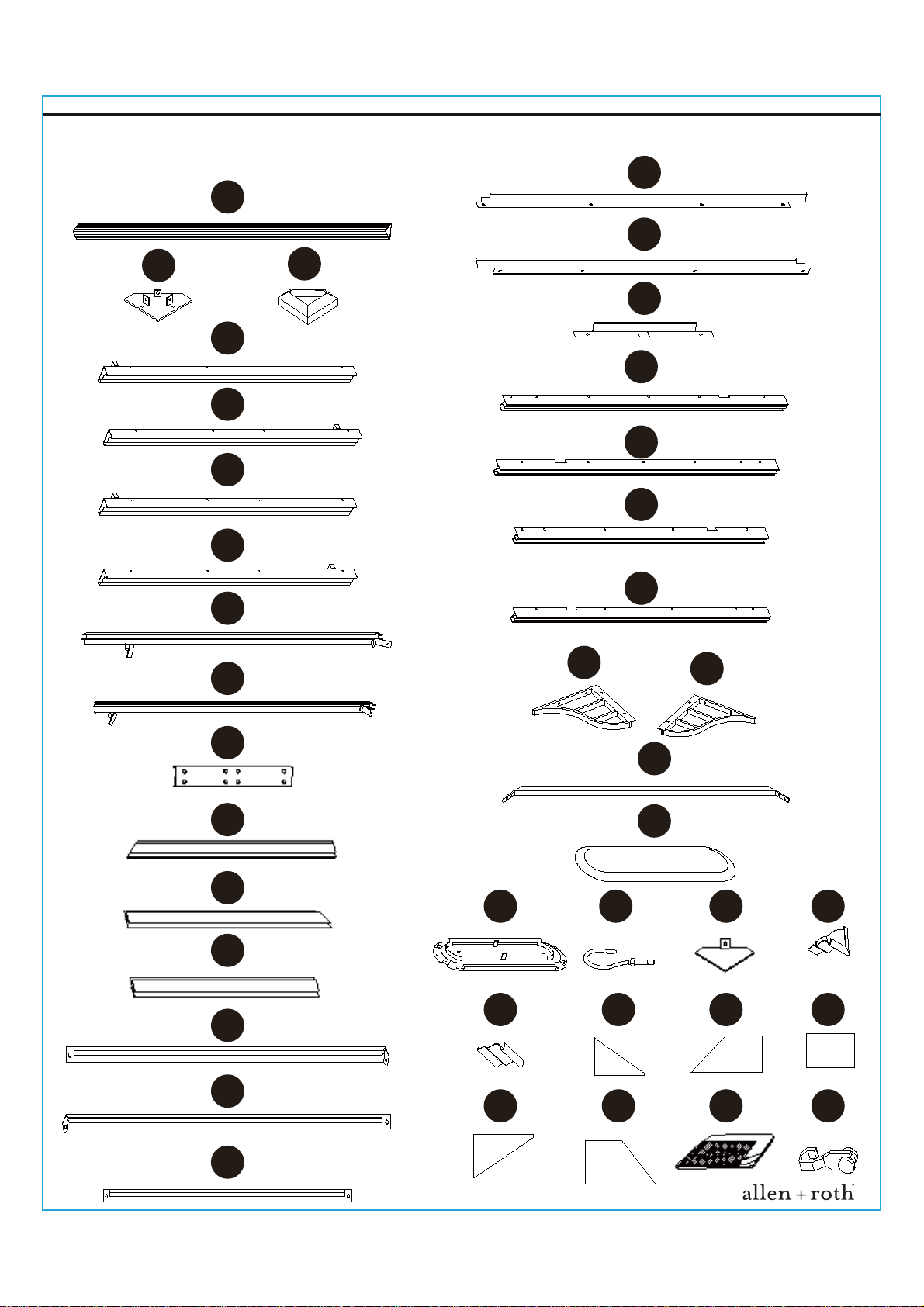

Replacement Parts List...................................................................................................................... 18

3
Lowes.com/allenandroth

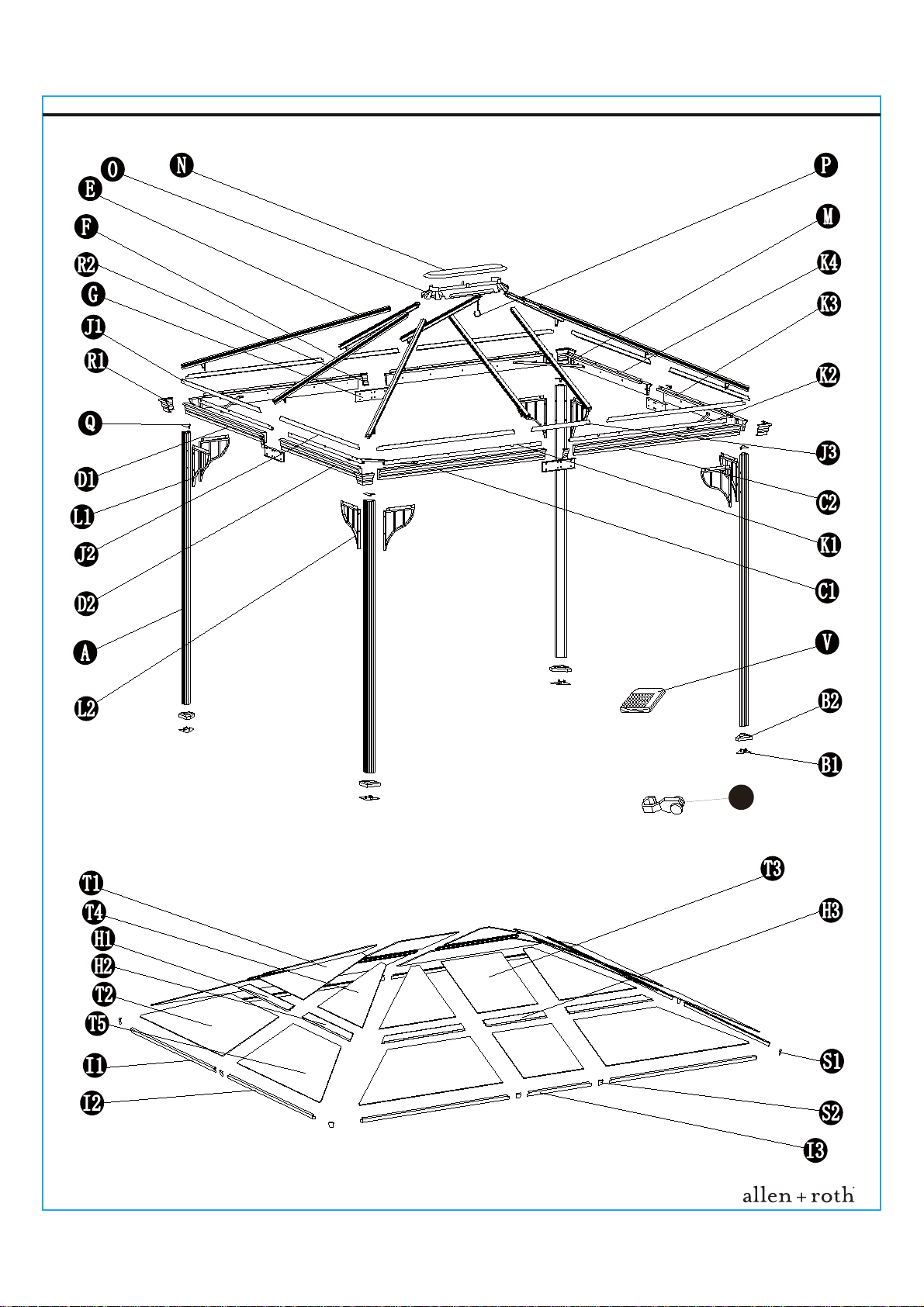

PACKAGE CONTENTS
M3
M5
U

4
Lowes.com/allenandroth
PACKAGE CONTENTS
F
G
2
6
4
4
4
2
4
4
2
4
4
2
2
2
2
2
Middle Beam
Decorative Groove Connector
H1
H2 Left Slot
Right Slot
H3
I1 Middle Slot
I2
I3
F-Baffle 1
F-Baffle 2
F-Baffle 3
J1
J2
Left Baffle
Right Baffle
J3
K1 Short Baffle
Left Long Mosquito Netting Tube
4
K2 Right Long Mosquito Netting Tube
1
1
1
4
4
4
4
L2
L1 Left Arc Support Bar
Right Arc Support Bar
R1
R2 Corner Cover
Middle Cover
A
B1
B2
C1
C2
D1
D2
E
4
4
4
2
2
2
4
Post
Base
Base Cover
Left Long Decorative Groove
Right Long Decorative Groove
Left Short Decorative Groove
Right Short Decorative Groove
Oblique Beam
PART DESCRIPTION QUANTITY
K3
K4 Left Short Mosquito Netting Tube
Right Short Mosquito Netting Tube
4
N
M
Corner Support
Small Roof Cover
O
P
Q
Roof Connector
Hook
Post Connector

55
Lowes.com/allenandroth

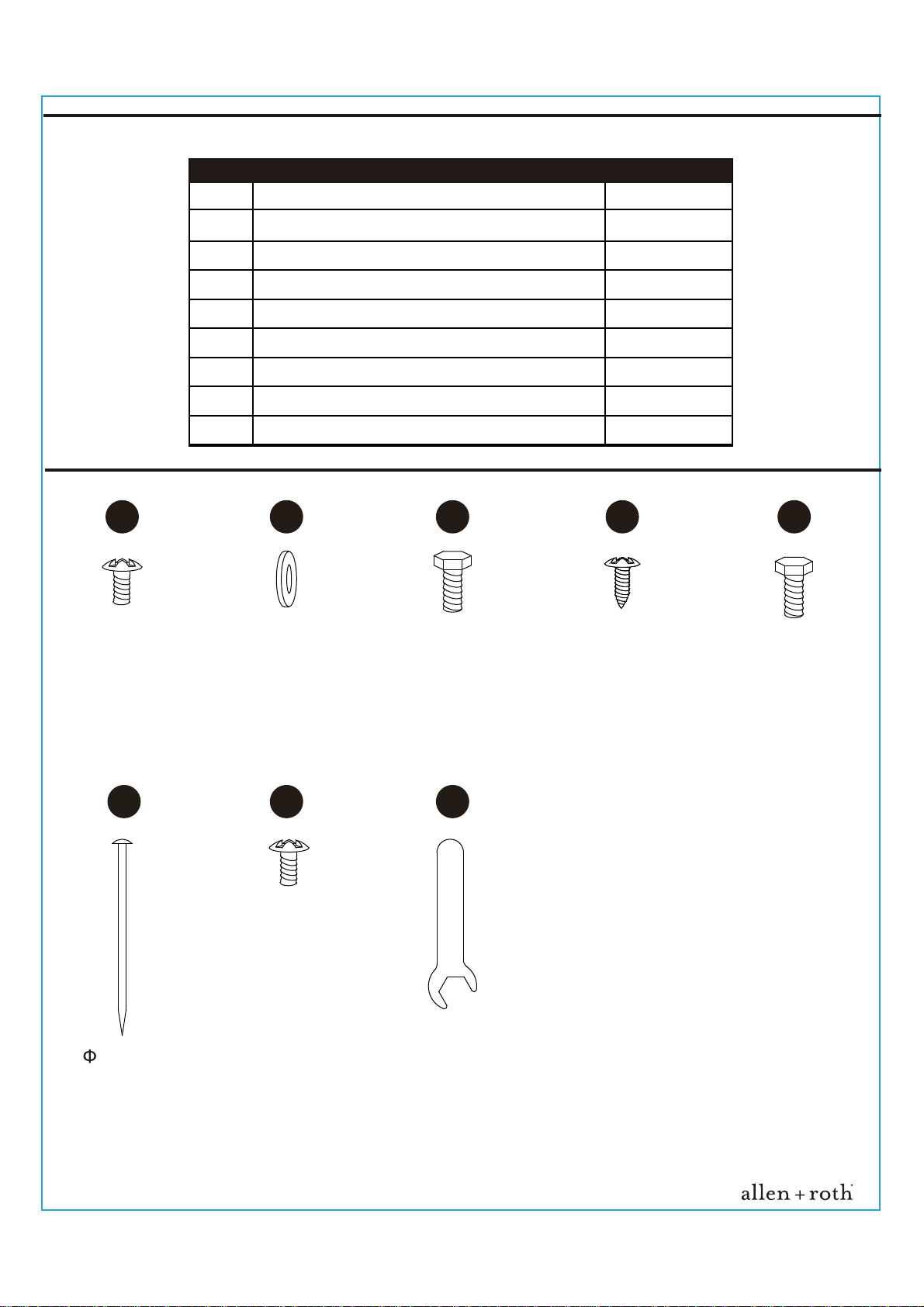

HARDWARE CONTENTS
M6 x 35 mm M5 x 15 mmM6
AA
Bolt
M6 x 15 mm
Bolt
M6 x 20 mm
Qty. 156
BB
Flat Washer
Qty. 192
CC
Bolt
Qty. 16
DD
Bolt
Qty. 52
PACKAGE CONTENTS
S2
T1
T2
T3
T4
T5
6
4
4
4
4
4
Middle Closure Plate
PC Panel 1
PC Panel 2
PC Panel 3
PC Panel 4
PC Panel 5
U52Plastic Hook
PART DESCRIPTION QUANTITY
S1 4
Corner Closure Plate
GG
Qty. 4
M6
HH
Wrench
Qty. 1
EE
Bolt
M6 x 25 mm
Qty. 16
FF
Stake
Qty. 12
8 x 180 mm
V1Mosquito Netting

6
Lowes.com/allenandroth
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, or install the
product.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes.
Tools Required for Assembly: Wrench (included) and Phillips Screwdriver (not included).
PREPARATION
This product is intended for outdoor use only and should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level ground
no less 6 feet away from any structures or obstruction, such as fences, garages, houses,
overhanging branches, laundry lines or electrical wires.
Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure
the gazebo in the ground. If you wish to secure the gazebo to concrete and wood surfaces,
use hardware (not included) suited for these surfaces.
Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough
CAUTION
Any assembly or maintenance of the product must be carried out by adults only.
anchorage in these types of soil.
Four or more people are recommended to safely assemble and/or move the product.
Check all nuts and bolts periodically for tightness. When required, tighten them again.
Do not hang anything from the roof frame.
Always keep children under close supervision when they are using or are around this product.
Hook maximum weight: 33 lbs. (per hook).
Some parts may contain sharp edges. Wear protective gloves if necessary.

7
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS

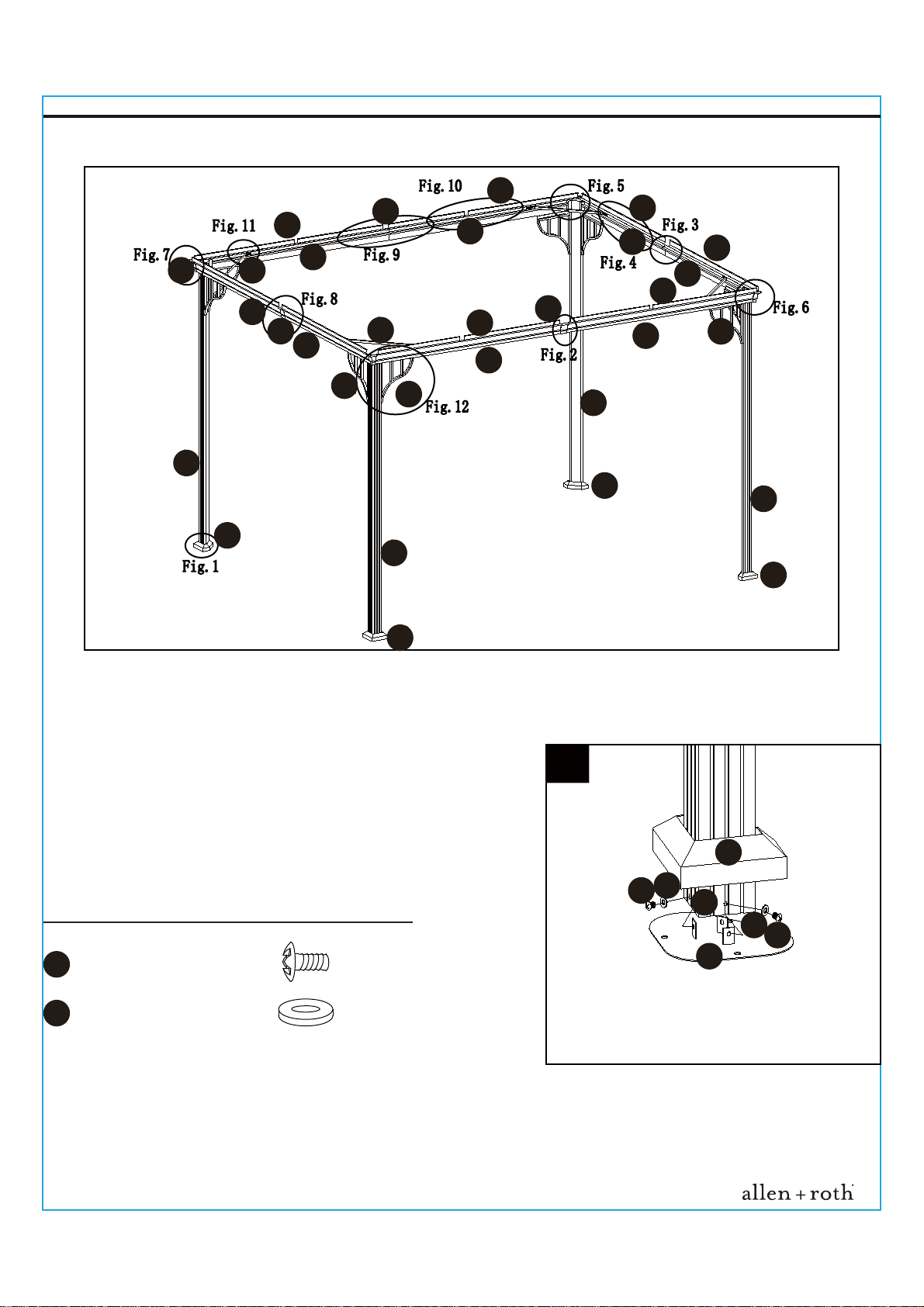

1. Attach base cover (B2) to the bottom of post (A), then
lift it and post (A) to install base (B1) to post (A) using M6
x 15 mm bolts (AA) and M6 flat washers (BB). Tighten with
Phillips screwdriver (not included).
Repeat for the remaining 3 posts (A).
1
JJ
Hardware Used
x 12
M6 Flat Washer
BB
x 12
M6 x 15 mm Bolt
AA
1 1
AA BB
B2
B1
BBAA
A
J2 J3
J3
J1
J2
J2
J1
C1
C2 L2
J1
K3
K4
K1
A
A
A
B2 A
B2
B2
B2
D1
D2
L2
M
K2
M
R1
L1
R2

8
Lowes.com/allenandroth
2. Connect the left long decorative groove (C1) and the
right long decorative groove (C2) to a decorative groove
connector (G) using four M6 x 15 mm bolts (AA) and M6
flat washers (BB). Tighten with Phillips screwdriver.
Repeat this step for the remaining left long decorative
groove (C1), right long decorative groove (C2), and another
decorative groove connector (G). Then repeat this step
for the two left short decorative grooves (D1), right short
decorative grooves (D2), and remaining decorative groove
connectors (G).
ASSEMBLY INSTRUCTIONS
2
4. Attach the right short mosquito netting tube (K4) to the
right short decorative groove (D2) using 5 M6 x 15 mm
bolts (AA) and M6 flat washers (BB) for each. Repeat this
step for the left short mosquito netting tube (K3) and left
short decorative groove (D1).
Attach the right long mosquito netting tube (K2) to the
right long decorative groove (C2) using 6 M6 x 15 mm
bolts (AA)and M6 flat washers (BB) for each. Repeat
for the left long mosquito netting tube (K1) and left long
decorative groove (C1). Tighten with Phillips screwdriver.
Note: Ensure there is a space/hole open in the middle of
short grooves to install the middle beam (F) later on.
4
3. Insert 7 plastic hooks (U) inside each left long mosquito
netting tube (K1) and 6 plastic hooks (U) inside each left
short mosquito netting tube (K3). Repeat for each right long
mosquito netting tube (K2) and each right short mosquito
netting tube (K4).
3
Hardware Used
x 16
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA
AA BB
BB
AA
C2
C1
G
K1
U
Hardware Used
x 44
M6 Flat Washer
BB
x 44
M6 x 15 mm Bolt
AA
4
AA BB
BB
BB
BB BB
AA
AA
AA AA
K4
D2
D2
D1
K4
K3

9
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS

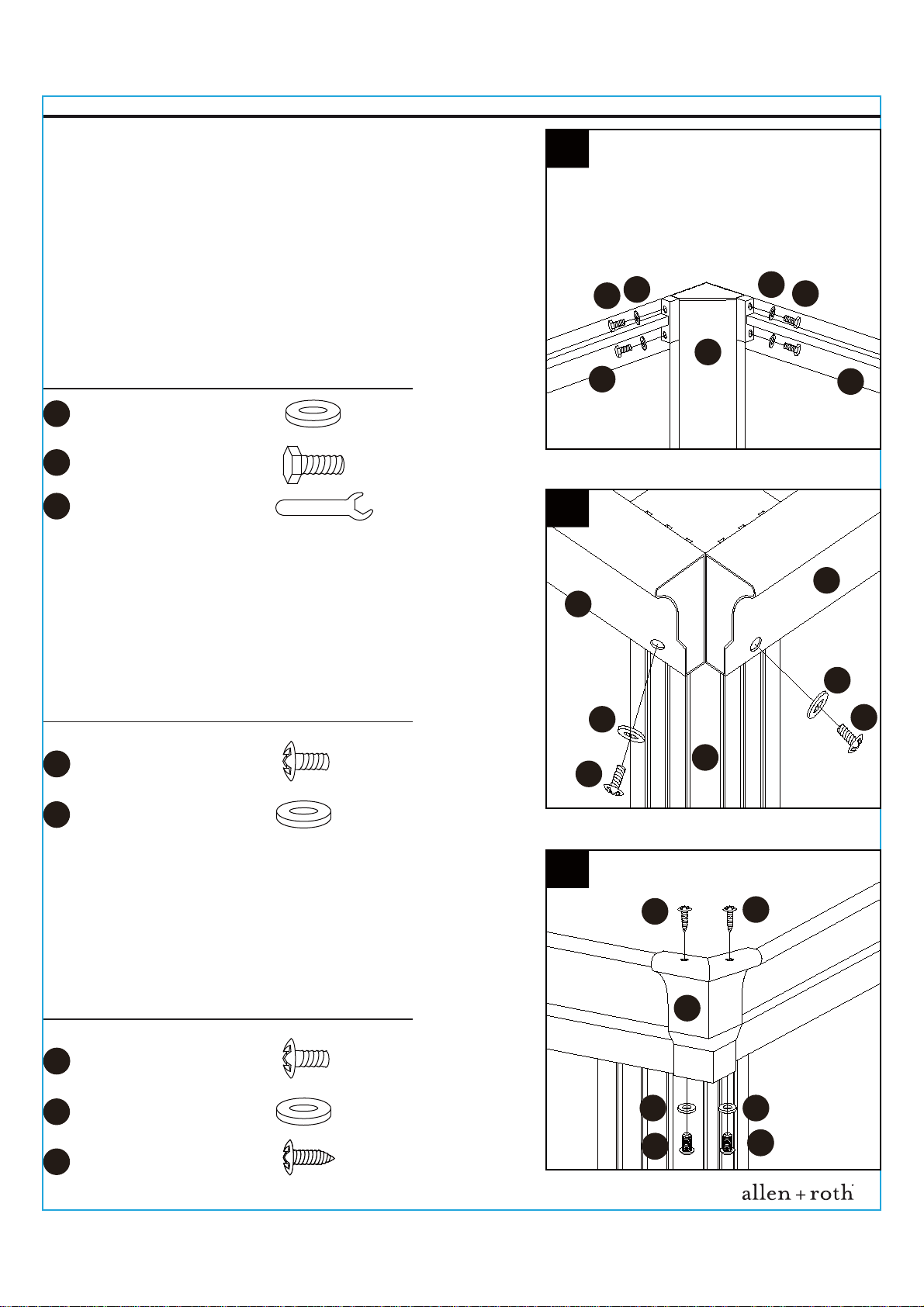

5. Attach the left long decorative groove (C1) and right short
decorative groove (D2) of one assembly to 2 posts (A) using
M6 x 35 mm bolts (CC) and M6 flat washers (BB). Tighten
with M6 wrench (GG).
Repeat for the other decorative groove assemblies to
make the frame of the gazebo.
IMPORTANT: Ensure the frame is assembled properly
before moving on to the next step.
5
BB BB
CC CC
C1 D2
A
7. Attach corner covers (R1) to each corner of the gazebo
frame. Secure the top of the corner covers (R1) to the
assembly using M5 x 15 mm bolts (DD) and secure the
bottom using M6 x 15 mm bolts (AA) and M6 flat washers
(BB). Tighten with Phillips screwdriver.
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
x 8
M5 x 15 mm Bolt
DD
7
DD DD
AA AA
BBBB
R1
6
AA
BB
BB
AA A
D2
C1
6. Secure the right short decorative grooves (D2) and left
long decorative grooves (C1) to the outside of the posts (A)
using M6 x 15 mm bolts (AA) and M6 flat washers (BB). T
ighten with Phillips screwdriver.
Repeat this step for the right long decorative grooves (C2)
and left short decorative grooves (D1) .
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
Hardware Used
CC
M6 Flat Washer
M6 x 35 mm Bolt
BB
x 16
x 16
GG M6 Wrench x 1

10
ASSEMBLY INSTRUCTIONS
Lowes.com/allenandroth
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
x 8
M5 x 15 mm Bolt
JJ
DD
8. Attach middle covers (R2) to the outside of the gazebo
frame. Secure the top of the middle covers (R2) to the
assembly using M5 x 15 mm bolts (DD) and secure the
bottom using M6 x 15 mm bolts (AA) and M6 flat washers
(BB). Tighten with Phillips screwdriver.
8
R2
AA
BB
BB
AA
DD DD
D2
D1
9. Attach short baffles (J3) to left long decorative grooves
(C1) and right long decorative grooves (C2) using M5 x 15
mm bolts (DD). Tighten with Phillips screwdriver.
Hardware Used
JJ x 4
M5 x 15 mm Bolt
DD DD
DD
C1
C2
J3
9
R2
10. Attach right baffles (J2) to right short decorative groove
(D2) using M5 x 15 mm bolts (DD). Repeat this step for left
baffles (J1) and left short decorative groove (D1). Tighten
with Phillips screwdriver.
Hardware Used
JJ x 32
M5 x 15 mm Bolt
DD
10
D2
J2
DD DD DD DD

11
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
11. Attach the corner supports (M) to the inside of each
corner of the assembly using M6 x 15 mm bolts (AA) and
M6 flat washers (BB). Tighten with Phillips screwdriver.
Hardware Used
x 16
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA
11
D1 C2
M
AA
AA AA
AA
BB
BB BB
BB
12. Attach a left arc support bar (L1) to the underside of a
left decorative groove (C1) using M6 x 15 mm bolts (AA)
and M6 flat washers (BB). Secure it to the post (A) using
M6 x 25 mm bolts (EE) and M6 flat washers (BB).
Tighten with Phillips screwdriver.
Repeat for all left arc support bars (L1), then repeat this step
for the right arc support bars (L2).
12
A
AA
BB
AA EE
BB
BB
EE
L1
C1
Hardware Used
x 32
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA
x 16
M6 x 25 mm Bolt
EE
BB
AA
C2
A
C1
D1
D2
FFF
E
E
N
O

12
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
13. Attach the top of oblique beams (E) to the underside
of roof connector (O) using M6 x 15 mm bolts (AA) and
M6 flat washers (BB). Tighten with Phillips screwdriver. 13
AA
BB
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
O
E
14. Attach post connectors (Q) to the top of each post (A).
Then, with the assistance of another person, lift the assembly
from step 13 and insert an M6 x 20 mm bolt (GG) through
a M6 flat washer (BB), then through the bottom of oblique
beam (E), post (A) and post connector (Q). Tighten with
Phillips screwdriver.
Repeat for each corner.
Hardware Used
x 4
BB
x 4
M6 Flat Washer
M6 x 20 mm Bolt
GG A
GG BB
E
Q
14
AA
BB
E
F
O
15. Attach the top of middle beams (F) to the underside
of roof connector (O) using M6 x 15 mm bolts (AA) and
M6 flat washers (BB). Tighten with Phillips screwdriver.
Hardware Used
x 6
M6 Flat Washer
BB
x 6
M6 x 15 mm Bolt
AA
15

13
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
F
C1
16. Attach the bottom of the middle beams (F) to the
decorative groove assemblies using M6 x 15 mm bolts (AA)
and M6 flat washers (BB). Tighten with Phillips screwdriver. 16
AA BB
C2
Hardware Used
x 6
BB
x 6
M6 Flat Washer
M6 x 15 mm Bolt
AA
17. Attach small roof cover (N) to the top of roof connector
(O) using M6 x 15 mm bolts and M6 flat washers from
underneath. Then attach the hook (P) to the underside of
roof connector (O).
17
FE
EF
AA
BB
P
O
N
Hardware Used
x 2
BB
x 2
M6 Flat Washer
M6 x 15 mm Bolt
AA
I2
T2
T2 T3 T2
T1
H1
H1
H2
T4
T3
T1
I1
T5
H2
T4
T5
H3
I3
I1
S1 S2
S2

14
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS

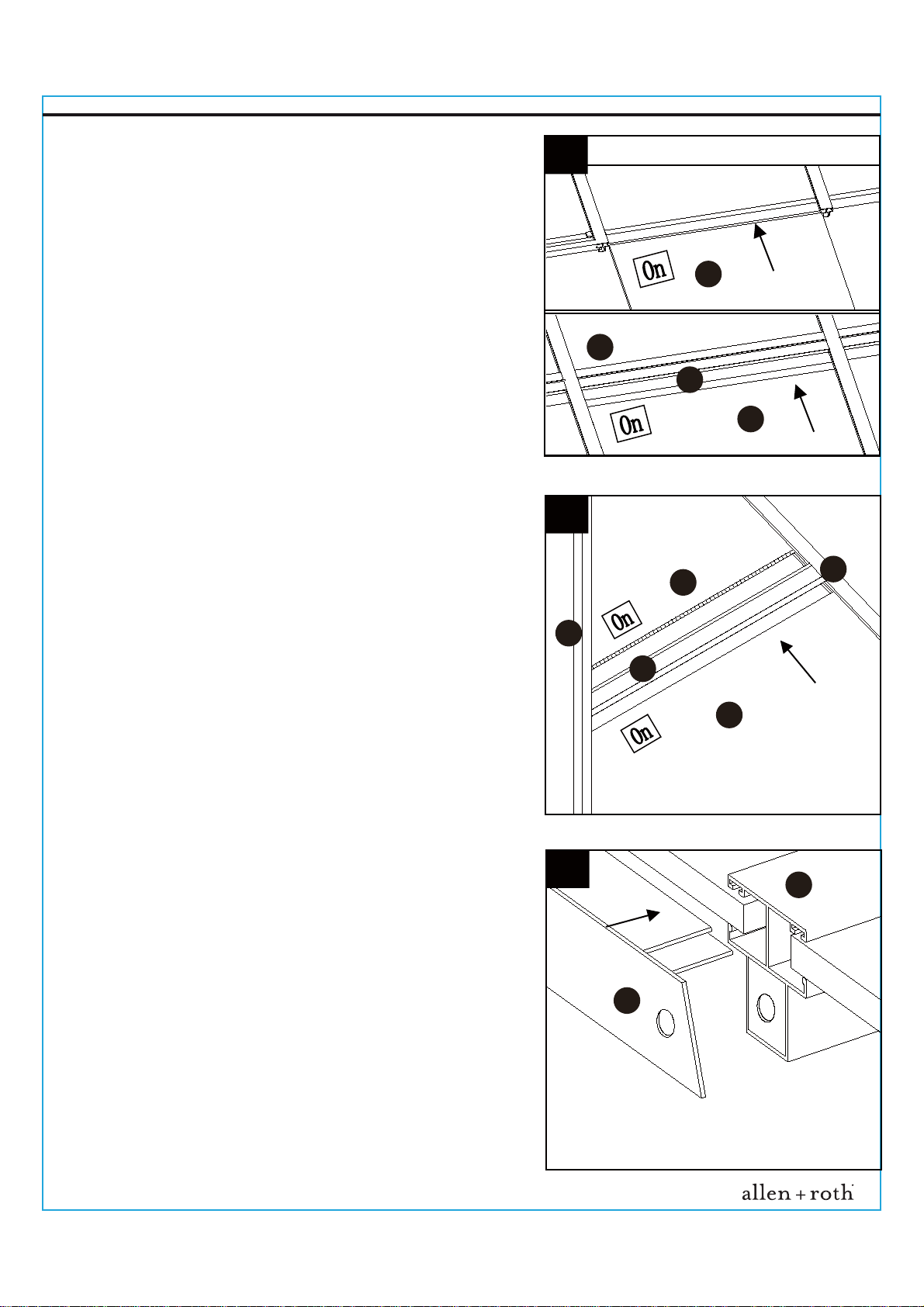

19. Slide a PC panel 1 (T1) into the triangular top section
created by a oblique beam (E) and a middle beam (F). Insert
a left slot (H1) into the assembly next, then fit a PC panel 2
(T2) into the left slot (H1); it will be secured in the next step.
Repeat this step for the remaining PC panels 1 (T1) and PC
panels 2 (T2), then do the same for PC panels 4 (T4) and
PC panels 5 (T5) into right slot (H2).
IMPORTANT: The side of the panels with the "ON" sticker
should face upward.
19
18. Slide a PC panel 3 (T3) into the upper middle top section
created by two middle beams (F). Insert a middle slot (H3)
into the assembly next, then fit another PC panel 3 (T3) into
the middle slot (H3), it will be secured in step 20.
Repeat this step for the remaining PC panels 3 (T3).
IMPORTANT: The side of the panels with the "ON" sticker
should face upward.
18
T3
L3
T3
H3
E
F
T2
T1
H1
20. Cover the bottom of PC panel 3 (T3) with F-baffle 3 (I3)
and cover the bottom of PC panel 2 (T2) with F-baffle 1 (I1),
then cover the bottom of PC panel 5 (T5) with F-baffle 2 (I2).
Note: F-baffle 1 (I1) and F-baffle 2 (I2) will overlap at short
side. F-baffle 1 (I1) and F-baffle 3 (I3), and F-baffle 3 (I3)
and F-baffle 2 (I2) will overlap at long side.
Repeat this step for the left F-baffle 1 (I1), F-baffle 2 (I2) and
F-baffle 3 (I3).
20 F
I3

15
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
E

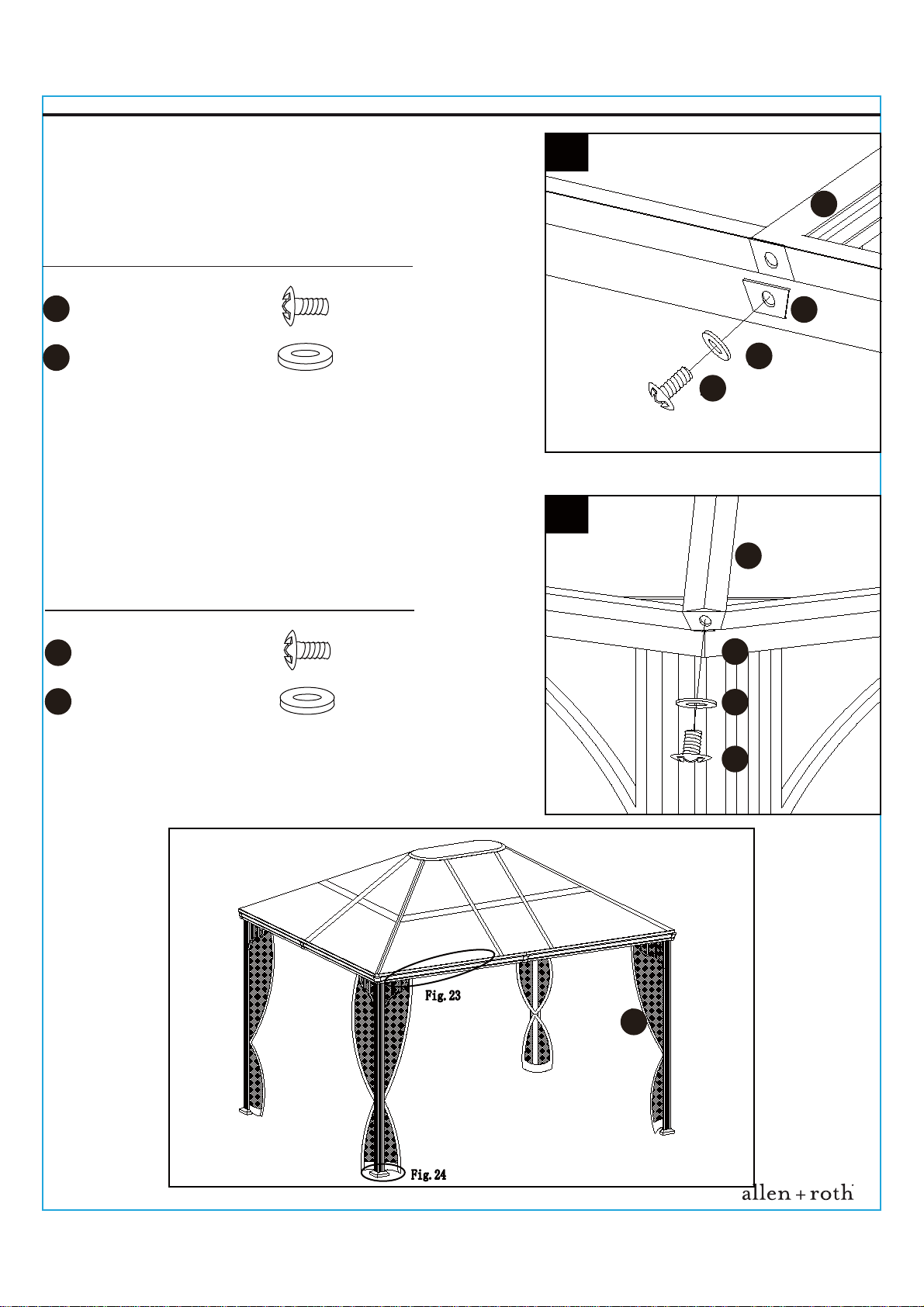

22. Insert corner closure plates (S1) into the outside of
oblique beams (E) using M6 x 15 mm bolts (AA) and M6
flat washers (BB). Tighten with Phillips screwdriver. 22
21. Insert middle closure plates (S2) into the outside of
middle beams (F) to secure overlapped F-baffles using
M6 x 15 mm bolts (AA) and M6 flat washers (BB). Tighten
with Phillips screwdriver.
21
Hardware Used
x 6
BB
x 6
M6 Flat Washer
M6 x 15 mm Bolt
AA
Hardware Used
x 6
BB
x 6
M6 Flat Washer
M6 x 15 mm Bolt
AA
BB
S1
AA
v
AA
BB
F
S2

16
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
24. With the assistance of another person(s), move the
assembled gazebo to the desired installation site. For
ground installations, lift base cover (B2) and insert stakes
(FF) through holes on base (B1). For concrete/wood
installations, use appropriate hardware (not included) to
secure the item.
Hardware Used
x 12
ĭPP6WDNH
FF
24
FF FF
B2B2
B2
B1
23
23. Attach the mosquito netting (V) to the previously installed
plastic hooks (U).
Note: The netting with belts should face outside. Be
mindful of the dimensions of the item to ensure you install
the mosquito netting (V) correctly.
V
UUU

17
Lowes.com/allenandrothLowes.com/allenandroth
CARE AND MAINTENANCE
This gazebo is intended for decorative and sunshade purposes only, and is not designed to
Check all nuts and bolts periodically for tightness. When required, tighten them again.
withstand hard weather, including high winds, rain or snow. In order to avoid damage, remove
accumulated water on the roof immediately, or disassemble the gazebo.
Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough
to resist wind and bad weather, and therefore can be damaged and/or cause damage.
Do not use bleach, acid or other abrasive cleaners on the roof or frame parts.
Steel components of garden accessories and furniture are treated with rust-inhibiting paint.
However, due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is
scratched. This is a natural process. To minimize this condition, it is recommended care be
taken when assembling and handling the product, in order to prevent the paint from being
scratched.
Surface rust can be removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may start dripping
onto the assembly surface, which may cause damaging stains that can be difficult to remove.
If the product will not be used for a long period (e.g. wintertime), it should be stored in a clean, dry
environment; keep the original packaging to store the gazebo.
ONE-YEAR LIMITED WARRANTY
This limited warranty is extended to the original purchaser and applies to defects in material and
workmanship of your item provided the item is maintained with care and used only for personal,
residential purposes.
The manufacturer warranty for this item, is to be free of defects in material and workmanship for a
period of 1 year. If any defect is found, please call our customer service department at
1-866-439-9800 for help. The manufacturer will not cover transportation or delivery costs or
compensate the individual or any outside party for assembling or disassembling the product.
This warranty gives you certain rights, and you may have other rights that vary from state to state.

Lowes.com/allenandroth
18
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
REPLACEMENT PARTS LIST
A
B1
B2
C1
C2
T1 T3
V U
R2
D1
D2
E
F
G
H1
H2
I1
I2
J1
H3
I3
J2
J3
L1
L2
K1
K2
K3
K4
M
N
P Q
R1
O
T2
T4 T5

Lowes.com/allenandroth
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
REPLACEMENT PARTS LIST
PART #0697455-A
#0697455-B1
#0697455-B2
#0697455-C1
#0697455-C2
#0697455-D1
#0697455-D2
#0697455-E
#0697455-F
#0697455-G
#0697455-H1
#0697455-H2
#0697455-H3
#0697455-I1
#0697455-I2
DESCRIPTION PART #
19
K1 Left Long Mosquito Netting Tube
Middle Beam
Decorative Groove Connector
Left Slot
Right Slot
Middle Slot
F-Baffle 1
F-Baffle 2
F-Baffle 3
Left Baffle
Right Baffle
F
G
H1
H2
H3
I1
I2
I3
J1
J2 Short Baffle
J3
A
B1
B2
C1
C2
D1
D2
E
Post
Base
Base Cover
Left Long Decorative Groove
Right Long Decorative Groove
Left Short Decorative Groove
Right Short Decorative Groove
Oblique Beam
#0697455-N
#0697455-I3
#0697455-J1
#0697455-J2
#0697455-J3
#0697455-K1
#0697455-K2
#0697455-K3
#0697455-K4
#0697455-L1
#0697455-L2
#0697455-M
#0697455-O
#0697455-P
K2
L2
L1
K3
K4
N
M
O
P
Right Long Mosquito Netting Tube
Left Arc Support Bar
Right Arc Support Bar
Left Short Mosquito Netting Tube
Right Short Mosquito Netting Tube
Corner Support
Small Roof Cover
Roof Connector
Hook

20
Lowes.com/allenandroth
REPLACEMENT PARTS LIST
is a registered trademark
of LF, LLC. All Rights Reserved.
Printed in China
allen + roth®
PART
AA
BB
CC
DD
EE
FF
#0697455-AA
#0697455-BB
#0697455-CC
#0697455-DD
#0697455-EE
#0697455-FF
DESCRIPTION PART #
M6 x 15 mm Bolt
M6 Flat Washer
M6 x 35 mm Bolt
M5 x 15 mm Bolt
M6 x 25 mm Bolt
ĭPP6WDNH
GG #0697455-GGM6 x 20 mm Bolt
HH #0697455-HHM6 Wrench
PART DESCRIPTION PART #
Middle Cover
#0697455-Q
Q Post Connector
VMosquito Netting
#0697455-R1
#0697455-R2
R1
R2 Corner Cover
S2
T1
T2
T3
T4
T5
Middle Closure Plate
PC Panel 1
PC Panel 2
PC Panel 3
PC Panel 4
PC Panel 5
S1 Corner Closure Plate #0697455-S1
#0697455-S2
#0697455-T1
#0697455-T2
#0697455-T3
#0697455-T4
#0697455-T5
#0697455-U
#0697455-V
UPlastic Hook
AA BB CC DD EE FF
GG HH
