Allen + Roth L-GZ1140PST-G User manual

GAZEBO
ITEM #807686
MODEL #
L-GZ1140PST-G
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
PH18720
ATTACH YOUR RECEIPT HERE
Français p. 17
1
TM

2

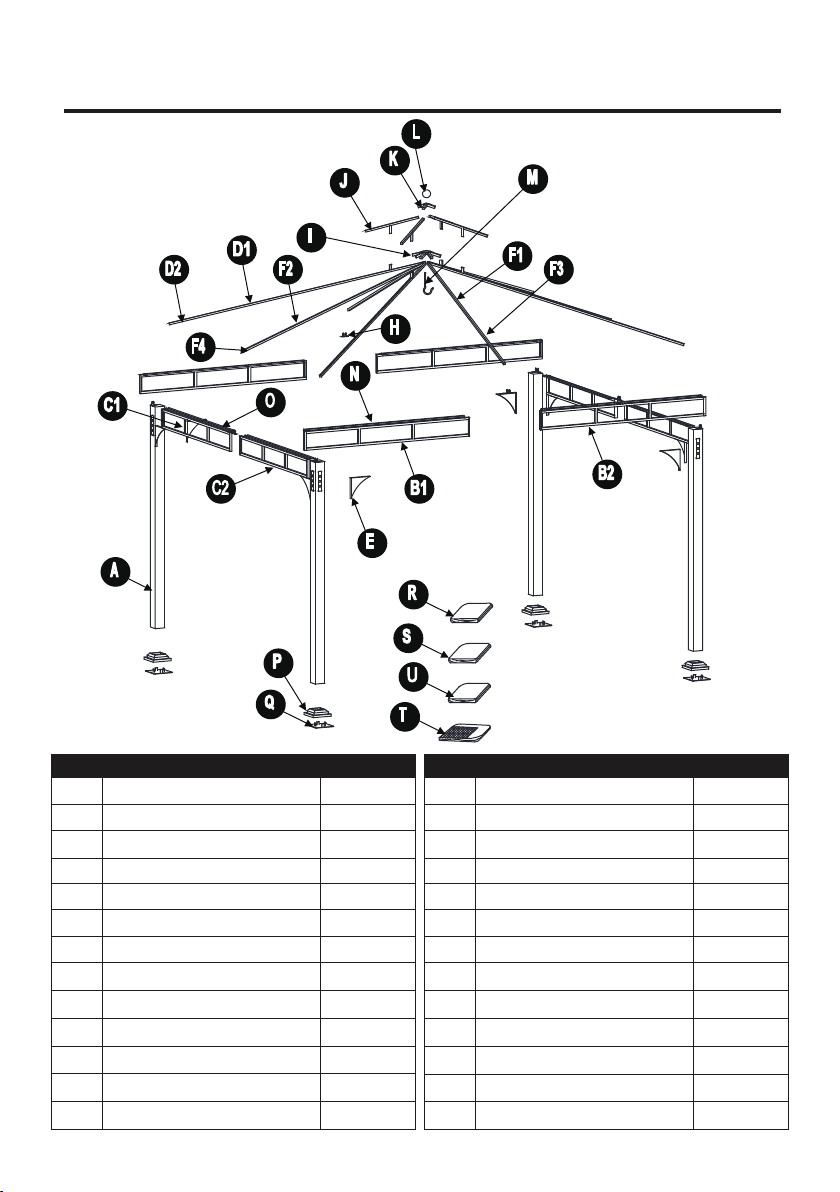

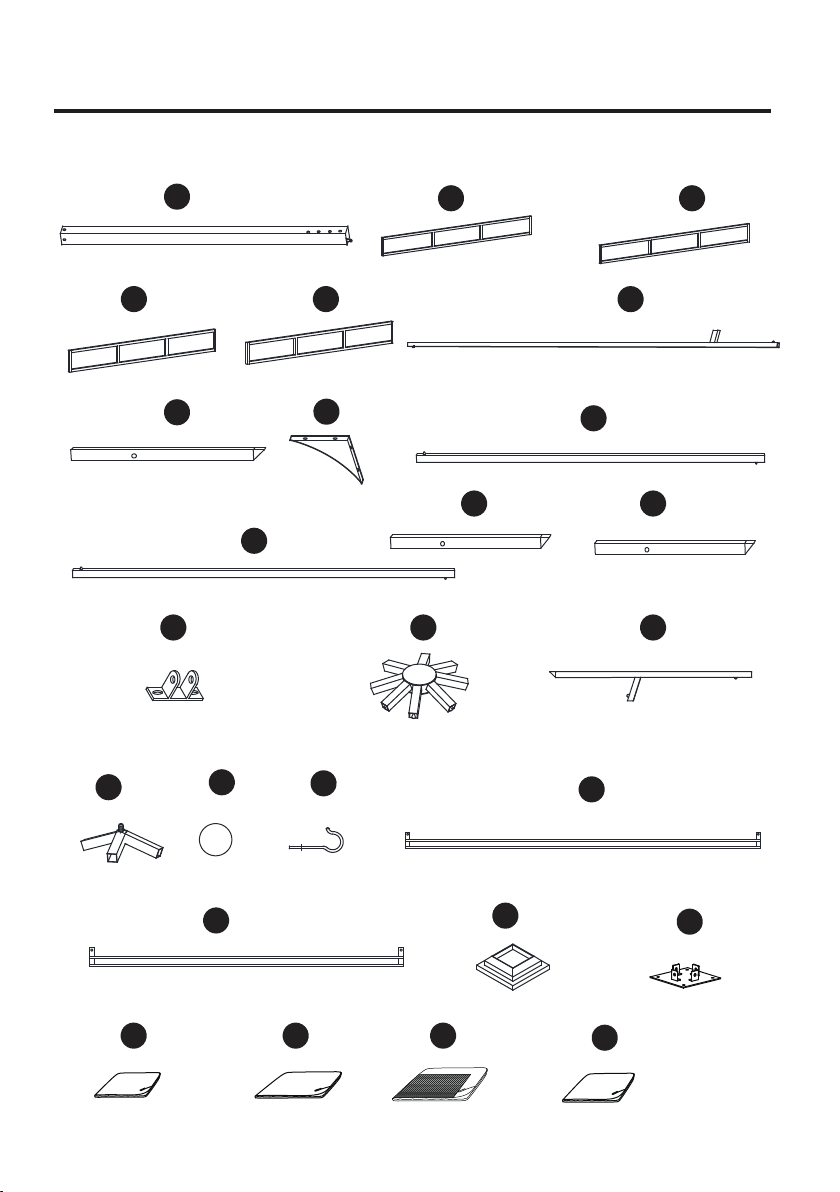

PACKAGE CONTENTS
PART
A
B1
B2
C1
C2
D1
4
2
2
2
4
4
8
Post
Long Crossbeam 1
Long Crossbeam 2
Short Crossbeam 1
Short Crossbeam 2
Sloped Beam
Sloped Beam Lower Tube
Decorative part
DESCRIPTION QUANTITY
D2
E
2
2
Short Middle Beam
F1
F2
Long Middle Beam
2
PART
1
1
1
1
4
4
4
4
1
1
1
Big Top Connector
Small Top Sloped Beam
Small Top Connector
Finial
Hook
Long Mosquito Netting Pipe
Short Mosquito Netting Pipe
Base Cover
Large Canopy
Mosquito Netting
DESCRIPTION QUANTITY
I
J
K
L
M
N
O
P
Q
R
T
S
4
2
Short Middle Beam Lower Tube
F3
F4 Long Middle Beam Lower Tube 2
HMiddle Beam Connector 41
Curtain
U
Base
Small Canopy

3

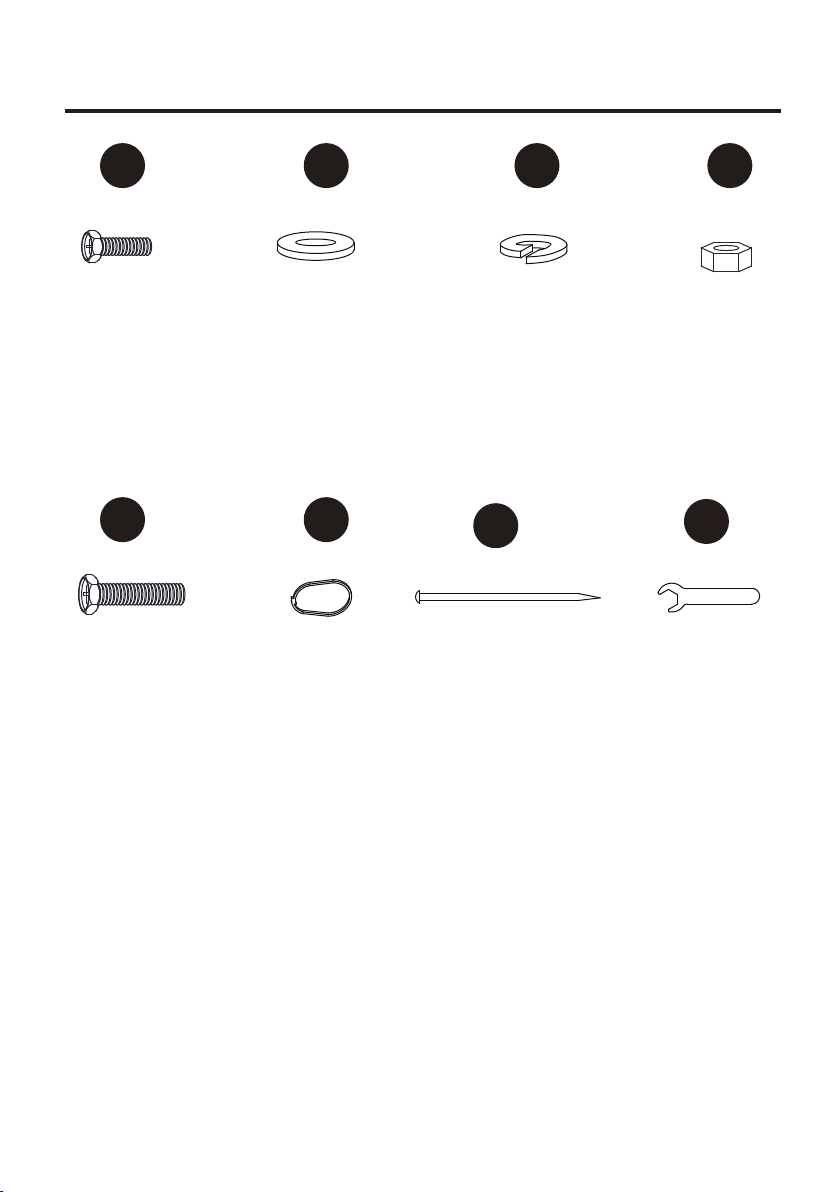

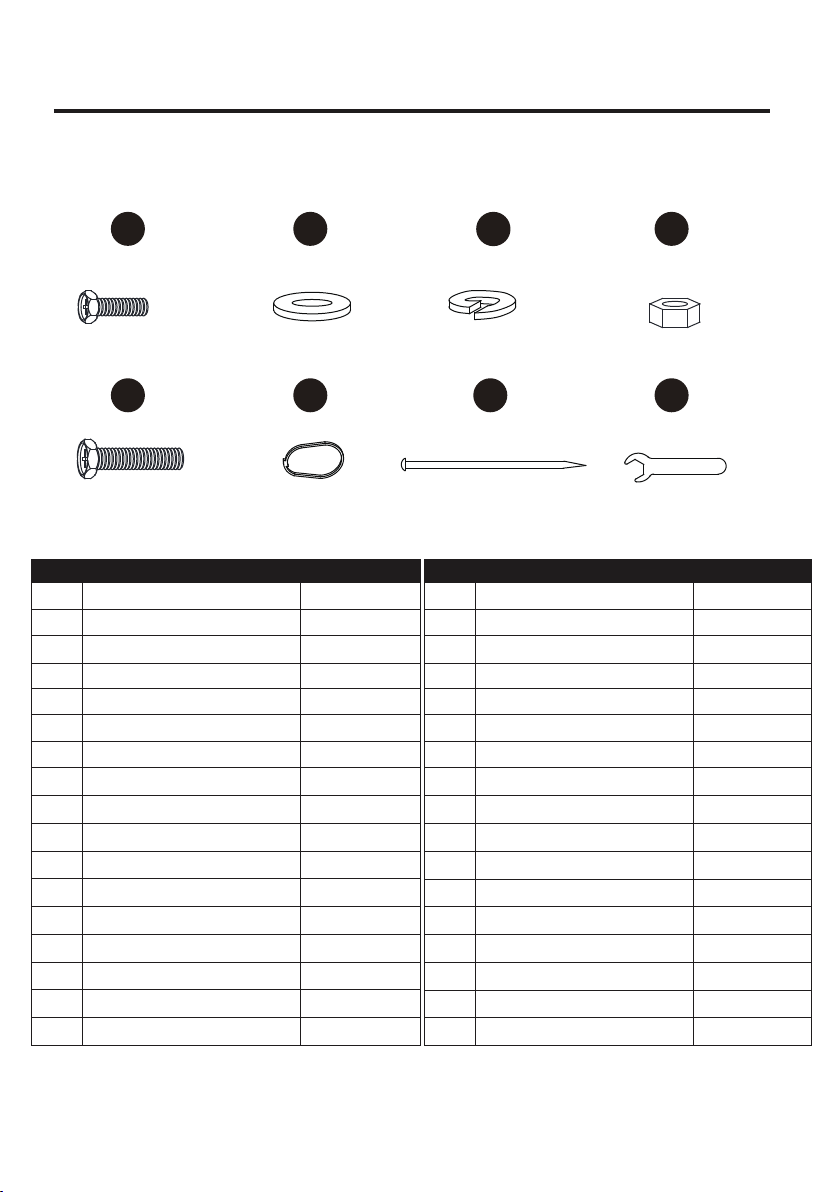

HARDWARE CONTENTS
M6
Flat Washer
M6 Nut
M6 x 20 mm
Bolt
Qty. 88 + 5 spare
M6
Wrench
Qty. 2
Qty. 112 + 6 spare Qty. 56 + 3 spare
AA CC DDBB
EE GG Z FF
M6 x 40 mm Bolt
M6 Spring Washer
Ring ￠8 x 180 mm
Stake
Qty. 8 + 1 spare Qty. 104 + 5 spare Qty. 8 spare
Qty. 16 + 1 spare

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or
install the product.
• Do not install the gazebo adjacent to trees or a sloped roof. Snow and ice may
slide onto the gazebo and cause it to collapse.
• Do not hang any weights on the roof frame.
• Keep all flame and heat sources away from the tent fabric. This tent is made
with fabric that meets CPAI-84 specifications for flame resistance. It is not fire
proof. The fabric will burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may render the
flame-resistant properties ineffective.
• Keep all children and pets away from assembly area. Children and pets should
be supervised while gazebo is being assembled.
• The assembled gazebo should be located at least 6 feet from any obstruction
such as fence, garage, house, overhanging branches, laundry lines or electrical
wires.
• Some parts may contain sharp edges. Wear protective gloves if necessary during
assembly.
• This unit is heavy. Do not assemble this item alone. Make sure there is sufficient
manpower for safe assembly or moving the gazebo.
• Check all nuts and bolts periodically for tightness and when required, tighten
them again.
• While this gazebo is manufactured to withstand winds through only the supplied
ground stakes, in areas subject to frequent severe weather, securing the gazebo
to a deck, concrete patio or footings should be considered.
• Do not use or enter the gazebo during harsh weather (e.g. thunderstorms,
high winds, hail, heavy snow, etc). In these conditions, it might tip over and
could cause serious injury to bystanders. Any damage or injury caused by
which is not covered by the warranty.
• Do not use or enter the gazebo if there exists any of the following or similar
conditions:
1. Visible movement of support members, roofing panels or sagging roofline.
2. Creaks or audible noise from the gazebo.
3. Cracks, fractures or malformation of support members or roof panels.
4. Damaged or missing fasteners.
• Do not use a ladder leaning against the gazebo or climb onto the roof.
WARNING
4
CAUTION

• If the gazebo will not be used for a long period of time (e.g. during winter time),
disassemble and store it in a clean, dry environment.
• This product is for domestic, outdoor use (i.e. decorative and sunshade
purposes only).
• Install the gazebo on level ground. Stakes are provided to secure the gazebo
to the ground. Do not assemble the gazebo on sandy, muddy or loose soil,
as stakes do not have enough anchorage in these types of soil. If you wish to
secure the gazebo to a wood deck or concrete surface, use anchors suited to
these surfaces (anchors not included).
• Always ensure the roof canvas is tensioned so as to avoid water accumulation
on the roof.
• Remove accumulated water on the roof immediately, or disassemble the gazebo
in order to avoid damages.
• Do not remove snow from inside the gazebo by pushing on the fabric. Snow
must be cleared off regularly during snowy days. Remove the snow at the top
when it is thicker than 4 inches. In order to avoid damages, use a plastic snow
rake to remove excessive snow and ice buildup from roof and keep away from
falling debris.
• Always disassemble the gazebo before experiencing heavy wind conditions, as
it is semi-permanent construction and not designed to withstand harsh weather,
including high wind, rain and snow.
• Please check your state and local regulations prior to purchasing. Some
jurisdictions may require permits for installation and use. Some special
procedures may be valid in your area.
• Center hook’s maximum weight: 26 lbs.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing
or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 60-90 minutes
Tools Required for Assembly: Wrench (included).
5
CAUTION

1
6
ASSEMBLY INSTRUCTIONS
1. Insert the posts (A) into the base covers
(P), then attach the bases (Q) to the posts
(A) using bolts (AA) and flat washers (BB).
Tighten with wrench (Z).
Hardware Used
x 8
AA
x 8
M6 Flat Washer
BB
x 1
ZM6 Wrench
M6 x 20 mm Bolt
A
P
Q
AA BB
Z

7
ASSEMBLY INSTRUCTIONS

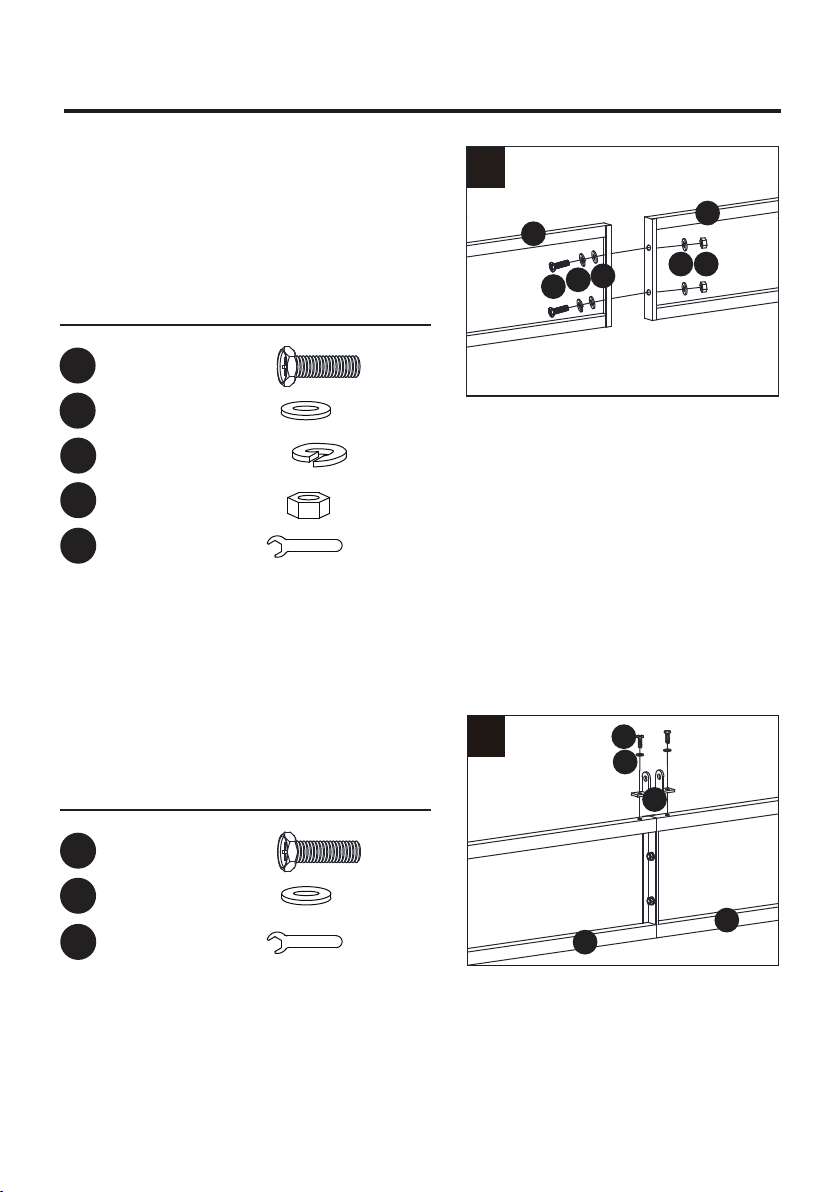

2. Connect long crossbeam 1 (B1) and long
crossbeam 2 (B2) using bolts (AA), spring
washer (CC), flat washers (BB) and nuts (DD),
tighten with wrench (Z). Repeat this step for
short crossbeam 1 (C1) and short
crossbeam 2 (C2).
3. Attach middle beam connector (H) to both
crossbeam assemblies using bolts (AA) and
flat washers (BB), tighten with wrench (Z).
Hardware Used
x 8
AA
x 8
M6 Flat Washer
BB
x 1
M6 Wrench
Z
M6 x 20 mm Bolt
Hardware Used
x 8
AA
x 16
M6 Flat Washer
BB
x 2
M6 Wrench
Z
M6 x 20 mm Bolt
M6 Spring Washer
x 8
DD
x 8
CC
M6 Nut
33 AA
BB
H
B2
B1
2
B1
B2
AACCBB BB DD

8
ASSEMBLY INSTRUCTIONS
•

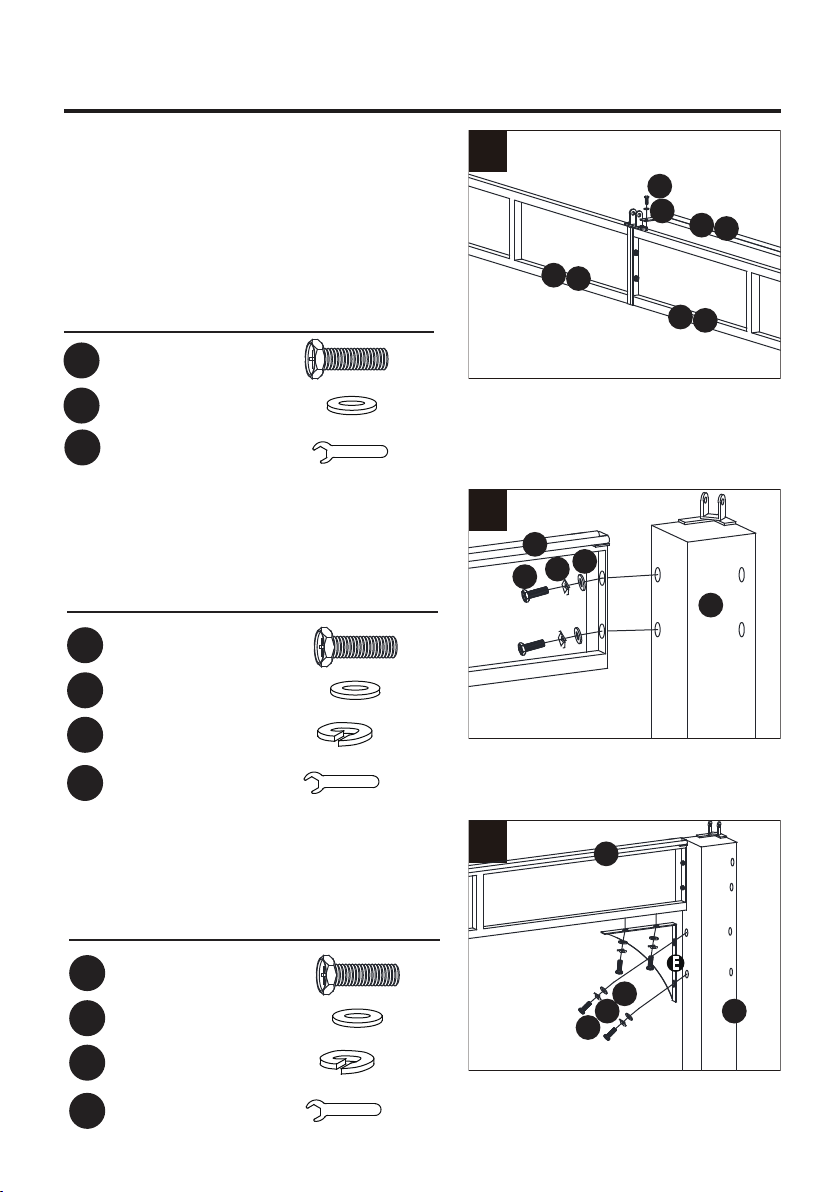

4. Attach long mosquito netting tubes (N) to
the inside of long crossbeam assemblies
(B1/B2) using bolts (AA) and flat washers
(BB).Tighten with wrench (Z). Repeat
this step for attaching short mosquito
netting tubes (O) to short crossbeam
assemblies (C1/C2).
Hardware Used
AA
M6 Flat Washer
BB
M6 x 20 mm Bolt x 16
x 16
M6 Wrench
Zx 1
6. Attach the decorative parts (E) to
crossbeams (B1/B2/C1/C2) and posts (A)
using bolts (AA), spring washers (CC) and
flat washers (BB). Tighten with wrench (Z).
5. Attach the crossbeam assemblies (B1/B2)
and (C1/C2) to posts (A) using bolts (AA),
spring washers (CC) and flat washers
(BB). Tighten with wrench (Z).
Hardware Used
AA
M6 Flat Washer
BB
M6 x 20 mm Bolt x 16
x 16
x 1
M6 Wrench
Z
M6 Spring Washer x 16
CC
Hardware Used
AA
M6 Flat Washer
BB
M6 x 20 mm Bolt x 32
x 32
x 1
M6 Wrench
Z
M6 Spring Washer x 32
CC
4
BB
AA
C1 B1
C2 B2
ON
11
5
11
6
A
B2
BB
CC
AA
A
B2
AA
CC
BB
Z

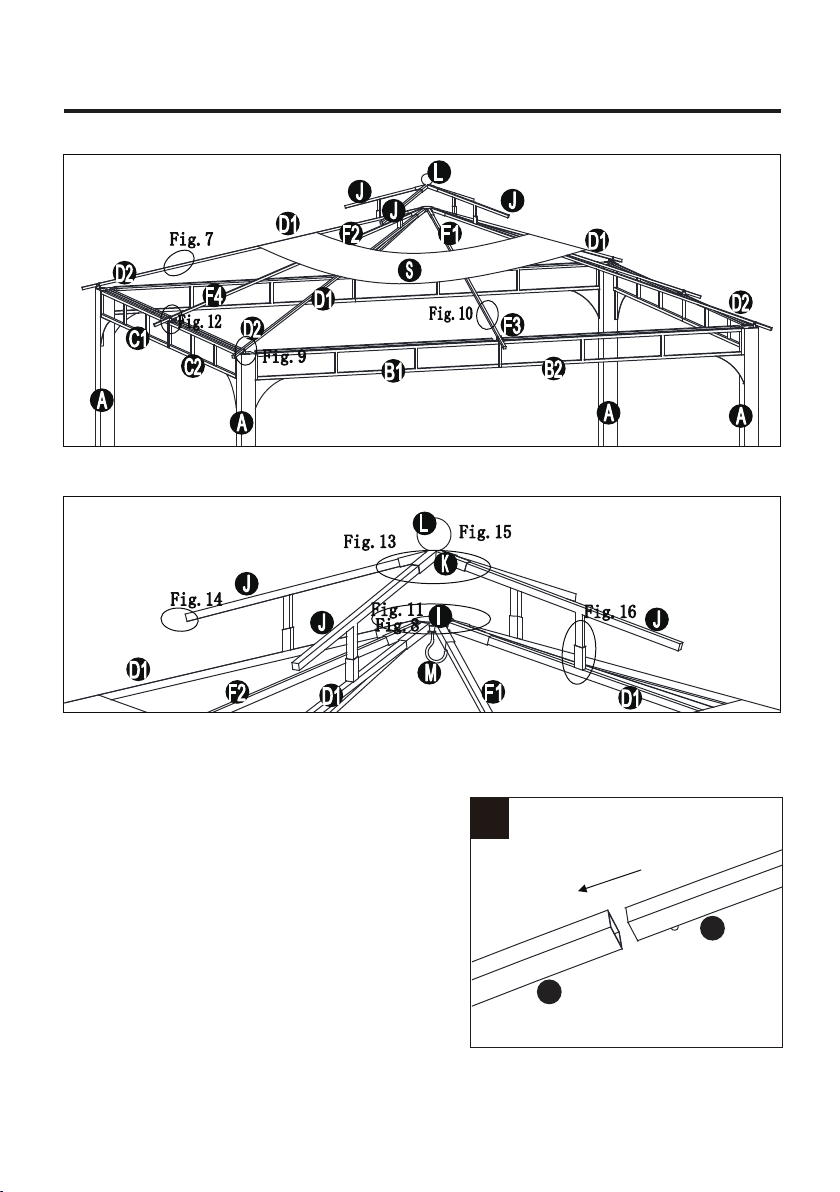

7. Connect sloped beams (D1) and sloped
beam lower tubes (D2).
9
ASSEMBLY INSTRUCTIONS
7
D2
D1

10. Connect long middle beams (F2) and
long middle beam lower tubes (F4).
Repeat to connect short middle beams
(F1) and short middle beam lower tubes
(F3).
10
ASSEMBLY INSTRUCTIONS
10
11
8
8. Insert sloped beams (D1) into the big top
connector (I).
9. Attach the sloped beam lower tubes (D2)
to posts (A) using bolts (EE), flat washers
(BB) and nuts (DD). Tighten with wrench
(Z).
Hardware Used
x 4
DD
x 8
M6 Flat Washer
BB
M6 Nut
M6 Wrench
Zx 2
x 4
M6 x 40 mm Bolt
EE
11
9
D1
I
D2
DD
BB BBEE
C2 B1
A
F3 F4
F1 F2
Z

11
ASSEMBLY INSTRUCTIONS

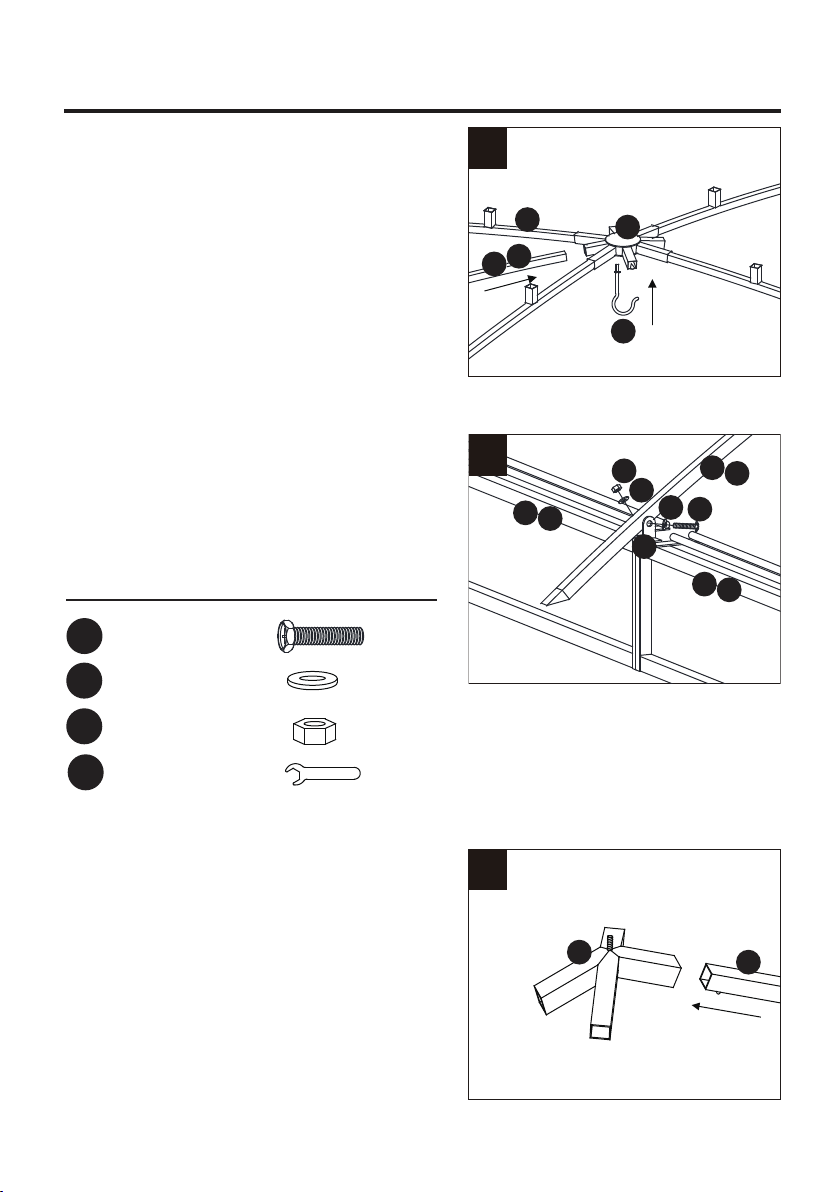

13. Insert small top sloped beams (J) into
small top connector (K).
12. Fix the long middle beam lower tubes
(F4) and short middle beam lower tubes
(F3) to middle beam connector (H) using
bolts (EE) flat washers (BB) and nuts
(DD). Tighten with wrench (Z).
11. Insert long middle beams (F2) and short 11
middle beams (F1) into the big top
connector (I) as shown, then attach the
hook (M) to the bottom center of the big
top connector (I).
13
Hardware Used
x 4
DD
x 8
M6 Flat Washer
BB
M6 Nut
M6 Wrench x 2
x 4
M6 x 40 mm Bolt
EE
11
12
12
F1 F2
D1 I
M
C1 B1
C2 B2
F3 F4
DD
BB
BB EE
H
KJ
Z

12
ASSEMBLY INSTRUCTIONS
14. Place small canopy (R) on small top, then
attach four corners of small canopy to
small top sloped beams (J).
15. Place finial (L) onto small top connector
(K).
16. Place large canopy (S) onto the big top
assembly, but do not attach it yet.
Attach small top assembly by inserting
the tubes of small top sloped beams (J)
into the tubes on sloped beams (D1).
15
K
R
L
R
J
14
16
R
S
D1
S
J

13
ASSEMBLY INSTRUCTIONS
18. Secure the rings (FF) onto the fabric
buttons of curtain (U) and mosquito
netting (T). Then hang the mosquito
netting (T) and curtain (T) to long
mosquito netting tubes (N) and short
mosquito netting tubes (O) using the
rings (FF).
Note: There should be 7 rings on long
side and 6 rings on short side. Please
keep curtain outside and mosquito
netting inside.
17. Attach four corners of large canopy (S) to
the ends of sloped beam lower tubes
(D2) , then secure the pocket in the
middle of large canopy (S) to the ends of
middle beam lower tubes (F3/F4). Close
the outer and inner facings using
preassembled hook-and-loop fasteners.
Hardware Used
x 104
Ring
FF
11
17
S
A
B1
C2
11
18
U
T
FF
D2
F3 F4
S

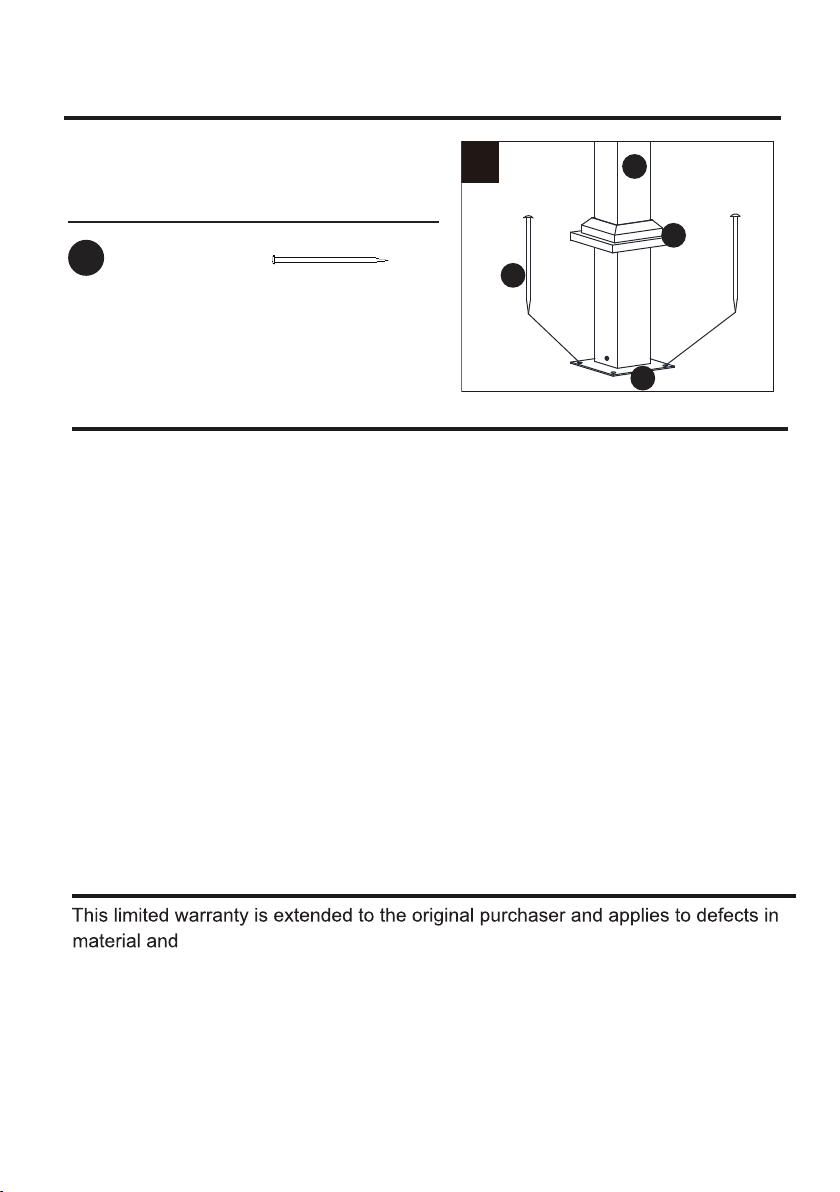

19. Secure the gazebo to ground using
stakes (GG).
14
ASSEMBLY INSTRUCTIONS
Hardware Used
x 8
￠8X180 mm
Stake
GG
11
19
GG
P
A
Q
• Steel components for this gazebo are treated with rust inhibiting paint that
protects it from rusting. However, due to the nature of steel, surface oxidation
(rusting) will occur if these protective coatings are scratched. This is not a defect
and thus not covered by the warranty.
To minimize this condition, it is recommended to use care when assembling and
handling the product to prevent scratching the paint. Should any scratching or
damage occur, it is recommended you immediately touch-up the item with rust
inhibiting paint. Surface rust can also be easily removed with a very light
application of regular cooking oil. If surface oxidation (rusting) occurs and if no
measure is taken to prevent this, the oxidation may start dripping onto deck or
patio and cause damaging stains, which may be difficult to remove. This can be
prevented if the above-mentioned measures are taken to keep the product from
oxidizing.
• Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
• Keep instruction manual for future reference.
• Keep the original packaging to store the gazebo.
ONE-YEAR LIMITED WARRANTY
workmanship of your item provided the item is maintained with care
and used only for personal, residential purposes.
The manufacturer warranty for this item, is to be free of defects in material and
workmanship for a period of one year. If any defect is found, please call our
customer service department at 1-866-439-9800 for help. The manufacturer will
not cover transportation or delivery costs or compensate the individual or any
outside party for assembling or disassembling the product.This warranty gives
you certain rights, and you may have other rights that vary from state to state.
CARE AND MAINTENANCE

15
For replacement parts, call our customer service department at 1-866-439-9800,
8 a.m. - 8 p.m., EST, Monday - Friday.
REPLACEMENT PARTS LIST
AB2
C1 D1
C2
D2
F2
E
B1
F1
H I J
KLMN
OPQ
R S T
F3 F4
U

16
For replacement parts, call our customer service department at 1-866-439-9800,
8 a.m. - 8 p.m., EST, Monday - Friday.
Printed in China
REPLACEMENT PARTS LIST
AA
BB CC DD
ZFF GGEE
Production number: 20190699
PART
A
B1
B2
C1
C2
D1
P11128C01189
P11099D01189
P11001E01189
P11002E01189
P10371B01189
P10372B01189
P11841B01189
Post
Long Crossbeam 1
Long Crossbeam 2
Short Crossbeam 1
Short Crossbeam 2
Sloped Beam
Sloped Beam Lower Tube
Decorative part
DESCRIPTION PART#
D2
E
P11098D01189
P10435B01189
Short Middle Beam
F1
F2
Long Middle Beam
P10436B01189
PART
P10188B01189
P10189B01189
P10005A01189
P11678A01189
P00167B08018
P00168B08018
P00312B02903
P00225B06018
Big Top Connector
Small Top Sloped Beam
Small Top Connector
Finial
Hook
Long Mosquito Netting Pipe
Short Mosquito Netting Pipe
Base Cover
Large Canopy
Mosquito Netting
DESCRIPTION
I
J
K
L
M
N
O
P
Q
R
T
S
P10283A01189
P10437B01189
Short Middle Beam Lower Tube
F3
F4 Long Middle Beam Lower Tube P10438B01189
H Middle Beam Connector P10803A01189
Curtain
U
Base
Small Canopy
PART#
P12603A01189
P12105B01189
P12106B01189
P11565A01189
H02020C11
H19001C11
H13001C11
H14001C11
H02040C11
P90701A07001
P12401A01001
H00001C12
AA
BB
CC
DD
EE
FF
GG
Z
M6 x 20 mm Bolt
M6 Flat Washer
M6 Spring Washer
M6 Nut
M6 x 40 mm Bolt
Ring
8 x180 mm Stake
M6 Wrench

ARTICLE #807686
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au
détaillant, appelez notre service à la clientèle au 1 866 439-9800, entre 8 h et 20 h (HNE),
du lundi au vendredi.
PAVILLON DE JARDIN
MODÈLE # L-GZ1140PST-G
17
TM

18
CONTENU DE L’EMBALLAGE
A
B1
B2
C1
C2
D1
4
2
2
2
4
4
8
Montant
Traverse longue 1
Traverse longue 2
Traverse courte 1
Traverse courte 2
Traverse inclinée
Tube inférieur de la traverse inclinée
Pièce décorative
DESCRIPTION QUANTITÉ
D2
E
2
2
Tige centrale courte
F1
F2 2
PIÈCE
1
1
1
1
4
4
4
4
1
1
1
Raccord du grand toit
Traverse inclinée du petit toit
Raccord du petit toit
Embout
Crochet
Tringle longue de moustiquaire
Tringle courte de moustiquaire
Capuchon de pied
Grand auvent
Moustiquaire
DESCRIPTION QUANTITÉ
I
J
K
L
M
N
O
P
Q
R
T
S
4
2
F3
F4
Tige centrale longue
Tube inférieur de la tige centrale courte
Tube inférieur de la tige centrale longue 2
HRaccord de traverse centrale 41
Rideau
U
Base
Petit auvent
PIÈCE

19
QUINCAILLERIE INCLUSE
Rondelle plate M6 Écrou M6
Boulon M6 de 20 mm
Qté. 88 + 5
de rechange
Clé M6
Qté. 2
Qté. 112 + 6
de rechange
Qté. 56 + 3
de rechange
AA CC DDBB
EE GG Z FF
Boulon M6 de 40 mm
Rondelle à ressort M6
Anneau Piquet
￠8 de 180 mm
Qté. 8 + 1
de rechange Qté. 8 de rechange
Qté.16 + 1
de rechange
Qté.104 + 5
de rechange

CONSIGNES DE SÉCURITÉ
Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter
d’assembler ou d’installer l’article.
•N’installez pas le pavillon de jardin à côté d’arbres ou d’un toit incliné. La neige
et la glace pourraient glisser sur le pavillon de jardin et entraîner l’effondrement
de celui-ci.
•N’accrochez pas de poids à l’armature du toit.
•Gardez les flammes et autres sources de chaleur à distance de la toile. Cette
toile est faite d’un tissu qui satisfait aux normes CPAI-84 pour une résistance
aux flammes. Elle n’est pas ignifugée.
•Assurez-vous que les enfants et les animaux ne s’approchent pas de l’endroit où
vous assemblez l’article. Surveillez les enfants et les animaux pendant
l’assemblage du pavillon de jardin.
•Le pavillon de jardin assemblé doit se situer à au moins 1,82 m de toute forme
d’obstacle, par exemple une clôture, un garage, une maison, des branches
saillantes, une corde à linge ou des fils électriques.
•Certaines pièces peuvent avoir des bords coupants. Au besoin, portez des gants
protecteurs pendant l’assemblage.
•Cet article est lourd. N’assemblez pas cet article seul. Assurez-vous d’avoir une
main-d’oeuvre suffisante pour assembler ou déplacer le pavillon de jardin de
façon sécuritaire.
•Vérifiez tous les boulons et les écrous périodiquement afin de vous assurer
qu’ils sont serrés. Au besoin, resserrez-les.
•Bien que ce pavillon de jardin soit fabriqué pour résister aux vents à l’aide des
piquets de sol seulement, s’il est installé dans un endroit fréquemment touché
par du temps violent, on devrait envisager de le fixer à une terrasse, à une
terrasse en béton ou à des semelles de fondation.
•N’utilisez pas le pavillon de jardin ou n’y entrez pas lors de conditions
météorologiques rigoureuses (p. ex. orages, vents forts, grêle, neige abondante,
etc.). Dans ces conditions, il pourrait basculer et entraîner de graves blessures
aux personnes à proximité. La garantie ne couvre pas les dommages ou les
blessures causés par le produit.
•N’utilisez pas le pavillon de jardin et n’y entrez pas en présence de l’une des
conditions suivantes ou d’une condition semblable :
1. Mouvement visible des éléments porteurs ou des pans de toiture ou toit
qui s’affaisse.
2. Craquements ou bruit audible provenant du pavillon de jardin.
3. Craquements, bris ou défaut d’un élément porteur ou d’un panneau de toit.
4. Fixations manquantes ou endommagées.
•N’utilisez pas une échelle qui s’appuie sur le pavillon de jardin et ne grimpez
pas sur le toit.
WARNING
20
MISE EN GARDE
