Alliance Laundry Systems T433I User manual

Installation
www.comlaundry.com
Drying Tumblers
120 Pound Capacity
170 Pound Capacity
Refer to Page 5 for Model Identification
T433I
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. M414038
October 2001
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMITM414038 1
Installation must conform with local codes or, in the absence of local codes, with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code”and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CSA-B149.1 or Natural Gas and Propane Installation
Code and CSA C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumbler for customer use.
FOR YOUR SAFETY, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
WARNING
POUR VOTRE SÉCURITÉil est impératif de
suivre les instructions de ce manuel pour
minimiser les risques d’incendie ou
d’explosion et pour éviter les dommages
matériels, les blessures corporelles ou la
mort.
W033Q
•Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
•QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ :
–Ne pas tenter d’allumer d’apareil.
–Ne touchez àaucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment oùvous vous
trouvez.
–Évacuez la pièce, le bâtiment ou la
zone.
–Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
–Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
•L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifiéou par le fournisseur
de gaz.
W052Q
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de
tout autre appareil.
W053Q
MISE EN GARDE

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
2M414038

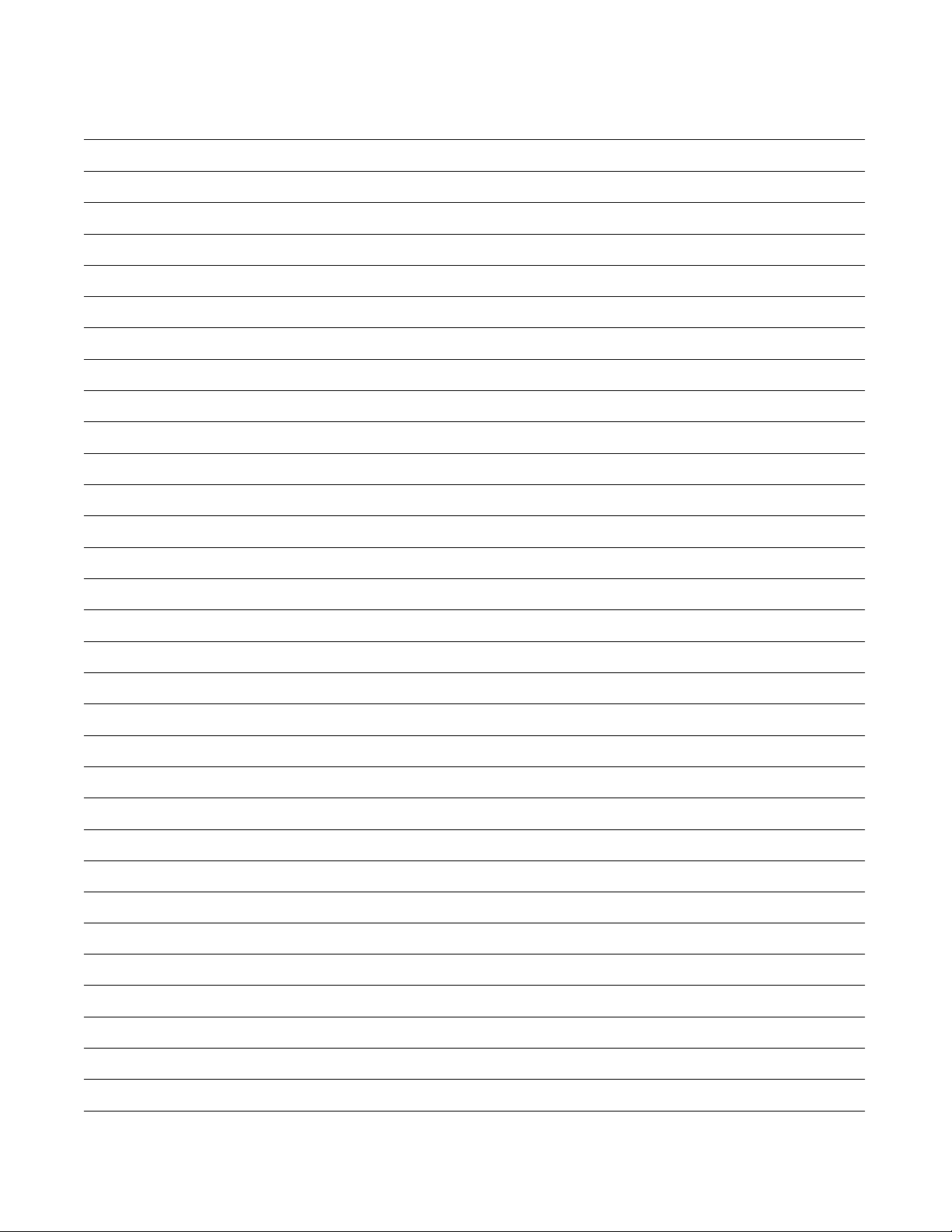

Notes

© Copyright 2001, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMITM414038 3
Table of
Contents
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Customer Service.................................................................................. 5
Wiring Diagram.................................................................................... 5
Serial Plate Location............................................................................. 6
Safety Information.............................................................................. 7
Important Safety Instructions ............................................................... 8
Specifications and Dimensions........................................................... 11

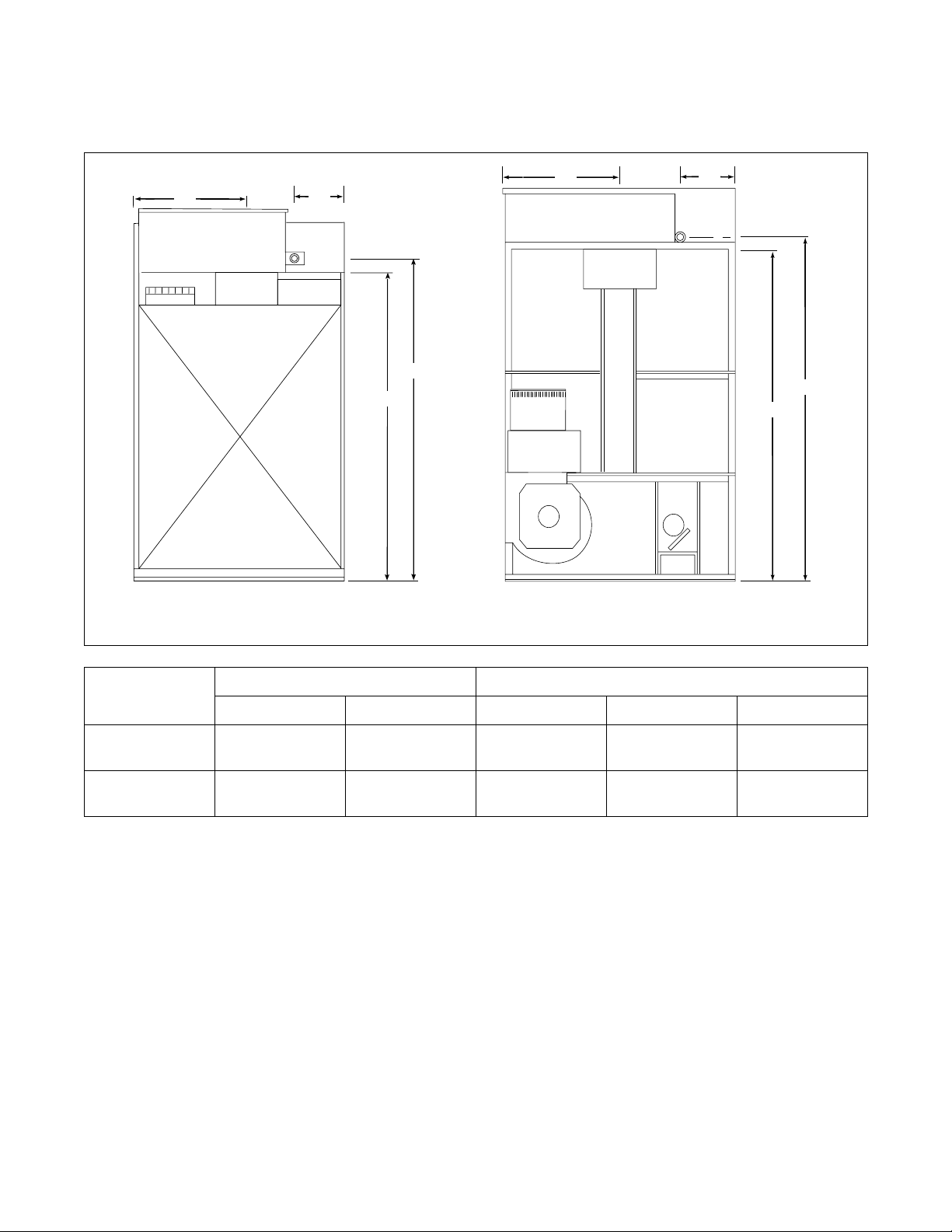

120 Pound Tumbler Dimensions and Exhaust Outlet Locations.......... 12

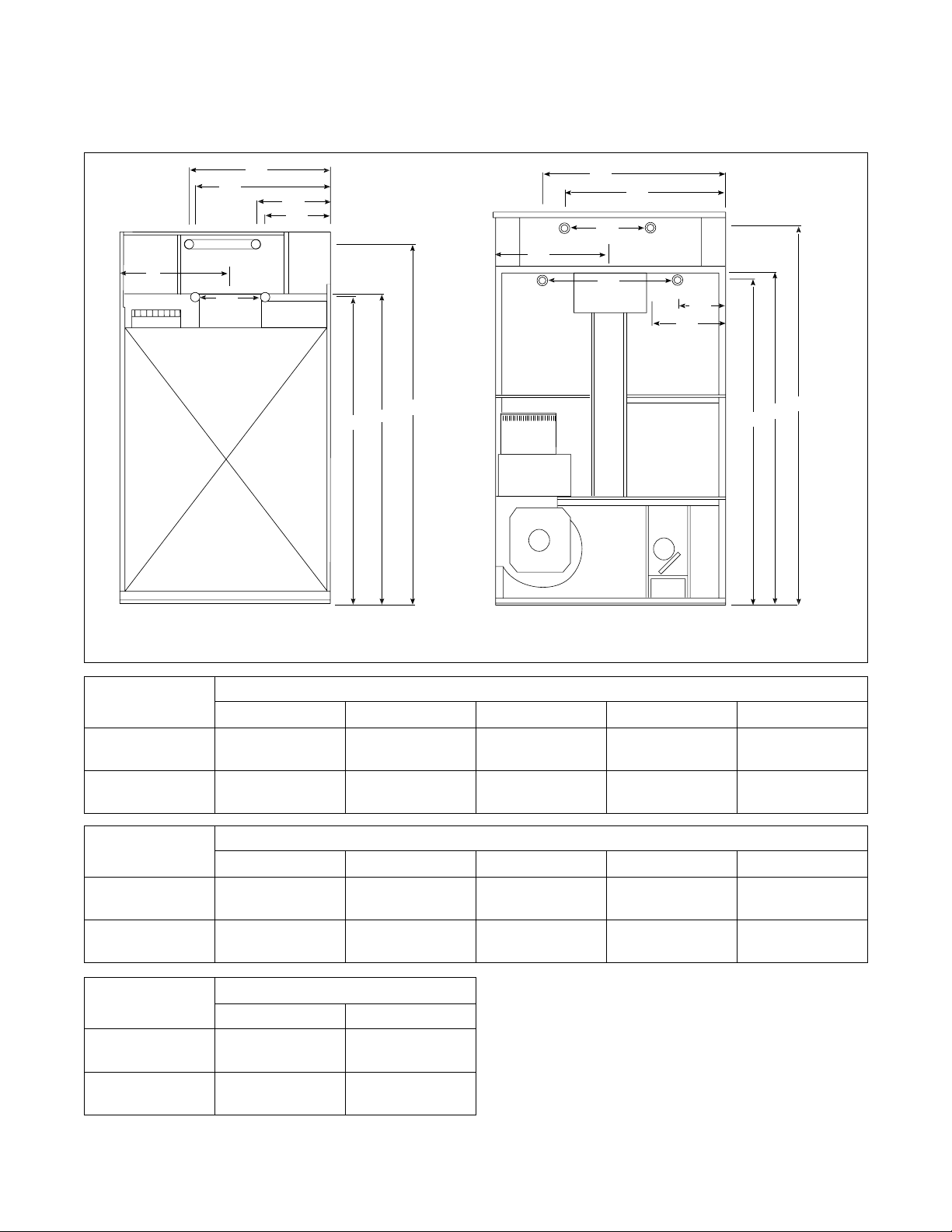

170 Pound Tumbler Dimensions and Exhaust Outlet Locations.......... 13

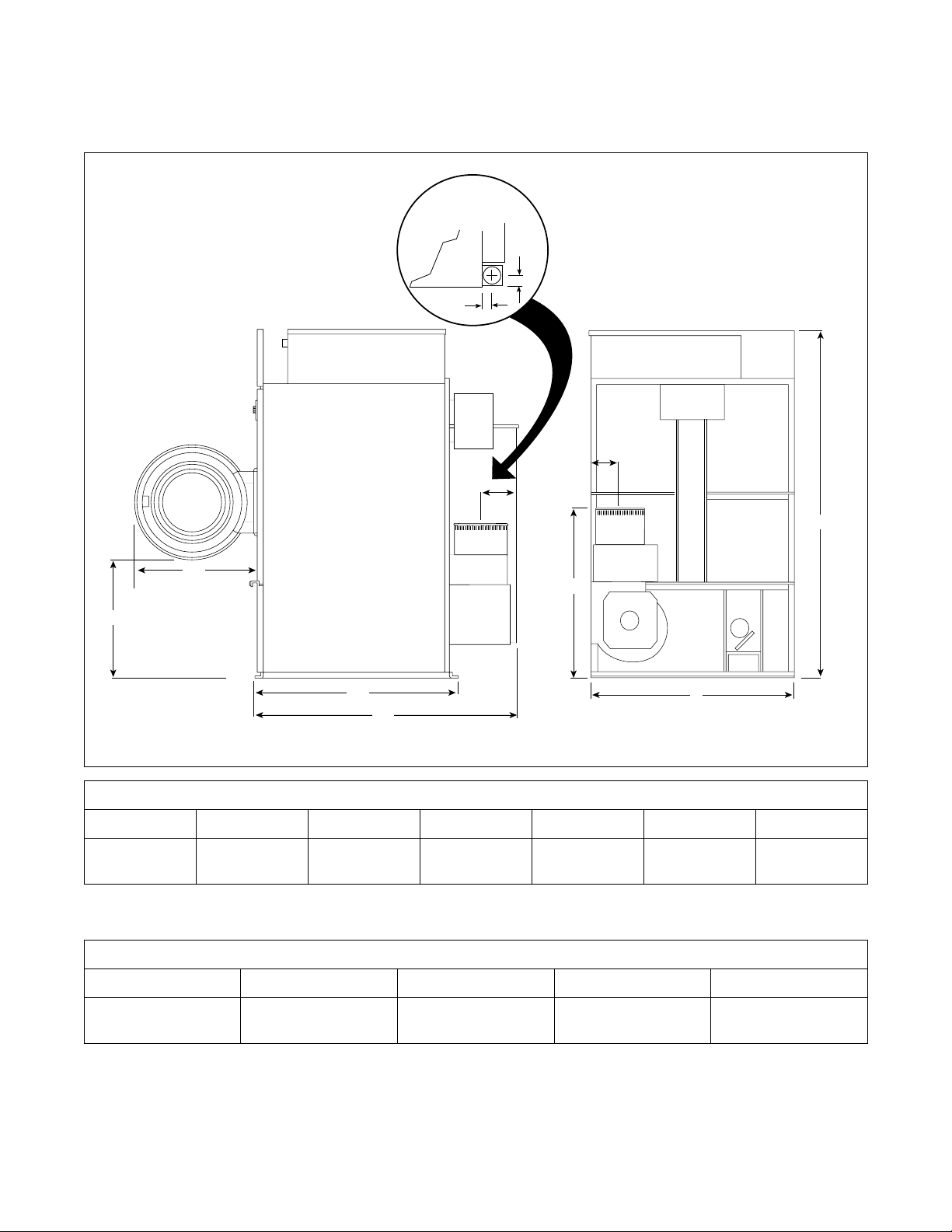

Electric and Gas Connection Locations for FG Models....................... 14
Electric and Steam Connection Locations for CSH Models ................ 15
Installation........................................................................................... 17
Pre-Installation Inspection.................................................................... 17
Location Requirements......................................................................... 18
Position and Level the Tumbler............................................................ 19
Before Placing Tumbler into Service ................................................... 19
Installing Gas Drying Tumblers in the European Union (EU)............. 21
General Information......................................................................... 21
Basic Configuration ......................................................................... 22
Specific Conversion Procedures ...................................................... 23
Exhaust Requirements ....................................................................... 29
Layout................................................................................................... 29
Make-Up Air......................................................................................... 29
Venting ................................................................................................. 29
Individual Venting ........................................................................... 31
Manifold Venting............................................................................. 31
Gas Requirements............................................................................... 35
Gas Supply Pipe Sizing and Looping ................................................... 37
High Altitude Orifice Sizing................................................................. 38
Instant Electronic Ignition System........................................................ 40
Steam Requirements........................................................................... 41
Piping Recommendations ..................................................................... 42
Installing Steam Trap and Making Condensate Return Connections... 42
120 Pound Tumblers............................................................................. 43
170 Pound Tumblers............................................................................. 44
Electrical Requirements..................................................................... 45
Grounding Instructions ......................................................................... 45
For CE Marked Models Only .......................................................... 46
To Connect Electrical Service to the Tumbler................................. 46
Jumper Configuration Instructions ....................................................... 47
Ferrite Ring Installation........................................................................ 47
Electrical Requirements........................................................................ 48

4M414038© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Adjustments......................................................................................... 49
Gas Burner Air Shutter......................................................................... 49
Airflow Light........................................................................................ 50
Airflow Switch...................................................................................... 51
Loading Door Switch............................................................................ 51
Loading Door Strike ............................................................................. 53
Belt Drive.............................................................................................. 54
Removing Tumbler from Service...................................................... 55

5
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models:
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call the following number:
[phone]
Ripon, Wisconsin
Wiring Diagram
The wiring diagram is located in the literature packet
supplied with all non-CE Marked models. On CE
Marked models, it is located in the junction box.
Gas Steam/Thermal Oil Electric
120 Pound
AT120FG AT120CSH Not Applicable
DC120FG DC120CSH
DT120FG DT120CSH
JC120FG JC120CSH
JT120FG JT120CSH
SC120FG SC120AT
ST120FG SC120CSH
ST120AT
ST120CSH
170 Pound
AT170FG AT170CSH Not Applicable
DC170FG DC170CSH
DT170FG DT170CSH
JC170FG JC170CSH
JT170FG JT170CSH
SC170FG SC170CSH
ST170FG ST170CSH

Introduction
M414038
6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are located on the serial
plate as shown.
T458I
1Serial Plate
2Junction Box Cover
Conversion Table
Multiply By To Obtain Multiply By To Obtain
Btu .252 kCal Pounds/sq. inch .06895 Bars
Btu 1055 Joules Pounds/sq. inch .070 kg/sq. cm
Inch 25.4 Millimeters Pounds (lbs.) .454 Kilograms
Inches W.C. .036 Pounds/sq. inch Boiler Horsepower 34,479 Btu/hr.
Inches W.C. .249 kPa Boiler Horsepower 34.5 lbs. Steam/hr.
lbf/inch2(psi) .0369 kPa CFM .471 Liters/second
ft328.32 Liters kW 3414 Btu/hr.
120 POUND TUMBLER
2
1
2
1
170 POUND TUMBLER

7
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Safety Information
Precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”), followed by
specific instructions, are found in this manual and on
machine decals. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT”is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE”is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
NOTE: The WARNINGS and IMPORTANT
instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense, caution and carefulness are
factors which CANNOT be built into this tumbler.
These factors MUST BE supplied by the person(s)
installing, maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage.
W051
WARNING

Safety Information
M414038
8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Save These Instructions
Important Safety Instructions
1. Read all instructions before using the tumbler.
2. Refer to the Grounding Instructions for the
proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the
tumbler. Close supervision of children is
necessary when the tumbler is used near children.
This is a safety rule for all appliances.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The cylinder will stop rotating when the door is
opened. Do not use the tumbler if the cylinder
does not stop rotating when the door is opened or
starts rotating without pressing or turning the
START mechanism. Remove the tumbler from
use and call for service.
17. Do not put articles soiled with vegetable or
cooking oil in the tumbler, as these oils may not
be removed during washing. Due to the
remaining oil, the fabric may catch on fire by
itself.
18. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
19. Use the tumbler only for its intended purpose,
drying fabrics.
20. ALWAYS disconnect the electrical power to the
tumbler before servicing. Disconnect power by
shutting off appropriate breaker or fuse.
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your tumbler, read and follow these
basic precautions:
W359
WARNING

Safety Information
9
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
21. Install this tumbler according to this Installation
Manual. All connections for electrical power,
grounding and gas supply must comply with
local codes and be made by licensed personnel
when required.
22. Remove laundry immediately after tumbler
stops.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
24. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
25. Always follow the fabric care instructions
supplied by the garment manufacturer.
26. Never operate the tumbler with any guards and/or
panels removed.
27. DO NOT operate the tumbler with missing or
broken parts.
28. DO NOT bypass any safety devices.
29. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
unit. These acids are corrosive to the tumbler as
well as to the laundry load being dried. Be sure
make-up air is free of solvent vapors.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING

M414038
10 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

11
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Specifications and Dimensions
Specifications 120 Pound 170 Pound
Cylinder Size 44 in. x 41 in. (1118 mm x 1041 mm) 50.75 in. x 42.5 in. (1289 mm x 1080 mm)
Cylinder Capacity Dry Weight 120 lbs. (54.4 kg) 170 lbs. (77.1 kg)
Cylinder Motor Horsepower 3/4 3/4
Fan Motor Horsepower 1 3
Air Outlet Diameter 10 in. (254 mm) 12 in. (300 mm)
Maximum Static Back Pressure 0.3 W.C.I. (0.8 mbar) 0.3 W.C.I. (0.8 mbar)
Maximum Airflow 1600 C.F.M. (755 L/sec) 2450 C.F.M. (1156 L/sec)
Gas Models
Net Weight 1275 lbs. (580 kg) 1575 lbs. (716 kg)
Gas Connection 3/4 in. NPT 1 in. NPT
Gas Consumption 300,000 Btu/hr (316 Mj/hr) 395,000 Btu/hr (421 Mj/hr)
Steam Models
Net Weight 1375 lbs. (625 kg) 1675 lbs. (761 kg)
Steam Connection 3/4 in. NPT 3/4 in. NPT inlet
1 in. NPT outlet
Steam Consumption 10 bhp (335,000 Btu) 15 bhp (502,500 Btu)

Specifications and Dimensions
M414038
12 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
120 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
T365I
T365i
A
B
C
D
U
VX
F
E
Z
Y
X
W
TOP VIEW
OF EXHAUST
DUCT
Cabinet Dimensions
ModelsABCDEF
120FG 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
48.625 in.
(1235 mm)
65 in.
(1235 mm)
46.5 in.
(1181 mm)
85.5 in.
(2172 mm)
120CSH 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
48.625 in.
(1235 mm)
65 in.
(1235 mm)
46.5 in.
(1181 mm)
83.5 in.
(2121 mm)
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120FG 63.5 in.
(1613 mm)
8.5 in.
(216 mm)
7.5 in.
(190 mm)
8 in.
(203 mm)
8.75 in.
(222 mm)
8.125 in.
(206 mm)
120CSH 60.75 in.
(1543 mm)
8.5 in.
(216 mm)
7.5 in.
(190 mm)
8 in.
(203 mm)
8.75 in.
(222 mm)
8.125 in.
(206 mm)

Specifications and Dimensions
13
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
170 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
T364I
A
B
C
D
WF
E
Y
X
V
Y
TOP VIEW
OF EXHAUST
DUCT
Cabinet Dimensions
ModelsABCDEF
170FG/CSH 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
51.75 in.
(1314 mm)
66.125 in.
(1680 mm)
53.125 in.
(1349 mm)
94 in.
(2388 mm)
Exhaust Outlet Dimensions and Locations
Models V W X Y
170FG/CSH 42.375 in.
(1076 mm)
6.75 in.
(171 mm)
7 in.
(178 mm)
8.75 in.
(222 mm)

Specifications and Dimensions
M414038
14 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Electric and Gas Connection
Locations for FG Models
T362I
Models Electrical Connection Gas Connection
ABCDDiameter
120FG 24 in.
(610 mm)
70.125 in.
(1781 mm)
13 in.
(330 mm)
70.25 in.
(1784 mm)
0.75 in. (19 mm)
NPT
170FG 27 in.
(686 mm)
75 in.
(1905 mm)
14.5 in.
(368 mm)
77.375 in.
(1965 mm)
1 in. (25 mm)
NPT
T362i
AC
C
A
B
D
B
D
120FG 170FG

Specifications and Dimensions
15
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Electric and Steam Connection
Locations for CSH Models
T363I
T363i
A1
B1
C
D1
120CSH 170CSH
A2
B2
C
D2
EFG
A1
B1
D2
B2
A2
EFG
Models Steam Inlet
Diameter A1 A2 G D1
120CSH 0.75 in. (19 mm)
NPT
35.875 in.
(911 mm)
13.375 in.
(340 mm)
82.75 in.
(2102 mm)
N/A
170CSH 0.75 in. (19 mm)
NPT
37.625 in.
(956 mm)
15.25 in.
(387 mm)
88 in.
(2235 mm)
21.625 in.
(549 mm)
Models Steam Outlet
Diameter B1 B2 E D2
120CSH 1 in. (25 mm)
NPT
34.625 in.
(879 mm)
13.125 in.
(333 mm)
68.5 in.
(1740 mm)
21.5 in.
(546 mm)
170CSH 1 in. (25 mm)
NPT
44.625 in.
(1133 mm)
8.75 in.
(222 mm)
71.75 in.
(1822 mm)
35.625 in.
(905 mm)
Models Electrical Connection
CF
120CSH 24 in.
(610 mm)
68.75 in.
(1726 mm)
170CSH 27 in.
(686 mm)
75 in.
(1905 mm)

M414038
16 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

17
M414038 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
IMPORTANT: Warranty is void unless tumbler is
installed according to instructions in this manual.
Installation should comply with minimum
specifications and requirements detailed in this
manual and applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Due to varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
Pre-Installation Inspection
Upon delivery, visually inspect the packaging and
portions of the product visible through the packaging
for shipping damage. If the package or product is
damaged or if signs of possible damage are evident,
have the carrier note the condition on the shipping
papers before the shipping receipt is signed, or advise
the carrier of the condition as soon as it is discovered.
Remove the crate and protective cover as soon as
possible and check the items listed on the packing list.
Advise the carrier of any damaged or missing articles
as soon as possible. A written claim should be filed
with the carrier immediately if articles are damaged
or missing. IMPORTANT: Keep tumbler area clear and free
from combustible materials, gasoline and other
flammable vapors and liquids.
Materials Required (Obtain locally)
All Models One fused disconnect switch or
circuit breaker.
Gas Models One gas shut-off valve for gas
service line to each tumbler.
Steam Models One steam shut-off valve for steam
service line to be connected
upstream of solenoid steam valve.
Two steam shut-off valves for each
condensate return line.
Flexible steam hoses with a 125 psig
(pounds per square inch gauge)
(8.79 kg/sq. cm) working pressure
for connecting steam coils. Refer to
Figure 16 and Figure 17 for sizing
and connection configurations.
Three steam traps for steam coil
outlet to condensate return line.
Three vacuum breakers for
condensate return lines.

Installation
M414038
18 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Location Requirements
The tumbler must be installed on a level floor capable
of supporting 120 lbs./ft2(585.8 kg/m2). Floor
covering materials such as carpeting or tile should be
removed.
To assure compliance, consult local building code
requirements.
The tumbler MUST NOT be installed or stored in area
where it will be exposed to water and/or weather.
IMPORTANT: DO NOT block the airflow at the
rear of the tumbler with laundry or other articles.
Doing so would prevent adequate air supply to the
combustion chamber of the tumbler.
A typical tumbler enclosure is shown in Figure 1. Note
that the enclosure touches the tumbler top and side
panels. Also, note the minimum and maximum
dimensions. Local codes and ordinances must be
complied with.
IMPORTANT: Install tumblers with sufficient
clearance for servicing and operation. Refer to
Figure 1.
Figure 1
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING
TMB237N
NOTE: Shaded areas indicate adjacent structure.
1Zero clearance permitted for first 4 in. (102 mm)
24 in. (102 mm)
3Minimum clearance permitted for remainder: Gas 4 in. (102 mm), Steam 12 in. (305 mm)
4Guard
5Provision for Make-Up Air
624 in. (610 mm) Minimum, 36 in. (914 mm) recommended for maintenance purposes
7Zero Clearance
3
1
4
5
6
7
2
WARNING
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
