Alliance Laundry Systems Stacked Clothes Dryer User manual

Installation/Operation
www.comlaundry.com
Stacked Clothes
Dryer
Metered and Nonmetered
Electric and Gas Models
D009C
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. 510975R4
October 2003
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
510975 1
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
FOR YOUR SAFETY, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or
death.
W033
WARNING
The following information applies to the state of Massachusetts, USA.
●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
●A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
●This appliance must not be installed in a bedroom or bathroom.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
2510975
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
© Copyright 2003, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
510975 3
Table of
Contents
Replacement Parts.............................................................................. 5
Important Safety Instructions ........................................................... 7
Installation........................................................................................... 9

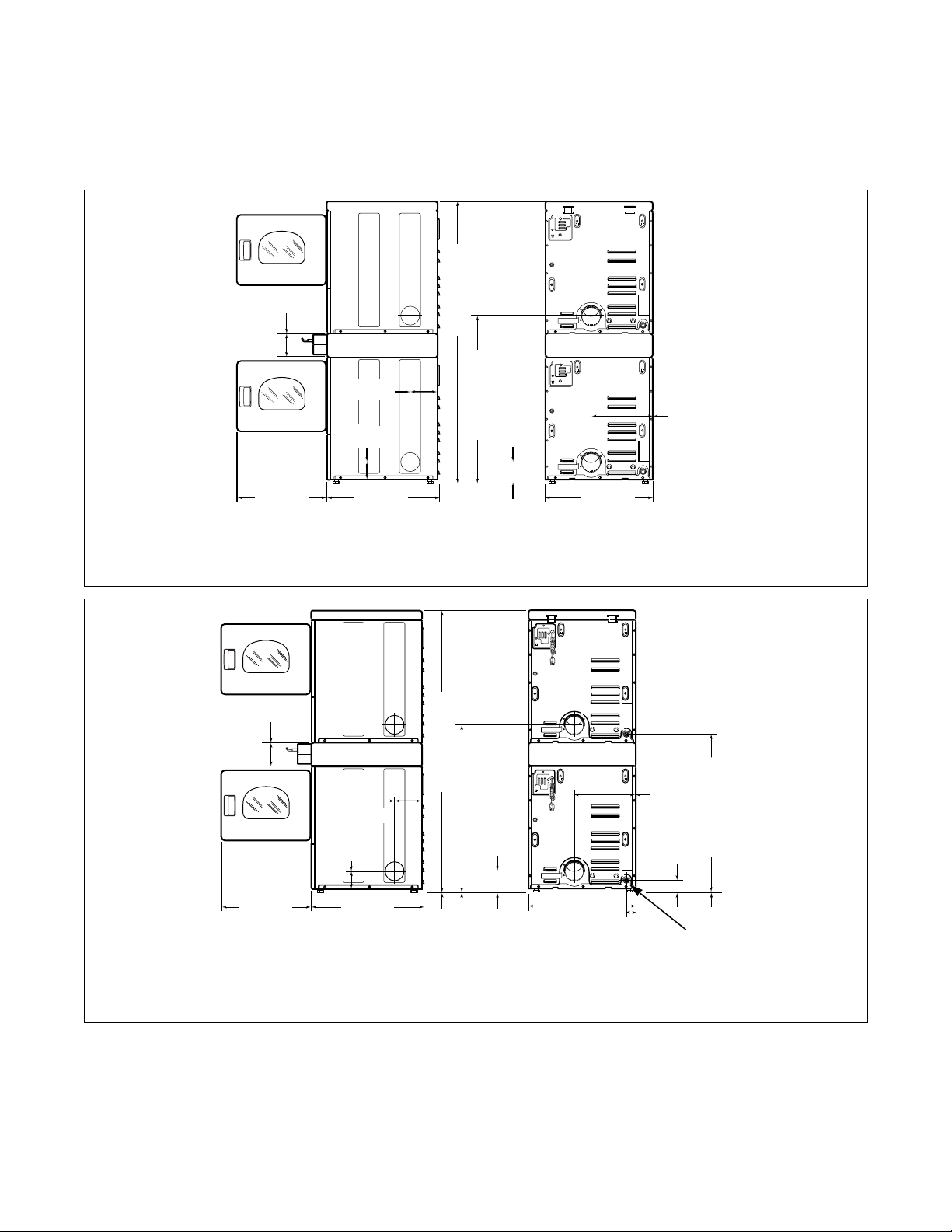

Roughing In Dimensions ...................................................................... 9
Metered Models ............................................................................... 9
Nonmetered Models......................................................................... 10
Additional Security............................................................................... 11
Slide Extension ..................................................................................... 11
Timer Cams .......................................................................................... 11
Coin Slide Guards................................................................................. 12
Before You Start................................................................................... 13

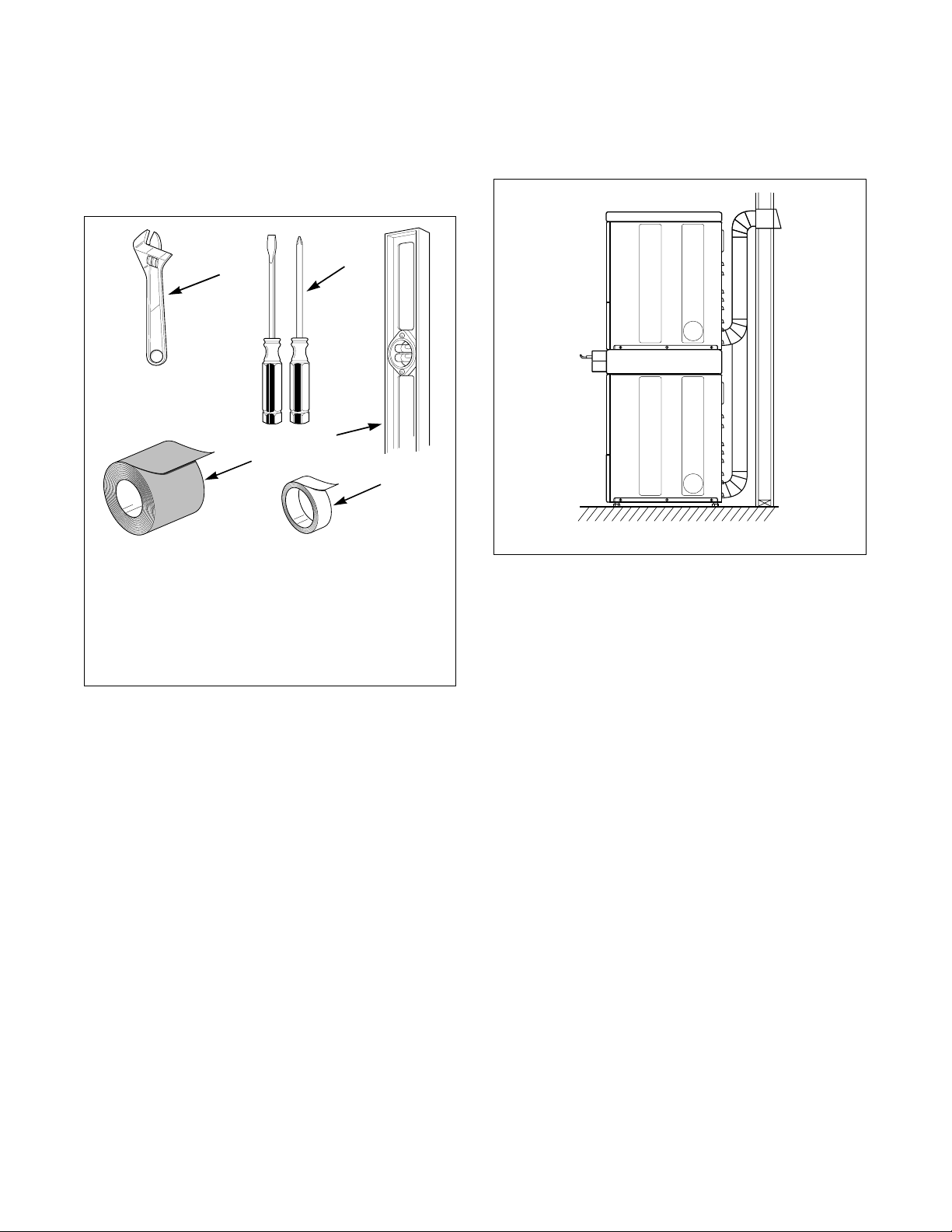

Tools ................................................................................................ 13
Gas ................................................................................................... 13
Location ........................................................................................... 13
Exhaust............................................................................................. 13
Electrical .......................................................................................... 13
Installing the Dryer............................................................................... 14
Step 1: Position and Level the Dryer Unit....................................... 14
Step 2: Connect Dryer Unit Exhaust System................................... 14
Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 15
Step 4: (Electric Dryer Only) Connect Electrical Plug.................... 16

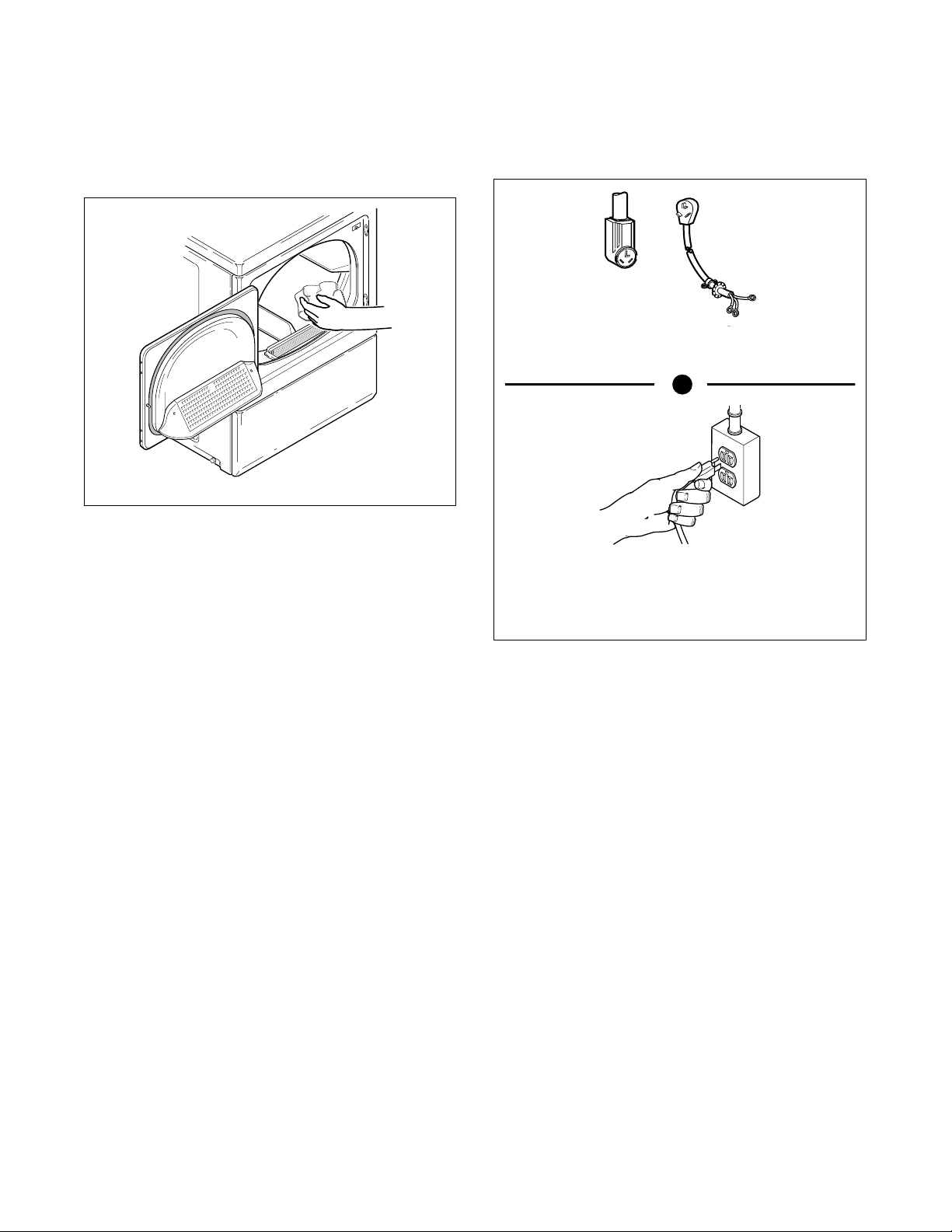

Step 5: Wipe Out Inside of Each Dryer ........................................... 18
Step 6: Plug In the Dryer Unit ......................................................... 18
Step 7: Check Installation ................................................................ 18
Heat Source Check ............................................................................... 19
Electric Dryers ................................................................................. 19
Gas Dryers ....................................................................................... 19
Reversing Door Procedure.................................................................... 21
Electrical Requirements........................................................................ 22
Grounding and Wiring Instructions ................................................. 22
Electrical Connection............................................................................ 24

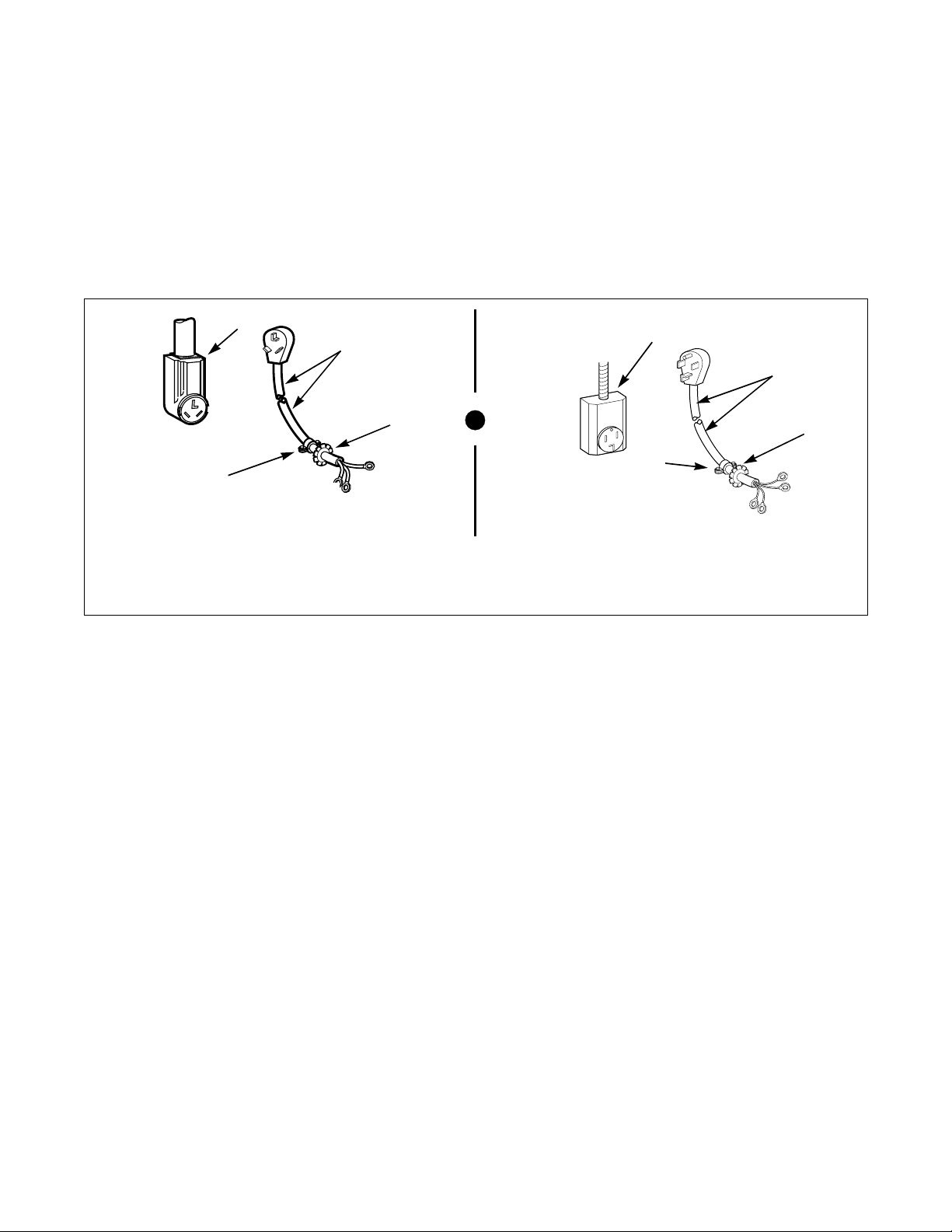

Three-Wire Power Cord................................................................... 24
Three-Wire Connection ................................................................... 25
Four-Wire Power Cord .................................................................... 26
Four-Wire Connection ..................................................................... 28
Electrical Requirements........................................................................ 29
Grounding Instructions .................................................................... 30
Gas Requirements................................................................................. 31
Location Requirements......................................................................... 33
Dryer Exhaust Requirements................................................................ 34
Exhaust System Materials................................................................ 34
Make-Up Air Requirements............................................................. 35
Make-Up Air Dos and Don’ts.......................................................... 35
Exhaust Direction............................................................................. 35
Exhaust System................................................................................ 36
Exhaust System Maintenance .......................................................... 37
Dryer Airflow................................................................................... 37
Multi-Dryer Installation Exhaust Requirements................................... 38
Lint Filter.............................................................................................. 40
Motor Overload Protector..................................................................... 40

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
4510975
Operation............................................................................................. 41
Operation Instructions for Electromechanical Dryers .......................... 41
Step 1: Clean Lint Filter................................................................... 41
Step 2: Load Laundry....................................................................... 41
Step 3: Close Loading Door............................................................. 41
Step 4: Determine Proper Dryer ...................................................... 41
Step 5: Set Fabric Selector............................................................... 42
Step 6: Start Dryer ........................................................................... 42
Operation Instructions for Electronic Display Control Dryers............. 43
Step 1: Clean Lint Filter................................................................... 43
Step 2: Load Laundry....................................................................... 43
Step 3: Close Loading Door............................................................. 43
Step 4: Determine Proper Dryer ...................................................... 43
Step 5: Set Fabric Selector............................................................... 44
Step 6: Insert Coin(s) or Card .......................................................... 44
Step 7: Start Dryer ........................................................................... 44
Indicator Lights................................................................................ 45
Operation Instructions for MDC Dryers............................................... 46
Step 1: Clean Lint Filter................................................................... 46
Step 2: Load Laundry....................................................................... 46
Step 3: Close Loading Door............................................................. 46
Step 4: Determine Proper Dryer ...................................................... 46
Step 5: Set Fabric Selector............................................................... 47
Step 6: Insert Coin(s) or Card .......................................................... 47
Step 7: Start Dryer ........................................................................... 47
Indicator Lights................................................................................ 48
Operation Instructions for Netmaster Dryers ....................................... 49
Step 1: Clean Lint Filter................................................................... 49
Step 2: Load Laundry....................................................................... 49
Step 3: Close Loading Door............................................................. 49
Step 4: Determine Proper Dryer ...................................................... 49
Step 5: Set Fabric Selector............................................................... 50
Step 6: Insert Coin(s) or Card .......................................................... 50
Step 7: Start Dryer ........................................................................... 50
Indicator Lights................................................................................ 51
Maintenance ........................................................................................ 53
User-Maintenance Instructions............................................................. 53
Lubrication....................................................................................... 53
Care of Your Dryer .......................................................................... 53
Exhaust System................................................................................ 53
For Energy Conservation...................................................................... 53
Before You Call for Service ................................................................. 54
If Service Is Required........................................................................... 55
Information for Handy Reference......................................................... 56
Installer Checklist................................................................. Back Cover

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 5
510975
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your dryer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 510975
6
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 7
510975
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the dryer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the dryer.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This is a safety
rule for all appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will be
exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the dryer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Dryer will not operate with the loading door
open. DO NOT bypass the door safety switch by
permitting the dryer to operate with the door
open. The dryer will stop tumbling when the door
is opened. Do not use the dryer if it does not stop
tumbling when the door is opened or starts
tumbling without pressing the START
mechanism. Remove the dryer from use and call
the service person.
17. Do not put articles soiled with vegetable or
cooking oil in the dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
18. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
19. Use the dryer only for its intended purpose,
drying clothes.
20. Always disconnect the electrical power to the
dryer before attempting service. Disconnect the
power cord by grasping the plug, not the cord.
21. If supply cord is damaged, it must be replaced by
a special cord or assembly available from the
manufacturer or its service agent.
22. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
23. Remove laundry immediately after the dryer
stops.
To reduce the risk of fire, electric shock,
or injury to persons when using your
dryer, follow these basic precautions:
W034
WARNING

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Important Safety Instructions
510975
8
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the dryer with any guards and/or
panels removed.
28. DO NOT operate the dryer with missing or
broken parts.
29. DO NOT bypass any safety devices.
30. DO NOT operate dryers if the units have been
separated.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
IMPORTANT: Solvent vapors from dry-cleaning
machines create acids when drawn through the
heater of the drying unit. These acids are corrosive
to the dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent vapors.
IMPORTANT: Have your dryer installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 9
510975
Installation
Roughing In Dimensions
Metered Models
NOTE: Side, rear and bottom exhaust openings are
4" (10.2 cm) ducting. Gas models cannot be vented
out left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
D786I
*With leveling legs turned into base. NOTE: Not all models have windows.
7"
(17.8 cm)
*76.5"(194.3 cm)
*44.8"(113.8 cm)
23.5"
(59.7 cm)
8"
(20.3 cm)
4"
(10.2 cm)
26.9"
(68.3 cm)
15.5"
(39.4 cm)
28.0"
(71.1 cm) ELECTRIC MODELS
4.5"
(11.4 cm)
D785I
*With leveling legs turned into base. NOTE: Not all models have windows.
13/8" N.P.T. Gas Connection
7"
(17.8 cm)
*76.5"(194.3 cm)
*44.8"(113.8 cm)
23.5"
(59.7 cm)
4"
(10.2 cm)
26.9"
(68.3 cm)
15.5"
(39.4 cm)
28.0"
(71.1 cm)
GAS MODELS
*43.5"(110.5 cm)
2.8"
(7.1 cm)
8"
(20.3 cm)
1
4.5"
(11.4 cm)
2.3"
(6 cm)

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
510975
10
Nonmetered Models
NOTE: Side, rear and bottom exhaust openings are
4" (10.2 cm) ducting. Gas models cannot be vented
out left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
DRY50N
*With leveling legs turned into base.
7"
(17.8 cm)
*76.5"(194.3 cm)
*44.8"(113.8 cm)
23.5"
(59.7 cm)
8"
(20.3 cm)
4"
(10.2 cm)
26.9"
(68.3 cm)
15.5"
(39.4 cm)
28.0"
(71.1 cm)
ELECTRIC MODELS
4.5"
(11.4 cm)
DRY51N
*With leveling legs turned into base.
13/8"N.P.T. Gas Connection
7"
(17.8 cm)
*76.5"(194.3 cm)
*44.8"(113.8 cm)
23.5"
(59.7 cm)
4"
(10.2 cm)
26.9"
(68.3 cm)
15.5"
(39.4 cm)
28.0"
(71.1 cm)
GAS MODELS
*43.5"(110.5 cm)
2.8"
(7.1 cm)
8"
(20.3 cm)
1
4.5"
(11.4 cm)
2.3"
(6 cm)

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
11
510975
Additional Security
Torx security screws are available (as optional
equipment at extra cost) for securing both lower access
panels to each dryer base. Order Part No. 62853.
A Torx bit, Part No. 282P4, is available (as optional
equipment at extra cost) for installing the Torx security
screws.
A Torx bit holder, Part No. 24161, is available (as
optional equipment at extra cost) to be used with the
Torx bit.
Slide Extension
(Coin Slide Models Only)
Remove two slide extensions, four screws and
lockwashers from the accesssories bag (located in
lower cylinder) and install the extension on the top of
the coin slide.
IMPORTANT: Slide extension must be attached to
top side of the coin slides to make them long enough
to activate the accumulator.
NOTE: This dryer unit, as shipped from the
factory, does not include the coin slides, coin
drawers, lock or keys. These coin slide kits (or
parts) must be ordered, at extra cost, according to
the purchaser’s requirements direct from the coin
kit manufacturer of your choice.
Timer Cams
(Coin Slide Models Only)
The dryer timers are factory equipped with a
45 minute timing cam. If this drying time is not
suitable to your installation, the following cams can be
found in the accessories bag (located in lower
cylinder).
ELECTRIC DRYERS
2-53242 Cams (30 Minutes)
2-53240 Cams (60 Minutes)
GAS DRYERS
2-53242 Cams (30 Minutes)
A 60 minute timing cam, Part No. 53240, is available
for the gas dryers as optional equipment at extra cost.
To change the timing cam:
1. Align notch in cam with a tooth on ratchet wheel.
2. Squeeze the ends of the two timing cam prongs
together.
3. Carefully lift timing cam off post.
NOTE: Adjust ratchet wheel and timing cam to
“OFF”position prior to putting dryer into use.
Refer to Figure 1 for proper position.
Figure 1
D775I
1Retaining Prongs
2Timing Cam
3Notch
4Levers
5Off Position
6Ratchet Wheel
7On Position
D775I
2
3
4
5
6
1
7

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
510975
12
Coin Slide Guards
(Metered Models)
Using sheet metal screws from accessories bag
(located in lower cylinder), install coin slide guards
(located in accessories bag in lower cylinder) to front
of dryer’s control cabinet. Refer to Figure 2.
Figure 2
NOTE: Coin slides and coin drawers are shown for
illustration only. You must obtain them locally.
D784I
1Coin Slide Guard 2Sheet Metal Screws
PUSH TO START
IN USE
IN USE
PUSH TO START
FABRIC SELECTOR
FABRIC SELECTOR
PERM PRESS
NORMAL
DELICATE
FLUFF
(NO HEAT)
PERM PRESS
NORMAL
DELICATE
FLUFF
(NO HEAT)
D784I
22
11

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
13
510975
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 3
Gas
Dryer is equipped for Natural Gas with a 3/8" N.P.T.
gas supply connection. For more detailed information,
refer to section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
Figure 4
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Electrical
●ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or
120/208 Volt, 60 Hertz, 30 Amp, AC single
phase electrical supply for each unit.
●GAS DRYER
Dryer needs a 120 Volt, 60 Hertz, 15 Amp,
polarized 3-slot effectively grounded receptacle
for each unit.
NOTE: For more detailed information, refer to
section on Electrical Requirements.
D818I
1Wrench
2Screwdrivers
3Level
4Te f l o n Ta p e
5Duct Tape
2
1
3
4
5
D354I

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
510975
14
Installing the Dryer
Step 1: Position and Level the Dryer Unit
For further assistance, refer to section on Location
Requirements.
Install dryer before washer. This allows room for
attaching exhaust duct.
Install the four rubber cups found in the accessories
bag.
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back.
Figure 5
Step 2: Connect Dryer Unit Exhaust
System
For further assistance, refer to sections on Location
Requirements and Dryer Exhaust Requirements.
●DO NOT use plastic or thin foil ducting.
●Locate dryer so exhaust duct is as short as
possible.
●Be certain old ducts are cleaned before installing
your new dryer.
●Use 4" (10.2 cm) diameter rigid or flexible metal
duct.
●The male end of each section of duct must point
away from the dryer.
●Use as few elbows as possible.
●Use duct tape or pop-rivets on all duct joints.
●Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
●Install backdraft dampers in multi-dryer
installations.
●Failure to exhaust dryer properly will void
warranty.
.
Figure 6
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
D690I
1Dryer Base
2Level
3Leveling Leg
4Rubber Cup
D690I
13
2
4
A clothes dryer produces combustible
lint. To reduce the risk of fire and
combustion gas accumulation the dryer
MUST be exhausted to the outdoors.
W116
WARNING
D354I D356I
DO DON’T

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
15
510975
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
For further assistance, refer to section on Gas
Requirements.
1. Make certain dryer is equipped for use with the
type of gas in laundry room. Dryer is equipped at
the factory for Natural Gas with a 3/8" N.P.T.
gas connection.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal and external)
for gas leaks with a non-corrosive leak detection
fluid.
5. For L.P. (Liquefied Petroleum) gas connection,
refer to section on Gas Requirements.
Figure 7
D233I
1New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design A.G.A. Certified Connector)
4Black Iron Pipe
Shorter than 20' (6.1 m) –Use 3/8" pipe
Longer than 20' (6.1 m) –Use 1/2" pipe
21/8" N.P.T. Pipe Plug
(For checking inlet gas pressure)
53/8" N.P.T. Gas Connection
3Equipment Shut-Off Valve –Installed within 6'
(1.8 m) of dryer
D233I
1
2
3
4
5

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
510975
16
Step 4: (Electric Dryer Only) Connect
Electrical Plug
For further assistance, refer to section on Electrical
Requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three conductor power supply
cord kit rated 240 Volts (minimum), 30 Amperes
and labeled as suitable for use in a clothes dryer.
NOTE: For more detailed information on
connecting three-wire or four-wire plugs, refer to
section on Electrical Connection.
Four-wire cord is required for mobile homes or
where codes do not permit grounding through
neutral.
Figure 8
D275I D006I
1Typical Receptacle 3Strain Relief Nut
2Power Cord 4Strain Relief
1
2
4
2
3
4
THREE-WIRE
1
FOUR-WIRE
3

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
17
510975
Figure 9
D679I D680I
NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer with access
cover removed.
1Ground Wire 7Ground Screw
2Ground to Neutral Wire 8“L1”Terminal
3Neutral Terminal 9Black Wire
4“L2”Terminal 10 White Wire (Neutral)
5Center Wire (Neutral) 11 Red Wire
6Strain Relief (Not supplied with dryer)
D679I
D680I
1
THREE-WIRE CONNECTION
3
2
8
74
5
6
1
1
3
8
4
6
9
10
11
7
FOUR-WIRE CONNECTION

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
510975
18
Step 5: Wipe Out Inside of Each Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Figure 10
Step 6: Plug In the Dryer Unit
Refer to section on Electrical Requirements, and
connect the dryer to an electrical power source.
Figure 11
Step 7: Check Installation
Refer to Installer Checklist on the back cover and
make sure that dryer is installed correctly.
D604I
D604I
D254I
D254I
ELECTRIC
GAS
Connect each unit to 30 Amp circuit.
Plug each cord into separately
fused 15 Amp circuit.
