Alliance Laundry Systems H242I User manual

Installation and Operation
H242I
Stacked
Washer and Dryer
Metered
Electric and Gas Models
Part No. 504509R7
October 1999
NOTA: El manual en español aparece después del manual en inglés.

504509 1
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the unit changes ownership, be
sure this manual accompanies the unit.)
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be
followed if the unit user smells gas. The gas utility instructions plus the SAFETY and
WARNING note directly above must be posted in a prominent location near the unit for
customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
–Do not try to light any appliance.
–Do not touch any electrical switch; do not use any phone in your building.
–Clear the room, building or area of all occupants.
–Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
–If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or
the gas supplier. W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the
risk of fire or explosion or to prevent property damage, personal injury or death. W033
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance. W053

2504509
Replacement Parts
If replacement parts are required, contact the source
where you purchased your dryer, or contact Alliance Laundry Systems LLC Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
Phone:
[phone]
for the name and address of the nearest authorized parts
distributor.
Table of
Contents
Replacement Parts ...............................................................................2
Important Safety Instructions..............................................................3
Roughing In Dimensions .....................................................................5
Additional Security ..............................................................................6
Washer Slide Extension .......................................................................6
Dryer Slide Extension ..........................................................................7
Timer Cams ...........................................................................................7
Coin Slide Guards ................................................................................7
Before You Start ...................................................................................8
Installing the Unit
Step 1: Position Unit Near Installation Area....................................9
Step 2: Connect Water Inlet Hoses...................................................9
Step 3: Connect Drain Hose to Drain Receptacle ..........................10
Step 4: Connect Gas Supply Pipe...................................................11
Step 5: Connect Electrical Plug......................................................12
Step 6: Connect Dryer Exhaust System..........................................13
Step 7: Remove the Shock Sleeves and Shipping Brace................13
Step 8: Position and Level the Unit................................................14
Step 9: Wipe Out Inside of Washer Drum and Dryer Drum...........15
Step 10: Plug In the Washer and Dryer ..........................................15
Step 11: Check Installation.............................................................15
Moving Unit to a New Location ........................................................16
Heat Source Check .............................................................................17
Water Supply Requirements .............................................................18
Washer Electrical Requirements ......................................................19
Electric Dryer Electrical Requirements ...........................................20
Gas Dryer Electrical Requirements .................................................25
Gas Requirements .............................................................................27
Location Requirements .....................................................................28
Dryer Exhaust Requirements ...........................................................29
Multi-Dryer Installation Exhaust Requirements.............................32
Lint Filter.............................................................................................35
Dryer Motor Overload Protector.......................................................35
Operation Instructions for Electromechanical Washers ................36
Operation Instructions for Electromechanical Dryers ...................39
Operation Instructions for Electronic Control Washers ................41
Operation Instructions for Electronic Control Dryers ...................45
User-Maintenance Instructions .........................................................49
For Energy Conservation ...................................................................50
Before You Call for Service ................................................................51
Information for Handy Reference ....................................................53
Installer Check .................................................................... Back Cover
. . .
©Copyright 1999, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.

504509 3
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
1. Read all instructions before using the unit.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the unit.
3. Do not wash or dry articles that have been
previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they
give off vapors that could ignite or explode.
4. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
5. Do not allow children to play on or in the unit.
Close supervision of children is necessary when
the unit is used near children. This is a safety rule
for all appliances.
6. Before the unit is removed from service or
discarded, remove the doors to the washing and
drying compartments.
7. Do not reach into the washer or dryer if the
cylinders are revolving.
8. Do not install or store the unit where it will be
exposed to water and/or weather.
9. Do not tamper with the controls.
10. Do not repair or replace any part of the unit, or
attempt any servicing unless specifically
recommended in the User-Maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
11. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. To reduce the risk of an electric shock or fire, DO
NOT use an adapter to connect the unit to the
electrical power source.
14. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
15. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
16. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
17. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
18. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
19. Washer and dryer will not operate with the
loading door open. DO NOT by-pass the door
safety switches by permitting the washer or dryer
to operate with the doors open. The washer and
dryer will stop tumbling when the doors are
opened. Do not use the washer or dryer if they do
not stop tumbling when the doors are opened or
start tumbling without pressing the START
mechanisms. Remove the unit from use and call
the service person.
20. Do not put articles soiled with vegetable or
cooking oil in the washer or dryer. Due to the oil,
the fabric may catch on fire by itself.
21. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
To reduce the risk of fire, electric shock, or
injury to persons when using your dryer,
follow these basic precautions: W034
WARNING

4504509
22. Use your washer only for its intended purpose,
washing clothes.
23. Use the dryer only for its intended purpose,
drying clothes.
24. Always disconnect the electrical power to the
washer and dryer before attempting service to
either unit. Disconnect the power cords by
grasping the plug, not the cord.
25. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
26. Install this unit according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
27. Keep your unit in good condition. Bumping or
dropping the unit can damage safety features. If
this occurs, have your unit checked by a qualified
service person.
28. Remove laundry immediately after the dryer
stops.
29. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. Toreduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
30. Do not tumble fiber glass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiber glass.
31. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
32. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
33. Never operate the unit with any guards and/or
panels removed.
34. DO NOT operate the unit with missing or broken
parts.
35. DO NOT by-pass any safety devices.
36. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
37. Do not operate washer and dryer if the units have
been separated.
IMPORTANT: Solvent vapors from dry-cleaning
machines createacids whendrawnthroughthe heater
of the drying unit. These acids are corrosive to the
dryer as well as to the laundry load being dried. Be
sure make-up air is free of solvent vapors.
IMPORTANT: Have your unit installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearingin this manual
are not meant to cover all possible conditions and
situations that may occur. Common sense, caution
and care must be exercised when installing,
maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent or
the manufacturer about any problems or conditions you
do not understand.

504509 5
Roughing In Dimensions
NOTE: Side and rear exhaust openings are four inch
(10.2 cm) ducting. Gas models cannot be vented out
left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for neededventilation and for the
ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
. . .
H274IE3A
23.5" (59.7 cm)
7.7"
(19.6 cm) 15.4"
(39.1 cm)
45.8" (116.3 cm)
*77.1" (195.8 cm)
28" (71.1 cm) 26.9" (68.3 cm)
2.0"
(5.1 cm)
17.5"
(44.8 cm)
7.0"
(17.8 cm)
14.9"
(37.8 cm)
31.1" (79 cm)
29.6" (75.1 cm)
* WITH LEVELING LEGS TURNED INTO BASE.
2.0"
(5.1 cm)
H268IE3A
3/8"
NPT GAS
CONNECTION
23.5" (59.7 cm)
7.7"
(19.6 cm)
15.4"
(39.1 cm)
45.8" (116.3 cm)
*77.1" (195.8 cm)
28" (71.1 cm) 26.9" (68.3 cm)
2.0"
(5.1 cm)
17.5"
(44.8 cm)
7.0"
(17.8 cm)
14.9"
(37.8 cm)
31.1" (79 cm)
29.6" (75.1 cm)
* WITH LEVELING LEGS TURNED INTO BASE.
2.0"
(5.1 cm)
GAS
ELECTRIC

6504509
Additional Security
Torx security screws are available (as optional equipment
at extra cost) for securing both lower access panels to
washer and dryer bases. Order part number 62853.
A Torx bit, part number 282P4, is available (as optional
equipment at extra cost) for installing the Torx security
screws.
A Torx bit holder, part number 24161, is available (as
optional equipment at extra cost) to be used with the Torx
bit.

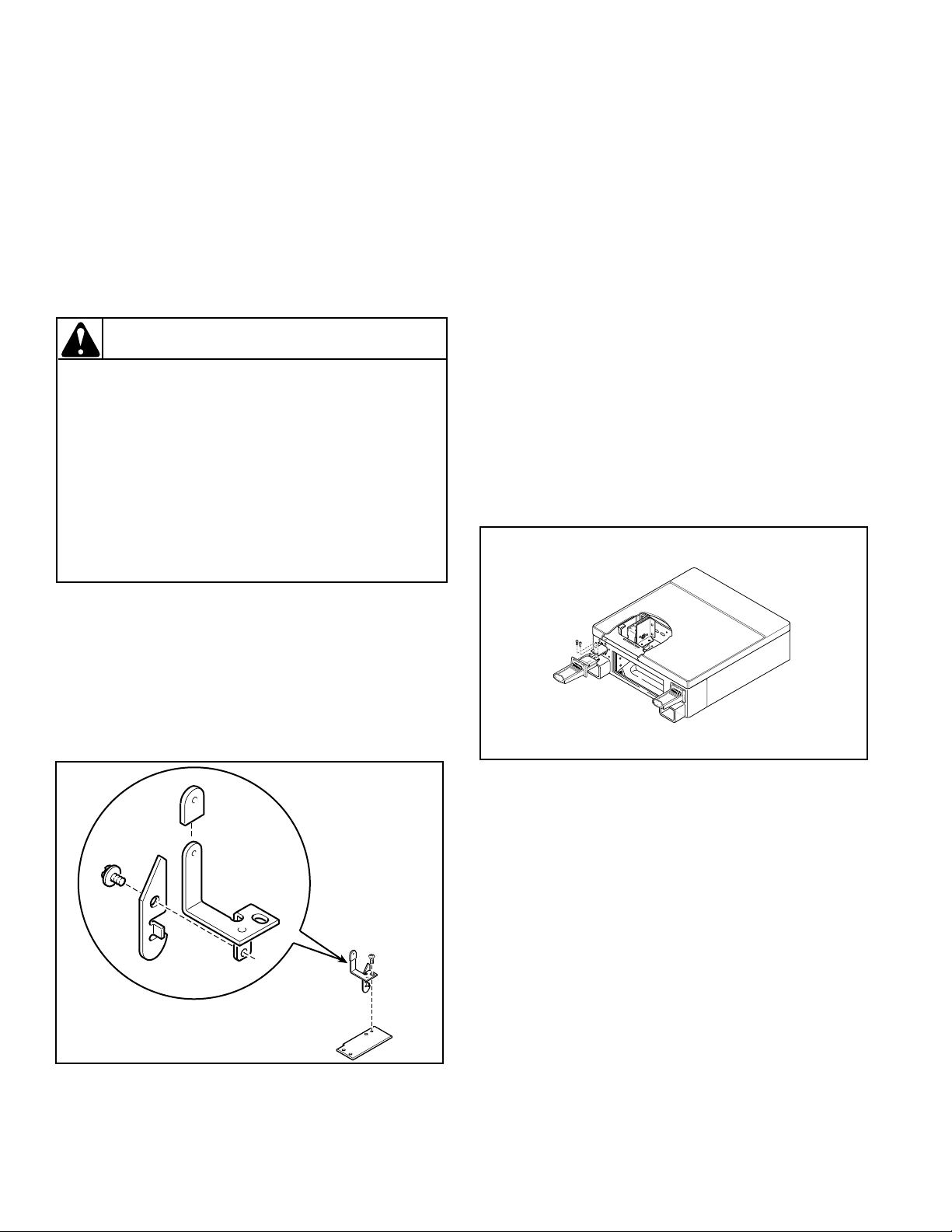

Washer Slide Extension
(Coin Slide Models Only)
Remove slide extension, shoulder screw, plastic boot,
actuator, actuator support, screws and lockwashers from
the accessories bag. Install slide extension as follows:
1. Unlock and open service door. Remove locking rod
holding coin slide to front of security cabinet.
NOTE: Refer to following illustration for steps 2
through 4.
2. Assemble plastic boot (No. 36165) onto actuator
support (No. 685592).
3. Assemble actuator (No. 36164) to actuator support
(No. 685592) using shoulder screw (No. 36166).
4. Place actuator and support assembly onto slide
extension, and install screw and lockwasher
(No. 03950).
5. Install assembed slide extension through coin slide
opening of security cabinet by reaching through
service door opening.
6. Assemble slideextension (No. 685593) to top side of
coin slide using two screws and lockwashers
(No. 03950), and tighten firmly. See illustration
below.
7. Reinstall assembled coin slide in security cabinet.
Close and lock service door.
After slide extension has been installed, check washer
operation as follows:
1. Connect electrical power to washer.
NOTE: To determine if slide functions properly,
allow washer to complete its cycle, and for timer to
stop, before starting evaluation process.
2. Place required number of coins in slide. Push slide in
slowly and listen for coins to drop into coin drawer.
3. Push slide in a little farther and observe through
service door opening that actuator drops beyond
timer clutch. Continue pushing slide all the way in
and pull back. Confirm that the actuator will rotate
timer clutch and wash cycle starts.
NOTE: You must press Push-to-Start button to
initiate cycle after activation of slide.
. . .
. . .
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the washer and
dryer before servicing.
• Never start the washer and dryer with any
guards/panels removed.
• Whenever ground wires are removed during
servicing, these ground wires must be
reconnected to ensure that the washer and
dryer are properly grounded. W251
WARNING
H067IE1A
H068IE1B

504509 7
Dryer Slide Extension
(Coin Slide Models Only)
Remove two slide extensions, four screws and
lockwashers from the accesssories bag and install the
extension on the top of the coin slide.
IMPORTANT: Slide extension must be attached to
top side of the coin slides to make them long enough to
activate the accumulator (dryer) or timer (washer).
NOTE: This unit, as shipped from the factory, does
not include the coin slides, coin drawers, lock or keys.
These coin slide kits (or parts) must be ordered, at
extra cost, according tothe purchaser’s requirements
direct from the coin kit manufacturer of your choice.
Timer Cams
The dryer timers are factory equipped with a 45 minute
timing cam. If this drying time is not suitable to your
installation, the following cams can be found in the
accessories bag.
ELECTRIC DRYERS
1-53242 Cams (30 Minutes)
1-53240 Cams (60 Minutes)
GAS DRYERS
1-53242 Cams (30 Minutes)
A 60 minute timing cam, Part No. 53240, is available for
the gas dryers as optional equipment at extra cost.

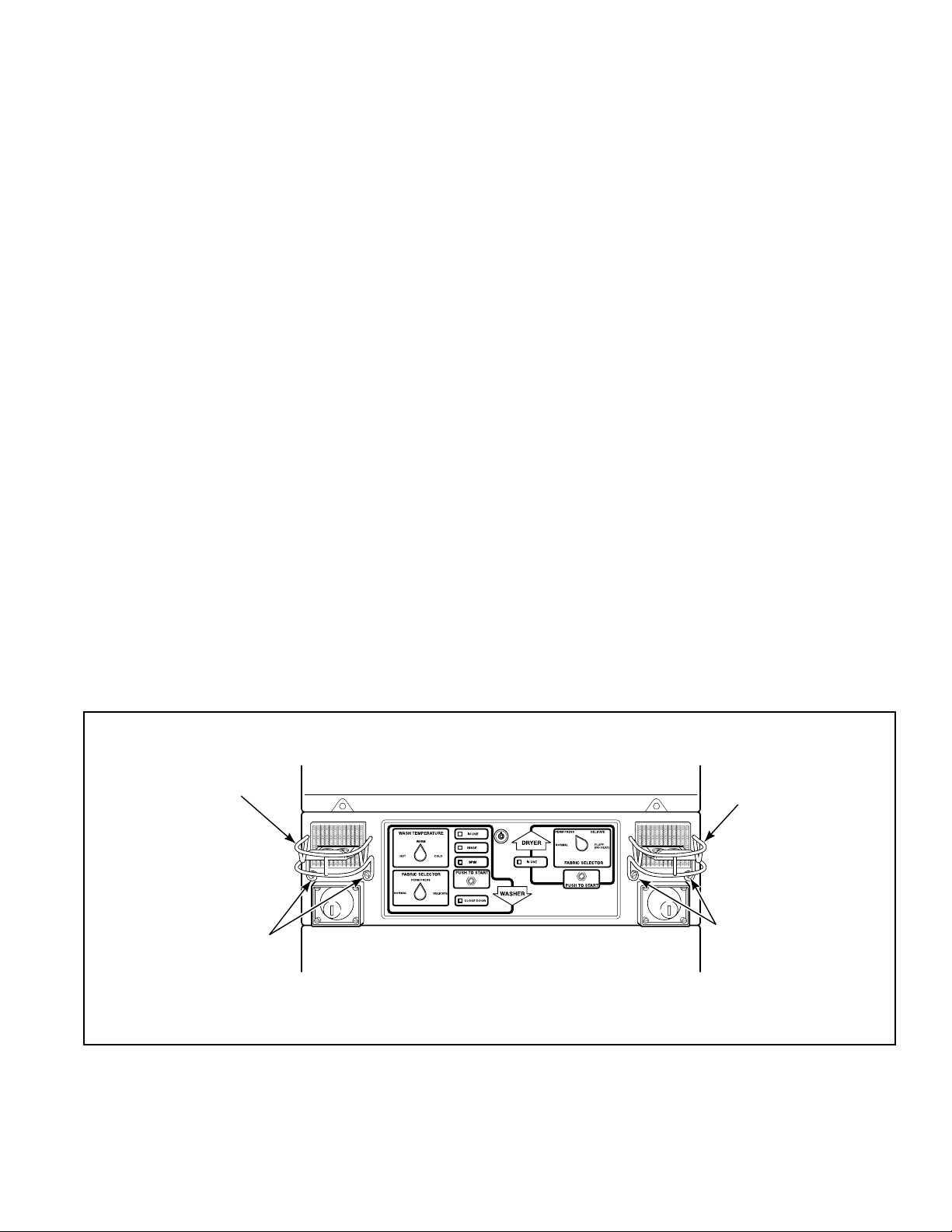

Coin Slide Guards
(Coin Slide Models Only)
Using serrated hex head screws from accessories bag,
install coin slide guards (located in accessories bag), to
front of control cabinet. See illustration.
A special security screw kit is available (as optional
equipment at extra cost) for securing the two coin slide
guards and both front access panels to front of unit.Order
Security Kit No. 298P3. A special driver, part number
56217, is available (as optional equipment at extra cost)
for installing the special security screws.
NOTE: Coin slides and coin drawers are shown for illustration only. You must obtain them locally.
. . .
. . .
. . .
COIN
SLIDE
GUARD COIN
SLIDE
GUARD
SERRATED
HEX HEAD
SCREWS
SERRATED
HEX HEAD
SCREWS
H151IE2A

8504509
Before You Start
Tools
For most installations, the basic tools you will need are:
Water
Washer needs two standard 3/4 inch (19.1 mm) water
supply faucets with a pressure between 20-120 pounds
per square inch (138 to 827 kPa). For more detailed
information, refer to Section on Water Supply
Requirements.

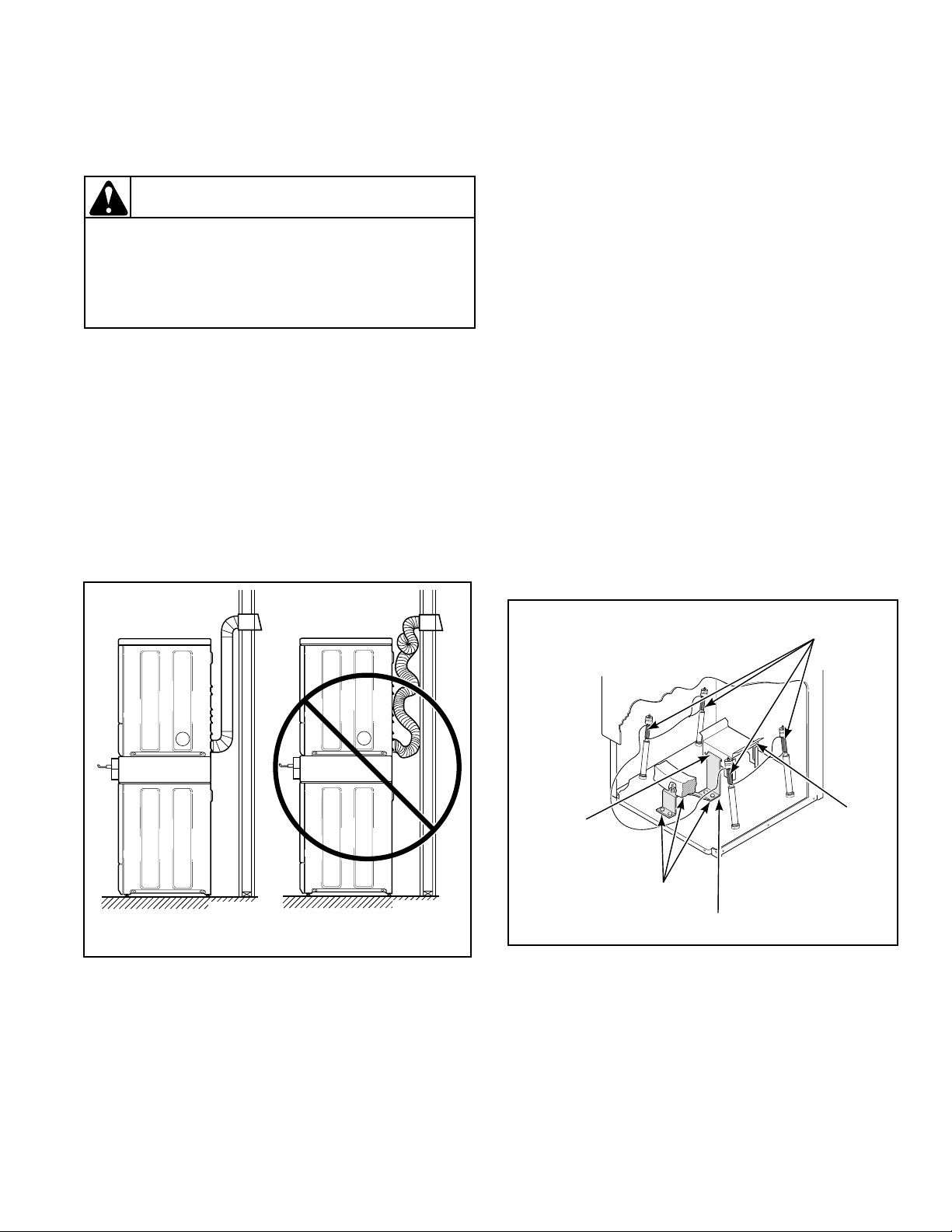

Exhaust
Use rigid metal duct and exhaust the dryer to the outside
by the shortest route possible.
NOTE: For more detailed information, refer to
Section on Dryer Exhaust Requirements.
Electrical
• WASHER
Refer to Serial plate for specific electrical
requirements. For more detailed information, refer to
Section on Washer Electrical Requirements.
•ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or 120/208 Volt, 60
Hertz, AC single Phase electrical supply. For more
detailed information, refer to Section on Electric
Dryer Electrical Requirements.
•GAS DRYER
Dryer needs a 120 Volt, 60 Hertz, polarized 3-slot
effectively grounded receptacle. For more detailed
information, refer to Section on Gas Dryer Electrical
Requirements.
NOTE: 208 Volt heating element is available (as
optional equipment at extra cost).
Gas
Dryer is equipped for Natural Gas with a 3/8" NPT gas
supply connection. For more detailed information, refer
to Section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply.Formoredetailedinformation,refertoSectionon
Location Requirements.
. . .
D074IE1G
LEVEL
SCREWDRIVERS
PLIERS
WRENCH
9
/
1
6
"
SOCKET
WRENCH
DUCT TAPE
TEFLON TAPE
H092IE1A

504509 9
Installing the Unit
Step 1:
Position Unit Near Installation Area
Move unit so that it is within four feet of the desired area
of installation.
Step 2:
Connect Water Inlet Hoses
NOTE: Refer to Section on Water Supply
Requirements before connecting water inlet hoses.
Remove the four plain rubber washers from accessories
bag, and install them according to the illustration.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water mixing
valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately 1/4 turn
with pliers. DO NOT cross thread or overtighten
couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
. . .
Washer and dryer are not designed to be
operated as separated, side-by-side units.W187
CAUTION
H243I
RUBBER WASHER
(Plain)
H091IE1A
INSTALL THIS
END OF HOSE
TO WATER
SUPPLY FAUCET
INSTALL THIS END OF HOSE
TO VALVE CONNECTIONS
AT REAR OF WASHER
INLET
HOSE
RUBBER WASHER
(Plain)
H096IE1A
WATER
SUPPLY
FAUCETS
WATER
INLET
HOSES
COLD WATER
CONNECTION
WATER
MIXING VALVE
HOT WATER
CONNECTION

10 504509
Step 3:
Connect Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on the
rear of the washer by unhooking the hose from the
retainer clamp.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation:
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories bag
and place around standpipe and drain hose and tighten
straptoholdhoseto standpipe.Thiswillpreventthedrain
hose from dislodging from drain receptacle during use.
D465IE1A
RETAINER
CLAMP
H097IE1A
DRAIN
HOSE
24" to 36"
(91.44 cm
Recommended
Height)
STANDPIPE
2" (5.08 cm) or
1-1/2" (4 cm)
BEADED
TIE-DOWN
STRAP

504509 11
Step 4: (Gas Dryer ONLY)
Connect Gas Supply Pipe
For further assistance, refer to Section on Gas
Requirements.
1. Make certain dryer is equipped for use with the type
of gas in laundry room. Dryer is equipped at the
factory for Natural Gas with a 3/8" NPT gas
connection.
2. Remove the shipping cap from the gas connection at
the rear of the dryer. Make sure you do not damage
the pipe threads when removing the cap.
3. Connect to gas supply pipe using a new flexible
stainless steel connector.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external) for
gas leaks with a non-corrosive leak detection fluid.
5. ForL.P.(Propane)gasconnection,refertoSectionon
Gas Requirements.
3/8" NPT
GAS CONNECTION
1/8" NPT
PIPE PLUG
(For checking
inlet gas pressure)
NEW
STAINLESS STEEL
FLEXIBLE
CONNECTOR
USE ONLY
IF ALLOWED
BY LOCAL
CODES
(Use
Design A.G.A.
Certified
Connector)
EQUIPMENT
SHUT-OFF
VALVE
Install within
6' (1.8 m) of dryer
D434IE3A
BLACK IRON PIPE
Shorter than 20' (6.1 m) - use 3/8" pipe
Longer than 20' (6.1 m) - use 1/2" pipe

12 504509

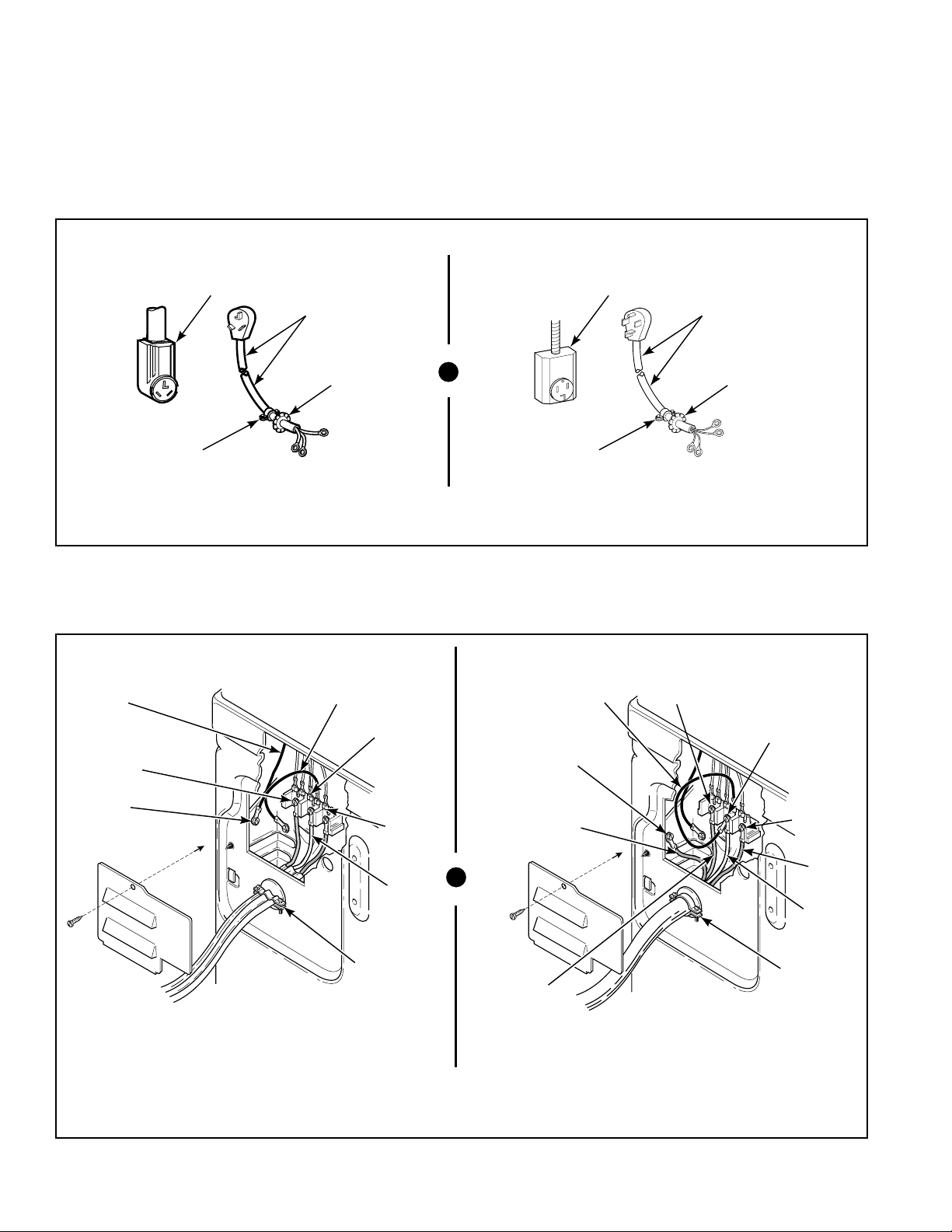

Step 5: (Electric Dryer ONLY)
Connect Electrical Plug
For further assistance, refer to Section on Electrical
Requirements.IMPORTANT: Use only a new U.L. listed No. 10 (copperwireonly)threeconductorpowersupplycord
kit rated 240 Volts (minimum) 30 Amperes and
labeled as suitable for use in a clothes dryer.
NOTE: For more detailed information on connecting
three-wire or four-wire plugs, refer to Section on
Electric Dryer Electrical Requirements.
NOTE: Four-wire cord is required for mobile homes
or where codes do not permit grounding through
neutral.
STRAIN
RELIEF
NUT
TYPICAL
THREE-WIRE
RECEPTACLE
POWER CORD
- NOT SUPPLIED
WITH DRYER
(Three-Wire)
STRAIN
RELIEF D275IE0H
Three Wire
STRAIN
RELIEF
NUT
TYPICAL
FOUR-WIRE
RECEPTACLE
STRAIN
RELIEF D006IE0E
POWER CORD
- NOT SUPPLIED
WITH DRYER
(Four-Wire)
Four Wire
D436IE1A
WHITE
WIRE
(NEUTRAL)
GROUND
SCREW
NEUTRAL
TERMINAL
“L1”
TERMINAL
BLACK
WIRE
GROUND
WIRE
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
GROUND
WIRE
“L2”
TERMINAL
RED
WIRE
Four-Wire Connection
D435IE1A
CENTER
WIRE
(NEUTRAL)
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
NEUTRAL
TERMINAL
GROUND
WIRE
“L2”
TERMINAL
“L1”
TERMINAL
GROUND
SCREW
GROUND
TO NEUTRAL
WIRE
Three-Wire Connection
NOTE: Dryer isshown with access coverremoved for illustration purposes only. NEVER operate dryer with
access cover removed.

504509 13
Step 6:
Connect Dryer Exhaust System
For further assistance refer to Sections on Location
Requirements and Dryer Exhaust Requirements.
• DO NOT use plastic or thin foil flexible ducting.
• Locate unit so exhaust duct is as short as possible.
• Be certain old ducts are cleaned before installing your
new dryer.
• Use 4" (10.2 cm) diameter rigid or flexible metal duct.
• Use as few elbows as possible.
• Use duct tape on all joints.
•Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
unit (obtain locally).
Step 7:
Remove the Shock Sleeves and
Shipping Brace (Washer Only)
Remove front access panel by removing the two screws.
Remove bolts and washers from shipping brace with
9/16" wrench and remove brace. Remove shock sleeves
by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel.
NOTE: The shipping brace, bolts, washers and shock
sleeves should be saved and MUST be reinstalled
whenever the washer is moved more than four feet.
Do not lift or transport washer from front or without
shipping materials installed.
Store the shipping materials in the bag provided in the
Accessories Bag. Save materials for use whenever the
washer is moved.
NOTE: The shipping materials MUST be reinstalled
whenever the unit is moved. Refer to Moving Unit to a
New Location section for proper instructions on
reinstalling the shipping materials.
Reinstall front access panel.
A clothes dryer produces combustible lint. To
reduce the risk of fire and combustion gas
accumulation the dryer MUST be exhausted to
the outdoors. W116
WARNING
DON'T
H094IE1A
DO H092IE1B
H027IE1B
HOOKED
END OF
SHIPPING
BRACE
BOLTS
SHOCK SLEEVES
MOTOR
MOUNT
WASHERS

14 504509
Step 8:
Position and Level the Unit
Place unit in position on a clean, firm and reasonably
level floor. Installing the unit on any type of carpeting is
not recommended.
Loosen 9/16" locknuts and adjust the leveling legs until
the unit does not rock and is level from side-to-side and
front-to-back. Hand tighten locknuts against unit base
and then securely tighten locknuts with 9/16" deep well
socket wrench. If the locknuts are not tight, the unit will
move out of positon during operation.
NOTE: Level must rest on raise portion of top panel.
See illustration.
Remove rubber feet from accessories bag andplace on all
four leveling legs.
NOTE: For further assistance, refer to Section on
Location Requirements.
DO NOT slide unit more than four feet across
floor if the leveling legs have been extended,
as legs and base could become damaged. W184
CAUTION
Use of the dispenser drawer or washer or
dryer doors as handles in the transportation
of the unit may cause damage to the
dispenser or doors. W185
CAUTION
H234IE1A
LEVEL
LEVELING
LEG
LOCKNUT
WASHER
BASE
RUBBER
CUP

504509 15
Step 9:
Wipe Out Inside of Washer Drum and
Dryer Drum
Before using the washer and dryer for the first time, use
an all-purpose cleaner, or a detergent and water solution,
and a damp cloth to remove shipping dust from inside the
drums.
Step 10:
Plug In the Washer and Dryer
Refer to Sections on Electrical Requirements and
connect the washer and dryer to an electrical power
source.
Step 11:
Check Installation
Refer to InstallerCheck on the back cover of this manual
and make sure that unit is installed correctly.
H244I
H154IE1A
Washer
Plug cord into separately fused 15 Amp circuit.
Electric Dryer
Connect to 30 Amp circuit.
Gas Dryer
Plug cord into separately fused 15 Amp circuit.
D254IE0A
D275IE1B
D254IE0A

16 504509
Moving Unit to a New Location
To prevent damage while moving the washer, the
shipping materials MUST BE reinstalled.
Reinstallation of Shipping Materials
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers. See
illustration.
Insert hooked end of shipping brace into the open slot of
the motor mount. Attach with bolts and washers. See
illustration.
Reinstall front access panel.
Refer to the Installing the Unit for proper procedures
whenever the washer is moved.
. . .
H027IE1A
HOOKED
END OF
SHIPPING
BRACE
BOLTS
SHOCK SLEEVES
MOTOR
MOUNT

504509 17
Heat Source Check
(Electric Dryers)
Metered Models
Set the proper FABRIC SELECTOR switch at
NORMAL. Place coins in the slide and carefully push
slide in as far as possible. IN USE light will come on
indicating the dryer is ready to operate. Close the loading
door and press the PUSH-TO-START button firmly to
startthe dryer. After dryer has operated for three minutes,
the exhaust air or exhaust pipe should be warm.
(Gas Dryers)
During the gas heat check, observe the burner flame. The
flame can be viewed by removing the lower front panel of
the dryer.
Metered Models
Set FABRIC SELECTOR switch at NORMAL. Place
coins in the slide and carefully push slide in as far as
possible. IN USE light will come on indicating the dryer
is ready to operate. Close the loading door and press the
PUSH-TO-START button firmly. The dryer will start, the
igniter will glow red and the main burner will ignite.
IMPORTANT: If all air is not purged out of the gas
line, the gas igniter may go off before the gas is
ignited. If this happens, after approximately two
minutes the igniter will again attempt gas ignition.
After dryer has operated for approximately five minutes,
observe burner flame. Adjust the air shutter to obtain a
soft, uniform blue flame. (A lazy, yellow tipped flame
indicates lack of air. A harsh, roaring, very blue flame
indicates too much air.) Adjust the air shutter as follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow tipped flame, then turn it back slowly to the
right to obtain a steady soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
Afterdryerhas operatedforapproximatelythreeminutes,
the exhaust air or exhaust pipe should be warm.
. . .
For personal safety, lower front panel must be
in place during normal operation. W046
WARNING
D157IE3C
AIR
SHUTTER
1/8" (3.1 mm)
PIPE PLUG
(For checking
manifold pressure)
OPEN
POSITION
CLOSED
POSITION SHUT-OFF
VALVE
HANDLE
AIR SHUTTER
LOCKSCREW

18 504509
Water Supply Requirements
NOTE: Water supply faucets must fit standard 3/4
inch (19.1 mm) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer is
not being used.
Water Temperature
Cold:
Recommended cold water temperature is 60° to 80°
Fahrenheit, 16° to 27° Celsius.
Hot:
Recommended hot water temperature is 120° to 140°
Fahrenheit, 49° to 60° Celsius.
Warm:
Mixture of hot and cold water. (Warm water temperature
is dependent upon the water temperature and the pressure
of both the hot and cold water supply lines.)
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn off
water supply whenever there will be an extended
period of non-use.
NOTE: Longer inlet hoses are available (as optional
equipment at extra cost) if the hoses (supplied with
the washer) are not long enough for the installation.
Order hoses as follows:
No. 20617 Inlet Hose (8 foot) (2.44m)
No. 20618 Inlet Hose (10 foot) (3.05m)
Water Pressure
Pressure must be a minimum of 20 to a maximum of 120
pounds per square inch (138 to 827 kPa) static pressure
measured at the faucet.
NOTE: Water pressure under 20 pounds per square
inch (138 kPa) will cause an extended fill time in the
washer and may not properly flush out the detergent
dispenser.
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (see illustration
below).
. . .
Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period and before using the washer, turn on
all hot water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas. The
gas is flammable, do not smoke or use an
open flame during this time. W029
WARNING
H096IE1A
WATER
SUPPLY
FAUCETS
WATER
INLET
HOSES
COLD WATER
CONNECTION
WATER
MIXING VALVE
HOT WATER
CONNECTION
W005IE1C
RISERS
(Air cushions)
WATER SUPPLY
FAUCETS
