Installation Instructions
for Stacked Washer/Dryers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.speedqueen.com Part No. 807638EN
June 2019

WARNING
WARNING
Risk of fire. Highly flammable material.
W881
Read all instructions before using unit.
WARNING
FOR YOUR SAFETY, the information in this manual
must be followed to minimize the risk of fire or ex-
plosion or to prevent property damage, personal in-
jury or death.
W033
WARNING
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Clear the room, building or area of all occu-
pants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
W052
IMPORTANT: Purchaser must consult the local gas
supplier for suggested instructions to be followed if
the dryer user smells gas. The gas utility instructions
plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer
for customer use.
WARNING
• Installation of unit must be performed by a quali-
fied installer.
• Install clothes dryer according to manufacturer’s
instructions and local codes.
• DO NOT install a clothes dryer with flexible plas-
tic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type
identified by the appliance manufacturer as suita-
ble for use with clothes dryers. Refer to section
on connecting exhaust system. Flexible venting
materials are known to collapse, be easily crush-
ed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
To reduce the risk of severe injury or death, follow all
installation instructions. Save these instructions.
W894
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
W053
This product uses FreeRTOS V7.2.0 (www.freertos.org).
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 807638EN

The following information applies to the state of Massachusetts,
USA.
• This appliance can only be installed by a Massachusetts li-
censed plumber or gas fitter.
• This appliance must be installed with a 910 mm [36 inch]
long flexible gas connector.
• A “T-Handle” type gas shut-off valve must be installed in the
gas supply line to this appliance.
• This appliance must not be installed in a bedroom or bath-
room.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 807638EN

Table of Contents
Dimensions............................................................................................. 6
Installation............................................................................................. 9
Before You Start............................................................................................. 9
Tools..........................................................................................................9
Parts Included............................................................................................. 9
Parts Needed...............................................................................................9
Removing Dryer......................................................................................... 9
Reassembling Dryer.................................................................................... 9
Order of Installation Steps..........................................................................10
Position Unit Near Installation Area............................................................... 10
Remove Shipping Materials........................................................................... 10
Connect Fill Hoses........................................................................................ 11
Water Supply Requirements....................................................................... 12
Connecting Hoses......................................................................................12
Risers.......................................................................................................12
Connect Drain Hose to Drain Receptacle.........................................................13
Standpipe Installation................................................................................ 13
Wall Installation........................................................................................ 13
Laundry Tub Installation............................................................................ 14

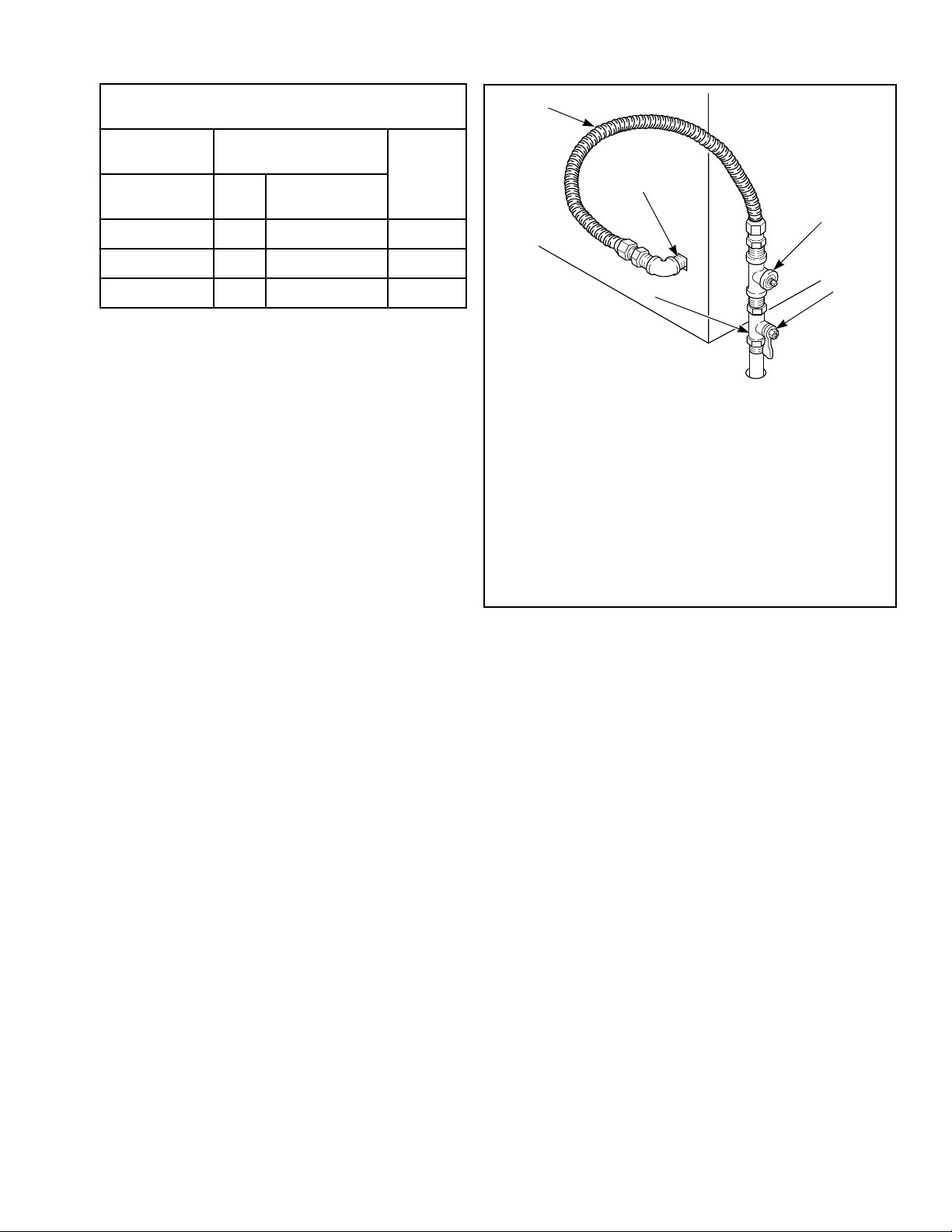

Gas Dryers - Connect Gas Supply Pipe........................................................... 14
Electric Dryer Only - Connect Electrical Plug..................................................16
Earth/Ground Information.......................................................................... 16
Connecting Power Cord with Three-Wire Plug.............................................16
Connecting Power Cord with Four-Wire Plug.............................................. 18
Connect Dryer Exhaust System...................................................................... 20
Exhaust Direction......................................................................................21
Exhaust System.........................................................................................21
Position and Level the Unit............................................................................21
Reverse Door, if Desired................................................................................23
Wipe Out Inside of Washer and Dryer Drum....................................................24
Plug In the Washer and Dryer.........................................................................25
Electric Dryer........................................................................................... 25
Gas Dryer................................................................................................. 25
Washer..................................................................................................... 26
Check Installation......................................................................................... 28
Check Heat Source........................................................................................28
Electric Dryers.......................................................................................... 28
Gas Dryers................................................................................................28
Installer Checklist.................................................................................30
© Copyright 2019, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 807638EN

Dimensions
Electric Models
SWD1050N_SVG
O
Q
PN
M
L
K
J
I
H
G
F
E
D
C
B
A
A * 1678 mm [66.06 in.]
B * 1447 mm [56.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H * 938 mm [36.9 in.]
I ** * 371 mm [14.6 in.]
J * 813 mm [32 in.]
K 683 mm [26.875 in.]
L * 1184 mm [46.62 in.]
M * 1986 mm [78.17 in.]
N 52 mm [2.04 in.]
O 704 mm [27.73 in.]
P (with door closed) 38 mm [1.5 in.]
Q * 333 mm [13.1 in.]
Table continues...
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 807638EN

* With leveling legs turned into base.
** For ADA compliance turn legs out from base 0.5 inches.
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
Gas Models
SWD1051N_SVG
I
H
G
F
E
D
C
B
A
K
M
L
J
Q
R
O
S
P
N
1
1. 3/8 in. NPT Gas Connection
A *1678 mm [66.06 in.]
B *1447 mm [56.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H 59 mm [2.3 in.]
I *938 mm [36.9 in.]
J ** *371 mm [14.6 in.]
K *1140 mm [44.87 in.]
L *813 mm [32 in.]
M 683 mm [26.875 in.]
N *1184 mm [46.62 in.]
O *1986 mm [78.17 in.]
P 52 mm [2.04 in.]
Table continues...
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 807638EN

Q 704 mm [27.73 in.]
R (with door closed) 38 mm [1.5 in.]
S *333 mm [13.1 in.]
* With leveling legs turned into base.
** For ADA compliance turn legs out from base 0.5 inches.
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 807638EN

Installation
Before You Start
Tools
For most installations, the basic tools you will need are:
SWD1021N_SVG
11
10 98
4
3
2
1
6
7
5
1. Wrench
2. 1/4 inch Driver
3. Screwdriver
4. Level
5. Wood Block
6. Pliers
7. 5/16 Inch Socket Wrench
8. Gloves
9. Teflon Tape (Gas Models)
10. Duct Tape
11. Safety Glasses
Figure 1
NOTE: If the unit is delivered on a cold day (below
freezing), or is stored in an unheated room or area dur-
ing the cold months, do not attempt to operate it until
the unit has had a chance to warm up.
NOTE: Some moisture in the wash drum is normal. Wa-
ter is used during testing at the manufacturer.
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Parts Included
An accessories bag has been shipped inside your unit. It includes:
• Product literature
• Three screws (electric dryers only)
• Two fill hoses with washers and filter screens
• Four rubber feet
• Beaded strap
• Two shipping hole plugs
Parts Needed
Two fill hoses are required for installation. Order 807239 Hose
Kit if needed. Kit includes two fill hoses color-coded for hot and
cold water.
If using any other hoses, follow these requirements:
• Hoses must be new.
• Hoses must be a minimum of 3/8 in. inside diameter. Smaller
inside diameter hoses will cause long fill times which could
create nuisance fill errors.
• The two plain rubber washers and two filter screens included
with the washer in the accessories bag must be installed in the
fill hose couplings. Refer to Connecting Hoses. The filter
screens help prevent foreign materials from clogging the wa-
ter mixing valve.
Removing Dryer
Use the following steps if the installation requires removal of the
dryer. Two people are required to perform this task.
1. Remove dryer front access panel.
2. Remove two screws holding control panel to control cabinet.
3. Remove two 7/16 inch screws and washers attaching dryer to
washer.
4. Tip dryer back and disconnect dryer control wire harness
from main dryer wire harness.
5. Slide dryer forward until rear leveling legs slide into notches
in the control cabinet.
6. Lift dryer and place it on a level surface.
Reassembling Dryer
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 807638EN

1. Lift dryer and place it on top of washer so dryer leveling legs
sit in notches in control cabinet.
2. Slide dryer backward until mounting holes in base line up
with holes in front of security cabinet.
3. Reconnect dryer wire harness. If needed, refer to unit’s wiring
diagram.
4. Tip dryer and replace two 7/16 inch screws and washers hold-
ing dryer to washer.
5. Reattach the control panel to the control cabinet using two
screws.
6. Replace dryer’s front access panel.
Order of Installation Steps
The proper order of steps must be followed to ensure correct in-
stallation. Refer to the list below when installing your unit.
1. Position unit near area of installation.
2. Remove the shipping materials.
3. Connect the fill hoses.
4. Connect the drain hose to the drain receptacle.
5. For gas models only, connect the gas supply pipe. Check for
gas leaks.
6. For electric models only, connect the electrical cord.
7. Connect dryer to exhaust system.
8. Position and level the unit.
9. Wipe out inside of washer and dryer drums.
10. Plug in the washer and dryer.
11. Check installation.
12. Start and run the dryer in a heat setting to verify dryer is heat-
ing.
Position Unit Near Installation Area
Move unit so that it is within 1.2 meters [4 feet] of the desired
area of installation.
CAUTION
Washer and dryer are not designed to be operated as
separated, side-by-side units.
W187
The stack washer/dryer must be installed on a ground or base-
ment floor, preferably concrete. If the flooring is wood construc-
tion, the flooring must meet a static load rating of 125 pounds
and a maximum dynamic load rating of 170 pounds per foot. If
the existing floor does not meet the dynamic load rating, the floor
must be re-enforced from below to meet the specification (maxi-
mum span = 16 feet, 2x10 joists, 16 inches on center, 1 inch sub
floor).
The stack washer/dryer must be installed on a smooth, non-slip
surface. Un-level tile and extremely slippery surfaces should be
avoided. Do not install the washer on carpeting, soft tile or other
weakly supported structures.
Failure to meet the minimum floor load and surface requirements
or installing the products on above ground floors can create dif-
ferent levels of vibration or movement that may appear like serv-
ice is required. Speed Queen will not cover scheduled repair serv-
ices where the installation requirements are not per specifica-
tions, nor can products be returned to the authorized dealer in
these cases.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 807638EN

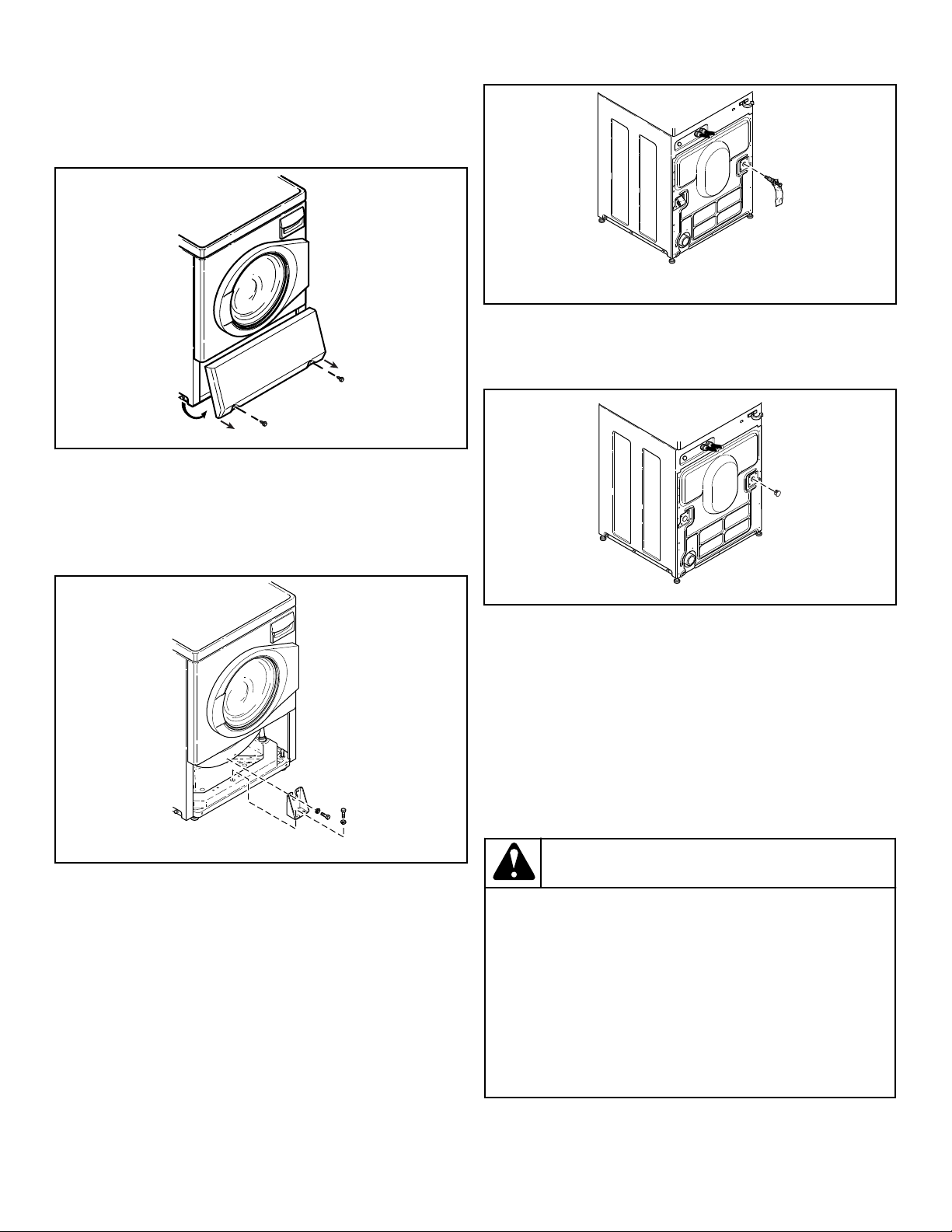

Remove Shipping Materials
1. Remove two screws at bottom of front access panel. Rotate
bottom of panel out and remove panel.
FLW2378N_SVG
Figure 2
2. Remove two 9/16 inch bolts and washers holding shipping
brace to weight.
3. Remove two 9/16 inch bolts and washers holding shipping
brace to washer base and remove brace.
FLW2296N_SVG1
Figure 3
4. Go to rear of washer and pull label from rear shipping bolts.
5. Remove two 9/16 inch bolts. Unscrew each bolt while apply-
ing forward pressure just until bolt stops unthreading. Work
each bolt and spacer out by hand using a circular motion.
NOTE: Avoid backing bolts out completely or
spacers might fall into cabinet.
FLW2297N_SVG1
Figure 4
6. Insert two plugs included in accessories bag into rear shipping
bolt holes.
FLW2358N_SVG
Figure 5
7. Replace front access panel.
8. Save all shipping materials. They must be reinstalled any time
washer is moved more than four feet.
IMPORTANT: Do not lift or transport unit from front
or without shipping materials installed. Refer to the
User’s Guide for proper instructions on reinstalling
the shipping materials.
Connect Fill Hoses
WARNING
Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not been used for
such a period and before using the washer, turn on
all hot water faucets and let the water flow from each
for several minutes. This will release any accumula-
ted hydrogen gas. The gas is flammable. Do not
smoke or use an open flame during this time.
W029
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 807638EN

Water Supply Requirements
Water supply faucets must fit standard 19 mm [3/4 inch] female
garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-
ON CONNECTIONS.
NOTE: Water supply faucets should be readily accessi-
ble to permit turning them off when washer is not being
used.
Recommended cold water temperature is 10° to 24° Celsius [50°
to 75° Fahrenheit]. Recommended maximum hot water tempera-
ture is 51° Celsius [125° Fahrenheit]. Warm water is a mixture of
hot and cold water. Warm water temperature is dependent upon
the water temperature and the pressure of both the hot and cold
water supply lines.
WARNING
To prevent personal injury, avoid contact with inlet
water temperatures higher than 51° Celsius [125°
Fahrenheit] and hot surfaces.
W748
Maximum flow rate for all water temperatures is 9.46 liters per
minute [2.5 gallons per minute] ± 15%.
Water pressure must be a minimum of 138 to a maximum of 827
kPa [minimum of 20 to a maximum of 120 pounds per square
inch] static pressure measured at the faucet.
NOTE: Water pressure under 138 kPa [20 pounds per
square inch] will cause an extended fill time in the
washer and may not properly flush out the detergent
dispenser.
Turn on the water supply faucets and flush the lines for approxi-
mately two minutes to remove any foreign materials that could
clog the screens in the water mixing valve. This is especially im-
portant when installing your washer in a newly constructed or
renovated building. Build-up may have occurred during construc-
tion.
Connecting Hoses
1. Remove the two plain rubber washers and two filter screens
from the accessories bag.
2. Install them into each end of the fill hoses as shown in Figure
6 . The screen must be facing outward.
3. Screw hose couplings with the filter screens onto the water
faucets until they are finger-tight. Use the red color-coded
hose for the hot water connection and the blue color-coded
hose for the cold water connection.
4. Then, using a pliers, screw approximately 1/4 turn.
5. Screw hose couplings from other end of hoses onto the water
mixing valve until they are finger-tight. Make sure the red
color-coded hose from the hot water faucet goes to the water
mixing valve marked “H” and the blue color-coded hose from
the cold faucet goes to the valve marked “C”. Refer to Figure
Figure 6 .
6. Then, using a pliers, screw approximately 1/4 turn.
IMPORTANT: DO NOT cross thread or overtighten
couplings. This will cause them to leak.
7. Turn water on and check for leaks.
8. If leaks are found, turn off the water, unscrew hoses and rein-
stall them until there are no leaks.
IMPORTANT: Turn off water supply whenever there
will be an extended period of non-use.
FLW2304N_SVG1
COLD
HOT
14
5
6
7
8
23
1. Filter Screen (Screen must be facing outward)
2. Fill Hose
3. Rubber Washer (Plain)
4. Cold Water Connection
5. Hot Water Connection
6. Install this end of hose to valve connections at rear of
washer.
7. Install this end of hose to water supply faucet.
8. Faucet
Figure 6
IMPORTANT:
Hoses and other rubber parts deteriorate after exten-
ded use. Hoses may develop cracks, blisters or materi-
al wear from the temperature and constant high pres-
sure they are subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be re-
placed immediately. All hoses should be replaced ev-
ery five years.

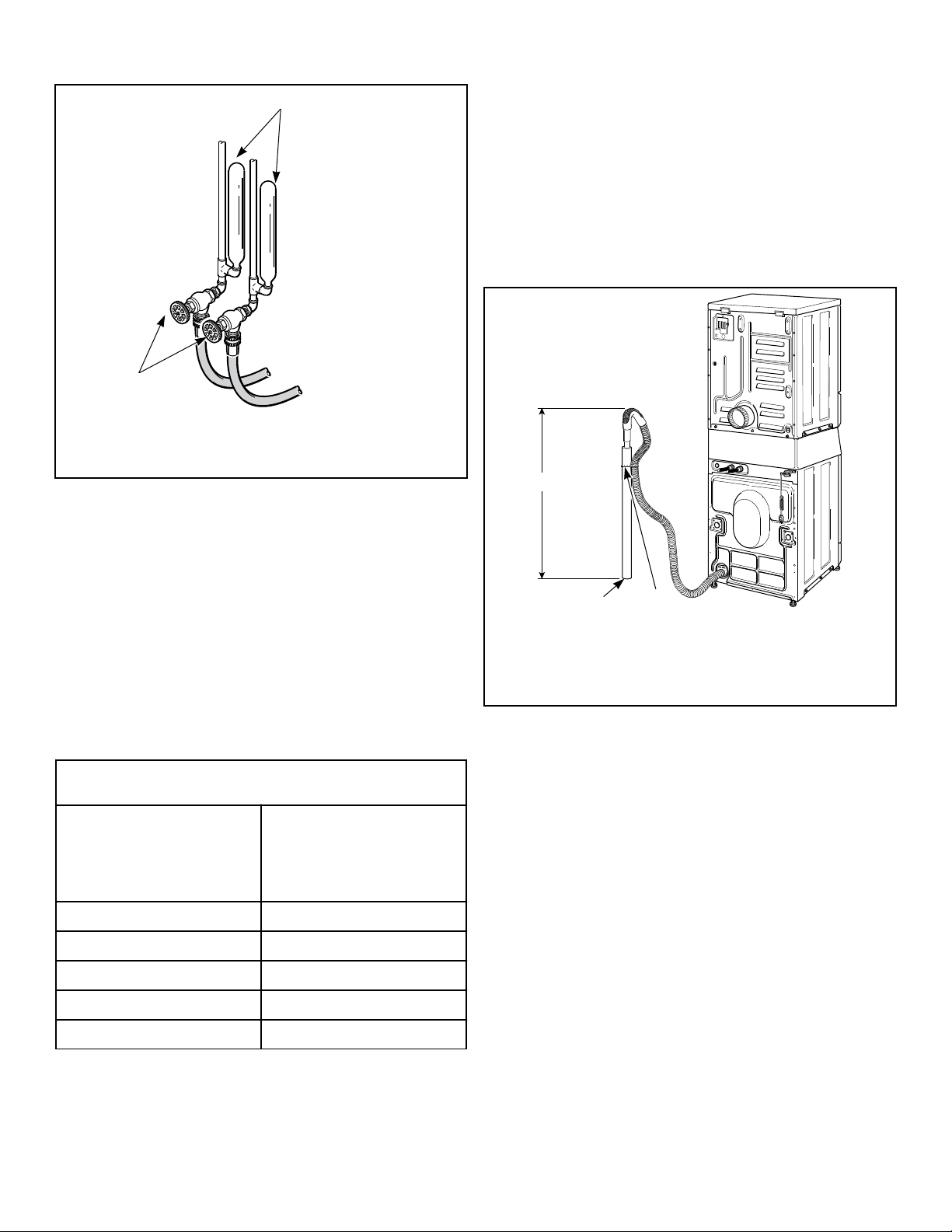

Risers
Risers (or air cushions) may have to be installed if the pipes
knock or pound when flow of water stops. The risers are more ef-
ficient when installed as close as possible to the water supply fau-
cets. Refer to Figure 7 .
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 807638EN

W005I_SVG
2
1
1. Risers (Air cushions)
2. Water Supply Faucets
Figure 7
Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on the rear of
the washer by unhooking the hose from the retainer clamp and by
removing the shipping tape.
Install the drain hose into the drain receptacle (standpipe, wall or
laundry tub) following the instructions below.
IMPORTANT: Drain receptacle must be capable of han-
dling a minimum of 32 mm [1-1/4 inch] outside diame-
ter drain hose.
Drain Flow Rate
Drain Height
Flow Rate
liters per minute [gal-
lons per minute]
0.9 m [3 ft.] 32,7 [8,6]
1.5 m [5 ft.] 25.9 [6,8]
1.8 m [6 ft.] 22,7 [6,0]
2.1 m [7 ft.] 19,5 [5,1]
2.4 m [8 ft.] 15,2 [4,0]
Standpipe Installation
1. Place the drain hose into the standpipe.
2. Remove the beaded tie-down strap from accessories bag and
place around standpipe and drain hose. Refer to Figure 8 .
a. Insert the end of the beaded strap into the larger hole
found on the end of the strap.
b. Tighten to desired fit.
c. Lock strap in place by pulling beaded strap into the ta-
pered smaller opening of the beaded strap end. A distinct
snap noise should be heard once the strap is properly seat-
ed.
d. Pull on the strap once locked in place to ensure beaded
strap is properly installed. This will prevent the drain hose
from dislodging from drain receptacle during use.
SWD1010N_SVG
32
1
1. 610 to 914 mm [24 to 36 in.] Recommended Height
2. Beaded strap from accessory bag
3. Standpipe 51 mm [2 in.] or 40 mm [1-1/2 in.]
Figure 8
Wall Installation
For installations of this type, the drain hose MUST be secured to
one of the fill hoses using the beaded strap from accessories bag.
Refer to Figure 9 .
NOTE: End of drain hose must not be below 610 mm
[24 in.].
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. 807638EN

H023i_SVG
1
3
2
1. Drain Hose
2. Beaded Strap (tape if necessary)
3. Fill Hoses
Figure 9
Laundry Tub Installation
For this type of installation, the drain hose MUST be secured to
the stationary tub to prevent hose from disloding during use. Re-
fer to Figure 10 . Use the beaded strap (supplied in accessories
bag) to secure hose.
SWD1011N_SVG
2
1
1. Drain Hose
2. Beaded Strap (tape if necessary)
Figure 10

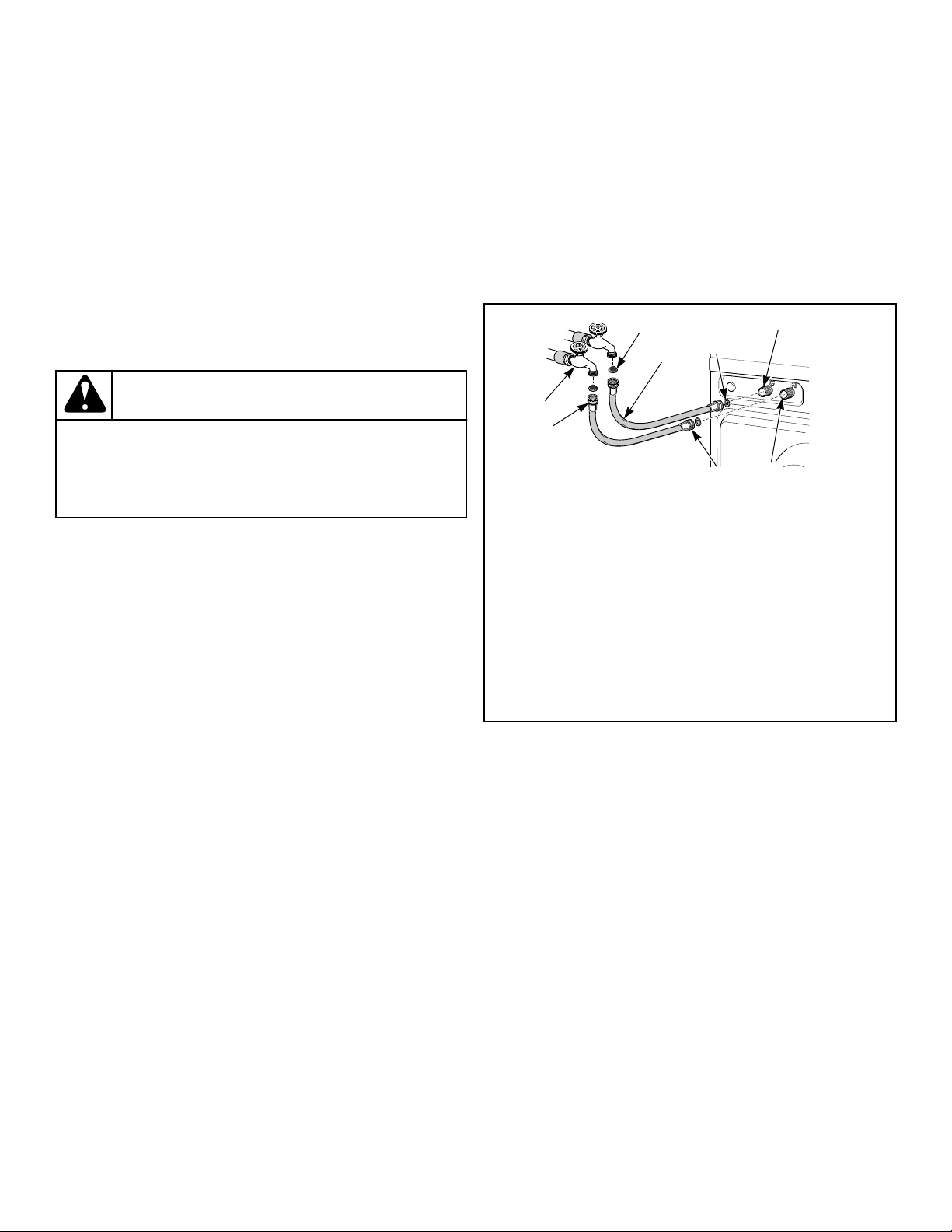

Gas Dryers - Connect Gas Supply Pipe
WARNING
To reduce the risk of gas leaks, fire or explosion:
• The dryer must be connected to the type of gas
as shown on nameplate located in the door re-
cess.
• Use a new flexible stainless steel connector.
• Use pipe joint compound insoluble in L.P. (Lique-
fied Petroleum) Gas, or Teflon tape, on all pipe
threads.
• Purge air and sediment from gas supply line be-
fore connecting it to the dryer. Before tightening
the connection, purge remaining air from gas line
to dryer until odor of gas is detected. This step is
required to prevent gas valve contamination.
• Do not use an open flame to check for gas leaks.
Use a non-corrosive leak detection fluid.
• Any disassembly requiring the use of tools must
be performed by a suitably qualified service per-
son.
W316
1. Make certain your dryer is equipped for use with the type of
gas in your laundry room. Dryer is equipped at the factory for
Natural Gas with a 3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must conform
with the local codes and ordinances, or in the ab-
sence of local codes and ordinances, with the latest
edition of the National Fuel Gas Code ANSI Z223.1/
NFPA 54 or the CAN/CSA-B149.1 Natural Gas and
Propane Installation Code.
Natural Gas, 37.3 MJ/m3 [1000 Btu/ft3], service must be supplied
at minimum 5.0 inch water column pressure to maximum 10.5
inch water column pressure.
For proper operation at altitudes above 915 m [3000 feet] the nat-
ural gas valve spud orifice size must be reduced to ensure com-
plete combustion. Refer to Table 1 .
Natural Gas Altitude Adjustments
Altitude Orifice Size
Part
No.m [feet] No. mm [inches]
915 [3000] 43 2.26 [0.0890] D503778
1830 [6000] 44 2.18 [0.0860] 58719
Table 1 continues...
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. 807638EN

Natural Gas Altitude Adjustments
Altitude Orifice Size
Part
No.m [feet] No. mm [inches]
2440 [8000] 45 2.08 [0.0820] D503779
2740 [9000] 46 2.06 [0.0810] D503780
3050 [10,000] 47 1.99 [0.0785] D503781
Table 1
2. Remove the shipping cap from the gas connection at the rear
of the dryer. Make sure you do not damage the pipe threads
when removing the cap.
NOTE: If gas supply connection is British Standard
Pipe Tapered thread (BSPT), order 44178804 brass
female NPT (FPT) to male BSPT gas pipe thread
adapter, available at extra cost.
3. Connect to gas supply pipe using thread sealant or Teflon
tape. Torque 10.2 - 19.7 Nm [90 - 175 inch-pounds].
NOTE: The connection of gas supply to the appli-
ance shall be made with a flexible hose suitable for
the appliance category in accordance with national
installation regulations of the country of destina-
tion. If in doubt contact the dryer distributor or man-
ufacturer.
NOTE: When connecting to a gas line, an equipment
shut-off valve in accordance with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 and the Natural
Gas and Propane Installation Code, CSA B149.1
must be installed within 1.8 m [6 feet] of the dryer.
An 1/8 in. NPT pipe plug must be installed as shown
for checking inlet pressure. Refer to Figure 11 .
Starting Serial No. 1908000001, the following must be furnished
and installed by the customer for the gas service line to dryer:
Union at gas supply connection (listed to ANSI Z21.24 and CSA
6.10).
D233I_SVG
2
3
4
1
5
1. New Stainless Steel Flexible Connector – (Use design
CSA certified connector) Use only if allowed by local co-
des
2. 1/8 in. NPT Pipe Plug
3. Equipment Shut-Off Valve
4. Black Iron Pipe:
Shorter than 6.1 m [20 ft.] – Use 9.5 mm [3/8 in.] pipe.
Longer than 6.1 m [20 ft.] – Use 12.7 mm [1/2 in.] pipe.
5. 3/8 in. NPT Gas Connection
Figure 11
4. Tighten all connections securely but don't overtighten to avoid
breaking or bending the gas valve bracket. Turn on gas and
check all pipe connections (internal & external) for gas leaks
with a non-corrosive leak detection fluid.
NOTE: The dryer and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of 3.45 kPa [1/2 psi]. Refer to Check
Heat Source.
NOTE: DO NOT connect the dryer to L.P. Gas Service
without converting the gas valve. Install L.P. Gas Con-
version Kit 649P3, available at extra cost.
L.P. (Liquefied Petroleum) Gas, 93.1 MJ/m3 [2500 Btu/ft.3], serv-
ice must be supplied at 10 ± 1.5 inch water column pressure.
For proper operation at altitudes above 915 m [3000 feet] the L.P.
gas valve spud orifice size must be reduced to ensure complete
combustion. Refer to Table 2 .
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. 807638EN

L.P. Altitude Adjustments
Altitude Orifice Size
Part No.m [feet] No. mm [inches]
915 [3000] 55 1.32 [0.0520] 58755
2440 [8000] 56 1.18 [0.0465] D503786
Table 2
Electric Dryer Only - Connect Electrical
Plug
Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz, 3 or 4
wire electrical supply. Refer to serial plate for specific electrical
requirements.
IMPORTANT: Use only a new U.L. listed No. 10 (copper
wire only) three or four conductor power supply cord
kit rated 240 Volts (minimum) 30 Amperes and labeled
as suitable for use in a clothes dryer.
NOTE: The wiring diagram is located in the control cab-
inet.
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death, all wiring and grounding MUST con-
form with the latest edition of the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local regulations as
might apply. It is the customer’s responsibility to
have the wiring and fuses installed by a qualified
electrician to make sure adequate electrical power is
available to the dryer.
W521
Earth/Ground Information
This dryer must be properly connected to protective earth/ground
metal, permanent wiring system; or an equipment-earth/ground
conductor must be run with the circuit conductors and connected
to the equipment-earth/ground terminal or lead on the dryer.
The dryer has its own terminal block that must be connected to a
separate branch, 60 Hertz, single phase circuit, AC (alternating
current) circuit, fused at 30 Amperes (the circuit must be fused on
both sides of the line). Electrical service for the dryer should be
of maximum rated voltage (208 or 240 Volt, depending on heat-
ing element) listed on the serial plate. Do not connect dryer to
110, 115, or 120 Volt circuit.
Heating elements are available for field installation in dryers
which are to be connected to electrical service of different volt-
age than that listed on serial plate, such as 208 Volt.
NOTE: Branch circuit wire size requirements to laundry
room outlet are shown in table below.
Wire Length Wire
Less than 4.5 m [15 ft.] Listed No. 10 AWG Copper
wire only
Longer than 4.5 m [15 ft.] Listed No. 8 AWG Copper
wire only
Table 3
The power cord connection between wall receptacle and dryer
terminal block IS NOT supplied with dryer. Type of power cord
and gauge of wire must conform to local codes.
Connecting Power Cord with Three-Wire Plug
NOTE: Four-wire cord is required for new branch-cir-
cuit installations, mobile homes or where codes do not
permit grounding through neutral.
NOTE: The power cord is NOT supplied with the elec-
tric dryer. Type of power cord and gauge of wire must
conform to local codes and instructions. The method
of wiring the dryer is optional and subject to local code
requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the serial plate.
NOTE: Use COPPER WIRE only.
Shorter than 15 ft. (4.5 m) – use 10 AWG
Longer than 15 ft. (4.5 m) – use 8 AWG
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. 807638EN

D816I_SVG
L1 L2 L1 L2
15
16
5
22
3
4
8
9
12
13
10
11
7
6
1
14

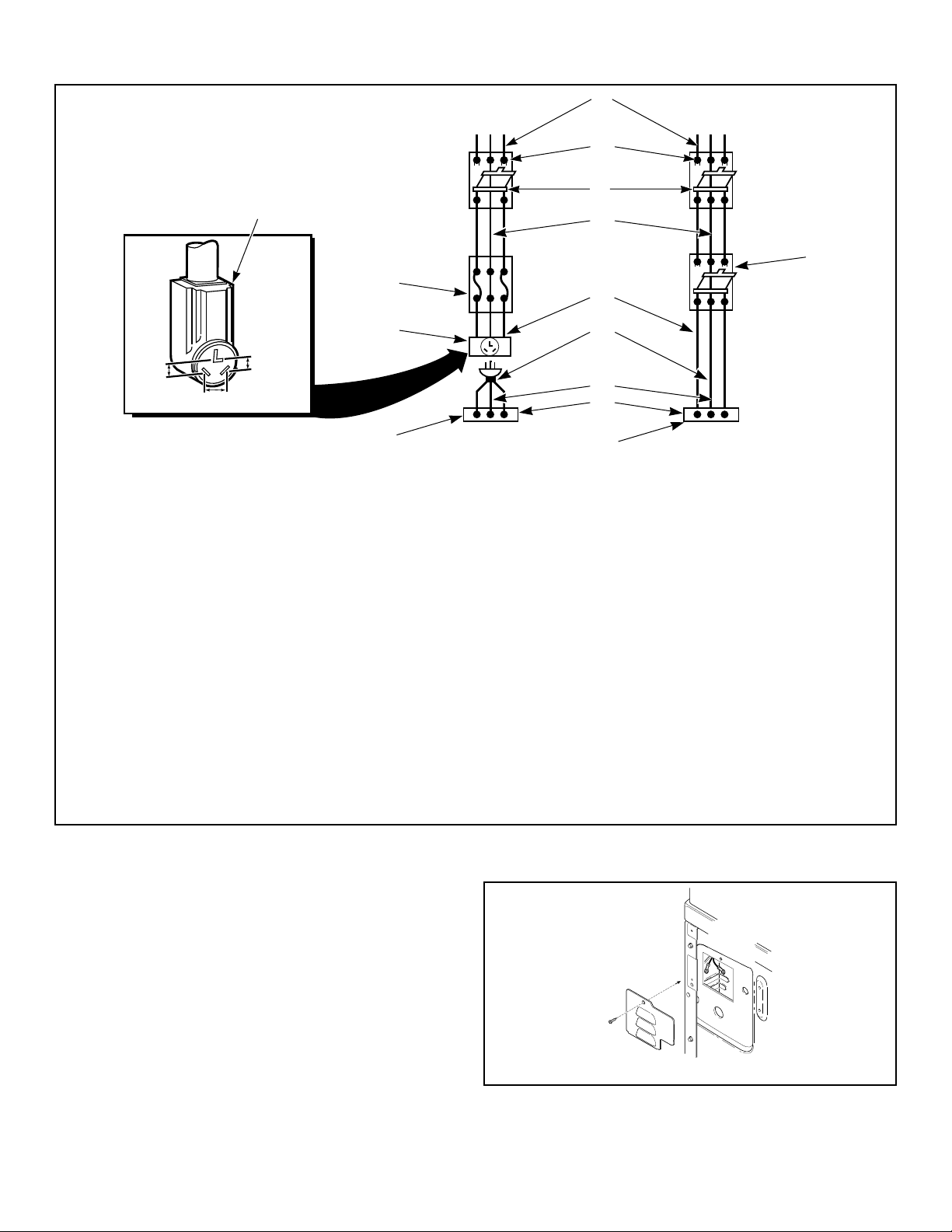

1. A typical 30-Amp Three-Wire Receptacle NEMA Type 10-30R
2. 120 ± 12 V.A.C.
3. 240 ± 12 V.A.C.
4. Intermediate Fuse Box (may be omitted if service entrance box is fused)
5. Wall Receptacle
6. Power Supply
7. 3-Wire Earth/Ground Neutral 120/240 Volt, 60 Hertz AC 1 Phase Service Entrance Switch Box (Refer to NOTE above)
8. 30 Ampere Fuses or Circuit Breaker
9. Neutral Wire
10. Metallic or Non-Metallic Sheathed Cable (Copper Wire Only)
11. Power Cord (Not supplied with dryer)
12. Neutral
13. Terminal Block in Dryer
14. Intermediate Shut-Off Box (may or may not be fused)
15. Direct Connection
16. Power Cord Connection
Figure 12
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
D695I_SVG
Figure 13
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. 807638EN

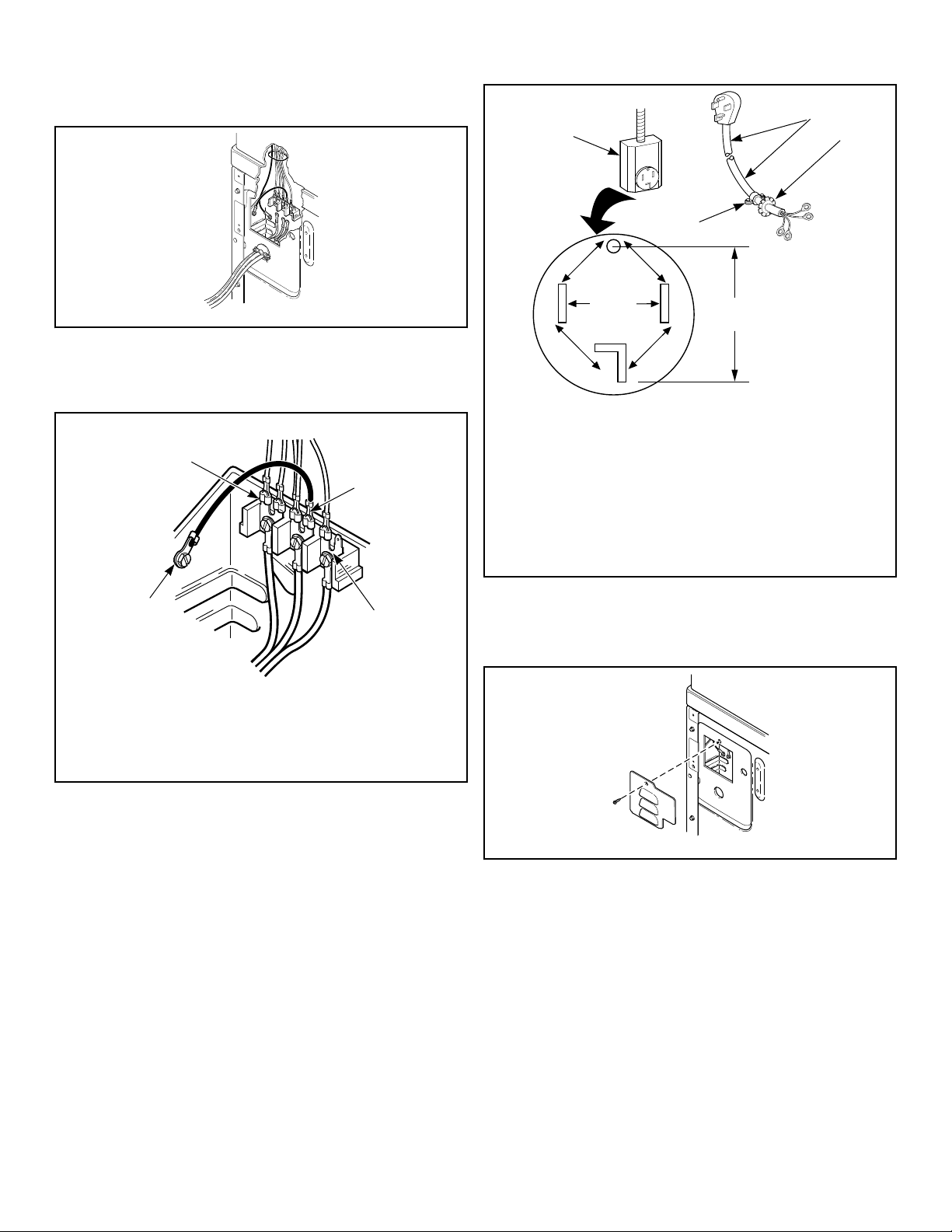

3. Use a strain relief and insert end of power cord through power
supply hole.
D696I_SVG
Figure 14
4. Use the three screws from the accessories bag to attach the
power cord wires to the terminal block. Refer to Figure 15 .
3-Wire Connection
DRY2508N_SVG
43
2
1
1. "L1" Terminal
2. Neutral Terminal
3. "L2" Terminal
4. Earth/Ground to Bulkhead
Figure 15
5. Using a screwdriver, tighten all screws firmly.
IMPORTANT: Failure to tighten these screws firmly
may result in wire failure at the terminal block.
6. Secure the strain relief to the power cord, or wires, where they
enter the dryer cabinet.
7. Check the continuity of the earth/ground connection before
plugging the cord into an outlet. Use an acceptable indicating
device connected to the center earth/ground pin of the plug
and the green screw on the back of the cabinet.
8. Reinstall access cover and screw.
Connecting Power Cord with Four-Wire Plug
NOTE: Four-wire cord is required for new branch-cir-
cuit installations, mobile homes or where codes do not
permit grounding through neutral.
DRY2016N_SVG
7
7
7
7
6
3
2
1
4
5
1. Typical Four-Wire Receptacle
2. Power Cord – Not Supplied with Dryer
3. Strain Relief Nut
4. Strain Relief
5. 0 V.A.C.
6. 240 ± 12 V.A.C.
7. 120 ± 12 V.A.C.
Figure 16
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
DRY2467N_SVG
Figure 17
3. Remove earth/ground screw from earth/ground to neutral wire
and save for use in Step 5. Earth/ground to neutral wire will
be attached to the neutral terminal in Step 6.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 807638EN

DRY2468N_SVG
1
1. Earth/Ground Screw
Figure 18

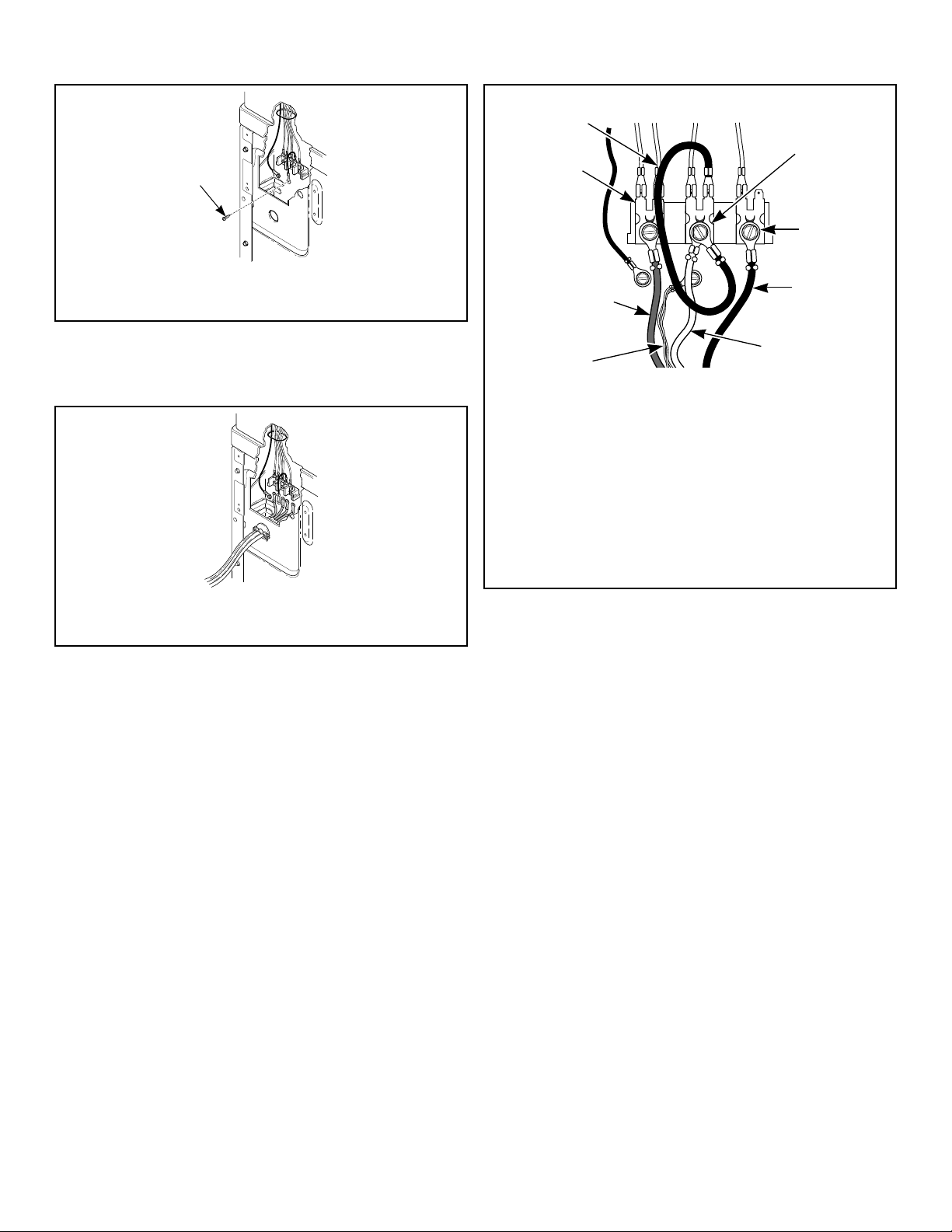

4. Use a strain relief and insert end of power cord through power
supply hole.
DRY2469N_SVG
1. Strain Relief
Figure 19
5. Attach power cord earth/ground (green) wire to rear bulkhead
using earth/ground screw removed in Step 3.
4-Wire Connection
DRY2482N_SVG
1
2
3
4
5
6
7
8
1. Neutral Terminal
2. “L2” Terminal
3. Black
4. White
5. Earth/Ground
6. Red
7. “L1” Terminal
8. Earth/Ground to Neutral Wire
Figure 20
6. Use the three screws from the accessories bag to attach the re-
maining power cord wires to the terminal block as follows:
a. Red wire to “L1” terminal.
b. Black wire to “L2” terminal.
c. White wire to Neutral terminal.
NOTE: When installing the white wire, loop the free
eyelet end of the earth/ground to neutral wire (re-
moved in Step 3) and attach along with the white
wire to the neutral (center) terminal on the terminal
block.
7. Using a screwdriver, tighten all screws firmly.
IMPORTANT: Failure to tighten these screws firmly
may result in wire failure at the terminal block.
8. Secure the strain relief to the power cord, or wires, where they
enter the dryer cabinet.
9. Check the continuity of the earth/ground connection before
plugging the cord into an outlet. Use an acceptable indicating
device connected to the center earth/ground pin of the plug
and the green screw on the back of the cabinet.
10. Reinstall access cover and screw.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. 807638EN

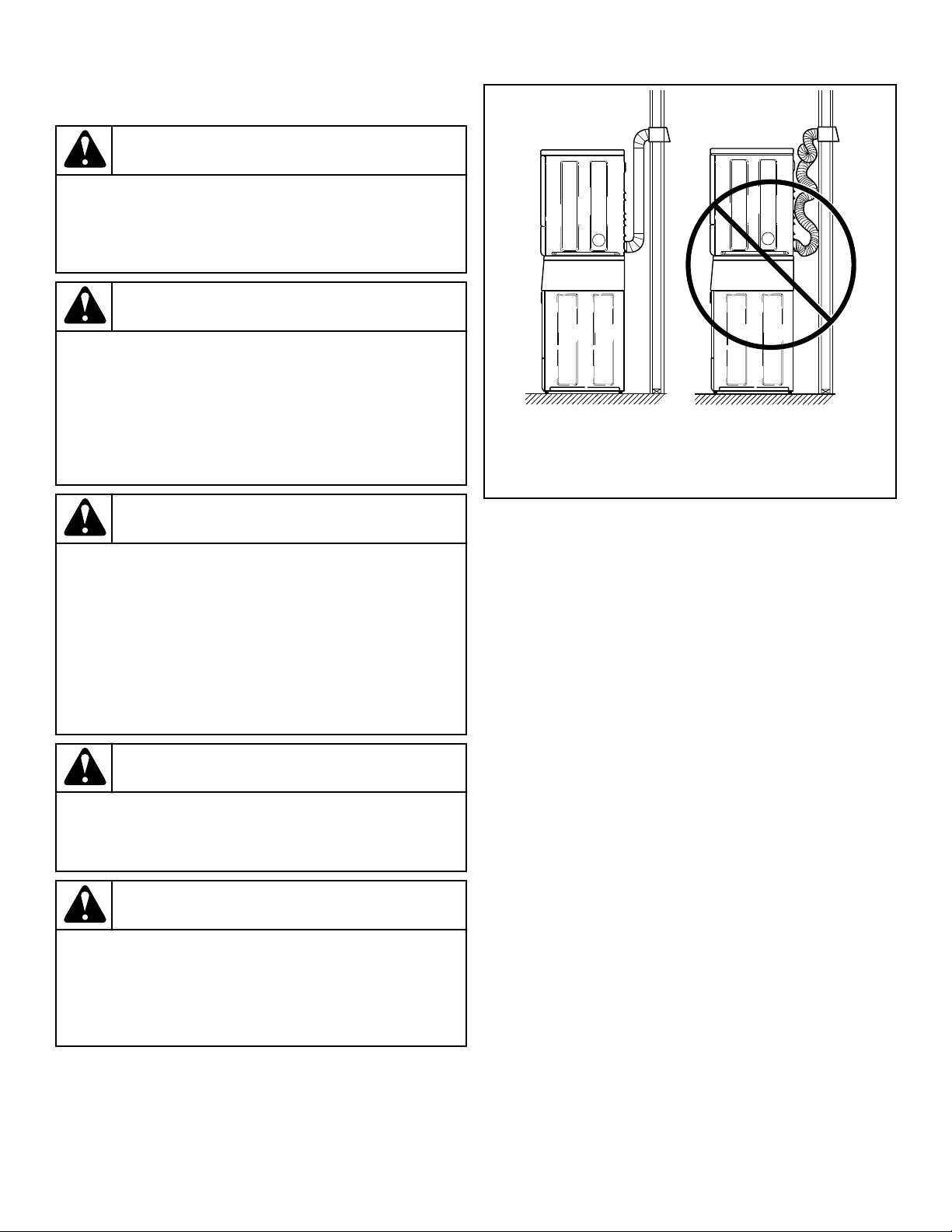

Connect Dryer Exhaust System
WARNING
To reduce the risk of fire and combustion gas accu-
mulation the dryer MUST be exhausted to the out-
doors.
W604
WARNING
To reduce the risk of fire and the accumulation of
combustion gases, DO NOT exhaust dryer air into a
window well, gas vent, chimney or enclosed, unven-
tilated area, such as an attic, wall, ceiling, crawl
space under a building or concealed space of a
building.
W045
WARNING
This gas appliance contains or produces a chemical
or chemicals which can cause death or serious ill-
ness and which are known to the State of California
to cause cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in the fuel
or from fuel combustion, make sure this appliance is
installed, operated, and maintained according to the
instructions in this manual.
W115
WARNING
To reduce the risk of fire, DO NOT use plastic or thin
foil ducting to exhaust the dryer.
W354
WARNING
To reduce the risk of fire, the exhaust duct and
weather hood MUST be fabricated of a material that
will not support combustion. Rigid or flexible metal
pipe is recommended for a clothes dryer.
W048
SWD997N_SVG
21
1. Correct
2. Incorrect
Figure 21
• DO NOT use plastic, thin foil or type B ducting. Rigid metal
duct is recommended.
• Locate dryer so exhaust duct is as short as possible.
• Be certain old exhaust ducts are cleaned before installing your
new dryer.
• Use 102 mm [4 inch] diameter rigid or flexible metal duct.
• The male end of each section of duct must point away from
the dryer.
• Use as few elbows as possible.
• Use of duct tape or pop-rivets on all seams and joints is rec-
ommended, if allowed by local codes. DO NOT use sheet
metal screws or fasteners on exhaust pipe joints which extend
into the duct and catch lint.
• Ductwork that runs through unheated areas must be insulated
to help reduce condensation and lint build-up on pipe walls.
• In mobile home installations, dryer exhaust duct must be se-
cured to mobile home structure.
• Dryer exhaust duct MUST NOT terminate under mobile
home.
• Exhaust duct must not be connected to any other duct, vent, or
chimney.
• Dryer exhausts 220 cfm per unit (measured at back of dryer).
• DO NOT install flexible duct in concealed spaces, such as a
wall or ceiling.
• Static pressure in exhaust duct should not be greater than 1.5
cm water column [0.6 inches water column], measured with
manometer placed on exhaust duct 610 mm [2 feet] from dry-
er (check with dryer running and no load).
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. 807638EN
