Alliance Laundry Systems SWD447C Guide

Installation/Operation
www.comlaundry.com
Stacked
Washer and Dryer
Metered
Electric and Gas Models
SWD446C
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. 801539R3
July 2005
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

801539 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
unit user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must
be posted in a prominent location near the unit for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
The following information applies to the state of Massachusetts, USA.
●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
●A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
●This appliance must not be installed in a bedroom or bathroom.

2801539
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

© Copyright 2005, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
801539 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Replacement Parts.............................................................................. 7
Safety Information.............................................................................. 9
Explanation of Safety Messages........................................................... 9
Important Safety Instructions ............................................................... 9
Installation........................................................................................... 13
Non-Gravity Drain Models .............................................................. 13
Gravity Drain Models ...................................................................... 15
Before You Start................................................................................... 16
Tools ................................................................................................ 16
Water................................................................................................ 16
Gas ................................................................................................... 16
Location ........................................................................................... 16
Exhaust............................................................................................. 16
Electrical .......................................................................................... 16
Installing the Unit ................................................................................. 17
Step 1: Position Unit Near Installation Area.................................... 17
Step 2: Connect Water Fill Hoses.................................................... 17
Step 3: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle....................................... 19
Step 4: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System........................................... 20
Step 5: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 20
Step 6: (Electric Dryer Only) Connect Electrical Plug.................... 22
Step 7: Connect Dryer Exhaust System........................................... 23
Step 8: Position and Level the Unit ................................................. 24
Step 9: (Washer Only)
Remove the Shock Sleeves and Shipping Brace............................ 25
Step 10: Wipe Out Inside of Washer Drum and Dryer Drum.......... 25
Step 11: Plug In the Washer and Dryer ........................................... 26
Step 12: Check Installation .............................................................. 26
Moving Unit to a New Location ...................................................... 26
Heat Source Check ............................................................................... 27
Electric Dryers ................................................................................. 27
Gas Dryers ....................................................................................... 27
Electrical Requirements........................................................................ 28
Washer ............................................................................................. 28
Electric Dryer................................................................................... 29
Electrical Connection............................................................................ 31
Three-Wire Power Cord................................................................... 31
Three-Wire Connection ................................................................... 32
Four-Wire Power Cord .................................................................... 33
Four-Wire Connection ..................................................................... 35
Electrical Requirements........................................................................ 36
Gas Dryer......................................................................................... 36
Gas Requirements................................................................................. 38

4801539
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Water Supply Requirements................................................................. 40
Water Temperature .......................................................................... 40
Water Pressure ................................................................................. 40
Risers................................................................................................ 40
Location Requirements......................................................................... 41
Dryer Exhaust Requirements................................................................ 42
Exhaust System Materials................................................................ 42
Make-Up Air Requirements............................................................. 43
Make-Up Air Dos and Don’ts.......................................................... 43
Exhaust Direction............................................................................. 43
Exhaust System................................................................................ 44
Exhaust System Maintenance .......................................................... 45
Dryer Airflow................................................................................... 45
Multi-Dryer Installation Exhaust Requirements................................... 46
Lint Filter.............................................................................................. 48
Dryer Motor Overload Protector .......................................................... 48
Operation............................................................................................. 49
Operation Instructions for MDC Washers............................................ 49
Step 1: Load Laundry....................................................................... 49
Step 2: Close Loading Door............................................................. 49
Step 3: Add Laundry Supplies ......................................................... 50
Step 4: Determine Proper Controls for Washer ............................... 50
Step 5: Set Fabric Selector and Wash Temperature......................... 50
Step 6: Insert Coin(s) or Card .......................................................... 51
Step 7: Start Washer......................................................................... 51
Indicator Lights................................................................................ 52
Operation Instructions for NetMaster Washers .................................... 53
Step 1: Load Laundry....................................................................... 53
Step 2: Close Loading Door............................................................. 53
Step 3: Add Laundry Supplies ......................................................... 53
Step 4: Determine Proper Controls for Washer ............................... 54
Step 5: Set Fabric Selector............................................................... 54
Step 6: Set Wash Temperature......................................................... 54
Step 7: Insert Coin(s) or Card .......................................................... 54
Step 8: Start Washer......................................................................... 55
Indicator Lights................................................................................ 55
Operation Instructions for MDC Dryers............................................... 56
Step 1: Clean Lint Filter................................................................... 56
Step 2: Load Laundry....................................................................... 56
Step 3: Close Loading Door............................................................. 56
Step 4: Determine Proper Controls for Dryer.................................. 57
Step 5: Set Fabric Selector............................................................... 57
Step 6: Insert Coin(s) or Card .......................................................... 57
Step 7: Start Dryer ........................................................................... 58
Indicator Lights................................................................................ 58

801539 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation Instructions for NetMaster Dryers....................................... 59
Step 1: Clean Lint Filter................................................................... 59
Step 2: Load Laundry....................................................................... 59
Step 3: Close Loading Door............................................................. 59
Step 4: Determine Proper Controls for Dryer.................................. 60
Step 5: Set Fabric Selector............................................................... 60
Step 6: Insert Coin(s) or Card .......................................................... 60
Step 7: Start Dryer ........................................................................... 61
Indicator Lights................................................................................ 61
Maintenance ........................................................................................ 63
User-Maintenance Instructions............................................................. 63
Lubrication....................................................................................... 63
Cold Weather Care........................................................................... 63
Vacations and Extended Non-Use ................................................... 63
Care of Your Washer ....................................................................... 63
Replacing Hoses............................................................................... 63
Filter Screen..................................................................................... 63
Care of Your Dryer .......................................................................... 63
Exhaust System................................................................................ 64
For Energy Conservation...................................................................... 64
Before You Call for Service ................................................................. 65
If Service Is Required ........................................................................... 66
Information for Handy Reference......................................................... 67
Installer Checklist.................................................................. Back Cover

6801539
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

7
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your unit or contact: Alliance Laundry Systems Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

801539
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

9
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the unit.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the unit.
3. Do not wash or dry articles that have been
previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they
give off vapors that could ignite or explode.
4. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
5. Do not allow children to play on or in the unit.
Close supervision of children is necessary when
the unit is used near children. This is a safety rule
for all appliances.
6. Before the unit is removed from service or
discarded, remove the doors to the washing and
drying compartments.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
or injury to persons when using your
stacked washer and dryer, follow these
basic precautions.
W287
WARNING

Safety Information
801539
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. Do not reach into the washer or dryer if the
cylinders are revolving.
8. Do not install or store the unit where it will be
exposed to water and/or weather.
9. Do not tamper with the controls.
10. Do not repair or replace any part of the unit, or
attempt any servicing unless specifically
recommended in the User-Maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
11. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. To reduce the risk of an electric shock or fire, DO
NOT use an adapter to connect the unit to the
electrical power source.
14. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
15. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
16. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
17. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
18. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
19. Washer and dryer will not operate with the
loading door open. DO NOT bypass the door
safety switches by permitting the washer or dryer
to operate with the doors open. The washer and
dryer will stop tumbling when the doors are
opened. Do not use the washer or dryer if they do
not stop tumbling when the doors are opened or
start tumbling without pressing the START
mechanisms. Remove the unit from use and call
the service person.
20. Do not put articles soiled with vegetable or
cooking oil in the washer or dryer. Due to the oil,
the fabric may catch on fire by itself.
21. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
22. Use your washer only for its intended purpose,
washing clothes.
23. Use the dryer only for its intended purpose,
drying clothes.
24. Always disconnect the electrical power to the
washer and dryer before attempting service to
either unit. Disconnect the power cords by
grasping the plug, not the cord.
25. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
26. Install this unit according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
27. Keep your unit in good condition. Bumping or
dropping the unit can damage safety features. If
this occurs, have your unit checked by a qualified
service person.

Safety Information
11
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
28. Remove laundry immediately after the dryer
stops.
29. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
30. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
31. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
32. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
33. Never operate the unit with any guards and/or
panels removed.
34. DO NOT operate the unit with missing or broken
parts.
35. DO NOT bypass any safety devices.
36. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
37. Do not operate washer and dryer if the units have
been separated.
IMPORTANT: Solvent vapors from dry-cleaning
machines create acids when drawn through the
heater of the drying unit. These acids are corrosive
to the dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent vapors.
IMPORTANT: Have your unit installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

801539
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

13
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

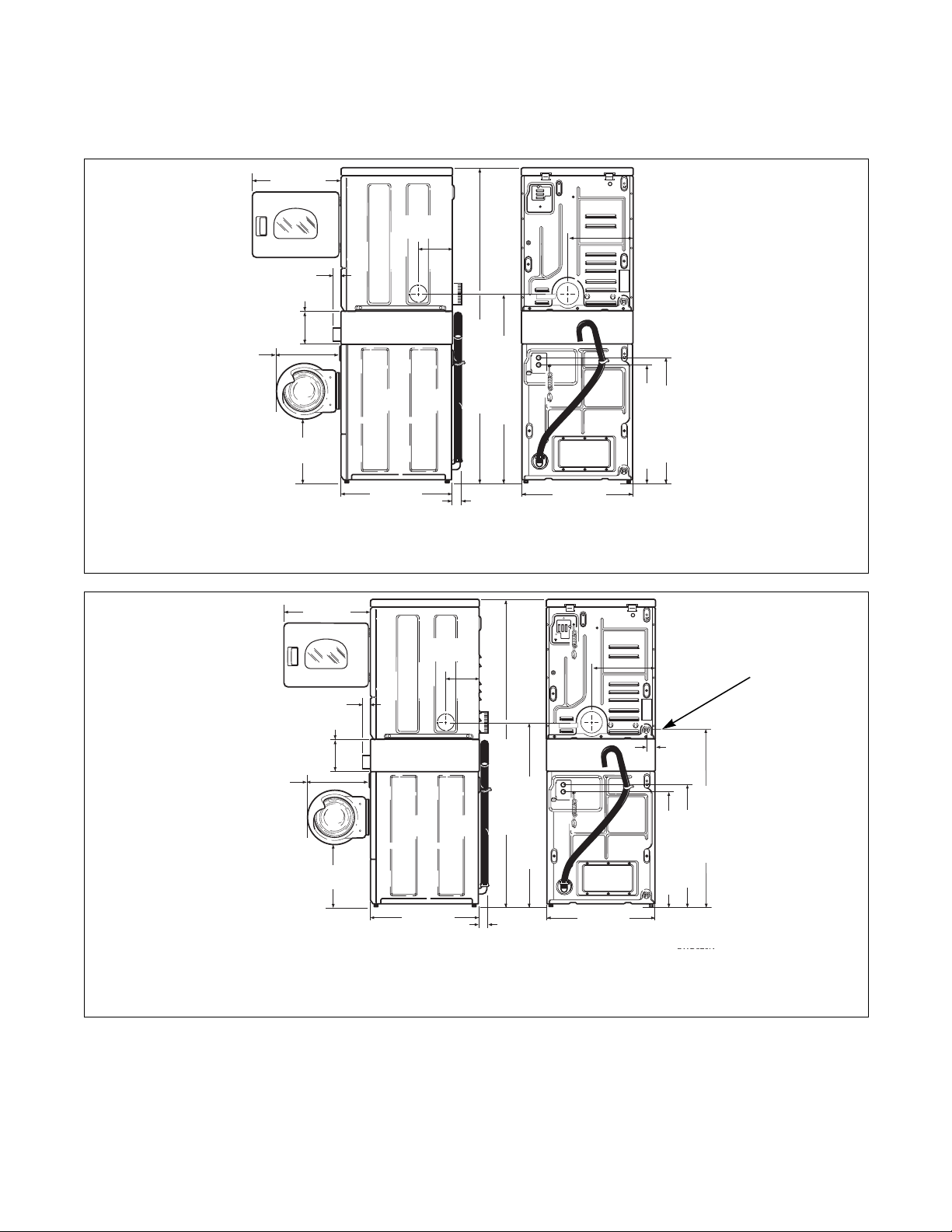

Installation
Non-Gravity Drain Models

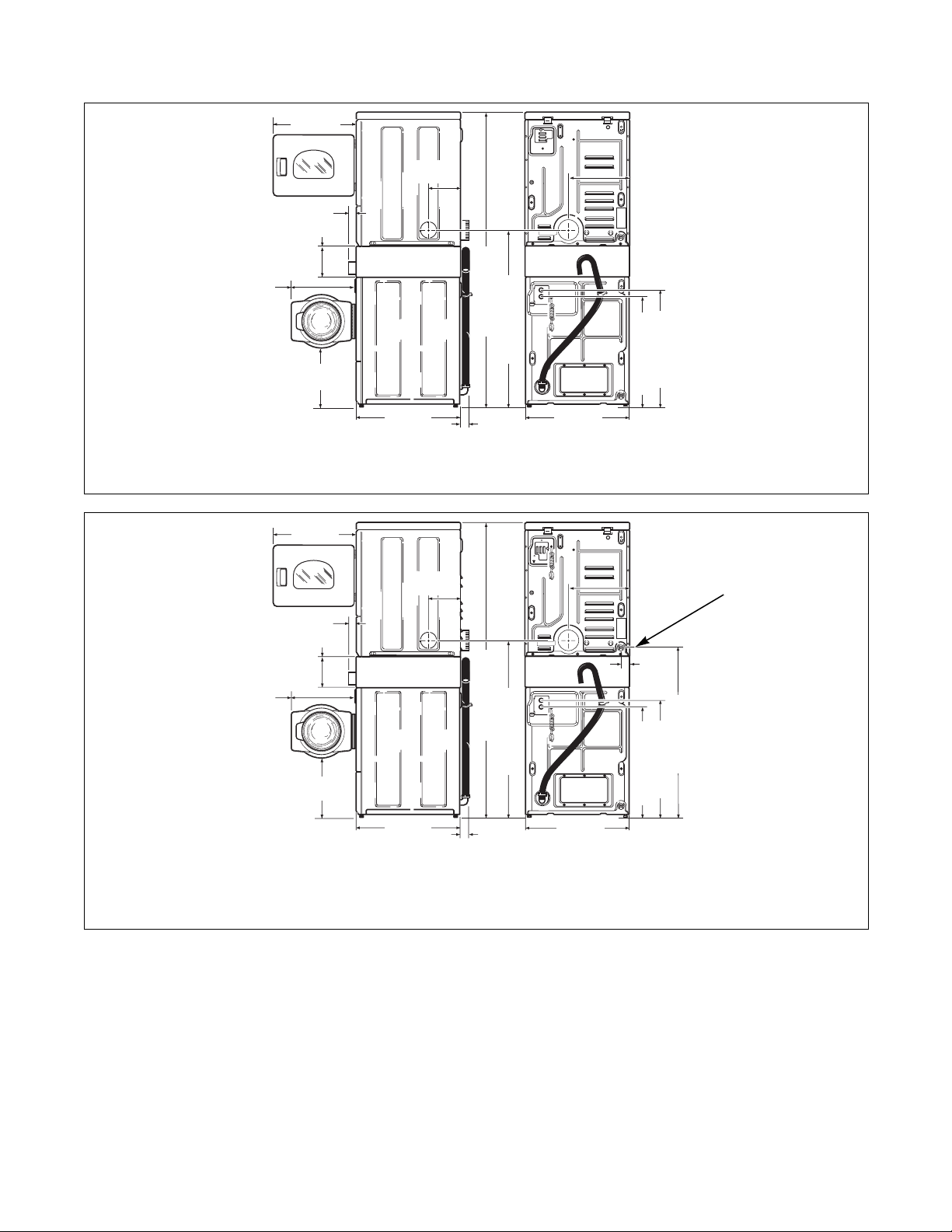

NOTE: Side and rear exhaust openings are 4 inch
(10.2 cm) ducting. Gas models cannot be vented out
left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
SWD619N
*With leveling legs turned into base.
SWD620N
*With leveling legs turned into base.
13/8 in. N.P.T. Gas Connection
SWD619N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
17.5 in.
(44.8 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
2.0 in.
(5.1 cm)
ELECTRIC DRYERS WITH OLD STYLE DOOR
8.0 in.
(20.3 cm)
SWD620N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
17.5 in.
(44.8 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
2.0 in.
(5.1 cm)
2.3 in.
(6 cm)
GAS DRYERS WITH OLD STYLE DOOR
8.0 in.
(20.3 cm)
1
44.1 in. (112 cm)

Installation
801539
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: Side and rear exhaust openings are 4 inch
(10.2 cm) ducting. Gas models cannot be vented out
left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
SWD741N
*With leveling legs turned into base.
SWD742N
*With leveling legs turned into base.
13/8 in. N.P.T. Gas Connection
SWD741N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
18.7 in.
(47.5 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
ELECTRIC DRYERS WITH NEW STYLE DOOR
8.0 in.
(20.3 cm)
SWD742N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
18.7 in.
(47.5 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
2.3 in.
(6 cm)
GAS DRYERS WITH NEW STYLE DOOR
8.0 in.
(20.3 cm) 1
44.1 in. (112 cm)

Installation
15
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Gravity Drain Models
NOTE: Side and rear exhaust openings are 4 inch
(10.2 cm) ducting. Gas models cannot be vented out
left side of cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
SWD743N
*With leveling legs turned into base.
SWD744N
*With leveling legs turned into base.
13/8 in. N.P.T. Gas Connection
SWD743N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
18.7 in.
(47.5 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
ELECTRIC DRYERS
8.0 in.
(20.3 cm)
SWD744N
23.5 in.
(59.7 cm)
2.0 in.
(5.1 cm)
7.0 in.
(17.8 cm)
18.7 in.
(47.5 cm)
14.3 in.
(36.3 cm)
28 in.
(71.1 cm)
29.6 in. (75.1 cm)
31.1 in. (79 cm)
*76.5 in. (194.3 cm)
45.8 in. (116.3 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm)
2.3 in.
(6 cm)
GAS DRYERS
8.0 in.
(20.3 cm) 1
44.1 in. (112 cm)

Installation
801539
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Before You Start

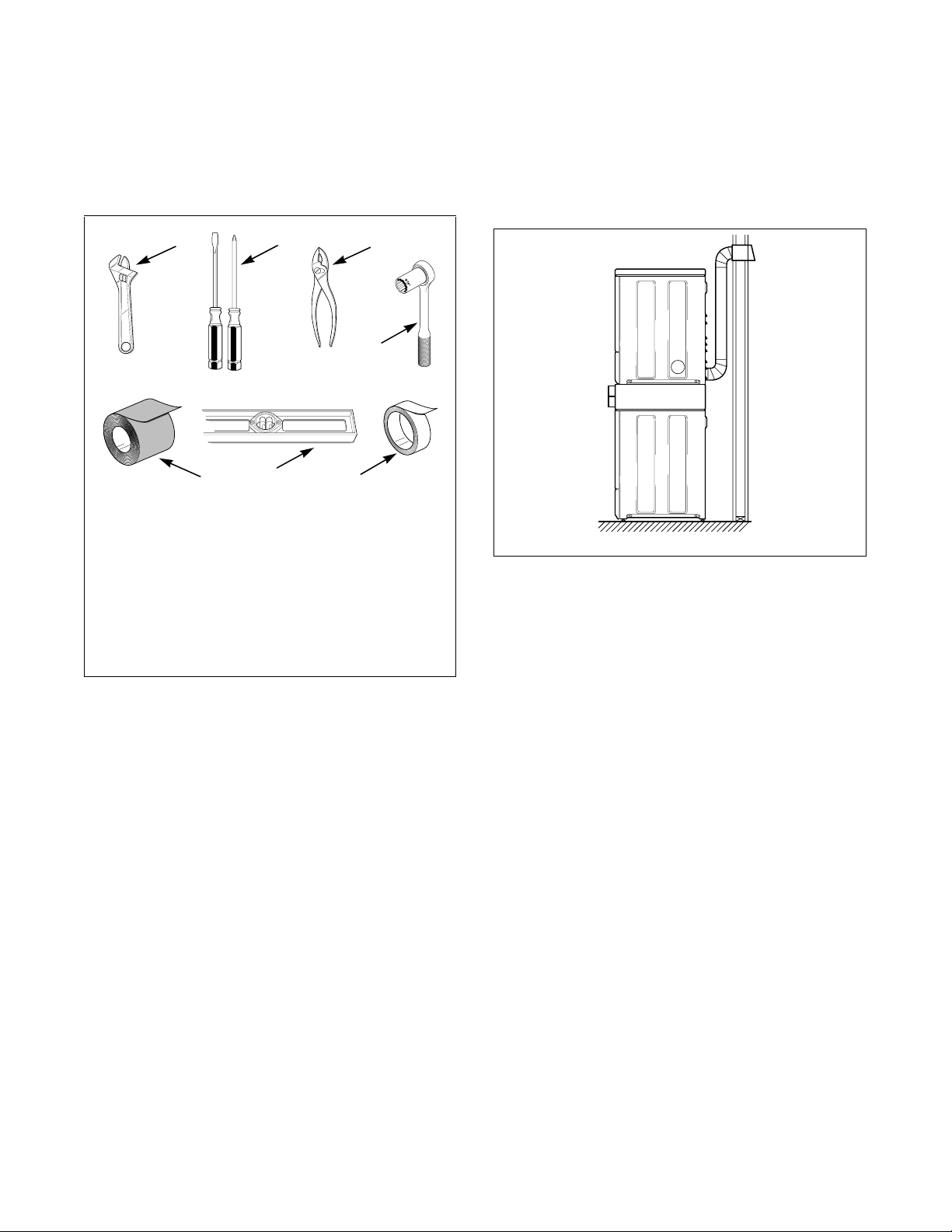

Tools
For most installations, the basic tools you will need
are:
Figure 1
Water
Washer needs two standard 3/4 inch (19.1 mm) water
supply faucets with a pressure between 20 and
120 pounds per square inch (138 to 827 kPa). For
more detailed information, refer to section on Water
Supply Requirements.
Gas
Dryer is equipped for Natural Gas with a 3/8 inch
N.P.T. gas supply connection. For more detailed
information, refer to section on Gas Requirements.
Location
Place the unit on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Figure 2
Electrical
●WASHER
Refer to serial plate for specific electrical
requirements. For more detailed information,
refer to section on Washer Electrical
Requirements.
●ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or 120/208 Volt,
60 Hertz, 30 Amp, AC single phase electrical
supply. For more detailed information, refer to
section on Electric Dryer Electrical
Requirements.
●GAS DRYER
Dryer needs a 120 Volt, 60 Hertz, 15 Amp,
polarized 3-slot effectively grounded receptacle.
For more detailed information, refer to section on
Gas Dryer Electrical Requirements.
NOTE: 208 Volt heating element is available (as
optional equipment at extra cost).
D814I
1Wrench
2Screwdrivers
3Pliers
4Socket Wrench
5Teflon Tape
6Level
7Duct Tape
1 2 3
4
5
6
7
H311I

Installation
17
801539 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installing the Unit
Step 1: Position Unit Near Installation
Area
NOTE: If the unit is delivered on a cold day (below
freezing), or is stored in an unheated room or area
during the cold months, do not attempt to operate
it until the washer has had a chance to warm up.
Move unit so that it is within 4 feet (1.2 meters) of the
desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install unit on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. DO NOT install the unit on carpeting,
soft tile, pedestal, a platform or other weakly
supported structures.
Figure 3
Step 2: Connect Water Fill Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water fill hoses.
This appliance is to be connected to the water mains
using new hose-sets. Old hose-sets should not be
reused.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Remove the two filter screens and the two plain rubber
washers from the accessories bag.
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The
screen must be facing outward. Refer to Figure 4.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 4.
Connect fill hoses to water supply faucets. Then
connect the hoses to the hot and cold valve
connections at the rear of the washer. For hoses with
metric couplings, connect black hose coupling to
water supply faucet. Connect brass hose coupling to
water mixing valve connection at rear of washer.
SWD706N
Washer and dryer are not designed to be
operated as separated, side-by-side units.
W187
CAUTION
SWD706N

Installation
801539
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Thread hose couplings onto valve connections finger-
tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.

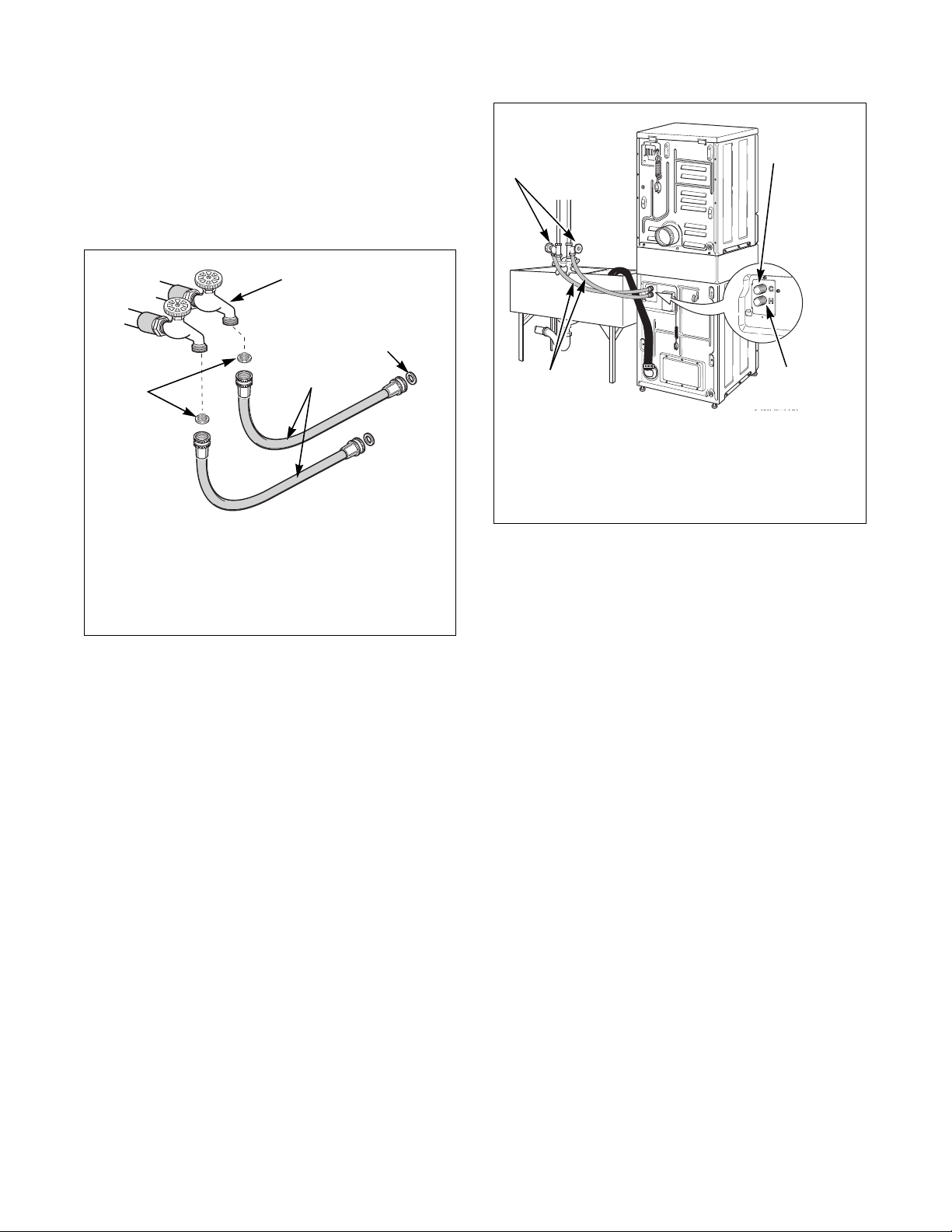

Figure 4
Figure 5
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
TLW1976N
1Water Faucet
2Fill Hoses
3Rubber Washer (Plain)
4Filter Screens
HOT
COLD
1
2
3
4
SWD631N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Fill Hoses
SWD631N
12
3
4
WATER
MIXING
VALVE
