Alliance Laundry Systems 802714R4 User manual

Keep these instructions for future reference.
(If this machine changes ownership, this manual must accompany machine.)
www.speedqueen.com
Dimensions........................................................................ 3
Before You Start................................................................ 4
Installation......................................................................... 4
Installer Checklist ........................................... Back Cover
Date Purchased _____________________________
Model Number _____________________________
Serial Number _____________________________
Part No. 802714R4
March 2013
Inside.......................................
Installation Instructions
for Stacked Washers and Dryers

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
2
The following information applies to the state of Massachusetts, USA.
•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
•This appliance must not be installed in a bedroom or bathroom.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Installation of unit must be performed by a qualified installer.
• Install clothes dryer according to manufacturer’s instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific type identified by the appliance manufacturer
as suitable for use with clothes dryers. Refer to section on connecting exhaust system.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
W729R1
•
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
WARNING
© Copyright 2013, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
802714R4
Dimensions
SWD895N
* With leveling legs turned into base.
NOTE: Exhaust openings are 4 in. (10.2 cm) metal ducting.
SWD895N
23.5 in.
(59.7 cm)
28 in.
(71.1 cm)
*75.25 in. (191 .1 cm)
26.875 in.
(68.3 cm)
8.0 in.
(20.3 cm) 15.4 in.
(39.1 cm)
5.25 in.
(13.3 cm)
*44.1 in. (112 cm)
2.0 in.
(5.1 cm)
*29.6 in. (75.1 cm)
*31.1 in. (79 cm)
*54 in. (137.2 cm)
*13.1 in.
(33.3 cm)
ELECTRIC DRYERS
*14.6 in.
(37.08 cm)
*37.44 in. (95.1 cm)
1.5 in.
(3.8 cm)
*63 in. (160 cm)
24 in.
(61 cm)
SWD896N
*With leveling legs turned into base.
NOTE: Exhaust openings are 4 in. (10.2 cm) metal ducting.
13/8 in. NPT Gas Connection
23.5 in.
(59.7 cm)
28 in.
(71.1 cm)
8.0 in.
(20.3 cm)
*75.25 in. (191.1 cm)
2.3 in.
(6 cm)
15.4 in.
(39.1 cm)
26.875 in.
(68.3 cm)
*44.1 in. (112 cm)
*29.6 in. (75.1 cm)
*31.1 in. (79 cm)
*42.4 in. (107.7 cm)
2.0 in.
(5.1 cm)
1
*13.1 in.
(33.3 cm)
GAS DRYERS
*14.6 in.
(37.08 cm)
*37.44 in. (95.1 cm)
*54 in. (137.2 cm)
*63 in. (160 cm)
1.5 in.
(3.8 cm)
5.25 in.
(13.3 cm)
24 in.
(61 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
4
Before You Start
Supplies
For most installations, the basic supplies you will need
are:
Figure 1
Parts Included
An accessories bag has been shipped inside your unit.
It includes:
•Installation Instructions
•Two User’s Guide (one for washer and one for
dryer)
•Warranty Bond
•Three screws (electric dryers only). Refer to
Connecting Power Cord sections in Step 5 of
Installation.
•Two fill hoses with washers and filter screens.
Refer to Step 2 of Installation.
•Four rubber feet. Refer to Step 7 of Installation.
•Beaded strap. Refer to Step 3 of Installation.
NOTE: If the unit is delivered on a cold day (below
freezing), or is stored in an unheated room or area
during the cold months, do not attempt to operate
it until the unit has had a chance to warm up.
NOTE: Some moisture in the wash drum is normal.
Water is used during testing at the manufacturer.
Installation
Step 1: Position Unit Near Installation
Area
Move unit as close to the desired area of installation as
possible.
NOTE: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do not install the washer on carpeting,
soft tile, a platform or other weakly supported
structures.
DRY2023N
1Safety Glasses
2Wood Block
3Power Cord (Electric Models)
4Wrench
5Screwdriver
6Level
75/16 Inch Socket Wrench
8Duct Tape
9Teflon Tape (Gas Models)
9
/
1
6
"
123
7
6
5
4
8
9
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING
Washer and dryer are not designed to be
operated as separated, side-by-side units.
W187
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
802714R4
Step 2: Position and Level the Unit
Position unit so it has sufficient clearance for
installation and servicing. Refer to Figure 2.
Figure 2
NOTE: Use of the dispenser drawer or unit doors
as a handle in the transportation of the unit may
cause damage to the dispenser or doors.
Place unit in position on a solid, sturdy and level floor.
Installing the unit on any type of carpeting, soft tile, a
platform or other weakly supported structures is not
recommended.
NOTE: Shaded areas indicate adjacent structure.
SWD795N
SWD795N
AB
C
D
E
E
Dryer and Exhaust Duct Clearances
Area Description Minimum Clearance
A Left Dryer Side 0 in. (0 cm)
B Right Dryer Side 1 in. (2.54 cm)
C Dryer Top 6 in. (15.24 cm)
D* Dryer Rear 4 in. (10.2 cm)
E Exhaust Duct Clearance to Combustible Materials 2 in. (5.1 cm)
*Rear clearance is minimum. Six inches are recommended when venting through rear of unit.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
6

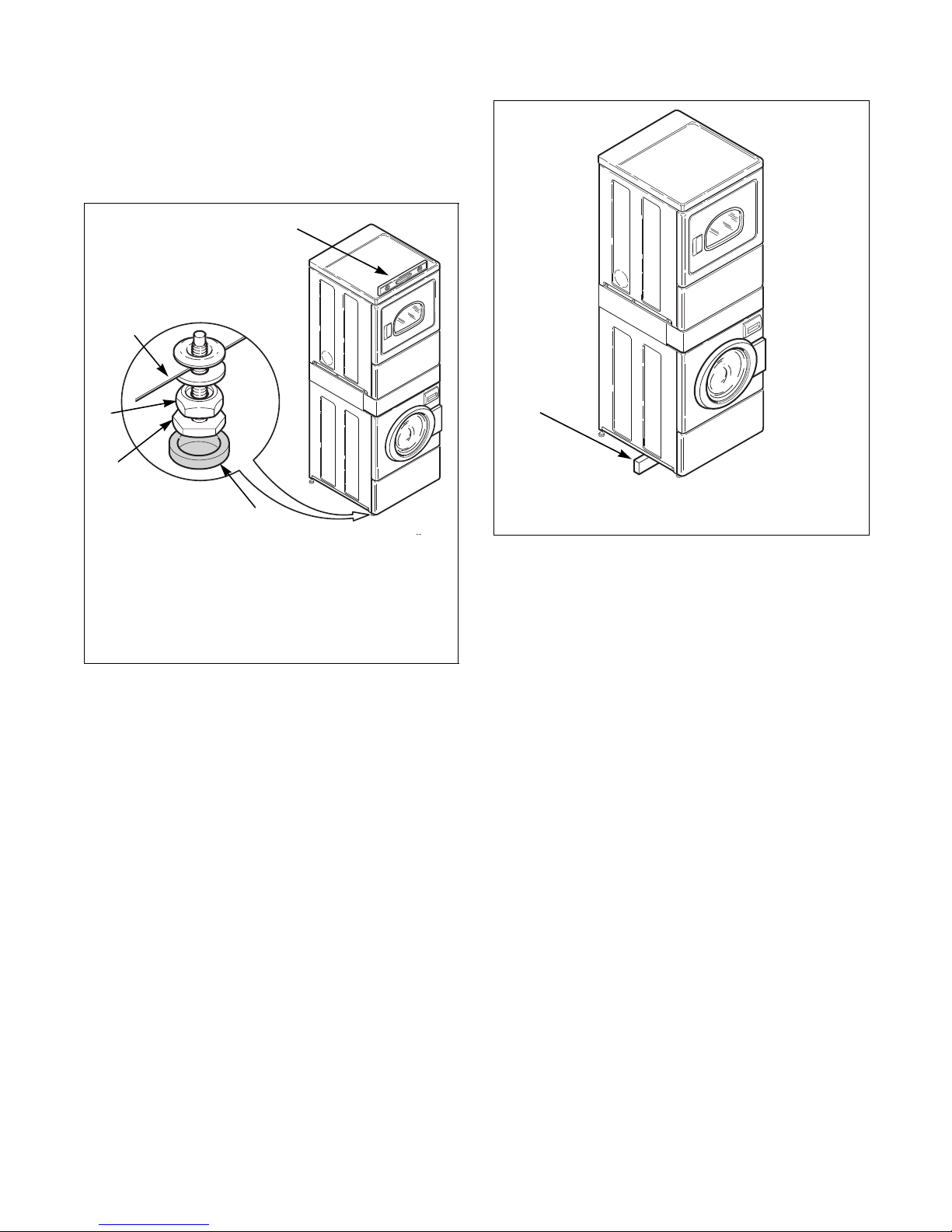

Place a level on the cabinet top and check if the unit is
level from side to side and front to back.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 3.
If unit is not level, tilt unit to access the front and rear
leveling legs. For easier access to leveling legs, prop
up unit with a wooden block. Refer to Figure 4.
Loosen the locknuts and adjust legs by screwing into
or out of unit base.
Make sure that the unit does not rock. When unit is
level and does not rock, tighten locknuts securely
against bottom of unit base. If these locknuts are not
tight, unit will move out of position during operation.
Leveling legs can be adjusted from inside the unit with
a 7/8 inch deep well socket. All four legs must rest
firmly on the floor so the weight of the unit is evenly
distributed. The unit must not rock and must be level
from side-to-side and front-to-back.
NOTE: Do not slide unit across floor once the
leveling legs have been extended. Legs and base
could become damaged.
Place rubber feet (supplied in accessories bag) on all
four leveling legs. Refer to Figure 3.
Verify that unit does not rock.
SWD833N
1 Level
2Rubber Foot
3Leveling Leg
4Locknut
5Unit Base
Figure 3
S
1
2
3
4
5
SWD832N
1 Wood Block
Figure 4
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
802714R4
Step 3: Connect Fill Hoses
Water Supply
Water supply faucets must fit standard 3/4 inch
(19.1 mm) female garden hose couplings. DO NOT
USE SLIP-ON OR CLAMP-ON CONNECTIONS.
Water supply faucets should be readily accessible to
permit turning them off when washer is not being
used.
Recommended cold water temperature is 60o to
80oFahrenheit (16oto 27oCelsius). Recommended
maximum hot water temperature is 125oFahrenheit
(51oCelsius). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon
water temperature and pressure of both the hot and
cold water supply lines.
Water pressure must be a minimum of 20 to a
maximum of 120 pounds per square inch (138 to
827 kPa) static pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
Turn on the water faucets and flush the lines for
approximately two minutes to remove any foreign
material that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated buildings, it is very important to flush
the lines since build-up may have occurred during
construction.

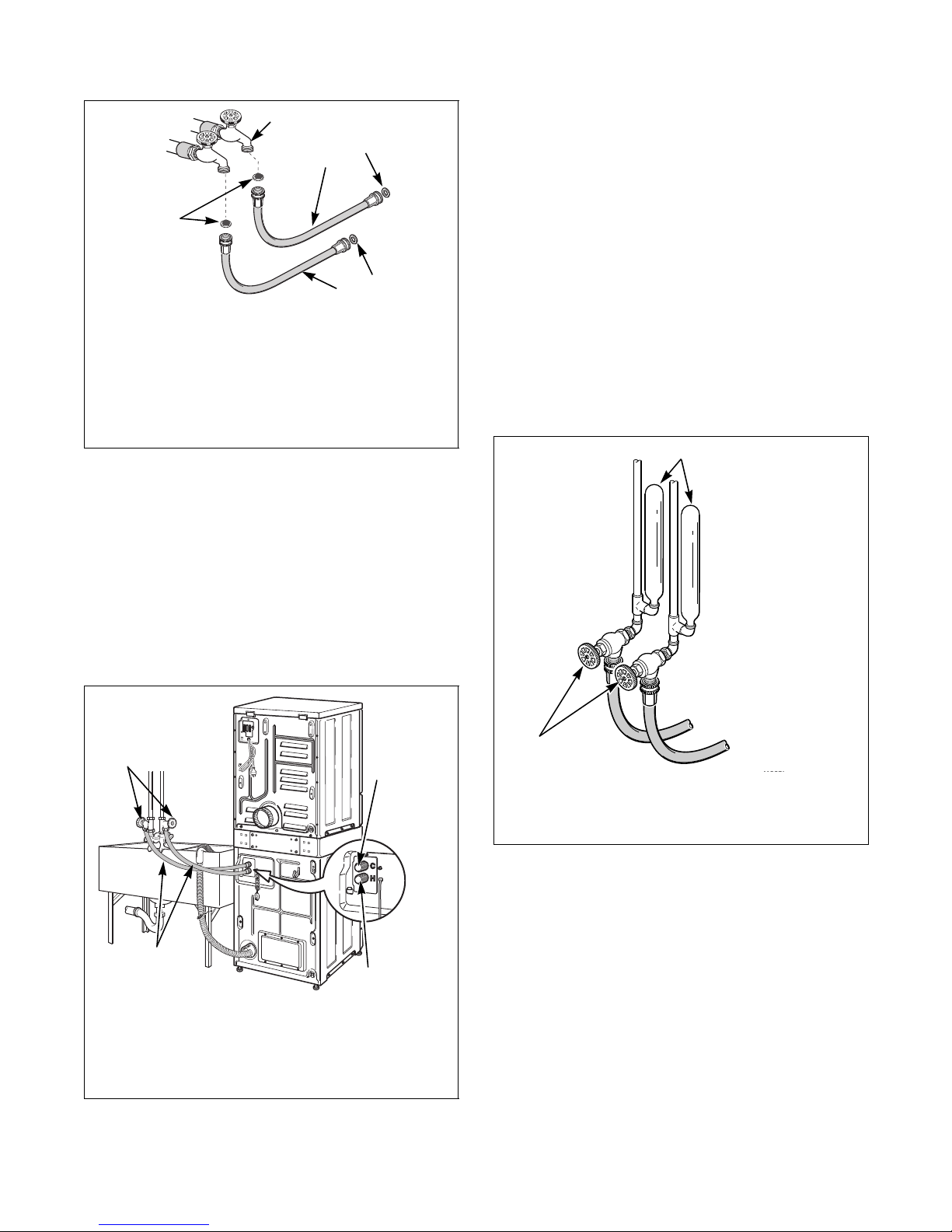

Connecting Hoses
Remove the two plain rubber washers and two filter
screens from the accessories bag. Install them into
each end of the fill hoses as shown in Figure 5. The
screen must be facing outward.
Screw hose couplings with the filter screens onto the
water faucets until they are finger-tight. Then, using a
pliers, screw approximately 1/4 turn. Use the red
color-coded hose for the hot water connection and the
blue color-coded hose for the cold water connection.
Screw hose couplings from other end of hoses onto the
water mixing valve until they are finger-tight. Then,
using a pliers, screw approximately 1/4 turn. Refer to
Figure 6. Make sure the red color-coded hose from the
hot water faucet goes to the water mixing valve
marked “H” and the blue color-coded hose from the
cold faucet goes to the valve marked “C”.
IMPORTANT: Do not cross thread or overtighten
couplings. This will cause them to leak.
Turn water on and check for leaks. If leaks are found,
turn off the water, unscrew hoses and reinstall them
until there are no leaks.
IMPORTANT: Turn off water supply whenever
there will be an extended period of non-use.
Mixing Valve Flow Rates
Pressure
(psi)
HOT
gallons per minute
(liters per minute)
COLD
gallons per minute
(liters per minute)
20 1.6 (6) 2.5 (9.4)
40 2.2 (8.2) 3.4 (13)
60 2.6 (9.9) 3.8 (14.5)
100 2.5 (9.6) 4.2 (15.9)
120 2.6 (9.8) 4.2 (15.9)
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. The gas is
flammable. Do not smoke or use an open
flame during this time.
W029
WARNING
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125°Fahrenheit (51°Celsius) and hot
surfaces.
W748
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
8
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subject to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses supplied with
the washer are not long enough for the installation.
Order hoses as follows:
No. 20617 Fill Hose (8 feet) (2.44 m)
No. 20618 Fill Hose (10 feet) (3.05 m)
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to Figure 7).
TLW1976N
1 Water Faucet
2Blue Coded Fill Hose
3Plain Rubber Washer
4Hose Coupling
5Red Coded Fill Hose
6Filter Screens
Figure 5
SWD596N
1 Water Faucets
2Cold Water Connection
3Hot Water Connection
4Water Fill Hoses
Figure 6
HOT
COLD
3
1
6
2
4
5
SWD596N
12
4
WATER
MIXING VALVE
3
W005I
1 Water Supply Faucets
2Risers (Air Cushions)
Figure 7
W005I
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
802714R4

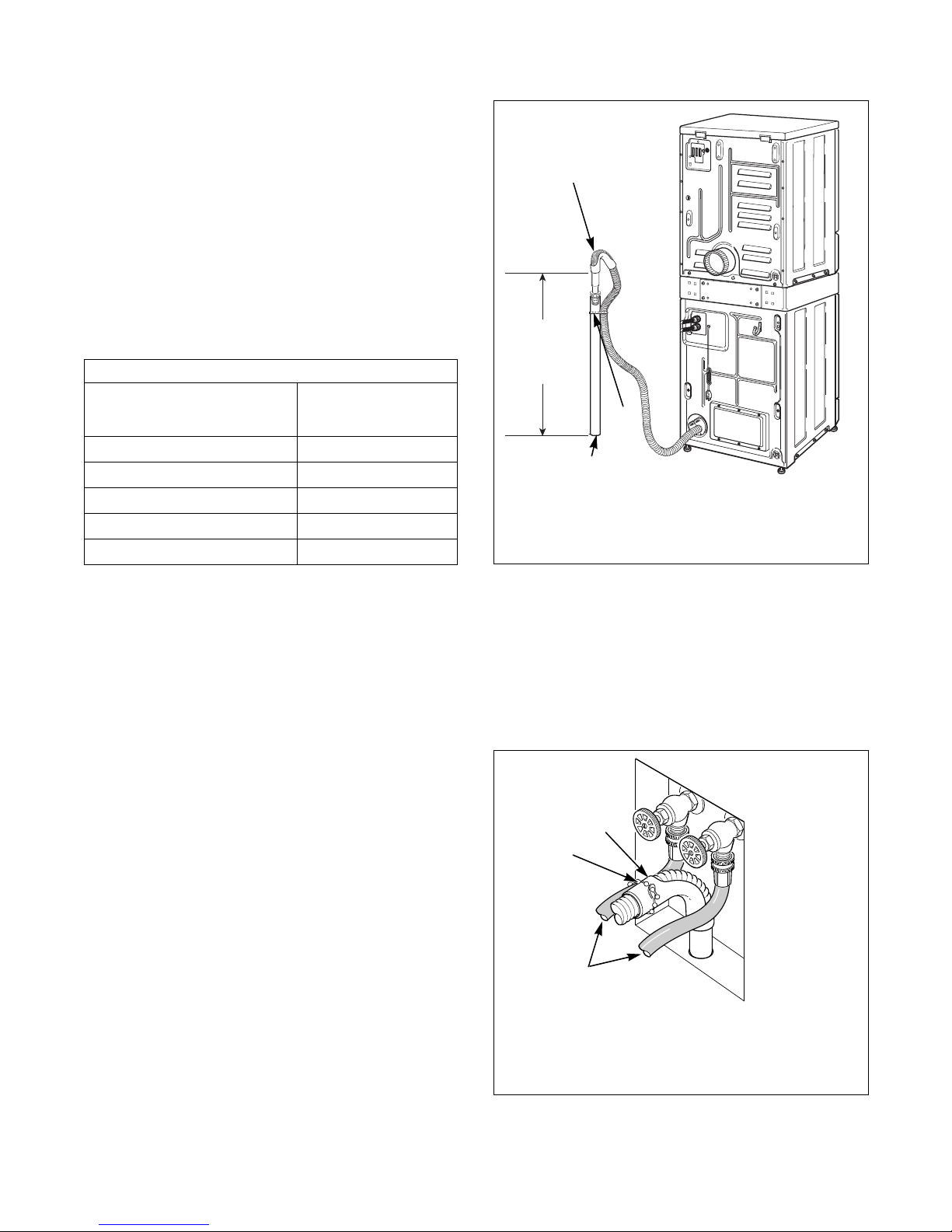

Step 4: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp and by removing the shipping tape.
Install the drain hose into the drain receptacle
(standpipe, wall or laundry tub) following the
instructions below.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation:
Place the drain hose into the standpipe.
Remove the beaded strap from accessories bag and
place around standpipe and drain hose and tighten
strap to hold hose to standpipe. Refer to Figure 8. This
will prevent the drain hose from dislodging from drain
receptacle during use.
Wall Installation:
For installations of this type, the drain hose MUST be
secured to one of the fill hoses using the beaded strap
from accessories bag. Refer to Figure 9.
NOTE: End of drain hose must not be below 24 in.
(61 cm).
Drain Flow Rate
Drain Height
Flow Rate
gallons per minute
(liters per minute)
3 ft. (0.9 m) 8.19 (31)
5 ft. (1.5 m) 7.27 (27.5)
6 ft. (1.8 m) 6.31 (23.9)
7 ft. (2.1 m) 4.89 (18.5)
8 ft. (2.4 m) 2.79 (10.6)
SWD598N
1 Drain Hose
2Beaded Tie-Down Strap
3Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Figure 8
H023I
1 Drain Hose
2Beaded Strap (tape if necessary)
3Fill Hoses
Figure 9
SWD598N
1
2
3
24 in. to 36 in.
(61 to 91.44 cm)
Recommended
Height
3
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
10
Laundry Tub Installation:
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Refer to Figure 10. Use the
beaded strap (supplied in accessories bag) to secure
hose.
Step 5: (Gas Dryer Only) Connect Gas
Supply Pipe
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must
conform with the local codes and ordinances, or in
the absence of local codes and ordinances, with the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the CAN/CSA - B149.1 Natural
Gas and Propane Installation Code.
Natural Gas, 1000 Btu/ft3(37.3 MJ/m3) service must
be supplied at minimum 5.0 inch water column
pressure to maximum 10.5 inch water column
pressure.
For proper operation at altitudes above 3000 feet
(915 m) the natural gas valve spud orifice size must be
reduced to ensure complete combustion. Refer to
Table 1.
SWD600N
1 Drain Hose
2Tie-Down Strap (tape if necessary)
Figure 10
SWD600N
1
2
To reduce the risk of gas leaks, fire or
explosion:
• The dryer must be connected to the type
of gas as shown on nameplate located in
the door recess.
• Use a new flexible stainless steel
connector.
• Use pipe joint compound insoluble in L.P.
(Liquefied Petroleum) Gas, or Teflon tape,
on all pipe threads.
• Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
• Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection
fluid.
• Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W316
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11
802714R4
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
NOTE: When connecting to a gas line, an
equipment shut-off valve must be installed within
6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug
must be installed as shown for checking inlet
pressure. Refer to Figure 11.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external)
for gas leaks with a non-corrosive leak detection
fluid.
NOTE: The dryer and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing of that system
at test pressures in excess of 1/2 psi (3.45 kPa).
Refer to Step 12 (Check Heat Source).
L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft3
(93.1 MJ/m3) service must be supplied at 10 ± 1.5 inch
water column pressure.
For proper operation at altitudes above 3000 feet
(915 m) the L.P. gas valve spud orifice size must be
reduced to ensure complete combustion. Refer to
Table 2.
NOTE: DO NOT connect the dryer to L.P. Gas
Service without converting the gas valve. Install
L.P. Gas Conversion Kit 649P3, available at extra
cost.
Natural Gas Altitude Adjustments
Altitude Orifice Size Part
No.
feet m No. inches mm
3000 915 43 0.0890 2.26 503778
6000 1830 44 0.0860 2.18 58719
8000 2440 45 0.0820 2.08 503779
9000 2740 46 0.0810 2.06 503780
10,000 3050 47 0.0785 1.99 503781
Table 1
D434I
1New stainless steel flexible connector –
(Use design CSA certified connector)
Use only if allowed by local codes
21/8 in. NPT Pipe Plug
3Equipment Shut-Off Valve
4Black Iron Pipe
Shorter than 20 ft. (6.1 m) – Use 3/8 in.
(9.5 mm) pipe
Longer than 20 ft. (6.1 m) – Use 1/2 in.
(12.7 mm) pipe
53/8 in. NPT Gas Connection
Figure 11
1
3
2
4
5
L.P. Altitude Adjustments
Altitude Orifice Size Part
No.
feet m No. inches mm
3000 915 55 0.0520 1.32 58755
8000 2440 56 0.0465 1.18 503786
Table 2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
12
Step 6: (Electric Dryer Only) Connect
Electrical Plug
Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz,
3 or 4 wire electrical supply. Refer to serial plate for
specific electrical requirements.
NOTE: The wiring diagram is located behind the
control panel, inside the control cabinet.
Grounding Information
•This dryer must be connected to a grounded
metal, permanent wiring system; or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
•The dryer has its own terminal block that must be
connected to a separate branch, 60 Hertz, single
phase circuit, AC (alternating current) circuit,
fused at 30 Amperes (the circuit must be fused
on both sides of the line). Electrical service for
the dryer should be of maximum rated voltage
(208 or 240 volt, depending on heating
element) listed on the nameplate. Do not
connect dryer to 110, 115, or 120 volt circuit.
•Heating elements are available for field
installation in dryers which are to be connected to
electrical service of different voltage than that
listed on nameplate, such as 208 Volt.
NOTE: Branch circuit wire size requirements to
laundry room outlet are shown in Table 3.
•The power cord connection between wall
receptacle and dryer terminal block IS NOT
supplied with dryer. Type of power cord and
gauge of wire must conform to local codes.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING
Wire Length Dryer
Less than 15 ft. (4.5 m) Listed No. 10 AWG
Copper wire only
Longer than 15 ft. (4.5 m) Listed No. 8 AWG
Copper wire only
Table 3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 13
802714R4

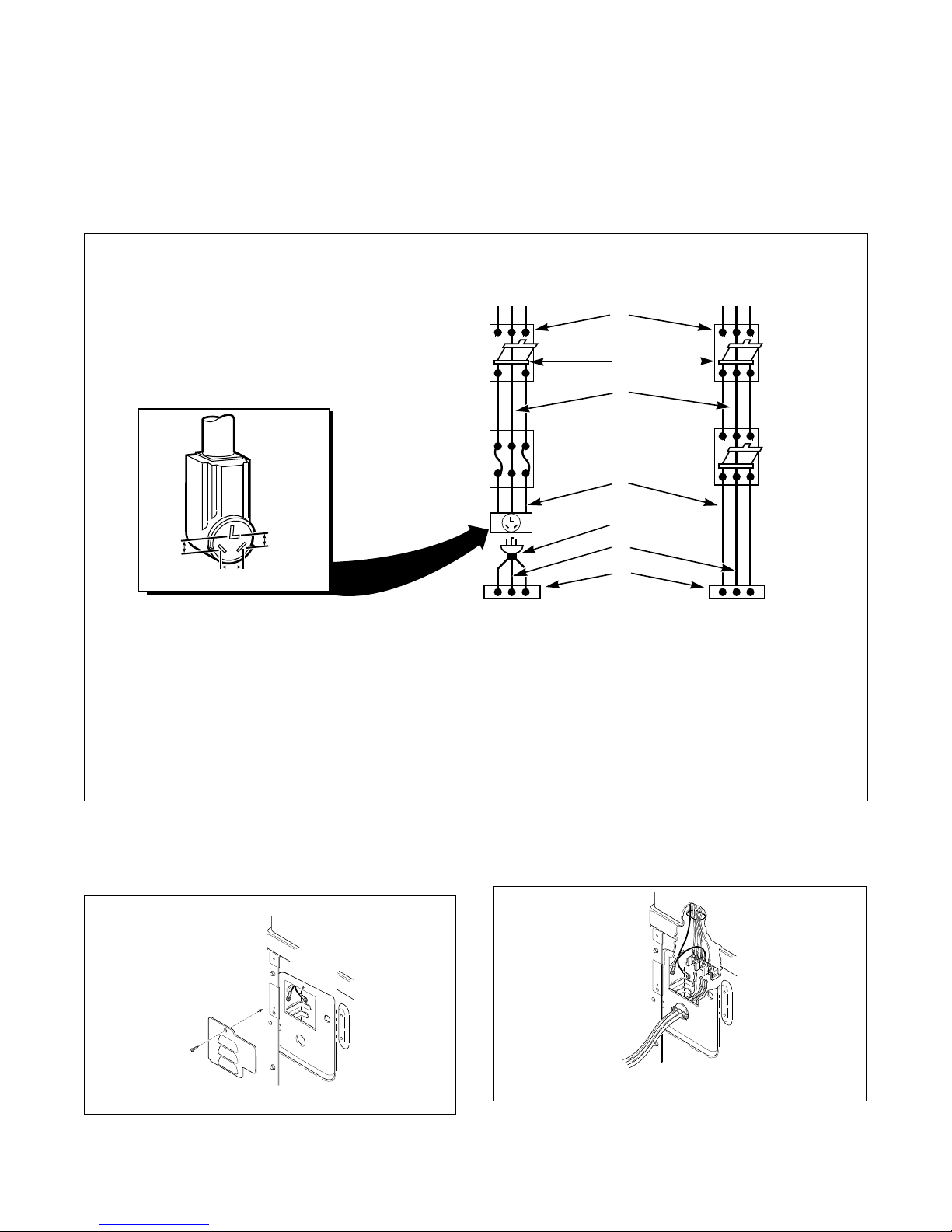

Connecting Power Cord with Three-Wire
Plug
NOTE: Four-wire cord is required for mobile
homes or where codes do not permit grounding
through neutral.
Figure 12
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
Figure 13
3. Use a strain relief and insert end of power cord
through power supply hole.
Figure 14
D816I
13 Wire Grounded Neutral 120/240 Volt, 60 Hertz
AC 1 Phase Service Entrance Switch Box
(Refer to NOTE above)
4Metallic or Non-Metallic Sheathed Cable
(Copper Wire Only)
5Power Cord (Not supplied with dryer)
230 Ampere Fuses or Circuit Breaker 6Neutral
3Neutral Wire 7Terminal Block in Dryer
NOTE: The power cord is NOT supplied with the
electric dryer. Type of power cord and gauge of wire
must conform to local codes and instructions.
The method of wiring the dryer is optional and subject
to local code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
1
3
5
6
7
4
2
POWER CORD CONNECTION DIRECT CONNECTION
L1 L2 L1 L2
INTERMEDIATE
SHUT-OFF BOX
(may or may not
be fused)
POWER SUPPLYPOWER SUPPLY
INTERMEDIATE FUSE
BOX (may be omitted
if service entrance
box is fused)
WALL
RECEPTACLE
A typical 30-
Amp Three-
Wire
Receptacle
NEMA Type
10-30R
120 ± 12
V.A .C.
120 ± 12
V.A.C .
240 ± 12
V.A.C.
NOTE: Use COPPER WIRE only.
Shorter than 15 ft. (4.5 m) – use 10 AWG
Longer than 15 ft. (4.5 m) – use 8 AWG
D695I
D696I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
14
4. Use the three screws from the accessories bag to
attach the power cord wires to the terminal block.
Refer to Figure 15.
Figure 15
5. Tighten all screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
6. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
7. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the cabinet.
8. Reinstall access cover and screw.

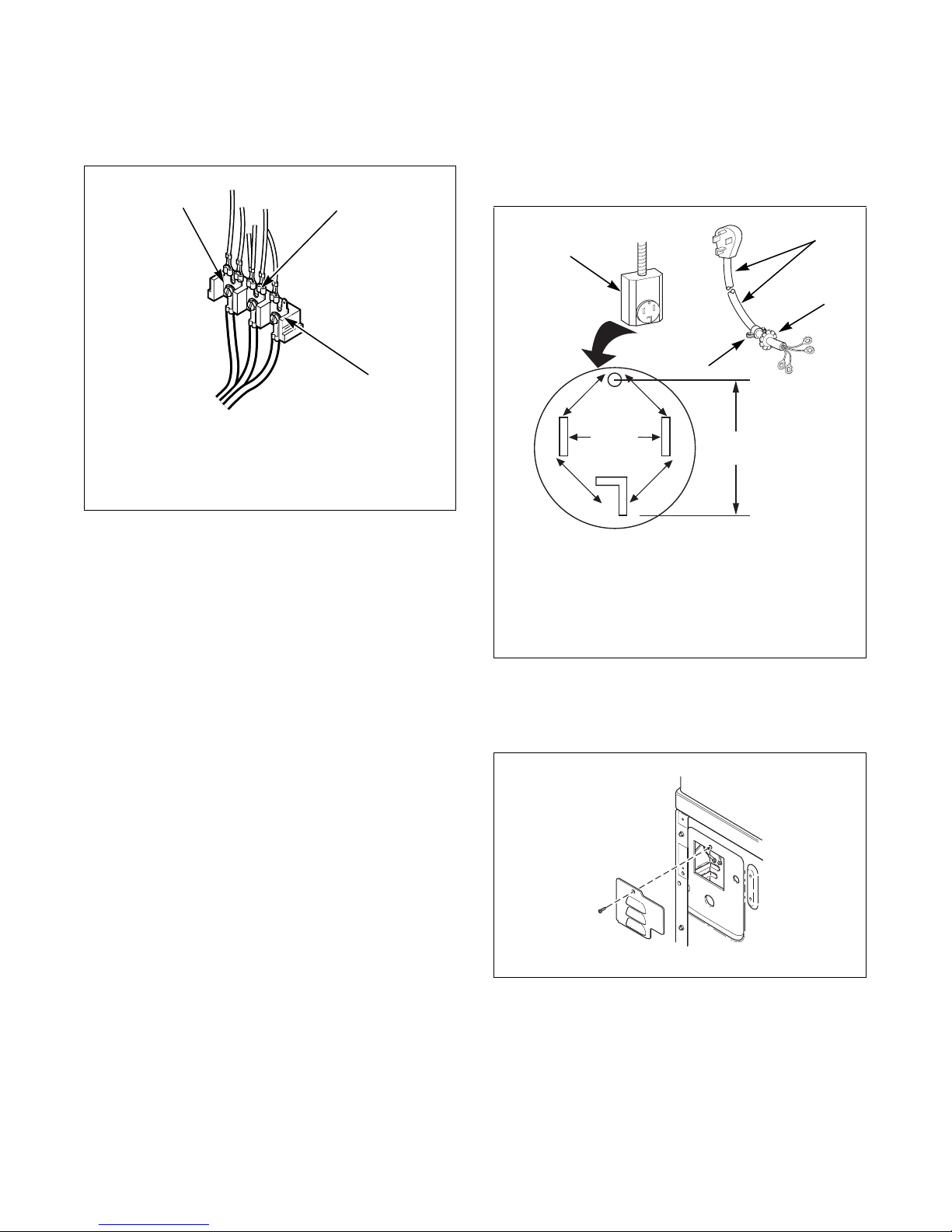

Connecting Power Cord with Four-Wire Plug
NOTE: Four-wire cord is required for mobile
homes or where codes do not permit grounding
through neutral.
Figure 16
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
Figure 17
D286I
1“L1” Terminal
2Neutral Terminal
3“L2” Terminal
12
3
DRY2016N
1Typical Four-Wire Receptacle
2Power Cord – Not Supplied with Dryer
3Strain Relief Nut
4Strain Relief
DRY2467N
120 ± 12
V.A.C.
120 ± 12
V.A.C.
120 ± 12
V.A.C.
120 ± 12
V.A.C.
240 ± 12
V.A.C. 0
V.A.C.
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 15
802714R4
3. Remove ground screw from ground to neutral
wire and save for use in Step 5. Ground to neutral
wire will be attached to the neutral terminal in
Step 6.
Figure 18
4. Use a strain relief and insert end of power cord
through power supply hole.
Figure 19
5. Attach power cord ground (green) wire to rear
bulkhead using ground screw removed in Step 3.
Figure 20
6. Use the three screws from the accessories bag to
attach the remaining power cord wires to the
terminal block as follows:
a. Red wire to “L1” terminal.
b. Black wire to “L2” terminal.
c. White wire to Neutral terminal.
NOTE: When installing the white wire, loop the
free eyelet end of the ground to neutral wire
(removed in Step 3) and attach along with the white
wire to the neutral (center) terminal on the
terminal block.
7. Tighten all screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
8. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
9. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the control cabinet.
10. Reinstall access cover and screw.
DRY2468N
1Ground Screw
DRY2469N
1
DRY2469N
DRY2482N
1Neutral Terminal
2“L2” Terminal
3Black
4White
5Ground
6Red
7“L1” Terminal
8Ground to Neutral Wire
6
2
1
3
5
7
4
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
16
Step 7: Connect Dryer Exhaust System
•DO NOT use plastic, thin foil or type B ducting.
Rigid metal duct is recommended. Refer to
Figure 21.
•Locate dryer so exhaust duct is as short as
possible.
•Be certain old ducts are cleaned before installing
your new dryer.
•Use 4 inch (102 mm) diameter rigid or flexible
metal duct.
•The male end of each section of duct must point
away from the dryer.
•Use as few elbows as possible.
•Use of duct tape or pop-rivets on all seams and
joints is recommended, if allowed by local codes.
DO NOT use sheet metal screws or fasteners on
exhaust pipe joints which extend into the duct
and catch lint.
•Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
•In mobile home installations, dryer exhaust duct
must be secured to mobile home structure.
•Dryer exhaust duct MUST NOT terminate under
mobile home.
•Dryer exhausts 220 cfm (measured at back of
dryer).
•DO NOT install flexible duct in concealed
spaces, such as a wall or ceiling.
•Static pressure in exhaust duct should not be
greater than .6 inches water column (1.5 cm),
measured with manometer placed on exhaust
duct 2 feet (61 cm) from dryer (check with dryer
running and no load).
•Exhausting dryer in hard-to-reach locations can
be done by installing 521P3 Flexible Metal Vent
Kit (available as optional equipment at extra
cost).
•Sufficient make-up air must be supplied to
replace the air exhausted by the dryer. The free
area of any opening for outside air must be at
least 40 in.2(260 cm2).
•Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
IMPORTANT: DO NOT block the airflow at the
bottom of the dryer’s front panel with laundry,
rugs, etc. Blockage will decrease airflow through
the dryer, thus reducing the efficiency of the dryer.
SWD449N
Figure 21
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W604
To reduce the risk of fire and the
accumulation of combustion gases, DO
NOT exhaust dryer air into a window well,
gas vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
WARNING
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in
the fuel or from fuel combustion, make sure
this appliance is installed, operated, and
maintained according to the instructions in
this manual.
W115
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
WARNING
SWD449N
DO DON’T

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 17
802714R4
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be
accomplished by installing a Directional Exhaust Kit,
528P3, available as optional equipment at extra cost.

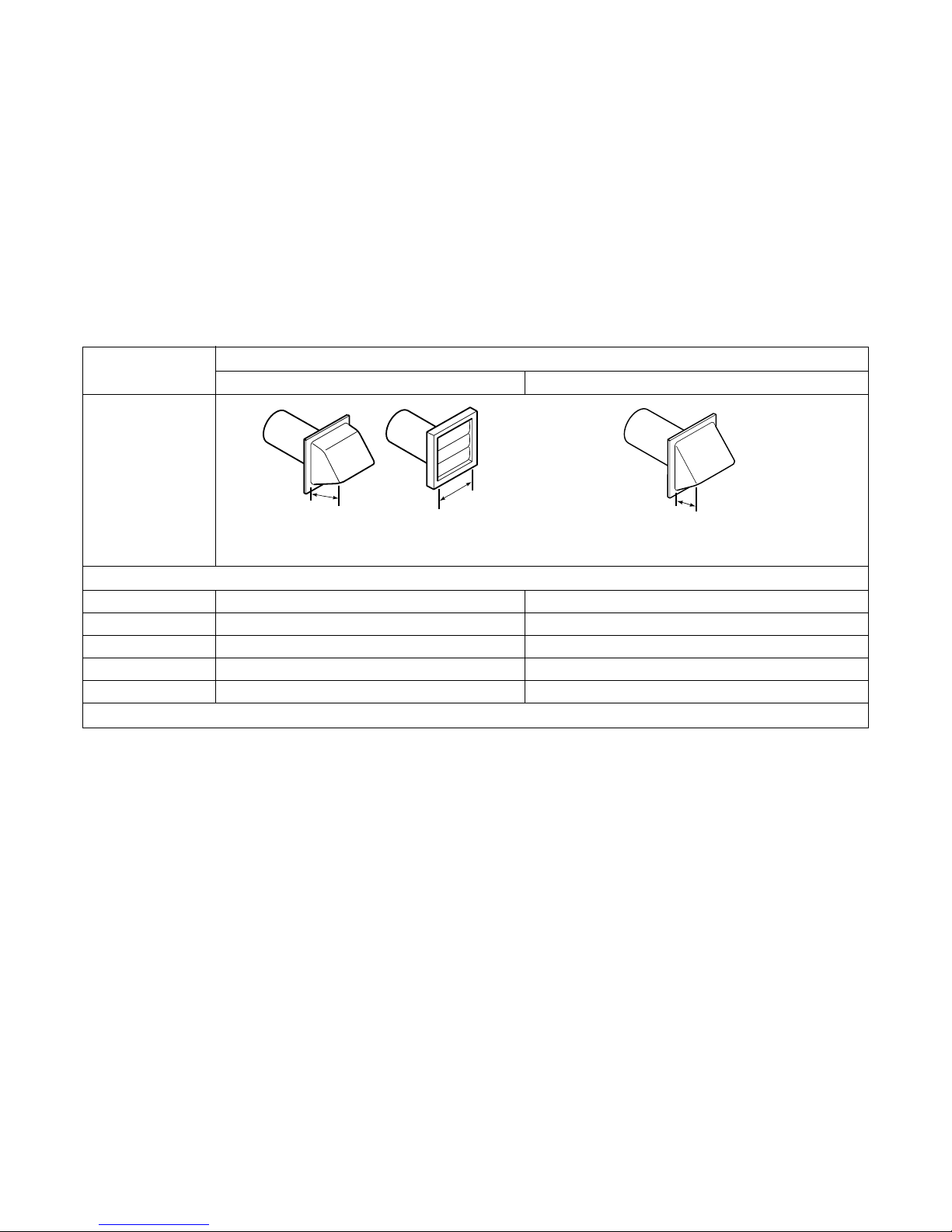

Exhaust System
For best drying results, recommended maximum
length of exhaust system is shown in Table 4.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
12 inches (30.5 cm) above the ground. Larger
clearances may be necessary for installations where
heavy snowfall can occur.
NOTE: The maximum length of a 4 in. (10.2 cm)
diameter flexible metal duct must not exceed
7.87 ft. (2.4 m), as required to meet UL2158, clause
7.3.2A.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run installations
D673I D802I
Maximum length of 4 in. (10.2 cm) diameter rigid metal duct.
0 65 feet (19.8 m) 55 feet (16.8 m)
1 55 feet (16.8 m) 47 feet (14.3 m)
2 47 feet (14.3 m) 41 feet (12.5 m)
3 36 feet (11.0 m) 30 feet (9.1 m)
4 28 feet (8.5 m) 22 feet (6.7 m)
NOTE: Deduct 6 feet (1.8 m) for each additional elbow.
Table 4
4 in.
(10.2 cm)
4 in.
(10.2 cm)
2-1/2 in.
(6.35 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
18

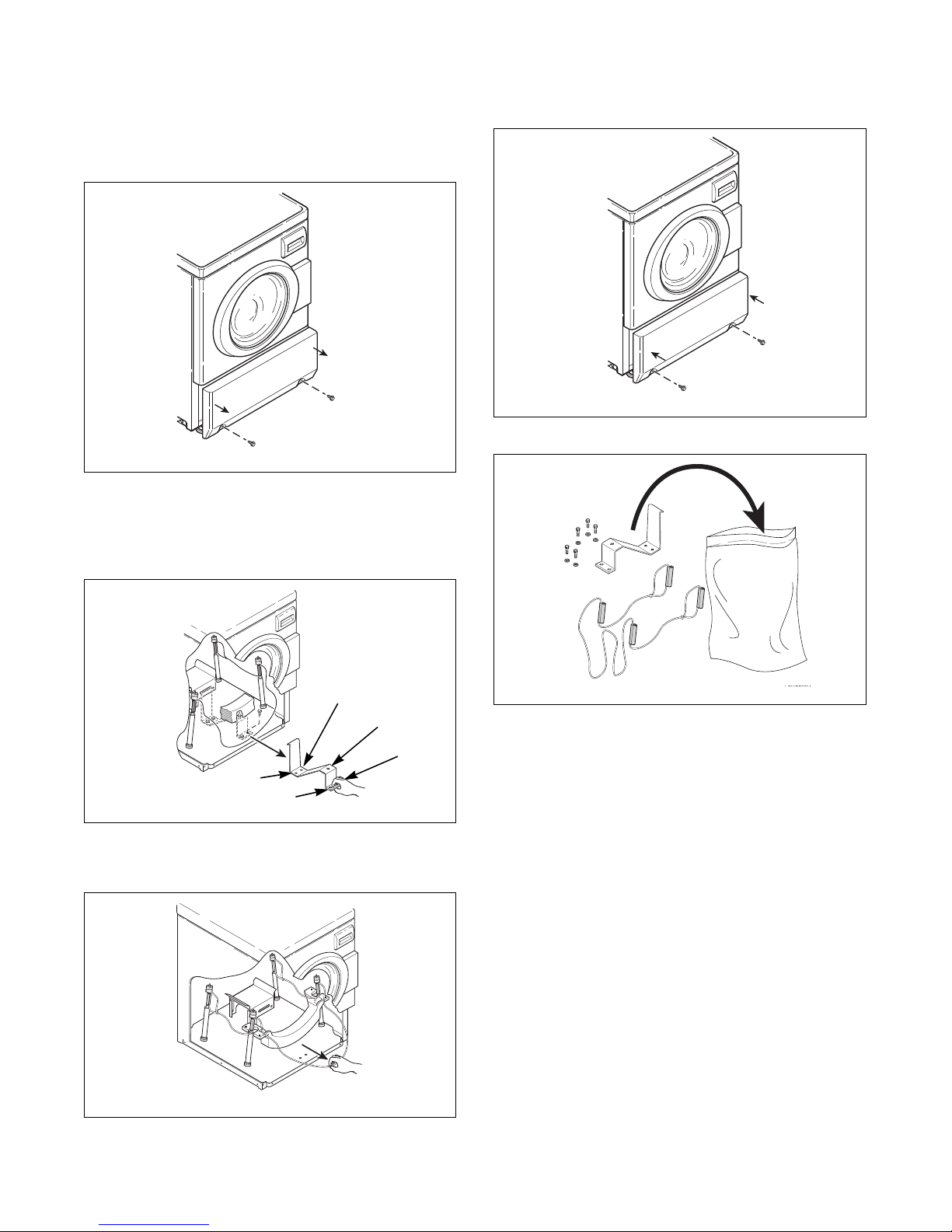

Step 8: Remove the Shock Sleeves and
Shipping Brace
1. Remove panel.
Figure 22
2. Remove brace. Five bolts secure brace to
machine. For easier removal, remove in order
shown.
Figure 23
3. Remove shock sleeves.
Figure 24
4. Replace panel.
Figure 25
Figure 26
IMPORTANT: The shipping brace, bolts,
lockwashers and shock sleeves should be saved and
MUST be reinstalled whenever the unit is moved
more than four feet. Do not lift or transport unit
from front or without shipping materials installed.
Refer to the User’s Guide for proper instructions
on reinstalling the shipping materials.
IMPORTANT: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to washer may result. For
leveling purposes, the washer may be tilted a
maximum of 6 inches (152.4 mm) in any direction.
FLW2269N
FLW2270N
FLW2271N
FLW2269N
1
5
2
3
4
FLW2271N
FLW2272N
FLW2268N
FLW2272N
FLW2268N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 19
802714R4
Step 9: Wipe Out Inside of Washer Drum
and Dryer Drum
Before using the washer and dryer for the first time,
use an all-purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping dust
from inside the drums.
Step 10: Plug In the Washer and Dryer
Electric Dryer
Connect the dryer to an electrical power source. Refer
to Step 4 for information on connecting power cord.
Figure 29
Gas Dryer
Dryer requires 120 Volt, 60 Hertz electrical supply and
comes equipped with a 3-prong grounding plug. Refer
to serial plate for specific electrical requirements.
NOTE: The wiring diagram is located behind the
control panel, inside the control cabinet.
When plugging in the dryer:
•Do not overload circuits.
•Do not use an adapter.
•Do not use an extension cord.
•Do not operate both a washer and gas dryer on
the same circuit. Use separately fused 15 amp
circuits.
SWD834N
Figure 27
SWD603N
Figure 28
D275I
D275I
Connect to 30 Amp circuit.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802714R4
20
The dryer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 Ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 120 Volts AC
(alternating current) 15 Amps. Refer to Figure 30 to
determine correct polarity of the wall receptacle.
Grounding Information
The dryer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dryer is equipped
with a cord having an equipment-grounding conductor
and a 3 prong grounding plug. The three-prong
grounding plug on the power cord should be plugged
directly into a polarized three-slot effectively
grounded receptacle rated 110/120 Volts AC
(alternating current) 15 Amps.
Do not modify the plug provided with the dryer – if it
will not fit the outlet, have a proper outlet installed by
a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Do not operate other appliances on the same circuit
when this appliance is operating.
This dryer is equipped with a three-prong
(grounding) plug for your protection
against shock hazard and should be
plugged directly into a properly grounded
three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
W036
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
W038
WARNING
DRY2022N
1“L1”
2Ground
3Neutral
4Neutral Side
5Round Grounding Prong
Figure 30
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the dryer to the electrical
power source.
W037
WARNING
D254I
DRY2
0 V.A.C
120±12
V.A.C
Plug cord into separately fused 15 Amp circuit.
3
2
1
4
5
120±12
V.A.C
