Alliance Laundry Systems BFNBCASG113TN01 User manual

Programming
Frontload Washer
Refer to Page 7 for Model Identification
FLW88R_SVG
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. 805407R6
November 2018

WARNING
Failure to install, maintain, and/or operate this ma-
chine according to the manufacturer's instructions
may result in conditions which can produce bodily
injury and/or property damage.
W030
WARNING
For your safety and to reduce the risk of fire or an
explosion, do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or
any other appliance.
W022
NOTE: The WARNING and IMPORTANT instructions ap-
pearing in this manual are not meant to cover all possi-
ble conditions and situations that may occur. It must
be understood that common sense, caution, and care-
fulness are factors which cannot be built into these
washers. These factors MUST BE supplied by the per-
son(s) installing, maintaining, or operating the unit.
Always contact the distributor, service agent, or the manufacturer
about any problems or conditions you do not understand.
Read all instructions before using unit.
Hazardous voltage inside. Disconnect power before serv-
icing.
This product uses FreeRTOS V7.2.0 (www.freertos.org).
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 805407R6

Table of Contents
Model Identification............................................................................... 7
Preliminary Information.........................................................................9
About the Control........................................................................................... 9
Glossary of Terms...........................................................................................9
Power Failure Recovery.................................................................................. 9
Serial Card Reader Communications (Card Models Only).................................. 9

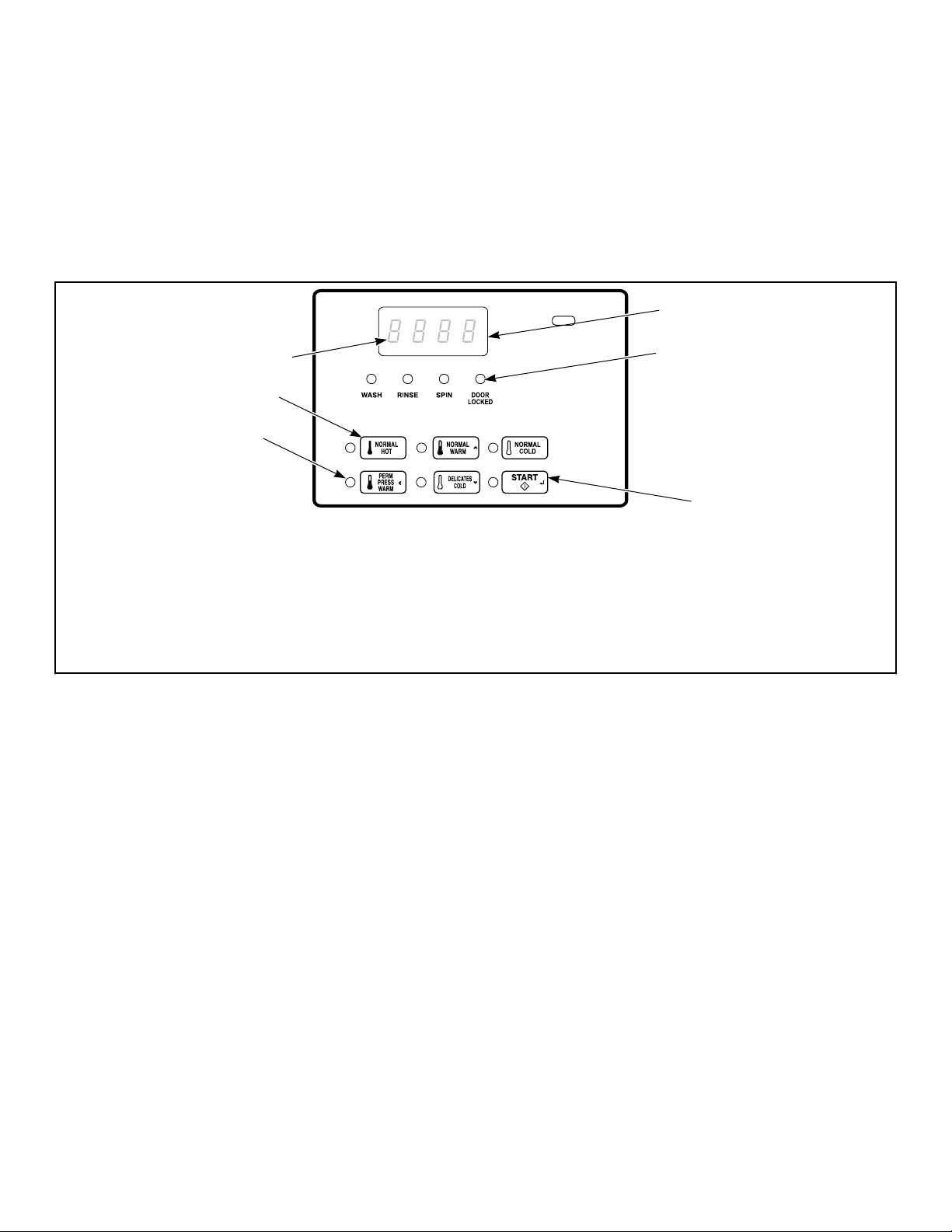

Control Identification........................................................................... 10
Select Cycle Pads..........................................................................................10
Display Identification............................................................................11
Light Emitting Diodes (LEDs)........................................................................11
CYCLE LED............................................................................................ 11
WASH LED..............................................................................................11
RINSE LED..............................................................................................11
SPIN LED................................................................................................ 11
DOOR LOCKED LED.............................................................................. 11
7-Segment Digits.......................................................................................... 11
Washer Operation.................................................................................12
Power Up.....................................................................................................12
Ready Mode.................................................................................................12
Partial Vend Mode........................................................................................ 12
Additional Vend Mode.................................................................................. 12
Start Mode................................................................................................... 12
End of Cycle Mode....................................................................................... 12
Door Locking Mode......................................................................................12
Door Unlocking Mode...................................................................................12
Cycle Sequence............................................................................................ 12
Closing Washer Door.................................................................................... 13
Signals.........................................................................................................13
Changing Cycles...........................................................................................13
Special Features ...................................................................................14
Programming Control....................................................................................14
Collecting Audit Information......................................................................... 14
Testing Machine and Control Functions.......................................................... 14
Rapid Advance Feature................................................................................. 14
© Copyright 2018, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 805407R6

Clearing the Vend Feature .............................................................................14
Communications Mode..................................................................................14
Coin Drop.................................................................................................... 14
Start Pulse Operation.....................................................................................14
Service Door and Coin Vault Openings........................................................... 14
OPL Mode................................................................................................... 14
Opening the Service Door..................................................................... 15
Stacked Washers and Dryers, 10 Degree Front Control Washers and Coin Rear
Control Washers........................................................................................15
Rear Control Washers with Card Reader......................................................... 15
OPL Models.................................................................................................16
Preparing for Manual Mode........................................................................16
Entering the Manual Mode................................................................... 18
How to Enter the Manual Mode......................................................................18
Manual Mode Navigation.............................................................................. 18
Programming Control...........................................................................20
What Can Be Programmed.............................................................................20
Programmable Options Available .................................................................. 20
Vend Price AtS............................................................................................. 21
Coin 1 Value dEn1........................................................................................ 22
Coin 2 Value dEn2........................................................................................ 22
Start Pulse Value PLSE..................................................................................23
Cycle Length CyCL...................................................................................... 23
Default Cycle dCyC...................................................................................... 23
Card Reader Display Control CArd................................................................ 23
Audio Signal AUd........................................................................................ 24
How to Program the Audio Signal...............................................................24
Error Code Programming Err......................................................................... 24
Water Level FLvL.........................................................................................25
Number of Balance Attempts with No Loss of Time bALA...............................25
OPL Parameters oPL.....................................................................................25
Collecting Audit Information................................................................ 26
How to Enter Audit Feature........................................................................... 26
Entering the Audit Feature by Manual Mode................................................... 26
Entering the Audit Feature with the Coin Vault Open....................................... 26
How to Read Audit Data................................................................................26
How to Exit Audit Feature............................................................................. 26
Manual Reset........................................................................................27
How to Enter Manual Reset........................................................................... 27
Testing Machine and Electronic Control Functions............................... 28
How to Enter Testing Feature.........................................................................28
How to Start Tests.........................................................................................28
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 805407R6

How to Exit Testing Feature ..........................................................................28
Diagnostic (Testing) Mode – Quick Reference Chart........................................ 28
Diagnostic Test Descriptions..........................................................................30
Control Software Version Number Test d 1.................................................. 31
Drive Board #1 Software Test d 3............................................................... 31
Water Level Trim Test d 7.......................................................................... 31
Service Door Opening Test d 8................................................................... 31
Coin Vault Opening Test d 9.......................................................................31
Coin Drop 1 Input Test d 10....................................................................... 31
Coin Drop 2 Input Test d 11........................................................................31
Vend Connection Header Present Test d 12.................................................. 31
Start Pulse Test d 13.................................................................................. 32
Door Switch Input Test d 15....................................................................... 32
Door Lock Input Test d 16..........................................................................32
Show Fill Time Test d 17........................................................................... 32
Show Drain Time Test d 18........................................................................ 32
Out of Balance Switch Test d 22................................................................. 32
External Outputs Test d 23......................................................................... 32
Water Purge Test d 24................................................................................ 32
Water Leak Detection Test d 25.................................................................. 33
Water Level Test d 26................................................................................ 33
DC Bus Voltage Test d 27...........................................................................33
AC Mains Voltage Test d 28....................................................................... 33
Configuration 1 Display Test d 29...............................................................33
Configuration 2 Display Test d 30...............................................................36
Configuration 3 Display Test d 31...............................................................36
Configuration 4 Display Test d 32...............................................................36
Configuration 5 Display Test d 33...............................................................37
Factory Test..................................................................................................37
To Enter Factory Test.................................................................................37
To Exit Factory Test...................................................................................38
................................................................................................................38
Error Codes .........................................................................................41
Rapid Advance Feature.........................................................................47
How to Enter Rapid Advance.........................................................................47
How to Exit Rapid Advance Feature............................................................... 47
Power Fail Recovery............................................................................. 48
Communications Mode......................................................................... 49
Card Reader Communications - Card Models Only.......................................... 49
Default Cycle Time .............................................................................. 50
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 805407R6

Model Identification
Information in this manual is applicable to these washer models:
BFNBCASG113TN01 HFNBEASP113CW01 HTGBYASP115TW01 STEBXASP133DW01
BFNBCASG113TW01 HFNBEASP115CW01 NTEBXASP303NW01 STEBXASP134DW01
BFNBCASP113TW01 HFNBXASP113CW01 NTEBXASP303NW22 STEBXASP134FW01
BFNBEASP113CN01 HFNBXASP113FQ01 NTEBXASP304NW01 STEBXASP173FW28
BFNBEASP113CW01 HFNBXASP113FW01 NTEBXASP304NW22 STEBXASP173TQ01
BFNBLBSP303AW01 HFNBXASP115CW01 NTEBXASP543NW23 STEBXASP173TW01
BFNBLBSP543NW01 HFNBXASP123DW01 NTEBYASP543NW23 STEBXASP175TW01
BFNBXASP113FW01 HFNBXASP303NW22 NTGBXASP303NW01 STEBXASP303NW22
BFNBXASP303AW01 HFNBXASP543DW01 NTGBXASP304NW01 STEBXASP303UW01
BFNBYASP113TW01 HFNBXRSP113FW01 NTLBXASP303NW26 STEBXASP304NW22
BTEBCASP173TW01 HFNBYASG113CW01 NTLBXASP304NW26 STEBXASP304UW01
BTEBEASP283CW01 HFNBYASG115CW01 NTLBXASP543NW23 STEBXASP304WW01
BTEBLASP433AW01 HFNBYASP113CW01 NTLBYASP543NW23 STEBXASP433AW01
BTEBLASP434AW01 HFNBYASP115CW01 SFNBCASG113TQ01 STEBXASP433AW12
BTEBXASG454NW36 HTEBCASP173TW01 SFNBCASG113TW01 STEBXASP434AW01
BTEBXASP173FW28 HTEBCASP175TW01 SFNBCASP113TQ01 STEBXASP434AW12
BTEBXASP433AW01 HTEBDASP283CW01 SFNBCASP113TW01 STEBXASP543DW01
BTEBXASP434AW01 HTEBDASP285CW01 SFNBCASP115TW01 STEBXASP543ZW01
BTEBYASP173TW01 HTEBXASP133DW01 SFNBCRSP113TW01 STEBXASP544DW01
BTGBCASP113TW01 HTEBXASP134DW01 SFNBCRSP113TW02 STEBXASP544ZW01
BTGBLASP303AW01 HTEBXASP134FW01 SFNBXASG083JW01 STEBYASP173TW01
BTGBLASP304AW01 HTEBXASP173FW28 SFNBXASG113JW01 STEBYASP175TW01
BTGBXASP113FW28 HTEBXASP283CW01 SFNBXASG113TQ01 STGBCASP113TW01
BTGBXASP303AW01 HTEBXASP285CW01 SFNBXASG113TW01 STGBCASP115TW01
BTGBXASP304AW01 HTEBXASP293CW01 SFNBXASP113FW01 STGBXASG113TW01
BTGBYASP113TW01 HTEBXASP295CW01 SFNBXASP113TQ01 STGBXASP113FW28
BTLBXASG304NW36 HTEBXASP304NW22 SFNBXASP113TW01 STGBXASP113TW01
BTLBXASP304NW22 HTEBXASP543DW01 SFNBXASP115TW01 STGBXASP114FW01
HFNBCASG113TN01 HTEBXASP544DW01 SFNBXASP123DW01 STGBXASP115TW01
HFNBCASG113TQ01 HTEBYASP283CW01 SFNBXASP303AW01 STGBXASP123DW01
HFNBCASG113TW01 HTEBYASP285CW01 SFNBXASP303AW12 STGBXASP124DW01
Table continues...
Model Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 805407R6

HFNBCASG115TQ01 HTGBCASP113TW01 SFNBXASP303NW22 STGBXASP303AW01
HFNBCASG115TW01 HTGBCASP115TW01 SFNBXASP303ZQ01 STGBXASP303AW12
HFNBCASP113TN01 HTGBDASP093CW01 SFNBXASP303ZW01 STGBXASP303NW22
HFNBCASP113TQ01 HTGBDASP095CW01 SFNBXASP543DW01 STGBXASP303ZW01
HFNBCASP113TW01 HTGBXASP093CW01 SFNBXRSP113TW01 STGBXASP304AW01
HFNBCASP115TQ01 HTGBXASP095CW01 SFNBXRSP113TW02 STGBXASP304AW12
HFNBCASP115TW01 HTGBXASP113FW28 SFNBXRSP115TW02 STGBXASP304NW22
HFNBCRSP113TW01 HTGBXASP114FW01 SFNBYASG113TW01 STGBXASP304ZW01
HFNBCRSP115TW01 HTGBXASP123DW01 SFNBYASP113TW01 STGBXASP543DW01
HFNBDASG113CW01 HTGBXASP124DW01 SFNBYASP115TW01 STGBXASP544DW01
HFNBDASG115CW01 HTGBXASP543DW01 SFNBYRSP113TW01 STGBYASP113TW01
HFNBDASP113CW01 HTGBXASP544DW01 SFNBYRSP115TW01 STGBYASP115TW01
HFNBDASP115CW01 HTGBYASP093CW01 STEBCASP173TQ01 TTEBXASP303NW22
HFNBDRSP113CW01 HTGBYASP095CW01 STEBCASP173TW01 TTEBXASP304NW22
HFNBDRSP115CW01 HTGBYASP113TW01 STEBCASP175TW01
Model Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 805407R6

Preliminary Information
About the Control
This control is an advanced, programmable computer that lets the
owner control most machine features by pressing a sequence of
keypads.
The control allows the owner to set vend prices, retrieve audit in-
formation, run diagnostic tests and set other programmable fea-
tures. Washers shipped from the factory have a default cycle set-
ting of NORMAL COLD built in. However, the owner can
change the default cycle, or any cycle, as needs permit.
IMPORTANT: In the event of a power failure, the control
will not have to be reprogrammed. It is designed with a
memory system that will remember how it was pro-
grammed until the electrical power is restored.
IMPORTANT: It is extremely important that the washer
has a good ground connection and that all mechanical
and electrical connections to the control are made be-
fore applying power to or operating the washer.
Glossary of Terms
The following are a few terms and abbreviations to learn. These
are referred to throughout the instructions.
Display – This term refers to the window area of the control that
displays words and values.
LED (Light Emitting Diode) – This term refers to the lights next
to the keypads and status words of the control.
FEC – Front End Control
I/O Board – Input/Output Board
OPL – On Premises Laundry
Power Failure Recovery
If a cycle is in progress and the power fails, the cycle status is
saved in memory. When the power recovers, the washer will re-
sume into the previously active cycle if so programmed by the
owner.
The owner may program a special feature called POWER FAIL
RESET which sets a maximum power failure duration. To pro-
gram this feature, refer to Programming Control.
If the length of the power failure is greater than the POWER
FAIL RESET time, the control will end the cycle and the display
will revert back to the ready mode.
On drain pump models, if the wash basket is full of water, the
control will lock the door and pump out the water.
Serial Card Reader Communications
(Card Models Only)
The control will accept communication with a serial card reader
in order to perform vending transactions when a card is inserted
to pay for cycles. The card reader can also allow the owner to
program a limited number of features and collect audit informa-
tion.
For detailed information on serial card reader communications,
refer to instructions included with card reader.
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 805407R6

Control Identification
Select Cycle Pads
SELECT CYCLE pads are used to select the specific washer cy-
cle. These pads include NORMAL HOT, NORMAL WARM,
NORMAL COLD, PERM PRESS WARM and DELICATES
COLD. These pads allow the user to select a cycle other than the
default cycle (NORMAL COLD).
The SELECT CYCLE keypads are not active after the first fill
step of the cycle. The selected cycle is indicated by the light
(LED) on the pad. Pressing the flashing START pad will confirm
the selection and the cycle will begin.
When a card reader is used, pressing the START pad will start the
cycle and deduct the vend price from the card.
FLW88R_SVG1
1
3
4
5
6
2
1. LED Light
2. SELECT CYCLE pads
3. Four 7-Segment Digits
4. Display
5. LED Status Lights
6. START pad
Figure 1
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 805407R6

Display Identification
Light Emitting Diodes (LEDs)
LIGHT EMITTING DIODES (LEDs) are used to indicate the
chosen cycle and cycle status. See below for information on each
LED.
CYCLE LED
CYCLE LED will remain lit the entire cycle.
WASH LED
WASH LED is lit at the beginning of a wash portion of the cycle
and will remain lit until the wash is complete.
RINSE LED
RINSE LED is lit at the beginning of a rinse portion of the cycle
and will remain lit until the rinse is complete.
SPIN LED
SPIN LED is lit during the Final Spin portion of the cycle.
DOOR LOCKED LED
DOOR LOCKED LED is lit whenever the door is locked. The
door can't be opened when this LED is lit.
7-Segment Digits
The 7-SEGMENT DIGITS are used to display the time remain-
ing in a cycle, vend price, error messages and descriptive codes.
During diagnostic testing or manual programming of the control,
these digits will display descriptive codes and values.
Display Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 805407R6

Washer Operation
Power Up
When power is applied to the washer, the control will display its
control type as FL, software version as SXXX (XX is the version
number) for one (1) second each. If the control was not powered
down during a running cycle, it will enter the Ready Mode.
Ready Mode
In this mode of operation the display shows the current selected
cycle, and the full current vend price for that cycle.
To start the cycle, the user must satisfy the vend price and then
press the START keypad.
The user will be able to select a different cycle by pressing a cy-
cle pad when the machine is in the ready mode or before the first
fill is complete.
Partial Vend Mode
The control enters this mode when part of the vend price has been
entered but not enough vend is entered to satisfy the vend price.
The control will display the remaining vend price needed to start
the cycle.
Additional Vend Mode
The control enters this mode if a change is made before the first
fill is complete. If the vend price is not satisfied within one (1)
minute, the washer control will go back to the first selection and
the cycle will continue. Pressing the START keypad will cancel
cycle changes and exit this mode. After the first fill, all key
presses will be ignored, allowing the washer to go through the
complete cycle.
Start Mode
The control enters this mode when the full vend price is satisfied,
the vend price is zero, or the control is in OPL Mode. The
START pad LED will flash one (1) second on and one (1) second
off. If Start Mode is entered because the vend price is satisfied or
the control is in OPL Mode, the display will show PUSH for one
(1) second, Strt for one (1) second and the current cycle time
for one (1) second. If Start Mode is entered because the vend
price is zero (0), the display will show FrEE. When first entering
Start Mode, a signal will sound for one (1) second on and one (1)
second off for 10 seconds if Signal for Start is enabled.
After pressing the START keypad, the door will lock and the cy-
cle will begin.
End of Cycle Mode
When a cycle is complete, the control will display 00 until the
washer is opened, a key is pressed, or a coin/card is entered.
When one of these three options occurs, the display will revert
back to the ready mode.
Door Locking Mode
The control enters this mode after the Start pad is pressed in Start
Mode or Pause Mode to start or resume a machine cycle. The
control will stay in Door Locking Mode until the loading door is
closed and locked. The control shows the remaining cycle time
and the Door Lock LED flashes one second on/off.
Once the door is locked, the control will exit Door Locking Mode
and will enter Run Mode. If the door is opened prior to being
locked, the control will return to Start Mode.
Door Unlocking Mode
This mode is entered when there is no time left in the cycle or
when pausing the cycle while in Run Mode. The door will unlock
after the basket stops spinning. The display will continue to flash
the remaining cycle time every second or if the next mode is End
of Cycle Mode, it will flash 01 every second. If the next mode is
Pause Mode, the display will flash PAUS every second. If the
drive board determines that the water temperature is too hot to
drain or unlock the door, the display will flash Hot in addition to
the other displays.
The machine will always drain water down to an empty level be-
fore attempting to unlock the door. If after the programmed time
of draining, the water level is still not low enough, the control
will enter Machine Error Mode with a drain error, if enabled.
Otherwise the control will continue to drain until it sees the ma-
chine empty.
The Start key can be pressed while in this mode as long as Ma-
chine Error Mode or End of Cycle Mode is not the next mode. If
the Start key is pressed and the next mode is Pause Mode or Start
Mode, the next mode entered will be Door Locking Mode. Other-
wise the press is invalid. All other keys are invalid while in this
mode. Once Door Unlocking Mode is exited, the control will en-
ter the next mode.
Cycle Sequence
Upon the start of a cycle, the control will display the total cycle
time. The appropriate LEDs will light while the machine passes
through different cycle steps. Any coin entered after the first fill
completes will be added to the total coin counter, but the user will
not be able to change cycles.
Washer Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 805407R6

Closing Washer Door
If the door is not closed when the vend price is satisfied, CLos
and door will be displayed until the door is closed. Once door is
closed, the START pad must be pressed to lock door and start the
cycle. If the door does not lock within 20 seconds of being
closed, EdL1 will be displayed, indicating a door lock error,
while the door continues to try to lock.
If the door locks after 20 seconds, the door lock error will clear
and the cycle will continue normally. The door can be opened to
clear the door lock error as well.
Signals
There are five options when a signal can be used during the
washer operation. These five options are listed below:
1. End of Cycle Signal By default, this signal is turned off. If
turned on, the signal sounds for three (3) seconds at the end of
a cycle.
2. Signal On Keypad Depression By default, this signal is
turned on and sounds for a quarter of a second each time a
keypad is pressed.
3. Signal On Coin Input/Card Insertion By default, this signal
is turned on and will sound for a quarter of a second each time
a coin or card is entered.
4. Signal for Serial or Network Vending Command By de-
fault, this signal is turned on for a quarter of a second when
the control receives a valid serial or network vend command.
5. Signal for Start By default, this signal is turned on and will
sound one (1) second on and one (1) second off for 10 sec-
onds after vend price has been satisfied.
NOTE: Refer to Programming Control to program signal
options.
Changing Cycles
Cycles can be changed any time before the first fill is complete.
After the first fill is complete, all key presses are ignored.
Selecting a higher priced cycle will pause the cycle until the vend
price has been satisfied. After the vend price has been satisfied,
the cycle will continue with the new selection. If the vend price is
not satisfied within 1 minute, the washer control will go back to
the previously set cycle.
Washer Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. 805407R6

Special Features
Programming Control
The control allows the owner to program the control with the use
of the keypad. Cycle and vend information may be programmed,
audit information may be viewed and diagnostic tests may be run
by pressing keypad combinations.
Collecting Audit Information
The control stores audit information in its memory that can be re-
trieved by pressing various combinations of Select Cycle pads.
For more information on the audit features, refer to Collecting
Audit Information.
Testing Machine and Control Functions
Special diagnostic features built into the control allow the owner
to run specific diagnostic tests. By opening and closing the serv-
ice door and then pressing various sequences of Select Cycle
pads, the owner may perform the following tests:
• Control Software Version # Test
• Drive Board #1 Software Version Test
• Service Door Switch Input Test
• Coin Vault Switch Input Test
• Coin Drop #1 Input Test
• Coin Drop #2 Input Test
• Vend Connection Header Present Input Test
• Start Pulse Input Test
• Door Switch Input Test*
• Door Lock Switch Input Test*
• Show Fill Time Test
• Show Drain Time Test
• Out of Balance Switch Input Test
• External Output Test*
• Water Purge Test*
• Water Leak Detection Test*
• Water Level Test
• DC Bus Voltage Test
• AC Mains Voltage Test
• Machine Configuration #1 Display Test
• Machine Configuration #2 Display Test
• Machine Configuration #3 Display Test
• Machine Configuration #4 Display Test
• Machine Configuration #5 Display Test
* Tests can only be entered when in Start or Ready Mode.
For detailed information on running diagnostic tests, refer to Test-
ing Machine and Electronic Control Functions.
Rapid Advance Feature
This feature allows the user to quickly advance through an active
cycle or advance into a cycle from the Ready Mode. This feature
is useful when tests must be performed immediately on a ma-
chine currently in an active cycle. In this case, the user can quick-
ly advance through the cycle to the Ready Mode. At this point,
the user can perform the required tests and then return the ma-
chine to the active cycle.
Clearing the Vend Feature
This feature allows the user to return the control back to the
Ready Mode if coins have been entered but the full vend price
has not yet been satisfied, while in Partial Vend Mode.
For more information on using the Clear Vend feature, refer to
Clear Vend Feature.
Communications Mode
This feature allows the control to communicate with an external
device or a card reader. This allows the control to be programmed
and have its data read without using the keypad.
Coin Drop
The control will accept pulses from a single or dual coin drop to
satisfy vend price. Each coin drop will have the ability to satisfy
the vend.
Start Pulse Operation
The control will accept pulses from optional payment systems.
The Start Pulse Mode allows the machine to go from the Ready
Mode to the Start Mode after pulses are received.
Service Door and Coin Vault Openings
The control will capture the times and dates of the last seven
openings of the Coin Vault and the Service Door. The informa-
tion is saved in memory. An open service door and a closed coin
vault combined with various keypad presses allows the control to
enter manual modes of operation if the Break-In Alarm is not on.
These modes include Manual Programming, Audit Collection,
Diagnostics, Rapid Advance, and Reset to Factory Defaults.
OPL Mode
This feature allows the user to start a cycle without satisfying the
vend price.
For details on enabling OPL Mode, refer to Programming Con-
trol.
Special Features
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. 805407R6

Opening the Service Door
Stacked Washers and Dryers, 10
Degree Front Control Washers and
Coin Rear Control Washers
Models through Serial No. 1810000001
Manual programming requires the user to open and close the
service door. Opening and closing the service door trips a switch
allowing access to various programming options, diagnostics, and
audit capabilities. On coin models, the coin vault switch must be
closed to enter Manual Mode.
Models starting Serial No. 1810000001
Manual programming requires the user to unplug the bullet con-
nector located between the “white/black” and “red/blue” wires.
Reconnect the connector for normal operation.
After opening and closing the service door or unplugging the bul-
let connector, the programmer has 4.25 minutes to begin pro-
gramming. If a keypad has not been pressed in that time, the con-
trol will revert back to the Ready Mode. Refer to Figure 2 .
The service door is located in the control panel on the Stacked
Washer and Dryers and Front Control Washers. On Rear Control
Washers, the service door is located on the top of the meter case.
Refer to Figure 2 .
Rear Control Washers with Card Reader
Manual programming requires the user to remove the control
panel and unplug the bullet connector located between the
“white/black” and “red/blue” wires. This will allow the user to
access various programming options, diagnostics, and audit capa-
bilities. Refer to Figure 2 .
Opening the Service Door
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. 805407R6

1
FLW31R_SVG
FLW32R_SVG
1
W521I_SVG
1
FLW6R_SVG1
2
1. Service Door
2. Control Panel
Figure 2
OPL Models
Preparing for Manual Mode
Manual programming requires the user to remove the cabinet top
or control panel and unplug the bullet connector located between
the “white/black” and “red/blue” wires. This will allow the user
to access various programming options, diagnostics, and audit ca-
pabilities. Refer to Figure 3 .
Single Units
1. Remove the screws from the back of the top panel that attach
the top panel to the machine.
2. From the back of the machine, using a screwdriver, pry the
top panel upward and towards you.
3. Remove the screws from the top of the control panel that at-
tach the control panel to the machine.
4. Remove the screws from the bottom of the control panel that
attach the control panel to the machine.
NOTE: When reinstalling the control panel, be sure to
align the control panel’s tabs with the machine’s tabs.
Stack Units
1. Remove the screws from the bottom of the dryer front panel.
2. Remove the screws that attach the bottom of the dryer base to
the frontload washer’s control panel.
3. To gain access to the control panel’s components, tilt the dry-
er back slightly and insert a 27-inch 2 x 2 between the dryer
and washer.
4. As an alternative, remove the control panel using putty kni-
ves.
a. Insert a thin putty knife between the frontload washer’s
control panel and front panel to disengage the control pan-
el’s tabs.
b. The control panel’s tabs are located 8.71 inches from the
edge of the left and right side panels.
Opening the Service Door
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. 805407R6

FLW2384N_SVG
SWD990N_SVG
Figure 3
Opening the Service Door
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. 805407R6

Entering the Manual Mode
How to Enter the Manual Mode
For programming, testing, and retrieving information from the
control, it is often necessary to enter the Manual Mode by follow-

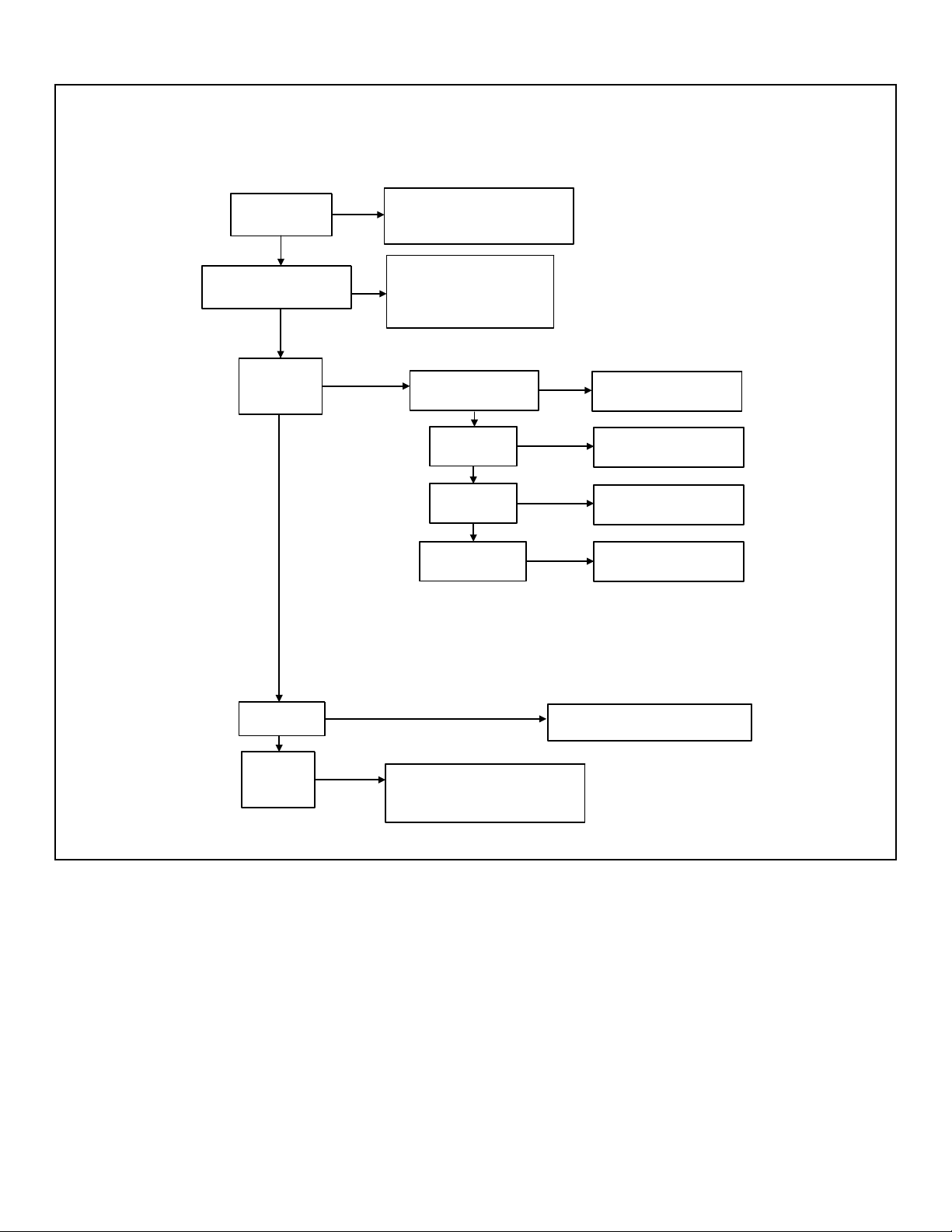

ing the four simple steps below. For an overview of entering the
Manual Mode, refer to the flowchart on the following page.
1. If accessing Diagnostic Tests that take control of machine op-
eration, be sure the washer is in the Start or Ready Mode be-
fore continuing to step 2. If the washer is in an active cycle,
rapid advance through the cycle. Refer to Rapid Advance
Feature.
2. Stacked Washers and Dryers, 10 Degree Front Control Wash-
ers and Coin Rear Control Washers through Serial No.
1810000001: Open the service door. The coin vault switch
must be closed.
3. All Other Models: Open the service door, if necessary, and
unplug bullet connector.
4. While pressing and holding the PERM PRESS WARM key-
pad with one hand, press the NORMAL HOT keypad with the
other hand.
5. The display will show rAPd.
6. Press the NORMAL WARM (∧) or the DELICATES COLD
(∨) keypad to scroll through the options until the desired op-
tion appears in the display.
7. Press the START (enter) keypad.
NOTE: After entering Manual Mode, if no keypads
are pressed for 4.25 minutes, the control will return
to the previous mode of operation.
8. To exit, press the PERM PRESS WARM ( < ) keypad. The
control will revert back to Ready Mode.
Manual Mode Navigation
Manual Mode is broken into five groups: Manual Programming,
Manual Read Audit, Manual Reset, Manual Rapid Advance and
Manual Diagnostics.
The manual features available in each group are as follows (the
menu shown on the display in this mode is in parentheses).
•Manual Programming (Prog)
•Manual Read Audit (AUdt)
•Manual Reset (rSEt)
•Rapid Advance (rAPd)
•Manual Diagnostic Tests (diAg)
Entering the Manual Mode
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 805407R6

• Manual Mode: Enter by opening the service door for at least 1 second and then closing service door. Then press PERM PRESS
WARM and NORMAL HOT keypads at the same time.
• Press the NORMAL WARM or DELICATES COLD keypad to scroll through the Manual Mode options.
• Press the START keypad to enter any sub-menu options.
"rAPd"
Rapid Advance
"Prog "
Manual Programming
"AUdt"
Manual Read
Audit
"rSEt"
Manual Reset
"diAg"
Diagnostic
Tests
Press the START keypad to
begin Rapid Advance cycle and
to advance through cycle steps.
Press the START keypad to
enter Manual Programming.
Refer to Manual
Programming flowchart.
"CyC"
Total machine cycles
"Coi1"
Total coins #1
"PLSE"
Total start pulses
"Coi2"
Total coins #2
Press the START keypad to enter
Manual Reset Mode.
Press the START keypad to
enter Diagnostic Tests. Refer to
Diagnostic Tests flowchart.
FLW145R_SVG
Press the START (enter)
keypad to read audit.
Press the START (enter)
keypad to read audit.
Press the START (enter)
keypad to read audit.
Press the START (enter)
keypad to read audit.
Figure 4
Entering the Manual Mode
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. 805407R6

Programming Control
What Can Be Programmed
This feature allows the owner to program cycle information,
standard vend pricing and other features by using the keypads.
The control must have the Manual Programming Mode enabled,
which is the factory default.
Refer to this section when programming the control. This section
offers a detailed description of all options available to program.
Each description includes instructions on when and why the op-
tion might be used and, more importantly, how to program the
option.
For an overview of the programming organization, refer to the
flowcharts on the following pages.
For more advanced users, a quick reference list of the options
available through the programming mode is located on this page.
NOTE: The letters and numbers in the Option Display
column of the Programmable Options List are what will
be shown in the display when that option is selected.
Programmable Options Available
Option Number Option Display Description Factory Default Value Range
1AtS Vend Price 200 0 - 65,535
2dEn1 Coin #1 Value 25 1 - 65,535
3dEn2 Coin #2 Value 100 1 - 65,535
4PLSE Start Pulse Value 25 1 - 65,535
5CyCL Cycle Length 3 3 - 5
6dCyC Default Cycle 3 1 - 5
7CArd Card Reader Display
Control
oFF on/oFF
8AUd Audio Signal on on/oFF
9Err Errors Menu on on/oFF
10 SUd 1 Suds Removal Routine
Display
oFF on/oFF
11 SUd 2 Suds Removal Rou-
tines Allowed Per Cy-
cle
1 0-10
12 SUd 3 Suds Removal Routine
Extra Time
on on/oFF
13 FLvL Water Level 10 1 - 30
14 bALA Number of Balance At-
tempts with No Loss of
Time
Through Serial No.
1506011826 = 4
Starting Serial No.
1506011827 = 7
1-7
15 oPL OPL Mode oFF on/oFF
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. 805407R6
