Alliance Laundry Systems NX18BVPA6 User manual

Installation
www.comlaundry.com
Washer-Extractors
Cabinet Freestanding
Refer to Page 2 for Model Identification
H
CFD11C
Part No. 9001909R2
November 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones en español,
visite www.comlaundry.com.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
9001909 1
Table of
Contents
Introduction......................................................................................... 2
Model Identification ............................................................................. 2
Nameplate Location.............................................................................. 3
Replacement Parts ................................................................................ 3
Customer Service.................................................................................. 3
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 5
Safety Decals ........................................................................................ 7
Operator Safety..................................................................................... 8
Specifications and Dimensions........................................................... 9
Installation........................................................................................... 13
Dimensional Clearances................................................................... 13
Machine Foundation ........................................................................ 13
Mechanical Installation......................................................................... 14
Frame Dimensions and Mounting Bolt Location............................. 14
Mounting Bolt Installation (If Required).............................................. 16
Removing the Transport Block............................................................. 17
Drain Connection.................................................................................. 18
Water Connection ................................................................................. 19
Electrical Installation ............................................................................ 20
Electrical Connection....................................................................... 20
Out-of-Balance Switch ......................................................................... 22
Control Function Test ........................................................................... 23

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909
2
Introduction
Model Identification
Information in this manual is applicable to these
models:
18
NX18BVPA6
NX18BVPA7
NX18BVQA6
NX18BVQA7
NX18BVXA6
NX18BVXA7
NX18BVXM6
NX18BVXM7
30
NX30BVPA6
NX30BVPA7
NX30BVQA6
NX30BVQA7
NX30BVXA6
NX30BVXA7
NX30BVXM6
NX30BVXM7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
3
9001909
Nameplate Location
The nameplate is located at the rear of the machine.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1 and Figure 2.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call [phone].
CFD11C
1Nameplate
H
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
9001909
4
Figure 2
Model Number Familiarization Guide
Sample Model Number: NX18BVXM60001
NX Model Number Prefix
18 Washer-Extractor Capacity (pounds dry weight of laundry)
BType of Electrical Control
VWasher-Extractor Speed Capability (V = Variable-Speed)
XVoltage Code
M6 Design Series (M=Domestic, A=International)
0001 Option Identification (varies from machine to machine)
CFD22N
CFD22N
NX18BVXM60001
6
18 8
50 60
15
2/3+PE 1
1000
EXAMPLE OF NAMEPLATE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
9001909
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
9001909
6
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
7
9001909
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance
are provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Install the machine on a level floor of
sufficient strength. Failure to do so may
result in conditions which can produce
serious injury, death and/or property
damage.
W703
WARNING
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
9001909
8
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
9001909
Specifications and Dimensions
General Specifications
Model 18 30
Overall Dimensions
Overall width 26 in. (660 mm) 30.7 in. (780 mm)
Overall height 40.9 in. (1038 mm) 47.3 in. (1202 mm)
Overall depth 29.1 in. (739 mm) 33.1 in. (842 mm)
Weight and Shipping Information
Net weight 465.2 lb. (211 kg) 716.5 lb. (325 kg)
Shipping weight 513.7 lb. (233 kg) 782.6 lb. (355 kg)
Shipping volume 22.5 ft3(0.8 m3) 34.7 ft3(1.3 m3)
Wash Cylinder Information
Cylinder diameter 20.9 in. (530 mm) 25.6 in. (650 mm)
Cylinder depth 13 in. (330 mm) 15.76 in. (400 mm)
Cylinder volume 2.7 ft3(76 l) 4.66 ft3(132 l)
Perforation size 0.12 in. (3 mm) 0.12 in. (3 mm)
Door Opening Information
Door opening size 11.8 in. (300 mm) 11.8 in. (300 mm)
Height of door bottom above floor 11 in. (280 mm) 15 in. (381 mm)
Water Consumption
Average water consumption per cycle HOT 3 gal. (11 l) 13 gal. (49 l)
COLD 18 gal. (68 l) 27 gal. (102 l)
Power Consumption
Average power used per cycle Motor 0.15 kW/hr 0.2 kW/hr
Heating 1.5 kW/hr 3 kW/hr

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
9001909
10
General Specifications
Model 18 30
Drive Train Information
Number of motors in drive train 1 1
Drive motor power 1 HP (0.75 kW) 2 HP (1.5 kW)
Cylinder Speeds
Wash/reverse speed 10-50 RPM 10-50 RPM
Distribution/drain speed 85 RPM 85 RPM
Extract speed 250-1000 RPM 250-1000 RPM
Centrifugal Force Data
Wash/reverse centrifugal force 0.03-0.74 Gs 0.04-0.91 Gs
Extract centrifugal force 19-296 Gs 23-363 Gs
Balance Detection
Vibration safety switch installed Standard Standard
Electrical Heating (International Models Only)
Total electrical heating capacity 9 kW 18 kW
Electrical heating elements 3 6
Electrical heat element size 3 kW 3 kW

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
11
9001909
Figure 3
CFD61N
1Hot Water Connections .75 in. (19 mm) 6Drain Outlet
2Cold Water Inlet (required) .75 in. (19 mm) 7Cold Water Inlet (required) .75 in. (19 mm)
3Power Input 8Cold Water Inlet (required) .75 in. (19 mm)
4Emergency Stop Button 9Fill and Supply Ventilation
5Ventilation Tub
H
CFD61N
18 MODEL
40.9 in.
(1038 mm)
39.8 in.
(1011 mm)
26 in.
(660 mm)
9.1 in.
(231 mm) 6 in.
(153 mm)
3 in.
(75 mm) 5.5 in.
(139 mm)
27.7 in.
(633 mm)
31.9 in.
(809 mm)
26 in.
(660 mm)
9
1
2
8
6
14.4 in.
(365 mm)
8.7 in.
(220 mm)
33.2 in.
(843 mm)
4
3
5
20.9 in.
(530 mm)
2.8 in.
(70 mm)
7 in.
(180 mm)
7.2 in.
(184 mm)
2.6 in.
(65 mm)
2.6 in.
(65 mm)
2.7 in.
(69 mm)
26.3 in. (670 mm)
28.6 in. (727 mm)
7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
9001909
12
Figure 4
CFD62N
1Hot Water Connections .75 in. (19 mm) 6Drain Outlet
2Cold Water Inlet (required) .75 in. (19 mm) 7Cold Water Inlet (required) .75 in. (19 mm)
3Power Input 8Cold Water Inlet (required) .75 in. (19 mm)
4Emergency Stop Button 9Fill and Supply Ventilation
5Ventilation Tub
H
CFD62N
30 MODEL
474 in.
(1202 mm)
46.3 in.
(1175 mm)
30.7 in.
(780 mm)
3.2 in.
(82 mm)
13.1 in.
(332 mm)
33.5 in.
(849 mm)
8.7 in.
(220 mm)
6.1 in.
(155 mm)
1.4 in.
(35 mm) 38 in.
(964 mm)
7.9 in.
(200 mm)
18.7 in.
(475 mm)
2.8 in.
(70 mm)
36.4 in.
(924 mm)
7.9 in.
(200 mm)
8
74
3
5
6
25.5 in.
(648 mm)
3.5 in.
(88 mm)
29.9 in. (760 mm)
32.1 in. (816 mm)
2.6 in.
(66 mm)
2.6 in.
(66 mm)
8 in.
(202 mm)
10.5 in.
(267 mm)
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 13
9001909
Installation
Dimensional Clearances
Tab l e 1 shows recommended minimum clearances on
all sides of the washer-extractor.
Machine Foundation
Thoroughness of detail must be stressed with all
foundation work to ensure a stable unit installation,
eliminating possibilities of excessive vibration during
extract.
The washer-extractor must be placed on a smooth level
surface so that the entire base of the machine is
supported and rests on the mounting surface.
The standard installation does not require anchoring
unless mandated by state or local codes.
Kinetic energy of the cylinder and dynamic loads on
the floor or foundation are shown in Table 2.
Tab l e 2 can be used as a reference when designing
floors and foundations.
Recommended Minimum Clearances
Model 18 30
Minimum rear clearance 24 in.
(600 mm)
24 in.
(600 mm)
Minimum clearance between
machine and wall
6 in.
(150 mm)
6 in.
(150 mm)
Minimum clearance between
machines (side)
1 in.
(25.4 mm)
1 in.
(25.4 mm)
Minimum front clearance
(door swing)
16.5 in.
(419 mm)
16.5 in.
(419 mm)
Table 1
Floor Load Data
Model 18 30
Kinetic energy of the
cylinder
1386 N/m 2592 N/m
Dynamic bottom load 700 N/16 Hz 1000 N/16 Hz
Table 2
Ensure that the machine is installed on a
level floor of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.
W488
CAUTION

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9001909
14
Mechanical Installation
Frame Dimensions and Mounting Bolt
Location

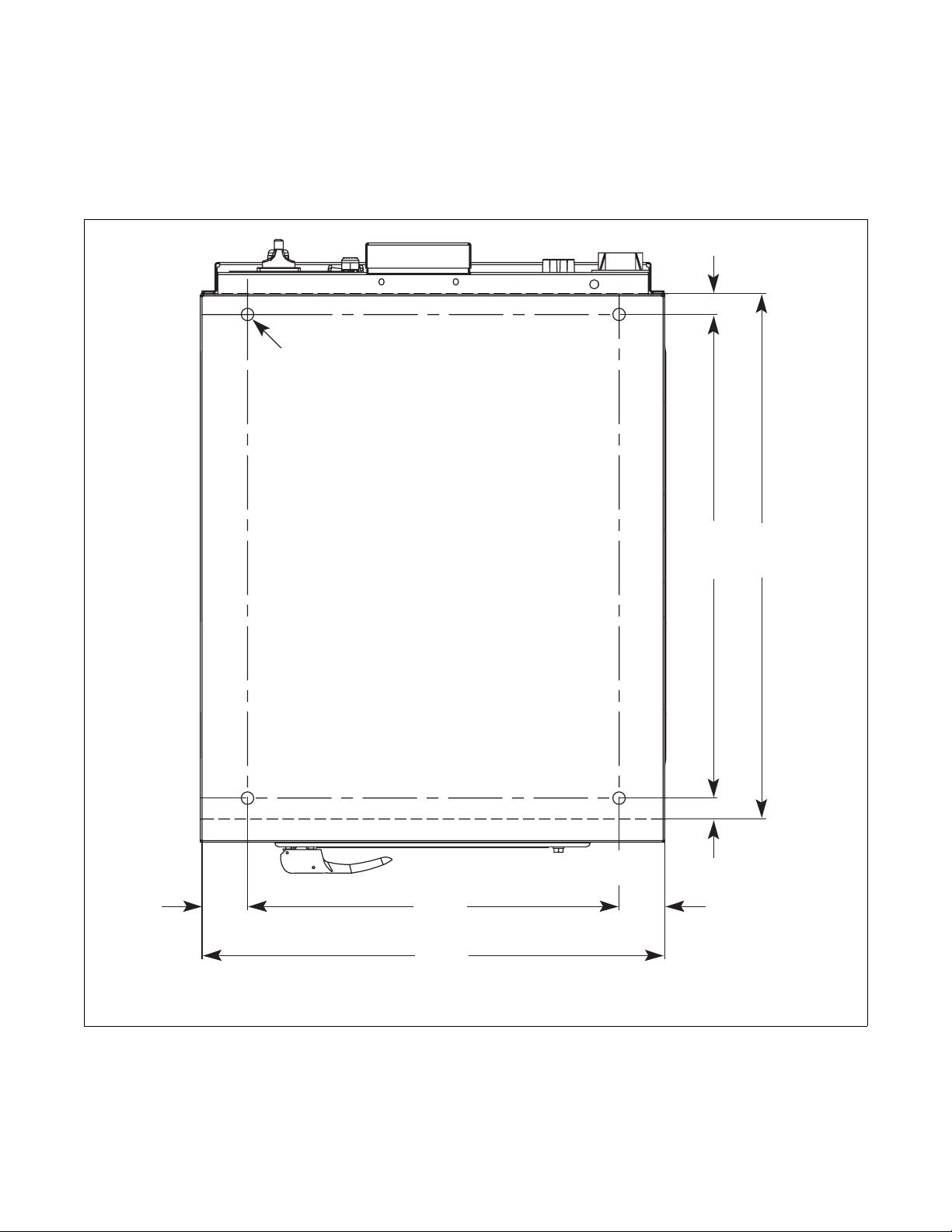

Figure 5
IMPORTANT: Drawing is not to scale.
CFD67N
NX18
20.87 in.
(530 mm)
25.59 in.
(690 mm)
23.23 in.
(590 mm)
25.98 in.
(660 mm)
1.18 in.
(30 mm)
2.26 in.
(65 mm)
0.74 in.
(18 mm)
1.18 in.
(30 mm)
2.26 in.
(65 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
9001909
Figure 6
IMPORTANT: Drawing is not to scale.
CFD68N
NX30
26.18 in.
(665 mm)
25.51 in.
(648 mm)
1.44 in.
(36.5 mm)
2.60 in.
(66 mm)
0.71 in.
(18 mm)
29.06 in.
(738 mm)
30.71 in.
(780 mm)
1.44 in.
(36.5 mm)
2.60 in.
(66 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9001909
16
Mounting Bolt Installation
(If Required)

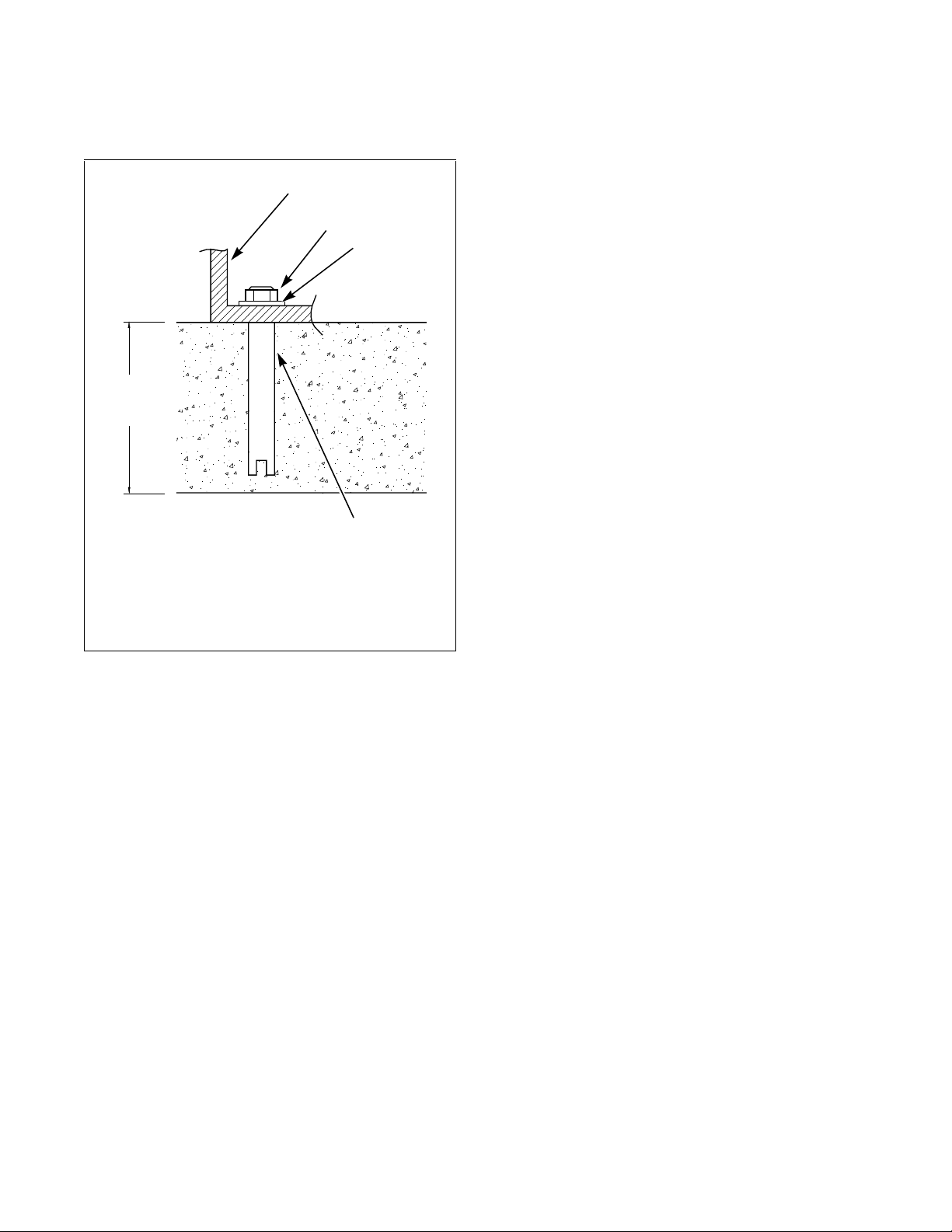

Figure 7
After the concrete has cured and the anchors are
installed, proceed as follows:
1. Place the washer-extractor adjacent to the
foundation. Do not attempt to move it by pushing
on the sides. Always insert a pry bar or other
device under the bottom of the frame of the
washer-extractor to move it.
2. Place the washer-extractor carefully over the
anchors.
3. Put bolts through the machine in the anchors and
fasten them. The diameter of the bolt must be
minimum 1/2-13 or 12 mm.
4. To level machine, fill the spaces between the
machine base and floor with machinery grout.
Grout completely under all frame members.
Remove front and rear panels to gain access to all
frame members. Force grout under the machine
base until all voids are filled.
5. Remove the spacers carefully, allowing the
machine to settle into the wet grout.
6. Position washers and locknuts on machinery
anchor bolts and fingertighten to machine base.
7. After the grout is completely dry, tighten the
locknuts by even increments – one after the
other – until all are tightened evenly and the
machine is fastened securely to the floor.
CFS485N
1Base Frame
2Bolt
3Washer
4Anchor Bolt/Plug
CFS485N
6 in.
(152 mm)
1
2
4
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
17
9001909
Removing the Transport Block
To prevent damage during transportation, machine has
been equipped with a transport block. To remove,
proceed as follows:
1. Place machine on level ground.
2. Remove service panels and back panel.
3. At rear of machine, lift at bottom of motor and
remove transport block. Refer to Figure 8.
Figure 8
IMPORTANT: Do NOT lift motor by the pulley.
IMPORTANT: Do NOT remove panel braces.
Refer to Figure 9.
Figure 9
4. Replace all panels removed.
CFD26N
1Transport Block (Remove)
The machine must never be activated
before removing the transport block.
W618
WARNING
CFD26N
1
CFD65N
1Panel Braces (Do NOT Remove)
CFD65N
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9001909
18
Drain Connection
A drain system of adequate capacity is essential to
washer-extractor performance.
Ideally, the water should empty through a vented pipe
directly into a sump or floor drain.
Figure 10 shows drain line and drain trough
configurations.
Figure 10
A flexible connection must be made to a vented or air
gap drain system to prevent an air lock and to prevent
siphoning. If proper drain size is not available or
practical, a surge tank is required. A surge tank in
conjunction with a sump pump should be used when
gravity drainage is not possible, such as in below-
ground-level installations.
Before any deviation from specified installation
procedures is attempted, the customer or installer
should contact the distributor.
Increasing the drain hose length, installing elbows, or
causing bends will decrease, impairing washer-
extractor performance.
Refer to Table 3 for capacity-specific drain
information.
Installation of additional washer-extractors will
require proportionately larger drain connections. Refer
to Tabl e 4 .
CFS490N
1Water Inlet
2Water Inlet Air Gap
3Drain Pipe
4Waste Line Air Gap (if required)
5Steel Grate
6Drain Trough (if required)
7Strainer (if required)
8Waste Line
4
REAR OF MACHINE
3
5
6
1
7
8
2
Drain Information
Model 18 30
Drain connection size, ID 2 in.
(51 mm)
2in.
(51 mm)
Number of drain outlets 1 1
Drain flow capacity 20 gal/min
(76 l/min)
20 gal/min
(76 l/min)
Recommended drain pit
size
1.8 ft3
(51 l)
2.5 ft3
(70.3 l)
Table 3
Drain Line Sizing
Minimum Drain ID
Model Number of Machines
1234567
18 2in. (51 mm) 3 in. (76.2 mm) 3 in. (76 mm) 4 in. (102 mm) 4 in. (102 mm) 5 in. (124 mm) 5.5 in.(140 mm)
30 2in. (51 mm) 3 in. (76.2 mm) 3.5 in. (88 mm) 4 in. (102 mm) 4.5 in. (114 mm) 5 in. (124 mm) 5.5 in. (140 mm)
Tabl e 4
