Alliance Laundry Systems TR5000WN User manual

Installation Instructions
for Topload Washers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.speedqueen.com Part No. 204104ENR2
February 2018

Table of Contents
Dimensions and Specifications................................................................ 4
Installation............................................................................................. 5
Before You Start............................................................................................. 5
Supplies..................................................................................................... 5
Parts Included............................................................................................. 5
Order of Installation Steps............................................................................5
Remove the Shipping Brace and Shipping Plug................................................. 5
Wipe Out Inside of Washtub............................................................................ 6
Connect Fill Hoses..........................................................................................6
Water Supply Requirements......................................................................... 6
Connecting Hoses....................................................................................... 7
Connect Drain Hose to Drain Receptacle.......................................................... 7
Standpipe Installation.................................................................................. 7
Low Standpipe Installation...........................................................................8
Wall Installation.......................................................................................... 8
Laundry Tub Installation..............................................................................8
Position and Level the Washer......................................................................... 9
Plug In the Washer..........................................................................................9
Electrical Requirements............................................................................. 10
Earth/Ground Instructions.......................................................................... 10
Check Lid Lock............................................................................................ 11
Check Installation......................................................................................... 11
Installer Checklist.................................................................................12
© Copyright 2018, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 204104ENR2

Dimensions and Specifications
TLW2340N_SVG
JI
H
GFE
D
C
B
A
A 28 in. [711 mm]
B 22.13 in. [562 mm]
C (to controls) Electronic Control: *41.25 in. [1048 mm]
Knob Control: *40.75 [1035 mm]
D *53 in. [1346 mm]
E 26 in. [660 mm]
F 0.4 in. [10 mm]
G 25.63 in. [651 mm]
H *29 in. [737 mm]
I *42.75 in. [1086 mm]
J *36 in. [914 mm]
*With leveling legs turned into base.
Dimensions and Specifications
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 204104ENR2

Installation
Before You Start
Supplies
For most installations, the basic supplies you will need are:
TLW2218N_SVG
3
4
5
6
7
2
1
NOTE: A cloth rag and all-purpose cleaner are also
needed.
1. Safety Glasses
2. Wood Block
3. Gloves
4. Wrench
5. Screwdriver
6. Pliers
7. Level
Figure 1
NOTE: If the washer is delivered on a cold day (below
freezing), or is stored in an unheated room or area dur-
ing the cold months, do not attempt to operate it until
the washer has had a chance to warm up.
NOTE: Install dryer before washer. This allows room for
attaching exhaust duct.
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
Parts Included
An accessories bag has been shipped inside your washer. It in-
cludes:
• Two fill hoses with washers and filter screens
• Four rubber feet
• Beaded strap
• Installation Instructions
• User’s Guide
• Warranty Bond
Order of Installation Steps
The proper order of steps must be followed to ensure correct in-
stallation. Refer to the list below when installing your unit.
1. Put on safety glasses and gloves.
2. Remove the shipping brace and shipping plug.
3. Wipe out inside of the washer.
4. Connect the fill hoses.
5. Connect the drain hose to the drain receptacle.
6. Position and level the washer.
7. Plug in the washer.
8. Check the lid lock.
9. Check installation.
Remove the Shipping Brace and
Shipping Plug
1. Remove the shipping brace from under the lid.
2. The shipping plug will be released from the base of the wash-
er when removing the cardboard base from the washer.
The shipping brace and plug should be saved and must be rein-
stalled whenever washer is moved or transported to a new loca-
tion. This will prevent damage to washer components.
Do not tilt washer to front or sides when moving.
Refer to the User's Guide for instructions on reinstalling the ship-
ping materials.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 204104ENR2

TLW2280N_SVG
2
1
3
1. Shipping Brace
2. Shipping Plug
3. Cardboard Base
Figure 2
Wipe Out Inside of Washtub
Prior to first wash, use an all purpose cleaner or a detergent
and water solution and a damp cloth to remove shipping dust
from inside of washtub.
TLW2281N_SVG
Figure 3
Connect Fill Hoses
WARNING
Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not been used for
such a period and before using the washer, turn on
all hot water faucets and let the water flow from each
for several minutes. This will release any accumulat-
ed hydrogen gas. The gas is flammable. Do not
smoke or use an open flame during this time.
W029
Mixing Valve Flow Rates
Pressure
psi [kPa]
HOT
gallons per
minute [liters
per minute]
COLD
gallons per
minute [liters
per minute]
WARM
gallons per
minute [liters
per minute]
20 [138] 3.4 [12.9] 3.4 [12.9] 4.0 [15.1]
120 [827] 4.6 [17.4] 4.6 [17.4] 4.6 [17.4]
Water Supply Requirements
Water supply faucets must fit standard 3/4 inch [19 mm] female
garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-
ON CONNECTIONS.
NOTE: Water supply faucets should be readily accessi-
ble to permit turning them off when washer is not being
used.
Recommended cold water temperature is 50° to 75° Fahrenheit
[10° to 24° Celsius]. Recommended maximum hot water temper-
ature is 125° Fahrenheit [51° Celsius]. Warm water is a mixture
of hot and cold water. Warm water temperature is dependent upon
the water temperature and the pressure of both the hot and cold
water supply lines.
WARNING
To prevent personal injury, avoid contact with inlet
water temperatures higher than 125° Fahrenheit [51°
Celsius] and hot surfaces.
W748
Water pressure must be a minimum of 20 to a maximum of 120
pounds per square inch [minimum of 138 to a maximum of 827
kPa] static pressure measured at the faucet.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 204104ENR2

NOTE: Water pressure under 20 pounds per square
inch [138 kPa] will cause an extended fill time in the
washer.
Turn on the water supply faucets and flush the lines for approxi-
mately two minutes to remove any foreign materials that could
clog the screens in the water mixing valve. This is especially im-
portant when installing your washer in a newly constructed or
renovated building. Build-up may have occurred during construc-
tion.
Connecting Hoses
1. Remove the two plain rubber washers and two filter screens
from the accessories bag.
2. Install them into each end of the fill hoses as shown in Figure
4 . The screen must be facing outward.
3. Screw hose couplings with the filter screens onto the water
faucets until they are finger-tight. Use the red color-coded
hose for the hot water connection and the blue color-coded
hose for the cold water connection.
4. Then, using a pliers, screw approximately 1/4 turn.
5. Screw hose couplings from other end of hoses onto the water
mixing valve until they are finger-tight. Make sure the red
color-coded hose from the hot water faucet goes to the water
mixing valve marked “H” and the blue color-coded hose from
the cold faucet goes to the valve marked “C”. Refer to Figure
Figure 4 .
6. Then, using a pliers, screw approximately 1/4 turn.
IMPORTANT: DO NOT cross thread or overtighten
couplings. This will cause them to leak.
7. Turn water on and check for leaks.
8. If leaks are found, turn off the water, unscrew hoses and rein-
stall them until there are no leaks.
IMPORTANT: Turn off water supply whenever there
will be an extended period of non-use.
TLW1988N_SVG
HOT
COLD
8
7
6
5
4
3
2
1
1. Filter Screen (Screen must be facing outward)
2. Fill Hose
3. Rubber Washer (Plain)
4. Cold Water Connection
5. Hot Water Connection
6. Install this end of hose to valve connections at rear of
washer.
7. Install this end of hose to water supply faucet.
8. Faucet
Figure 4
IMPORTANT:
Hoses and other rubber parts deteriorate after extend-
ed use. Hoses may develop cracks, blisters or material
wear from the temperature and constant high pressure
they are subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be re-
placed immediately. All hoses should be replaced ev-
ery five years.
Connect Drain Hose to Drain
Receptacle
1. Remove the drain hose from its shipping position on the rear
of the washer by unhooking the hose from the retainer clamp.
2. Install the drain hose into the drain receptacle (standpipe, wall
or laundry tub) following the instructions below.
NOTE: Drain receptacle must be capable of handling
a minimum of 1-1/4 inch [32 mm] outside diameter
drain hose.
Standpipe Installation
1. Check standpipe height. The recommended height for the
standpipe is 36 inches [914 mm]. Standpipes higher than 4
feet [1220 mm] will result in slower draining and may extend
cycle times.
NOTE: Machine will not drain if standpipe is higher
than 8 feet [2438 mm].
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 204104ENR2

2. Place the drain hose into the standpipe.
IMPORTANT: To prevent siphoning, do not place
any ribbed portion of the drain hose into the stand-
pipe.
3. Remove the beaded strap from accessories bag and place
around standpipe and drain hose, approximately 12 inches
[300 mm] down from the top of pipe. Refer to Figure 5 .
a. Insert the end of the beaded strap into the larger hole
found on the end of the strap.
b. Tighten to desired fit.
c. Lock strap in place by pulling beaded strap into the ta-
pered smaller opening of the beaded strap end. A distinct
snap noise should be heard once the strap is properly seat-
ed.
d. Pull on the strap once locked in place to ensure beaded
strap is properly installed. This will prevent the drain hose
from dislodging from drain receptacle during use.
TLW2341N_SVG
4
5
3
2
1
1. Ribbed Portion of Drain Hose
2. Beaded Strap
3. Standpipe - 2 in. [51mm] or 1-1/2 in. [40 mm] Diameter
4. 36 in. [914 mm] Recommended Height
5. 12 in. [305 mm]
Figure 5
Low Standpipe Installation
If standpipe is lower than 36 inches [914 mm], you must install
No. 562P3 Siphon Break Kit. This kit is available (as optional
equipment at extra cost) through an authorized dealer or parts dis-
tributor. Installation instructions are supplied with the kit.
TLW2283N_SVG
2
1
3
1. 562P3 Siphon Break Kit
2. Standpipe
3. Drain Hose
Figure 6
Wall Installation
Check wall drain height. The recommended height for the drain
is 36 inches [914 mm].
For installations of this type, the drain hose MUST be secured to
one of the fill hoses using the beaded strap from accessories bag.
Refer to Figure 7 .
TLW2342N_SVG
1
1. Beaded Strap (tape if necessary)
Figure 7
Laundry Tub Installation
For this type of installation, the drain hose MUST be secured to
the stationary tub to prevent hose from disloding during use. Use
the beaded strap (supplied in accessories bag) to secure hose.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 204104ENR2

TLW2284N_SVG
1
1. Beaded Strap (tape if necessary)
Figure 8
Position and Level the Washer
1. Position washer so it has sufficient clearance for installation
and servicing.
2. Place washer in position on a clean, dry, and reasonably firm
floor. Installing the washer on any type of carpeting is not rec-
ommended.
3. For easier access to leveling legs, prop up washer with a
wooden block.
TLW2285N_SVG
1
1. Wood Block
Figure 9
4. Place rubber cups (from accessories bag) on all four leveling
legs.
TLW2286N_SVG
5
43
2
1
1. Level
2. Locknut
3. Leveling Leg
4. Rubber Cup
5. Washer Base
Figure 10
5. Place a level on the cabinet top and check if the washer is lev-
el from side to side and front to back.
6. If washer is not level, tilt washer back to access the front lev-
eling legs. Loosen the locknuts and adjust legs by screwing
into or out of washer base.
7. Once adjusted, tilt the washer forward on front legs and lower
back down into position to set the rear self-leveling legs.
8. Washer must not rock. When washer is level and does not
rock, tighten locknuts securely against bottom of washer base.
If these locknuts are not tight, washer will not remain station-
ary during operation.
Improper installation or flexing of weak floor will cause exces-
sive vibration.
Do not slide washer across floor once the leveling legs have been
extended, as legs and base could become damaged.
9. Verify that unit does not rock.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 204104ENR2

Plug In the Washer
Electrical Requirements
120 Volt, 60 Hertz with 3-Prong Earth/Ground Plug
NOTE: The wiring diagram is located in the control
hood.
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death, all wiring and protective earth/ground
connections MUST conform with the latest edition of
the National Electrical Code, ANSI/NFPA No. 70, and
such local regulations as might apply. It is the cus-
tomer’s responsibility to have the wiring, fuses and
circuit breakers installed by a qualified electrician to
make sure adequate electrical power is available to
the washer.
W824
When plugging in the washer:
• DO NOT overload circuits.
• DO NOT use an extension cord.
• DO NOT use an adapter.
• DO NOT operate other appliances on the same circuit. Use
separately fused 15 Amp circuits.
The washer is designed to be operated on a separate branch, po-
larized, three-wire, effective earth/ground, 120 Volt, 60 Hertz,
AC (alternating current), circuit protected by a 15 ampere fuse,
equivalent fusetron or circuit breaker.
The three-prong earth/ground plug on the power cord should be
plugged directly into a polarized three-slot effective earth/ground
receptacle rated 110/120 Volts AC (alternating current) 15 Amps.
Refer to Figure 11 to determine correct polarity of the wall recep-
tacle.

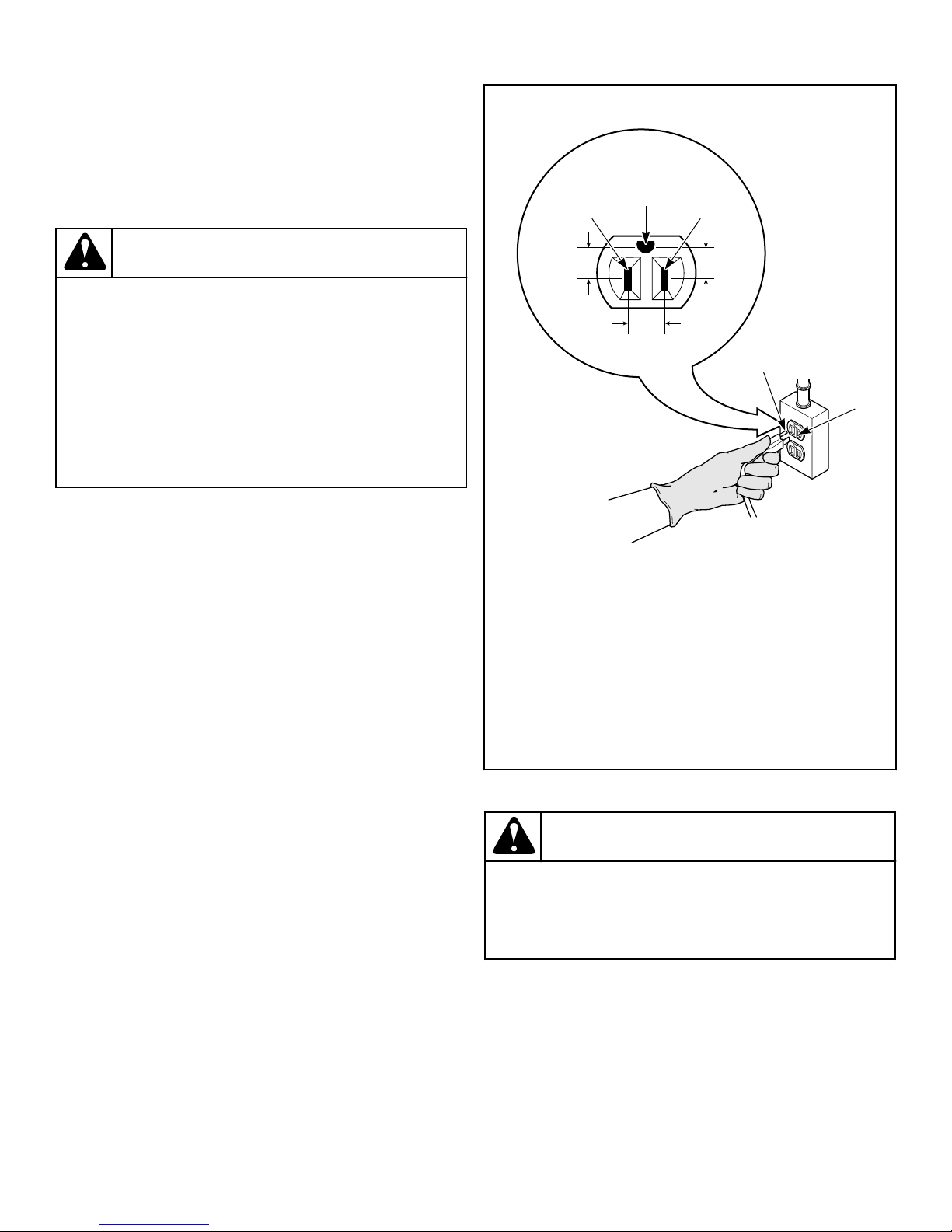

Standard 120 Volt, 60 Hertz 3-Wire Effective Earth/
Ground Circuit
TLW2287N_SVG
6
8
7
2
1 3
5
4
1. L1
2. Earth/Ground
3. Neutral Side
4. Round Earth/Ground Prong
5. Neutral
6. 0 V.A.C.
7. 120 ± 12 V.A.C.
8. 120 ± 12 V.A.C.
Figure 11
WARNING
To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to connect
the washer to the electric power source.
W082
Earth/Ground Instructions
This appliance must be properly connected to protective earth/
ground. In the event of malfunction or breakdown, the earth/
ground will reduce the risk of electric shock by providing a path
of least resistance for electric current.
The appliance is equipped with a cord having an equipment earth/
ground conductor and a three-prong earth/ground plug. The plug
must be plugged into an appropriate outlet that is properly instal-
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 204104ENR2

led and connected to a protective earth/ground in accordance with
all local codes and ordinances.
WARNING
Improper connection of the equipment earth/ground
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if
you are in doubt as to whether the unit is properly
connected to a protective earth/ground.
W893
• DO NOT modify the plug provided with the unit – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
• If the laundry room’s electrical supply does not meet the
above specifications and/or if you are not sure the laundry
room has an effective earth/ground, have a qualified electri-
cian or your local electrical utility company check it and cor-
rect any problems.
WARNING
This unit is equipped with a three-prong (earth/
ground) plug for your protection against shock haz-
ard and should be plugged directly into a protective
earth/ ground three-prong receptacle. Do not cut or
remove the earth/ground prong from this plug.
W823
Check Lid Lock
To check lid lock, start a cycle. Once the red Lid Locked status
light is lit and stops flashing, make sure the lid has locked.
Check Installation
1. Refer to Installer Checklist on the back cover of this manual
and make sure that washer is installed correctly.
2. Run washer through one complete cycle to make sure it is op-
erating properly.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 204104ENR2

Installer Checklist
Fast Track for Installing the Washer
1 Remove the Shipping
Brace and Shipping
Plug.
TLW2280N_SVG1
5 Position and Level the
Washer.
TLW2201N_SVG
CHECK CHECK
2 Wipe Out Inside of
Washtub.
TLW2281N_SVG1
6 Plug In the Washer.
TLW2289N_SVG
CHECK CHECK
3 Connect Fill Hoses.
TLW1988N_SVG
HOT
COLD
7 Check Lid Lock.
CHECK CHECK
4 Connect Drain Hose to
Drain Receptacle.
TLW2288N_SVG
CHECK
Refer to the manual for more detailed information
Installer Checklist
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 204104ENR2
