Alliance Laundry Systems CS018 User manual

www.alliancelaundry.com
Installation
Washer-Extractors
Cabinet Freestanding
Refer to for Page 5 Model Identification
Part No. D1343ENR3
November 2012
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
CFD
CFD644N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
D1343 1
Table of
Contents
Safety Information.............................................................................. 2
Explanation of Safety Messages........................................................... 2
Important Safety Instructions ............................................................... 2
Safety Decals ........................................................................................ 4
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Nameplate Location.............................................................................. 6
Replacement Parts ................................................................................ 6
Customer Service.................................................................................. 6
Specifications and Dimensions........................................................... 7
Installation........................................................................................... 15
Dimensional Clearances................................................................... 15
Machine Foundation ........................................................................ 16
Mechanical Installation......................................................................... 17
Frame Dimensions and Mounting Bolt Location
For 12 lb. (60 l ), 14 lb. (65 l),
18 lb. (75 l) and 25 lb. (100 l) Capacity Models ............................ 17
Frame Dimensions and Mounting Bolt Location
For 30 lb. (135 l) and 35 lb. (165 l) Capacity Models.................... 18
Frame Dimensions and Mounting Bolt Location
For 55 lb. (235 l) and 75 lb. (305 l) Capacity Models.................... 19
Mounting Bolt Installation (If Required).............................................. 20
Removing the Transport Brackets ........................................................ 21
Drain Connection.................................................................................. 22
Water Connection ................................................................................. 24
Electrical Installation ............................................................................ 25
Electrical Connection............................................................................ 28
Remote Liquid Supply Connection ...................................................... 29
Chemical Injection Supply System.................................................. 29
Steam Requirements (Steam Heat Option Only).................................. 30
Supply Programming Table ............................................................. 31
Supply Relay Configuration (No Wiring)........................................ 31
Primary 220 Volt Remote Liquid Supply Connection..................... 31
Out-of-Balance Switch ......................................................................... 33
Automatic Lubricator............................................................................ 33
Control Function Test ........................................................................... 34
Disposal of Unit ................................................................................... 35

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2D1343

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMITD1343 3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT D1343
2
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER”,
“WARNING”, and “CAUTION”), followed by
specific instructions, are found in this manual and on
machine decals. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Install the washer according the
INSTALLATION instructions. Refer to the
EARTHING (grounding) instructions in the
INSTALLATION manual for the proper earthing
(grounding) of the washer. All connections for
water, drain, electrical power and earthing
(grounding) must comply with local codes and be
made by licensed personnel when required. It is
recommended that the machine be installed by
qualified technicians.
3. Do not install or store the washer where it will be
exposed to water and/or weather.
4. To prevent fire and explosion, keep the area
around machine free from flammable and
combustible products. Do not add the following
substances or textiles containing traces of the
following substances to the wash water: gasoline,
kerosene, waxes, cooking oils, vegetable oils,
machine oils, dry-cleaning solvents, flammable
chemicals, thinners, or other flammable or
explosive substances. These substances give off
vapors that could ignite, explode or cause the
fabric to catch fire by itself.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
3
D1343
7. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This appliance
is not intended for use by young children or
infirm persons without supervision. Young
children should be supervised to ensure that they
do not play with the appliance. This is a safety
rule for all appliances.
8. DO NOT reach and/or climb into the tub or onto
the washer, ESPECIALLY if the wash drum is
moving. This is an imminently hazardous
situation that, if not avoided, will cause severe
personal injury or death.
9. Never operate the washer with any guards, panels
and/or parts removed or broken. DO NOT bypass
any safety devices or tamper with the controls.
10. Use washer only for its intended purpose,
washing textiles. Never wash machine parts or
automotive parts in the machine. This could
result in serious damage to the basket or tub.
11. Use only low-sudsing, no-foaming types of
commercial detergent. Be aware that hazardous
chemicals may be present. Wear hand and eye
protection when adding detergents and
chemicals. Always read and follow
manufacturer’s instructions on packages of
laundry and cleaning aids. Heed all warnings or
precautions. To reduce the risk of poisoning or
chemical burns, keep them out of the reach of
children at all times (preferably in a locked
cabinet).
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. Always follow the fabric care instructions
supplied by the textile manufacturer.
14. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open. Do not
attempt to open the door until the washer has
drained and all moving parts have stopped.
15. Be aware that hot water is used to flush the
supply dispenser. Avoid opening the dispenser lid
while the machine is running.
16. Do not attach anything to the supply dispenser’s
nozzles, if applicable. The air gap must be
maintained.
17. Do not operate the machine without the water
reuse plug or water reuse system in place, if
applicable.
18. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a
qualified service person.
20. DANGER: Before inspecting or servicing
machine, power supply must be turned OFF. The
servicer needs to wait for at least 10 minutes after
turning the power OFF and needs to check for
residual voltage with a voltage meter. The
inverter capacitor or EMC filter remains charged
with high voltage for some time after powering
OFF. This is an imminently hazardous situation
that, if not avoided, will cause severe personal
injury or death.
21. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out. ALWAYS disconnect the
washer from electrical, power and water supplies
before attempting any service.
22. Disconnect the power cord by grasping the plug,
not the cord. Replace worn power cords and/or
loose plugs. If the supply cord is damaged, it
must be replaced by a special cord or assembly
available from the service agent.
23. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
24. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
D1343
4
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance are
provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
D1343
Introduction
Model Identification
Information in this manual is applicable to these
models:
CS018
CS025
CS035
CS055
CS075
CS100
CS135
CS165
CXG060
CXG065
CXG075
CXG100
CXG135
CXG165
CXG235
CXG305
CXN060
CXN065
CXN075
CXN100
CXN135
CXN165
CXN235
CXN305
CXU060
CXU065
CXU075
CXU100
CXU135
CXU165
CXU235
CXU305
CXW060
CXW065
CXW075
CXW100
CXW135
CXW165
CXW235
CXW305
CXZ060
CXZ065
CXZ075
CXZ100
CXZ135
CXZ165
CXZ235
CXZ305
DXU060X
DXU065X
DXU075X
DXU100X
DXU135X
DXU165X
DXU235X
DXU305X
HD60
HD65
HD75
HD100
HD135
HD165
HD235
HD305
HX18
HX25
HX35
HX55
HX75
HXN075P
HXN100P
HXN165P
HXN235P
HXN305P
IS012
IS018
IS025
IS035
IS055
IS075
IS100
IS135
IS165
IXG060
IXG065
IXG075
IXG100
IXG135
IXG165
IXG235
IXG305
IXN060
IXN065
IXN075
IXN100
IXN135
IXN165
IXN235
IXN305
IXU060
IXU065
IXU075
IXU100
IXU135
IXU165
IXU235
IXU305
IXW060
IXW065
IXW075
IXW100
IXW135
IXW165
IXW235
IXW305
IXZ060
IXZ065
IXZ075
IXZ100
IXZ135
IXZ165
IXZ235
IXZ305
JXW060C
JXW060X
JXW060Y
JXW060Z
JXW065C
JXW065X
JXW065Y
JXW065Z
JXW075C
JXW075X
JXW075Y
JXW075Z
JXW100C
JXW100X
JXW100Y
JXW100Z
JXW135C
JXW135X
JXW135Y
JXW135Z
JXW165C
JXW165X
JXW165Y
JXW165Z
JXW235C
JXW235X
JXW235Y
JXW235Z
JXW305C
JXW305X
JXW305Y
JXW305Z
PXU060Y
PXU065Y
PXU075Y
PXU100Y
PXU135Y
PXU165Y
PXU235Y
PXU305Y
SX18
SX25
SX35
SX55
SX75
SXN075P
SXN100P
SXN165P
SXN235P
SXN305P
UX18
UX25
UX35
UX55
UX75
UXN075P
UXN100P
UXN165P
UXN235P
UXN305P
WXU060C
WXU065C
WXU075C
WXU100C
WXU135C
WXU165C
WXU235C
WXU305C

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
D1343
6
Nameplate Location
The nameplate is located at the rear of the machine.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at
[phone] for the name and address of the
nearest authorized parts distributor.
Customer Service
For technical assistance, contact your local distributor
or contact:
Alliance Laundry Systems
Shepard Street
P. O . B o x 9 9 0
Ripon, Wisconsin 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone]
[phone]
Wevelgem, Belgium
1Nameplate
CFD644N
1
CFD644N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
D1343
Specifications and Dimensions
General Specifications
Capacity lb. (l) 12 (60) 14 (65) 18 (75) 25 (100) 30 (135) 35 (165) 55 (235) 75 (305)
Overall Dimensions
Overall width 26 in.
(660 mm)
26 in.
(660 mm)
30.71 in.
(780 mm)
30.71 in.
(780 mm)
30.8 in.
(783 mm)
30.71 in.
(780 mm)
26 in.
(660 mm)
26 in.
(660 mm)
Overall height 40.6 in.
(1031 mm)
40.6 in.
(1031 mm)
47.3 in.
(1202 mm)
54.15 in.
(1376 mm)
47 in.
(1194 mm)
54.15 in.
(1376 mm)
40.6 in.
(1031 mm)
40.6 in.
(1031 mm)
Overall depth 30.7 in.
(780 mm)
34.3 in.
(870 mm)
33.1 in.
(842 mm)
33.07 in.
(840 mm)
37.8 in.
(960 mm)
37.01 in.
(940 mm)
30.7 in.
(780 mm)
34.3 in.
(870 mm)
Weight and Shipping Information
Net weight 465 lb.
(211 kg)
520 lb.
(236 kg)
716.5 lb.
(325 kg)
811.30 lb.
(368 kg)
789 lb.
(358 kg)
862.01 lb.
(391 kg)
465 lb.
(211 kg)
520 lb.
(236 kg)
Net weight 520 lb.
(236 kg)
531 lb.
(241 kg) N/A N/A 765 lb. (347 kg) N/A 520 lb. (236 kg)
531 lb.
(241 kg)
Shipping weight 514 lb.
(233 kg)
569 lb.
(258 kg)
782.6 lb.
(355 kg)
844.37 lb.
(383 kg)
855 lb.
(388 kg)
921.53 lb.
(418 kg)
514 lb.
(233 kg)
569 lb.
(258 kg)
Shipping weight 624 lb.
(283 kg)
639.5 lb.
(290 kg) N/A N/A 1030 lb.
(467 kg) N/A 624 lb. (283 kg)
639.5 lb.
(290 kg)
Shipping volume 22.5 ft3
(0.8 m3)
24.5 ft3
(0.9 m3)
34.7 ft3
(1.3 m3)
42.83 ft3
(1.21 m3)
34.7 ft3
(1.3 m3)
45.98 ft3
(1.3 m3)
22.5 ft3
(0.8 m3)
24.5 ft3
(0.9 m3)
Wash Cylinder Information
Cylinder diameter 20.9 in.
(530 mm)
20.9 in.
(530 mm)
20.9 in.
(530 mm)
20.9 in.
(530 mm)
25.6 in.
(650 mm)
25.6 in.
(650 mm)
29.5 in.
(750 mm)
33.5 in.
(850 mm)
Cylinder depth 9.8 in.
(250 mm)
11.6 in.
(295 mm)
13.0 in.
(330 mm)
17.3 in.
(440 mm)
15.7 in.
(400 mm)
19.7 in.
(500 mm)
20.9 in.
(530 mm)
21.1 in.
(537 mm)
Cylinder volume 1.94 ft3
(55 l)
2.30 ft3
(65 l)
2.58 ft3
(73 l)
3.35 ft3
(95 l)
4.66 ft3
(132 l)
5.83 ft3
(165 l)
8.26 ft3
(234 l)
10.74 ft3
(304 l)
Perforation size 0.1 in.
(3 mm)
0.1 in.
(3 mm)
0.12 in.
(3 mm)
0.1 in.
(3 mm)
0.1 in.
(3 mm)
0.1 in.
(3 mm)
0.1 in.
(3 mm)
0.1 in.
(3 mm)
Door Opening Information
Door opening size 11.8 in.
(300 mm)
11.8 in.
(300 mm)
11.8 in.
(300 mm)
11.8 in.
(300 mm)
15.75 in.
(400 mm)
15.75 in.
(400 mm)
15.75 in.
(400 mm)
15.75 in.
(400 mm)
Height of door bottom
above floor
11 in.
(279 mm)
11 in.
(279 mm)
11 in.
(279 mm)
11 in.
(279 mm)
11.61 in.
(295 mm)
11.61 in.
(295 mm)
20.87 in.
(530 mm)
22.24 in.
(565 mm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
D1343
8
General Specifications
Capacity lb. (l) 12 (60) 14 (65) 18 (75) 25 (100) 30 (135) 35 (165) 55 (235) 75 (305)
Drive Train Information
Number of motors in drive
train
111111
Drive motor power 1.01 HP
(0.75 kW)
1.01 HP
(0.75 kW)
1.01 HP
(0.75 kW)
1.01 HP
(0.75 kW)
2.95 HP
(2.2 kW)
2.95 HP
(2.2 kW)
4.02 HP
(3 kW)
5.36 HP
(4 kW)
Cylinder Speeds
Wash/reverse speed 10-50
RPM
10-50
RPM
10-50
RPM
10-50
RPM
10-50
RPM
10-50
RPM
10-50
RPM
10-50
RPM
Distribution/drain speed 85 RPM 82 RPM 85 RPM 85 RPM 74 RPM 85 RPM 85 RPM 82 RPM
Extract speed 250-1000
RPM
250-1000
RPM
250-1000
RPM
250-1000
RPM
250-1000
RPM
250-1000
RPM
250-1000
RPM
250-1000
RPM
Centrifugal Force Data
Wash/reverse centrifugal
force
0.03-0.74
Gs
0.03-0.74
Gs
0.4-0.91
Gs
0.37-0.94
Gs
0.04-0.91
Gs
0.37-0.94
Gs
0.03-0.74
Gs
0.03-0.74
Gs
Extract centrifugal force 19-296 Gs 19-296 Gs 23-363 Gs 24-377 Gs 23-363 Gs 24-377 Gs NO DATA NO DATA
Balance Detection
Vibration safety switch
installed
Standard Standard Standard Standard Standard Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in. 1 x 3/8 in.
Numberofsteaminlets11111111
Electrical Heating (Optional)
Total electrical heating
capacity
9 kW 9 kW 9 kW 9 kW 18 kW 18 kW 18 kW 18 kW
Electricalheatingelements33336666
Electrical heat element size 3 kW 3 kW 3 kW 3 kW 3 kW 3kW 3 kW 3 kW

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
9
D1343

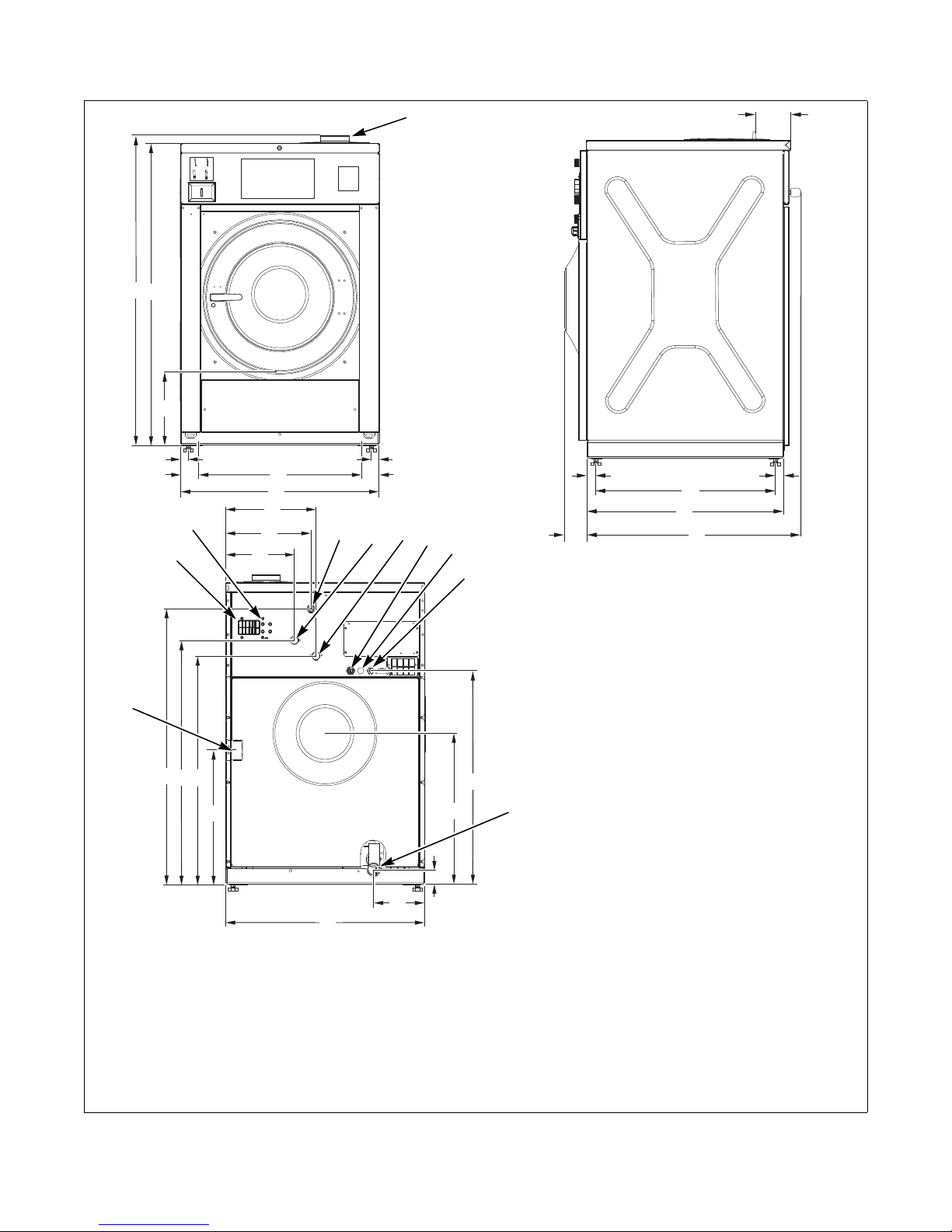

1Fill and Supply Ventilation 6External Liquid Supply Inlets
2Direct Fill 7Electrical Steam Input
3Hot Water Inlet 8External Supply Signal Input
4Cold Water Inlet 9Electrical Power Input
5Flushing Supply Dispenser 10 Drain Outlet
11 Steam Connection Output
Figure 2
CFD632N
CFD631N
CFD632N
CFS630N
4
12 LB. (60L), 14 LB. (65L), 18 LB. (75L) AND 25 LB. (100L) CAPACITY MODELS
AB
C
E
DF
G
IW
VZ
Y
X
AA
AB
JKL
N
O
M
P
Q
R
U
S
T
CFD631N
H
5
23987
6
1
11
10

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
D1343
10
Table 1
Machine Capacity lb. (l)
12 (60) 14 (65) 18 (75) 25 (100)
A1054 mm (41.5 in.) 1054 mm (41.5 in.) 1054 mm (41.5 in.) 1054 mm (41.5 in.)
B1024 mm (40.3 in.) 1024 mm (40.3 in.) 1024 mm (40.3 in.) 1024 mm (40.3 in.)
C275 mm (10.8 in.) 275 mm (10.8 in.) 275 mm (10.8 in.) 275 mm (10.8 in.)
D33 mm (1.3 in.) 33 mm (1.3 in.) 33 mm (1.3 in.) 33 mm (1.3 in.)
E65 mm (2.6 in.) 65 mm (2.6 in.) 65 mm (2.6 in.) 65 mm (2.6 in.)
F530 mm (20.9 in.) 530 mm (20.9 in.) 530 mm (20.9 in.) 530 mm (20.9 in.)
G660 mm (26.0 in.) 660 mm (26.0 in.) 660 mm (26.0 in.) 660 mm (26.0 in.)
H33 mm (1.3 in.) 33 mm (1.3 in.) 33 mm (1.3 in.) 33 mm (1.3 in.)
I65 mm (2.6 in.) 65 mm (2.6 in.) 65 mm (2.6 in.) 65 mm (2.6 in.)
J921 mm (36.3 in.) 921 mm (36.3 in.) 921 mm (36.3 in.) 921 mm (36.3 in.)
K801 mm (31.6 in.) 801 mm (31.6 in.) 801 mm (31.6 in.) 801 mm (31.6 in.)
L736 mm (29.0 in.) 736 mm (29.0 in.) 736 mm (29.0 in.) 736 mm (29.0 in.)
M490 mm (19.3 in.) 490 mm (19.3 in.) 490 mm (19.3 in.) 490 mm (19.3 in.)
N660 mm (26.0 in.) 660 mm (26.0 in.) 660 mm (26.0 in.) 660 mm (26.0 in.)
O180 mm (7.1 in.) 180 mm (7.1 in.) 180 mm (7.1 in.) 180 mm (7.1 in.)
P47.5 mm (1.9 in.) 47.5 mm (1.9 in.) 47.5 mm (1.9 in.) 47.5 mm (1.9 in.)
Q698 mm (27.5 in.) 698 mm (27.5 in.) 698 mm (27.5 in.) 698 mm (27.5 in.)
R209 mm (8.2 in.) 209 mm (8.2 in.) 209 mm (8.2 in.) 209 mm (8.2 in.)
S226 mm (8.9 in.) 226 mm (8.9 in.) 226 mm (8.9 in.) 226 mm (8.9 in.)
T291 mm (11.5 in.) 291 mm (11.5 in.) 291 mm (11.5 in.) 291 mm (11.5 in.)
U311 mm (12.2 in.) 311 mm (12.2 in.) 311 mm (12.2 in.) 311 mm (12.2 in.)
V51.5 mm (2.0 in.) 51.5 mm (2.0 in.) 51.5 mm (2.0 in.) 51.5 mm (2.0 in.)
W30 mm (1.2 in.) 30 mm (1.2 in.) 30 mm (1.2 in.) 30 mm (1.2 in.)
X590 mm (23.2 in.) 590 mm (23.2 in.) 590 mm (23.2 in.) 690 mm (27.2 in.)
Y650 mm (25.6 in.) 650 mm (25.6 in.) 650 mm (25.6 in.) 750 mm (29.5 in.)
Z711 mm (28.0 in.) 711 mm (28.0 in.) 711 mm (28.0 in.) 811 mm (31.9 in.)
AA 30.6 mm (1.2 in.) 30.6 mm (1.2 in.) 30.6 mm (1.2 in.) 30.6 mm (1.2 in.)
AB 92.9 mm (3.7 in.) 92.9 mm (3.7 in.) 92.9 mm (3.7 in.) 92.9 mm (3.7 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
11
D1343
Figure 3
1Fill and Supply Ventilation 6External Liquid Supply Inlets
2Direct Fill 7Electrical Steam Input
3Hot Water Inlet 8External Supply Signal Input
4Cold Water Inlet 9Electrical Power Input
5Flushing Supply Dispenser 10 Drain Outlet
11 Steam Connection Output
CFD636N
CFD634N
CFD635N
5
11
9
7
1
48
2
CFD636N
CFD635N
6
CFD634N
30 LB. (135 L) AND 35 LB. (165 L) CAPACITY MODELS
AB
C
D
F
G
WAA
X
Y
Z
AB
JK L
M
N
O
W
T
U
I
V
10
3
H
E
P
Q
R

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
D1343
12
Table 2
Machine Capacity lb. (l)
30 (135) 35 (165)
A1216 mm (47.9 in.) 1216 mm (47.9 in.)
B1186 mm (46.7 in.) 1186 mm (46.7 in.)
C290 mm (11.4 in.) 290 mm (11.4 in.)
D34 mm (1.3 in.) 34 mm (1.3 in.)
E66 mm (2.6 in.) 66 mm (2.6 in.)
F648 mm (25.5 in.) 648 mm (25.5 in.)
G780 mm (30.7 in.) 780 mm (30.7 in.)
H34 mm (1.3 in.) 34 mm (1.3 in.)
I66 mm (2.6 in.) 66 mm (2.6 in.)
J1083 mm (42.6 in.) 1083 mm (42.6 in.)
K958 mm (37.7 in.) 958 mm (37.7 in.)
L898 mm (35.4 in.) 898 mm (35.4 in.)
M529 mm (20.8 in.) 529 mm (20.8 in.)
N780 mm (30.7 in.) 780 mm (30.7 in.)
O155 mm (6.1 in.) 155 mm (6.1 in.)
P87 mm (3.4 in.) 87 mm (3.4 in.)
Q97.9 mm (3.9 in.) 97.9 mm (3.9 in.)
R841 mm (33.1 in.) 841 mm (33.1 in.)
S269 mm (10.6 in.) 269 mm (10.6 in.)
T334 mm (13.1 in.) 334 mm (13.1 in.)
U354 mm (13.9 in.) 354 mm (13.9 in.)
V81.4 mm (3.2 in.) 81.4 mm (3.2 in.)
W36.5 mm (1.4 in.) 36.5 mm (1.4 in.)
X765 mm (30.1 in.) 765 mm (30.1 in.)
Y838 mm (33.0 in.) 838 mm (33.0 in.)
Z899 mm (35.4 in.) 899 mm (35.4 in.)
AA 36.5 mm (1.4 in.) 36.5 mm (1.4 in.)
AB 92.9 mm (3.7 in.) 92.9 mm (3.7 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
13
D1343
Figure 4
1Fill and Supply Ventilation 6External Liquid Supply Inlets
2Direct Fill 7Electrical Steam Input
3Hot Water Inlet 8External Supply Signal Input
4Cold Water Inlet 9Electrical Power Input
5Flushing Supply Dispenser 10 Drain Outlet
11 Steam Connection Output
CFD640N
CFD639N
5
11
9
7
1
48
2
CFD640N
CFD639N
6
CFD638N
55 LB. (235 L) AND 75 LB. (305 L) CAPACITY MODELS
AB
CD
FG
JN
L
M
O
P
QR
S
U
Y
I
10
3
H
E
V
W
X
Z
TXY
K

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
D1343
14
Table 3
Machine Capacity lb. (l)
55 (235) 75 (305)
A1535 mm (60.4 in.) 1535 mm (60.4 in.)
B1505 mm (59.3 in.) 1505 mm (59.3 in.)
C290 mm (11.4 in.) 290 mm (11.4 in.)
D558 mm (22.0 in.) 558 mm (22.0 in.)
E81 mm (3.2 in.) 81 mm (3.2 in.)
F738 mm (29.1 in.) 738 mm (29.1 in.)
G900 mm (35.4 in.) 900 mm (35.4 in.)
H81 mm (3.2 in.) 81 mm (3.2 in.)
I81 mm (3.2 in.) 81 mm (3.2 in.)
J35 mm (1.4 in.) 35 mm (1.4 in.)
K830 mm (32.7 in.) 830 mm (32.7 in.)
L81 mm (3.2 in.) 81 mm (3.2 in.)
M959 mm (37.8 in.) 959 mm (37.8 in.)
N35 mm (1.4 in.) 35 mm (1.4 in.)
O92.9 mm (3.7 in.) 92.9 mm (3.7 in.)
P1402 mm (55.2 in.) 1402 mm (55.2 in.)
Q1277 mm (50.3 in.) 1277 mm (50.3 in.)
R1217 mm (47.9 in.) 1217 mm (47.9 in.)
S721 mm (28.4 in.) 721 mm (28.4 in.)
T49.5 mm (2.0 in.) 49.5 mm (2.0 in.)
U105 mm (4.1 in.) 105 mm (4.1 in.)
V165 mm (6.5 in.) 165 mm (6.5 in.)
W1161 mm (45.7 in.) 1161 mm (45.7 in.)
X370 mm (14.6 in.) 370 mm (14.6 in.)
Y350 mm (13.8 in.) 350 mm (13.8 in.)
Z285 mm (11.2 in.) 285 mm (11.2 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 15
D1343
Installation
Dimensional Clearances
Table 4 shows recommended minimum clearances on
all sides of the machine.
Recommended Minimum Clearances
Capacity lb. (l) 12 (60) 14 (65) 18 (75) 25 (100) 30 (135) 35 (165) 55 (235) 75 (305)
Minimum rear clearance 24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
24 in.
(600 mm)
Minimum clearance
between machine and wall
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
6 in.
(150 mm)
Minimum clearance
between machines (side)
1.2 in.
(30 mm)
1.2 in.
(30 mm)
1 in.
(25.4 mm)
1.2 in.
(30 mm)
1.2 in.
(30 mm)
1.2 in.
(30 mm)
1.2 in.
(30 mm)
1.2 in.
(30 mm)
Minimum front clearance
(door swing)
16.5 in.
(419 mm)
16.5 in.
(419 mm)
16.5 in.
(419 mm)
21 in.
(533 mm)
16.5 in.
(419 mm)
21 in.
(533 mm)
21 in.
(533 mm)
21 in.
(533 mm)
Table 4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
D1343
16
Machine Foundation
Thoroughness of detail must be stressed with all
foundation work to ensure a stable unit installation,
eliminating possibilities of excessive vibration during
extract.
The machine must be placed on a smooth level surface
so that the entire base of the machine is supported and
rests on the mounting surface.
The standard installation does not require anchoring
unless mandated by state or local codes.
Static and dynamic loads on the floor or foundation are
shown in Table 5.
Table 5 can be used as a reference when designing
floors and foundations.
If installing a foundation and pad, prepare a form for
the above-ground portion of the foundation. Verify
that the top of the foundation is level. The height of the
foundation and pad must not exceed 8 inches
(203 mm) above the existing floor.
IMPORTANT: Mounting bolts MUST be used for
installation on the models with capacity of 12 lb.
(60 l), 14 lb. (65 l), 18 lb. (75 l) 25 lb. (100 l) 30 lb.
(135 l) and 35 lb. (165 l) models equipped with
steam heat and models installed on metal base
frames. Refer to Mounting Bolt Installation.
Ensure that the machine is installed on a
level floor of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.
W488
CAUTION
Floor Load Data
Capacity lb. (l) 12 (60) 14 (65) 18 (75) 25 (100) 30 (135) 35 (165) 55 (235) 75 (305)
Kinetic Energy of the
Cylinder, (N/m) 12488 9075 10024 12538 25900 31315 65604 97806
Dynamic Bottom Load,
(N/Hz) 520/21 570/16 550/16 538/16 1100/16 1450/16 2300/15 2340/15
Table 5
