Alliance Laundry Systems LWS01A* series Operating instructions

www.comlaundry.com
Troubleshooting
W001C
Part No. 39311R5
June 2007
Home
Automatic
Washers
Refer to Page 4 for Model Numbers

© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.
39311 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Section 1 – Safety Information ...............................................................2
Locating an Authorized Servicer...........................................................3
Section 2 – Introduction..........................................................................4
Model Identification ..............................................................................4
How Your Washer Works .....................................................................5
Customer Service...................................................................................7
Nameplate Location...............................................................................7
Section 3 – Troubleshooting....................................................................8
1. No Hot Water................................................................................9
2. No Cold Water ............................................................................10
3. No Warm Water..........................................................................11
4. Water Fill Does Not Stop At Proper Level.................................12
5. Timer Does Not Advance ...........................................................13
6. Motor Does Not Run...................................................................14
7. No Agitation................................................................................15
8. Constant Agitation ......................................................................16
9. Washer Overheats, Cycles On Motor Thermal Protector,
Switch Actuator Kicks In And Out.............................................17
10. Slow Spin....................................................................................18
11. No Spin .......................................................................................19
12. Constant Spin ..............................................................................20
13. Washer Stops In Cycle; Quits After A Couple Loads;
Is Intermittent..............................................................................21
14. Washer Is Locked Up Or Binding...............................................22
15. Outer Tub Does Not Empty ........................................................23
16. Excessive Vibration ....................................................................24
17. Water Leaking From Outer Tub..................................................25
Section 4 – Adjustments........................................................................26
18. Leveling Legs..............................................................................26
19. Pressure Switch...........................................................................27
20. Belt (Agitate And Spin) ..............................................................27
Section 5 – Test Procedures ..................................................................28
21. Motor Test Procedure..................................................................28
22. Mixing Valve Solenoid Test Procedure......................................29
23. Temperature Switch Test Procedure...........................................29
Section 6 – Cycle Sequence Charts.......................................................30
Timer No. 37927 Cycle Sequence ...................................................30
Timer No. 37929 Cycle Sequence ...................................................31
Timer No. 200927P Cycle Sequence ...............................................32
Timer No. 201101 Cycle Sequence .................................................33
Timer No. 201100 Cycle Sequence .................................................34

239311
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 1
Safety Information
Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”
“WARNING” and “DANGER”) followed by specific instructions. These precautions are intended for the personal
safety of the operator, user, servicer, and those maintaining the machine.
aDANGER
Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.
aWARNING
Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.
aCAUTION
Caution indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property
damage.
Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.
IMPORTANT
The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will
occur if the procedure is not followed.
NOTE
The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is
important but not hazard related.
In the interest of safety, some general precautions relating to the operation of this machine follow.
• Failure to install, maintain and/or operate this product according to the manufacturer’s
instructions may result in conditions which can produce serious injury, death and/or property
damage.
• Do not repair or replace any part of the product or attempt any servicing unless specifically
recommended or published in this Service Manual and unless you understand and have the
skills to carry out the servicing.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the product is properly grounded and to reduce the risk of fire,
electric shock, serious injury or death.
W006R2
WARNING

39311 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to
cover all possible conditions and situations that may occur. Common sense, caution and care must be
exercised when installing, maintaining or operating the machine.
Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do
not understand.
Locating an Authorized Servicer
Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized technician
and using authorized factory parts.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
Repairs that are made to your products by unqualified persons can result in hazards due to
improper assembly or adjustments subjecting you or the inexperienced person making such
repairs to the risk of serious injury, electrical shock or death.
W007
WARNING
If you or an unqualified person perform service on your product, you must assume the
responsibility for any personal injury or property damage which may result. The manufacturer
will not be responsible for any injury or property damage arising from improper service and/or
service procedures.
W008
WARNING

439311
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 2
Introduction
Model Identification
Information in this manual is applicable to these washer models.
Model
Number 1 Speed Motor 2 Speed Motor 3 Speed Motor Porcelain Washtub (cu. ft.) Stainless Steel Washtub (cu. ft.)
LWS01A* X 2.9
LWS01A*C X 2.9
LWS01B* X 2.9
LWS01M* X 2.9
LWS01N* X 2.9
LWS02A* X 3.3
LWS02B* X 3.3
LWS02M* X 3.3
LWS02N* X 3.3
LWS04M* X 3.3
LWS04N* X 3.3
LWS05N* X 3.3
LWS16A* X 3.3
LWS16B* X 3.3
LWS16M* X 3.3
LWS16N* X 3.3
LWS17A* X 3.3
LWS17B* X 3.3
LWS17M* X 3.3
LWS17N* X 3.3
LWS44N* X 3.3
LWS45A* X 3.3
LWS45B* X 3.3
LWS45M* X 3.3
LWS45N* X 3.3
LWS49N* X 3.3
* Add Letter To Designate Color. L – Almond W – White Q – Bisque

39311 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction

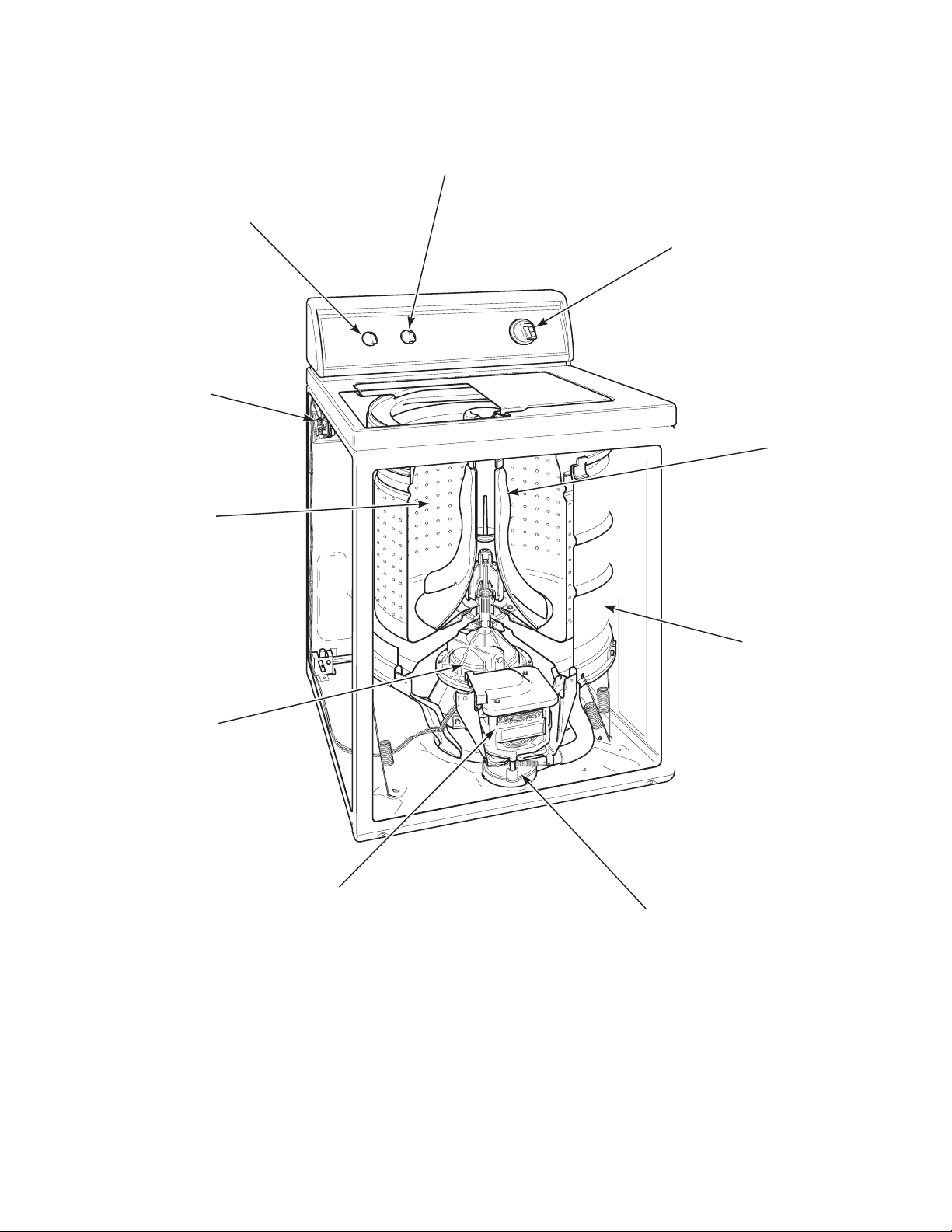

How Your Washer Works
Pressure
Switch
Timer
Agitator
Outer
Tub
Pump
Motor
Transmission
Washtub
Mixing
Valve
Temperature
Switch
W407SE3A

639311
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
The cycle begins with a wash fill. The water
temperature is determined by the temperature selector.
While water fills the washtub, a column of air is
trapped in a pressure bulb and hose. The air pressure
continues to increase as the washtub fills with water
until it is great enough to activate the pressure switch.
The pressure switch then causes the wash fill to stop
and wash agitation to begin. However, the loading door
must be closed for the washer to agitate or spin.
The washer uses a reversing type motor, a special drive
belt and an idler assembly. The idler assembly applies
tension to the outside of the drive belt.
During agitation, the motor runs in the
counterclockwise direction. The spring tension on the
idler pulley applies the tension required to reduce the
slack on the drive belt and maintain maximum belt to
motor pulley contact. This eliminates belt slippage and
ensures an efficient wash action, even with extra large
loads.
The belt drives the transmission drive pulley in the
counterclockwise direction. The pulley drives the helix
which is splined to the input shaft of the transmission.
This causes the input shaft to turn inside of a roller
clutch which is pressed into the transmission cover.
This roller clutch acts as a bearing in the
counterclockwise direction allowing the transmission
gears to operate. The transmission’s rack and pinion
gear design produces a 210 degree agitation stroke at
the output shaft of the transmission which drives the
agitator. The brake assembly remains locked during the
agitation mode since no pressure is applied to it by the
transmission drive pulley.
After the wash agitation is completed, the timer
advances into the first spin. During spin, the motor
reverses turning in the clockwise direction to spin the
water out of the washtub. The combination of water,
washtub and load weight cause the drive belt tension on
the idler side of the belt to overtake the idler spring
pressure allowing the belt to become slack on the
opposite side. This reduces the belt to pulley contact
and allows slipping between the belt and pulley.
As water is removed by the pump and the momentum
of the washtub increases, the idler spring tension
gradually overcomes the belt tension removing the belt
slack. This eventually increases the belt to pulley
contact until maximum spin speed is achieved.
The drive pulley turns clockwise riding up the ramps of
the helix, exerting pressure on the brake and forcing it
to release from brake pads. The helix drives the input
shaft of the transmission, and when the input shaft turns
in the clockwise direction the roller clutch locks onto
the shaft causing the entire transmission assembly to
turn. None of the gears in the transmission are
operating at this time. The hub of the washtub is splined
to the transmission tube and rotates with the
transmission assembly. The centrifugal force created
by the spinning washtub causes water to be extracted
from the clothes.
Water is introduced during the first spin to “SPRAY”
the garments and remove suds from them. The initial
spin is followed by rinse agitation to rinse away any
detergent residue. The washer fills and then agitates
like the wash portion of the cycle. Following rinse
agitation, a final spin extracts the rinse water from the
clothes preparing them for the dryer.

39311 7
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Customer Service
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Nameplate Location
When calling or writing about your product, be sure to
mention model and serial numbers. Model and serial
numbers are located on nameplate(s) as shown.
W429SE1B

839311
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 3
Troubleshooting
IMPORTANT: Refer to wiring diagram for aid in
testing washer components.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
