Alliance Laundry Systems 38900R11 User manual

Installation
www.comlaundry.com
Automatic
Washers
Home Laundry
W001C
W001C
Part No. 38900R11
June 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
38900 1
Table of
Contents
Replacement Parts .............................................................................. 2
Installation........................................................................................... 3
Roughing in Dimensions ...................................................................... 3
Before You Start ................................................................................... 4
Tools ................................................................................................ 4
Electrical .......................................................................................... 4
Water................................................................................................ 4
Installing the Washer ............................................................................ 5
Step 1: Remove the Shipping Brace and Shipping Plug.................. 5
Step 2: Wipe Out Inside of Washtub ............................................... 5
Step 3: Connect Fill Hoses............................................................... 6
Step 4: Connect Drain Hose to Drain Receptacle ............................ 7
Step 5: Position and Level the Washer ............................................ 10
Step 6: Connect the Washer to Electrical Power ............................. 11
Step 7: Add Water to the Washer .................................................... 11
Step 8: Check Lid Switch ................................................................ 11
Step 9: Check Installation ................................................................ 11
Electrical Requirements........................................................................ 12
120 Volt, 60 Hertz, With 3 Prong Grounding Plug ......................... 12
120 Volt/50 Hertz ............................................................................ 13
240 Volt/50 Hertz ............................................................................ 13
230 Volt/50 Hertz ............................................................................ 13
220 Volt/60 Hertz ............................................................................ 13
240 Volt/60 Hertz ............................................................................ 13
Earthing (Grounding) Instructions................................................... 13
Water Supply Requirements................................................................. 15
Water Temperature .......................................................................... 15
Water Pressure ................................................................................. 15
Risers................................................................................................ 16
Installer Checklist................................................................ Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900
2
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 99 0
Ripon, WI 54971-0990
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
38900
Installation
Roughing in Dimensions
TLW2075N
*With leveling legs turned into base.
71.1 cm
(28 in.)
65 cm
(25.625 in.)
71 cm
(28 in.)
1 cm
(0.4 in.)
*73.7 cm (29 in.)
*109.2 cm (43 in.)
*91.4 cm (36 in.)
*134.6 cm (53 in.)
*102.2 cm (40.25 in.)
56.2 cm
(22.13 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
4
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Electrical
Refer to serial plate for specific electrical
requirements. For more detailed information, refer to
section on Electrical Requirements.
Water
Washer needs two standard 19.1 mm (3/4 inch) water
supply faucets with a pressure between 138 and
827 kPa (20 to 120 pounds per square inch). For more
detailed information, refer to section on Water Supply
Requirements.
D074I
1Wrench
2Screwdriver
3Pliers
4Level
D074I
1
23
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
5
38900
Installing the Washer
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
Step 1: Remove the Shipping Brace and
Shipping Plug
NOTE: Install dryer before washer. This allows
room for attaching exhaust duct.
Remove the shipping brace from under the lid. The
plastic shipping plug will be released from the base of
the washer when removing the cardboard base from
the washer.
Figure 2
NOTE: Do not tilt washer to front or sides when
moving.
The shipping brace and plug should be saved and must
be reinstalled whenever washer is moved or
transported to a new location. This will prevent
damage to washer components.
NOTE: Refer to your Operating Instructions for
reinstalling shipping brace and shipping plug.
Step 2: Wipe Out Inside of Washtub
Prior to first wash, use an all purpose cleaner, or a
detergent and water solution, and a damp cloth to
remove shipping dust from inside of washtub.
Figure 3
TLW521N
1Shipping Brace
2Shipping Plug
1
2
W371I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
6
Step 3: Connect Fill Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting fill hoses.
The appliance is to be connected to the water mains
using new hose-sets and old hose-sets should not be
reused.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Remove the two plain rubber washers and two filter
screens from accessories bag, and install them
according to Figure 4.
NOTE: Check filter screens for debris or damage
annually. Clean or replace them if necessary.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately 1/4
turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.

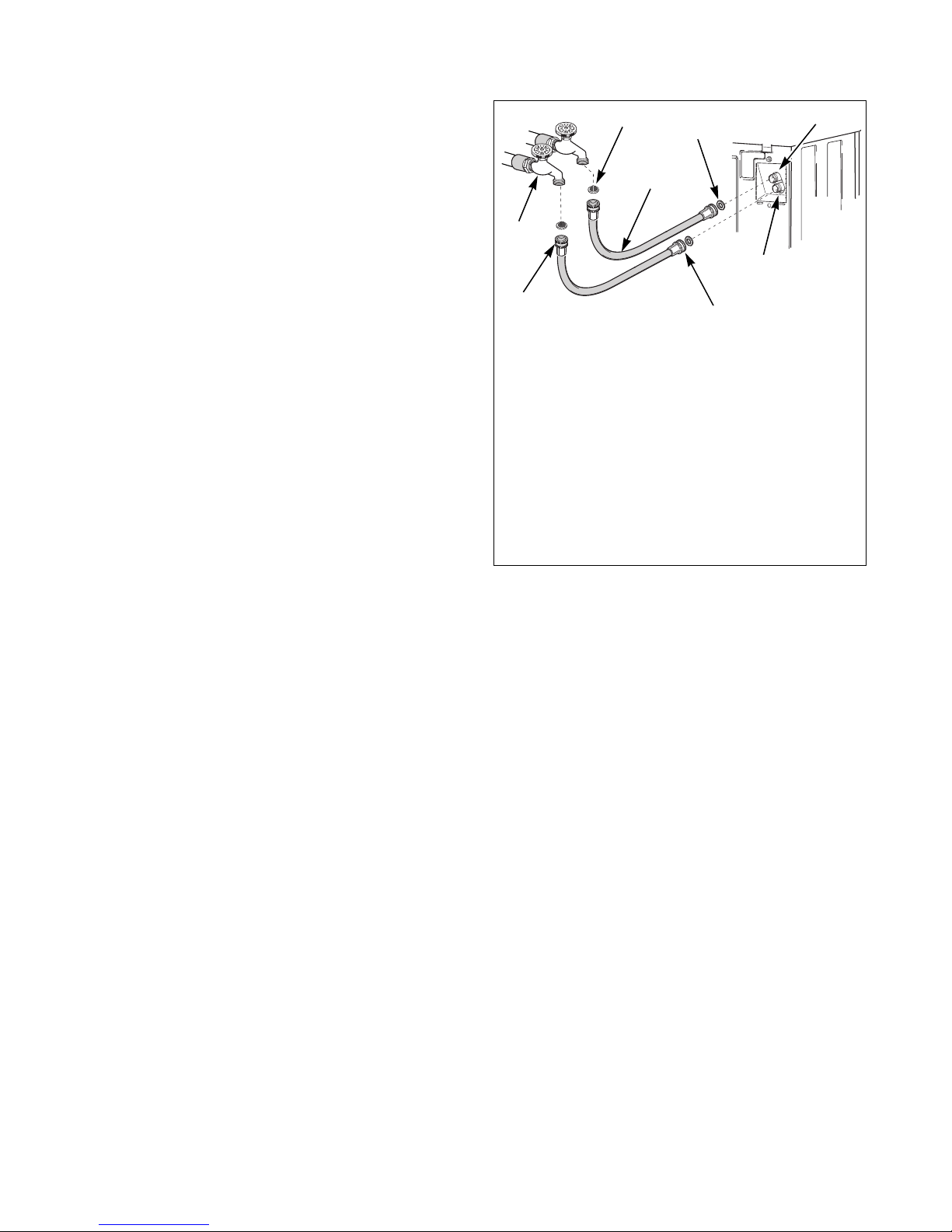

Figure 4
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every 5 years.
TLW1988N
1Filter Screen (Screen must be facing
outward)
2Fill Hose
3Rubber Washer (Plain)
4Cold Water Connection
5Hot Water Connection
6Install this end of hose to valve connections
at rear of washer.
7Install this end of hose to water supply
faucet. (Black colored coupling for metric)
8Faucet
HOT
COLD
C
H
2
13
4
5
6
7
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
7
38900
Step 4: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp.
Find the instructions, on the following pages, that are
appropriate for your type of drain receptacle
(standpipe, high standpipe, low standpipe, sink, wall,
or laundry tub). Follow these instructions to properly
install the drain hose.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 3.2 cm (1-1/4 inch) outside
diameter drain hose.
Figure 5
Standpipe Installation:
Place the hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose,
approximately 30 cm (12 inches) down from the top of
pipe and tighten strap to hold hose to standpipe. This
will prevent the drain hose from dislodging from drain
receptacle during use.
IMPORTANT: To prevent siphoning, do not place
any ribbed portion of the drain hose into the
standpipe.
Figure 6
W324I
1Retainer Clamp
2Standpipe Adapter
12
TLW1961N
1Ribbed Portion of Drain Hose
2Standpipe Adapter
3Tie-Down Strap
4Standpipe 5.08 cm (2 in.) or 4 cm (1-1/2 in.)
Diameter
5Drain Hose Sleeve
TLW1961N
2
3
4
5
30 cm
(12 in.)
19.44 cm
(36 in.)
RECOMMENDED
HEIGHT
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
8
High Standpipe Installation:
Place the hose into the standpipe. Remove the beaded
tie-down strap from accessories bag and place around
standpipe and drain hose, approximately 30 cm
(12 inches) down from the top of pipe and tighten
strap to hold hose to standpipe. This will prevent the
drain hose from dislodging from drain receptacle
during use.
Figure 7
Low Standpipe Installation:
No. 562P3 Siphon Break Kit is required for this type
of installation. This kit is available (as optional
equipment at extra cost) through an authorized dealer
or parts distributor. Installation instructions are
supplied with the kit.
Figure 8
TLW1962N
1Drain Hose
2Standpipe (Standpipes higher than 122 cm
[4 feet] are not recommended)
3Tie-Down Strap
4Standpipe Adapter
TLW1962N
2
1
3
4
W512I
1562P3 Siphon Break Kit
2Standpipe
3Drain Hose
W512I
3
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
38900

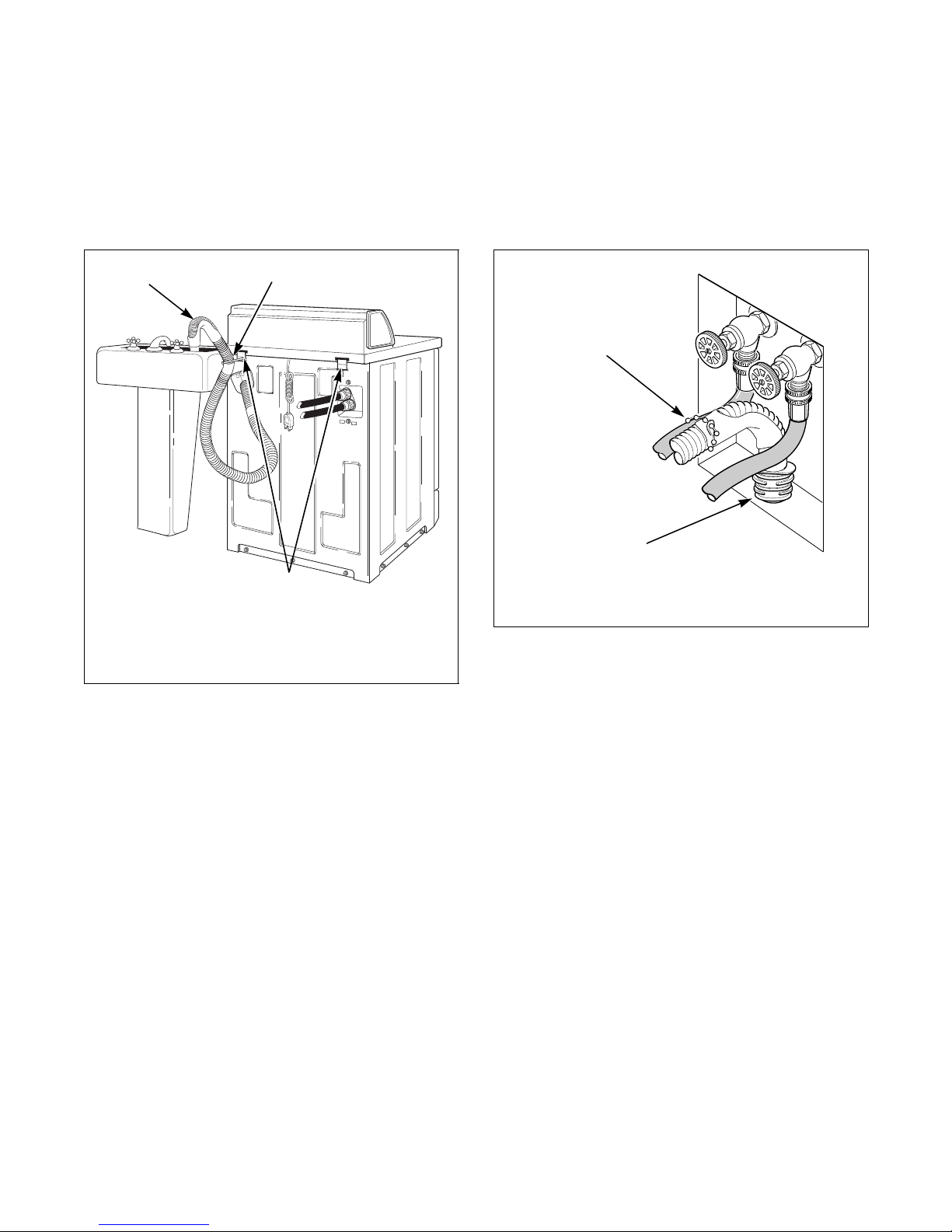

Sink Installation:
For this type of installation, use the beaded tie-down
strap (supplied in accessories bag), or use a large wire
tie (available from your local hardware store) and
secure the drain hose to the cabinet top hinge. Refer to
Figure 9. This will prevent the drain hose from
dislodging during use.
Figure 9
In the Wall Installation:
For installations of this type, the drain hose MUST be
secured to one of the inlet hoses using the beaded tie-
down strap from accessories bag.
NOTE: End of drain hose must not be below height
of cabinet top.
Figure 10
TLW1963N
1Drain Hose
2Tie-Down Strap or Wire Tie
3Cabinet Top Hinge
12
3
W329I
1Tie-Down Strap (Tape if necessary)
2Standpipe Adapter
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
10
Laundry Tub Installation:
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Use the beaded tie-down strap
(supplied in accessories bag) to secure hose.
Figure 11
Step 5: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
Place rubber feet on all four leveling legs.
Place washer in position on a clean, dry, and
reasonably firm floor. Installing the washer on any
type of carpeting is not recommended.
NOTE: The openings in the base must not be
obstructed by a carpet.
Loosen 7/8 inch locknuts and adjust the two front
leveling legs. Once adjusted, tilt the unit forward on
front legs and lower back down into position to set the
rear self-leveling legs.
Washer must not rock. After washer is at desired
height, tighten locknuts securely against bottom of
washer base. If these locknuts are not tight, washer
will not remain stationary during operation.
Improper installation or flexing of a weak floor will
cause excessive vibration.
Do not slide washer across floor once the leveling legs
have been extended, as legs and base could become
damaged.
Verify that washer doesn’t rock.
Figure 12
TLW1964N
1Tie-Down Strap (Tape if necessary)
TLW1964N
1
W179I
1Level
2Locknut
3Leveling Leg
4Rubber Cup
5Washer Base
1
2
3
4
5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
38900

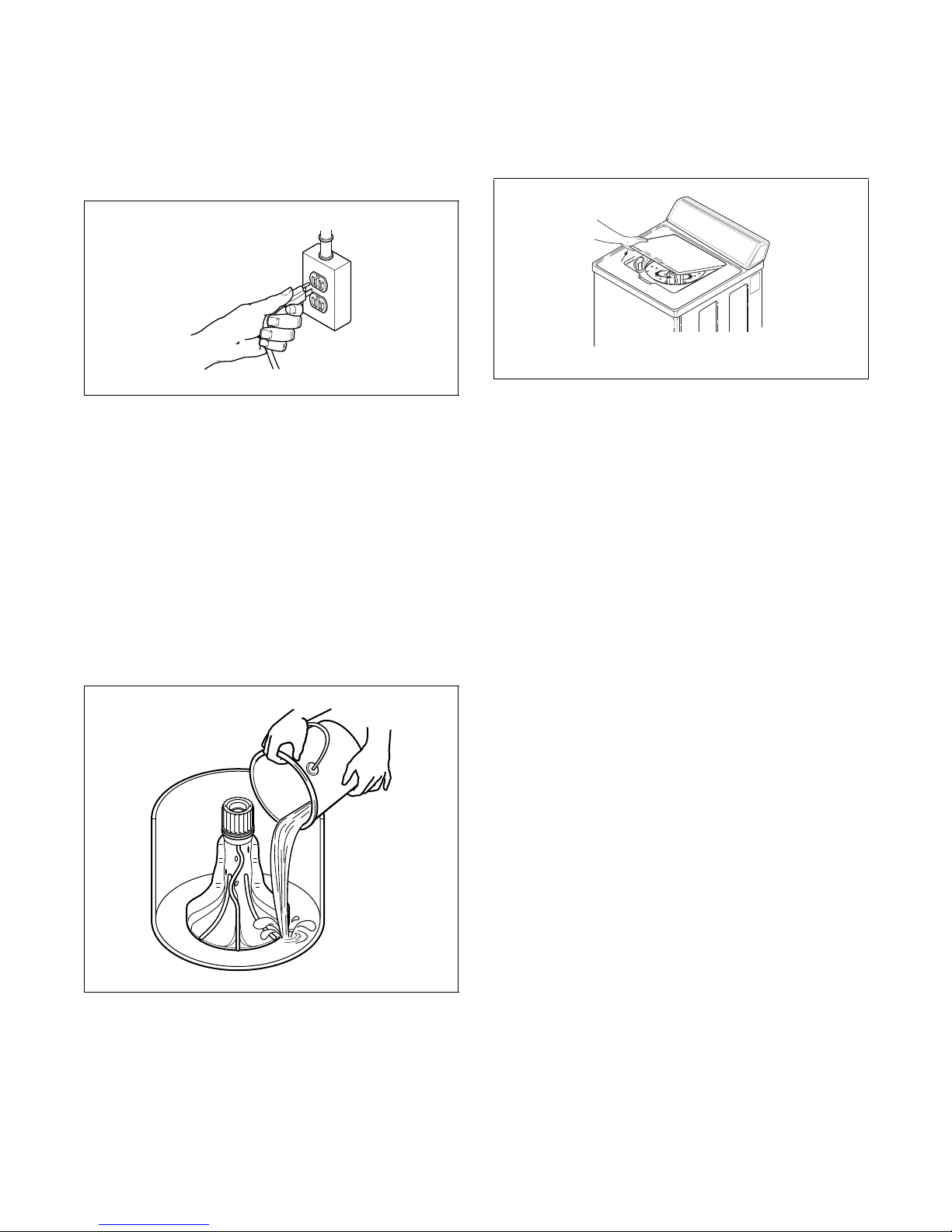

Step 6: Connect the Washer to Electrical
Power
Refer to section on Electrical Requirements and
connect the washer to an electrical power source.
Figure 13
Step 7: Add Water to the Washer
To prevent damage to pump, do not run washer before
adding at least one quart water to the tub. If the washer
is run before any water is added, the pump seal may
overheat causing the pump to leak. Once installed, the
water retained in the drain system from the previous
cycle will provide sufficient cooling to prevent pump
seal damage.
NOTE: The agitator should not be removed except
for service. The washtub is designed to be self-
cleaning.
Figure 14
Step 8: Check Lid Switch
Washer should stop agitating and spinning when lid is
opened.
Figure 15
Step 9: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that washer is installed
correctly.
D254I
W391I
D254I
W391I
W376I
W376IE0A

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
12
Electrical Requirements
NOTE: The wiring diagram is located in the
control hood.
Figure 16
NOTE: Refer to the washer nameplate for proper
voltage and Hertz the washer is designed to operate
on. Refer to Figure 18.
120 Volt, 60 Hertz, With 3 Prong
Grounding Plug
This washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 17
for determining correct polarity of the wall receptacle.
Figure 17
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
D009I
To reduce the risk of fire, electric shock or
personal injury, all wiring and earthing
MUST conform with the latest edition of the
National Electrical Code, ANSI/NFPA 70,
and such local regulations as might apply. It
is the customer’s responsibility to have the
wiring, fuses and circuit breakers checked
by a qualified electrician to make sure your
home has adequate electrical power to
operate the washer.
W129
WARNING
D009I
DO NOT OVERLOAD CIRCUITS
DO NOT USE ADAPTER
DO NOT USE AN EXTENSION CORD
D090I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
STANDARD 120 VOLT, 60 HERTZ, 3 WIRE
EFFECTIVELY GROUNDED CIRCUIT
1
2
3
5
120 ± 12
V.A.C. 0 V.A.C.
120 ± 12
V.A.C.
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
38900
NOTE: Some models come without an electrical
plug installed. If washer is not hard wired (refer to
Figure 19), a suitable plug that meets local
electrical standards, including earthing
requirements, must be installed. Refer to the
washer nameplate for proper voltage and Hertz the
washer is designed to operate on. Refer to
Figure 18.
120 Volt/50 Hertz
This washer is designed to be operated on a separate
polarized three-wire, earth (grounded) 120 Volt,
50 Hertz, single-phase electrical circuit protected by a
15 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
240 Volt/50 Hertz
This washer is designed to be operated on a separate
polarized three-wire, earth (grounded) 240 Volt,
50 Hertz, single-phase electrical circuit protected by a
10 ampere fuse,equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
230 Volt/50 Hertz
This washer is designed to be operated on a separate
polarized three-wire, earth (grounded) 230 Volt,
50 Hertz single-phase electrical circuit protected by a
10 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
220 Volt/60 Hertz
This washer is designed to be operated on a separate
polarized three-wire, earth (grounded) 220 Volt,
60 Hertz single-phase electrical circuit protected by a
10 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
Figure 18
240 Volt/60 Hertz
This washer is designed to be operated on a separate
polarized three-wire, grounded 240 Volt, 60 Hertz,
single-phase electrical circuit protected by a
10 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
Earthing (Grounding) Instructions
The washer must be earthed (grounded). In the event
of malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-earthing conductor.
Some models are also equipped with a three-prong
earthing plug. The washer must be plugged or hard
wired into an appropriate power source that is properly
installed and earthed in accordance with all local codes
and ordinances.
Do not modify the plug provided with the washer — if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
To reduce the risk of electric shock or fire,
DO NOT use an extension cord or an
adapter to connect the washer to the
electrical power source.
W031
WARNING
W334I
1Nameplate
1
Improper connection of the equipment-
earthing conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is properly
earthed.
W032
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
14
Figure 19
W403I W402I
NOTE: Electrical receptacle must be located so that it is easily accessible with machine in place. If machine is hard
wired, an intermediate shut-off box with a 3 mm gap is required to meet EN 60335-1, clauses 24.3 and 22.2 or 3.5 mm
gap is required to meet Standard IEC 60335-1, clauses 24.3 and 22.2. Gap is defined as the minimum contact
separation of each pole in the switch between the “ON” and “OFF” positions.
W403I
W402I
PLUG HARD WIRED

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
38900
Water Supply Requirements
NOTE: Water supply faucets must fit standard
19.1 mm (3/4 inch) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer
is not being used.
Figure 20
Water Temperature
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses (supplied with
the washer) are not long enough for the
installation. Order hoses as follows:
No. 20617 Fill Hose 2.44 m (8 feet)
No. 20618 Fill Hose 3.05 m (10 feet)
Water Pressure
Pressure must be a minimum of 138 to a maximum of
827 kPa (20 to 120 pounds per square inch) static
pressure measured at the faucet.
NOTE: Water pressure under 138 kPa (20 pounds
per square inch) will cause an extended fill time in
the washer.
W187I
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Fill Hoses
Under certain conditions, hydrogen gas
may be produced in a hot water system that
has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period and before using the washer, turn on
all hot water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
The gas is flammable. Do not smoke or use
an open flame during this time.
W029
WARNING
C
H
2
1
3
4
WATER
MIXING
VALVE
To prevent personal injury, avoid contact
with inlet water temperatures higher than
51° Celsius (125° Fahrenheit) and hot
surfaces.
W750
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
38900
16

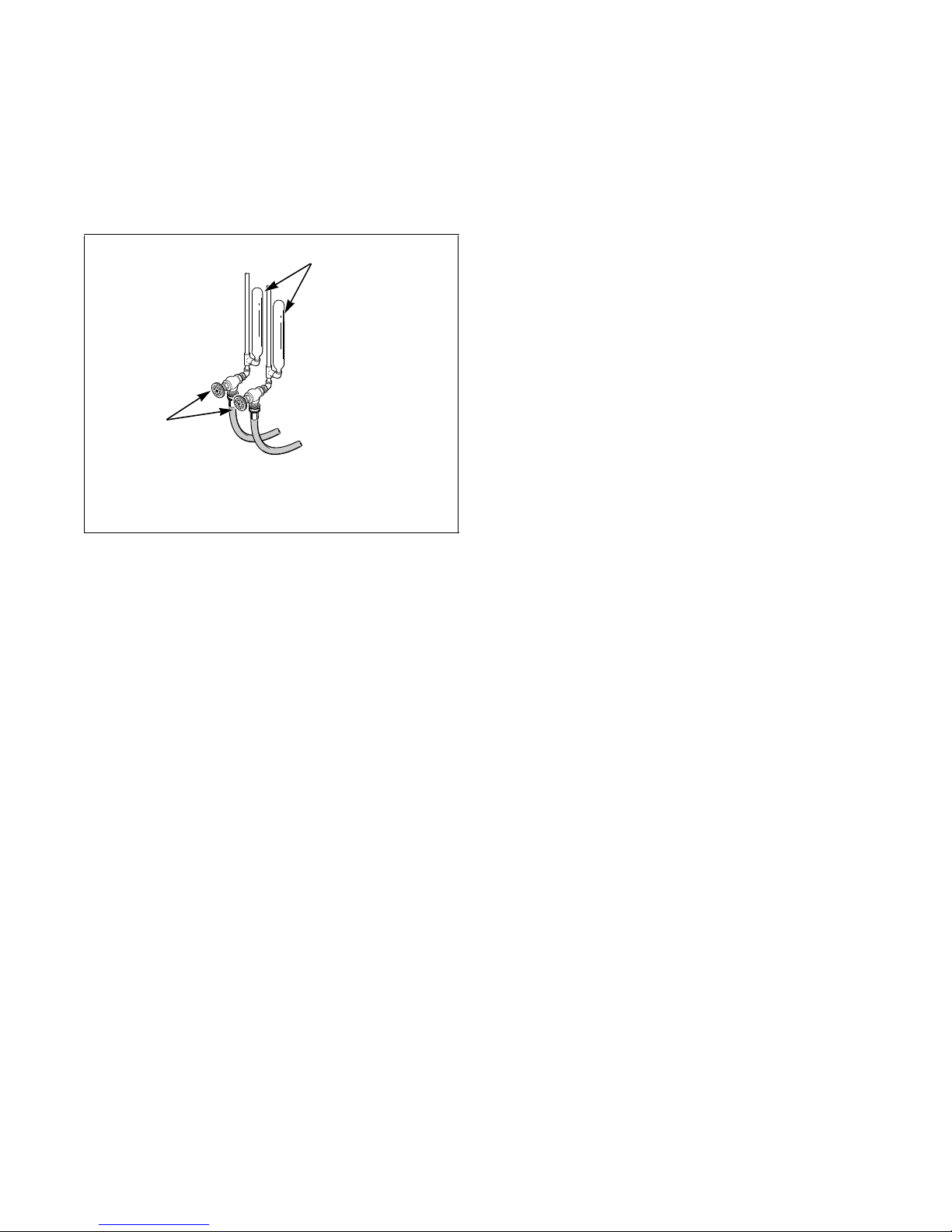

Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets. Refer to
Figure 21.
Figure 21
W005I
1Risers (Air cushions)
2Water Supply Faucets
W005I
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

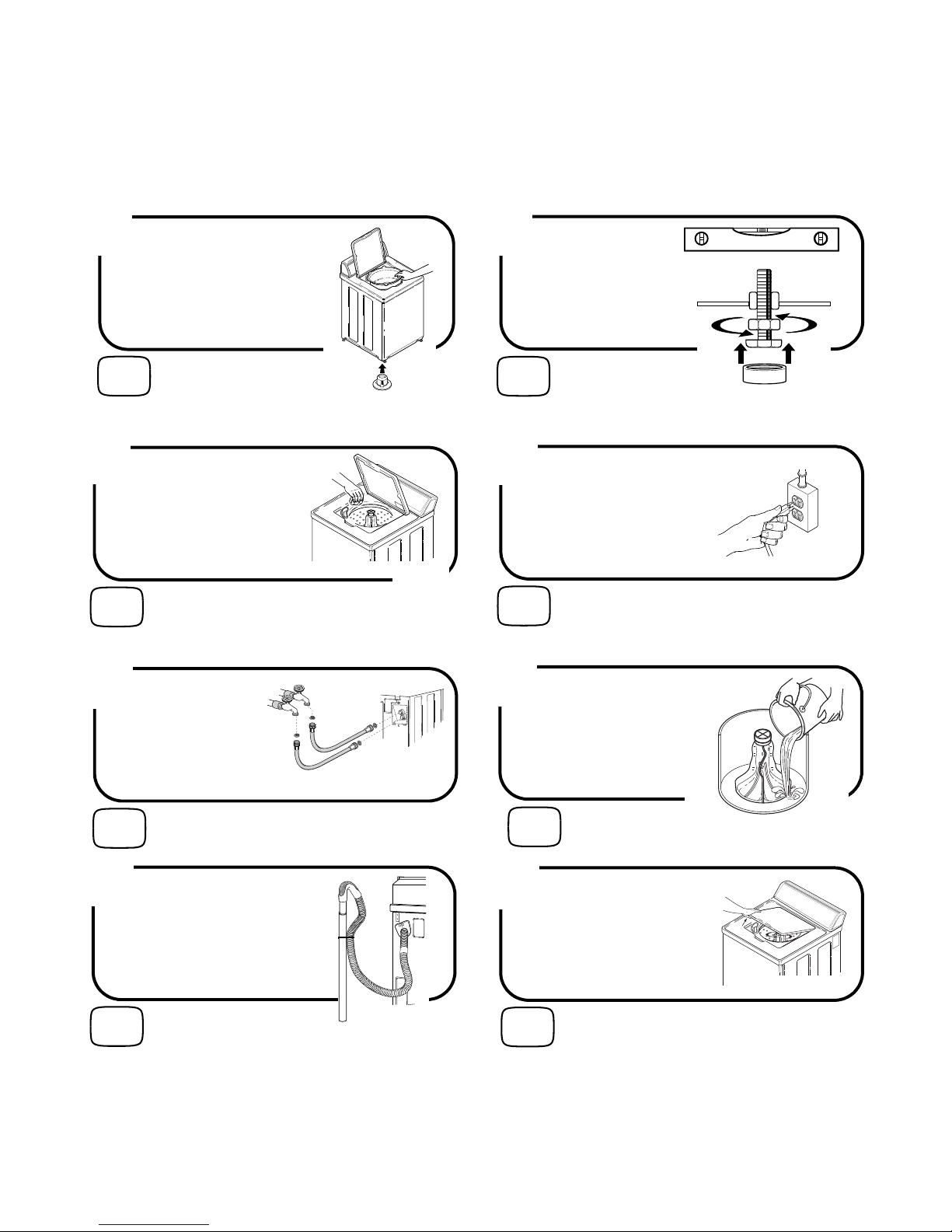

Installer Checklist
Fast Track for Installing the Washer
(Refer to the manual for more detailed information)
TLW1988N
HOT
COLD
C
H
CHECK
• Remove the Shipping
Brace and Shipping
Plug.
• Wipe Out Inside
of Washtub.
• Add Water to
the Washer.
• Check Lid Switch.


W376IE0A
• Connect Fill
Hoses.
• Connect Drain Hose
to Drain Receptacle.
W315IE0A
• Connect the Washer
to Electrical Power.
D254IE2A
W316I
CHECK
CHECK CHECK
CHECK CHECK
CHECK CHECK
W371IE0B
• Position and
Level the
Washer.


LEVEL
D255I
TLW1988N
W315IE0A

TLW521N
W376I
TLW2056N
D254I
W316I
W371I
W391I
