Alliance Laundry Systems UW35P2 User manual

Operation/Programming
www.comlaundry.com
Washer-Extractors
Pocket Hardmount
2-Speed and 3-Speed
UW35P2
UW35P3
UW60P2
UW60P3
MC010J
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. F232090R3
February 2007
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232090
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
1
Table of
Contents
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Important Safety Instructions ............................................................... 3

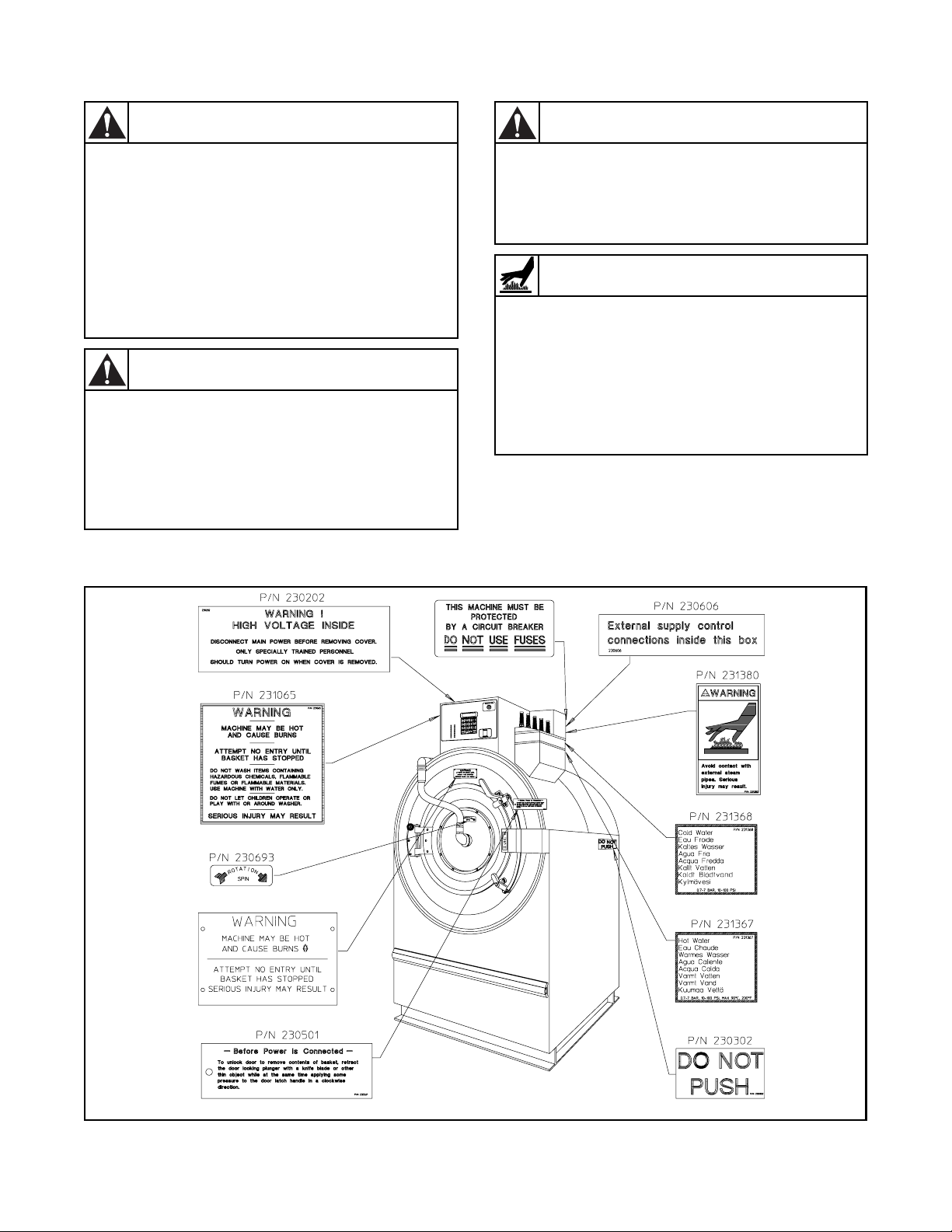

Safety Decals ........................................................................................ 5
Key To Symbols ................................................................................... 6
Operator Safety..................................................................................... 7
Safe Operating Environment ................................................................ 7
Environmental Conditions ............................................................... 7
Machine Location ............................................................................ 8
Input and Output Services................................................................ 8
Misuse................................................................................................... 9
Operation............................................................................................. 10
Delivery Inspection............................................................................... 10
Customer Service.................................................................................. 10
Serial Plate Location............................................................................. 10
Machine Familiarization Guide ............................................................ 12
Theory Of Operation............................................................................. 12
Emergency Stop Button........................................................................ 13
WE-6 Microcomputer........................................................................... 14
LED Display ......................................................................................... 14
Operational Keypad .............................................................................. 17
Start-up ................................................................................................. 18
Opening Door ....................................................................................... 19
Loading ................................................................................................. 19
Supply Dispenser .................................................................................. 19
Cycle Selection ..................................................................................... 19
Cycle Execution.................................................................................... 20
Test Cycle ............................................................................................. 20
Stop Routine ......................................................................................... 21
Balance Switch Detection..................................................................... 21
Temperature Display ............................................................................ 21
Error Recovery Routine........................................................................ 22
Motor Thermal Overload Indicator ...................................................... 22
Manual Mode Control Feature.............................................................. 23
Programming ...................................................................................... 24
Programming Keypad........................................................................... 24
Programming Tutorial .......................................................................... 26
Programming Hints............................................................................... 29
System Programming............................................................................ 30
Prompting the WE-6 ........................................................................ 30
Cycle Programming .............................................................................. 31
Displaying a Cycle in Memory ........................................................ 31
Displaying Individual Cycle Usage ................................................. 31
Editing a Cycle................................................................................. 32
Erasing a Cycle in Memory ............................................................. 33

2F232090
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step Programming ................................................................................ 33
Programming a Fill without Spray................................................... 33
Programming a Fill Temperature..................................................... 33
Programming a Supply Step ............................................................ 35
Programming Heat ........................................................................... 36
Programming a Wash Step............................................................... 36
Programming a Wash 5 Thermal Cool-down .................................. 37
Programming No Reversing ............................................................ 37
Programming a Soak Step................................................................ 38
Programming a Drain Step............................................................... 38
Programming a Flush Step............................................................... 38
Programming a Spin Step ................................................................ 39
Programming a Rinse Step............................................................... 39
Programming an Auxiliary Step ...................................................... 39
Simulator Operation and Program Transfer ......................................... 40
Simulator Operation......................................................................... 40
Transferring All Cycles from Computer to Simulator..................... 41
Transferring One Cycle from Computer to Simulator..................... 41
Transferring All Cycles from Simulator to Computer..................... 42
Transferring One Cycle from Simulator to Computer..................... 42
Preprogrammed Cycles......................................................................... 43
Cycle Categories .............................................................................. 43
Standard Supply Legend .................................................................. 44
Standard Cycle Charts...................................................................... 44

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
F232090
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Safety Information
F232090
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a
qualified service person.
20. Replace worn power cords and/or loose plugs.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

Safety Information
5
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
Figure 1
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Ensure that the machine is installed on a
level floor of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.
SW020
CAUTION
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING
MA004G

Safety Information
F232090
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Key To Symbols
The lightning flash and arrowhead within the triangle
is a warning sign indicating the presence of dangerous
voltage.
The exclamation point within the triangle is a warning
sign indicating important instructions concerning the
machine and possibly dangerous conditions.
This warning symbol indicates the presence of
potentially dangerous drive mechanisms within the
machine. Guards should always be in place when the
machine is in operation.
This warning symbol indicates the presence of
possibly dangerous chemicals. Proper precautions
should be taken when handling corrosive or caustic
materials.
This warning symbol indicates the presence of hot
surfaces that could cause serious burns. Stainless steel
and steam lines can become extremely hot and should
not be touched.
This warning symbol indicates the presence of
possibly dangerous pinch-points. Moving mechanical
parts can crush and/or sever body parts.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the factory
immediately.
Use factory-authorized spare parts to avoid safety
hazards.

Safety Information
7
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
Safe Operating Environment
Safe operation requires an appropriate operating
environment for both the operator and the machine. If
questions regarding safety arise, contact the factory
immediately.
Environmental Conditions
●Ambient Temperature.Water in the machine
will freeze at temperatures of
32° F or below.
Temperatures above 120° F (50° C) will result in
more frequent motor overheating and, in some
cases, malfunction or premature damage to solid
state devices that are used in some models.
Special cooling devices may be necessary.
Water pressure switches are affected by increases
and decreases in temperature. Every 25° F (10°
C) change in temperature will have a 1% effect
on the water level.
●Humidity. Relative humidity above 90% may
cause the machine’s electronics or motors to
malfunction or may trip the ground fault
interrupter. Corrosion problems may occur on
some metal components in the machine.
If the relative humidity is below 30%, belts and
rubber hoses may eventually develop dry rot.
This condition can result in hose leaks, which
may cause safety hazards external to the machine
in conjunction with adjacent electrical
equipment.
●Ventilation. The need for make-up air openings
for such laundry room accessories as dryers,
ironers, water heaters, etc., must be evaluated
periodically. Louvers, screens, or other
separating devices may reduce the available air
opening significantly.
●Elevation.If the machine is to be operated at
elevations of over 3,280 feet (1,000 meters)
above sea level, pay special attention to water
levels and electronic settings (particularly
temperature) or desired results may not be
achieved.
●Chemicals. Keep stainless steel surfaces free of
chemical residues.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING

Safety Information
F232090
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
●Water Damage.Do not spray the machine with
water. Short circuiting and serious damage may
result. Repair immediately
all seepage due to worn or damaged
gaskets, etc.
Machine Location
●Foundation. The concrete floor must be of
sufficient strength and thickness to handle the
floor loads generated by the high extract speeds
of the machine.
●Service/Maintenance Space.Provide
sufficient space to allow comfortable
performance of service procedures and routine
preventive maintenance.
This is especially important in connection with
machines equipped with an AC inverter drive.
Consult installation instructions for specific details.
Input and Output Services
●Water Pressure. Best performance will be
realized if water is provided at a pressure of
30–85 psi (2.0–5.7 bar). Although the machine
will function properly at lower pressure,
increased fill times will occur. Water pressure
higher than 100 psi (6.7 bar) may result in
damage to machine plumbing. Component
failure(s) and personal injury could result.
●Steam Heat (Optional) Pressure.Best
performance will be realized if steam is provided
at a pressure of 30–80 psi (2.0–5.4 bar). Steam
pressure higher than 125 psi (8.5 bar) may result
in damage to steam components and may cause
personal injury.
For machines equipped with optional steam heat,
install piping in accordance with approved
commercial steam practices. Failure to install the
supplied steam filter may void the warranty.
●Compressed Air. For machines requiring
compressed air service, best performance will be
realized if air is provided at a pressure of 80–100
psi (5.4–6.7 bar).
●Drainage System.Provide drain lines or
troughs large enough to accommodate the total
number of gallons that could be dumped if all
machines on the site drained at the same time
from the highest attainable level. If troughs are
used, they should be covered to support light foot
traffic.
●Power. For personal safety and for proper
operation, the machine must be grounded in
accordance with state and local codes. The
ground connection must be to a proven earth
ground, not to conduit or water pipes. Do not use
fuses in place of the circuit breaker. An easy-
access cutoff switch should also be provided.
Always disconnect power and water supplies before a
service technician performs any service procedure.
Where applicable, steam and/or compressed air
supplies should also be disconnected before service is
performed.
Do not place volatile or flammable fluids
in any machine. Do not clean the machine
with volatile or flammable fluids such as
acetone, lacquer thinners, enamel
reducers, carbon tetrachloride, gasoline,
benzene, naptha, etc. Doing so could
result in serious personal injury and/or
damage to the machine.
SW002
WARNING
Replace all panels that are removed to
perform service and maintenance
procedures. Do not operate the machine
with missing guards or with broken or
missing parts. Do not bypass any safety
devices.
SW019
CAUTION Dangerous voltages are present in the
electrical control box(es) and at the motor
terminals. Only qualified personnel
familiar with electrical test procedures,
test equipment, and safety precautions
should attempt adjustments and
troubleshooting. Disconnect power from
the machine before removing the control
box cover, and before attempting any
service procedures.
SW005
WARNING

Safety Information
9
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Misuse
Never use this machine for any purpose other than
washing fabric.
●Never wash petroleum-soaked rags in the
machine. This could result in an explosion.
●Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
●Never allow children to play on or around this
machine. Death or serious injury can result if
children become trapped in the machine. Do not
leave children unattended while the machine
door is open. These cautions apply to animals as
well.

Operation
F232090
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
This manual is designed as a guide to operating and
programming the UW35P and UW60P 2-speed and
3-speed rigid-mount washer-extractor equipped with
the WE-6 microcomputer.
The UWP washer-extractor features programmable
custom cycles and high
extract force.
The manuals, installation instructions, and wiring
diagrams which accompany the washer-extractor have
been included with the machine at no charge.
Additional copies are available at a nominal charge.
NOTE: Read this manual thoroughly before
attempting to operate the machine or program the
microcomputer.
NOTE: Do not use this manual in conjunction with
earlier model microcomputer-controlled UW
washer-extractors. Do not use technical literature
intended for earlier models when operating this
machine.
NOTE: All information, illustrations, and
specifications contained in this manual are based
on the latest product information available at the
time of printing. We reserve the right to make
changes at any time without notice.
Delivery Inspection
Upon delivery, visually inspect crate, protective cover,
and unit for any visible shipping damage. If the crate,
protective cover, or unit are damaged or signs of
possible damage are evident, have the carrier note the
condition on the shipping papers before the shipping
receipt is signed, or advise the carrier of the condition
as soon as it is discovered.
Remove the crate and protective cover as soon after
delivery as possible. If any damage is discovered upon
removal of the crate and/or protective cover, advise the
carrier and file a written claim immediately.
Customer Service
If literature or replacement parts are required, contact
the source from whom the washer-extractor was
purchased or contact Alliance Laundry Systems at
[phone] for the name and address of the
nearest authorized parts distributor.
For technical assistance, call:
[phone]
Ripon, Wisconsin
Serial Plate Location
A record of each machine is on file with the
manufacturer. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Refer to Figure 2.

Operation
11
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 2
Model Number Familiarization Guide
Sample Model Number: UW60P2OU70001
UW Model Number Prefix
60 Washer-Extractor Capacity (pounds dry weight)
PType of Electrical Control P = WE-6 Computer
2Washer-Extractor Speed Capabilities 2 = 2 Speeds; 3 = 3 Speeds
OElectrical Characteristics
U7 Design Series
0001 Option Identification (varies from machine to machine)
PHM549N
SAMPLE DECAL
UW60P2OU70001
00000000000
220-240 11
30
60
60
500000
33
27 465

Operation
F232090
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Machine Familiarization Guide
The machine familiarization guide in Figure 3
identifies major operational features of the UWP
washer/extractor.
Figure 3
Theory Of Operation
The design of the washer-extractor emphasizes
performance reliability and long service life. The
cylinder, shell, and main body panels are fabricated of
stainless steel.
Electrical controls for the washer-extractor are housed
in a separate enclosure located on the top of the
machine. Removing the screws from the module
cover, lifting the cover, and pulling to the rear provides
access to the control module. This module contains the
WE-6 microcomputer, contactors, water-level switch,
and other control components.
One dual-speed motor drives the cylinder via a V-belt
drive in both speeds for the 2-speed models. Two
motors drive the cylinder for the 3-speed models. The
UW35 uses two ball bearings held in place by a single
cast-iron housing that is bolted to the A-frame. The
UW60 uses two flange-mounted, spherical roller
bearings bolted to the A-frame.
Shell Front
Door Hinge
Rub Rail
Spray Rinse Tube
Control Module
Emergency Stop Button
Supply Valve Box
Supply Dispenser
Door Latch Handle
Door Handle
Door Box
Door Latch
Extension Arm
Door Latch
Side Panel
FA001G

Operation
13
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
The cylinder is constructed with lifters or ribs that lift
the laundry from the bath solution when the cylinder
rotates at slow speed and then allow the laundry to
tumble back into the bath. This mechanical action
accomplishes the washing function. The cylinder is
perforated, allowing the water to drain from within
during the wash and extract steps.
The spray rinse feature consists of a fiber-reinforced
clear hose connected to the center of the door glass and
to both a hot and cold water inlet valve. A
hemispherically-shaped spray nozzle inside the door
glass produces a fan-action water spray which
disperses rinse water throughout the load.
The operator can select from among 39
preprogrammed cycles.
Programmable custom cycles are another feature of
the UWP.
On the UW60, a balance switch is installed between
the faces of the A-frame to signal the controls to slow
the machine when a severely out-of-balance load
occurs during extract.
Water enters the washer-extractor through
electromechanical water valves controlled by the
microcomputer. The microcomputer also controls the
drain and the door lock. In addition, it selects the water
levels according to the programmed cycle. Vacuum
breakers are installed in the water-inlet plumbing to
prevent backflow of water.
The standard production UWP uses a single drain
valve. (Dual drains are available as an option. The dual
drains open and close together under control of the
WE-6 computer.) The drain valve is normally open,
which means that it closes only when power is applied,
thus allowing the machine to drain in the event of a
power failure.
A door-lock system prevents opening of the stainless
steel door when a cycle is in progress. It also prevents
operation of the washer-extractor when the door is
open. The doorbox contains the door-lock
microswitch, door-closed magnetic switch, and the
door unlock solenoid.
The UW35 shaft seal assembly includes two lip seals
integrated into the cast-iron bearing housing. Each seal
has two lips which make contact with a polished
stainless steel bushing mounted to the shaft.
The UW60 shaft seal assembly includes a brass collar
held in place on the cylinder shaft with set screws. The
collar has a flange with a ceramic ring which makes
contact with a spring-loaded phenolic face seal
enclosed in a nylon housing mounted on the rear of the
shell. The collar contains two internal O rings which
maintain contact with the cylinder shaft.
The polypropylene supply dispenser is mounted on the
right side of the washer-extractor, viewed from the
front. The dispenser has five supply compartments,
numbered 1–5, starting from the rear of the machine.
The compartments hold plastic supply cups that are
used for either liquid or dry supplies. A nozzle flushes
supplies from the cups with water for the time
programmed in the cycle.
Liquid supplies can be injected directly into the cups
by a customer-supplied external chemical supply
system. Five hose strain reliefs on top of the supply
dispenser facilitate connection to an external supply
system. A terminal strip inside a compartment
attached to the left side of the control module, viewed
from the rear of the washer-extractor, provides
connection points for external supply signals.
Emergency Stop Button
A red emergency stop button is located on the upper
right-hand corner of the control panel. Push the button
in to stop the washer-extractor. Turn button to the left
and pull out to reset.

Operation
F232090
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
WE-6 Microcomputer
The WE-6 microcomputer control is a field-
programmable solid-state control capable of storing
and running up to 39 preprogrammed ready-to-use
cycles. A detailed description of these cycles can be
found in the Programming section of this manual
under Individual Cycle Charts. (If this machine’s
computer has been equipped with special
preprogrammed cycles, a separate insert listing these
cycles has been included in the resealable plastic bag
which contained this manual.)
Never turn the power off while the computer mode
switch is in the PROGRAM position. Such action will
disorder portions of the programmed data,
necessitating reprogramming of some or all of the
existing cycles. Always return the mode switch to
RUN position before turning the power off.Never
leave the mode switch key inserted in the switch lock
where it may be accessible to unauthorized personnel
not familiar with programming procedures.
The computer control in this washer-extractor is
continuously on the alert for problems within the
machine. When the computer detects a problem, it
immediately flashes a letter or number or both on the
display. It may activate the signal buzzer as well.

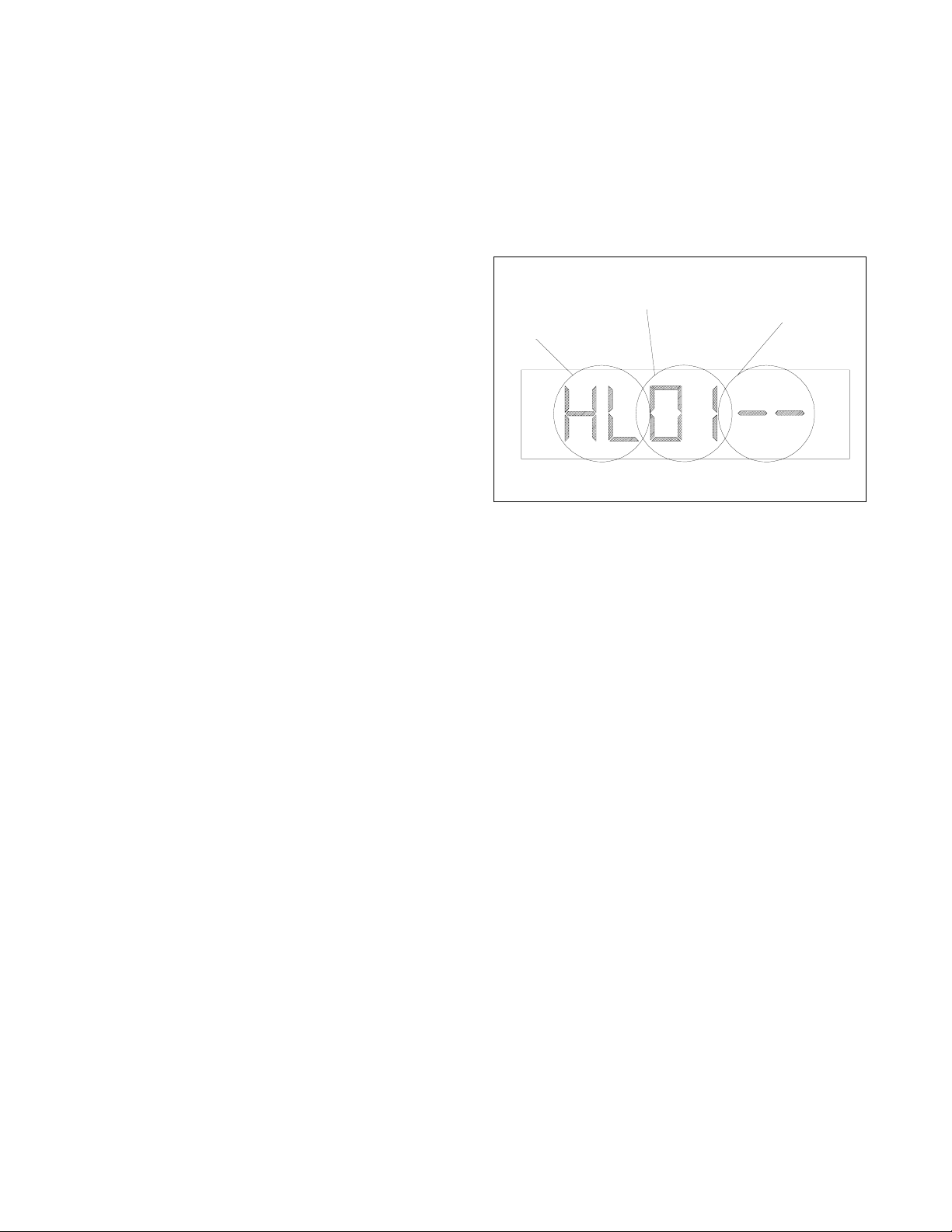

LED Display
The WE-6 microcomputer has a six-digit LED display.
References to display indications pertain to the first
four digits of the display reading left to right. The last
two digits on the right side of the display will indicate
either the last cycle used or the current cycle in
progress. See Figure 4.
The table which follows, entitled “Display
Interpretations,” lists the various displays and what
they mean.
MC007A
Figure 4
Function
Being
Executed
Step
Number Cycle
Number

Operation
15
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Display Interpretations
UWP_01 Program identification code (ROM).
This is an example only.
DONE End of cycle
DOOR Door not locked problem
EMTY Empty problem
FILL Fill problem
SDLY Spin coast delay
NEXT Select cycle or open door or select
program
NCYC Cycle not available
STOP Stop button pressed or cycle ended
A1 Auxiliary output #1
A2 Auxiliary output #2
A3 Signal
CF Cold flush
CH Cold fill to high level
CM Cold fill to medium level
CL Cold fill to low level
CO Cold fill to overflow
CR Cold rinse
CY Cycle number
D1 Drain #1
D2 Drain #2 (This feature is operational on
UWPV models only.)
FHeat select temperature in ° Fahrenheit
CHeat select temperature in ° Centigrade
HF Hot flush
HH Hot fill to high level
HM Hot fill to medium level
HL Hot fill to low level
HO Hot fill to overflow
HR Hot rinse
HS High speed spin
MS Medium speed spin
HT Heat (steam or electric)
--M Minutes (used when programming
time)
--S Seconds (used when programming
time)
SK Soak
S1 Supply #1 (Detergent)
S2 Supply #2 (Bleach)
S3 Supply #3 (Sour)
S4 Supply #4 (Softener)
S5 Supply #5 (Specialty)
TH Controlled temperature fill to high
level
TM Controlled temperature fill to medium
level
TL Controlled temperature fill to low level
TO Controlled temperature overflow
W1 Wash #1 (normal reversing)
W2 Wash #2 (gentle reversing)
W3 Wash #3 (no agitation)
W4 Wash #4 (distribution speed–forward
only)
W5 Wash #5 (temp.-controlled cool-down)
WF Warm flush
WH Warm fill to high level
WM Warm fill to medium level
WL Warm fill to low level
Display Interpretations (Continued)

Operation
F232090
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
WO Warm fill to overflow level
WR Warm rinse
•Left dot–poor balance condition
• Second dot from left–door lock switch
• Third dot from left–program mode
• Fourth dot from left–high level reached
• Fifth dot from left–medium level
reached
• Right dot–low level reached
EXISTS Cycle already in memory
EDIT? Do you want to edit the cycle?
TEMP Over-temperature-limit condition
OVERHT
Open or shorted temperature input
circuit or temperature out of
computer’s allowable limits
WATER Water in washer-extractor at end of
cycle
°FAR Temperature in degrees Fahrenheit
°CEN Temperature in degrees Centigrade
MANUAL Manual Mode enabled
NO MAN Manual Mode disabled
1DRAIN One drain capability selected
2Drain
Second independent drain enabled via
Auxiliary 2 output. (This feature is
operational on UWPV models only.
and should not be confused with the
“dual drain” option.)
ADV Advance (skip steps) feature enabled
NO ADV Advance feature disabled
Display Interpretations (Continued)

Operation
17
F232090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operational Keypad
The computer’s control keypad includes sixteen keys.
See Figure 5. Fourteen of these keys list functions
printed in black lettering on a silver background.
These functions are available to the operator and are
intended to control operation of the machine. See the
table below.
Operational Keypad
Key Description
Numbers 0–9 Press to select cycle number.
Display Temp Press and hold. Display will show and update sump temperature in degrees Fahrenheit or Centigrade.
Advance
Press to cause computer to skip to the next step in the cycle. The computer will not advance past
drain step if machine is not empty. (The Advance key is enabled at the factory and can be disabled at
the
laundry site.)
Stop Press to immediately abort the cycle and initiate the Stop Routine.
Start Press to start selected cycle or to re-start a step following a “FILL” or “EMTY” alarm. See Error
Recovery Routine in this section of the manual.
Manual See Manual Mode Control Feature at the end of this section.

Operation
F232090
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Located to the left of the computer keyboard are 20
LED indicator lights for the computer outputs. During
the time that a cycle is running, one or more of these
lights will be on to indicate the outputs activated for a
particular step. See Figure 5.
Figure 5
Start-up
Turn on the main power source (circuit breaker or cut-
off switch on the wall).
When AC power is turned on, the display will show
the program (ROM) identification code.
This identification code will appear for approximately
five seconds. Then the computer display will flash
“POWER” and “WAIT” alternately for 30 seconds.
The display will then show “NEXT00” to indicate that
a cycle can be selected. This display will be shown at
all times that power is on between cycles, indicating
that the door-unlock solenoid will function if the door-
unlock button is pressed. The washer-extractor is then
ready for loading and unloading.
Balance Sensing
Indicator
Door Lock
Switch
Program
Mode High Level
Fill Indicator
Medium Level
Fill Indicator
Low Level
Fill Indicator
MC008G
