Alpha ESS Storion-T50 User manual

Installation Manual of
Energy Storage System (ESS)
Storion-T50/T100 ( Indoor , with M38210-S)
V02

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 1of 48
Your Smart Energy
IMPRINT
IMPRINT
Germany
Alpha ESS Europe GmbH
Tel.: [phone]
E-mail: [e-mail]
Website: www.alpha-ess.de
Add.: Paul-Ehrlich-Straße 1a
63225 Langen
China
Alpha ESS Co., Ltd.
Tel.: [phone]
E-mail: [e-mail]
Website: www.alpha-ess.com
Add.: Jiu Hua Road 888, High-Tech Industrial Development Zone, Nantong City, 226300,
Jiangsu Province
Australia
Alpha ESS Australia Pty. Ltd.
Tel.: [phone]
E-mail: [e-mail]
Website: www.alpha-ess.com.au
Add.: Suite 1, Level 1, 530 Botany Road, Alexandria, NSW
Italy
Alpha ESS Italy S.r.l.
Tel.: [phone]
E-mail: [e-mail]
Web: https://it.alpha-ess.com/
Add: Via Loda,17-41013 Castelfranco Emilia (MO)
Apr 9th, 2020

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 2of 48
Your Smart Energy
IMPRINT
Copyright Statement
This manual is under the copyright of Alpha ESS Co., Ltd, with all rights reserved. Please
keep the manual properly and operate in strict accordance with all safety and operating
instructions in this manual. Please do not operate the system before reading through the
manual.
Version Information
Version
Date
Content
V01
Apr. 9th, 2020
First edition.
V02
May. 14th, 2020
Change CT description.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 3of 48
Your Smart Energy
IMPRINT
Content
IMPRINT....................................................................................................................... 1
Copyright Statement................................................................................................ 2
Version Information.................................................................................................. 2
Content.........................................................................................................................3
1. Introduction............................................................................................................ 5
1.1 Brief Introduction.........................................................................................5
1.2 Explanation of Terms..................................................................................5
2. Safety Instructions............................................................................................... 7
2.1 Manual Keeping........................................................................................... 7
2.2 Operator Requirements............................................................................. 7
2.3 Protection of Warning Sign.......................................................................7
2.4 Setting of Warning Sign for Safety......................................................... 7
2.5 Live Line Measurement..............................................................................8
2.6 Measuring Equipment................................................................................ 8
2.7 Electrostatic Prevention............................................................................ 8
2.8 Moisture Prevention....................................................................................8
2.9 Operation After Power Failure..................................................................8
2.10 Minimum Personal Protective Equipment.......................................... 8
3. Product Description...........................................................................................10
3.1 Appearance of the Product..................................................................... 11
3.2 Product Characteristics........................................................................... 11
3.3 Parameters of Components....................................................................12
3.3.1. PCS....................................................................................................................... 12
3.3.2. Battery System....................................................................................................14
3.3.3. PV Combiner Box (If applicable)......................................................................21
4. Installation............................................................................................................ 23
4.1 Installation Precautions...........................................................................23
4.2 Parts List......................................................................................................23

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 4of 48
Your Smart Energy
Copyright Statement
4.3 Installation...................................................................................................26
4.3.1. PCS Installation...................................................................................................26
4.3.2. Battery System Installation............................................................................... 28
4.4 Wiring........................................................................................................... 30
4.4.1. Battery Side Wiring.............................................................................................30
4.4.2. Inverter Side-Wiring............................................................................................34
4.4.3. System grounding...............................................................................................36
4.4.4. PV Side-Wiring....................................................................................................37
4.4.5. AC Side-Wiring....................................................................................................38
4.4.6. Meter Wiring(On-grid mode)............................................................................. 40
4.4.7. Connect the Communication Cable for the Generator.................................42
5. Start-up and Operation......................................................................................44
6. Remove the Communication Shorting Screw.............................................45
7. Contact...................................................................................................................46

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 5of 48
Your Smart Energy
Introduction
1. Introduction
1.1 Brief Introduction
This manual applies for Storion-T50/T100 Li-ion battery energy storage system, mainly
includes:
(1) Safety introduction
Introduces the product use, operating notes and qualification of operators of T50/T100 Li-ion
battery energy storage system.
(2) Product description
Describes product appearance, product characteristics, system composition and major
functions of T50/T100 Li-ion battery energy storage system.
(3) System installation
Introduces the installation of T50/T100, including cautions.
1.2 Explanation of Terms
(1) Lithium iron phosphate cell (LiFePO4)
Basic unit constituted by electric poles and electrolytes; Each cell is independent and closed.
Notes: Paralleled cell cannot be regarded as an independent cell, even repacked as
one whole battery pack.
(2) Lithium iron phosphate pack
Combination made up of battery monitoring circuit, battery equalization circuit, electrical
connectors, communication interfaces, thermal management devices and multiple Lithium iron
phosphate cells.
Notes: For packs from same company, all the details such as physical size, working
performance and interface specification should be consistent so that all the packs are
compatible and interchangeable.
(3) Battery management system
Electronic equipment collection for monitoring the operating information of cells, packs and
system units (such as voltage, current, temperature, protective parameter of batteries),
evaluating the state of charge (SOC), the state of health (SOH) and cumulative processed
energy and protecting batteries for safety, etc.
(4) Battery system unit

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 6of 48
Your Smart Energy
Introduction
A combination of batteries through series parallel combination inside and a battery
management system (BMS) in which accesses to DC side of a bidirectional converter.
(5) Storage unit
A combination of a bidirectional converter and a battery system unit, which can be used as an
independent load or be controlled directly by monitoring system.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 7of 48
Your Smart Energy
Introduction
2. Safety Instructions
2.1 Manual Keeping
This manual contains important information about operating the system. Before operating,
please read it very carefully.
The PCS should be operated in strict accordance with the description in the manual, in case
that it causes damage or loss to equipment, personnel and property.
This manual should be kept carefully for maintenance and reparation.
2.2 Operator Requirements
The operators should get a professional qualification, or trained.
The operators should be familiar with the whole storage system, including compositions and
working principles of the system.；
The operators should be familiar with the Product Instruction.
While carrying out maintenance work it has to be at least two operators in the filed all the time.
They can’t operate on any equipment until they are all powered off and fully discharged.
It is strictly prohibited for any maintenance to be carried out when equipment are on or
charged.
2.3 Protection of Warning Sign
The warning sign contains important information for the system to operate safely and it is
strictly prohibited to torn or damage the sign.
Ensure that the warning sign is always clear.
The signs should be replaced immediately if damaged.
2.4 Setting of Warning Sign for Safety
While instructing, maintaining and repairing, to prevent unrelated personnel nearby to cause
incorrect operation or accident, the suggestions below should be followed:
Obvious signs should be set at front switch and rear-level switch in case of accidents caused
by false switching.
Warning signs or tapes should be set near the operation areas.
Keys of the system must be pulled out after maintenance or operation.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 8of 48
Your Smart Energy
Introduction
2.5 Live Line Measurement
High voltage in the container which may cause vital electric shock when touched by accident.
Equipment protection must be taken in live line measurements (e.g.: insulation gloves).
The measuring equipment should be connected and used correctly to ensure personnel safety.
When measuring, at least two workers are needed.
2.6 Measuring Equipment
To ensure the electrical parameters to match requirements, related measuring equipment are
required when the system is being connected or tested.
Ensure that the connection and use matches specification in case of electric arc or shock.
2.7 Electrostatic Prevention
Contact or improper operation of the printed circuit board or other ESD sensitive components
may result in damage to the device. Unnecessary contact should be avoided.
2.8 Moisture Prevention
It is very likely that moisture may cause damages to the system.
Do not open the container door if the humidity is larger than 95%.
Repair or maintaining activities in wet conditions should be avoided or limited.
2.9 Operation After Power Failure
The battery system belongs to energy storage system, which maintains fatal high voltage even
when the DC side is disconnected. Therefore, touching of the battery output is strictly
prohibited.
The PCS maintains fatal voltage even when both the DC or AC side are disconnected, so it
must be tested by the multimeter for safety before operation.
2.10 Minimum Personal Protective Equipment
For the safety of operators to the system, personal protective equipment are required. During
the operation, following protective equipment are required:
No.
Item
Notes
1
Work clothes
2
Protective shoes
3
Protective glasses

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 9of 48
Your Smart Energy
Safety Instructions
When doing maintenance works such as checking cables or wires, measuring voltage,
replacing small electrical parts or cleaning modules and brackets, as minimum the following
protective equipment are required:
No.
Item
Notes
1
Work clothes
2
Protective shoes
3
Protective glasses
4
Insulated gloves
For touching live parts
Note: All metal tools during maintenance should be insulated.
When replacing modules, the following protective equipment are required:
No.
Item
Notes
1
Work clothes
2
Protective shoes
3
Protective glasses
4
Insulated gloves
For touching live parts
Note: When replacing modules, the stacking machine should be used carefully in
case that the modules may fall down. All workmen are suggested to wear high-safety
and high strength protective shoes to protect their feet.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 10 of 48
Your Smart Energy
Safety Instructions
3. Product Description
The AlphaESS Storion-T50/T100 energy storage system supports on-grid mode and off-grid
mode to run.
The overall system connection diagram is as follows:
Figure 3- 1 Application of the system, on-grid mode
Figure 3- 2 Applications of the system, off-grid mode

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 11 of 48
Your Smart Energy
Safety Instructions
3.1 Appearance of the Product
Figure 3- 3shows the appearance of the system.
Figure 3- 3 T50/T100 without container
Table 1 T50/100 System composition
Item
Components
1
Storion-T50/100-INV
2
Junction Box （With TOP BMU Box）
3
M38210-S
4
HV900105 Box
3.2 Product Characteristics
LiFePO4 batteries produced by AlphaESS have longer lifespan and higher reliability, which is
able to satisfy the application of energy storage systems.
The system is highly modular designed, and it is easier to assemble, transport and maintain.
The system has a three-level BMS and is allowed for system expansion.
The system adopts all time balancing technology so that the consistency of batteries and
modules can be well ensured.
The system is designed as a removable container which is compact in structure, flexible,
convenient for installation and testing, suitable for the working environment and is able to
satisfy different kinds of applications.
The system has current balance technology between strings in case of circulating current or
unbalanced power.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 12 of 48
Your Smart Energy
Product Description
The system has relatively developed thermal management technology so that the consistency
of the system environment can be ensured.
The system has both remote monitor function and local control function.
The system realizes flexible scheduling of electric power system through communication
among BMS, PCS and monitoring system.
The system realizes emergency fire protection by using the automatic alarming and fire
extinguishing system
3.3 Parameters of Components
3.3.1. PCS
3.3.1.1 Product Instruction
Storion-T50/T100-INV is a hybrid inverter. It has DC/DC and DC/AC modules. It can transform
the DC electricity from PV panels into three-phase AC electricity to supply loads. The DC/DC
module can charge batteries by using the electricity generated by PV panels. The DC/AC
module is bidirectional so that the battery can also be charged by the grid through the inverter.
3.3.1.2 Appearance Instruction

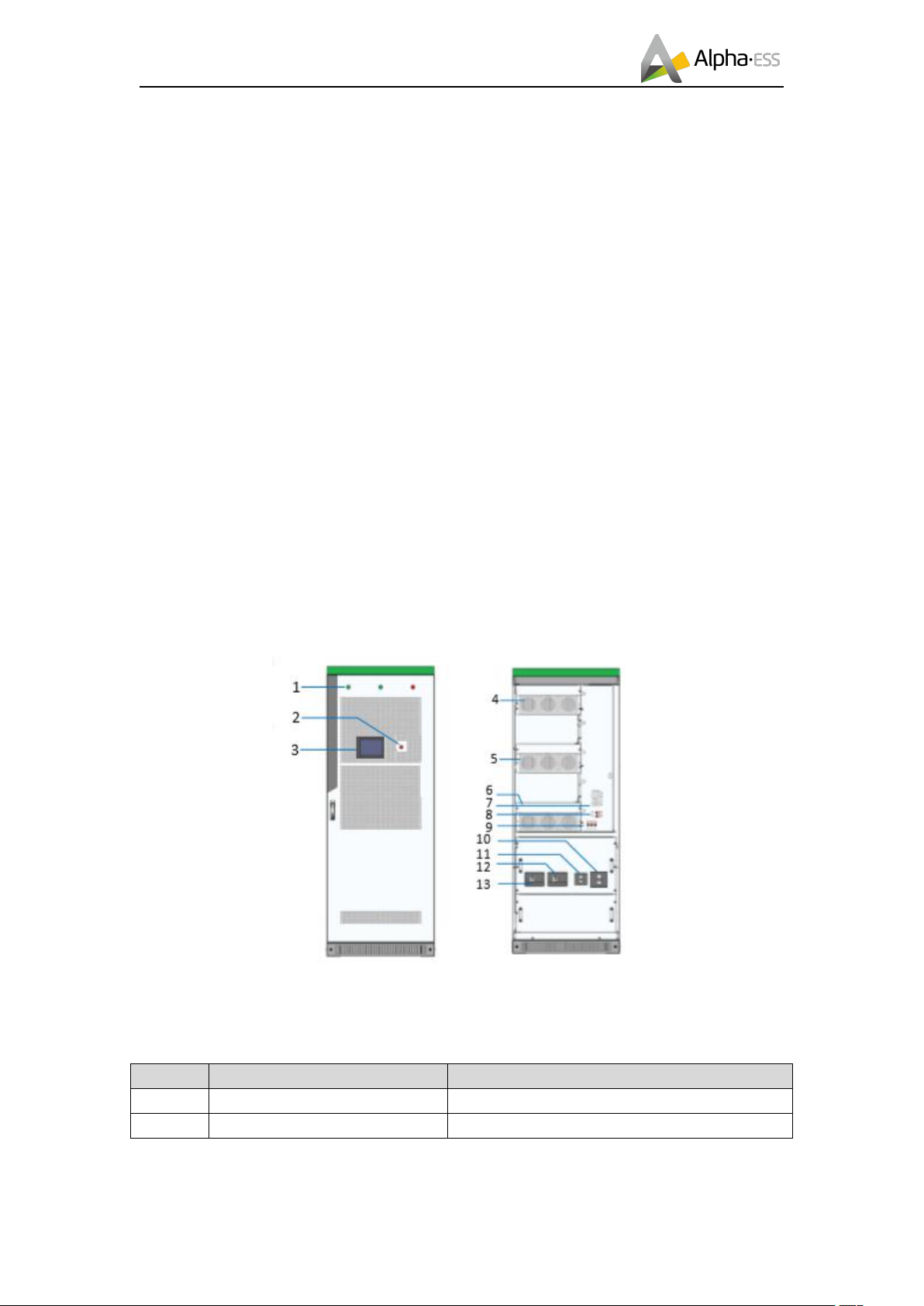

Figure 3- 4 Appearance of the PCS
Table 2 Composition of the PCS
Position
Designation
Description
1
Indicator lights
2
EPO (Emergency Power Off)

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 13 of 48
Your Smart Energy
Product Description
3
Touch Screen
4
PCS-DC (1~2 module(s))
50KW 1 set; 100KW 2 sets
5
PCS-AC (1~2 module(s))
50KW 1 set; 100KW 2 sets
6
STS module
Switching device; Only for the models with
STS
7
Wiring Terminal
Digital Input and Digital Output
8
AUX power supply switch
9
SPD switch
10
AC breaker (Grid)
11
AC breaker (Load)
12
Battery switch
13
PV switch
Note: Components 7 Wiring Terminal, 8 AUX power supply switch, 9 SPD switch
can be seen after unfold the dam-board.
3.3.1.3 Technical Parameters
Table 3 Technical parameters of the PCS
No.
Item
Storion-T50-INV
Storion-T100-INV
AC Side Data (off-grid)
1
AC Nominal Output Power
50 kW
100 kW
2
AC Max. Power
55 kW
110 kW
3
AC Output Voltage
400 Vac (± 10% configurable)
4
Voltage Range
400 V ± 10 %
5
AC Output Current
72 A (max. 79 A)
144 A (max. 159 A)
6
AC Connection
3-phase and 4-wire system (including
transformer)
7
AC Frequency
50 Hz / 60 Hz
8
Output THDu
< 2 %
9
AC PF
Listed: 0.8~1 leading or lagging
(Load-depend)
Actual: 0.1~1 leading or lagging
(Load-depend)
10
Overload Capability
105%~115% 10min;
115%~125% 1min;
125%~150% 200ms
DC Data (Battery Side)
11
DC Voltage Range
250 – 520 V
12
One-Way Maximum Input
Current
150 A
300 A
13
Max. DC Power
50 kW
100 kW

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 14 of 48
Your Smart Energy
Product Description
PV Side Data
14
PV Voltage Range
520 – 900 V (MPPT: 520~800 V)
15
PV DC Max. Current (in case
of completely consumption)
192 A
384 A
17
Max. PV Power
100 kW
200 kW
General Data
18
Max Efficiency
95.5%
19
Dimensions (W x H x L)
800 x 2160 x 800 mm
20
Weight
520 kg
750 kg
21
Altitude
3000 m
22
Ingress Protection
IP20
23
Noise
70 dB
24
Operation Temperature
-25 ℃~ +50 ℃ (De-rating over 45°C）
25
Cooling Concept
Forced Air
26
Humidity
0~95% (Non-Condensing)
27
Communication Interfaces
Ethernet‚ RS-485‚ CAN
3.3.1.4 Emergency Stop Switch
The converter stops working immediately after pushing the button.
If you want to restart the converter, please proceed in the following order:
A. Conduct clockwise rotation on the emergency stop switch and then loosen the locking
status.
B. Push the AC breaker into “OFF” position, then turn the AC breaker “ON”.
C. Launch the machine and operate it as required
3.3.2. Battery System
Table 4 Battery system parameters
Item
Description
Parameter
Remark
1
Nominal discharge power
26 kW ~50 kW / 100 kW
2
Energy storage capacity
According to the project
situation
Ambient temperature is
30℃, measured at DC side
3
Continuous discharge
current
0.5C (continuous)
4
Direct voltage
250 ~ 520 V
5
Communication interface
RS485, CAN2.0

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 15 of 48
Your Smart Energy
Product Description
3.3.2.1 M38210-S
Figure 3- 5 Battery front cover
Table 5 Battery interface definition
No.
Description
No.
Description
1
Battery negative pole
4
LED light
2
Battery positive pole
5
COM port (CAN) x 2
3
Earthing point x 4
6
Information label
Table 6 Battery technical parameters
No.
Item
Technical parameter
Remarks
1
Battery model
M38210-S
2
Assembly method
12S2P
3
Nominal voltage
38.4 V
4
Voltage range
36~43.2 V
5
Nominal capacity
210 Ah
Max. charge / discharge
current 0.5C
6
Nominal stored energy
8.1 kWh
7
Work power consumption
<2 W
8
Dormant power consumption
<100 mW
Battery dormant state
9
Max. charge/discharge current
105 A
Constant current mode
10
Internal resistance
＜10 mΩ
Factory default

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 16 of 48
Your Smart Energy
Product Description
11
Transportation/storage
temperature range
-20 ～45 ℃
12
Charging work temperature
range
-10～50 ℃
13
Discharging work temperature
range
-10～50 ℃
14
Communication mode
CAN
15
Weight
62 kg
16
Size (W x D x H)
332 x 570 x 223
(±5) mm
17
Humidity
15%～85%
3.3.2.2 HV900105
Figure 3- 6 HV900105 front cover
Table 7 HV900105 interface definitio
No.
Description
No.
Description
1
DCin-
7
DCout-
2
DCin+
8
AC input (auxiliary power)
3
Earthing point x 4
9
AC Air switch (auxiliary power)
4
Information label
10
BMU COM port (CAN) x 2
5
Moulded case circuit breaker
11
LMU COM port (CAN)
6
DCout+
12
LED light
13
DIP Switch

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 17 of 48
Your Smart Energy
Product Description
Note: For centralized battery DIP Switch should always be 1 on, and the rest
off.
Table 8 HV900105 technical parameters
No.
Item
Technical parameter
Remarks
1
High-voltage control box
HV900105
2
Working voltage range
200 ~ 900 V
3
Modules Connection
6~20 M38210-S in series
4
Rated current
105 A
5
Dimensions (W x D x H)
292 x 416 x 223 ± 5mm
6
Weight
20 kg
7
Power consumption
<10 W
3.3.2.3 Top BMU Box (with EMS)
Functions such as remote monitoring, remote upgrade, etc. can be realized through the
TOP BMU Box with EMS.

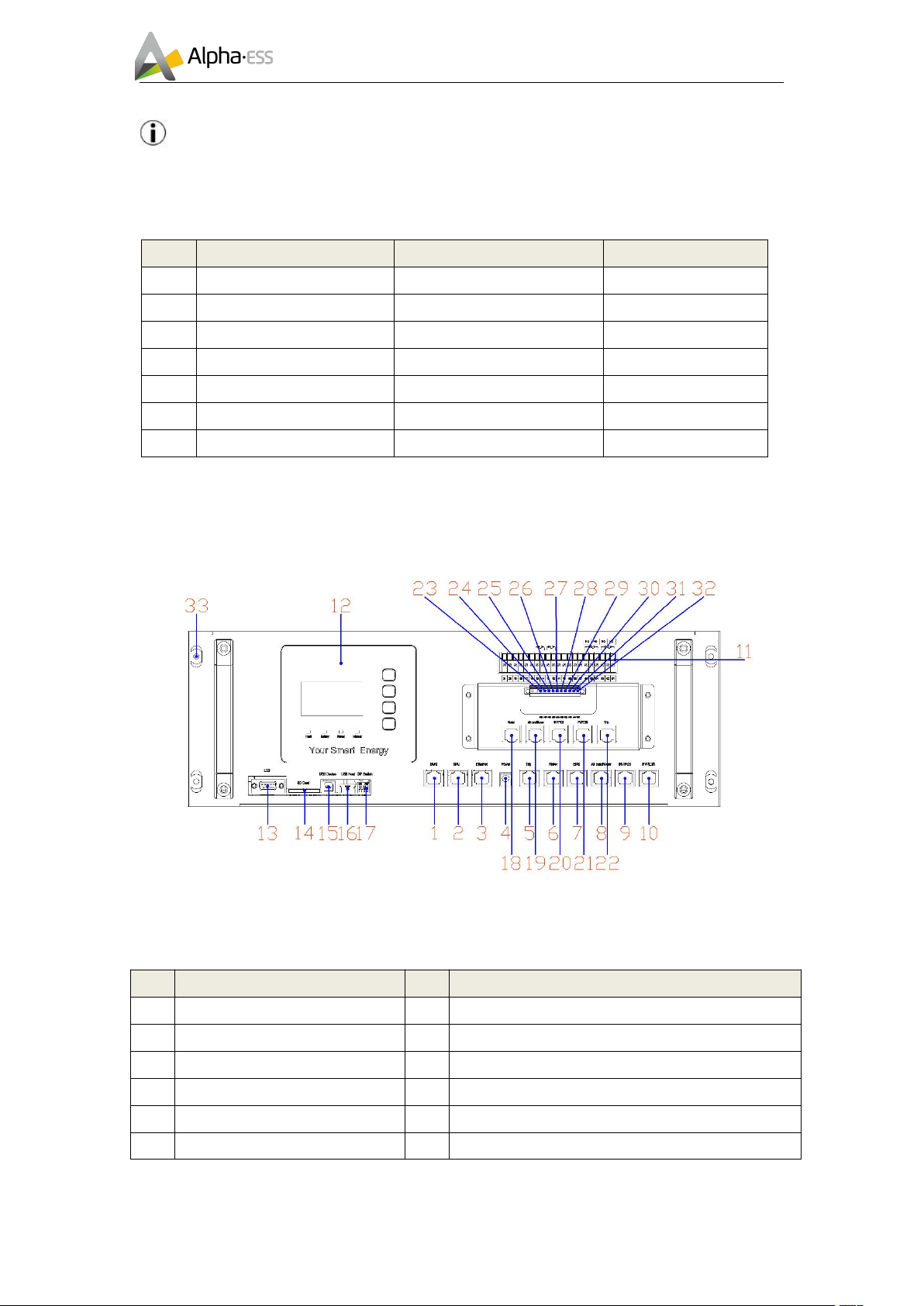

Figure 3- 7 Front cover of TOP BMU box with EMS
Table 9 Top BMU box with EMS interface definition
No.
Description
No.
Description
1
BMU COM port
17
DIP switch
2
BMU COM port
18
Meter COM port (reserved for RS485)
3
Ethernet
19
Air conditioner COM port( (reserved for RS485)
4
Reserve power supply
20
INV PCS COM port (reserved for RS485)
5
Dry contact COM port
21
PV junction COM port (reserved for RS485)
6
Meter COM port
22
Dry contact COM port (reserved for RS485)

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 18 of 48
Your Smart Energy
Product Description
7
EMS COM port (reserved for
external device communication
with BMU)
23
Meter RS485A port
8
Air conditioner COM port
24
Meter RS485B port
9
PCS COM port
25
Air conditioner RS485A port
10
PV junction COM port
26
Air conditioner RS485B port
11
Dry contact port
27
PCS RS485A port
12
EMS display screen
28
PCS RS485B port
13
DB9 COM
29
PV Junction RS485A port
14
Storage card
30
PV Junction RS485B port
15
Burning port
31
Reserved
16
COM pin board
32
Reserved
33
Earthing point x 4
NOTE: TOP BMU box (with EMS) can communicate with outside device, such as PCS,
Air conditioner, PV junction box, etc.
If the communication type is CAN, you can connect from the COM port (from Port 1 to
10) in TOP BMU box to the device by using regular net cables.
If the communication type is RS485, please connect to the RS485A and RS485B port in
TOP BMU box. Besides, the two corresponding COM ports in TOP BMU box should be
connected with each other.
Figure 3-
8
Dry contact of TOP BMU
No.
Description
No.
Description
01
Dry contact of generator
12
Dry contact of Fire controller fault (+24V)
02
13
Dry contact of Fire controller fault (GND)
03
Reserved
14
Dry contact of Fire fault (+24V)
04
15
Dry contact of Fire controller fault (GND)
05
Dry contact of BMS fault
16
Reserved
06
17
07
Reserved
18
08
19
