ALPHA LITE HORI LIGHT CYC Series User manual

CYC HORI LIGHT CYC SERIES
USER MANUAL
July 2019

Safety Information
1. Do not open or disassemble the cover to reduce the risk of electric shock.
2. Please wear safety equipment such as safety helmet during work.
3. Be sure to fix the safety chain on the product when installing and moving.
4. Please install the signs below for people to bypass
when install the product on high truss.
5. The work should be done under the direction of approved specialist
who is trained in safety and mechanical installations.
WARNING
- 3 -

Contents
Safety Information 3
Contents 4
[Fixture Information]
Fixture Information 5
Fixture Exterior View 6
Dimensions 7
Technical Specifications 10
[Fixture Installation]
Power Connection 11
DMX Connection 12
[LCD Screen Instruction]
Unlocking 13
Main Screen Instruction 14
Setting Screen Instruction 14
[Setting]
Mode Change 15
Channel Mode Change 16
DMX512 Address Setup 17
Hue & Brightness Adjsut 18
White Balance Adjust 18
Fixture ID Setup and Change 19
LCD Off Setup 20
LCD Rotation Setup 20
RDM Setup 21
Dimming Speed Setup 21
Master Setup 22
Wireless Setup 22
[Error Information]
Temperature Sensor 23
Network Connection 23
[Function Information]
Channel Mode
(CYC400/500/800) 24
Color Macro 25
Light Distribution 25
[Protocols]
DMX Protocols 26
RDM Protocols 27
- 4 -

Fixture Information

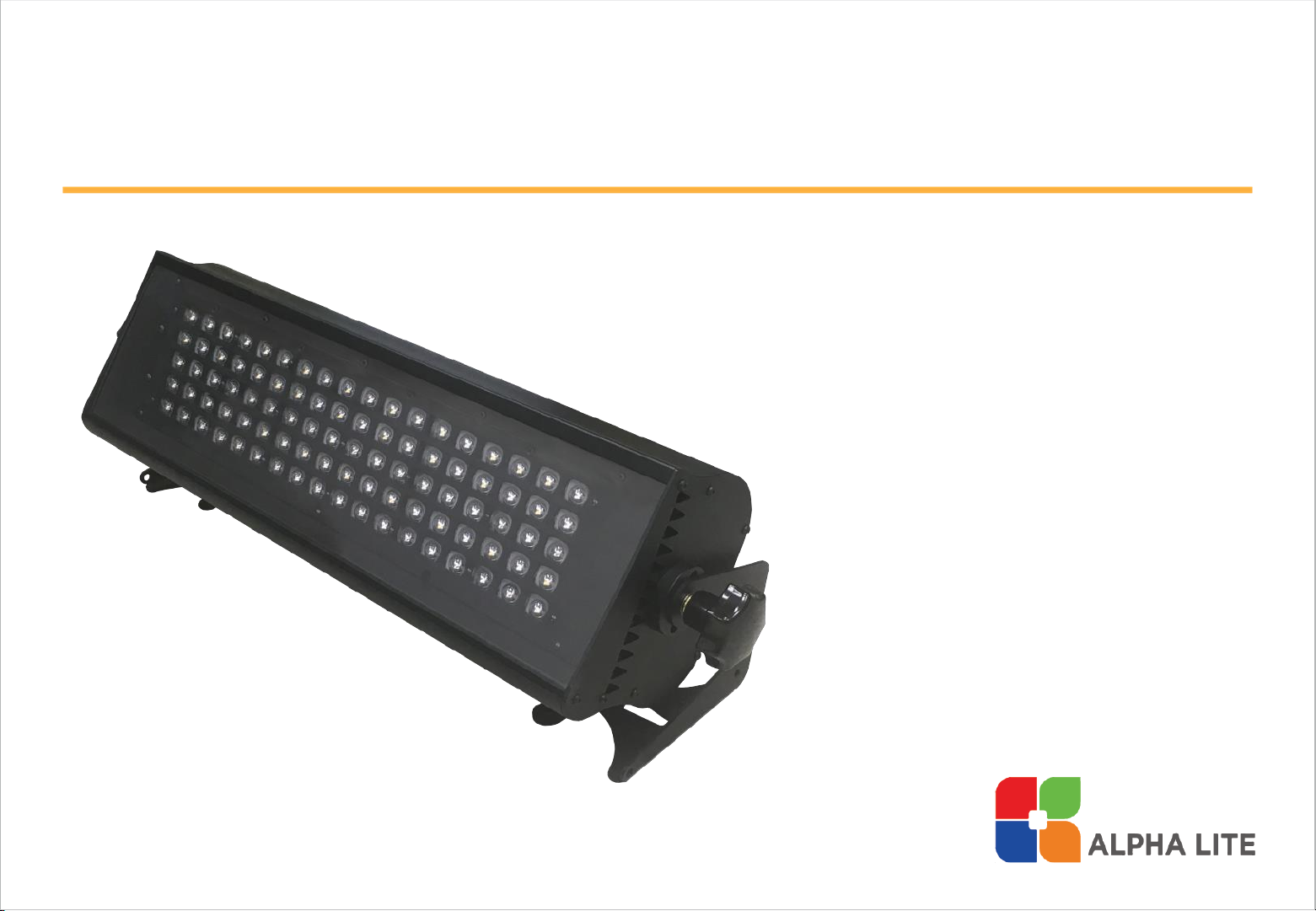

CYC Series is LED light for broadcast studio and theatre.
Composed of R, G, B, Ambar and white color LED lighting which user
can illuminate the custom color to the horizon wall of 8m or more.
- 5 -

Fixture Exterior View
Smart Touch
LCD Screen
Connector
Panel
Fixed
Knob
- 6 -

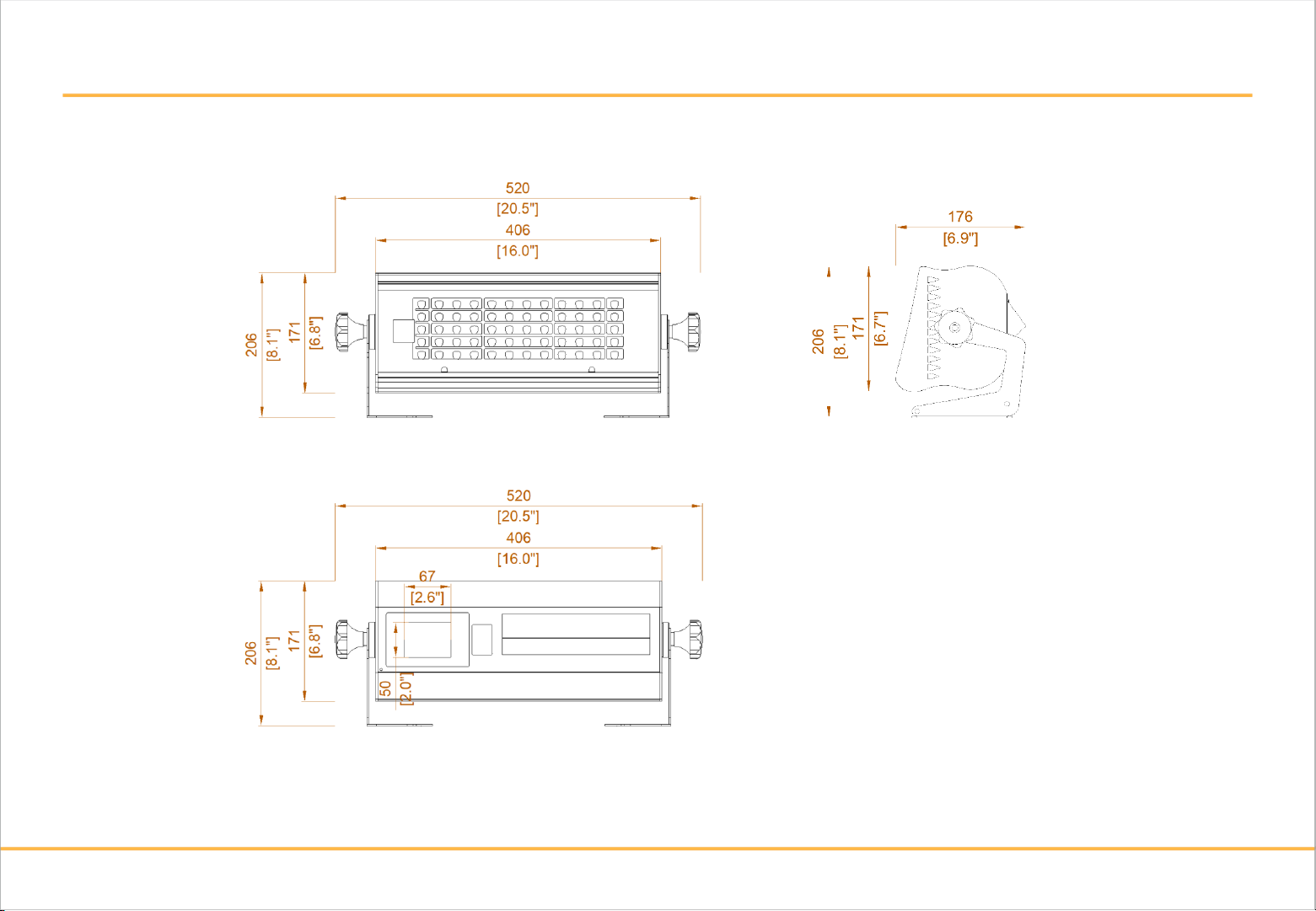

Dimensions (CYC400)
- 7 -

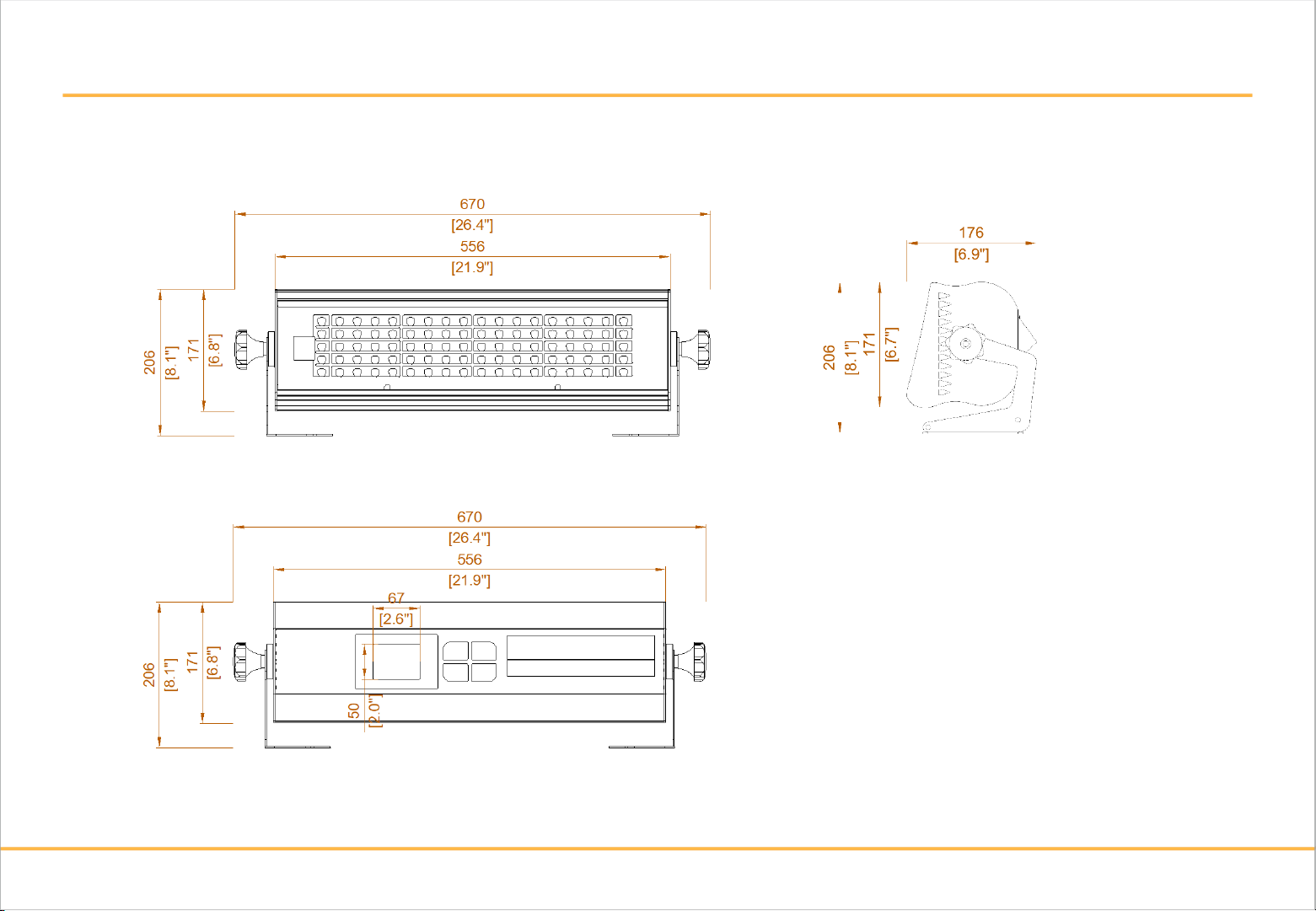

Dimensions (CYC500)
mm
(inch)
- 8 -

Dimensions (CYC800)
mm
(inch)
- 9 -

Technical Specifications
-10 -
CYC400 CYC500 CYC800
Physical Size 520 x 206 x 176mm 670 x 206 x 176mm 860 x 206 x 176mm
LED Chip CREE XP-E 3W 60ea CREE XP-E 3W 90ea CREE XP-E 3W 120ea
Beam Angle 60x135°/ 85x150°/ 130x60°/ 20x60°/ 30x60°/ 40x60°
Weight (kg/lbs) 6.5 / 14.3 8.1 / 17.8 10.1 / 22.2
Handling Adjusting Sliding Stirrup, High Strength Tilt Lock
Mounting 16mm
Tilt Angle ±270°
Power Supply Range AC 100-240V, 50/60Hz
Power Consumption 150W 240W 300W
White Light (CCT) Full RGB + Amber + White (Only for ‘H’ model)
CRI 80~94
Dimming 0~100% 16-bit
Control 5-PIN DMX In and Out, Smart Touch LCD Controller, RDM,
(Option) Wireless DMX512, Wireless RDM
Remote Device Management Supported
Ambient Temperature Operation -20~45°C
IP Rating IP20
Estimated LED Lifetime Over 50,000 hours

1. Observe the proper voltage range
2. If power is supplied outside the range, noise may be generated from the SMPS.
3. If the operating voltage is out of the proper voltage range,
SMPS function may be degraded or damaged.
Power Connection
AC power at 100-240V, 50-60Hz
-11 -
1. POWER ON/OFF SWITCH
2. POWER IN
3. POWER OUT
4. DMX IN
5. DMX OUT
6. USB PORT (for ADMINISTRATOR ONLY)
(Do not connect USB
without administrator's permission.)

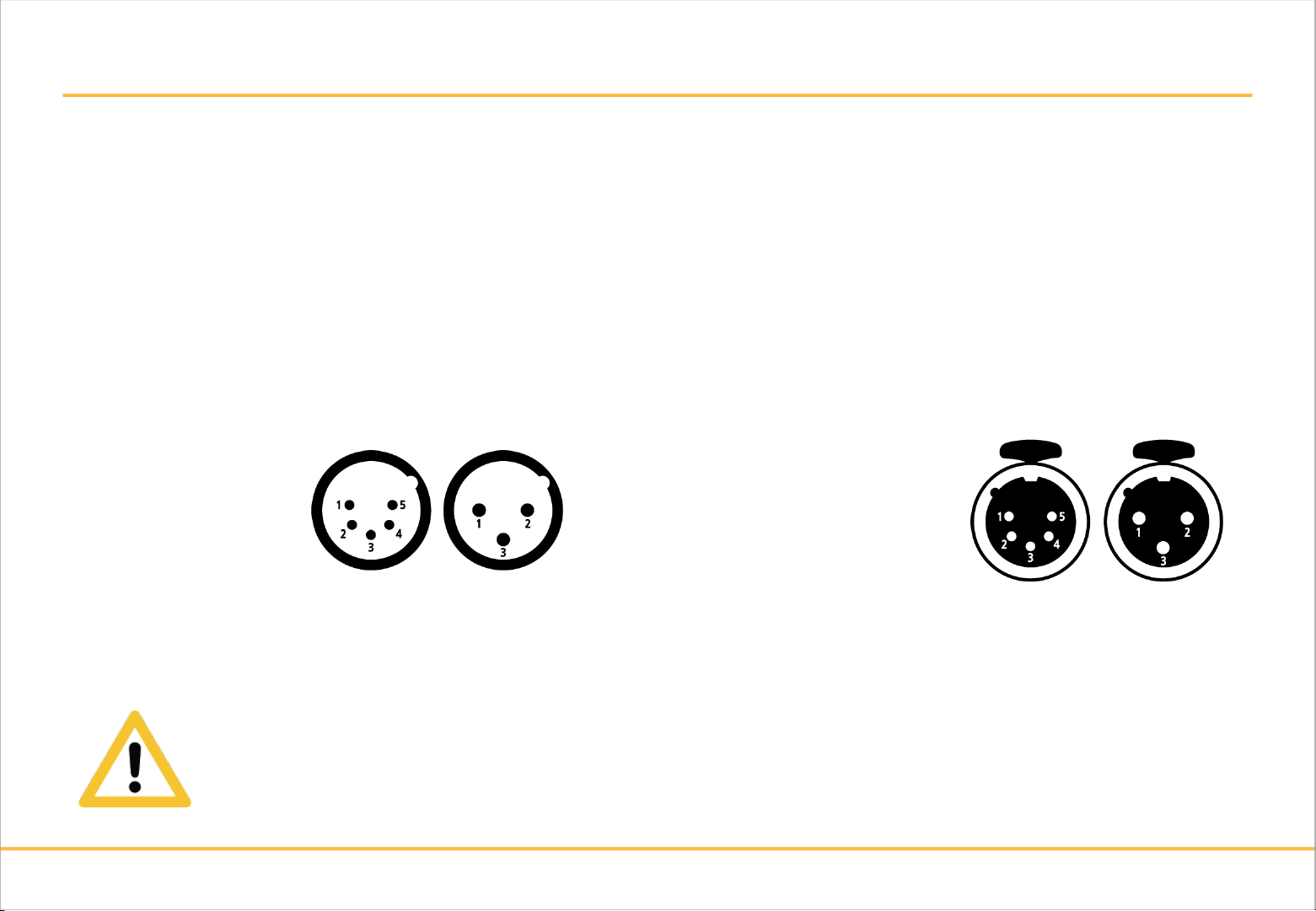

3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs.
Connect the controller to a lighting, or lighting fixture to other lighting fixture.
If user uses a standard DMX controller, the DMX output of the controller can connect directly
to the DMX input of the first fixture in the DMX chain.
User must use an adapter cable for connect the DMX controller to other XLR output.
1-Shield
2-Signal (-)
3-Signal (+)
4-Not Connected
5-Not Connected
Connect the DMX output of the first lighitng fixture in DMX chain to the DMX input of the next fixture,
and connect one output to the input of the next fixture until all fixtures are connected.
In the last lighting fixture, the DMX cable must be end with a terminator(120 Ω resistor)
in DMX output signal (+, -).
1-Shield
2-Signal (-)
3-Signal (+)
4-Not Connected
5-Not Connected
DMX-INPUT
XLR Mounting-plugs
DMX-OUTPUT
XLR Mounting-sockets
DMX Connection
-12 -

Unlocking
Main Screen (Locked) Fixture ID Screen (Locked)
When the fixture is turned on,
the Smart Touch screen automatically locked.
To unlock the touch screen,
touch the finger icon( ) three times.
If you do not touch for 30 seconds,
the lock is reset.
If the power is turned off and then on again
while the fixture ID number screen is displayed,
the fixture ID lock screen will appear.
To unlock the touch screen, touch the exit icon( )
to move to ‘Main Screen (Locked)’, and press
the finger icon( ) three times.
If you do not touch for 30 seconds, the lock is reset.
AB
A
-13 -

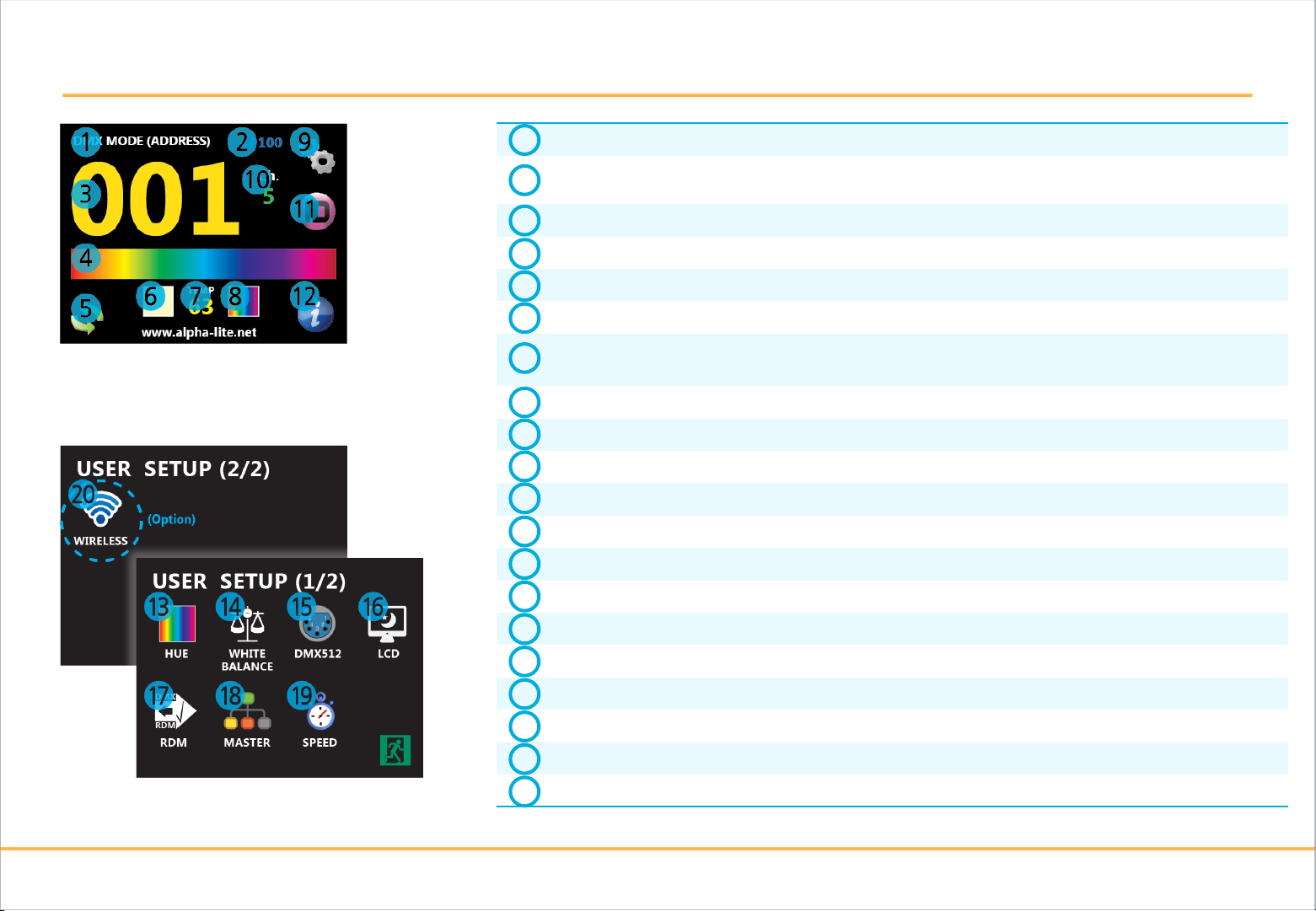

1 Current Mode Display DMX MODE or USER MODE or SERIAL MODE.
2 Wireless Signal (Option) Wirelss Signal sensitivity is displayed in % only when set to
‘Wireless Enable’.
3 DMX512 Address Display current DMX512 Address.
4 Color Picker Touch the desired color to change the light color.
5 Screen Rotation LCD screen is rotated 180°for each touch.
6 White Balance White balance can be set or selected
7Fixture Current
Temperature
The current temperature of the instrument is detected and
displayed in °C.
8 Hue & Brightness Change RGB color and white brightness.
9 Setting Setting or changing the function of the equipment.
10 Current Channel Mode The current channel mode is displayed.
11 Fixture ID Displays numbers for equipment management.
12 Equipment Information You can see basic information about the equipment.
13 Hue & Brightness Adjust Change RGB color and white brightness.
14 White Balance Setup Select or set the white balance.
15 DMX512 Address Setup Set channel mode and DMX512 address
16 LCD Off Setup Set LCD Auto off
17 RDM Setup Activate and deactivate RDM communication function
18 Master Setup Activate and deactivate Master function
19 Dimming Speed Setup Set dimming speed
20 Wireless Setup (Option) Activate and deactivate wireless DMX512 function
Screen Instruction
Main Screen (Unlocked)
Setting Screen
-14 -

[Setting] Mode Change
- DMX Mode
- User Mode
- Serial Mode
It is used to adjust by DMX512 signal.
It is used when the user directly manipulates the equipment.
It is used for maintenance.
:
:
:
■DMX Mode → User Mode
■User Mode →DMX Mode
When in DMX mode, user can change to user mode by
touching ‘Main screen -Color Picker, White Balance, Hue’,
or adjusting ‘Setting -Hue, White Balance’.
When in User mode, user can change to DMX mode by
through 'Setting - DMX512 - Channel selection - DMX address'.
OR
-15 -

[Setting] Channel Mode Change
■Channel Mode Change
OR
CYC400/500/800
- 2 (2 Channel mode) : Dimming, Color Macro
- 5 (5 Channel mode) : RGB + Amber + W
- 6 (6 Channel mode) : Dimming, RGB + Amber +W
- 8 (8 Channel mode) : Dimming, RGB + Amber + W +Color Macro
ex) 8 Channel Mode
See p. 24 for Channel mode function and value
User can change the channel by selecting 'Current channel mode' in main screen
or ‘DMX512 - Channel selection - DMX address' in setting.
Pressing the icon in 'Channel Mode' displays information for each channel.
-16 -

[Setting] DMX512 Address Setup
■DMX512 Address Setup in the Main Screen
■DMX512 Address Setup in Setting
Touch 'DMX512 Address' on the main screen to switch to the input window.
001~512 value can be entered. Press icon to save the DMX512 adress and move to the main screen.
Also, the value can changed by RDM. * The number blinks when the connection is disconnected.
Touch 'DMX512 Setup –Channel Mode' on the Setting screen to switch to the input window.
001~512 value can be entered. Press icon to save the DMX512 adress and move to the main screen.
Also, the value can changed by RDM. * The number blinks when the connection is disconnected.
-17 -

[Setting] Hue & Brightness & White Balance Adjust
■Hue & Brightness Adjust
OR
■White Balance Adjust
Displays the color of the current white balance and is classified as Warm, Medium, Cool, Custom#.
Touch ‘White Balance’ on the main screen or the setting screen to select white balance.
Gain is adjusted for each color of R, G, B based on the selected white.
OR
Touch ‘Color Picker’ on the
main screen to adjust the
desired color easily.
Touch ‘Hue & Brightness’ on the main screen or the setting screen to
adjust color, saturation and brightness.
User can set the desired color by touching the gradient(Upper=White,
Center=Hue & Saturation, Right=Brightness) and the standard color
boxes(RGB & CMY).
-18 -

[Setting] Fixture ID Setup and Change
■Fixture Name Setup
■Fixture ID Setup and Change
Touch on the main screen, the ID is displayed large on the screen, and touch the number to switch to the input window.
It is a number for the management of the equipment and can be changed by the user.
User can enter the value from 001~999, and touch after input to switch to the main screen.
Also, the value can changed by RDM * The number blinks when the connection is disconnected.
The name of the device is basically the model name and can be changed through RDM communication,
but it can not be changed through Smart Touch LCD.
When changing the name of the device through RDM, enter the device name(English) and the
management number in the 'Device Label' field. The entered contents are displayed in the upper left corner.
The fixture ID is automatically displayed in 3 digits from automatically recognized 3 digits in contents.
If user do not enter any number, the fixture ID is displayed as ‘001’.
Example-1 Example-2 Example-3 Example-4
Input(Device Label) HORI123 HORI HORI1234 STUDIO13-23
Fixture Name HORI123 HORI HORI1234 STUDIO13-23
ID Number 123 001 234 023
-19 -

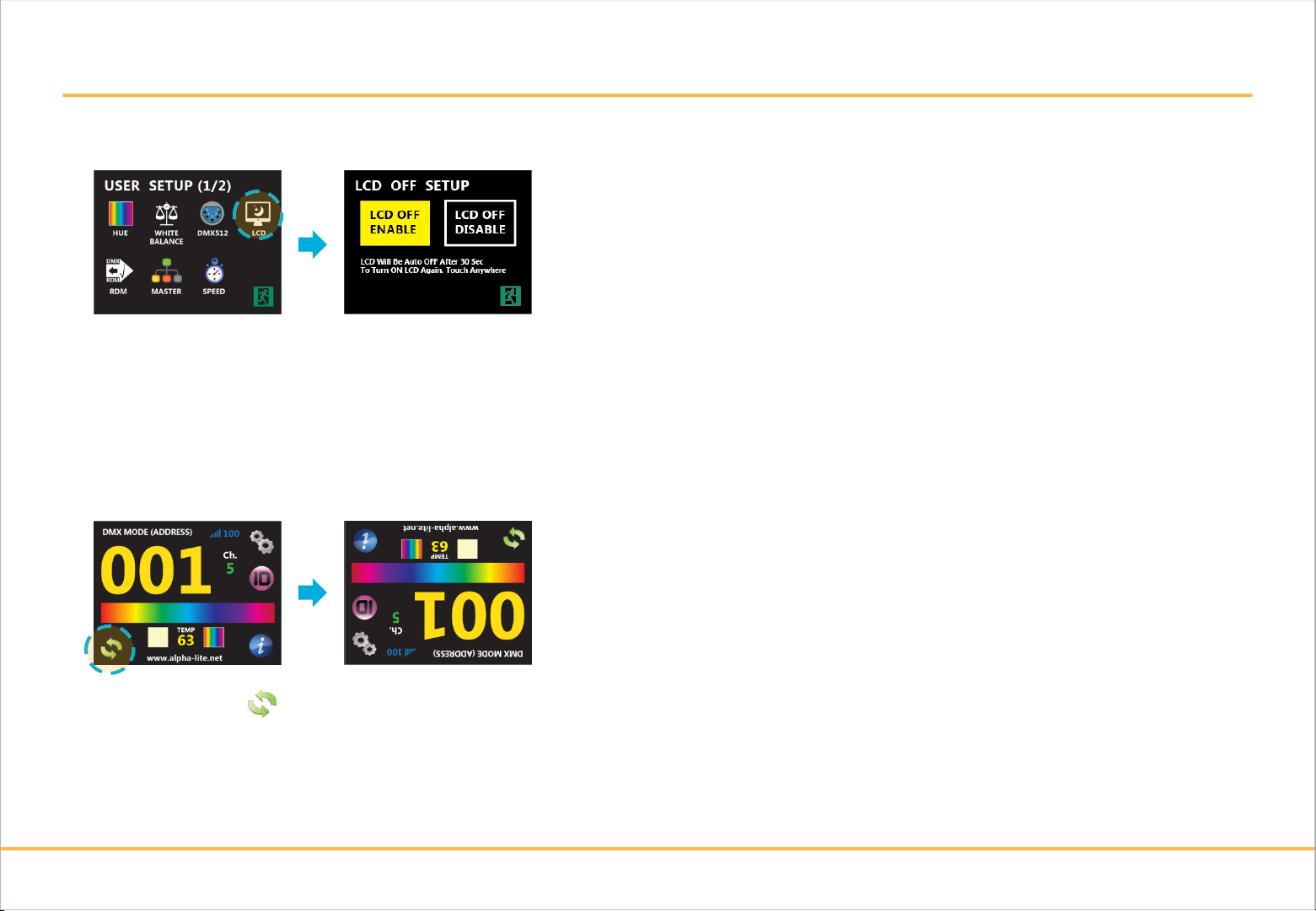

[Setting] LCD Off Setup & LCD Rotation Setup
■LCD Off Setup
Touch 'LCD Off Setup' on the setting screen to display the above selection screen.
- LCD Off Enable : The screen automatically turns off after 30 seconds, if there is no touch operation.
- LCD Off Disable : The screen stays on all the time. (Default)
■LCD Rotation Setup
Each time touch on the main screen, the screen rotates 180 °.
It is used to change the direction of the LCD screen according to the installation direction of the fixture.
-20 -
