ALPHA LITE ALPHA SEVEN COLOR ALPHA 3030 Owner's manual

ALPHA 3030ALPHA 3030
ALPHA SEVEN COLOR
ALPHA LITEALPHA LITE
USER MANUAL USER MANUAL
BOOKBOOK

Product name. ALPHA 3030 1
Do not open or disassemble the cover to reduce the risk of electric shock.
〔 WARNING 〕
Please wear safety equipment such as safety helmet during work.
Be sure to fix the safety chain on the product when installing and moving.
Please install the signs below for people to bypass when install
the product on high truss.
The work should be done under the direction of approved specialist
who is trained in safety and mechanical installations.
The brightness and color temperature before and after aging may be different.
2
3
4
5
6
1
Precautions
Product name. ALPHA 3030

ALPHA LITE ┃USER MANUAL BOOK
Contents
Power Connection
DMX Connection
11
12
Fixture Installation
Unlocking
Screen Instruction
Menu Tree
Main Screen by Mode
& Product Information
DMX Mode
(Channel Change & Address Setup)
User Mode
(Intensity & Color Temperature & Tint Adjust)
Color Mode
(RGB & Hue & Saturation & White Adjust)
13
14
15
16
17
18
19
LCD Screen Instruction
Safety Information 1
Sleep Mode Function
RDM Function
Dimming Speed Setup
Master Function
Fixture ID Number Setup
Fixture Label Setup
20
21
22
Extra Function
Temperature Sensor
Network Connection
23
Error Information
Cross Fader
Color Macro
24
Extra Information
DMX Protocols
RDM Protocols
25
28
Protocols
Fixture Information
Fixture Exterior View
Dimensions
Accessory Options
Technical Specifications
Photometry Data
Barndoor Assembly
Diffuser lens Change
3
4
5
6
7
8
9
10
Fixture Information

3
Product name. ALPHA 3030 3 Product name. ALPHA 3030

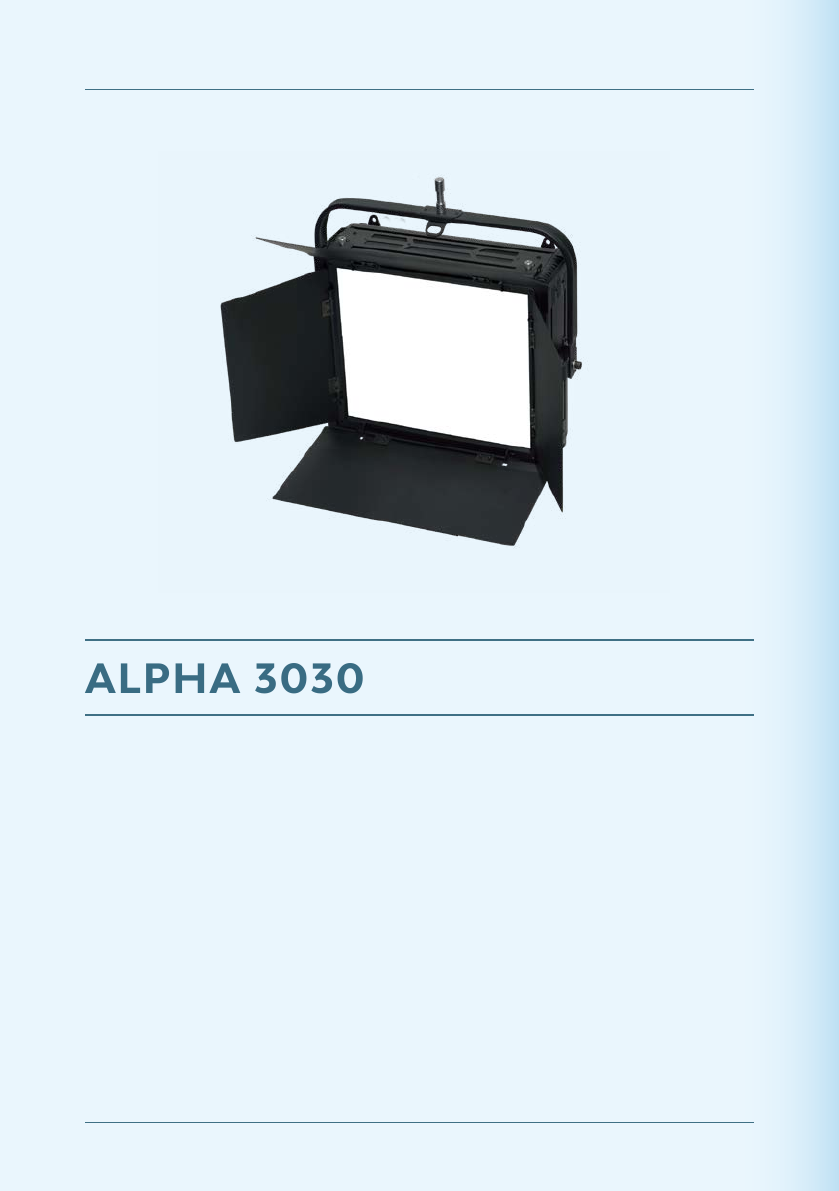

ALPHA 3030
⇒CRI / TLCI Up to 99.5%
⇒2,000~35,000K Color temperature variable
⇒Light distribution angle adjustment through Multi-array lens and Micro diffuser
⇒Color correction function to adjust the emotional feeling and color of halogen lighting
Product name.
The α7c series is the 3rd generation of LED lighting with a new light source/optical solution
for lighting control and an innovative operation interface. It is a package lighting composed of
LED spot / LED panel with 6 Color + 2 White ultra-high-capacity LED engine and ALPHA
LITE’s unique ‘α Algorithm’.
Overcome the limits of the color expression gamut and color temperature range that existing
White lighting and RGB lighting, it became possible to expression for Moonlight from
Daylight-focused lighting, perfect color expression, and strong brightness at the same time.

4ALPHA LITE ┃USER MANUAL BOOK
Fixed Knob
Yoke
Smart Touch
LCD Screen
Handle
Connector
Panel
Fixture Exterior View

5
Product name. ALPHA 3030
Dimensions

6ALPHA LITE ┃USER MANUAL BOOK

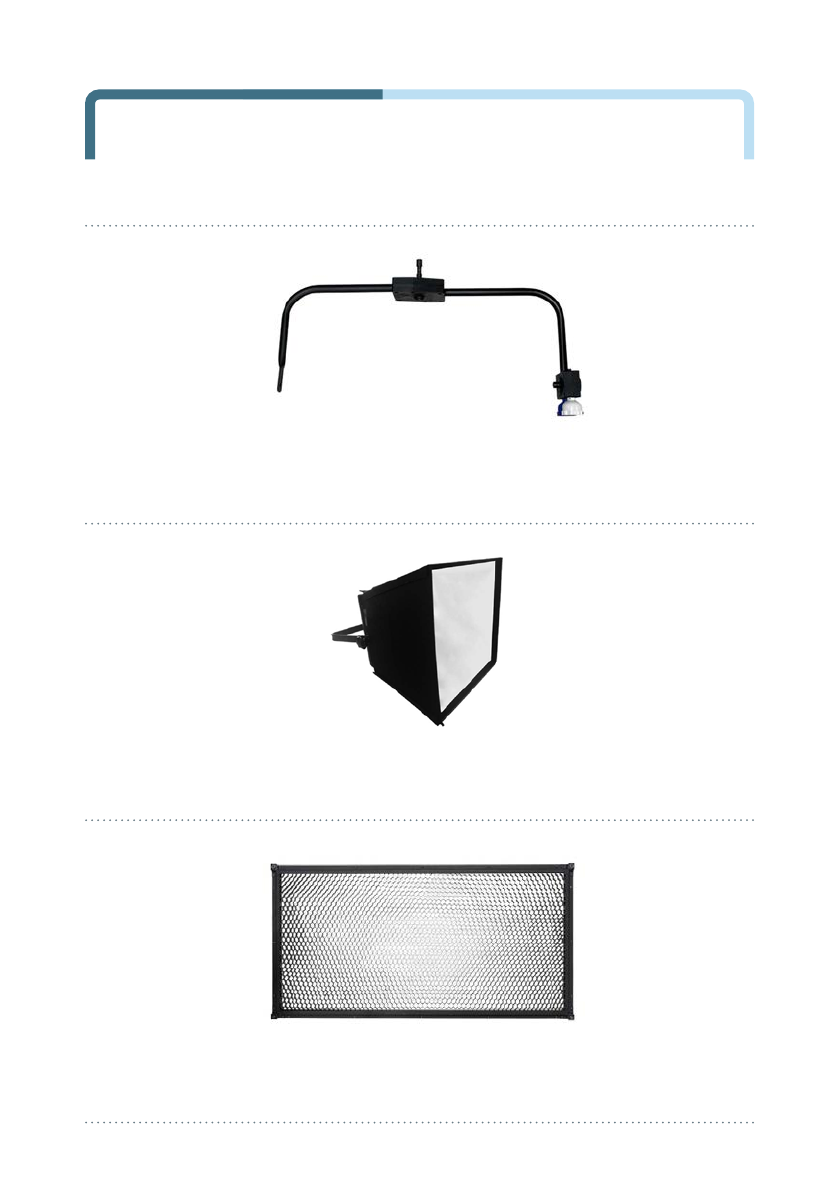

Accessory Options
Pole operation yoke
· Pan & Tilt
Soft box
· Detachable
Honeycomb
· Detachable

7
Product name. ALPHA 3030
Technical Specifications
LED Chip Type 0.5W 6 Color + 2 White LED engine
Estimated LED Lifetime (hours) 50,000
White Light (K) 2,000~35,000 (VCT)
Full Color Light Full RGB + Amber + Lime + Cyan + Warm White + Cool White
(7Color Gamut with Hue and Saturation Control)
Color Rendition (%) CRI 95~99.5 / TLCI 95~99.5
Dimming (%) 0~100 (16-bit)
Light Aperture Size (mm/inch) 297 x 297 / 11.7 x 11.7
Beam Angle ( °) (Standard) 115
Signal Control 5-Pin DMX In and Out
Individual Control Smart Touch LCD Controller
Supported Protocol DMX512 / RDM
(Optional) Supported Protocol DMX512 Wireless / RDM Wireless
Remote Device Management Supported
Channel Function Dimming / CCT / Tint / RGBALC / Cross Fader / Color Macro / Strobe
Power Input Voltage AC 100-240V / 50~60Hz
Power Consumption (W) 240
Ambient Temperature
Operation ( °C) -20~45
Spigot Mounting (mm) 16 / 28
Tilt Angle ( °) + / - 90
Body Dimensions
(mm/inch) (WHD) 413 x 390 x 192 / 16.3 x 15.4 x 7.6
Full Dimensions with Manual
Yoke (mm/inch) (WHD) 491 x 500 x 192 / 19.3 x 19.7 x 7.6
Body Weight (kg/lbs) 6.6 / 14.6
Full Weight with Manual Yoke
(kg/lbs) 6.7 / 14.8
Protection Class IP20
* This specification data is based on the aging state of the equipment,
and the brightness and color temperature before and after aging may be different.

8ALPHA LITE ┃USER MANUAL BOOK
0m 1m 3m 5m 7m 9m
Front side Micro Lens (115°) 583 226 128 87
Flip Side Micro Lens (85°) 801 295 155 98
5600K5600K
Lens System [ ALPHA 3045 ]
ex

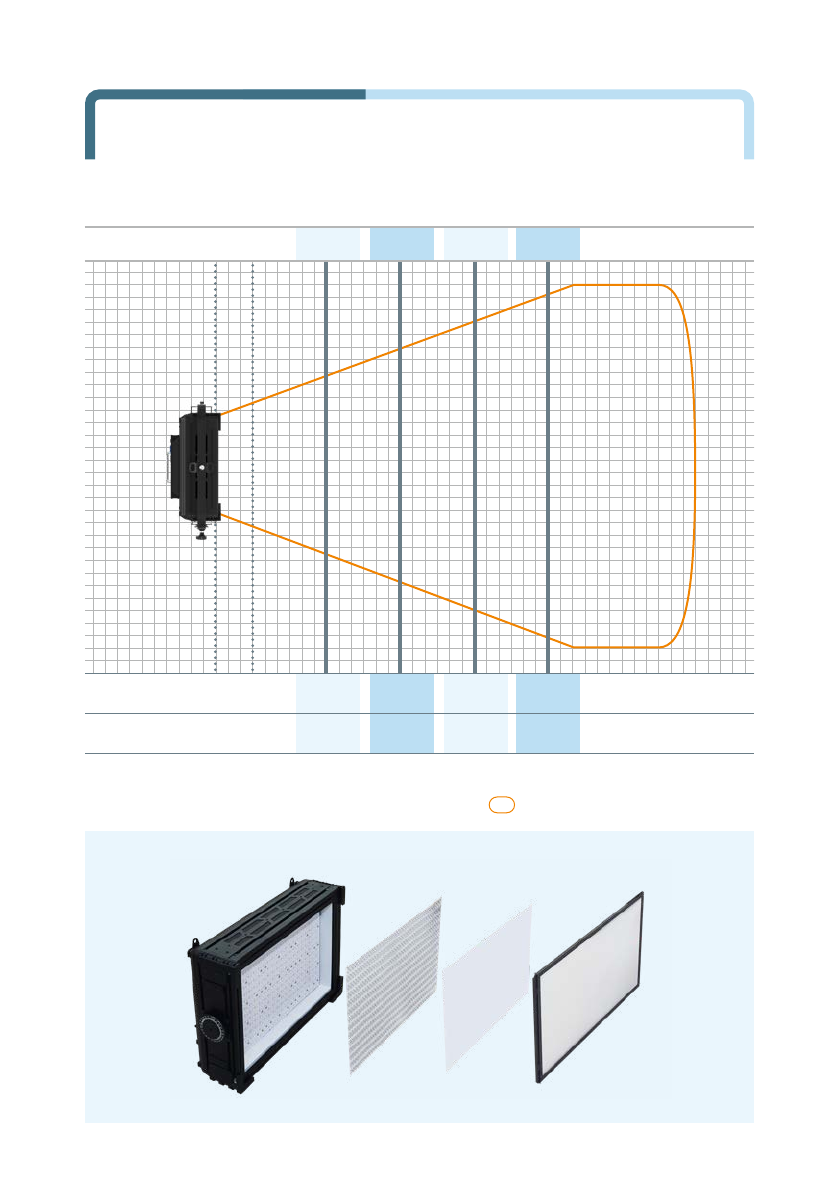

Photometry Data
Multi Array Lens
Micro Beam Shaping Film
Micro Diffuser
Distance(m)
Illuminance(lux)
Illuminance(lux)

9
Product name. ALPHA 3030
*ALPHA 3060 Image example

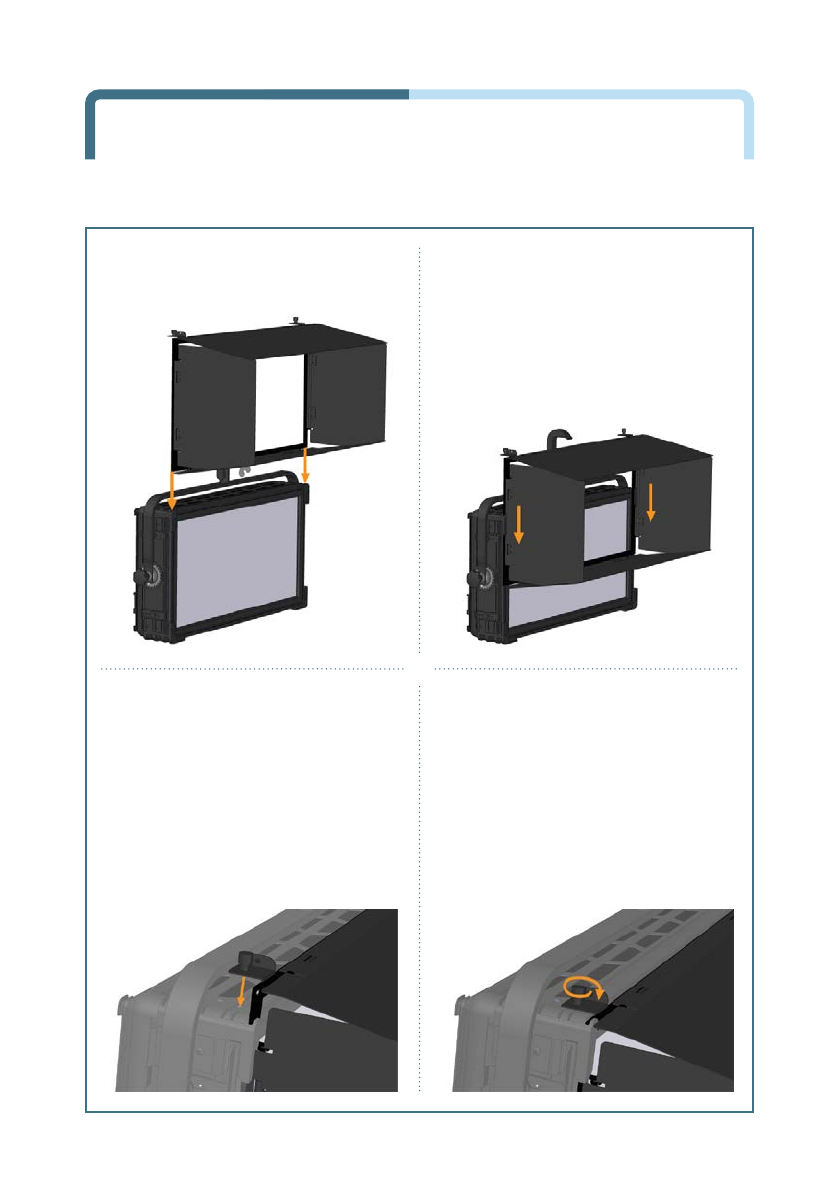

Barndoor Assembly
Insert the bottom of the Barndoor into
the top groove of the body.
1
3
2
4
Fit the bolt at the top of the Barndoor to
the groove.
Lower the Barndoor down along the
groove.
Turn the bolt clockwise to fix the Barn-
door.

10 ALPHA LITE ┃USER MANUAL BOOK

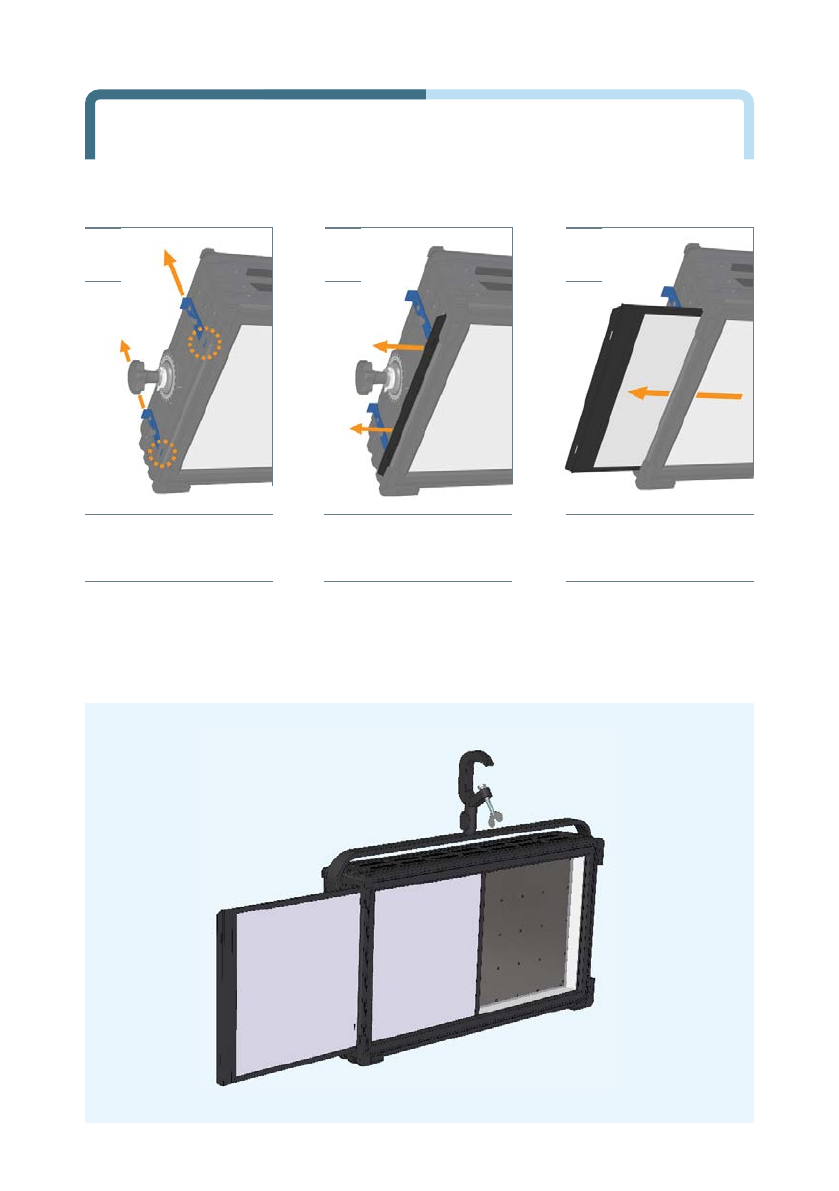

Pull the latch toward
the back of the body.
Take out the diffuser
lens on the left.
Replace the diffuser lens
by pushing it sideways.
321
※When replacing the diffuser lens,
insert the soft side facing inward.
(The rough side is the front.)
*ALPHA 3060 Image example
Diffuser Lens Change

11
Product name. ALPHA 3030
IN OUTIN OUT
IN OUT IN OUT IN OUT
Power Connection
AC power at 100-240V, 50-60Hz
2 3 4 5 6
1
2
4
3
5
6
1
POWER IN
DMX IN
POWER OUT
DMX OUT
POWER ON/OFF SWITCH
USB PORT
(for ADMINISTRATOR ONLY)
※Do not connect USB without
administrator's permission.
1. Observe the proper voltage rang.
2. If power is supplied outside the range, noise may be generated from the SMPS.
3. If the operating voltage is out of the proper voltage range, SMPS function may be
degraded or damaged.
WARNING
Power Pass-Thru : Based on operating voltage 240V and using the cable provided
by ALPHA LITE.
<Connect 01>Start
connection
<Connect 02> <Connect 03>
<※ Max Connect 10><Connect 09>
Recommended 8 devices
Up to 11 devices

12 ALPHA LITE ┃USER MANUAL BOOK
DMX Connection
3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on
user needs.
Connect the controller to a lighting, or lighting fixture to other lighting fixture.
If user uses a standard DMX controller, the DMX output of the controller can
connect directly to the DMX input of the first fixture in the DMX chain.
User must use an adapter cable for connect the DMX controller to other XLR
output.
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
DMX-INPUT
XLR Mounting-plugs
DMX-OUTPUT
XLR Mounting-sockets
1. Connect the DMX output of the first lighitng fixture in DMX chain to the DMX input of
the next fixture.
2. Connect one output to the input of the next fixture until all fixtures are connected.
3. In the last lighting fixture, the DMX cable must be end with a terminator(120 Ω resistor)
in DMX output signal (+, -).
WARNING

13
Product name. ALPHA 3030
Unlocking
When the fixture is turned on, the Smart Touch screen automatically locked.
To unlock the touch screen, touch the finger icon( ) three times.
If you do not touch for 30 seconds, the lock is reset.
〔Main Screen (Locked) 〕
〔Fixture ID Screen (Locked) 〕
A
A
A
x 3
x 3

14 ALPHA LITE ┃USER MANUAL BOOK

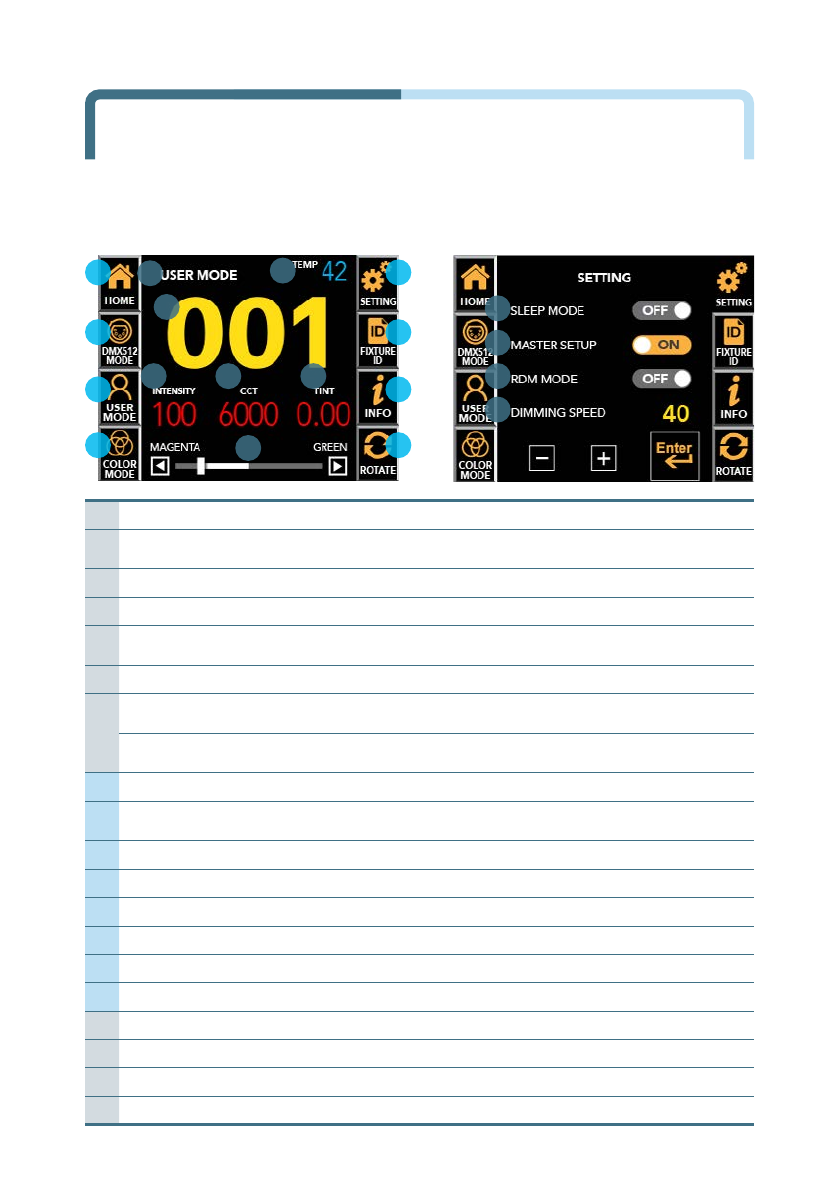

Screen Instructions
16
17
18
19
08 12
09 13
10 14
11 15
03
04 05 06
07
01 02
〔Main Screen (Unlocked) 〕 〔 Setting Screen 〕
01 Current Mode Display DMX MODE or USER MODE or COLOR MODE.
02 Fixture Current Temperature The current temperature of the instrument is detected and
displayed in °C.
03 DMX512 Address Display current DMX512 Address.
04 Brightness (Intensity) Displays the brightness value(0~100%) of the equipment.
05 CCT (Correlated
Color Temperature) Displays the color temperature(2000~35000K) of the equipment.
06 Tint(Gamma) Displays the tint value(-1.00~+1.00) of the equipment.
07
(In USER MODE) Activated
function control bar
Adjust the selected function
among Intensity, Color Temperature and Tint.
(In DMX MODE)
Current channel mode Display current channel mode. *Only display on DMX MODE
08 Home Return to the main screen
09 DMX512 Mode &
Address Setup Set channel mode and DMX512 address
10 User Mode Setup Set ‘Intensity’, ‘CCT’ and ‘Tint’ manually.
11 Color Mode Setup Set ‘RGB’ lighting color, ‘Saturation’, and ‘Intensity’
12 Setting Setting or changing the function of the equipment.
13 Fixture ID Displays numbers for equipment management.
14 Equipment Information Displays the help that describes the screen.
15 Screen Rotation LCD screen is rotated 180° for each touch.
16 Sleep Mode Setup Activate and deactivate LCD Auto off function
17 Master Setup Activate and deactivate Master function
18 RDM Mode Setup Activate and deactivate RDM function
19 Dimming Speed Setup Set dimming speed

15
Product name. ALPHA 3030
Menu Tree
DMX512 Mode
User Mode
Color Mode
Setting
Fixture ID
Information
Rotate
DMX mode select
Intensity setup
RGB color setup
Sleep mode setup
Fixture ID screen
Basic equipment information
DMX address input
Color temperature setup
Saturation setup
Master function setup
Information
Tint setup
White setup
RDM mode setup
DMX channel value
Description of each function
Individual RGB setup and Preset
RGBW value
Description of each function
Description of fixture ID
Information
Full screen
Dimming speed setup
Information
Information
Fixture ID number input
Information
Home [ Main screen ]

16 ALPHA LITE ┃USER MANUAL BOOK
Each 'MENU' ▶ Touch the 'INFO' ▶ User can check the menu description and functions.
The current mode is displayed in the upper left corner of the main screen among DMX mode,
user mode and color mode, and the DMX address number of the equipment is displayed
in the middle with a yellow number. At the bottom, the current lighting value and fixture
temperature are displayed, and some lighting value can be adjusted on the main screen
by touching the value.
〔DMX MODE 〕 〔 USER MODE 〕 〔 COLOR MODE 〕
HOME DMX MODE USER MODE COLOR MODE
INFO
Product model name, firmware version, UID number,
current temperature of equipment, usage time of equipment,
LED usage time, website, manual download link, etc.
by clicking the INFO button on the main screen.
HOME
Main Screen by Mode Information
Product Information
Main Screen by Mode &
Product Information

17
Product name. ALPHA 3030
DMX512 MODEHOME Move to the DMX channel change screen.
※To return to the previous screen, press the 'INFO' button again.
INFO
DMX512 MODE SCREEN Displays each channel information and value.
- 1 (1 Ch Mode) : Dimming
- 3 (3 Ch Mode) : Dimming, CCT
- 5 (5 Ch Mode) : Dimming, CCT, Tint, Cross Fader, Color Macro
- 12 (12 Ch Mode) : Dimming, CCT, Tint, Cross Fader, Red, Green, Blue, Amber, Lime, Cyan, Color Macro, Strobe
* Support channels and features vary by product.
information
DMX Mode Channel Change &
Address Setup
DMX MODE : It is used to adjust value by DMX512 signal.
In DMX512 MODE screen, user can select DMX channel mode on top tap.
▶Input DMX512 address by pressing the number pad.

18 ALPHA LITE ┃USER MANUAL BOOK

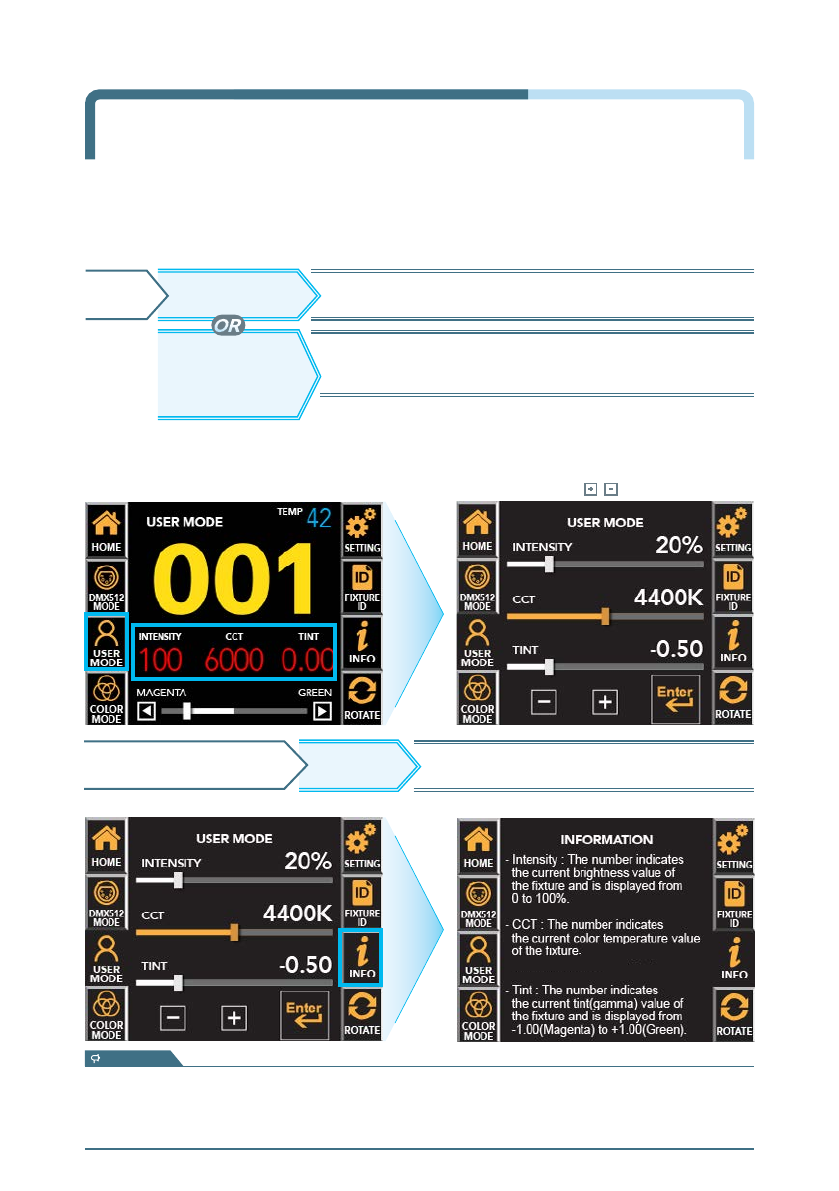

User Mode Setup
& Intensity / CCT / Tint Adjust
USER MODE screen ▶Touch the function you want to change ▶Active in Orange ▶
Adjust the value with touch or drag.
Drag the activated bar close to the desired value,
and then touch
, to set the exact value.
USER MODE : It is used when the user directly manipulates the equipment.
Move to user-operable screen to change Intensity/CCT/Tint. USER MODEHOME
'Current Intensity'
'Current CCT'
'Current Tint'
OR
※In DMX mode, even if you press the current value on the main screen,
the bottom bar is not active.
Activate control bar and adjust value directly
according to selected function.
※To return to the previous screen, press the 'INFO' button again.
- Intensity : The number indicates the current brightness value of the fixture and is displayed from 0 to 100%.
- CCT :
The number indicates the current color temperature value of the fixture and is displayed from 2,000~35,000Kelvin.
- Tint : The number indicates the current tint(Gamma) value of the fixture and is displayed from -1.00(Magenta) to +1.00(Green).
INFO
USER MODE SCREEN Displays description of each function.
information

19
Product name. ALPHA 3030
Color Mode Setup & RGB / Hue /
Saturation / White Adjust
Move to user-operable screen to change Hue/Saturation.
HOME
※Press the INFO button again to return to the 'COLOR MODE' screen.
INFO
COLOR MODE SCREEN Displays description of each function.
- Color Wheel Gradient : Touch or drag the color user want
- Hue : Drag and select the Hue user want.
- Saturation : The number indicates the current saturation value of the fixture and is displayed from 0 to 100%.
- White :
The number indicates the current White LED brightness value of the fixture and is displayed from 0 to 100%.
information
COLOR MODE
COLOR MODE : It is used when the user directly manipulates the equipment.
COLOR MODE screen ▶Touch the function you want to change ▶Active in Orange ▶
Adjust the value with touch or drag.
- Individual RGB value adjustment and saving preset (#1~9) can be specified through the button.
- Fine adjustment of RGB values and the number of presets can be changed through the up, down,
left and right arrows.
After adjusting the desired value, press ‘Enter’ ▶It returns to the COLOR MODE screen.
