ALPHA LITE FS Series Owner's manual

FS3000FS3000
FS SERIES
ALPHA LITEALPHA LITE
USER MANUAL USER MANUAL
BOOKBOOK

Product name. FS3000 1 Product name. FS3000
Do not open or disassemble the cover to reduce the risk of electric shock.
〔 WARNING 〕
Please wear safety equipment such as safety helmet during work.
Be sure to fix the safety chain on the product when installing and moving.
Please install the signs below for people to bypass when install
the product on high truss.
The work should be done under the direction of approved specialist
who is trained in safety and mechanical installations.
The brightness and color temperature before and after aging may be different.
2
3
4
5
6
1
Precautions

ALPHA LITE ┃USER MANUAL BOOK
Contents
Power Connection
DMX Connection
9
10
Fixture Installation
Unlocking
Screen Instruction
Menu Tree
Main Screen by Mode
& Product Information
DMX Mode
(Channel Change & Address Setup)
User Mode
(Intensity & Color Temperature Adjust)
11
12
13
14
15
16
LCD Screen Instruction
Safety Information 1
Sleep Mode Function
RDM Function
Dimming Speed Setup
Master Function
Fixture ID Number Setup
Device Label Setup
17
18
19
Extra Function
Temperature Sensor
Network Connection
20
Error Information
DMX Protocols
RDM Protocols
21
23
Protocols
Fixture Information
Fixture Exterior View
Dimensions
Accessory Options
Technical Specifications
Photometry Data
3
4
5
6
7
8
Fixture Information

3
Product name. FS3000 3 Product name. FS3000

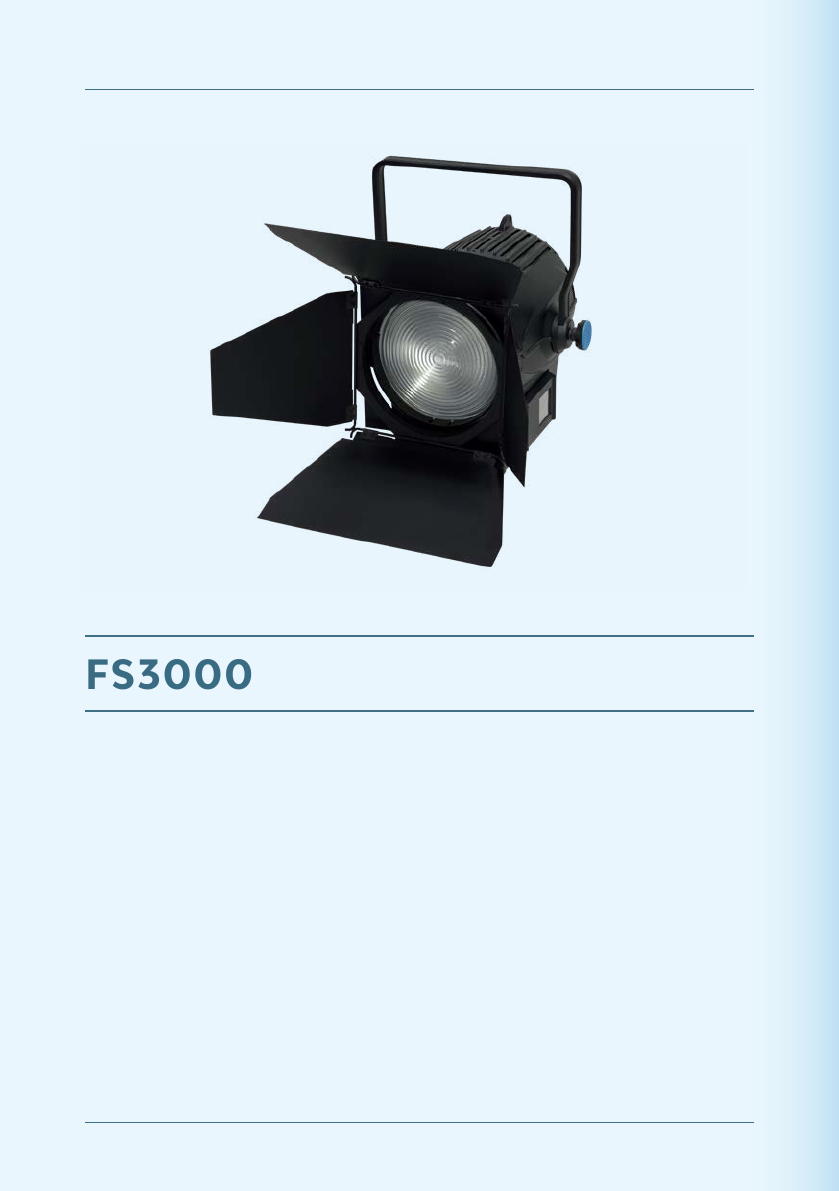

FS Series is SPOT lighting that uses a multi-focusing zoom lens based on ALPHA LITE’s
unique technology, and there is no yellowing phenomenon at the boundary of illuminated light
by multifocal LED and no color temperature change by chromatic aberration.
FS Series uses a large-capacity/single light source to express the light source texture similar
to the halogen lamp. Also, the boundary of the shadow is formed smoothly sharpness.
Beam cutting is excellent by adjusting the angle of the barn door.
FS Series is light weight compare to capacity, and designed sturdy housing.
By applying the wireless DMX communication, user can easily set up lighting fixtures without
a signal cable. The Smart Touch LCD controller can use functions such as intuitive operation
and address display on the screen in consideration of user convenience.
Also, the housing is designed for easy maintenance and repair.
FS3000
Product name.

4ALPHA LITE ┃USER MANUAL BOOK

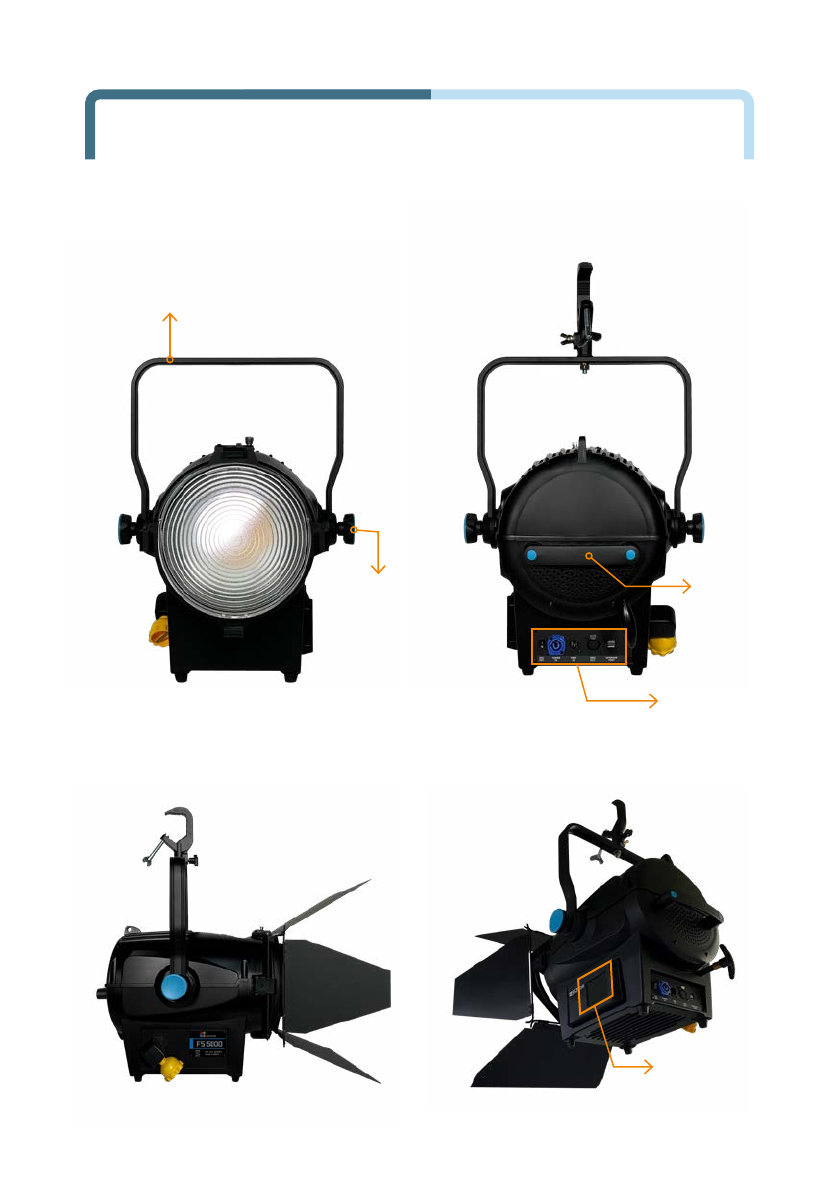

Fixture Exterior View
Yoke
Smart Touch
LCD Screen
Handle
Connector
Panel
Fixed Knob

5
Product name. FS3000

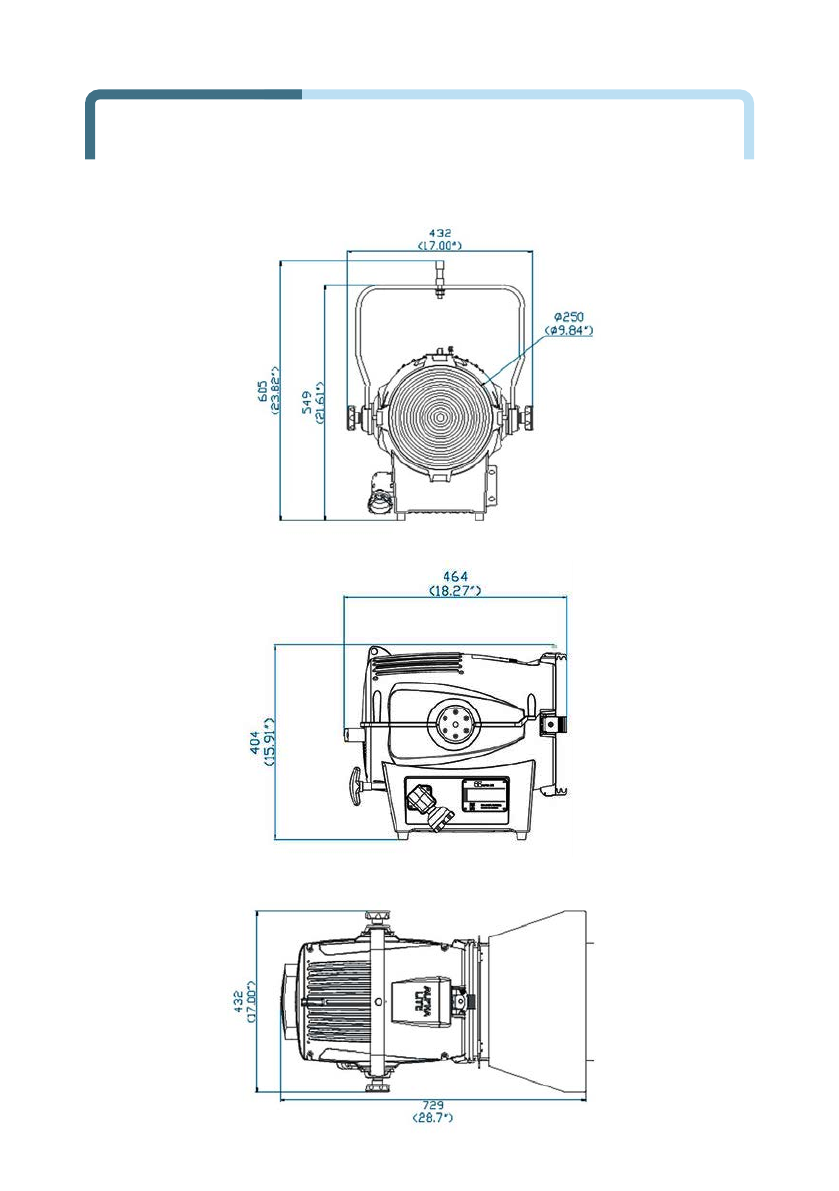

Dimensions

6ALPHA LITE ┃USER MANUAL BOOK

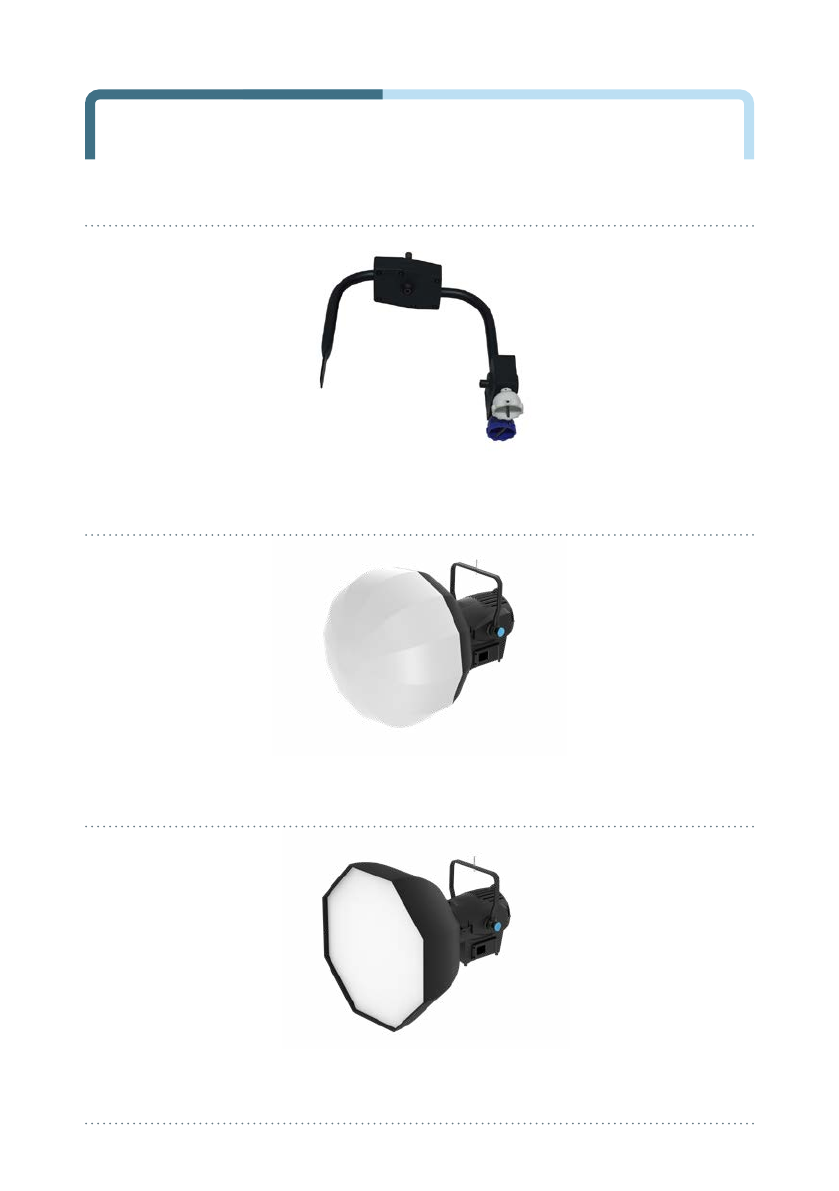

Pole operation yoke
· Pan & Tilt
Soft box
· Detachable
Gemball
· Detachable
Accessory Options

7
Product name. FS3000
Technical Specifications
LED Chip Type 600W CSP LED
Estimated LED Lifetime (hours) 50,000
White Light (K) 2,900~6,000K (VCT)
Color Rendition (%) CRI 98 / TLCI 98
Dimming (%) 0~100 (16-bit)
Lens Diameter (mm/inch) 250 / 9.8
Beam Angle ( °) 15~55
Signal Control 5-Pin DMX In and Out
Individual Control Smart Touch LCD Controller
Supported Protocol DMX512 / RDM
(Optional) Supported Protocol DMX512 Wireless / RDM Wireless
Remote Device Management Supported
Channel Function Dimming / CCT
Power Input Voltage AC 100-240V / 50~60Hz
Power Consumption (W) 500
Ambient Temperature
Operation ( °C) -20~45
Spigot Mounting (mm) 16 / 28
Tilt Angle ( °) + / - 90
Body Dimensions
(mm/inch) (WHD) 328 x 404 x 464 / 12.9 x 15.9 x 18.3
Full Dimensions with Manual
Yoke (mm/inch) (WHD) 432 x 605 x 464 / 17 x 23.8 x 18.3
Body Weight (kg/lbs) 12.3 / 27.1
Full Weight with Manual Yoke
(kg/lbs) 13.8 / 30.4
Protection Class IP20
* This specification data is based on the aging state of the equipment,
and the brightness and color temperature before and after aging may be different.

8ALPHA LITE ┃USER MANUAL BOOK
0m 1m 3m 5m 7m 9m
50° 2947 1163 615 391
5600K5600K
Photometry Data
Distance(m)
Illuminance(lux)

9
Product name. FS3000

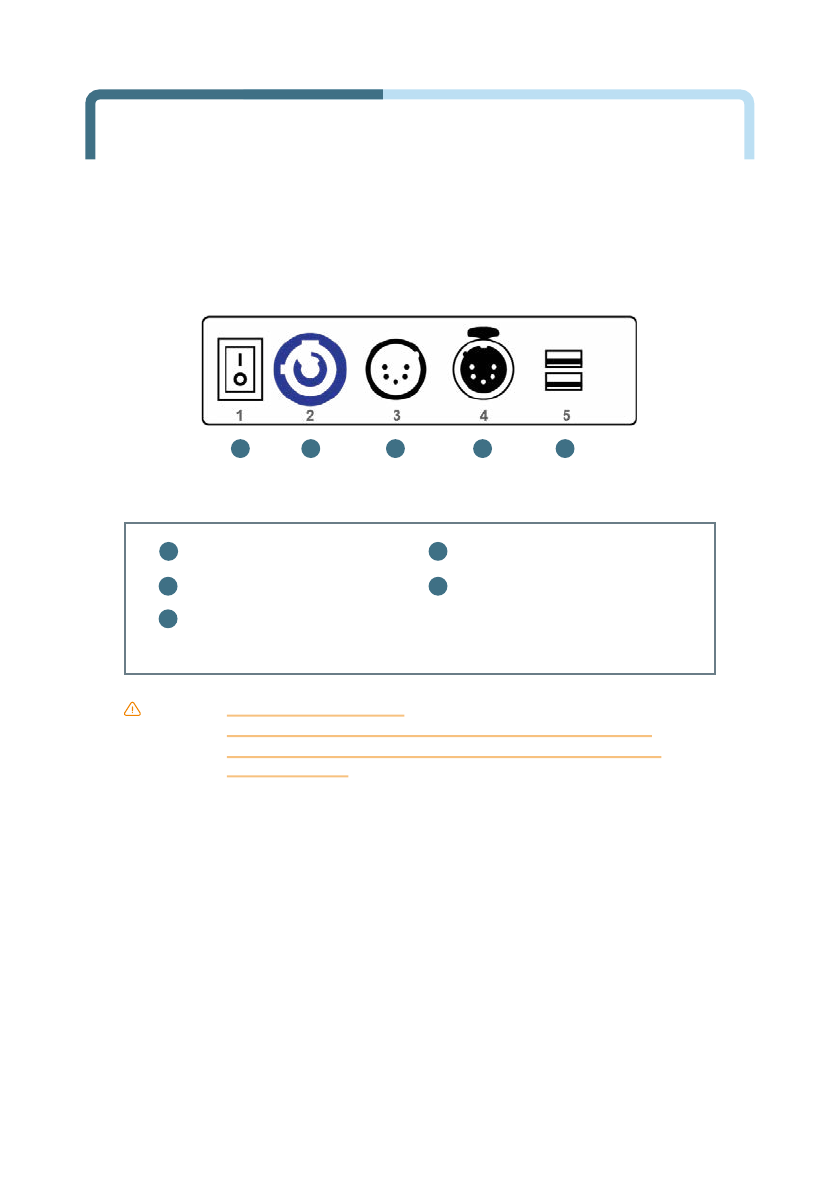

Power Connection
2
4
3
5
1
POWER IN
DMX IN
DMX OUT
POWER ON/OFF SWITCH
USB PORT
(for ADMINISTRATOR ONLY)
※Do not connect USB without
administrator's permission.
1. Observe the proper voltage rang.
2. If power is supplied outside the range, noise may be generated from the SMPS.
3. If the operating voltage is out of the proper voltage range, SMPS function may be
degraded or damaged.
WARNING
2 3 4 5
1
AC power at 100-240V, 50-60Hz

10 ALPHA LITE ┃USER MANUAL BOOK
DMX Connection
3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on
user needs.
Connect the controller to a lighting, or lighting fixture to other lighting fixture.
If user uses a standard DMX controller, the DMX output of the controller can
connect directly to the DMX input of the first fixture in the DMX chain.
User must use an adapter cable for connect the DMX controller to other XLR
output.
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
DMX-INPUT
XLR Mounting-plugs
DMX-OUTPUT
XLR Mounting-sockets
1. Connect the DMX output of the first lighitng fixture in DMX chain to the DMX input of
the next fixture.
2. Connect one output to the input of the next fixture until all fixtures are connected.
3. In the last lighting fixture, the DMX cable must be end with a terminator(120 Ω resistor)
in DMX output signal (+, -).
WARNING

11
Product name. FS3000

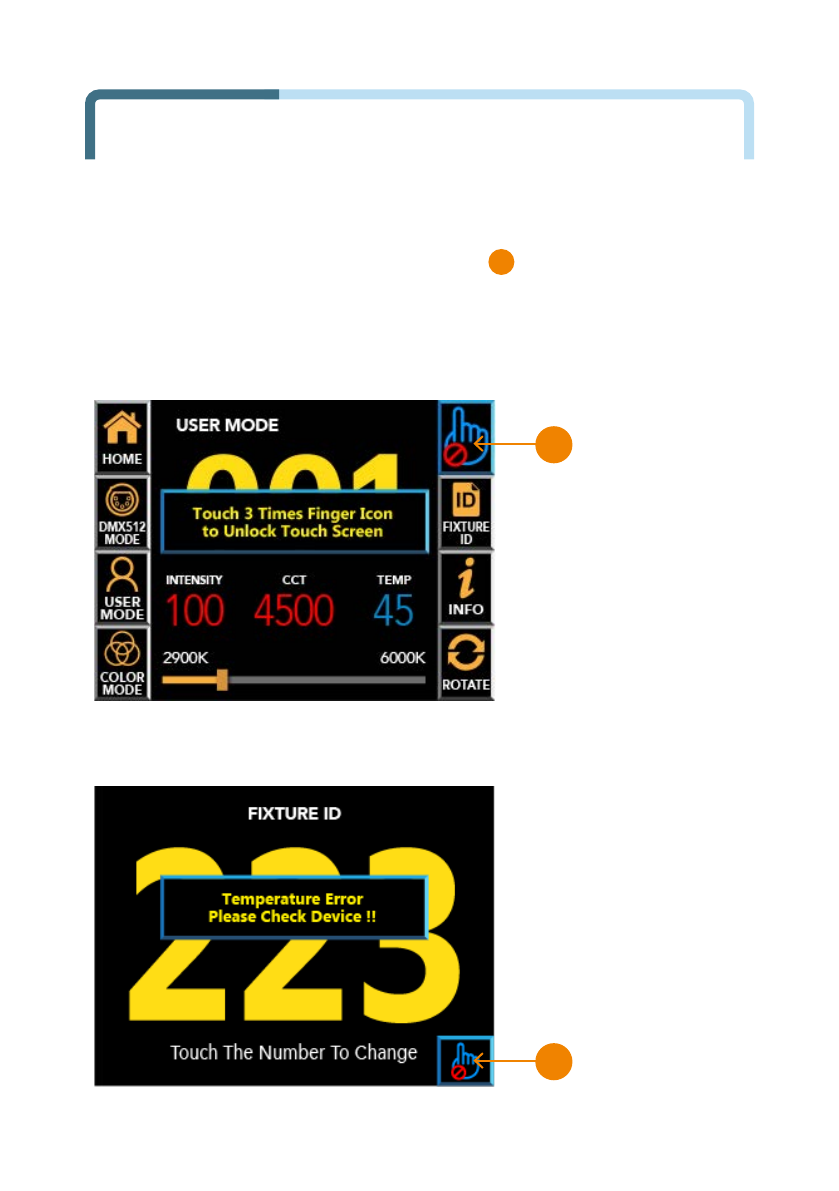

Unlocking
When the fixture is turned on, the Smart Touch screen automatically locked.
To unlock the touch screen, touch the finger icon( ) three times.
If you do not touch for 30 seconds, the lock is reset.
〔Main Screen (Locked) 〕
〔Fixture ID Screen (Locked) 〕
A
A
A
x 3
x 3

12 ALPHA LITE ┃USER MANUAL BOOK
16
17
18
19
08 12
09 13
10 14
11 15
03
04 05 06
07
01 02

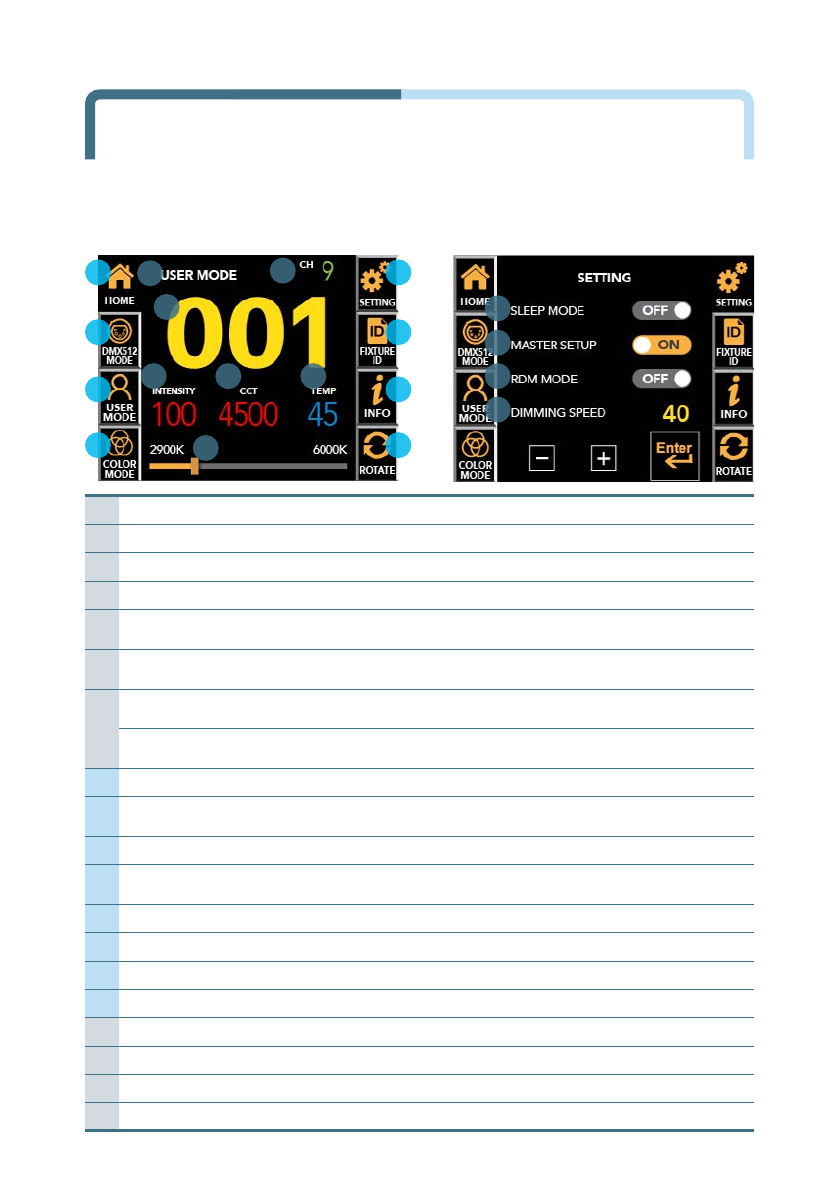

Screen Instructions
〔Main Screen (Unlocked) 〕 〔 Setting Screen 〕
01 Current Mode Display DMX MODE or USER MODE or COLOR MODE.
02 Current Channel Mode Display current channel mode. *Only display on DMX MODE
03 DMX512 Address Display current DMX512 Address.
04 Brightness (Intensity) Displays the brightness value(0~100%) of the equipment.
05 CCT (Correlated
Color Temperature) Displays the color temperature(2900~6000K) of the equipment.
06 Fixture Current Temperature The current temperature of the instrument is detected and
displayed in °C.
07
(In USER MODE) Activated
function control bar
Adjust the selected function
among Intensity and Color Temperature.
(In DMX MODE)
Current channel mode Display current channel mode. *Only display on DMX MODE
08 Home Return to the main screen
09 DMX512 Mode &
Address Setup Set channel mode and DMX512 address
10 User Mode Setup Set ‘Intensity’ and ‘CCT’ manually.
11 Color Mode Setup
(No applicable model) Set ‘RGB’ lighting color, ‘Saturation’, and ‘Intensity’
12 Setting Setting or changing the function of the equipment.
13 Fixture ID Displays numbers for equipment management.
14 Equipment Information Displays the help that describes the screen.
15 Screen Rotation LCD screen is rotated 180° for each touch.
16 Sleep Mode Setup Activate and deactivate LCD Auto off function
17 Master Setup Activate and deactivate Master function
18 RDM Mode Setup Activate and deactivate RDM function
19 Dimming Speed Setup Set dimming speed

13
Product name. FS3000
Menu Tree
DMX512 Mode
User Mode
Color Mode
Setting
Fixture ID
Information
Rotate
DMX mode select
Intensity setup
RGB color setup
Sleep mode setup
Fixture ID screen
Basic equipment information
DMX address input
Color temperature setup
Saturation setup
Master function setup
Information
Tint setup
White setup
RDM mode setup
DMX channel value
Description of each function
Individual RGB setup and Preset
RGBW value
Description of each function
Description of fixture ID
Information
Full screen
Dimming speed setup
Information
Information
Fixture ID number input
Information
Home
No applicable model
No applicable model
[ Main screen ]

14 ALPHA LITE ┃USER MANUAL BOOK

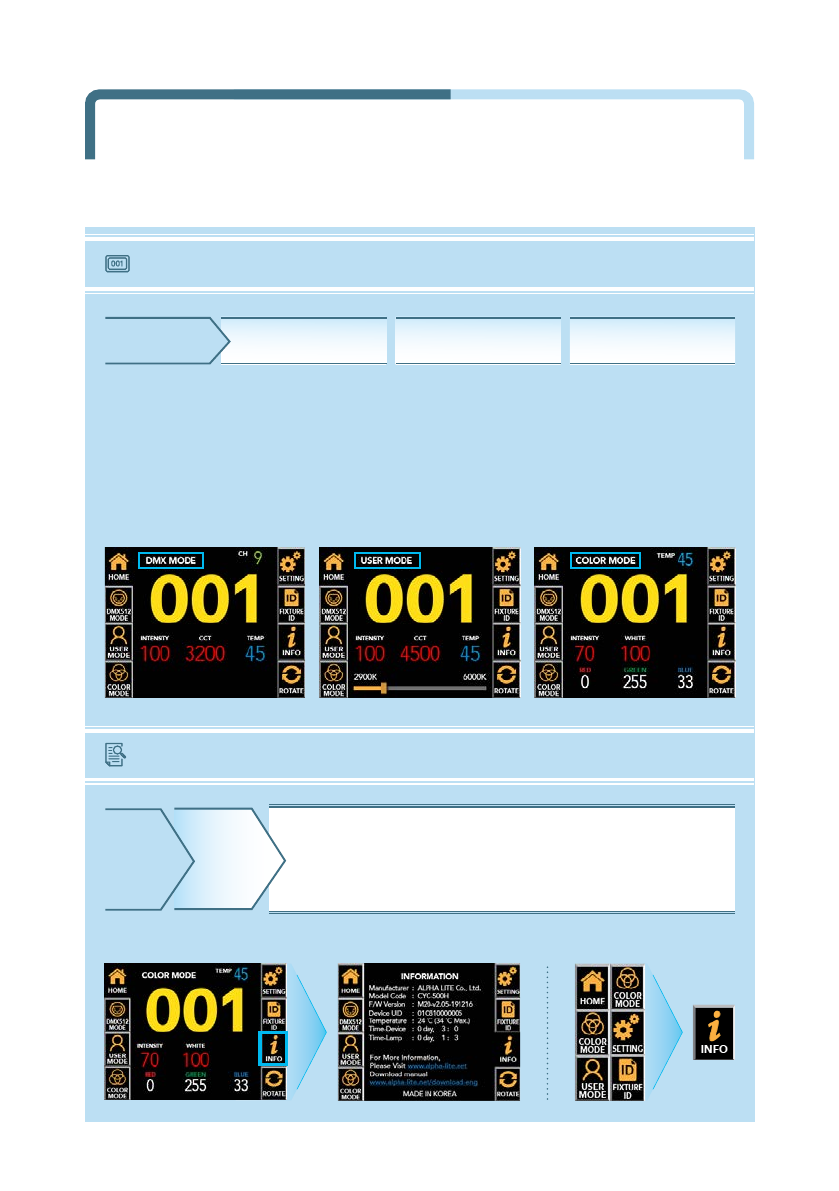

Each 'MENU' ▶ Touch the 'INFO' ▶ User can check the menu description and functions.
The current mode is displayed in the upper left corner of the main screen among DMX MODE,
USER MODE and COLOR MODE (No applicable model), and the DMX address number of the
equipment is displayed in the middle with a yellow number. At the bottom, the current
lighting value and fixture temperature are displayed, and some lighting value can be
adjusted on the main screen by touching the value.
〔DMX MODE 〕 〔 USER MODE 〕 〔 COLOR MODE 〕
HOME DMX MODE USER MODE COLOR MODE
INFO
Product model name, firmware version, UID number,
current temperature of equipment, usage time of equipment,
LED usage time, website, manual download link, etc.
by clicking the INFO button on the main screen.
HOME
Main Screen by Mode Information
Product Information
Main Screen by Mode &
Product Information

15
Product name. FS3000

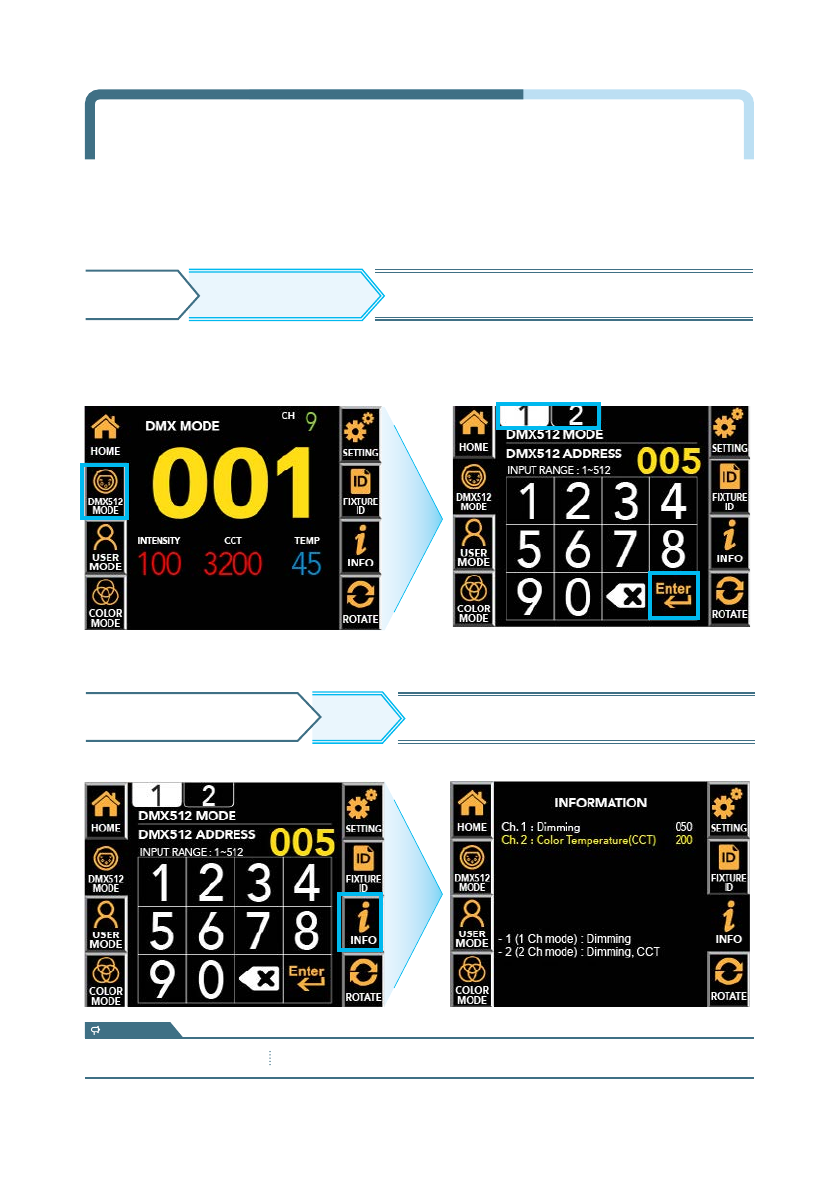

DMX Mode Channel Change &
Address Setup
DMX512 MODEHOME Move to the DMX channel change screen.
※To return to the previous screen, press the 'INFO' button again.
INFO
DMX512 MODE SCREEN Displays each channel information and value.
- 1 (1 Ch Mode) : Dimming - 2 (2 Ch Mode) : Dimming, CCT
* Support channels and features vary by product.
information
DMX MODE : It is used to adjust value by DMX512 signal.
In DMX512 MODE screen, user can select DMX channel mode on top tap.
▶Input DMX512 address by pressing the number pad.

16 ALPHA LITE ┃USER MANUAL BOOK
User Mode Setup & Intensity / CCT Adjust
USER MODE : It is used when the user directly manipulates the equipment.
Move to user-operable screen to change Intensity/CCT.USER MODEHOME
Activate control bar and adjust value directly
according to selected function.
'Current Intensity'
'Current CCT'
OR
※To return to the previous screen, press the 'INFO' button again.
- Intensity : The number indicates the current brightness value of the fixture and is displayed from 0 to 100%.
- CCT : The number indicates the current color temperature value of the fixture and is displayed from 2,900~6,000Kelvin.
INFO
USER MODE SCREEN Displays description of each function.
information
※In DMX mode, even if you press the current value on the main screen,
the bottom bar is not active.
USER MODE screen ▶Touch the function you want to change ▶Active in Orange ▶
Adjust the value with touch or drag.
Drag the activated bar close to the desired value,
and then touch
, to set the exact value.
* If the equipment does not support COLOR MODE, the Tint function does not work.

17
Product name. FS3000

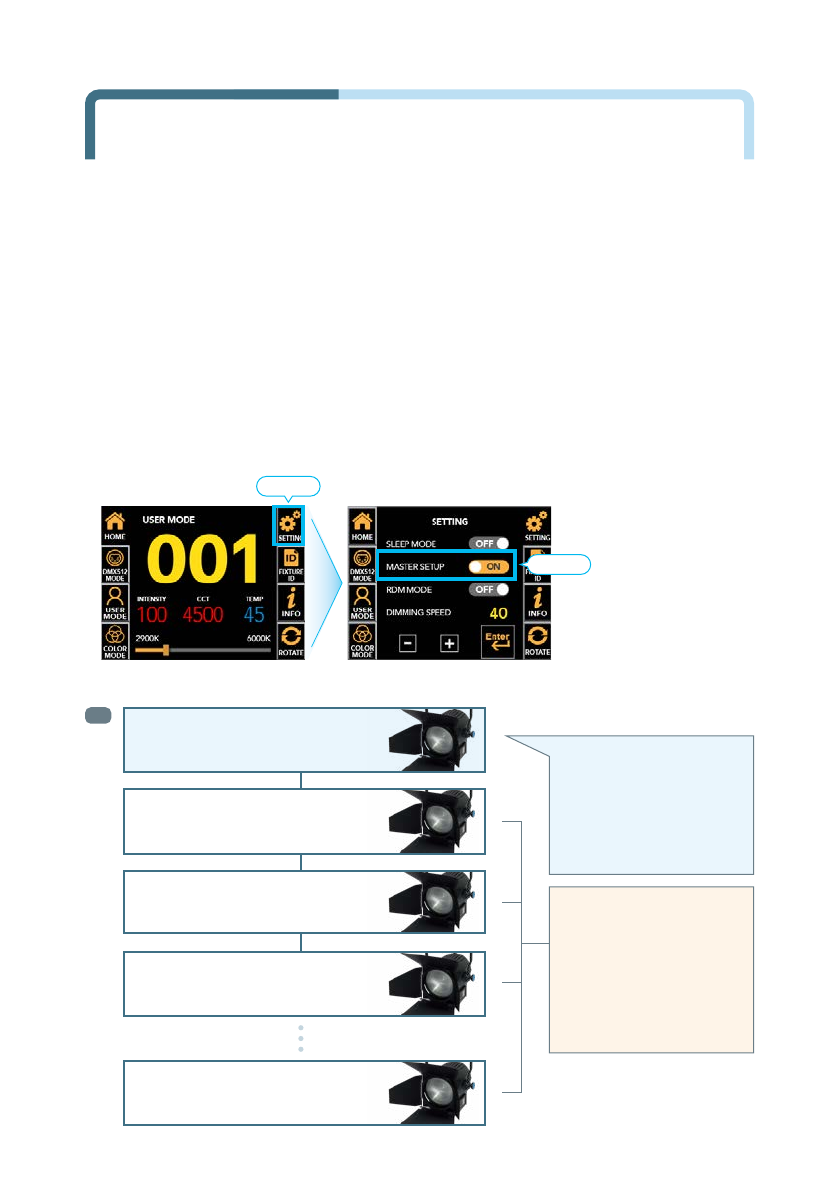

Extra Function
– Sleep Mode / Master / RDM / Dimming Speed
※Press the INFO button again to return to the setting screen.
INFO
SETTING SCREEN Displays description of each function.
- Sleep mode setup
(Default=Off)
The function to automatically turn off the screen when there is no operation
for 30 seconds. If OFF, it is always on the screen while power is on.
- Master setup
(Default=Off)
The function to synchronize and user control all connected fixtures without
a console connection. If OFF, the DMX signal will follow.
- RDM setup
(Default=On)
The function to enable two-way wireless communication through RDM
equipment. If OFF, it is not detected by RDM equipment.
- Dimming speed
setup
The number indicates the current dimming speed value of the fixture and is
displayed from 0 to 40. The higher the value, the slower the dimming speed,
and ’15’ is default speed.
information
SETTING screen ▶Touch ON/OFF the function you want to change among SLEEP
MODE, MASTER, and RDM MODE ▶Active in Orange ▶Set ON/OFF’
- DIMMING SPEED SETUP can be activated by touching, and press , to adjust the value.
SETTING
HOME Move to additional settings other than the main icon.

18 ALPHA LITE ┃USER MANUAL BOOK
ex
Master
#Last
#1
#2
#3
- Remove 'DMX in' cable.
- Set ‘Master Enable’
- Set the same
channel mode.
- Operation After setting.
- Connecting
'DMX in & out' cable.
- Set ‘Master Disable’
- Set the same
channel mode.
- No operation
after setting.
Master Setup
•The master slave function allows to synchronize and control all connected lighting
fixtures through the DMX signal without a console connection.
•If a problem occurs in the console or communication line, it is possible to control
the brightness and CCT and color with only the lighting fixture.
•Main screen ▶Setting ▶Touch MASTER SETUP, the function turns on. (2 Touch)
•Functions available with one setting of the first lighting fixture.
〔Main Screen 〕 〔 Fixture ID Screen 〕
Touch!
Touch!
DMX cable connect
Extra Function
– Sleep Mode / Master / RDM / Dimming Speed

19
Product name. FS3000
ex 1 ex 2 ex 3 ex 4 ex 5
Input(Device Label in RDM) SPOT123 SPOT1234 SPOT12345 SPOT STUDIO13-23
Fixture Label(in Fixture) SPOT123 SPOT1234 SPOT12345 SPOT STUDIO13-23
ID Number(in Fixture) 123 1234 2345 001 023
Fixture ID & Label Setup
〔Device Label Setup 〕
[ Change the device label through RDM ]
《The device label is basically the model name. It can be changed
through RDM communication, but it can’t be changed through
the Smart Touch LCD 》
Enter the device name and the management
number in the 'Device Label' field.
▶The entered contents
are displayed in the upper left corner.
Move to fixture management number setting screen.
FIXTURE IDHOME
Move to input screen that can change the number ▶Input the desired number 001 to
9999 and press Enter ▶Move to the FIXTURE ID screen that displays the large size
entered value ▶Touch HOME icon to go back to the main screen.
- The fixture ID is displayed in 3 or 4 digits from automatically recognized 4 digits in contents.
- If user do not enter any number, the fixture ID is displayed as ‘001’.
〔Main Screen 〕 〔 Fixture ID Screen 〕〔Fixture ID Input Screen 〕
※It is the number value 001 to 9999 for the management of
the lighting fixture can be changed by manual or RDM device.
Displays description of each function.
INFO
Fixture ID
Input
Screen
