Alpine PXA-H800 User manual

<
Cautions for Safe Repair Work>
The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
The symbols and their meanings follow.
If you ignore this symbol and handle the product incorrectly or unsafely,
serious injury or death may result.
If you ignore this symbol and handle the product incorrectly or unsafely,
injury or only material damage may result.
*The following symbols indicate two levels of cautions.
When you see this symbol, you have to be very careful.
When you see this symbol, you have to follow the instructions there.
Do not look squarely into the laser light
Fuse Caution
coming from the pickup.
Always use a designated fuse.
You may loose you sight. Use of an incorrect fuse may result in a fire.
Do not allow wiring to be caught in the
Battery Caution
screw/chassis.
Use the designated battery.
If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the
cause a short circuit, resulting in a fire. battery.
An incorrect battery or an improperly connected
or seated battery may result in a fire.
High Temperature Caution
Designated Parts Caution
Touching the heat sink may cause severe burns. Look up the part list and ensure that only
designated parts are used to prevent problems or
accidents.
Reverse Power Supply Connections or
Wiring Caution
Misconnections Caution
Ensure that the wiring is correct when rewiring to
Reverse power supply connections or prevent problems with ignition/breakdown.
misconnections may cause ignition problems and
smoke may result.
Soldering Caution
Wear Gloves
Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury
burns. from the end face of the metal.
Warning
Caution
Warning
Caution

X4
X4
X4 X2
Packing Method View
114113112
111
110
109
108
107106
105
104
103
102
101

101 01E42376S01 CONN,ASSY 8P
102 01E42377S01 ASSY,KIT WIRE 8P
103 01E42378S01 ASSY,CABLE
104 01E42379S01 ASSY,CABLE 2P
105 01E42380S01 MIC,LYS-M9750
106 99E42459S01 CD-ROM,Sound Manager
107 99E42460S01 CD-ROM,SETUP(Audio)
108 07E42416S01 BKT,MOUNT
109 75E26094S01 TAPE,PAD-MAGIC
110 03E42381S01 SCR,M3X6(B)(BLK)
111 03E42382S01 SCR,M4X14(HW)(BLK)
#1 112 68-13530Z65 O/M H800 AOAM(Eng,Fra,Esp)
$1 112 68-13530Z67 O/M H800 AOEU(Eng,Fra,Esp)
%1 112 68-13530Z70 O/M H800 AOAP
#1 113 68-13530Z66 I/M H800 AOAM
$1 113 68-13530Z69 I/M H800 AOEU
%1 113 68-13530Z71 I/M H800 AOAP
$1 114 68-13530Z68 O/M H800 AOEU(It,Ger,Sv)

Mark Model Code
#1 PXA-H800(North American) Only,
$1 PXA-H800(European) Only,
%1 PXA-H800(General Foreign) Only,
Others:Common.
NOTE:The part that has not PART NUMBER will not be supplied.
#####

ALPINE PXA-H800_EN 68-13530Z66-A (B5)

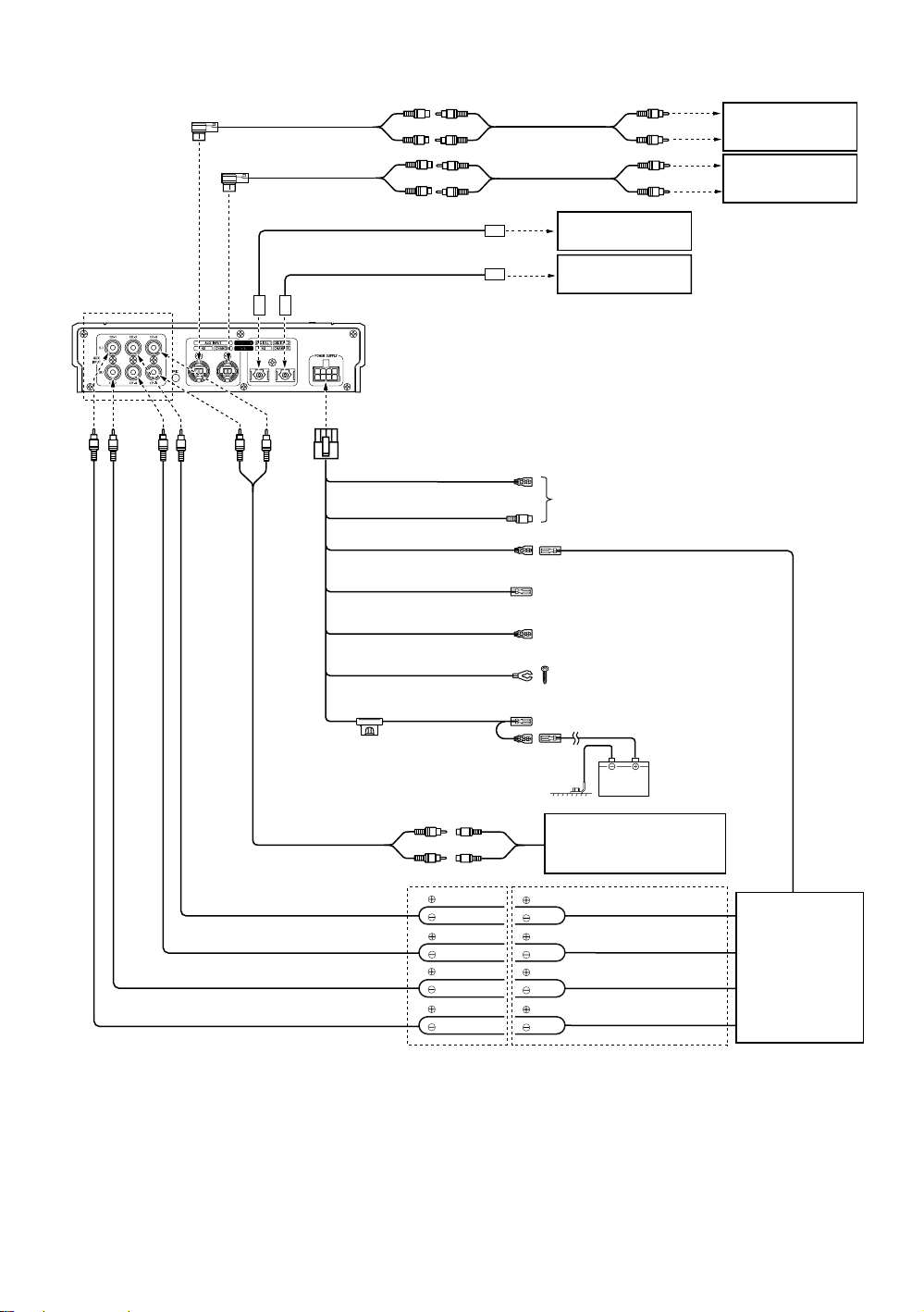

System Example
Connecting an automobile factory system (standard audio, etc.) and External Amplifier
Input Pattern: 4ch&2ch Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1 AUX2
FL
(Front Left)
FR
(Front Right)
RL
(Rear Left)
RR
(Rear Right)
L
(Left)
R
(Right)
Commander cable
(RUX-C800 included)
RUX-C800 (Sold separately)*1
Audio output jacks
To External Amplifier
(see page 10) External Amplifier
Rear speaker (L) output lead
Rear speaker (R) output lead
Front speaker (L) output lead
Front speaker (R) output lead
Rear speaker (L)
Rear speaker (R)
Front speaker (L)
Front speaker (R)
*5
Computer connection
terminal
*1When using a factory car audio system, the RUX-C800 Commander (sold separately) is required.
*2If your factory system does not have a Remote Turn-On Lead, connect a cable that enables an incoming power supply (accessory power) in
the ACC position.
*3If using the Speaker-RCA Conversion cable, up to 6 channels can be input. Make connections according to your system.
*4Before using the Speaker-RCA Conversion cable, remove the cord tip coating, cut the cord into 2 cables, connect the cable with commercially
available bullet or solderness terminals attached to the tips.
*5When connecting a speaker input cable, connect via a solderless terminal or solderless connector after disconnecting the automobile’s speaker
cable.
Automobile speaker cable
CAUTION
Make sure to disconnect the factory speakers and the speaker output cable for the factory system.
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e
White
*3
(1) PXA-H800 (North American) Only
System Connection

ALPINE PXA-H800_EN 68-13530Z66-A (B5)
L)
R)
(L)
(R)
*5
er) in
ercially
speaker
n no
White Red
WhiteRed
WhiteRed Guide Control Lead
White/Green
Navigation audio input connector
Illumination Lead
Orange
Remote Control Output Lead
Blue/White
Remote On Lead
Blue/White
Ground Lead
Black
Not Connected
To Remote On Lead of an
External Amplifier
*2
Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Black/White
Black
Black/White
Black
Black/White
Black
Black/White
Black
Rear speaker (L) output lead
Rear speaker (R) output lead
Front speaker (L) output lead
Front speaker (R) output lead
Standard Car
Audio System
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)
Fiber optic cable
(Sold separately)
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
*3
Illumination Lead
(Orange)
Red
White
RCA extension cable
(Sold separately)
TV Tuner or Video Player, etc.
*4*5

ALPINE PXA-H800_EN 68-13530Z66-A (B5)
Connecting a Non Ai-NET AV Head Unit, External Input and External Amplifier
Input Pattern : 5.1ch Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1
FL
(Front Left)
FR
(Front Right)
RL
(Rear Left)
RR
(Rear Right)
C
(Center)
SubW
(Subwoofer)
Guide Control Lead
Navigation audio input connector
Remote Control Output Lead
Ground Lead
White/Green
Blue/White
Black
Not Connected
To Remote On Lead of an
External Amplifier
Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Illumination Lead
Orange
Remote On Lead
Blue/White
RCA extension cable (Sold separately)
RCA extension cable (Sold separately)
Rear Output *2
Front Output *2
Non Ai-NET AV Head
Unit (Sold separately)
Illumination Lead
Orange
Remote On Lead
Blue/White
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Audio output jacks
To External Amplifier (see page 10)
Center Speaker Output
Subwoofer OutputRCA extension cable (Sold separately)
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)
Fiber optic cable
(Sold separately)
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
White Red
WhiteRed
Computer
connection
terminal
Commander cable
(RUX-C800 included) RUX-C800 (Sold separately)
RCA extension cable (Sold separately)
*1When using a head unit that is not Ai-NET compatible, the RUX-C800 Commander (sold separately) is required.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e
Conn
Inp
CH
L
White
*1
*2
C
When u
When
digita
Do no
•
•
e

ALPINE PXA-H800_EN 68-13530Z66-A (B5)
Head
rately)
deo
deo
rately)
n no

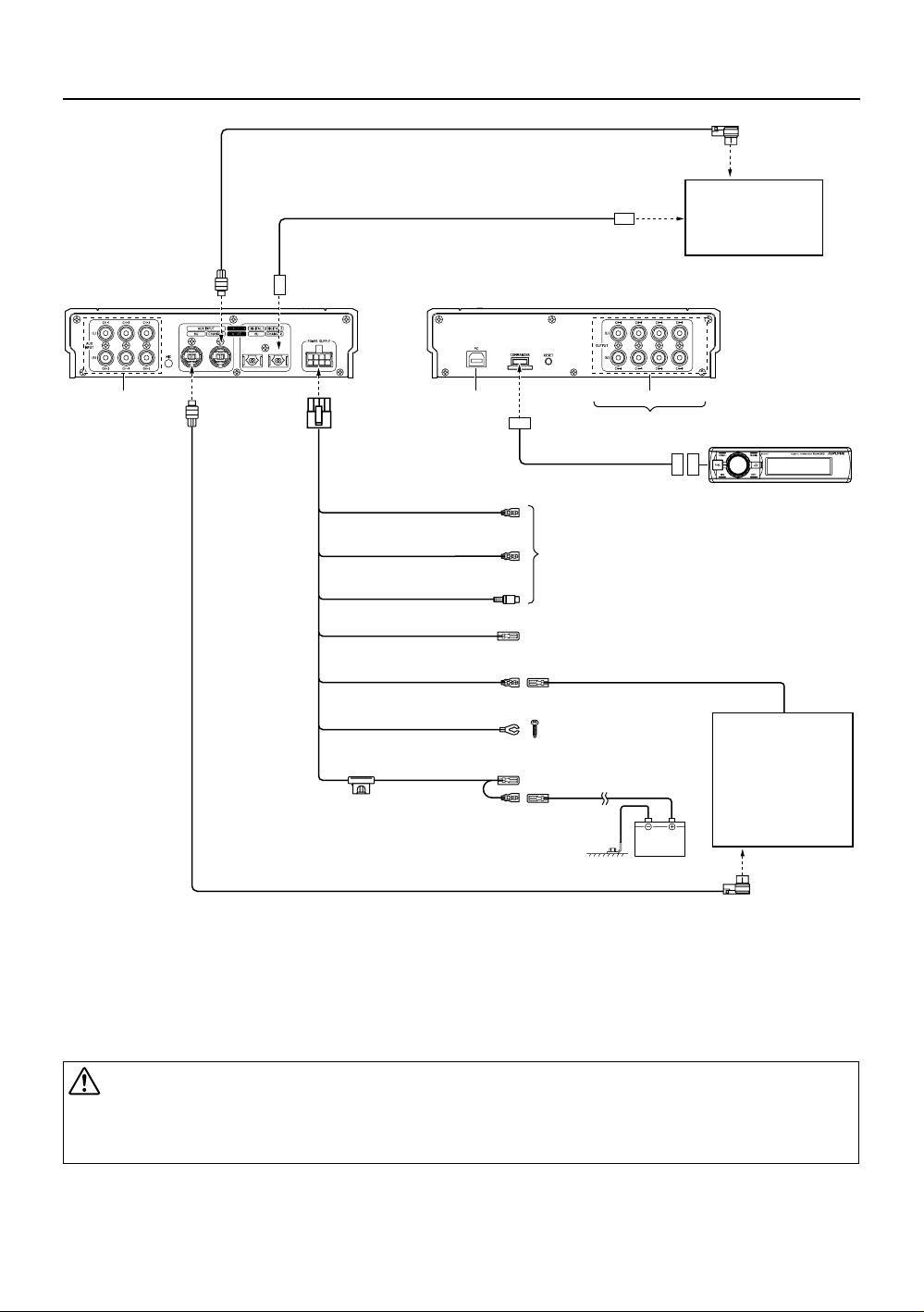

Connecting a Non Ai-NET Head Unit, External Input and External Amplifier
Input Pattern : 2ch×3 Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1 AUX2 AUX3
L (Left) R (Right) L (Left) R (Right) L (Left) R (Right)
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Audio output jacks
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)*2
Fiber optic cable
(Sold separately)*2
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
White Red
WhiteRed
WhiteRed
Computer
connection
terminal
Commander cable
(RUX-C800 included) RUX-C800 (Sold separately)
RCA extension cable (Sold separately)
RCA extension cable (Sold separately)
Non Ai-NET Head Unit
(Sold separately)
TV Tuner or Video
Player, etc.
RCA extension cable
(Sold separately) Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
*1
TV Tuner or Video
Player, etc.
Guide Control Lead
White/Green
Remote On Lead
Blue/White
Navigation audio input connector Not Connected
Illumination Lead
Orange
Remote Control Output Lead
Blue/White To Remote On Lead of an
External Amplifier
Ground Lead
Black Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
To External Amplifier
(see page 10)
Illumination Lead
Orange
Remote On Lead
Blue/White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
*1When using a head unit that is not Ai-NET compatible, the RUX-C800 Commander (sold separately) is required.
*2Use when connected with an Optical Digital compatible Unit.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e

ALPINE PXA-H800_EN 68-13530Z66-A (B5)

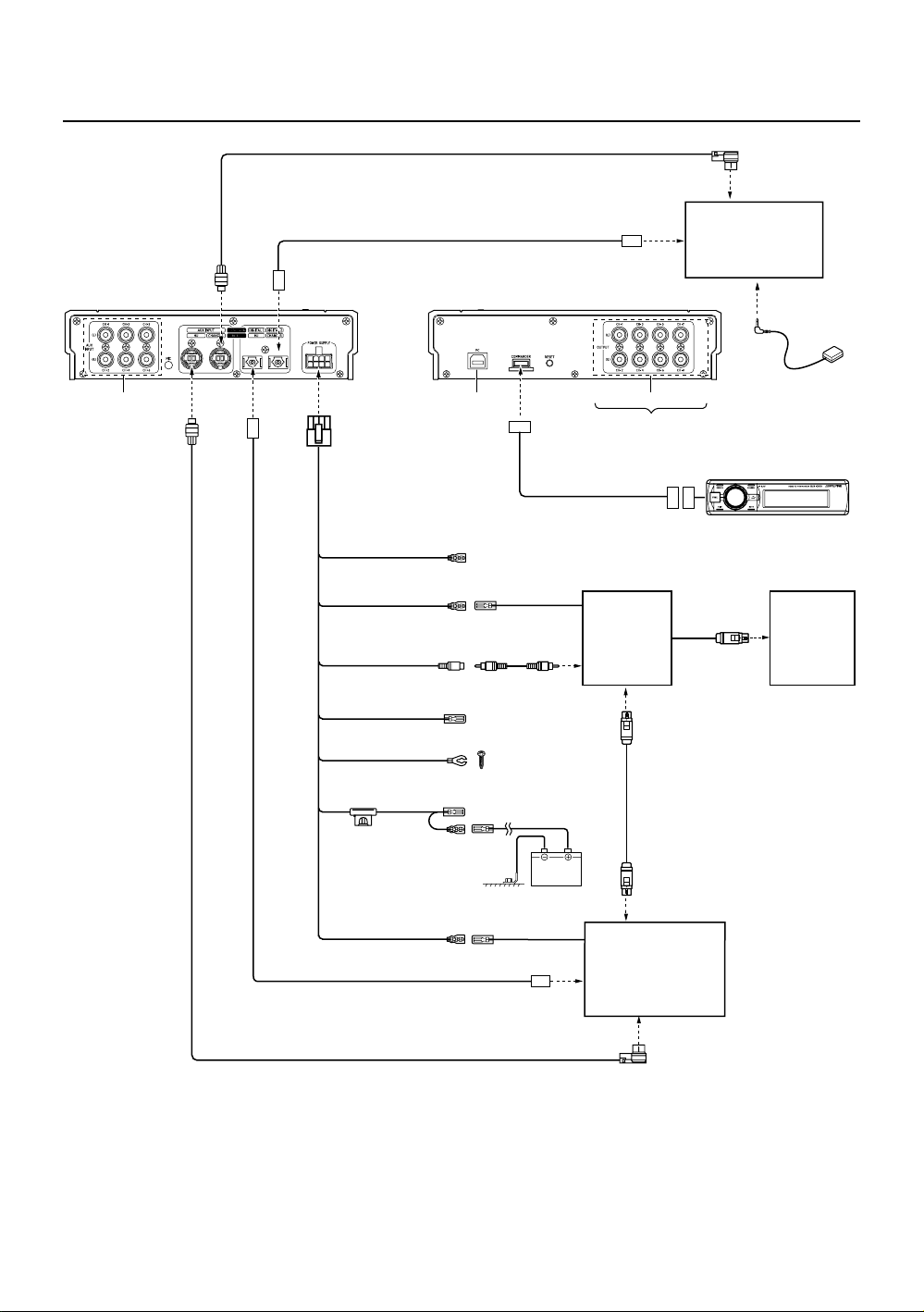

Connecting an Ai-NET compatible AV Head Unit (INA-W910), ALPINE Navigation System, Ai-NET
compatible Changer and External Amplifier
Fiber optic cable (Sold separately) *2
To Digital Output
Terminal (Optical)
To Ai-NET Output
Terminal
Ai-NET compatible
Changer *4, *5
Remote On Lead
Blue/White
To External Amplifier
(see page 10)
Guide Control Lead
White/Green
Not Connected
Guide Control
Lead
White/Green
Navigation audio
input connector
Remote Control
Output Lead
Blue/White
Ground Lead
Black
To Remote On Lead of
an External Amplifier
Connect to a metal
part of chassis body
with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Illumination Lead*1
Orange
Fiber optic cable (Sold separately)
Illumination
Lead*1
Orange
Ai-NET extension cable*7
KCE-900E (Sold
separately)
Guide
Signal I/F
for External
Navigation
To GUIDE Output
Terminal To RGB
Output
Terminal
RGB Cable
To RGB
Output
Terminal
ALPINE
Navigation
System (Sold
separately)
To RGB Input Terminal
(KCE-900E included)
To RGB Input Terminal
Ai-NET compatible
AV Head Unit
(INA-W910) (Sold
separately) *3
To Digital
Output Terminal
(Optical) To Ai-NET Output
Terminal
Computer
connection
terminal
RUX-C800 (Sold separately)
Commander cable
(RUX-C800 included)
Audio output jacks
Not Used
Ai-NET extension cable (Changer included)
RCA extension cable
(Sold separately)
Remote Control
Eye (DVD Changer
included) *6
To Remote
Control Eye Jack
*1Use when connected with the RUX-C800 Commander (sold separately).
*2Use when connected with an Optical Digital compatible Changer.
*3Set the system switch to [EQ/DIV] or [EXT AP]. For details, refer to the Owner’s Manual for the product connected.
*4Setting the system switch is required. For details, refer to the Owner’s Manual for the connected changer.
*5If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect its Switched Power Lead
(Red).
*6If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect the Remote Control Eye in
a system that uses an Ai-NET compatible AV Head Unit. (Connection of the remote input cord (white/brown) is required.) Use the Remote
Control Eye in a system that uses any other manufacturer’s monitor. For details, refer to the connected DVD changer’s instruction manual.
*7If connecting DVA-5210, connect it between the unit and the head unit using an additional Ai-NET extension cable. In this case, also
connect the audio output jacks (L=white/R=red) of DVA-5210 to the AUX INPUT CH-1 (L)/CH-2 (R) jacks of the unit.
C
When u
When
digita
Do no
•
•

ALPINE PXA-H800_EN 68-13530Z66-A (B5)
NET
tput
tion
(Sold
tely)
arately)
ntrol
hanger
6
te
ye Jack
ad
ye in
emote
nual.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•

ALPINE PXA-H800_EN 68-13530Z66-A (B5)
Connecting an Ai-NET compatible Head Unit, Ai-NET compatible Changer and External Amplifier
Ai-NET extension cable (Changer included)
Fiber optic cable (Sold separately) *2
To Digital Output
Terminal (Optical)
To Ai-NET Output
Terminal
Ai-NET compatible
Changer *4, *5
Guide Control Lead
White/Green
Remote On Lead
Blue/White
Navigation audio input connector
Not Connected
Remote Control Output Lead
Blue/White To Remote On Lead of an
External Amplifier
Illumination Lead*1
Orange
Illumination Lead*1
Orange
Ground Lead
Black Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Ai-NET compatible
Head Unit (Sold
separately)*3
To Ai-NET Output
Terminal
Ai-NET extension cable*6
Audio output jacks
To External Amplifier
(see page 10)
Not Used Computer
connection
terminal
RUX-C800 (Sold separately)
Commander cable
(RUX-C800 included)
*1Use when connected with the RUX-C800 Commander (sold separately).
*2Use when connected with an Optical Digital compatible Changer.
*3Checking and setting of the system switch are required. For details, refer to the Owner’s Manual for the product connected.
*4If connecting with an Optical Digital compatible Changer, setting the system switch is required. For details, refer to the Owner’s Manual for
the connected changer.
*5If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect its Switched Power Lead
(Red).
*6If connecting DVA-5210, connect it between the unit and the head unit using an additional Ai-NET extension cable. In this case, also
connect the audio output jacks (L=white/R=red) of DVA-5210 to the AUX INPUT CH-1 (L)/CH-2 (R) jacks of the unit.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
Conf
1Se
Ma
sea
pro
2Co
3Tu
co
Ch
we
4Ma
lam

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
System Example
Connecting an automobile factory system (standard audio, etc.) and External Amplifier
Input Pattern: 4ch&2ch Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1 AUX2
FL
(Front Left)
FR
(Front Right)
RL
(Rear Left)
RR
(Rear Right)
L
(Left)
R
(Right)
Commander cable
(RUX-C800 included)
RUX-C800 (Sold separately)*1
Audio output jacks
To External Amplifier
(see page 10) External Amplifier
Rear speaker (L) output lead
Rear speaker (R) output lead
Front speaker (L) output lead
Front speaker (R) output lead
Rear speaker (L)
Rear speaker (R)
Front speaker (L)
Front speaker (R)
*5
Computer connection
terminal
*1When using a factory car audio system, the RUX-C800 Commander (sold separately) is required.
*2If your factory system does not have a Remote Turn-On Lead, connect a cable that enables an incoming power supply (accessory power) in
the ACC position.
*3If using the Speaker-RCA Conversion cable, up to 6 channels can be input. Make connections according to your system.
*4Before using the Speaker-RCA Conversion cable, remove the cord tip coating, cut the cord into 2 cables, connect the cable with commercially
available bullet or solderness terminals attached to the tips.
*5When connecting a speaker input cable, connect via a solderless terminal or solderless connector after disconnecting the automobile’s speaker
cable.
Automobile speaker cable
CAUTION
Make sure to disconnect the factory speakers and the speaker output cable for the factory system.
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e
White
*3
(2) PXA-H800 (European) Only

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
L)
R)
(L)
(R)
*5
er) in
ercially
speaker
n no
White Red
WhiteRed
WhiteRed Guide Control Lead
White/Green
Navigation audio input connector
Illumination Lead
Orange
Remote Control Output Lead
Blue/White
Remote On Lead
Blue/White
Ground Lead
Black
Not Connected
To Remote On Lead of an
External Amplifier
*2
Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Speaker-RCA Conversion cable
Black/White
Black
Black/White
Black
Black/White
Black
Black/White
Black
Rear speaker (L) output lead
Rear speaker (R) output lead
Front speaker (L) output lead
Front speaker (R) output lead
Standard Car
Audio System
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)
Fiber optic cable
(Sold separately)
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
*3
Illumination Lead
(Orange)
Red
White
RCA extension cable
(Sold separately)
TV Tuner or Video Player, etc.
*4*5

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
Connecting a Non Ai-NET AV Head Unit, External Input and External Amplifier
Input Pattern : 5.1ch Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1
FL
(Front Left)
FR
(Front Right)
RL
(Rear Left)
RR
(Rear Right)
C
(Centre)
SubW
(Subwoofer)
Guide Control Lead
Navigation audio input connector
Remote Control Output Lead
Ground Lead
White/Green
Blue/White
Black
Not Connected
To Remote On Lead of an
External Amplifier
Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Illumination Lead
Orange
Remote On Lead
Blue/White
RCA extension cable (Sold separately)
RCA extension cable (Sold separately)
Rear Output *2
Front Output *2
Non Ai-NET AV Head
Unit (Sold separately)
Illumination Lead
Orange
Remote On Lead
Blue/White
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Audio output jacks
To External Amplifier (see page 10)
Centre Speaker Output
Subwoofer OutputRCA extension cable (Sold separately)
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)
Fiber optic cable
(Sold separately)
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
White Red
WhiteRed
Computer
connection
terminal
Commander cable
(RUX-C800 included) RUX-C800 (Sold separately)
RCA extension cable (Sold separately)
*1When using a head unit that is not Ai-NET compatible, the RUX-C800 Commander (sold separately) is required.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e
Conn
Inp
CH
L
White
*1
*2
C
When u
When
digita
Do no
•
•
e

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
Head
rately)
deo
deo
rately)
n no
Connecting a Non Ai-NET Head Unit, External Input and External Amplifier
Input Pattern : 2ch×3 Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1 AUX2 AUX3
L (Left) R (Right) L (Left) R (Right) L (Left) R (Right)
RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Audio output jacks
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately)
Ai-NET/RCA Interface
cable KCA-121B
(Sold separately) RCA extension cable
(Sold separately) TV Tuner or Video
Player, etc.
Fiber optic cable
(Sold separately)*2
Fiber optic cable
(Sold separately)*2
To Digital Output
Terminal
To Digital Output
Terminal
Optical Digital Compatible
DVD Player, etc.
Optical Digital Compatible
DVD Player, etc.
White Red
WhiteRed
WhiteRed
Computer
connection
terminal
Commander cable
(RUX-C800 included) RUX-C800 (Sold separately)
RCA extension cable (Sold separately)
RCA extension cable (Sold separately)
Non Ai-NET Head Unit
(Sold separately)
TV Tuner or Video
Player, etc.
RCA extension cable
(Sold separately) Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
*1
TV Tuner or Video
Player, etc.
Guide Control Lead
White/Green
Remote On Lead
Blue/White
Navigation audio input connector Not Connected
Illumination Lead
Orange
Remote Control Output Lead
Blue/White To Remote On Lead of an
External Amplifier
Ground Lead
Black Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
To External Amplifier
(see page 10)
Illumination Lead
Orange
Remote On Lead
Blue/White
Red
White
Red
White
Red
White
Red
White
Red
White
Red
White
*1When using a head unit that is not Ai-NET compatible, the RUX-C800 Commander (sold separately) is required.
*2Use when connected with an Optical Digital compatible Unit.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
Connecting an Ai-NET compatible AV Head Unit (IVA-D800R), ALPINE Navigation System, Ai-NET
compatible Changer and External Amplifier
Fiber optic cable (Sold separately) *2
To Digital Output
Terminal (Optical)
To Ai-NET Output
Terminal
Ai-NET compatible
Changer *4, *5
Remote On Lead
Blue/White
To External Amplifier
(see page 10)
Guide Control Lead
White/Green
Not Connected
Guide Control
Lead
White/Green
Navigation audio
input connector
Remote Control
Output Lead
Blue/White
Ground Lead
Black
To Remote On Lead of
an External Amplifier
Connect to a metal
part of chassis body
with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Illumination Lead*1
Orange
Fiber optic cable (Sold separately)
Illumination
Lead*1
Orange
Ai-NET extension cable*7
KCE-900E (Sold
separately)
Guide
Signal I/F
for External
Navigation
To GUIDE Output
Terminal To RGB
Output
Terminal
RGB Cable
To RGB
Output
Terminal
ALPINE
Navigation
System (Sold
separately)
To RGB Input Terminal
(KCE-900E included)
To RGB Input Terminal
Ai-NET compatible
AV Head Unit
(IVA-D800R) (Sold
separately) *3
To Digital
Output Terminal
(Optical) To Ai-NET Output
Terminal
Computer
connection
terminal
RUX-C800 (Sold separately)
Commander cable
(RUX-C800 included)
Audio output jacks
Not Used
Ai-NET extension cable (Changer included)
RCA extension cable
(Sold separately)
Remote Control
Eye (DVD Changer
included) *6
To Remote
Control Eye Jack
*1Use when connected with the RUX-C800 Commander (sold separately).
*2Use when connected with an Optical Digital compatible Changer.
*3Set the system switch to [EQ/DIV] or [EXT AP]. For details, refer to the Owner’s Manual for the product connected.
*4Setting the system switch is required. For details, refer to the Owner’s Manual for the connected changer.
*5If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect its Switched Power Lead
(Red).
*6If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect the Remote Control Eye in
a system that uses an Ai-NET compatible AV Head Unit. (Connection of the remote input cord (white/brown) is required.) Use the Remote
Control Eye in a system that uses any other manufacturer’s monitor. For details, refer to the connected DVD changer’s instruction manual.
*7If connecting DVA-5210, connect it between the unit and the head unit using an additional Ai-NET extension cable. In this case, also
connect the audio output jacks (L=white/R=red) of DVA-5210 to the AUX INPUT CH-1 (L)/CH-2 (R) jacks of the unit.
C
When u
When
digita
Do no
•
•

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
NET
tput
tion
(Sold
tely)
arately)
ntrol
hanger
6
te
ye Jack
ad
ye in
emote
nual.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•

ALPINE PXA-H800_EN 68-13530Z69-A (B5)
Connecting an Ai-NET compatible Head Unit, Ai-NET compatible Changer and External Amplifier
Ai-NET extension cable (Changer included)
Fiber optic cable (Sold separately) *2
To Digital Output
Terminal (Optical)
To Ai-NET Output
Terminal
Ai-NET compatible
Changer *4, *5
Guide Control Lead
White/Green
Remote On Lead
Blue/White
Navigation audio input connector
Not Connected
Remote Control Output Lead
Blue/White To Remote On Lead of an
External Amplifier
Illumination Lead*1
Orange
Illumination Lead*1
Orange
Ground Lead
Black Connect to a metal part of
chassis body with a screw.
Battery Lead
Yellow
Fuse 10A
12V
Ai-NET compatible
Head Unit (Sold
separately)*3
To Ai-NET Output
Terminal
Ai-NET extension cable*6
Audio output jacks
To External Amplifier
(see page 10)
Not Used Computer
connection
terminal
RUX-C800 (Sold separately)
Commander cable
(RUX-C800 included)
*1Use when connected with the RUX-C800 Commander (sold separately).
*2Use when connected with an Optical Digital compatible Changer.
*3Checking and setting of the system switch are required. For details, refer to the Owner’s Manual for the product connected.
*4If connecting with an Optical Digital compatible Changer, setting the system switch is required. For details, refer to the Owner’s Manual for
the connected changer.
*5If the Ai-NET compatible Changer is a DVD Changer (DHA-S690 Series or DHA-S680 Series), do not connect its Switched Power Lead
(Red).
*6If connecting DVA-5210, connect it between the unit and the head unit using an additional Ai-NET extension cable. In this case, also
connect the audio output jacks (L=white/R=red) of DVA-5210 to the AUX INPUT CH-1 (L)/CH-2 (R) jacks of the unit.
CAUTION
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
Conf
1Se
Ma
sea
pro
2Co
3Tu
co
Ch
we
4Ma
lam

ALPINE PXA-H800_EN 68-13530Z71-A (B5)
System Example
Connecting an automobile factory system (standard audio, etc.) and External Amplifier
Input Pattern: 4ch&2ch Input
AUX INPUT
CH-1 (L) CH-2 (R) CH-3 (L) CH-4 (R) CH-5 (L) CH-6 (R)
AUX1 AUX2
FL
(Front Left)
FR
(Front Right)
RL
(Rear Left)
RR
(Rear Right)
L
(Left)
R
(Right)
Commander cable
(RUX-C800 included)
RUX-C800 (Sold separately)*1
Audio output jacks
To External Amplifier
(see page 10) External Amplifier
Rear speaker (L) output lead
Rear speaker (R) output lead
Front speaker (L) output lead
Front speaker (R) output lead
Rear speaker (L)
Rear speaker (R)
Front speaker (L)
Front speaker (R)
*5
Computer connection
terminal
*1When using a factory car audio system, the RUX-C800 Commander (sold separately) is required.
*2If your factory system does not have a Remote Turn-On Lead, connect a cable that enables an incoming power supply (accessory power) in
the ACC position.
*3If using the Speaker-RCA Conversion cable, up to 6 channels can be input. Make connections according to your system.
*4Before using the Speaker-RCA Conversion cable, remove the cord tip coating, cut the cord into 2 cables, connect the cable with commercially
available bullet or solderness terminals attached to the tips.
*5When connecting a speaker input cable, connect via a solderless terminal or solderless connector after disconnecting the automobile’s speaker
cable.
Automobile speaker cable
CAUTION
Make sure to disconnect the factory speakers and the speaker output cable for the factory system.
When using fiber cable, follow the guidelines below:
When laying or bundling optic fiber cables, the minimum bending radius should be 30 mm. Bending beyond the radius will break the cable, resulting in no
digital sound being output.
Do not put the product or other items on the optic fiber cable.
•
•
e
White
*3
(3) PXA-H800 (General Foreign) Only
