Alva GFP100 User manual

ELECTRIC CONVECTION HEATER
WITH THREE HEAT SETTINGS
AND THERMOSTAT
ELECTRIC CONVECTION HEATER
WITH THREE HEAT SETTINGS
AND THERMOSTAT
ELECTRIC CONVECTION HEATER
WITH THREE HEAT SETTINGS
AND THERMOSTAT
GFP100 GFP101 GFP102
LOG HEATER
A division of Stingray Accessory Manufacturers (Pty) Ltd I PO Box 30014 Tokai 7966 I [phone]
[e-mail] I www.alva.co.za TOLL- FREE NUMBER: 086 100 ALVA (2582)
Manufactured for
and distributed by
• This is a low pressure appliance to be used only with a 2.8kpa sans 1237 approved regulator sans
1156 hose (regulator and hose not supplied).
ª This heater must be installed by a registered SAQCC installer and in accordance with the require-
ments of SANS 10087-1.
• For your own safety, please read this manual carefully and always operate this product according
to the instructions
• It is illegal and dangerous to change or modify any part of this appliance
/alvagas

IMPORTANT SAFETY INFORMATION
As with all appliances, misuse of this appliance or failure to fully
follow these instructions may cause re, injury or death.
Please read all the instructions before using your heater.
• THIS UNIT MUST BE THOROUGHLY CHECKED BEFORE USE
• Ensure that all the gas ttings are correctly and rmly tted
before every use.
• DO NOT use this heater if you do not clearly understand the
instructions and/or how to operate the controls.
• Phone the customer care line at 086 100 ALVA (2582) or email
[e-mail] for assistance.
• DO NOT use this heater in an enclosed area, which could
restrict airow.
• This heater must be installed by a registered SAQCC installer
and in accordance with the requirements of SANS 10087-1.
• DO NOT operate this heater in a bedroom, caravan, boat or any
area less than 80 cubic meters (roughly 5 x 5 metres).
• DO NOT leave the log heater unattended while in use.
• Ensure that the gas supply is turned OFF after use and while
the heater is unattended.
• DO NOT move the log heater while in use.
• DO NOT place objects on or against the log heater.
• DO NOT attempt to use the log heater as a stove.
• DO NOT use a naked ame to test for leaks. Follow the Leak-
Testing procedure outlined under ‘LEAK TEST’.
• NEVER use this heater with a cylinder other than the size
recommended.
• DO NOT touch the log heater, as it gets very hot, while in use or
after is has been switched off and is cooling.
• DO NOT unscrew the regulator while the heater is on or if the
cylinder valve is open.
• DO NOT use a log heater you suspect is faulty.
• When turning the log heater off, rst turn the gas off at the
control value (on the heater) and then make sure to close the
cylinder valve.
• For safety reasons, only a qualied technician may execute
maintenance and repairs. The warranty for the heater will be
rendered void if the heater is serviced or repaired by anyone
other than an Alva appointed technician.
• The heater should be inspected once a year by a qualied
• technician, to make sure the unit is safe and fault free.
• The operator is responsible for the safety of all third parties
while the heater is in use.
Please read the
instructions carefully
before use.
Retain this manual for
future reference.
This appliance must
not be modied in
any way - doing so is
illegal and will make
the appliance unsafe
as well as void your
warranty.
Do not mount the
heater near ammable
objects eg: curtains,
furniture and carpets.

• Any repairs that need to be done to the heater must be referred
to an authorized service agent only.
• This heater is not equipped with a device to control the room
temperature. DO NOT use this heater in small rooms when they
are occupied by persons not capable of leaving the room on
their own, unless supervised.
• Keep away from children.
• Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.
Ensure that children do not play with this heater.
This appliance is not intended or designed for use by persons
(including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they are
supervised or given instruction concerning use of this appliance by
a person responsible for their safety.
It is unsafe to position
this heater where it is
close to combustible
material.
Keep combustible
materials such as
furniture, paper,
clothes and curtains
at least 1m from the
front, sides and rear of
the heater.

INDEX
INDEX
WARRANTY
GENERAL INFORMATION
METHOD OF ASSEMBLY
PARTS VIEW
HEATER SETUP
LEAK TEST
USING YOUR HEATER
FLASHBACK
CHANGING YOUR CYLINDER
MAINTENANCE
V
FREQUENTLY ASKED QUESTIONS
SPECIFICATIONS
TROUBLESHOOTING
TECHNICAL DATA
AFTER SALES SERVICE
1
2
2
3
3
5
5
6
6
6
7
8
9
9
9
KEY
Important information
Cautions and
warnings.
Danger
Contact an approved
ALVA technician.
Do It Yourself
WARRANTY
PLEASE RETAIN YOUR PROOF OF PURCHASE FOR WARRANTY CLAIMS.
ALVA warrants this appliance to be free of defects in material and quality for a
period of 12 months from date of original purchase. This warranty covers the
intended use of this appliance – within a domestic setting and not for com-
mercial or industrial purposes. Any damage caused by wilful abuse, tampering,
modication or unauthorized repair will not be warranted.
Please retain all packaging material, as items returned without original packag-
ing material may be subject to a withholding fee.
Where this appliance is found to be defective, damaged, broken, or does not
work correctly for the intended purpose, you must return the appliance to the
retailer from where it was purchased. The warranty will only be effected with
valid proof of purchase. Failure to provide the proof of purchase will most likely
result in the repair or service required being chargeable.
If you have any questions while setting up or using this heater, please visit
www.alva.co.za or call 086 100 ALVA (2582) or e-mail [e-mail]
Thank you for your
purchase of this
heater. Please read
these instructions
carefully before use
and keep them in a
safe place, for future
reference.

Not using appliances
according to the
instructions is
extremely dangerous
and can lead to
property damage,
injury or death.
For indoor use only.
DO NOT use within
1m of any ammable
surfaces.
DO NOT store
ammable materials
near the heater.
GENERAL INFORMATION
Before using this log heater, please read through this manual
and make sure you understand everything. If you are not sure,
call 086 100 ALVA (2582) or visit www.alva.co.za for help. This
heater is a safe and efcient form of heating when used accord-
ing to these instructions.
Reading and understanding this manual should give you a good
indication of what to expect from your Alva gas log heater.
If this product is not what you want or need, please help Alva and
the environment by not damaging or destroying any part of the
packaging, the manual or the Styrofoam inserts.
Always keep your proof of purchase. Keep these instructions for
future use. If you lose this copy, you can obtain a new copy from
your dealer or online at www.alva.co.za.
2
METHOD OF ASSEMBLY
9kg ALVA cylinder recommended
with a 5/8” BSP thread; horizontal
exit valve. The Bullnose regula-
tor (not supplied with the heater)
tightens to the lefthand side (anti-
clockwise) (Figure A).
If you have bought a new gas
cylinder, the cylinder needs to be purged (cleared out), before its
rst use. If it is not purged of air, the heater will not work properly.
This should happen at the gas lling station when you ll up the
cylinder. Always check this with your gas supplier.
Fig.A
WARNING
CARBON MONOXIDE POISONING CAN LEAD TO DEATH
Carbon monoxide poisoning: Early signs of carbon monoxide
poisoning resemble u symptoms, with headaches, dizziness
or nausea. If you have these symptoms, the heater may not
be working properly. Get fresh air at once! Have the heater
serviced. Some people are more affected by carbonmonoxide
than others. These include pregnant woman, people with heart
or lung disease or anemia, those under the inuence of
alcohol, and those at high altitudes.

3
Before using the heater,
make sure you understand
the “IMPORTANT SAFETY
INFORMATION”
section of this manual.
HEATER SET UP
1. Before removing this log heater from the packaging, read this manual
in full and make sure that it is what you want/need.
2. Remove the heater from its packaging.
3. Ensure the ceramic logs are not broken
4. The heater must be placed on a level, solid, non-ammable surface.
If necessary, it can be fastened to the oor through the 4 mounting
holes in the base (mounting screws are not supplied).
5. The bullnose regulator goes directly into the cylinder valve. Always
make sure the regulator is pushed fully to the bottom of the cylinder
valve before tightening. The use of an adapter is illegal.
6. This heater must be installed by a regsitered SAQCC installer and
7. in accordance with the requirements of SANS 10087-1.
8. Screw the regulator into the cylinder valve. DO NOT use a tool to
tighten the regulator, it is to be hand tightened only.
9. A SANS 1156 hose is to be used. Connect the hose to the regulator
and the log heater inlet connection. This hose must be secured to
both the regulator and the log heater with hose clamps.
10. Perform the leak test as indicated on page 3. DO NOT try to ignite the
log heater when performing this leak test.

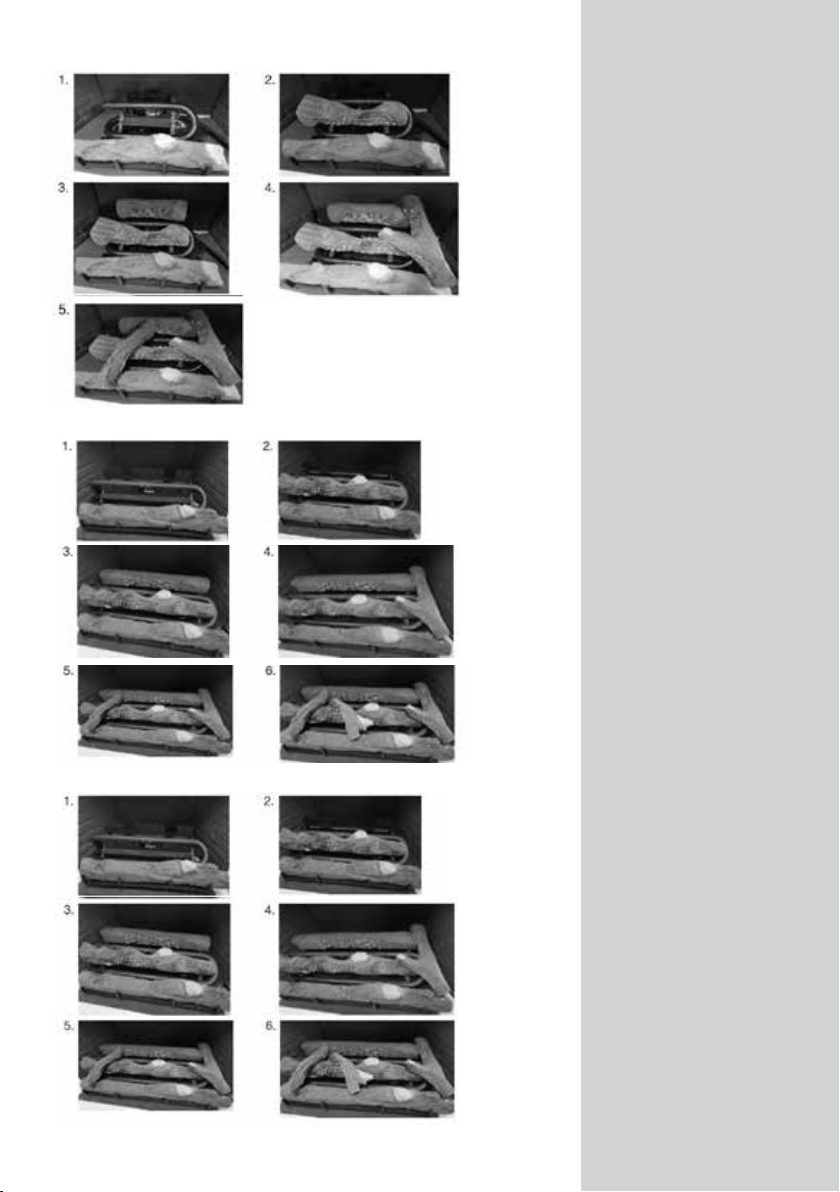

11. If no leaks are detected, place the ceramic logs on the heater as
indicated below:
PARTS VIEW
1. body
2. Burner tube
3. control knob
4. Igniter button
5. Inlet connection
6. Pilot ame
7. Flame failure device
67
1
5
2
4
3
Before using the heater,
make sure you understand
the “IMPORTANT SAFETY
INFORMATION”
section of this manual.
Take note:
On rst lighting a new
cylinder or connecting a
cylinder after it has been
relled; you may have to
depress the control valve for
a longer period of time.
Never attempt to remove the
Regulator if the heater is on
or if the cylinder valve is not
properly closed.

GFP100
4
GFP102
GFP101

5
LO
HI
PILOT
OFF
USING YOUR HEATER
This heater can be regulated to two different heat selections:
1. Open the cylinder valve by turning the cylinder valve to the left
(anti-clockwise).
2. Press the control know down at the ‘OFF’ position. Hold the
control knob down for ±10-20 seconds.
3. While holding it down, turn the control knob anti-clockwise to ignite
the pilot ame. Then push the ignitor button, the heater should make
a click sound and you should see a spark. The pilot ame should
ignite. Once the pilot ame ignites hold down the knob for another
±10-20 seconds then select your desired setting.
4. If the log heater does not ignite rst time, repeat steps 2 and 3 above.
5. This log heater must be turned off using the control knob rst, and
only then closing the the cylinder valve.
6. This heater has a positive off valve. Use the control knob to turn it
OFF before closing the cylinder valve.
LEAK TEST
Fig.F
Foamy
bubbles
indicate a
leak
Connection
in assembly
Connections to be leak tested
Regulator into cylinder
Hose to regulator
Hose to appliance
Fig.F
086 100 ALVA
(2582)
LOW HI
FOR YOUR SAFETY
IF YOU SMELL GAS
Turn off the gas
supply at the
Extinguish all
DO NOT operate
any electrical
appliances.
Ventilate the
area.
Check for leaks
(see LEAK TEST)
If odour per-
sists, contact
your dealer or
local gas supplier
immediately.
http://www.
youtube.com
/watch?v=8L
pZ1B0m23Y
&feature=plcp
How to do
a leak test
gas cylinder

6
OFF
FLASHBACK (ames in the burner tubes)
• If a ash back occurs (indicated by a roaring noise), immediately
close the cylinder valve.
• Turn the log heater OFF at the control knob.
• Disconnect the regulator from the gas cylinder and allow the
heater to cool.
• Check for blockages in the venturi ports. Clean with compressed
air, a small soft brush or pipe cleaners.
• If the problem persists in reuse, have the log heater checked by
a qualied technician.
CHANGING YOUR CYLINDER
Make sure the cylinder valve is closed (by turning it clockwise).
Allow the log heater to fully cool before replacing the cylinder.
ALWAYS check that the regulator-sealing washer (nose cone)
is intact and in place before reattaching the regulator to a cylinder.
DO NOT attempt to remove the regulator while the log heater is
on or if the cylinder valve is not closed.
MAINTENANCE
Always make sure the heater is OFF and cool, with the cylin-
der valve closed, before conducting any maintenance.
• Your heater should be checked once a year by a qualied
technician.
• If faults are suspected or detected, stop using the heater and
contact ALVA.
• Clean the exterior and storage area of your heater when
required to remove dust and prevent lint build up.
• DO NOT use abrasive products to clean the heater; these
may damage may damage the heater frame and ceramic
logs.
• While in operation, the pilot ame should be steady.
If any part of the log heater is in need of replacing, use only
original ALVA parts. Using any other spare parts is dangerous
and will void the warranty. When the log heater is not going to
be used for an extended period of time, keep covered or in its
box, to prevent dust from settling on the logs. When removing
the heater from storage, use a vacuum cleaner to clean the
logs before re-use.
Before using the heater,
make sure you understand
the “IMPORTANT SAFETY
INFORMATION”
section of this manual.

7
FREQUENTLY ASKED QUESTIONS
Q: Why is there an odour when I use a log heater?
A: All gas appliances give off an odour. This could be
harmful if inhaled for extended periods of time. This
“smell” is normal, and it does not mean that you have
a gas leak. The smell of raw gas (just before you ignite
the appliance) differs to the smell coming from the
heater when it is in use. The odour is added to allow
easy gas detection.
Q: Why must there be ventilation when using a gas log heater?
A: Whenever fuel (LP Gas in this case) is burned, ventila-
tion Is needed. Any re needs oxygen to burn.
Think of a replace, you require a chimney or ue for the
smoke to exit the house. Even though a gas heater does
not generate smoke, it still generates carbon monox-
ide and carbon dioxide, which can be dangerous if not
diluted by fresh air. Always ensure adequate ventilation
by leaving a door or window open in the same room.
Q: How long will the gas in my cylinder last?
A This depends on how you use your log heater. It is easy
to calculate your gas consumption. Take the capacity of
the gas cylinder in grams (i.e. 900g for a 9kg cylinder)
and divide it by the gas consumption of the log heater,
on your desired setting (refer to the specications
section in this manual – page 12). The answer to the
calculation is the approximate number of hours that your
heater will burn for.
Q: What do I do if I have an over-lled cylinder?
A The best method to determine if your cylinder is over-
lled is to weigh it. Subtract the ‘tare’ mass from the
cylinder weight – this gives you the weight of your gas.
If this gas weight exceeds your cylinder design weight
(9kg) then return the cylinder to your gas supplier.
http://www.
youtube.com/
watch?v=Ya
vsYE8nzCw
&feature=plcp
How to test if
your cylinder
is overfilled

8
SPECIFICATIONS
Model GFP100
Type of Gas LPG
Operating pressure 2.8kPa
Injector size 1.63mm
Gas consumption 521gr/h
Heat output 7.3kW
This heater has been tested and is LPGSASA approved under
Specications SANS 1539 (appliance).
Model GFP101
Type of Gas LPG
Operating pressure 2.8kPa
Injector size 1.84mm
Gas consumption 658gr/h
Heat output 9.4kW
This heater has been tested and is LPGSASA approved under
Specications SANS 1539 (appliance).
Model GFP102
Type of Gas LPG
Operating pressure 2.8kPa
Injector size 2.01mm
Gas consumption 721gr/h
Heat output 10.3kW
This heater has been tested and is LPGSASA approved under
Specications SANS 1539 (appliance).

5
FEATURES
Positive off:
The heater can be switched off at the control knob of the unit.
Oxygen Depletion Sensor (ODS)
A safety feature that shuts the heater off if the carbon monoxide
levels in the room reach 200 parts per million.
Flame Failure Safety Device:
A safety feature that shuts the gas ow off completely if the pilot
ame dies for any reason.
AFTER SALES SERVICE
MANUFACTURED FOR AND DISTRIBUTED BY ALVA,
a division of Stingray Accessory Manufacturers (Pty) Ltd
P.O. Box 30014
Tokai, 7966
Tel: [phone]
E-mail: [e-mail]
www.alva.co.za
alvagas
www.facebook.com/alvagas
TOLL FREE NUMBER 086 100 ALVA (2582)
TROUBLESHOOTING
TROUBLE CAUSE REMEDY
Odour Combustion N/A – the combustion
process will always
cause an odour
Strong odour Incorrect gas mixture
Unburned gas leak
Obtain LPG only
from reputable LPG
dealers
Perform a leak test.
Always ensure there
is proper ventilation
Burns then dies Over-lled cylinder
Ventilation
Empty cylinder
Return to gas supplier
Make sure the room has
adequate ventilation
Replace with a full
cylinder
Heater does not light
up
Empty cylinder
No gas ow
Replace with a full
cylinder
Open cylinder valve
If you are still unable to
correct the problem with
the information in this
guide, then you need to
contact your nearest
dealer or manufacturer.
Should you experience prob-
lems with this gas heater,
carry out the necessary
checks as per the Trouble
Shooting Guide.
If you are still unable to
correct the problem with the
information in this guide,
then you need to contact
your nearest dealer or manu-
facturer.
