Amana PBE093E35AXAA User manual

•ELECT ONIC TOUCH PAD
WITH EMOTE CONT OL
•ENE GY STA ATED
•HIGH ENE GY EFFICIENCY
WITH MODELS UP TO 9.8 EE
saving you money when compared
to lower EE models.
•EASY EMOVABLE CONDENSE TOP
that allows for quick and complete cleaning
of outdoor coils. This access for cleaning the
outdoor coil enables easy removal of dirt
and debris to help lengthen the life of
the compressor
and other sealed system
components.
Six easy access screws and
let the cleaning begin! Not available on
competitor models!
•EASY ACCESS SLIDE OUT FILTE
has a permanent polypropylene filter
mesh that is easy to remove and clean.
•ACCESSO Y WALL SLEEVE: PBWS01A
is a solid-side, heavily insulated metal
sleeve. It includes a stamped aluminum
exterior grille with a weather-seal rear
enclosure for installation without the
chassis.The sleeve has a solid bottom
for complete weather-tight installation.
An optional PBWMFC can be used when
a more permanent weather seal is needed
for sleeves installed without the chassis.
•100% FULL FACTO Y UN TEST
on all units for high reliability and
dependability. Units start the first time –
every time!
•4-WAY ADJUSTABLE AI FLOW
to allow for cooling or heating to any
part of the room.
•QUIET OPE ATION
Designed with guest comfort in mind —
providing reliable, quiet operation for years
to come.
Before purchasing this appliance, read
important information about its estimated
annual energy consumption, yearly opera-
tional cost, or energy efficiency rating that
is available from your retailer.
Spe ifi ations for:
Cooling Models:
PBC092E00AXAA
PBC122E00AXAA
PBC093E00AXAA
PBC123E00AXAA
Ele tri Heat Models:
PBE093E35AXAA
PBE123E35AXAA
Heat Pump Models:
PB 092E12AXAA
PB 093E35AXAA
PB 113E35AXAA
Amana®is a trademark of Maytag Corporation or its related
companies and is used under license to Goodman Company, L.P.
All rights reserved.

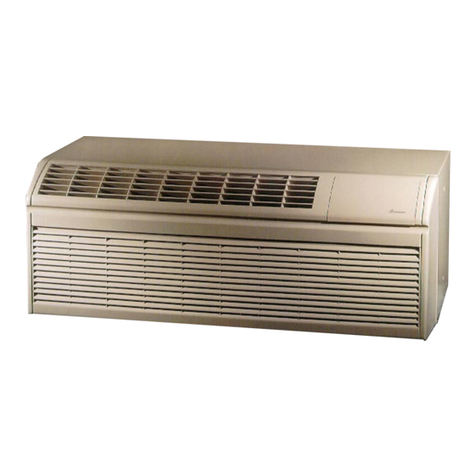

AMANA®BRAND 26" BUILT-IN AIR CONDITIONERS
Through-the-Wall Design for Flush-MountApplications
Cooling Only or Electric Heat or Heat Pump Models
Offering total omfort with easy-to-use ontrols
RAC heet A2010.qxd:RAC flier heet blank.qxd 6/30/10 3:08 PM Page 1

Cooling Only Models Ele tri Heat Models Heat Pump Models
Amana®brand Model PBC092E00AXAA PBC122E00AXAA PBC093E00AXAA PBC123E00AXAA PBE093E35AXAA PBE123E35AXAA PBH092E12AXAA PBH093E35AXAA PBH113E35AXAA
General Features:
Voltage 115 115 230 / 208 230 / 208 230 / 208 230 / 208 115 230 / 208 230 / 208
Approx. chassis weight 75 lbs 77 lbs 75 lbs 77 lbs 77 lbs 79 lbs 79 lbs 79 lbs 81 lbs
Approx. shipping weight 88 lbs 90 lbs 88 lbs 90 lbs 90 lbs 98 lbs 92 lbs 92 lbs 95 lbs
Cooling:
Capacity / BTU 9,200 11,800 9,200 / 8,900 11,800 / 11,400 9,200 / 8,900 11,800 / 11,400 9,000 9,000 / 8,700 11,500 /11,100
Amps 8.6 11.6 4.4 / 4.7 5.6 / 6.0 4.4 / 4.7 5.6 / 6.0 8.8 4.5 / 4.8 5.7 / 6.2
Watts 940 1,260 940 / 910 1,200 / 1,160 940 / 910 1,200 / 1,160 960 960 / 930 1,220 / 1,180
CFM 275 275 275 275 265 265 265 265 265
E.E.R. 9.8 9.4 9.8 / 9.8 9.8 / 9.8 9.8 / 9.8 9.8 / 9.8 9.4 9.4 / 9.4 9.4 / 9.4
Energy Star Qualified Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dehumidification - pts/hr 2.5 3.4 2.5 3.4 2.5 3.4 2.5 2.5 3.4
Ele tri Heat:
Capacity / BTU n/a n/a n/a n/a 11,000 / 9,000 11,000 / 9,000 3,900 11,000 / 9,000 11,000 / 9,000
Amps n/a n/a n/a n/a 15.0 / 14.0 15.0 / 14.0 11.0 15.0 / 14.0 15.0 / 14.0
Watts n/a n/a n/a n/a 3,500 / 2,900 3,500 / 2,900 1,150 3,500 / 2,900 3,500 / 2,900
Heat Pump: (Reverse cycle)
Capacity / BTU n/a n/a n/a n/a n/a n/a 8,500 8,500 / 8,200 11,000 / 10,700
Amps n/a n/a n/a n/a n/a n/a 7.7 4.0 / 4.2 5.2 / 5.6
Watts n/a n/a n/a n/a n/a n/a 860 860 / 830 1,195 / 1,160
C.O.P n/a n/a n/a n/a n/a n/a 2.9 2.9 / 2.9 2.7 / 2.7
Adjustable changeover thermostat n/a n/a n/a n/a n/a n/a Yes Yes Yes
Thermostatic drain valve n/a n/a n/a n/a Yes Yes Yes Yes Yes
Ele tri al Data:
Circuit Breaker Size 5-15P 5-15P 6-15P 6-15P 6-20P 6-20P 5-15P 6-20P 6-20P
Plug type Parallel Parallel Tandem Tandem Perpendicular Perpendicular Parallel Perpendicular Perpendicular
Power cord length 8.0' w/LCDI 8.0' w/LCDI 6.0' w/LCDI 6.0' w/LCDI 6.0' w/LCDI 6.0' w/LCDI 8.0' w/LCDI 6.0' w/LCDI 6.0' w/LCDI
Parallel Tandem Perpendicular
15 Amps 15 Amps 20 Amps
125 Volts 250 Volts 250 Volts
Features: (all models)
Agency Approval U.L (Underwriters Laboratory) listed; USA and Canada
Chassis Type Slide-out for easy installation and service accessibility
Fan speeds: 2 speeds: igh & Low
Energy Saver Yes - ( Cooling only - Auto fan operation )
Fan ONLY Yes - igh Speed
Exhaust CFM 300
Discharge air Top discharge with 4-way adjustable air throw
Slide-out-filter Top Pull-out Polypropylene - Permanent filter that is washable
Condensate Yes - external drain spout on the PBWS01A optional wall sleeve
drain spout
Dimensions: eight Width Depth
Chassis Dimensions: 15 5/8" 26.0" 16 7/8"
With chassis installed Depth with chassis installed and
room front cover attached = 21 7/8"
Sleeve Cut-outs: 15 13/16" 26 3/16" Maximum wall
thickness = 16 3/8"
Plug Type:
Optional A essories:
PBWS01A Insulated metal sleeve for installation of 26” Built-In Air
Conditioners; solid side and solid bottom with weather board and
stamped aluminum grille. Color: Beige
PBAGK01TB Architectural grille kit for use with PBWS01A sleeve and 26"
Built-In Air conditioners in beige.
PBAGK01SB Architectural grille kit for use with PBWS01A sleeve and 26"
Built-In Air conditioners in custom colors
PBWMFC01A An insulated metal cover for use when PBWS01A is installed
without 26” Built-In Air Conditioner
PBFAK01A Sleeve adapter kit; converts Fedders BSAOOC & Friedrich WSC
27" wall sleeves for use with Amana 26" Built-In Air Conditioners
1-Year Entire Unit Limited Warranty*
5-Year Sealed System Limited Warranty*
1-Year Entire Unit and 5-Year Sealed System Components. Goodman Company L.P.
will repair or replace any factory defective part or sealed system leak caused by a
defective part. See product warranty for complete details.
*Complete warranty details available from your local dealer or at www.amana-ptac.com
© 2010 Goodman Company, L.P. · ouston, Texas · www.amana-ptac.com
Amana®is a trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P.
All rights reserved. Goodman’s ongoing commitment to quality products may mean a change in product specifications without notice.
CB-ARAC26A
