Amantii SYM-50-XTRASLIM Owner's manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
SYM-50-XTRASLIM
SYM-60-XTRASLIM
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
1
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

2
TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. Please pay
special attention to the safety instructions provided in this manual. The instructions included
here will assure that you have many years of dependable and enjoyable service from your
Amantii product.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING APPLIANCE ................................................................................................................... 6
GROUNDING APPLIANCE ............................................................................................................................................... 6
LOCATING THE FIREPLACE ........................................................................................................................................... 6
SYM-5 -XTRASLIM ........................................................................................................................................................... 7
SYM-6 -XTRASLIM ........................................................................................................................................................... 8
INSTALLATION-WALL MOUNT .................................................................................................................................... 9
INSTALLATION- BUILT-IN ........................................................................................................................................... 1
HARD- WIRE INSTALLATION ...................................................................................................................................... 13
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... 14
OPERATION ....................................................................................................................................................................... 15
MANUAL OPERATION ................................................................................................................................................... 15
REMOTE CONTROL OPERATION ................................................................................................................................ 16
INSTALLING WALL THERMOSTAT ........................................................................................................................... 18
REPLACEMENT PARTS .................................................................................................................................................. 19
EXPLODED VIEW ............................................................................................................................................................ 2
TRUBLE SHOOTING ........................................................................................................................................................ 21
SERVICE HISTORY .......................................................................................................................................................... 22
WARRANTY ...................................................................................................................................................................... 23

3
IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. Keep combustible materials such as furniture pillows bedding papers clothes and
curtains at least 3 feet from the front sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug after it has
malfunctioned or if the unit has been dropped or damaged in any way.
5. Do not use the heater outdoors.
6. Do not run the cord under carpeting. Do not cover the cord with throw rugs runners
or anything else. Arrange the cord away from traffic areas where it could not be
tripped over.
7. To disconnect the heater turn the controls to "OFF" before removing the plug from
the outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock fire or damage to the heater.
9. To prevent a possible fire do not block air intakes in any manner.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline paint or flammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire electric shock or injury.
12. Avoid the use of an extension cord the extension cord will overheat and cause a fire.
This heater is not to be used with an extension cord.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is required by electrical codes.
15. Always disconnect the power before performing any cleaning maintenance or
relocation of the heater.
16. To prevent a possible fire do not burn wood or other materials in this heater.
17. To prevent electric shock or fire always use a certified electrician should new
circuits or outlets be required.
18. When transporting or storing the heater keep it in a dry place free from excessive
vibration.
19. This appliance should not be modified under any circumstances.
20. Packaging material should be kept away from children and be disposed of in a safe
manner. Plastic bags are not toys and should be kept away from children and
infants.
21. Do not use this heater in small rooms when they are occupied by persons not
capable of leaving the room on their own unless constant supervision is provided.
22. If the glass is damaged do not use the heater in order to avoid a hazard.
23. Do not leave children unsupervised where heater is turned on.
24. CAUTION Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
25. This appliance can be used by children aged from 8 years and above and persons
with reduced physical sensory or mental capabilities or lack of experience and

4
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.

5
Cautions
Do’s
 Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
 Always make sure the electrical socket is accessible and located adjacent
to but not above the heater.
 Always disconnect the heater from the electrical supply before moving it or
carrying out cleaning maintenance.
 Always make sure the heater is firmly secured to prevent it from being
tipped over.
 Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Don’ts
 Never leave children unsupervised in a room where the heater is ON and
unguarded.
 Never obstruct or cover the fan outlet or force items into heater openings.
 Never install or use the heater anywhere where water is in use i.e.
Bathroom Kitchens Shower Rooms and Swimming Pool etc.
 Never use aerosols or steam cleaners on or around the heater.
 Never route the mains supply cable under carpet etc.
 Never install the heater close to curtains or combustible materials.
 Never use the heater to dry clothes etc.
 Never sit or stand on the heater.
 Never use with a timer or any other device that switches the fire on
automatically.

UNPACKING AND TESTING APPLIANCE
Caref
ully remove the appliance from the box.
Prior to installing the appliance test to make sure the appliance operates properly by plugging
the power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches remote and
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41
℉
fireplace to
reach room temperature before turning it on.
NOTE: There may be trace of odor during the first few minutes of initial use This is
harmless, normal and will never occur again
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a
shown in (C) is available for connecting three
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded ou
three-
slot grounded receptacle is available.
To disconnect appliance turn controls to off then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the firepla
install the fireplace. Before installation consider the following:
1.
Where the fireplace is located must allow for wall and ceiling clearances
2.
Consider a location where the fireplace screen will not be expose
windows or doors.
3.
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers
to trip of fuses to blow.
6
UNPACKING AND TESTING APPLIANCE
ully remove the appliance from the box.
Prior to installing the appliance test to make sure the appliance operates properly by plugging
the power supply cord into a 120 Volt grounded outl
et.
Test all aspects of its operation (manual switches
remote and
heater) to make sure all
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
℉
) and 35 ℃ (95℉
). During the cold winter months allow the
reach room temperature before turning it on.
NOTE: There may be trace of odor during the first few minutes of initial use This is
harmless, normal and will never occur again
This appliance is for use on 120 Volts. The cord ha
s a
plug as shown in (A). An adapter as
shown in (C) is available for connecting three
-
blade grounding type plugs to two
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded ou
tlet box. The adapter should not be used if a
slot grounded receptacle is available.
To disconnect appliance turn controls to off then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the firepla
ce. This will save time and money later when you
install the fireplace. Before installation consider
the following:
Where the fireplace is located must allow for wall and ceiling clearances
Consider a location where the fireplace screen will
not be expose
d to direct sunlight from
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers
Prior to installing the appliance test to make sure the appliance operates properly by plugging
heater) to make sure all
As with most electronic devices your new electric fireplace has been designed to operate at
). During the cold winter months allow the
NOTE: There may be trace of odor during the first few minutes of initial use This is
plug as shown in (A). An adapter as
blade grounding type plugs to two
-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
tlet box. The adapter should not be used if a
To disconnect appliance turn controls to off then remove plug from outlet.
ce. This will save time and money later when you
Where the fireplace is located must allow for wall and ceiling clearances
d to direct sunlight from
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers

7

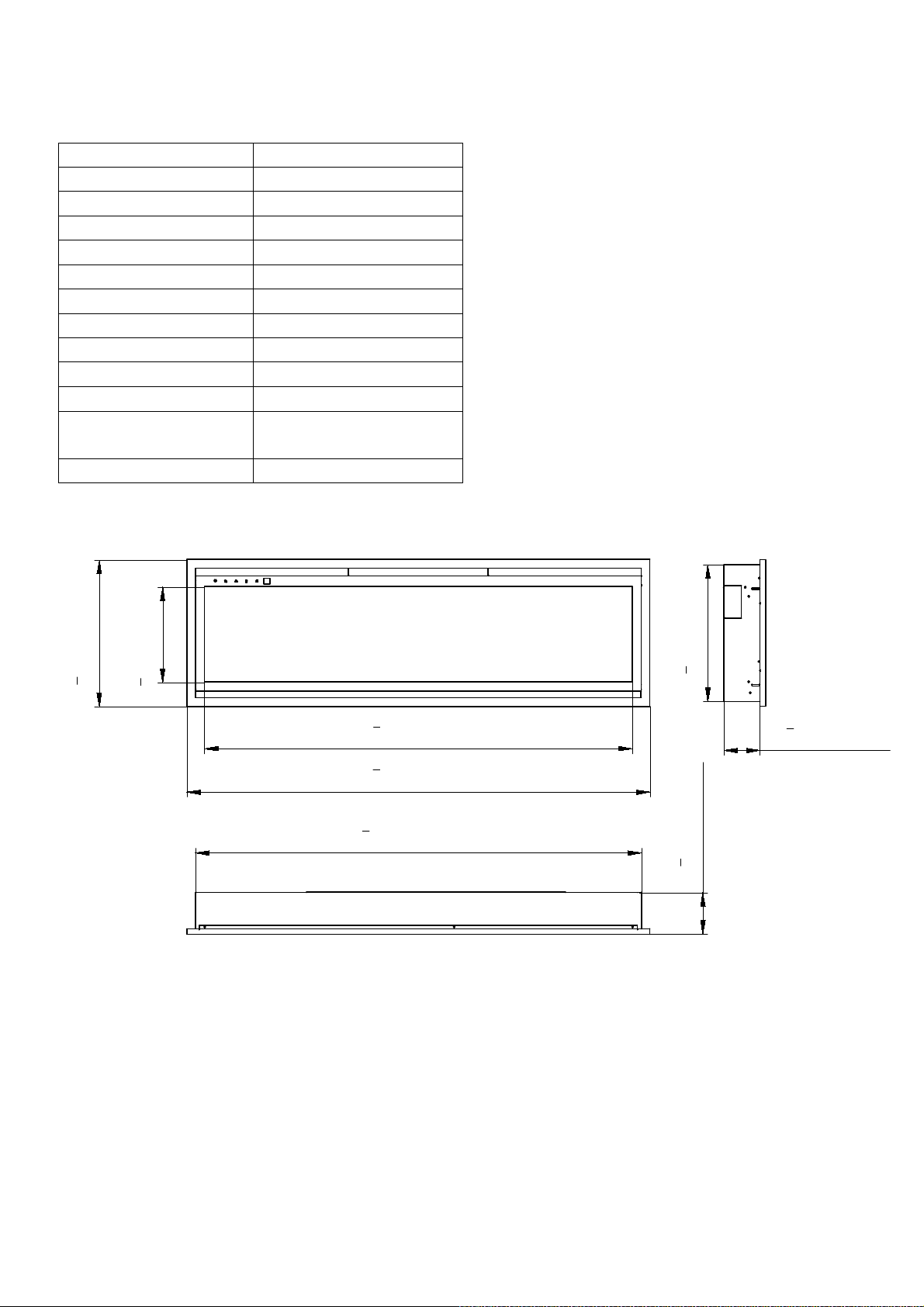

SYM-50-XTRASLIM
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1200W Max
NO HEATER 31W
MOTOR HEATER 19W
Appliance Width 50 1/4” or 127.56 cm
Appliance Height 15 3/8 ” or 39.1 cm
Appliance Depth 4 1/8” or 10.4 cm
Gross Weight 71.21 lbs or 32 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
50 1/2”× 15 5/8“ or
128.27 cm× 39.688 cm
BTU 4095
This appliance has been tested in accordance
with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United
States and Canada. If you need assistance
during installation please contact your local
dealer.
NOTE: This appliance must be electrically
wired and grounded in accordance with local
codes In the absence of local codes, use the
current CSA C22 1 Canadian Electrical Code
in Canada or the ANSI/NFPA 70 National
Electrical Code in the United States
161
2" [418.2mm]
521
8" [1324mm]
10
3
4" [273.5mm]
481
8" [1223mm]
15
3
8" [391mm]
41
8" [104mm]
45
8" [119mm]
501
4" [1275.6mm]

8
SYM-60-XTRASLIM
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1200W Max
NO HEATER 33W
MOTOR HEATER 19W
Appliance Width 60 1/4” or 152.96 cm
Appliance Height 15 5/8 ” or 39.1 cm
Appliance Depth 4 1/8” or 10.4 cm
Gross Weight 83.99 lbs or 38.1 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
60 1/2”× 15 5/8“ or
153.67 cm× 39.688 cm
BTU 4095
This appliance has been tested in accordance
with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United
States and Canada. If you need assistance
during installation please contact your local
dealer.
NOTE: This appliance must be electrically
wired and grounded in accordance with local
codes In the absence of local codes, use the
current CSA C22 1 Canadian Electrical Code
in Canada or the ANSI/NFPA 70 National
Electrical Code in the United States
161
2" [418.2mm]
621
8" [1578mm]
10
3
4" [273.5mm]
581
8" [1477mm]
15
3
8" [391mm]
41
8" [104mm]
45
8" [119mm]
601
4" [1529.6mm]

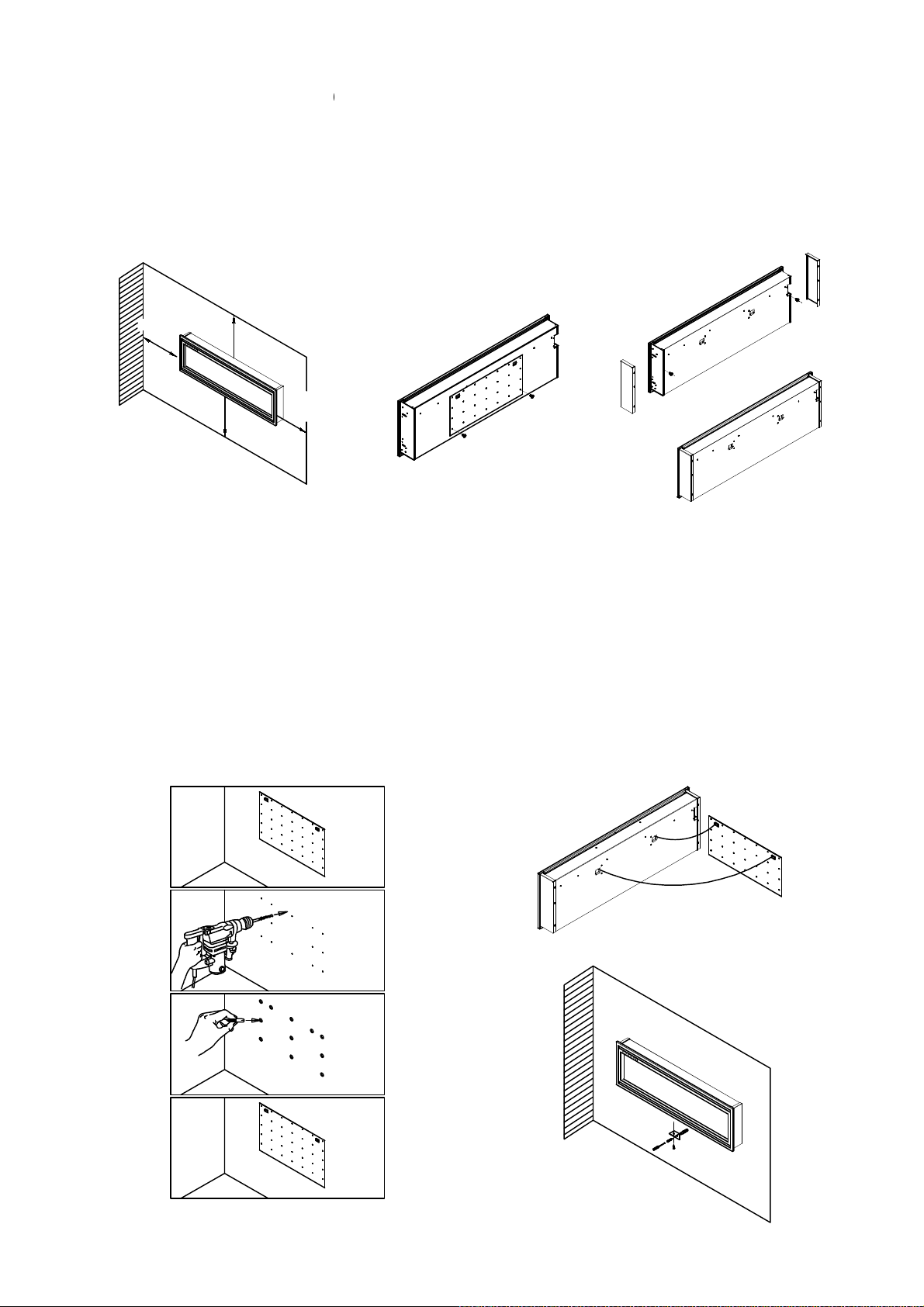

INSTALLATION-
WALL MOUNT
9
WALL MOUNT
NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your
local builder before you install this appliance on a wall.
1. Select a location that is not prone to moisture and is located at least .91 m or 3 feet away from combustible
materials such as curtains or drapes, furniture, bedding, paper, etc.
2. Using a spirit level to select a position in which to mount the heater horizontally. See Figure 1.
3. Check the wall to ensure there is no wiring, pipe wires etc in the area to be drilled. Drill 8 or more holes
depending on the size of the unit purchased, (8mm diameter & 4 mm depth) using a suitable size drill bit and
insert the wall plugs into the holes.
4. Remove the hanger from the fireplace by removing the screws. See Figure 2.
5. Screw the left and right side steel panel to the left and right side to cover the screws. See Figure 3.
Min. 5cm
2 in
Min. 5cm
2 in
Min. 5cm
2 in
FLOOR
Fig 1 Fig 2 Fig 3
Fig 4
Fig 5
Fig 6
6. Fasten the hanger to the wall (See Figure 4.). Hang the fireplace onto the hanger (See Figure 5.).
7. To prevent fireplace from moving, use the provided safety screw to fasten the fireplace to the wall. See Figure 6.
WARNING: Be sure that the bolts have been fixed firmly enough to
withstand the weight!

INSTALLATION- BUILT-
IN
NOTE: Due to the many different m
you consult your local builder before you install this appliance on a wall.
Preparation
1.
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustib
le materials such as curtains drapes furniture bedding paper etc.
2.
Mark the desired location on the floor and store the appliance in a safe dry and dust free
place.
3.
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
le
ast 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
Prior to installing test the appliance to make sure the appliance is fully operational by
plugging t
he power supply cord into a 120 Volt grounded outlet.
The rough wall opening size of the fireplace:
W(“)
SYM-50-XTRASLIM
SYM-60-XTRASLIM
INSTALLATION
1
IN
NOTE: Due to the many different m
aterials used to build walls it is highly recommended that
you consult your local builder before you install t
his appliance on a wall.
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
le materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dust free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
ast 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
Prior to installing test the appliance to make sure the appliance is fully operational by
he power supply cord into a 120 Volt grounded outle
t.
The rough wall opening size of the fireplace:
D(“) H(“)
aterials used to build walls it is highly recommen
ded that
you consult your local builder before you install this appliance on a wall.
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
le materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dust free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
ast 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
Prior to installing test the appliance to make sure the appliance is fully operational by
4 3/8 15 5/8
50 1/2
4 3/8 15 5/8
60 1/2

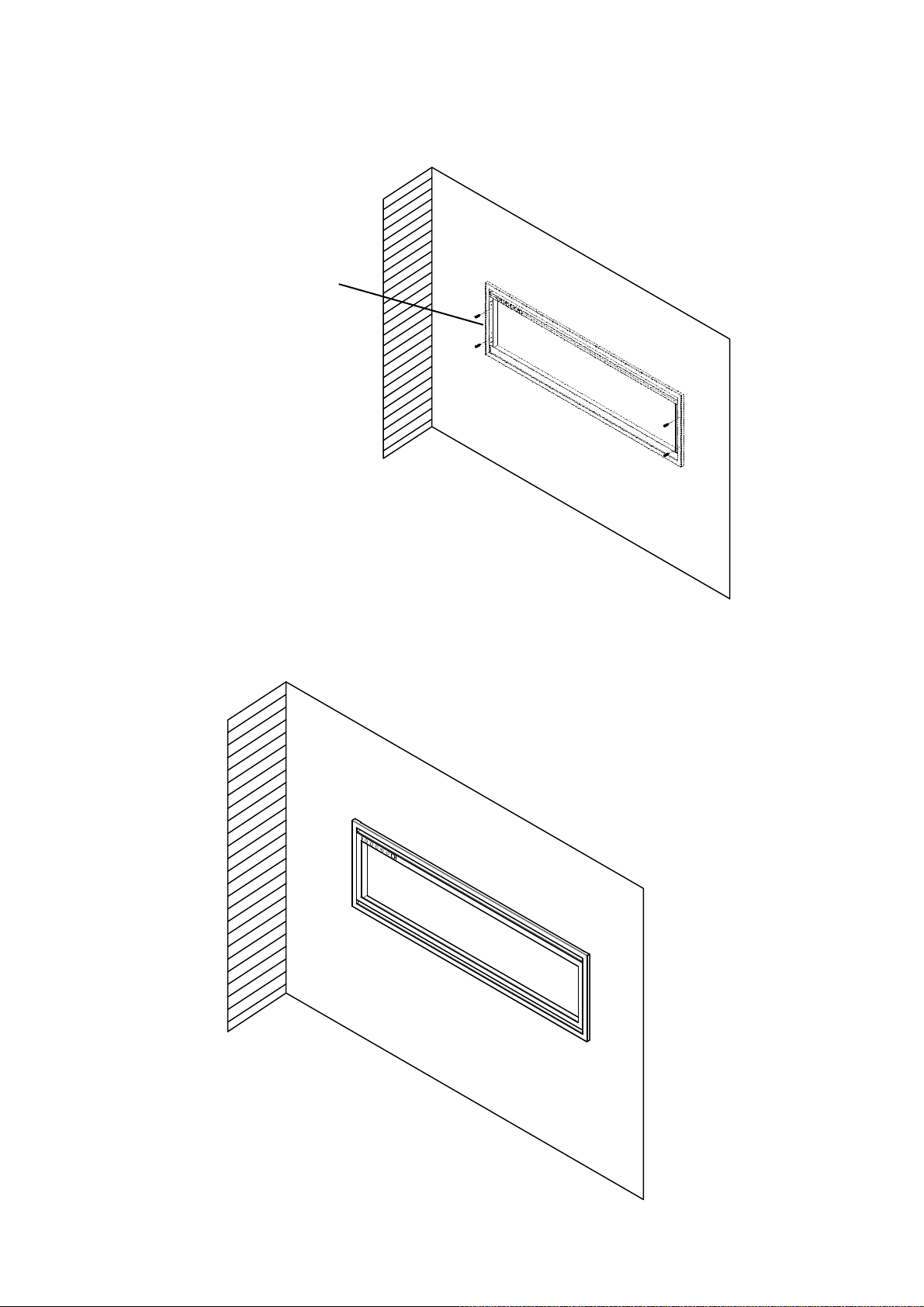

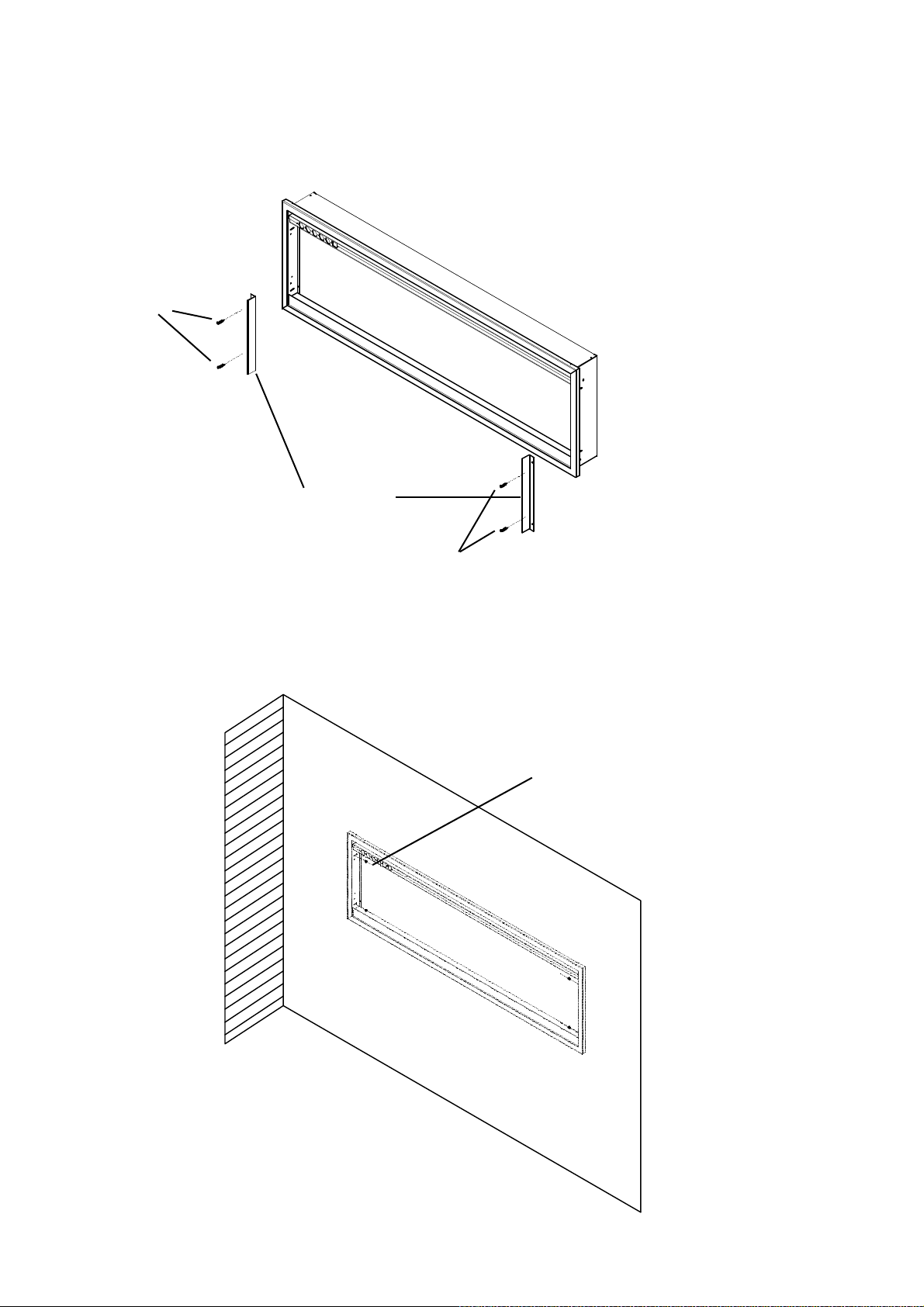

1. Unscrew 1 screw on each left and right side to take off the front glass panel.
Screw
Screw

panel.
off the inner side steel panels.
11
2. Unscrew the 2 screws located on each side and take off the inner side steel panels.
3. Put the fireplace into the wall opening and fix it to be the wall.
inner side steel panels
screws
screws
Screw the appliance onto the wall.

12
4. Screw back the inner side steel panel.
5. Put back the front glass panel after you finish the edia decoration.
Screw back the inner side panel
that you removed at STEP 2.

HARD-
WIRE INSTALLATION
Turn off the appliance completely and let cool before servic
person should service and repair this electric appliance.
If it is necessary to hard-
wire this appliance a qualified electrician must remove the
cord connection and wire the appliance directly to the house hold wiring.
Thi
s appliance must be electrically connected and grounded in accordance with local codes
if hard-
wired. In the absence of local codes use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
CODE in the United States.

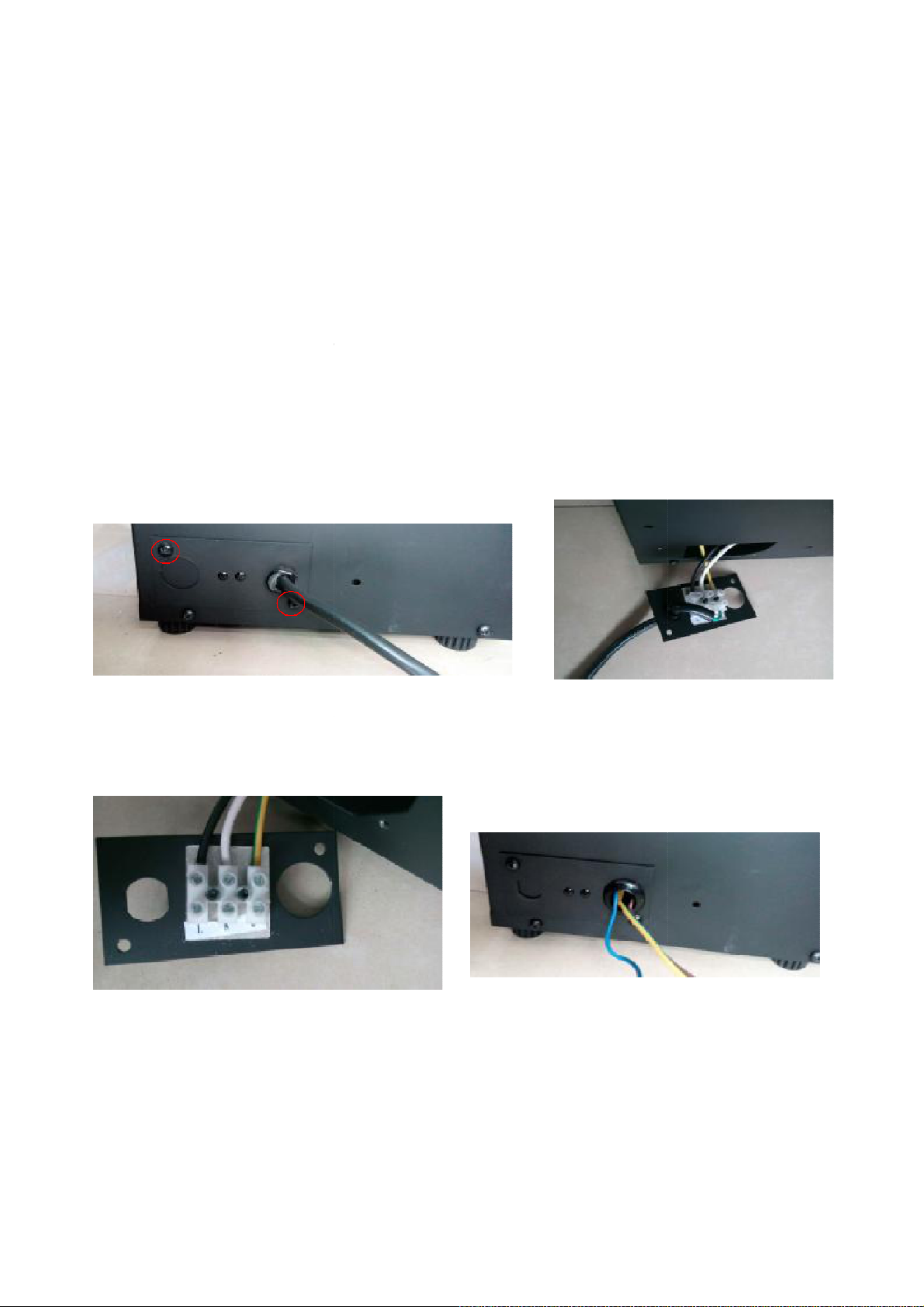

1.
Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
2.
Attach the wiring to the junction block. Please make sure the live wire goes into the “L”,
neutral wire into “N” and the ground wire into “G”.
3.
Return the cover plate to the left side and screw the two screws back in to fasten the plate.
13
WIRE INSTALLATION
Turn off the appliance completely and let cool befo
re servic
ing. Only a qualified
person should service and repair this electric appl
iance.
wire this appliance a qualified electrician must remove the
cord connection and wire the appliance directly to the house hold wiring.
s appliance must be electrically connected and grounded in accordance with local codes
wired. In the absence of local codes use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
Attach the wiring to the junction block. Please make sure the live wire goes into the “L”,
neutral wire into “N” and the ground wire into “G”.
Return the cover plate to the left side and screw the two screws back in to fasten the plate.
ing. Only a qualified
service
wire this appliance a qualified electrician must r
emove the
cord connection and wire the appliance directly to the house hold wiring.
s appliance must be electrically connected and grounded in accordance with local codes
wired. In the absence of local codes use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
Remove the cover plate from the left side of the appliance by removing the two screws
Attach the wiring to the junction block. Please make sure the live wire goes into the “L”,
the
Return the cover plate to the left side and screw the two screws back in to fasten the plate.

MEDIA OPTIONS
DECORATIVE MEDIA INSTALLATION
I
NSTALLING THE DECORATIVE MEDIA

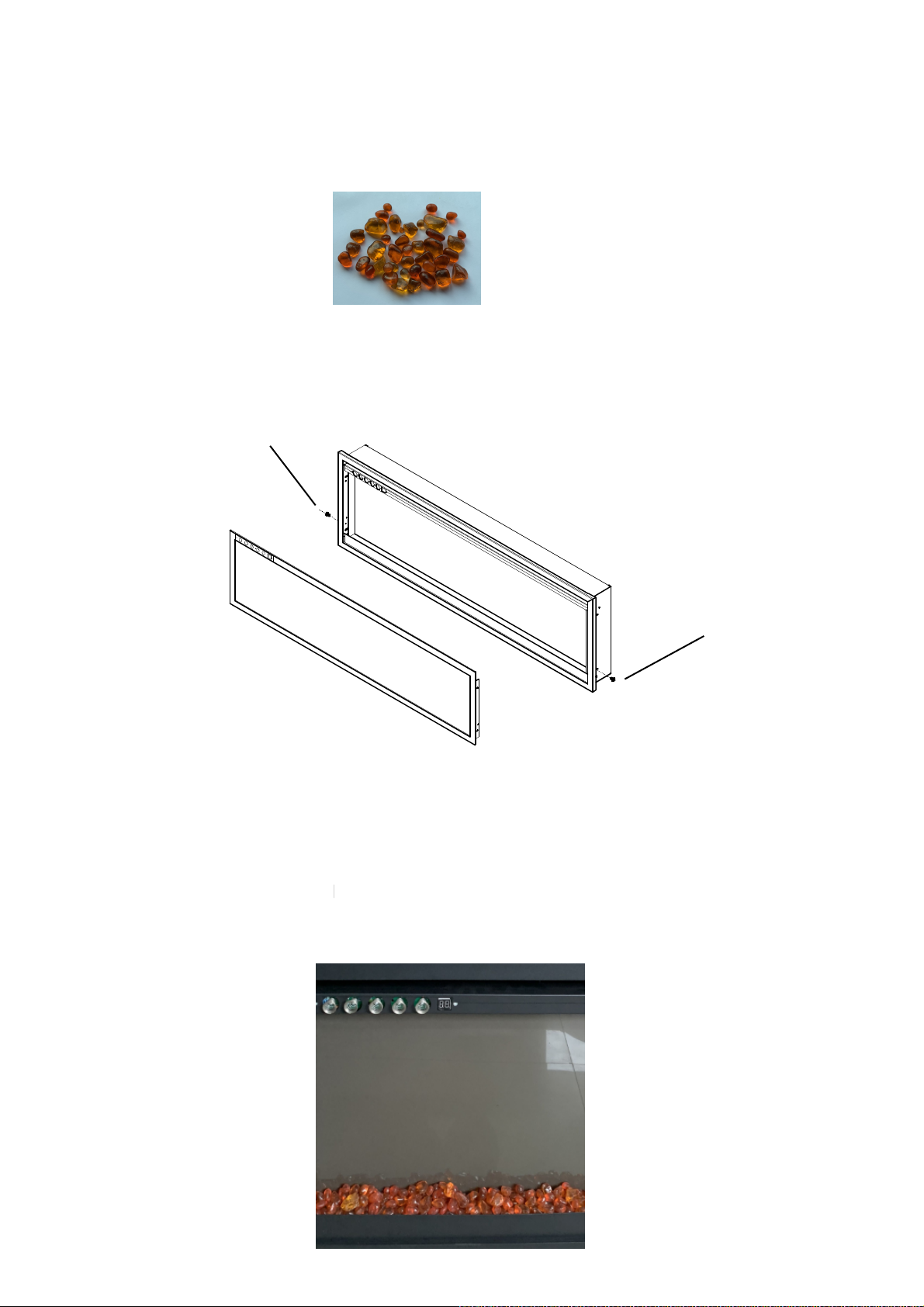

Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
installing the fire glass.
14
DECORATIVE MEDIA INSTALLATION
NSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
Suntea
Unscrew 1 screw on each left and right side to take off the front glass panel.
Screw
Screw
The only edia that co es with this appliance is ‘Suntea’. Consu ers ay purchase
optional decorative edia if they choose. See dealer for ore details.

15
OPERATION
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
SAFETY CUT-OFF

This appliance is fitted with a safety cut
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
reset.
 To reset the
appliance, disconnect the appliance from the main supply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.
Plug the fireplace into a 15 Amp wall socket.
This appliance is fitted with a safety cut
-
off which will operate if the fireplace overheats
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
appliance, disconnect the appliance from the main supply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.
off which will operate if the fireplace overheats
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
appliance, disconnect the appliance from the main s
upply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.

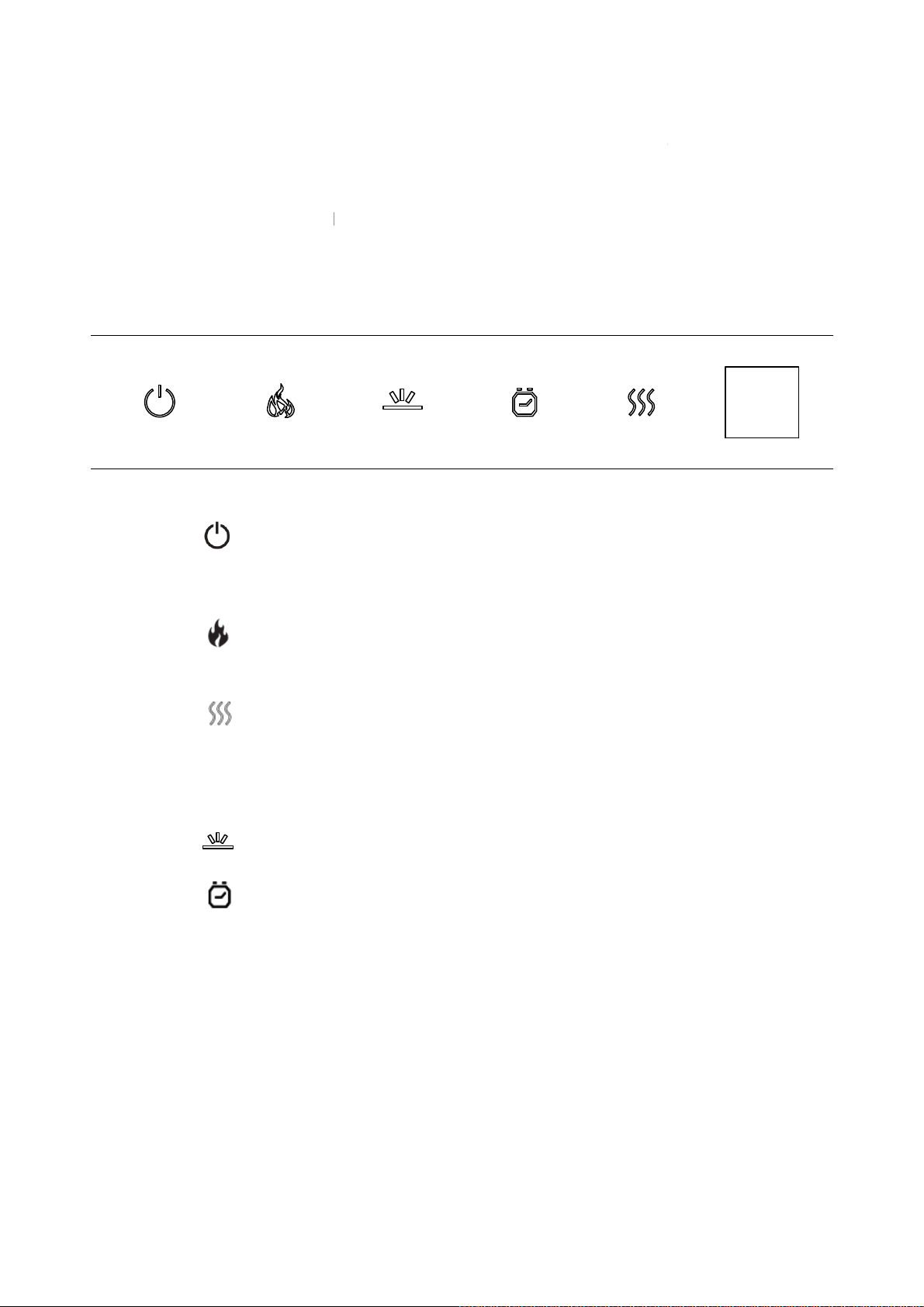

The fireplace can be operated either by the touch panel located on the left front top side of
the fireplace,
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
1. Press “ ”, the fla e light turns on, color yellow, color orange and color red are on
the brightest ode(Y4,O4,R4), the tray light in white (E3), indicating “ON” , heater is
not working. Press gain to turn off the appliance, indicating “OF” on display, the
display will disappear in 5 seconds. It will recall the last setting used on the fireplace
2. Press “ ” to adjust the fla e color, F1 red, orange& yellow, F2 orange, F3 red, F4
yellow, F5 Red & orange, F6 orange & yellow, F7 red & yellow, F0 turns off the fla e
light.
3. Press “ ” once, one setting of heater works, 750W, indicating “H1” on display;
Press again, two setting of heater work, 1500W, indicating “H2”. Press the third ti e,
the heater turns off, indicating “H0” on display. Press this button for 5 seconds,
indicating “LO”, heater is off and the button is locked. Press this button again for 5
seconds, indicating “UL”, heater is still not working but the button is unlocked.
4. Press “ ” to adjust the tray light. E0 eans the tray light turns off. EE eans the
color of tray light cycles through 13 colors with an interval of 1 inute.
5. Press “ ” to set the turn off ti e, 30-1h-2h-3h-4h-5h-6h-7h-8h-00.

16
REMOTE CONTROL OPERATION
1. Press “ ”, the
fla e light
the brightest ode(
Y4,O4,R4
heater is not working. Press
the display will disap
pear
fireplace.
2. Press “D
ISPLAY ON/OFF
display, twice to turn off the fla e light, indicating
setting used on the fireplace.
3. Press “Yellow” to
adjust
Y4-Y3-Y2-Y1-Y0,
and Y0
4. Press “Orange” to
adjust
O4-O3-O2-O1-O0,
and O0
5. Press “Red” to
adjust
R4-R3-R2-R1-R0,
and R0
6. Press” TRAY LIGHT
ON/OFF
disp
lay. Press again to turn off the tray light, indicating
fla e light
turns on
, color yellow, color orange and color red are on
Y4,O4,R4
)
, the tray light in white (E3), indicating
heater is not working. Press
again to turn off the appliance,
indicating
pear
in 5 seconds. It will recall the las
t setting used on the
ISPLAY ON/OFF
”
once to turn on the fla e light, indicating
display, twice to turn off the fla e light, indicat
ing “FO” on
display.
setting used on the fireplace.
adjust
the intensity of the yellow fla e. T
here are 5 setting
and Y0
is when the yellow fla e
has turned off
adjust
the intensity of the orange fla e.
T
and O0
is when the orange fla e
has turned off
adjust
the intensity of the red fla e. T
here are 5 setting
and R0
is when the red fla e has turned off.
ON/OFF
”
, the tray light turns on in color white
lay. Press again to turn off the tray light, indica
ting”E0” on
display.
, color yellow, color orange and color red are on
, the tray light in white (E3), indicating
“ON” on display,
indicating
“OF” on display,
t setting used on the
once to turn on the fla e light, indicating
“FF” on
display.
It will recall the last
here are 5 settings,
has turned off
.
T
here are 5 settings,
has turned off
.
here are 5 setting
s,
, the tray light turns on in color white
, indicating “E3” on
display.
Forremotetofunctionmakesure theheaterispluggedinandmainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingtheremotemakesureyoupointtheremotetothecentreofthefireplaceand make
sure eachtimeyoupressthebuttonthebuzzerinsidetheunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmorethanoncewithintwo
secondsforcorrectoperation.
HEATER ON/OFF
HIGH LOW TEMP.
YELLOW
RED
DISPLAY ON/OFF
ORANGE
FLASHADJUST
TRAY
ON/OFF

10. Press “LOW” when
the heater is on,
display..
11. Press “HIGH” when
the heater is on
display.
12. Press “TEMP” w
hen the heater is on
C-16-19-21-23-25-27-
30;
and Fahrenheit, H0-61-
66
the heater is on,
one setting of heater
works
the heater is on
, two settings
of heater work
hen the heater is on
to set the roo te perature,
30;
Press this button for
5 seconds to switch between Celsius
66
-70-73-77-80-86.
works
, indicating “H1”on
of heater work
, indicating “H2” on
to set the roo te perature,
5 seconds to switch between Celsius
NOTE: In “TEMP” ode, two settings of heater work. When the “HEATER ON/OFF” button is
locked, “HIGH”, “LOW”,”TEMP” can’t use.
7. Press “ADJUST”
, rotates through
8. Press “FLASH”,
the tray light cycles through all 13 colors.
9. Press “HEATER
ON/OFF
“H2” on
display; press again to turn off the heater.
indicating “LO”,
heater is off and the
seconds, indicating “
UL
unlocked. If the heater is
“H1”,”H2” or “TEMP”
to indicate
, rotates through
the 13 colors of tray lighting.
the tray light cycles through all 13 colors.
ON/OFF
” once to turn on the
heater, in H2 setting, 1500W, indicating
display; press again to turn off the heater.
Press this button for
heater is off and the
button is locked. Press this button again for
UL
” on display
, heater is still not working but the button is
unlocked. If the heater is
on
but the fla e and tray light are off,
to indicate
the heater’s working ode.
heater, in H2 setting, 1500W, indicating
Press this button for
5 seconds,
button is locked. Press this button again for
5
, heater is still not working but the button is
but the fla e and tray light are off,
there is display of
17

INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
NOTE: The wall thermostat will be functioning when the heater is on the TEMP setting
Wire the wall thermostat prior to installing the fir
WALL THERMOSTAT WIRING(24 VAC)
Install Wall Thermostat per instructions provided with kit and per the following
information:
1. Turn off circuit breaker.
2.
Remove cover plate located on the rear upper left side of the appliance.
3. Pull the wire ou
t and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided with wall seitch kit.
18
INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
NOTE: The wall thermostat will be functioning when the heater is on the TEMP setting
Wire the wall thermostat prior to installing the fir
eplace
WALL THERMOSTAT WIRING(24 VAC)
Install Wall Thermostat per instructions provided with kit and per the following
Remove cover plate located on the rear upper left side of the appliance.
t and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided wi
th wall seitch kit.
NOTE: The wall thermostat will be functioning when the heater is on the TEMP setting
Install Wall Thermostat per instructions provided with kit and per the following
Remove cover plate located on the rear upper left side of the appliance.
t and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided with wall seitch kit.

19
REPLACEMENT PARTS
NO
PART NUMBER
DESCRIPTION QTY
SYM-50-XTRASLIM SYM-60-XTRASLIM
1 3237503 3239503 TRIM 1
2 3237507 3239507 FRONT GLASS
ASSEMBLY 1
3 107022372 107022392 TRAY GLASS 1
4 107022371 107022391 BACK GLASS 1
5 601144 FLAME LED STRIP 4/5
6 10101225 FLAME MOTOR 1
7 3237505 3239505 FLICKER ASSEMBLY 1
8 601105F CIRCUIT BOARD 1
9 3236010 RIGHT OUT SIDE
COVER 1
10 10114001B TEMPERATURE
SENCOR 1
11 601300M-2 TOUCH PANEL 1
12 602130C BLOWER AND HEATER
ASSEMBLY 1
13 3236007 HANGER 1
14 3236009 LEFT OUT SIDE
COVER 1
15 3001506B SIGNAL RECEIVER 1
16 10125026 10125024 TRAY LIGHT 1
17 10105063C Re ote control 1
NOTE: Re ote control and tray light are not shown at the exploded view.

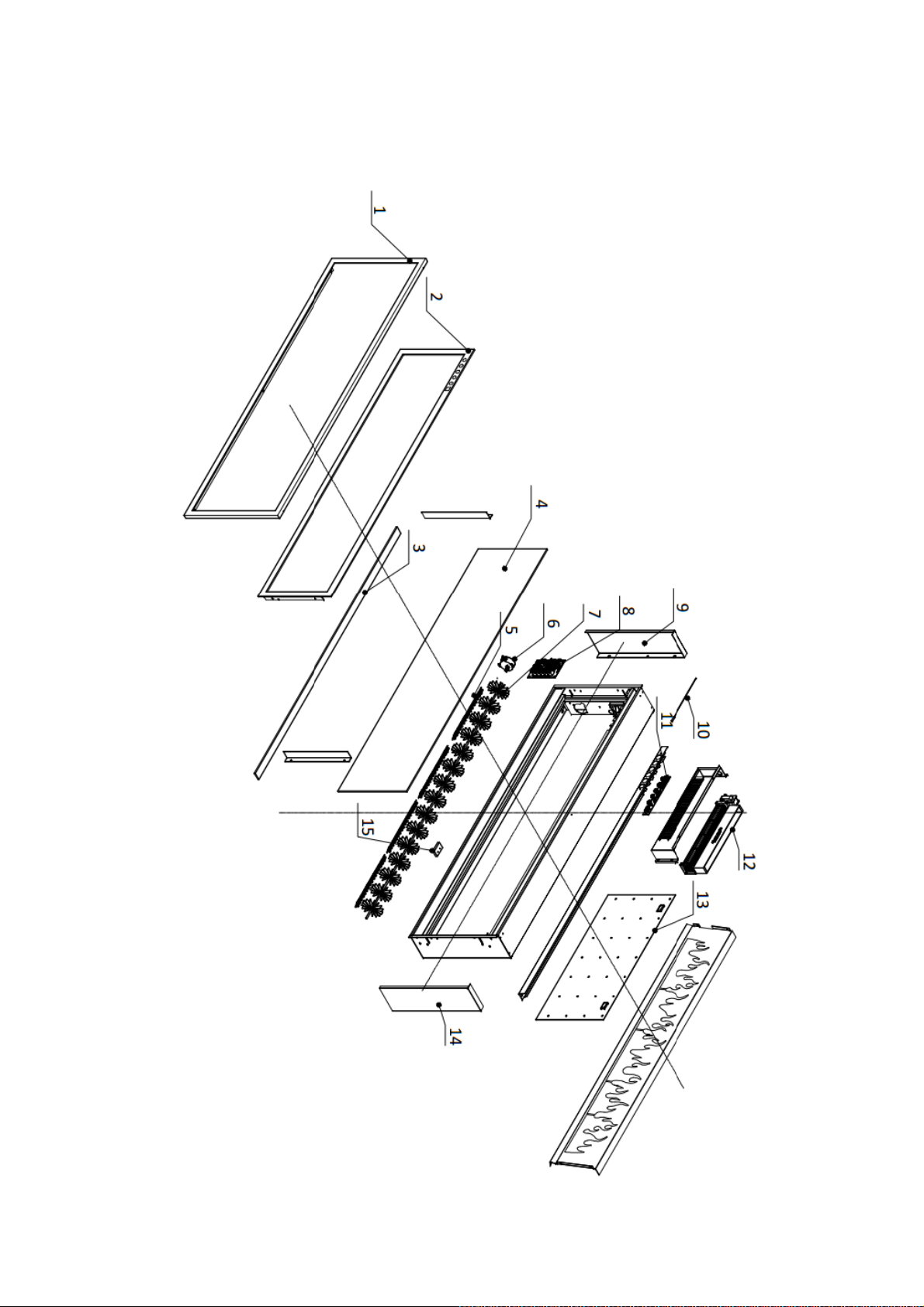

EXPLODED VIEW
2
