Amantii TRD-26 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE OWNER’S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
SAFETY INFORMATION
WARNING
Fo you safety, always comply with all
wa nings and safety inst uctions
contained in this manual to p event
pe sonal inju y o p ope ty damage.
Do not store or use gasoline or other flammable vapors
and li uids in the vicinity of this appliance.
TRD-26
TRD-30
TRD-33
TRD-38
TRD-44
TRD-48

2
Please read and carefully follow all of the instruction found in this manual. Please pay special
attention to the safety instructions provided in this manual. The instructions included here will
assure that you have many years of dependable and enjoyable service from your Amantii product.
Table of Contents
IMPORTANT INSTRUCTIONS ............................................................................................................................. 3
UNPACKING AND TESTING APPLIANCE ........................................................................................................ 4
GROUNDING APPLIANCE ................................................................................................................................... 4
CHOOSING FIREPLACE LOCATION .................................................................................................................. 4
................. 5
................. 6
.................
................. 8
................. 9
...............10
INSTALLATION BUILT-IN .................................................................................................................................11

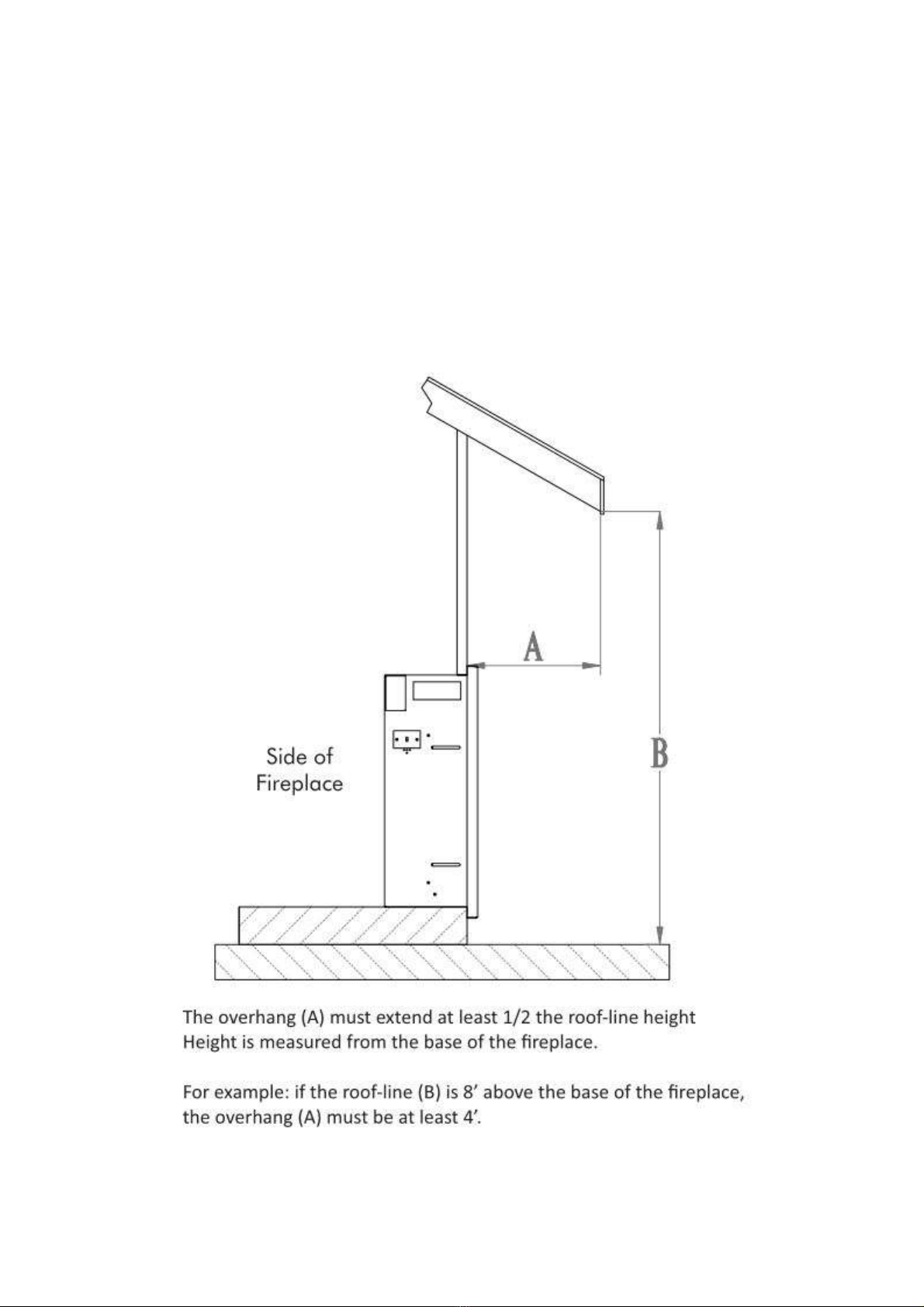

INSTALLATION OUTDOOR ............................................................................................................................... 12

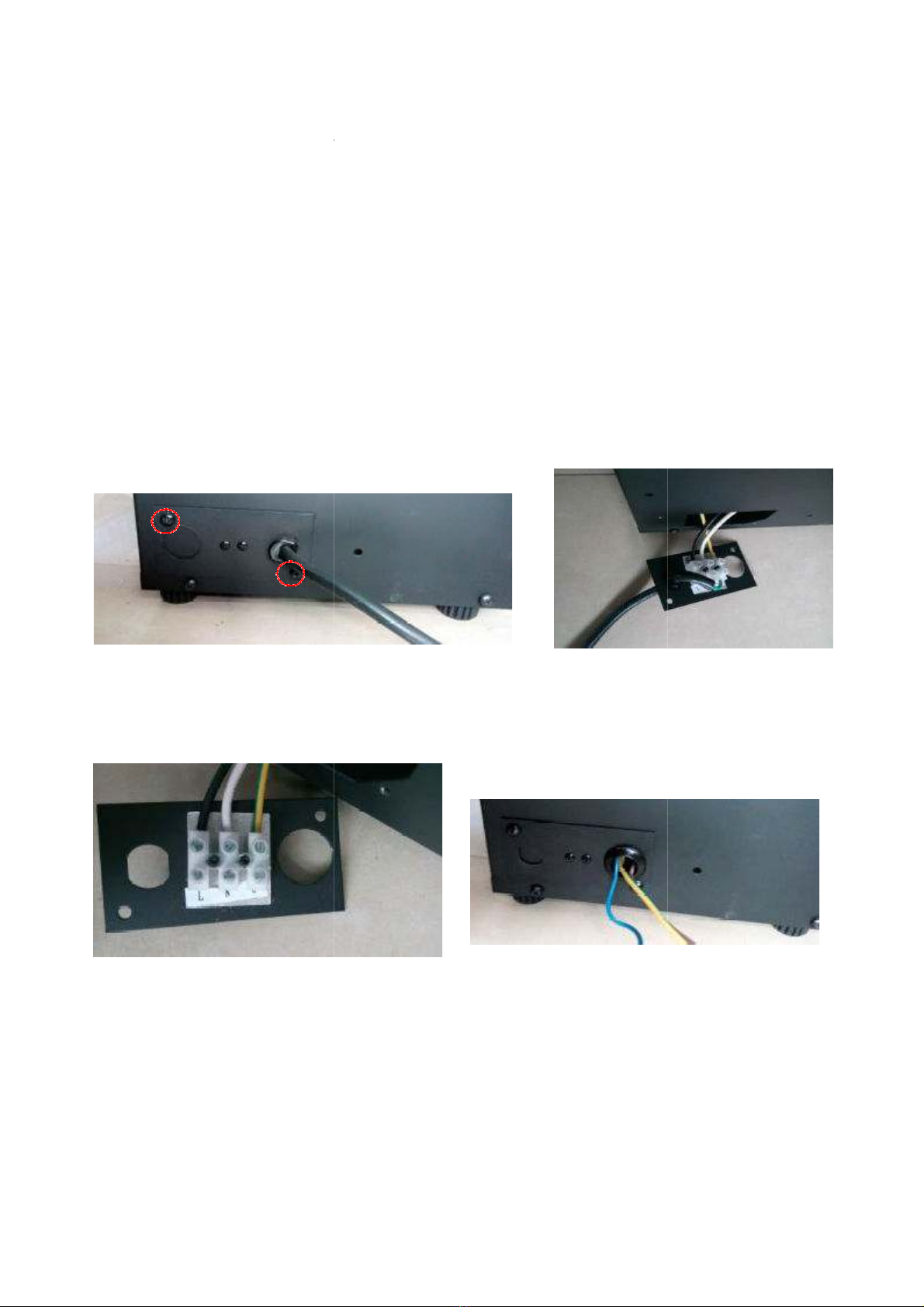

HARD- WIRE INSTALLATION .......................................................................................................................... 16

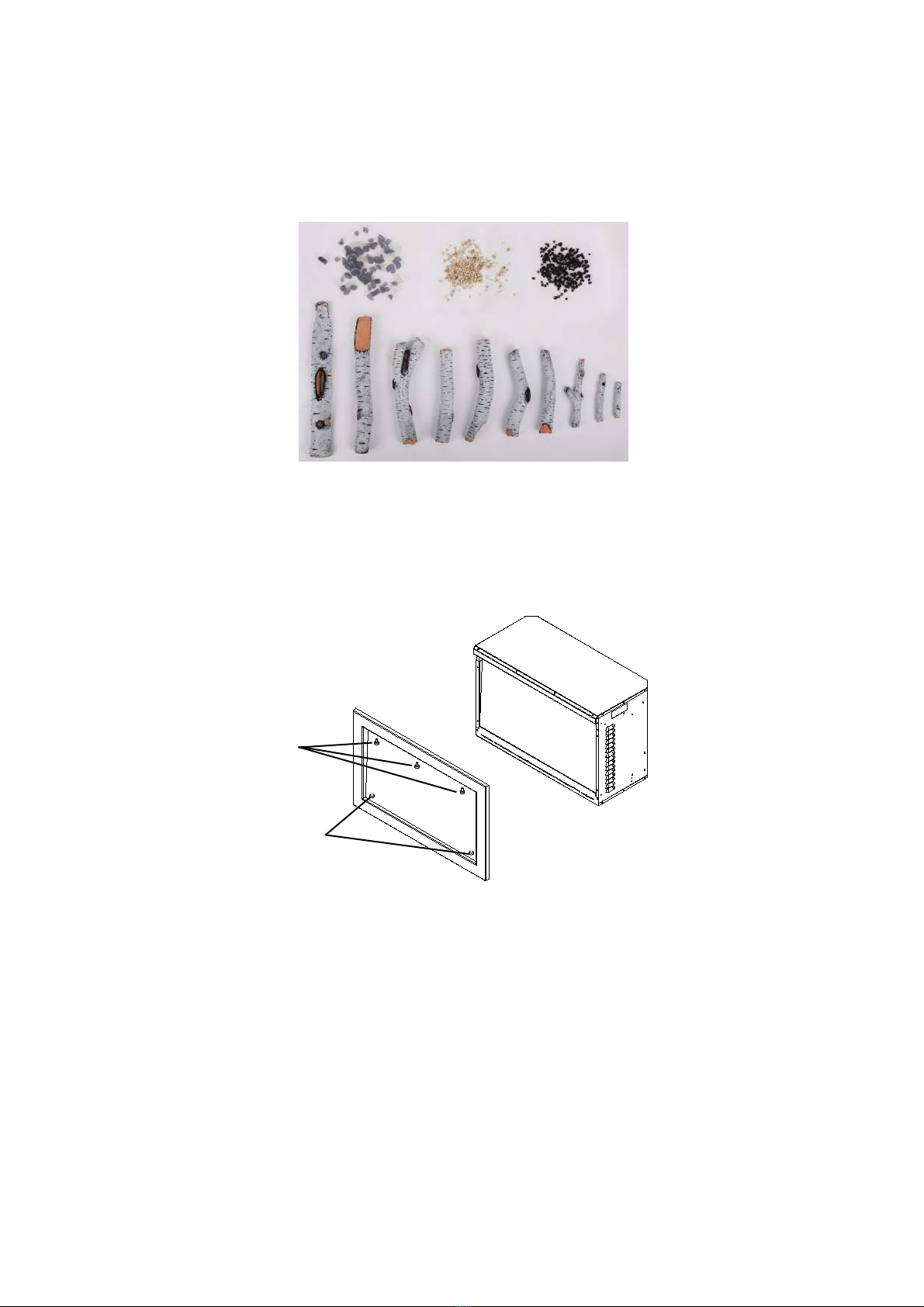

MEDIA OPTIONS ................................................................................................................................................. 1
OPERATION .........................................................................................................................................................18
MANUAL OPERATION .......................................................................................................................................18
REMOTE CONTROL OPERATION ....................................................................................................................19
INSTALLING WALL THERMOSTAT ................................................................................................................ 20
REPLACEMENT PARTS ......................................................................................................................................21
EXPLODED VIEW ................................................................................................................................................ 23
TROUBLESHOOTING ......................................................................................................................................... 24
SERVICE HISTORY ............................................................................................................................................. 25
WARRANTY ......................................................................................................................................................... 26
TRD-26 ....................................................................................................................................................
TRD-30 ....................................................................................................................................................
TRD-33 ....................................................................................................................................................
TRD-38 ....................................................................................................................................................
TRD-44 ....................................................................................................................................................
TRD-48 ....................................................................................................................................................

3
IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.

4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a conveniently located 120 olt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components operate correctly.
As with most electronic devices, your electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
GROUNDING APPLIANCE
This appliance is for use on 120 volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
CHOOSING A LOCATION FOR THE FIREPLACE
Plan where to place and frame the fireplace. Before installation consider the following:
1. The location of the fireplace must allow for wall and ceiling clearances.
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 olt, 60 Hz branch circuit with proper ground must be available at the
location. A dedicated branch circuit should be provided to avoid circuit breakers to trip or
fuses to blow.
NOTE: There may be trace odor during the irst ew minutes o initial use. This is
harmless, normal, and will never occur again.

55
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.

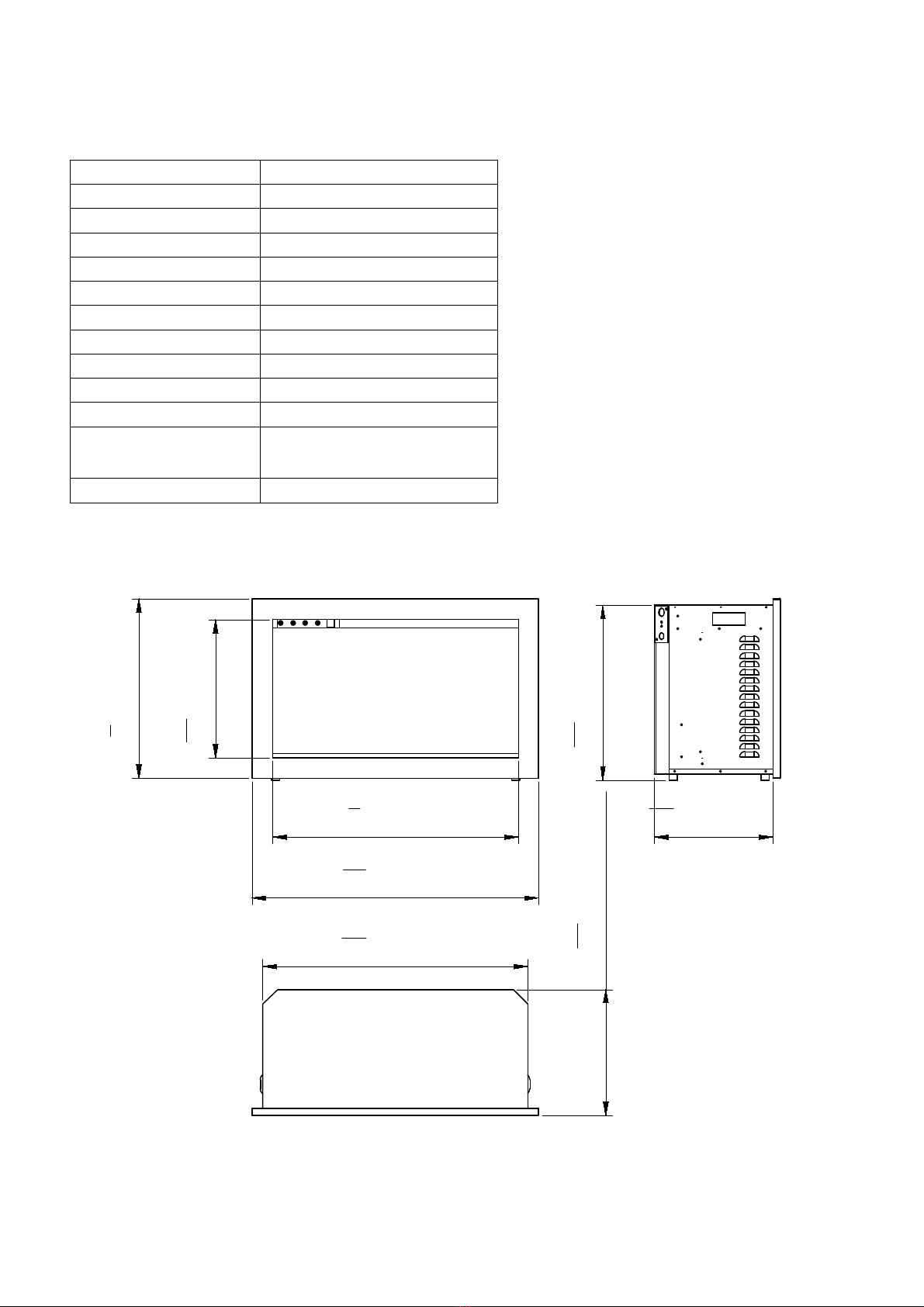

Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
MOTOR HEATER 19W
Appliance Width 25 9/32" or 64.2 cm
Appliance Height 16 23/32" or 42.5 cm
Appliance Depth 11 11/32" or 28.78 cm
Gross Weight 57.5 lbs or 26.1 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
TRD - 26
BTU 4095
Size
26 1/4" x 16 27/32"
66.74 cm x 42.78 cm
Watts 1200W Max
NO HEATER 22W
27 5
16" [694mm]
233
8" [594mm]
171
8" [435mm]
13 3
16" [335mm]
1623
32" [425mm]
1111
32" [287.8mm]
25 9
32" [642mm]
12 1
32" [305.8mm]

6
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.

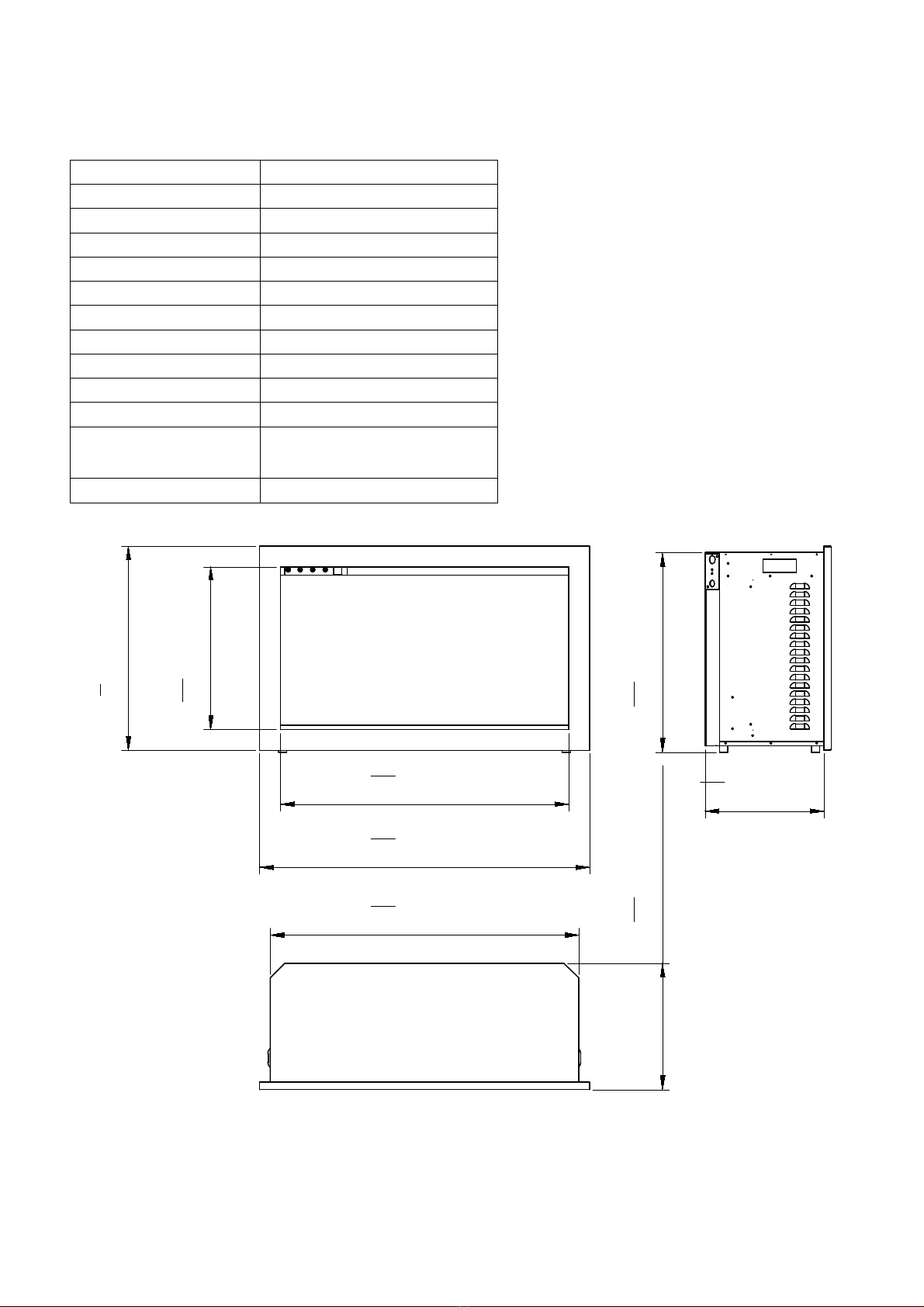

TRD - 30
Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
Watts 1200W Max
MOTOR HEATER 19W
Appliance Width 29 13/32" or 74.7 cm
Appliance Height 19 3/32" or 48.5 cm
Appliance Depth 11 11/32" or 28.78 cm
Gross Weight 68.6 lbs or 31.1 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU 4095
Size
30 3/8" x 19 7/32"
77.24 cm x 48.81 cm
NO HEATER 22W
3115
32" [799mm]
191
2" [495mm]
15 9
16" [395mm]
2717
32" [699mm] 1111
32" [287.8mm]
19 3
32" [485mm]
2913
32" [747mm]
12 1
32" [305.8mm]

This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.
TRD - 33
Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
Watts 1200W Max
MOTOR HEATER 19W
Appliance Width 31 25/32" or 80.74 cm
Appliance Height 22 1/4" or 56.5 cm
Appliance Depth 11 3/8" or 28.8 cm
Gross Weight 78 lbs or 35.4 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU 4095
Size
32 3/4" x 22 3/8"
83.24 cm x 56.83 cm
NO HEATER 22W
3327
32" [859.4mm]
225
8" [575mm]
1811
16" [475mm]
2929
32" [759.4mm]
3125
32" [807.4mm]
1111
32" [287.8mm]
221
4" [565mm]
12 1
32" [305.8mm]

8
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.

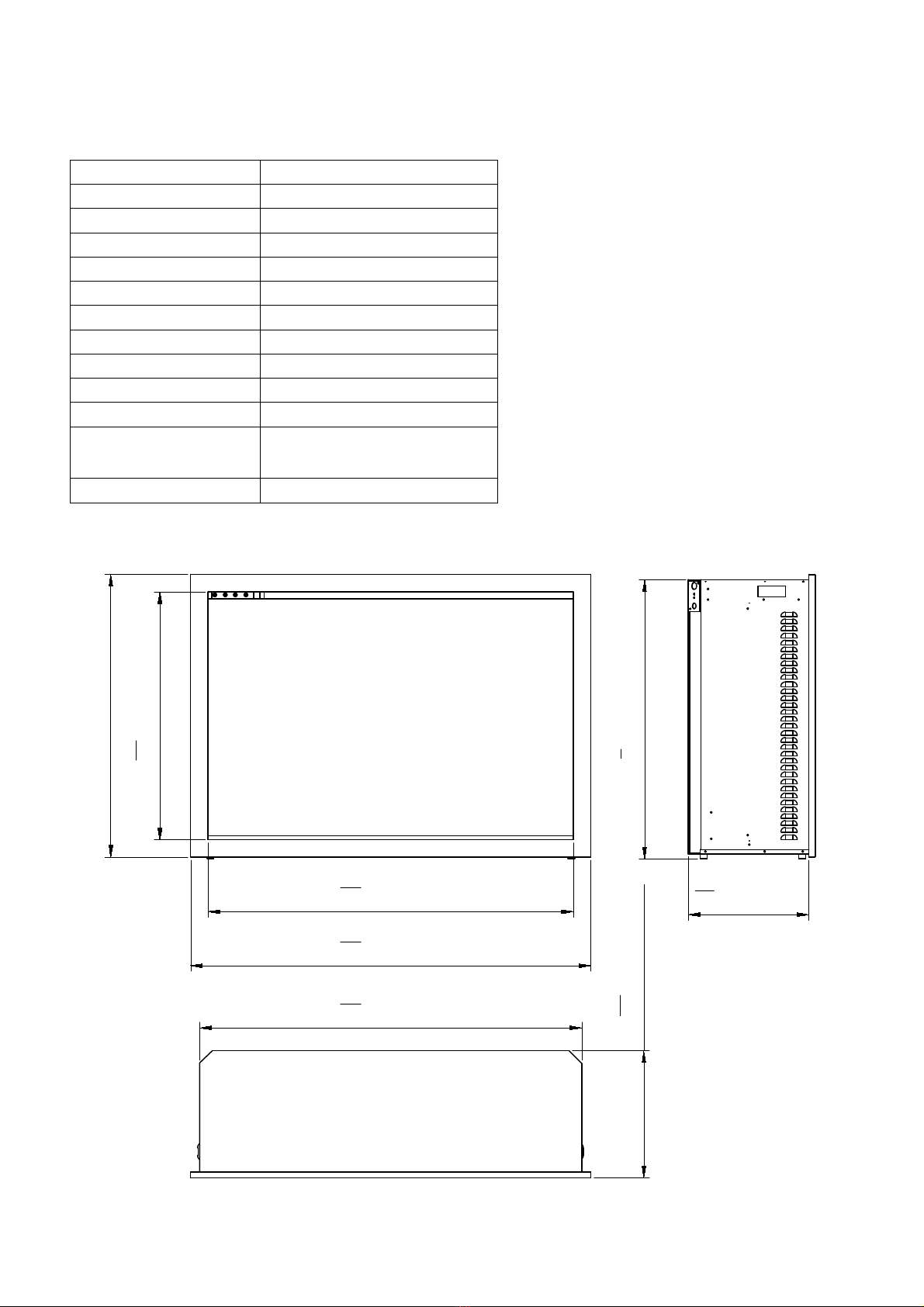

TRD - 38
Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
Watts 1200W Max
MOTOR HEATER 19W
Appliance Width 37 5/32" or 94.4 cm
Appliance Height 27 7/32" or 69.1 cm
Appliance Depth 12 5/16" or 31.28 cm
Gross Weight 101.4 lbs or 46 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU 4095
Size
38 1/8" x 27 11/32"
96.94 cm x 69.45 cm
NO HEATER 22W
27 7
32" [691mm]
39 7
32" [996mm]
35 9
32" [896mm]
2719
32" [701mm]
2321
32" [601mm]
12 5
16" [312.8mm]
37 5
32" [944mm]
13 1
32" [330.8mm]

9
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.
TRD - 44
Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
Watts 1200W Max
MOTOR HEATER 19W
Appliance Width 43 7/32" or 109.8 cm
Appliance Height 31 5/8" or 80.3 cm
Appliance Depth 13 11/16" or 34.78 cm
Gross Weight 133.8 lbs or 60.7 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU 4095
Size
44 1/4" x 31 3/4"
112.34 cm x 80.65 cm
NO HEATER 22W
32" [813mm]
28 1
16" [713mm]
45 9
32" [1150mm]
4111
32" [1050mm] 1311
16" [347.8mm]
315
8" [803mm]
43 7
32" [1098mm]
1413
32" [365.8mm]

10
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: Th s appl ance must be
electr cally w red and grounded n
accordance w th local codes. In the
absence of local codes, use the
current CSA C22.1 Canad an Electr cal
Code n Canada or the ANSI/NFPA 70
Nat onal Electr cal Code n the Un ted
States.
TRD - 48
Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
Watts 1200W Max
NO HEATER 22W
MOTOR HEATER 19W
Appliance Width 47 1/4" or 120 cm
Appliance Height 41 5/8" or 105.7 cm
Appliance Depth 13 11/16" or 34.78 cm
Gross Weight 170.4 lbs or 77.3 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU 4095
Size
48 1/4" x 41 3/4"
122.54 cm x 106.05 cm
42" [1067mm]
38 1
16" [967mm]
49 9
32" [1252mm]
4511
32" [1152mm] 1311
16" [347.8mm]
415
8" [1057mm]
471
4" [1200mm]
1413
32" [365.8mm]

11
OUTDOOR INSTALLATIONS
The TRD series electric fireplaces are suitable for installation in outdoor areas protected from
direct water impingement. In addition to maintaining the listed mantel and combustibles
clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each
side of the installed appliance. See illustration below. All wiring connections to line power shall
be in accordance with local building code requirements. Inquires about local codes and
regulations must be done prior to installation.

INSTALLATION- BUILT-IN
NOTE: Due to the many different m
you consult your local builder befor
Preparation
1.
Select a location that is not pro
from combustible materials suc
2.
Mark the desired location on th
place.
3.
Prepare a wall with a framed o
1/4” (6mm) around the edge of
with local and national codes an
Prior to installing, test the appliance
plugging the power supply cord into
INSTALLATION
1. Unscrew 4 screws and t
ake off t
down automatically when the tri
12
rent materials used to build walls, it is highly
re
before you install t
his appliance on a wall.
ot prone to moisture and is located at least 0.9
ls such as curtains, drapes, fur
niture, bedding,
on the floor and store the appliance in a safe,
med opening to accommodate the size of your
dge of the appl
iance. Any new wiring must be
des and other applicable
regulations.
liance to make sure the appliance is fully oper
rd into a 120 olt grou
nded outlet.
e off the trim. (NOTE: Keep hold of the front gl
the trim is removed.)
recommended that
st 0.91m or 3 feet away
dding, paper, etc.
safe, dry and dust free
f your unit. Leave at least
ust be done in compliance
operational by
ront gla
ss as it may fall
Screws locations
Magnetic stones locations
The rough wall opening size of the
of the fireplace:
Fireplace removal should be a simple process. The reason for removal of a fireplace
may vary and include changing the PCB, heater and fan.
NOTE:
Take note of the air intake vent located at the bottom and behind the front trim.
W(“)
D(
TRD-26 26 1/4
TRD-30 30 3/8
TRD-33 32 3/4
TRD-38 38 1/8
TRD-44 44 1/4 14 3/4
TRD-48 48 1/4 14 3/4
D(“)
H(“)
12 3/8 16 27/32
12 3/8 19 7/32
12 3/8 22 3/8
13 3/8 27 11/32
31 3/4
41 3/4

2.
When the trim is removed, take
13
, take off the front glass
panel.
Inner side panels
3. Unscrew the
screws located on
ed on each
side and take off the inner side stee
e steel panels.

4.
Put the trim back onto the applia
sure that the fireplace fits the wa
wall after installation)
5.
Put the fireplace into the wall op
14
appliance and fasten with screws.(NOTE: This
the wall opening well and there is no gap betw
all opening and fix it to the wall by screwing 2
: This step is to make
between the trim and the
ing 2 screws each side.
Screw the appliance onto the wall

6.
Remove the trim following STEP
7. Put back the front glass pan
el a
15
STEP 1. Screw back the inner side steel pane
el and screw back the trim after you finish th
l panels.
ish the med
ia decoration.

16
HARD- WIRE INSTALLATION
Turn off the appliance completely a
should service and repair this electr
If it is necessary to hard wire this ap
and w
ire the appliance directly to t
This appliance must be electrically
wired. In the absence of local cod
Canada or t
he current ANSI/NFPA 7
1.
Remove the cover plate from t
shown below.
Unscrew and rem
2. Attach
the wiring to the junctio
neutral wire into "N" and the g
3. Replace the steel plate
and scre
ely and let cool before servicing. Only a ualified
lectric appliance.
is appliance, a ualified electrician must remove
ire the appliance directly to the household wiring
.
ally connected and grounded in accordance wi
l codes, use the current CSA C22.1 CANADIAN
PA 70 NATIONAL ELECTRICAL CODE in the United
m the left side of the appliance by removing the
remove power
cord.
ction block. Pl
ease make
sure the live wire goes
he ground wire into
"G".
screws
.
ified
technician
ualified electrician must remove the cord connection
e with local codes, if hard
IAN ELECTRICAL CODE in
ited States.
the two screws, as
oes into the "L", the

1
MEDIA OPTIONS
FIREGLASS
10-PIECE BIRCH LOG SET
MEDIA INSTALLATION
Unscrew 4 screws and take off the trim. (NOTE: Keep hold of the front glass as it may fall
down automatically when the trim is removed.)
INSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
installing the fire glass.
Screws locations
Magnetic stones locations
Your fireplace ships with a 10 piece Birch Log Set, Charcoal Grey Real Fireglass, one (1)
bag of Black ermiculite and one (1) bag of White ermiculite.
CHARCOAL GREY REAL VERMICULITE

OPERATION
Plug the fireplace into a 15 Amp
MANUAL OPERATION
1.
Press “ ” to turn on and o
2.
Press “ ” multiple times t
3.
Press “ ” multiple times t
8h, or off.
4.
Press “ ” multiple time
20℃(68℉), 21℃(70℉
), 22
27℃(81℉), 28℃(83℉
), ON
5.
Keep and hold “ ” for 5 s
SAFETY CUT-OFF

This appliance is fitted with
(e.g. Due to blocked air ven
reset.
 To reset the
appliance, disc
minutes. Reconnect the
18
Amp wall socket.
and off
the appliance.
imes to adjust between mid, low, on/off, or high
imes to set operating duration to 30 min, 1h, 2h
e times to
set ambient temperatures at 18
℃
), 22
℃(72℉), 23℃(73℉), 24℃(75℉), 25
℃
), ON or OFF. When setting the temperature, th
for 5 seconds
to sw
itch between Celsius and F
with a safety cut
-
off which will operate if the
ir vents). For safety reasons, the fireplace will
, disconnect the appliance from the main su
the supply to the main and switch o
or high brightness options.
1h, 2h, 3h, 4h, 5h, 6h, 7h,
℃
(64℉), 19℃(66℉),
℃
(77℉), 26℃(79℉),
ture, the num
ber will flash.
and Fahrenheit.
if the fireplace overheats
ce will NOT automatically
in s
upply for at least 10
tch on the appliance.
The fireplace can be operated ei
the fireplace,
or by supplied remo
ted either by the touch panel located on the lef
d remote control.
the left front top side of

19
REMOTE CONTROL OPERATION
For remote to function make sure the heater is plugged in
and the main power switch located on the bottom left hand
side is at position I.
Important: When operating the remote make sure you point
the remote to the center of the fireplace each time you press
the button. There will be a beep tone emitted. There can be a
slight delay for the receiver to respond to the transmitter. Do
not PRESS the buttons more than once within two seconds
for correct operation.
Power on
The power-on button at top left corner of the remote
is the mains ON/OFF power button. This will turn off
all the functions and the fireplace will be in standby
mode.
DISPLAY ON/OFF
Turns the fireplace flame and tray light ON/OFF. It
will recall the last settings used on the fireplace.
BLUE
Each click adjusts the intensity of the blue flame. Use
alone or in addition to yellow and/or orange.
YELLOW
Each click adjusts the intensity of the yellow flame.
Use alone or in addition to blue and/or orange.
ORANGE
Each click adjusts the intensity of the orange flame.
Use alone or in addition to yellow and/or blue.
MOOD LIGHT
ON/OFF
Turns the ambient canopy lighting ON/OFF
ADJUST
Rotates through the 13 colors of the ambient canopy
lighting.
FLASH
Turns the mood light into flash mode, this cycles
through all 13 mood light colors.
HEATER ON/OFF
Turns the heater ON/OFF. It will recall the last
settings used on the fireplace.
HIGH
Press the high button to switch the heater to high
heat setting 1000W
LOW
Press the low button to switch the heater to low heat
setting 500W
TEMP
Each click adjusts the temperature range from 18°C -
28°C (64°F - 83°F). Once the desired temperature is
chosen, the fireplace will maintain the temperature +/-
2°C

20
INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
W re the wall thermostat pr or to nstall ng the f replace.
WALL THERMOSTAT WIRING (24 VAC)
Install Wall Thermostat per nstruct ons prov ded w th k t and per the follow ng nformat on:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat as
shown below. Follow instructions provided with wall switch kit.
