Amantii INS-FM-30 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR ZERO
CLEARANCE AND INSERT UNITS
INS-FM-30
INS-FM-34
SAFETY INFORMATION
WARNING
If the info mation in these
inst uctions a e not followed exactly,
a fi e o explosion may esult causing
p ope ty damage, pe sonal inju y o
loss of life.
Do not store or use gasoline or other flammable
vapors and li uids in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

2
TABLE OF CONTENTS
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................4
GROUNDINGAPPLIANCE.........................................................................................................................................4
LOCATINGTHEFIREPLACE.....................................................................................................................................4
INS-FM-34.....................................................................................................................................................................6
INSTALLATION BUILT IN..........................................................................................................................................7
HARD-WIRE INSTALLATION...................................................................................................................................8
MEDIAOPTIONS..........................................................................................................................................................9
DECORATIVEMEDIAINSTALLATION.....................................................................................................................9
OPERATION................................................................................................................................................................10
MANUALOPERATION..............................................................................................................................................10
REMOTE CONTROLOPERATION...........................................................................................................................11
INSTALLING WALLTHERMOSTAT........................................................................................................................12
REPLACEMENTPARTS............................................................................................................................................13
EXPLODEDVIEW......................................................................................................................................................14
TRUBLESHOOTING.................................................................................................................................................15
SERVICE HISTORY....................................................................................................................................................16
WARRANTY...............................................................................................................................................................17
INS-FM-30.....................................................................................................................................................................5
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.

3
IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.

UNPACKINGAND TESTINGAPPLIANCE
GROUNDINGAPPLIANCE
Thisapplianceisforuseon 120Volts.Thecordhasaplugasshownin(A).Anadapteras
shownin(C)isavailableforconnectingthree-bladegroundingtypeplugstotwo-slot
receptacles.The greengrounding lug extending fromthe adaptermustbe connected toa
permanentgroundsuchasaproperlygroundedoutletbox.The adaptershouldnot be used if
athree-slot grounded receptacleisavailable.
Todisconnectappliance, turncontrolstooff, then remove plug from outlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmust allowforwall andceiling clearances
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
3. A15 ampere,120 Volt, 60 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
4

5

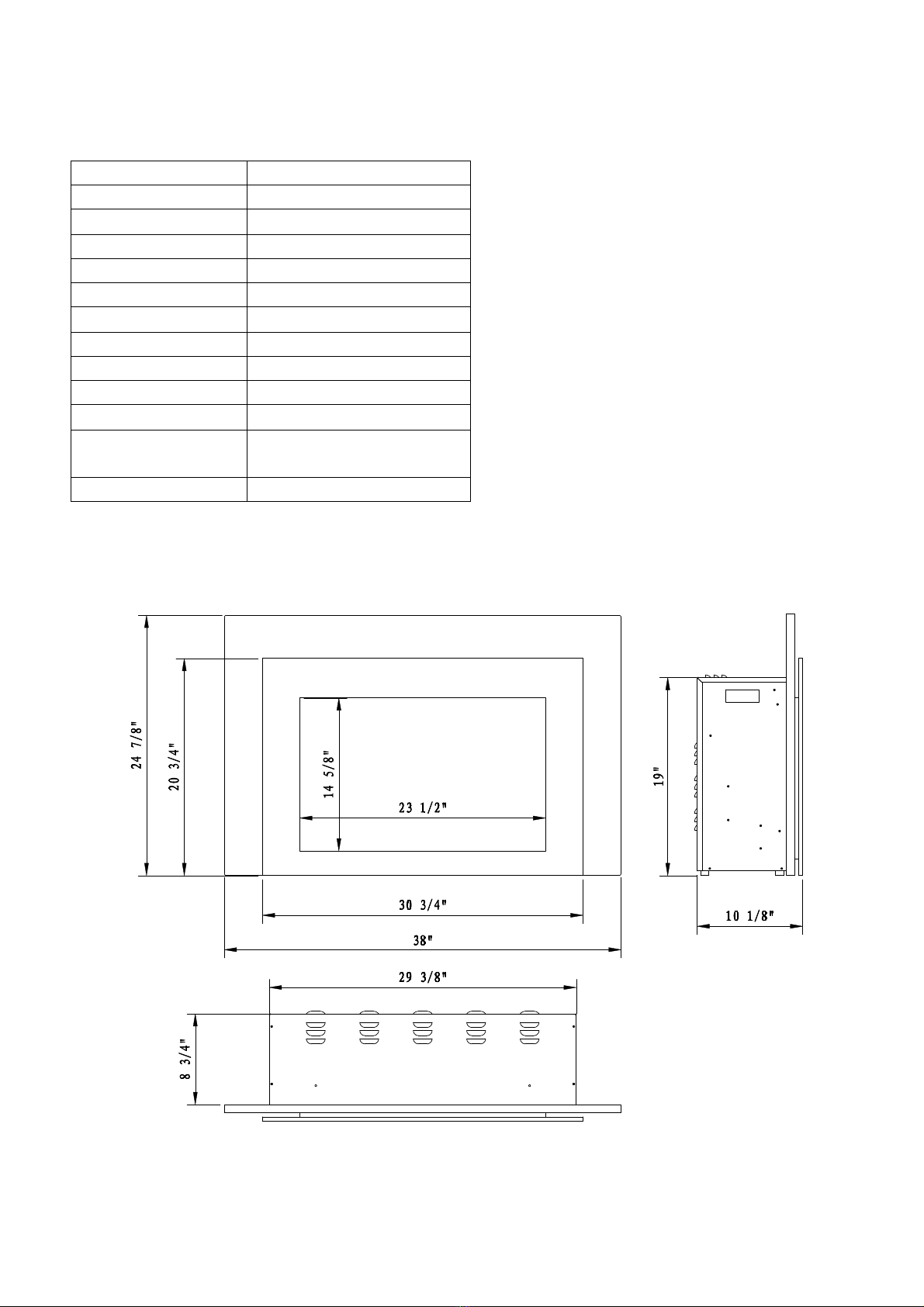

INS-FM-30
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER
MOTOR HEATER 19W
Appliance Width 29 3/8” or 74.6 cm
Appliance Height 19 ” or 48.2 cm
Appliance Depth 8 3/4” or 22.3 cm
Gross Weight 63.8lbs or 29kg
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall
Opening Size
31 3/8”× 19 7/8“ or
79.7 cm× 50.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
16.2W

6
INS-FM-34
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER
MOTOR HEATER 19W
Appliance Width 33 1/8” or 84.14 cm
Appliance Height 23 1/8” or 58.74 cm
Appliance Depth 8 3/4” or 22.22 cm
Gross Weight 77lbs or 33kg
Plug Location Left side
Cord Length 72.6” or 180 cm
Rough Wall
Opening Size
35 1/8”× 24“ or
89.2 cm× 60.9 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
20.5W

INSTALLATION BUILT-IN
The fireplacemaybe placed withinaframedenclosurethatislevel,dryand capableof
supportingthe weight of theapplianceand front glass. It maybe placed directlyon wood ora
non-combustiblesurface(noton linoleumorcarpet).
The side and back must maintain 1”(25.4mm) clearance to any material. The top must
maintain a 3/8” (1 mm) clearance to any material.
Ensure clearances to combustibles are maintained when building a mantel or shelves above
the appliance. Elevated temperatures on the wall or in the air above the appliance can cause
melting, discolorations or damage to decorations, a TV set or other electronic devices.
7

8
HARD-WIREINSTALLATION
Turnoff the appliancecompletelyand let coolbeforeservicing. Onlyaqualified service
person shouldserviceandrepairthiselectricappliance.
If itisnecessarytohard-wirethisappliance, aqualified electrician must removethe cord
connection,and wirethe appliancedirectlytothe householdwiring.
Thisappliancemustbe electricallyconnected and groundedinaccordancewithlocalcodes,
ifhard-wired.Inthe absenceoflocalcodes,usethecurrentCSA C22.1CANADIAN
ELECTRICALCODEinCanada orthe currentANSI/NFPA 70 NATIONALELECTRICAL
CODEinthe United States.
1.Removethe coverplatefromthe leftside oftheappliancebyremovingthetwoscrews,as
shownbelow. Unscrewand removepowercord.
3.Return the cover plate to the left side and screw the two screws back in to fasten the plate.
2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintothe “L”,the
neutral wireinto “N”and thegroundwireinto “G”.

9
MEDIA OPTIONS
Your fireplace shipped with the following media: sable glass and 6 piece log set. Customers
can decorate their fireplace according to their wishes with supplied media.
This fireplace includes the following decorative media:
Sable Log set
MEDIA INSTALLATION
STEP 1: Unplug the unit and make sure
control is switched off.
STEP 2: Unscrew 1 screw on each side and
Now you can start to decorate your fireplace
STEP 3: After finishing decoration, put back
the front glass panel.
STEP 3: Unscrew 1 screw on left and right
side and take off the steel panels that cover
the front glass, remove the glass panel
carefully.
Steel panel
Steel panel
Front glass
take off the trim.
screw
screw
trim

10
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,thefireplaceis readyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowsthecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOMODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72℉). Whentheroomtemperatureis between
22-25 (72-77℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT automaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10 minutes.
Reconnectthesupplytothemainand switchontheappliance.

11
REMOTE CONTROL OPERATION
Forremotetofunctionmakesure theheaterispluggedinandmainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingtheremotemakesureyoupointtheremotetothecentreofthefireplaceand make
sure eachtimeyoupressthebuttonthebuzzerinsidetheunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmorethanoncewithintwo
secondsforcorrectoperation.
Poweron button:Thepower-onbuttonattopleftcorneroftheremoteis themainON/OFF
powerbutton.This will turnoff all thefunctionsand thefireplacewill bein standbymode.
DISPLAYON/OFF button:SwitchingthefireplaceflameandtraylightON/OFF.Ithasfunctionsof
settingmemory.
DISPLAYBLUE button:Adjust the blue colorbrightness offlameandtray.
DISPLAYYELLOWbutton:Adjust theyellowcolorbrightness offlameandtray.
DISPLAYORANGE button:Adjust theorangecolorbrightness offlameandtray.
HEATERON/OFF button: Switchingthe heaterON/OFF. It hasfunctionsof settingmemory.
HIGHTbutton: Press the highbutton toswitchtheheatertohighheat setting1500W.
LOWbutton: Press thelowbuttontoswitchthe heatertolowheat setting750W.
TEMP. button: Press the TEMP.buttontoswitchtheheatertoAUTO mode.Underthismode
the heaterwill operateinsimilarwayasexplained aboveforthemanualoperation.
MOOD LIGHT ON/OFF button: Switching the mood light ON/OFF.
ADJUST button: Switching the color of the mood light.
FLASH button: Switching the mood light into flash mode, this cycles through all mood light
colors.

12
INSTALLING WALL THERMOSTAT

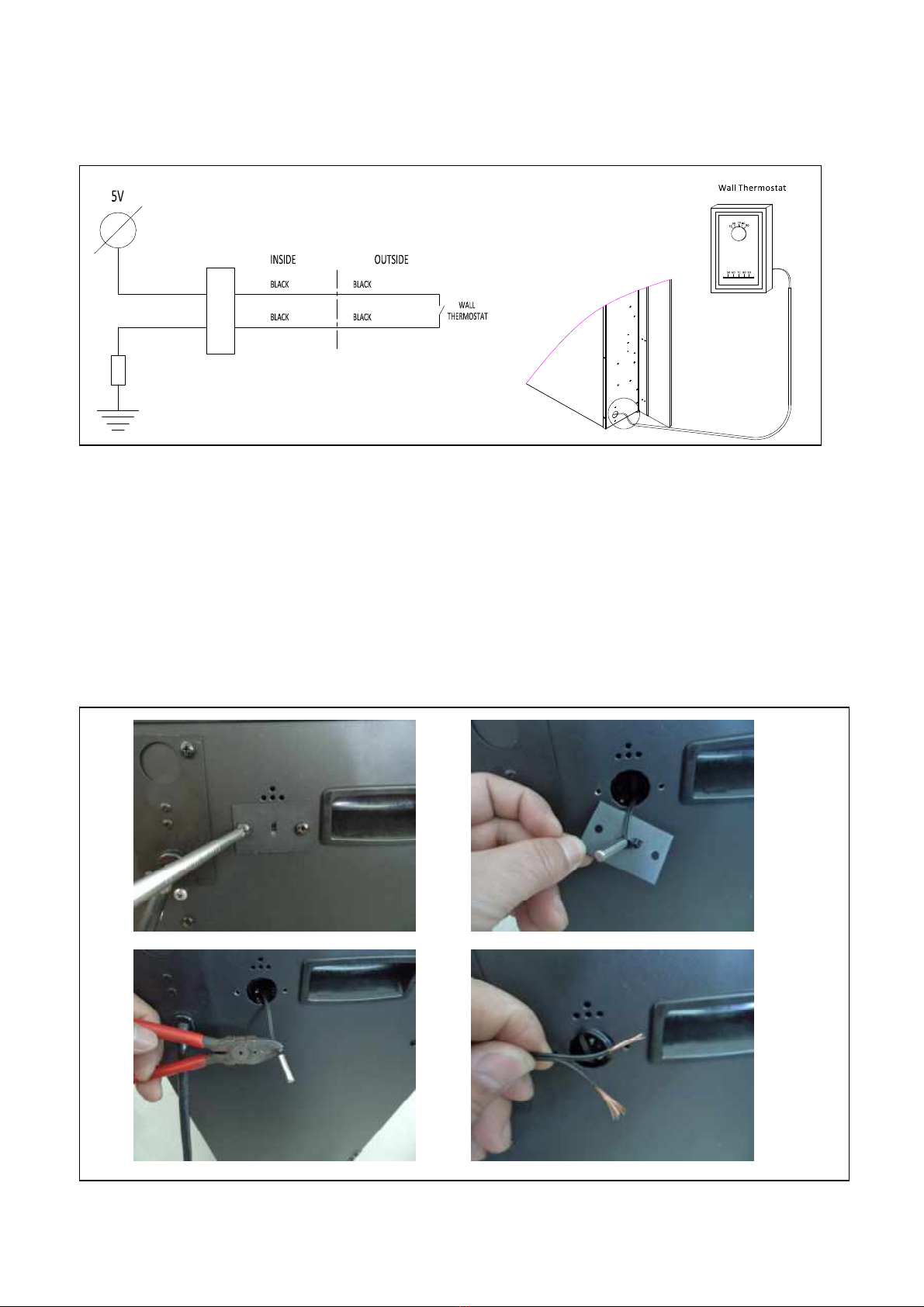

WALL THERMOSTAT WIRING DIAGRAMS
NOTE: The wall the mostat will be functioning when the heate is on the TEMP. setting.
Wi e the wall the mostat p io to installing the fi eplace.
WALL THERMOSTAT WIRING(24 VAC)
Install Wall The mostat pe inst uctions p ovided with kit and pe the following
info mation:
1. Turn off circuit breaker.
2. Remove cover plate located on the rear upper left side of the appliance.
3. Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided with wall swtich kit.

13
REPLACEMENT PARTS
NO PART NUMBER
DESCRIPTION QTY.
INS-FM-30 INS-FM-34
1
2 FRONT PANEL 1
3 FRONT GLASS
4 EMBER BED GLASS
5 3103009B PLASTIC BOARD
6 FIRE BOX
7 301506 THERMOSTAT
8 SWITCH
9
10
ASSEMBLY
10101225
REMOTE RECEIVER
12 FLAME MOTOR
13 1
14
15 TOP LIGHT
16 10105063 REMOTE 1
10104010
CIRCUIT BOARD
601097B
BLOWER AND HEATER
LED STRIP
601136B 601136B+601137B
TRIM 1
FLICKER ASSEMBLY
11
3104012B
10125025 10125021
387504B 3104504B
301506
602030C
17 601036 CONTROL PANEL
1
1
1
1
1
1
1
1
1
1
1
1
10702132D 10702133D
10701184 10701185
3103501 3104501
3103502 3104502

14
EXPLODED VIEW
17

15
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace
them if necessary
Back black cloth is falling off
and roll the flicker
Change a new flicker and back
black cloth
Ember bed is not
glowing or dimming
Ember LED’s are burnt out Inspect the ember bed LED’s and
replace them if necessary
Appliance turns off
and will not turn on
Appliance has overheated
and safety device has caused
the thermal switch to
disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes,
then turn it on
House circuit breaker has
tripped
Reset house circuit breaker
Appliance’s fuse has blown Replace the fuse
Appliance will not
come on when switch
is flipped to ON
Appliance is not plugged into
an electrical outlet
Check plug and plug in
Appliance has overheated
and safety device has caused
the thermal switch to
disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes,
then turn on
Circuit board is burnt out Inspect the circuit board and
replace if necessary
No warm air coming
out of appliance
Heater is burnt out Inspect the burner and heater
assembly and replace if necessary
Flame sputters Flame motor is defective Call a ualified service technician
and replace flame motor
Remote Control does
not work
Low batteries
Unit switch in “O” position
Replace AAA batteries in remote
control
Turn the switch in “I” position
Flame is fixed Wiring may be loose or the
flame motor may be defective

16
SERVICE HISTORY
NOTES:
This heater must be serviced annually depending on usage.
Date Deale
Name
Se vice Technician
Name
Se vice Pe fo med Special Conce ns

17
