Amantii 40-TRU-VIEW-XL Installation instructions

INSTALLATIONANDOPERATIONINSTRUCTIONS FOR
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
40-TRU-VIEW-XL

2
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................5
LOCATINGTHEFIREPLACE.....................................................................................................................................5
50-TRU-VIEW-XL.........................................................................................................................................................7
60-TRU-VIEW-XL.........................................................................................................................................................8
72 TRU-VIEW-XL.......................................................................................................................................................9
SAFETYDRILLSCREWAREA..................................................................................................................................10
MEDIAOPTIONS.......................................................................................................................................................17
OPERATION................................................................................................................................................................18
CARE AND MAINTENANCE.....................................................................................................................................22
REPLACEMENTPARTS............................................................................................................................................23
EXPLODEDVIEW......................................................................................................................................................24
TROUBLESHOOTING..............................................................................................................................................26
SERVICE HISTORY....................................................................................................................................................27
WARRANTY...............................................................................................................................................................28
INSTALLATION.........................................................................................................................................................11
MEDIAOPERATION..................................................................................................................................................17
REMOTE CONTROL OPERATION...........................................................................................................................19
WIRING DIAGRAM ..................................................................................................................................................25
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
PLUG INSTALLATION INSTRUCTIONS...................................................................................................................4
40-TRU-VIEW-XL.........................................................................................................................................................6

3
IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.

4
Your power cord will come separate from the unit, please locate it when unpacking your
fireplace. The plug contained inside the box is predetermined at the factory and according to
orders placed by authorized dealers.
Please following the instructions to correctly install the plug into your fireplace.
1. Included in the box will be a power cord similar to the one pictured below. See Picture 1.
2. Hold the male plug and insert it into the female receptacle. The receptacle is locate on
the left side if the fireplace.
3. Please make sure the plugs are firmly connected. See Picture 2 above.
PLUG INSTALLATION
Picture 1 Picture 2
UK plug European plug Swiss plug Australian plug
10103060E 10103030E 10103109E 10103087F
Available are UK, European, Swiss & Australian plugs. Should you require any of these
options please contact your dealer for purchase. You will be required to give the the
correct part nu ber as listed below.

5
UNPACKINGANDTESTINGAPPLIANCE
Carefullyremovetheappliancefromthebox. Priortoinstallingtheappliance,testtomakesurethe
applianceoperatesproperlybypluggingthepowersupplycordintoaconvenientlylocated240Volt
groundedoutlet.
LOCATINGTHEFIREPLACE
Planwhere tolocateandframethefireplace.This will savetimeandmoneylaterwhenyouinstall
thefireplace.Beforeinstallationconsiderthefollowing:
1. Where thefireplaceis locatedmust allowforwallandceilingclearances(see INSTALLATION)
2. Consideralocationwhere thefireplacescreenwill notbeexposedtodirectsunlight from
windowsordoors.
3. A15 ampere,240 Volt,50 Hz branchcircuit with properground mustbeavailableatthelocation.
Preferablyadedicatedbranchcircuitshouldbeprovidedtoavoidcircuitbreakerstotripoffuses
toblow.

6
40-TRU-VIEW-XL
Description Built-inAppliance
Voltage 220-240V AC 50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 43 1/4”or109.7cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 121.3lbsor55kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 43 3/4”27 5/8“or
136.5cm 70.2 cm
BTU 6500

7
50-TRU-VIEW-XL
Description Built-inAppliance
Voltage 220-240V AC 50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 53 1/4”or135.2cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 123.5lbsor56kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 53 3/4”27 5/8“or
136.5cm 70.2 cm
BTU 6500

8
60-TRU-VIEW-XL
ModelNumber Build-inAppliance
Voltage 220-240V AC 50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 63 1/4”or160.6cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 141lbsor64kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 63 3/4”27 5/8”or
161.9cm 70.2 cm
BTU 6500

9
72 TRU-VIEW-XL
Description Built-inAppliance
Voltage 220-240V AC 50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 75 1/4”or191cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 165lbsor75kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 75 3/4”27 5/8”or
192.4cm 70.2 cm
BTU 6500

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Safetydrill screwarea
(Darkarea)
10
Themanualcontrolpadposition

11

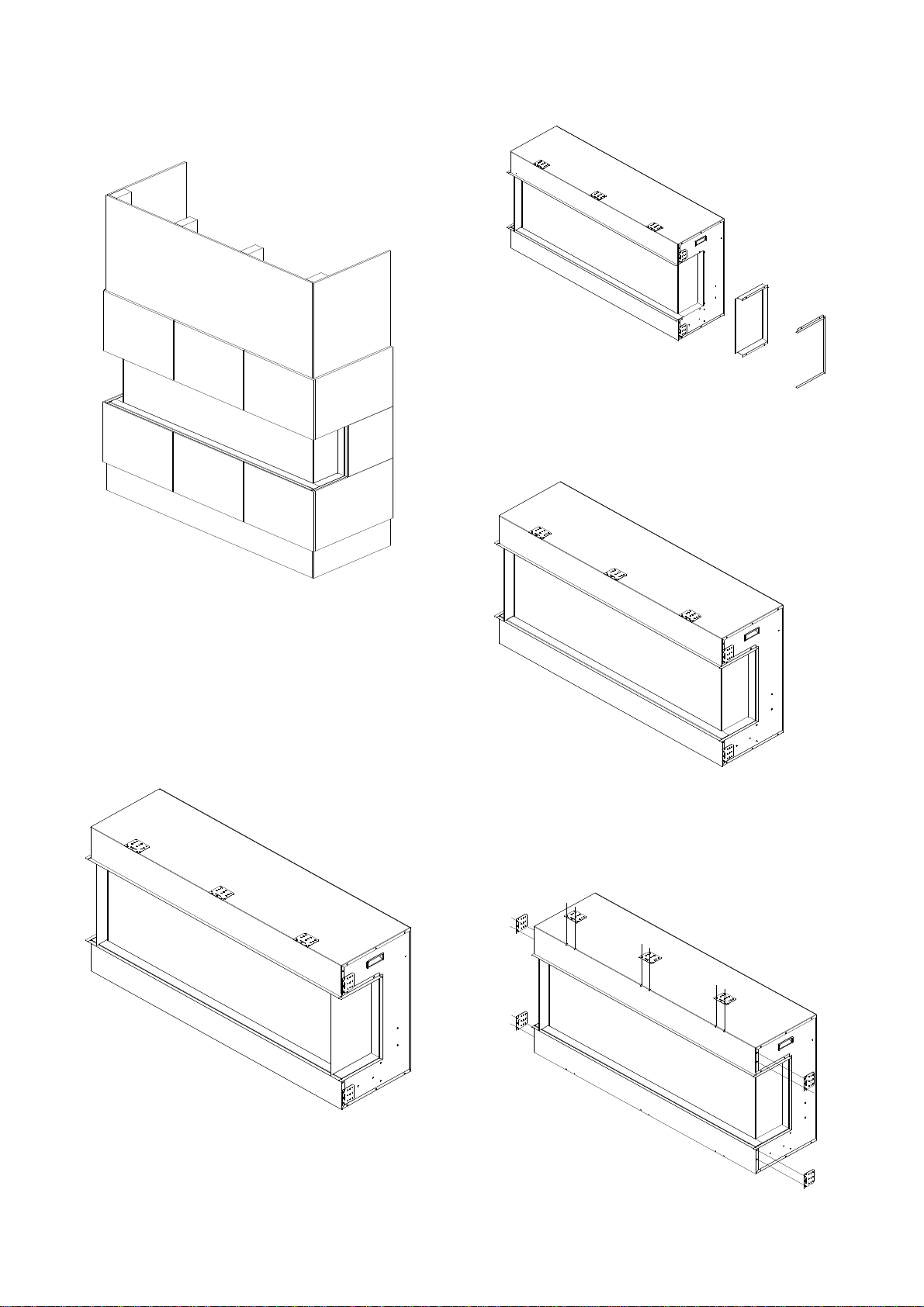

1.Productis fixedwith fendingbarsand panels
ontheleft andright side.
2.Takeoff thefendingbarsandpanels ifyou
want to viewthefire fromthreeangles.
3.Fixbackthefendingbarafterthepanelis
removed.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.
INSTALLATION
The TRU-VIEW-XL models are designed to be built-in and allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge.
Theroughwall openingsizeofthefireplace:
W(＂)D(＂) H(＂)
50-TRU-VIEW-XL 53 3/414 3/4" 271/8
60-TRU-VIEW-XL 63 3/414 3/4" 271/8
72-TRU-VIEW-XL 753/414 3/4" 271/8
fending bar
fending panel
40-TRU-VIEW-XL 43 3414 3/4" 2718/

12

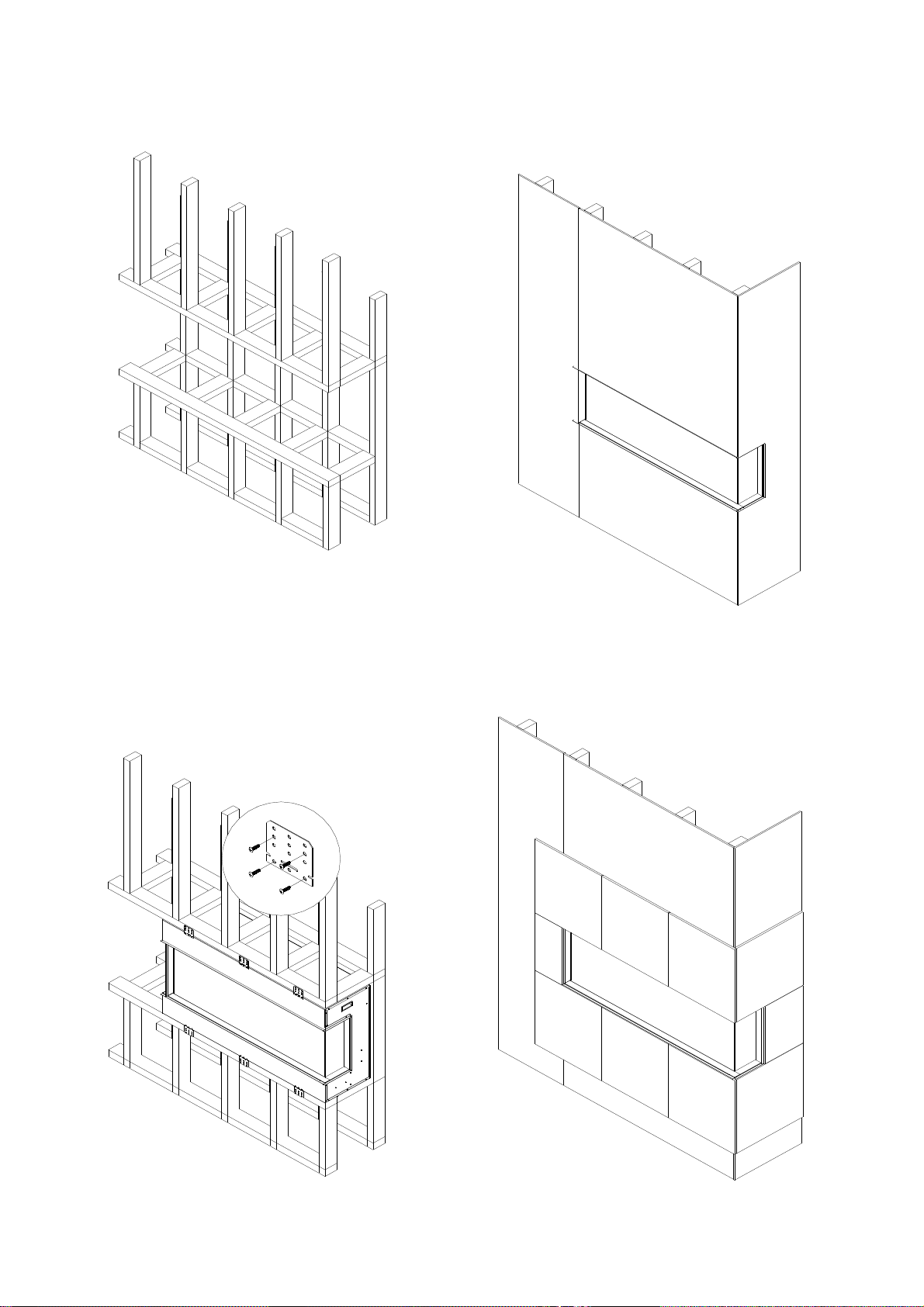

5.Makeanopeningforthefireplaceaccording
torequestedmeasurement.
framing plate
framing plate
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

13
3.Afterthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.
InstallationforFrontand RightSide
Viewing
1.Toinstall thefireplacewheretheleft sideis
closetoawall, andyouwanttoviewthefire
fromfrontand right side,takeoffthefending
panelontheright.
fendingbarand panel.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe
8.Decoratetheplywood or drywall with glazed
tile,wallpaper,etc.

14
5.Makeanopeningforthefireplaceaccording
torequestedmeasurement.
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.
8.Decoratetheplywood or drywall with glazed
tile,wallpaper,etc.
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.

15
3.Afterthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.
InstallationforFrontandLeftSide
Viewing
1.Install thefireplacewheretherightsideis
closetoawall, andyouwanttoviewthefire
fromfront andleftside,takeoffthefending
panelontheleft.
5.Makeanopeningforthefireplaceaccording
torequestedmeasurement.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe
fendingbarand panel.

16
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works. 8.Decoratetheplywood or drywall with glazed
tile,wallpaper,etc.
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.

17
Media Options
The fireplace comes with no media. Consumers may purchase optional decorative media if they choose.
See dealer for more details.
4. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
5.Put backthefrontglass and screwbackthe
bracket.
3. Takeoffthefrontglasspanelandputitinsafeplace.
1. Unscrew2screwsandtakeofftwobracketswhich
arefendingthefrontglasspanel.
Screwsandbrackets
2. Afterthebracketsareremoved,thefrontglasspanel
willfalldownautomatically.
Media Operation

18
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1、 Press key . Press for the first time，heater work at 1900W, indicator ights red.
Press for the second time, heater work at 950W，indicator ights b ue. Press for the
third time, the heating e ement turns off, indicator extinguishes.
Note: after the heating e ements are turned on manua y, the heating e ements work but
are not contro ed by the temperature sensor.
2、Press key . Press for the first time and the charcoa and f ame is in the highest
brightness. Press for the second time ,the charcoa and f ame is in medium brightness.
Press for the third time ,the charcoa and f ame is in ow brightness. Press for the fourth time ,
the charcoa and f ame goes out. Then it circu ates in turn.

19
REMOTE CONTROL OPERATION
6 、 Press“ ”to turn on, turn off and adjust top ight co ors. The buzzer beeps once when the key is pressed;
1 、 Press the remote contro ’s key“ ”, its screen turns on, the f ame ignites and the f ame icon appears on
the LCD screen of the remote contro . Week, time (24h system), and temperature setting are disp ayed
norma y. Press it again, the screen of the remote contro wi turn off;
2
、 Key“ ”, f ame and charcoa contro switch. In case of ON, press once, the f ame and the charcoa bed
go out, the LCD screen does not disp ay . Press it again and the f ame and the charcoa bed turn on,
the LCD screen disp ays . The buzzer beeps once when the key is pressed;
3
、 Press“ (1) ”to adjust the red f ame. The buzzer beeps once when the key is pressed;
4 、 Press“ (2) ” to adjust the ye ow f ame. The buzzer beeps once when the key is pressed;
5
、 Press“ (3) ” to adjust the b ue f ame. The buzzer beeps once when the key is pressed;
1
2
3

7、Press the heating key“ .” Press for the first time ,the heating e ements work at 1900W,
the LCD screen disp ays , the indicator on the machine ights red. Press a second
time , the heating e ements work at 950W, the LCD screen disp ays , the indicator
on the machine ights b ue. Press a third time and the heating e ements turn off, the LCD
screen does not disp ay the function icon, the indicator on the machine goes off. The
buzzer beeps once when the key is pressed;
Note: in case the heating e ements are turned on by remote contro , whether the heating
e ements work or not depends on the temperature setting and ambient temperature. They
work on y when the temperature setting is above the ambient temperature.
8、Press key“ ”“ ” to adjust the temperature setting between 7 and 30 ℃ . The
buzzer beeps when the key is pressed;
9、Press shift key“ ”. Press once, the corresponding figure f ashes. Press “ ” “
”
now to set current time and week. The buzzer does not beep when the key is pressed;
10、Press timing parameter setting key“ .” Press for the first time and the LCD screen
disp ays to indicate Monday. Now the temperature setting f ashes, press “ ” to
set the timing temperature for Monday, press key “ ” to confirm and then press “ ”
the time setting for timing.. The disp ayed time parameter is “00-23.” Press “ ”
to set the current operating state of timing function; indicates that the timing is on
current y and the contro temperature is the temperature setting, indicates that the
timing is on current y and the contro temperature is the temperature setting minus 3 ℃, No
disp ay indicates timing is off current and the heating e ements do not work. Corresponding
point f ashes when setting. Press for the second time, it disp ays , set the parameters
20
