Amantii BI-40-DEEP User manual

INSTALLATIONANDOPERATIONINSTRUCTIONS FOR BI-DEEP
BI-40-DEEP
BI-50-DEEP
BI-60-DEEP
BI-72-DEEP
BI-88-DEEP
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.

2
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................4
GROUNDINGAPPLIANCE.........................................................................................................................................4
LOCATINGTHEFIREPLACE.....................................................................................................................................4
BI-40-DEEP...................................................................................................................................................................5
BI-50-DEEP...................................................................................................................................................................6
BI-60-DEEP...................................................................................................................................................................7
BI-72-DEEP...................................................................................................................................................................8
BI-88-DEEP...................................................................................................................................................................9
INSTALLATION..........................................................................................................................................................13
SAFETYDRILLSCREWAREA................................................................................................................................10
FOR BATHROOMUSE..............................................................................................................................................11
HARD-WIRE INSTALLATION..................................................................................................................................10
PANORAMACOVERINSTALLATION....................................................................................................................18

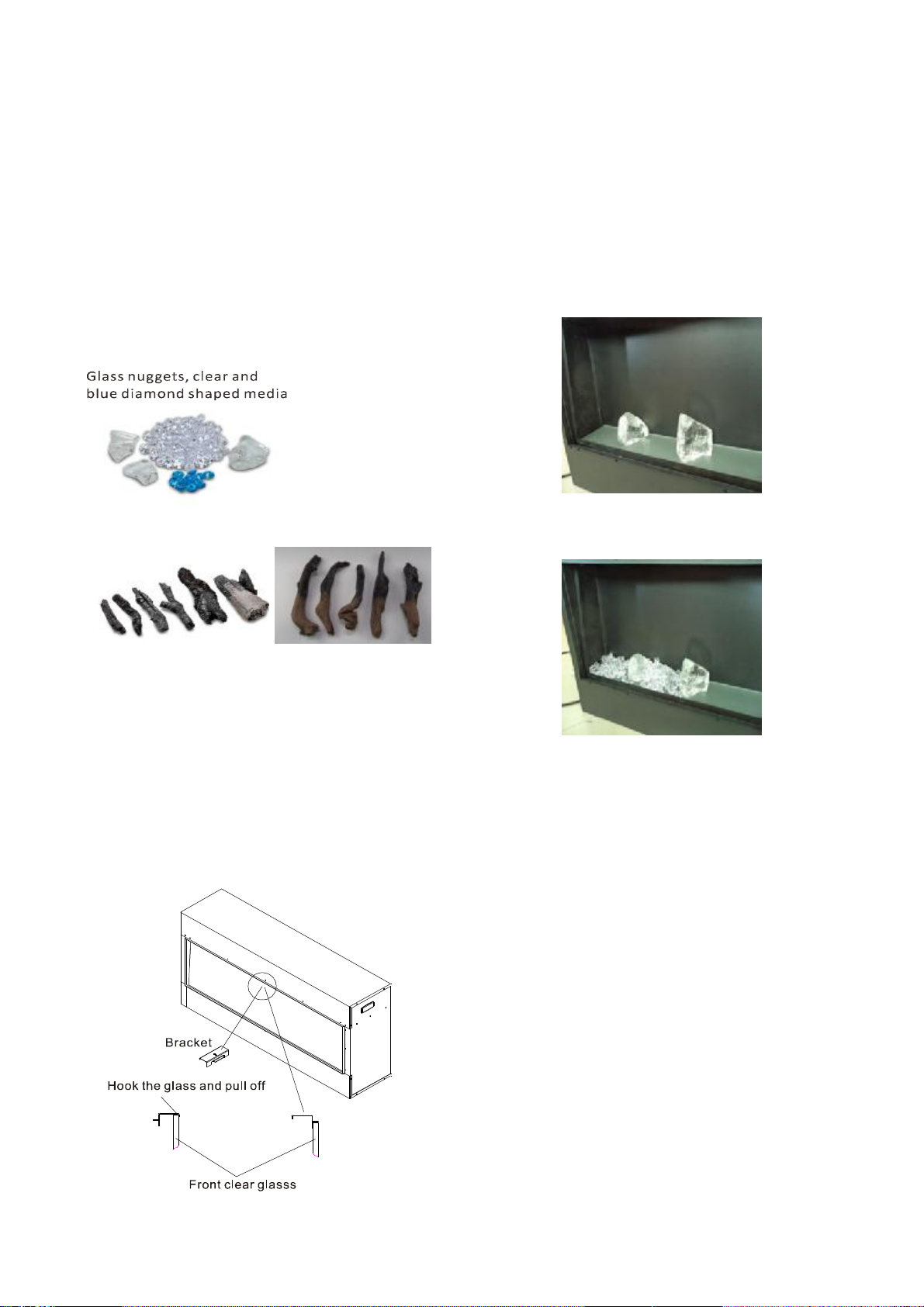

MEDIAOPTIONS.......................................................................................................................................................19
OPERATION................................................................................................................................................................20
INSTALLING WALLTHERMOSTAT........................................................................................................................22
REPLACEMENTPARTS............................................................................................................................................23
EXPLODEDVIEW......................................................................................................................................................24
TROUBLESHOOTING..............................................................................................................................................25
SERVICE HISTORY....................................................................................................................................................26
WARRANTY...............................................................................................................................................................27
OUTDOORINSTALLATIONS .........................................................................................................................................12

3
IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.

4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a conveniently located 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components operate correctly.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.

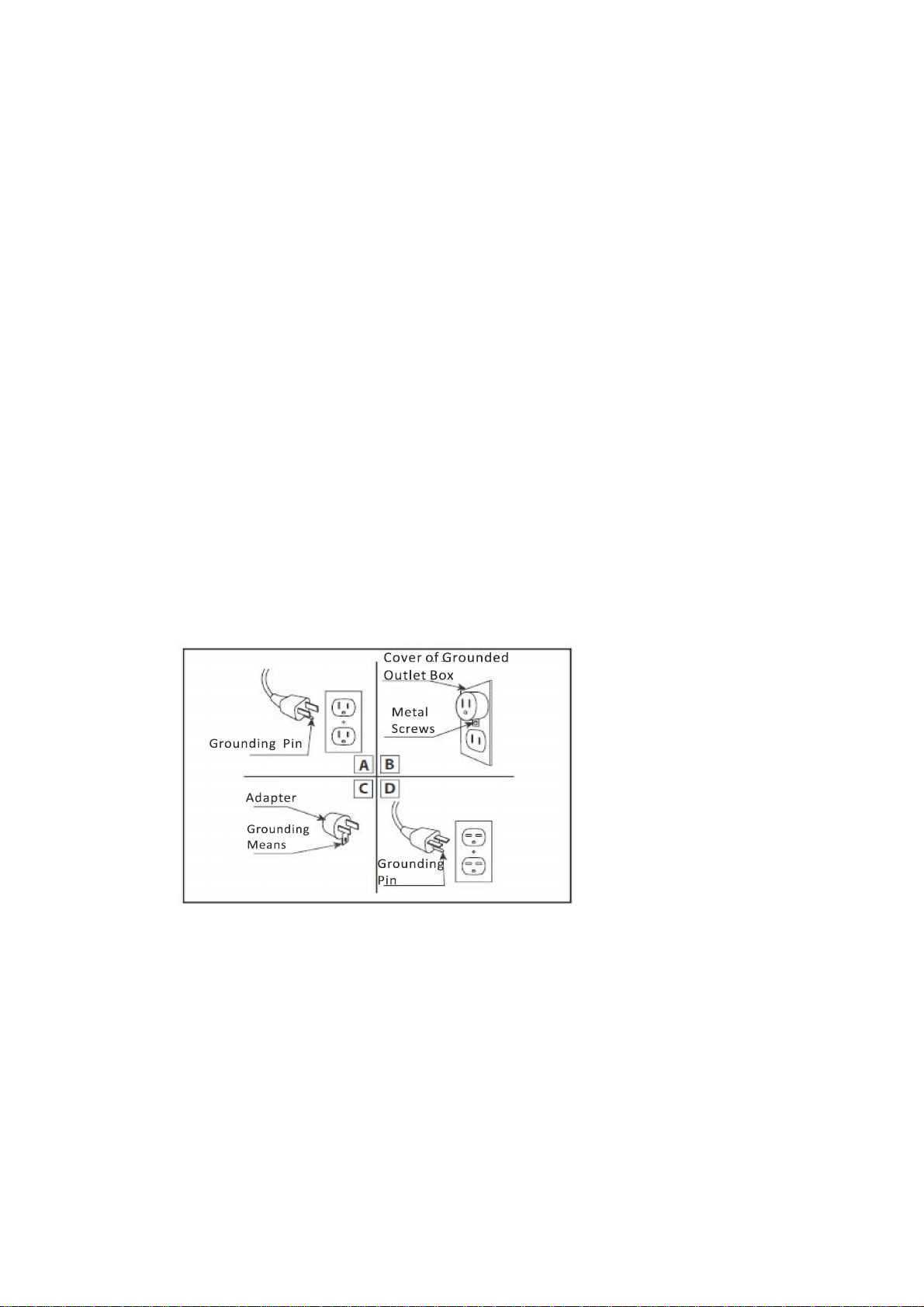

GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit
breakers to trip of fuses to blow.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.

5
BI-40-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 28.6W
MOTOR HEATER 19W
ApplianceWidth 38 5/8”or98.1 cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 94.6lbs or 43kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 40”25“or
101.6 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

6
BI-50-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 33.6W
MOTOR HEATER 19W
ApplianceWidth 48 5/8”or123.5 cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 110lbs or 50kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 50”25“or
172 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

7
BI-60-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 36.6W
MOTOR HEATER 19W
ApplianceWidth 58 5/8”or148.5 cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 127.6lbs or 58kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 60”25“or
152.4 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

8
BI-72-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 41.4W
MOTOR HEATER 19W
ApplianceWidth 72 1/8”or183.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 156.2lbsor71kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 73 1/2”25“or
186.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

9
BI-88-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 45.2W
MOTOR HEATER 19W
ApplianceWidth 88 5/8”or225.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 195.8lbsor89kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 89 1/4”25“or
226.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessarytohardwirethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehouseholdwiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.

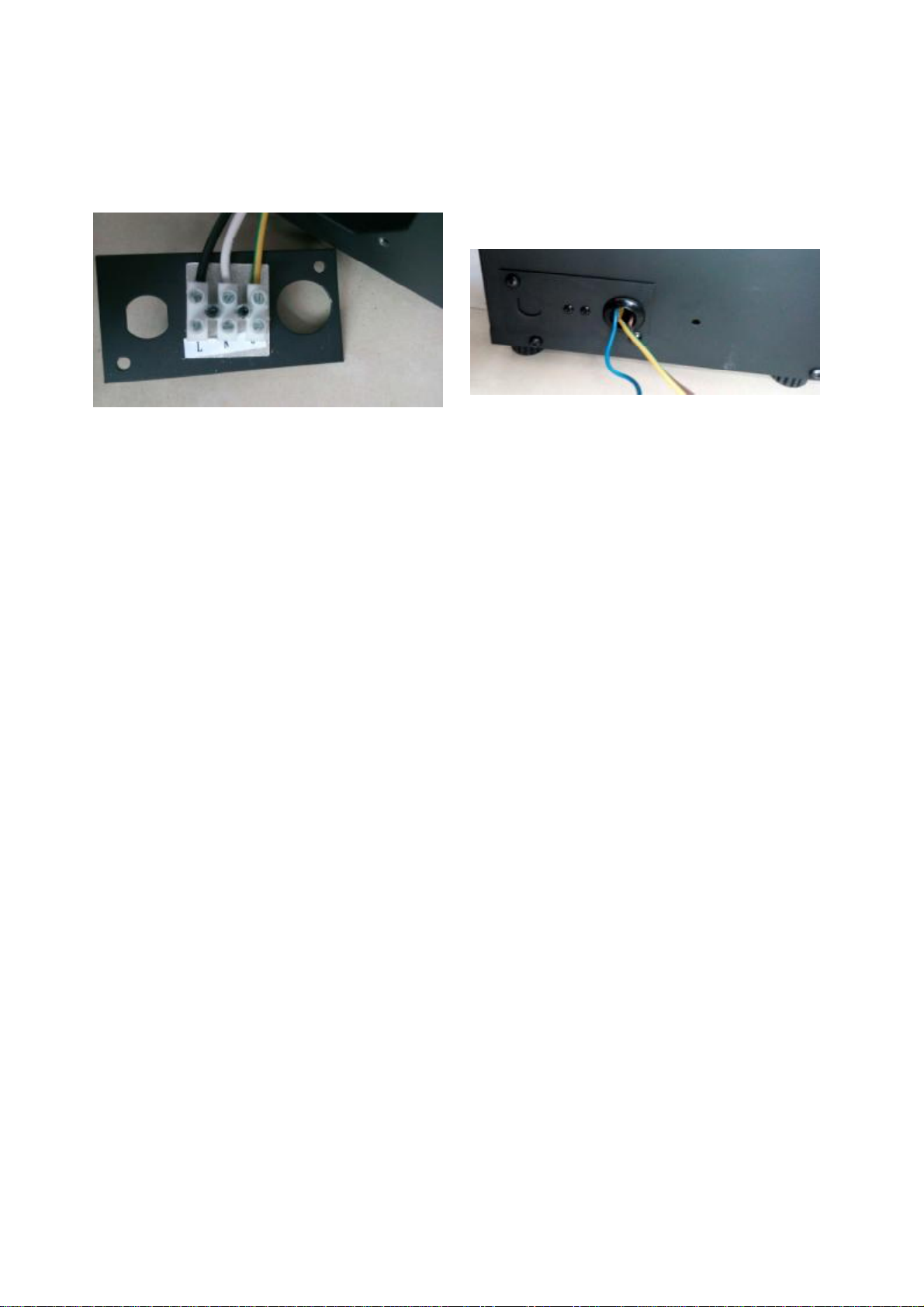

1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
10

2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintothe “L”,the
neutral wireinto “N”and thegroundwireinto “G”.
3. Puttheplatebackandscrew back.
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.
11

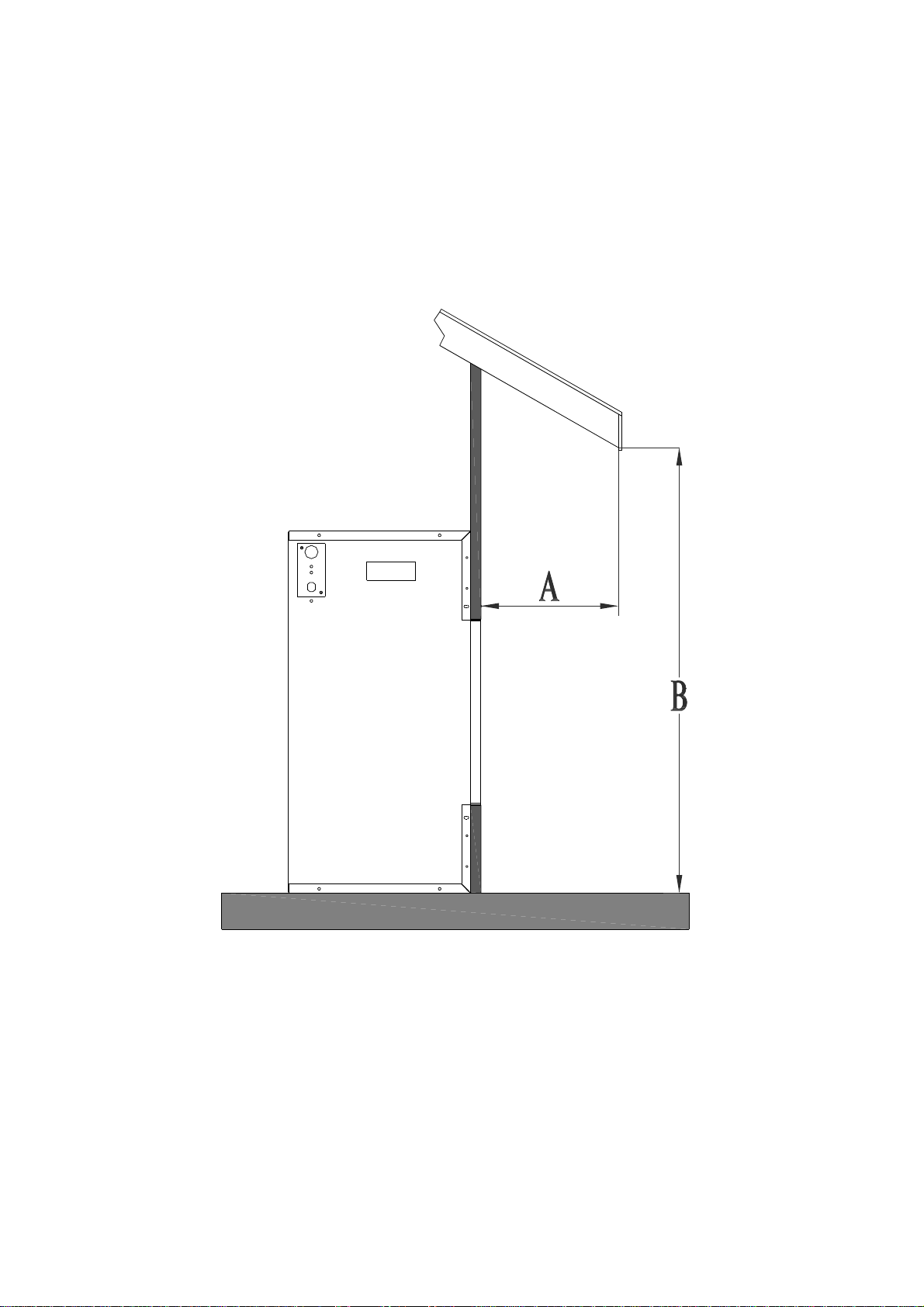

The overhang (A) must extend at least 1/2 the roof-line height (B).
Height is measured from the base of the fireplace.
For example: if the roof-line (B) is 8’ above the base of the fireplace,
the overhang (A) must be at least 4’.
OUTDOOR INSTALLATIONS
The BI-DEEP series electric fireplaces are suitable for installation in outdoor areas protected from direct
water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain
protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed
appliance. See illustration below. All wiring connections to line power shall be in accordance with local
building code requirements. Inquires about local codes and regulations must be done prior to
installation.
When installed in outdoor applications, it is recommended that the BI-DEEP models use the protective
PAN-COVER.


12

13
INSTALLATION
TheBI-DEEPmodels aredesignedto bebuilt-inand allow forthefinishingmaterial (drywall, stone,
tile,etc) tobebuilt rightdownto theglass edge.However,thatapplication is not alwaysdesirableor
availablesothesurround could beused asan alternatefinishoption.
Note:Theoptional trim can bepulledoutdirectlyfromtheunit.Itwill need twopeopletodoit.
The rough wall opening sizeof the fireplace:
W(＂) D(＂) H(＂)
BI-40-DEEP 40 12 25
BI-50-DEEP 50 12 25
BI-60-DEEP 60 12 25
BI-72-DEEP 731/2 12 25
BI-88-DEEP 89 1/4 12 25
1. Takeouttheunit fromthebox.Pleasedo thepre-testbeforeyouinstall the fireplace. Pull
outtheoptionaltrim fromtheunit as shows below.
optional trim
NOTE: Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you install this appliance.

2. Removetheframingplates fromtheunit
framing plate
3. Re-fixtheframingplates to theunit as thepicture shows
framing plate
14

4. Bend up theframingplates.
5. Puttheunit into theopening.
15

6. Drivethemountingscrews into theframingplates on theunit and thewall studs.
7. After checkingthatthefireplace operatesproperly,cover theglass panelwith
protectiveplasticbagand install plywood or drywall.
Fireplace
16
framing plate
NOTE: In order to use the supplied trim kit, the thickness of the desired wall finish
can not exceed 1 inch.

8. Decoratetheplywood or drywall with glazed tile, wallpaper, etc.
Fireplace
9. Putback thetrim thatyou veremoved fromtheunit atSTEP1.
trim
17

18
PANORAMACOVERINSTALLATION
Makesureinstall thepan-coverwhenthefireplaceusedoutdoors.
Removethecoverfromthepackaging.
Thehandleswill needtobeattachedtothe
coverwith theprovidedhardwareas shown in
fig.1
First,placeaplatewasherand then aspring
washeronthescrewasshown in fig.2
Affixthehandlesto thefrontofthecoverusing
theprepared screws.Fig.3
Inserttheassembledcoverontotheunit as
shown inFigs.4and 5
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5

19
MediaOptions
The BI-40-DEEP,BI-50-DEEP,BI-60-DEEP
isshippedwith3large glass nuggets,clear
and bluediamond shapedmediaand11
piecelog set.
The BI-72-DEEP,BI-88-DEEPisshipped
with6large glass nuggets,clearandblue
diamond shaped
media and 11 piece log set.
FireGlass Media-LogInstallation
1.Takeoffthe frontclearglass.Thereisa
bracketwhichholdthe frontglass.It is
showasbelow.Unscrewthe screwand
takeoffthebracket. Turnaround and
inserttothe gap.Itcan hooktheglass
and pulloutthe glass.
2.Installingthe fireglassmedia.Pourthe
fireglass mediaintothe trayasshown
below.Feelfreetouseanycombination
offireglass mediathatyou findmost
appealing
3.Putback the frontglass and screwback
the bracket.
11 piece log set

20
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,thefireplaceis readyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowsthecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOMODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72℉). Whentheroomtemperatureis between
22-25 (72-77℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT automaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10 minutes.
Reconnectthesupplytothemainand switchontheappliance.
