Amantii TRD-33 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE OWNER’S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
SAFETY INFORMATION
WARNING
Fo you safety, always comply with all
wa nings and safety inst uctions
contained in this manual to p event
pe sonal inju y o p ope ty damage.
Do not store or use gasoline or other flammable vapors
and li uids in the vicinity of this appliance.
TRD-26
TRD-30
TRD-33
TRD-38
TRD-44
TRD-48

2
Please read and carefully follow all of the instruction found in this manual. Please pay special
attention to the safety instructions provided in this manual. The instructions included here will
assure that you have many years of dependable and enjoyable service from your Amantii product.
Table of Contents
IMPORTANT INSTRUCTIONS ............................................................................................................................. 3
PLUG INSTALLATION .......................................................................................................................................... 4
UNPACKING AND TESTING APPLIANCE ........................................................................................................ 5
LOCATING THE FIREPLACE ............................................................................................................................... 5
TRD-26 ..................................................................................................................................................................... 6
TRD-30 ..................................................................................................................................................................... 7
TRD-33 .....................................................................................................................................................................8
TRD-38 .....................................................................................................................................................................9
TRD-44 ...................................................................................................................................................................10
TRD-48 ...................................................................................................................................................................11
INSTALLATION BUILT-IN ................................................................................................................................. 12
MEDIA OPTIONS ................................................................................................................................................. 16
OPERATION ......................................................................................................................................................... 17
MANUAL OPERATION ....................................................................................................................................... 17
REMOTE CONTROL OPERATION .................................................................................................................... 18
CARE AND MAINTENANCE .............................................................................................................................. 21
REPLACEMENT PARTS ...................................................................................................................................... 22
E PLODED VIEW ................................................................................................................................................ 24
TROUBLE SHOOTING......................................................................................................................................... 25
SERVICE HISTORY ............................................................................................................................................. 26
WARRANTY ......................................................................................................................................................... 27

3
IMPORTANT INSTRUCTIONS
1. Do not operate appliance before reading and understanding operating instructions. Failure to
operate appliance according to operating instructions could cause fire or injury.
2. Keep combustible materials such as furniture, pillows, bedding, clothing, curtains and paper at
least 3 ft from the front, sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the
unit has been dropped or damaged in any way.
5. Never place the heater where it may fall into a bathtub or other water container.
6. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange
cord away from traffic area and where it will not be tripped over.
7. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
9. To prevent a possible fire, do not block air intakes.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint
or flammable li uids are used or stored.
11. Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or
relocatable power tap (outlet/power strip).
12. Always use properly grounded fused and polarized outlets.
13. Always use ground fault protection where it is re uired by electrical codes.
14. Always disconnect the power before performing any cleaning, maintenance or relocation of the
heater.
15. To prevent a possible fire, do not burn wood or other materials in this heater.
16. To prevent electric shock or fire, always use a certified electrician, should new circuits or
outlets be re uired.
17. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.
18. This appliance should not be modified under any circumstances.
19. Keep the packaging material out of reach of children and dispose of the material in a safe
manner. As with all plastic bags, these are not toys and should be kept away from children and
infants.
20.
Do not use this heater in small rooms when they are occupied by persons not capable of leaving
the room on their own, unless constant supervision is provided.
21. If the glass is damaged, do not use the heater in order to avoid a hazard.
22.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house.
23. CAUTION Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.

Your power cord will come separate from the unit, please locate it when unpacking your
fireplace. The plug contained inside the box is predetermined at the factory and according to
orders placed by authorized dealers.
Please following the instructions to correctly install the plug into your fireplace.
1. Included in the box will be a power cord similar to the one pictured below. See Picture 1.
2. Hold the male plug and insert it into the female receptacle. The receptacle is locate on
the left side if the fireplace.
3. Please make sure the plugs are firmly connected. See Picture 2 above.
PLUG INSTALLATION
UK plug European plug Swiss plug
Picture 1 Picture 2
4
Australian plug
10103060E 10103030E 10103109E 10103087F
Available are UK, European, Swiss & Australian plugs. Should you require any of these
options please contact your dealer for purchase. You will be required to give the the
correct part nu ber as listed below.

5
UNPACKI
NG AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance test to make sure the appliance operates properly by plugging
the power supply cord into a 24
0 Volt grounded outlet.
Test all aspects of its operati
on (manual switches remote and heater) to make sure all
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41
℉
fireplace to reach room temperature before turning it on.
NOTE: There may be trace of odor during the first few minutes of initial use This is
harmless, normal and will never occur again
LOCATING THE FIREPLACE
Plan where
to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1.
Where the fireplace is located must allow for wall and ceiling clearances
2.
Consider a location where the fire
windows or doors.
3. A 15 ampere 240 Volt 50-
60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breake
to trip of fuses to blow.
NG AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance test to make sure the appliance operates properly by plugging
0 Volt grounded outlet.
on (manual switches remote and heater) to make sure all
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
℉
) and 35 ℃ (95℉
). During the cold winter
fireplace to reach room temperature before turning
it on.
NOTE: There may be trace of odor during the first few minutes of initial use This is
harmless, normal and will never occur again
LOCATING THE FIREPLACE
to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider
the following:
Where the fireplace is located must allow for wall and ceiling clearances
Consider a location where the fire
place screen will not be exposed to direct sunlight from
60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breake
Prior to installing the appliance test to make sure the appliance operates properly by plugging
on (manual switches remote and heater) to make sur
e all
As with most electronic devices your new electric fireplace has been designed to operate at
). During the cold winter
months allow the
NOTE: There may be trace of odor during the first few minutes of initial use This is
to locate and frame the fireplace. This will save time and money later when you
Where the fireplace is located must allow for wall and ceiling clearances
place screen will not be exposed to direct sunlight
from
60 Hz branch circuit with proper ground must be ava
ilable at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breake
rs

6

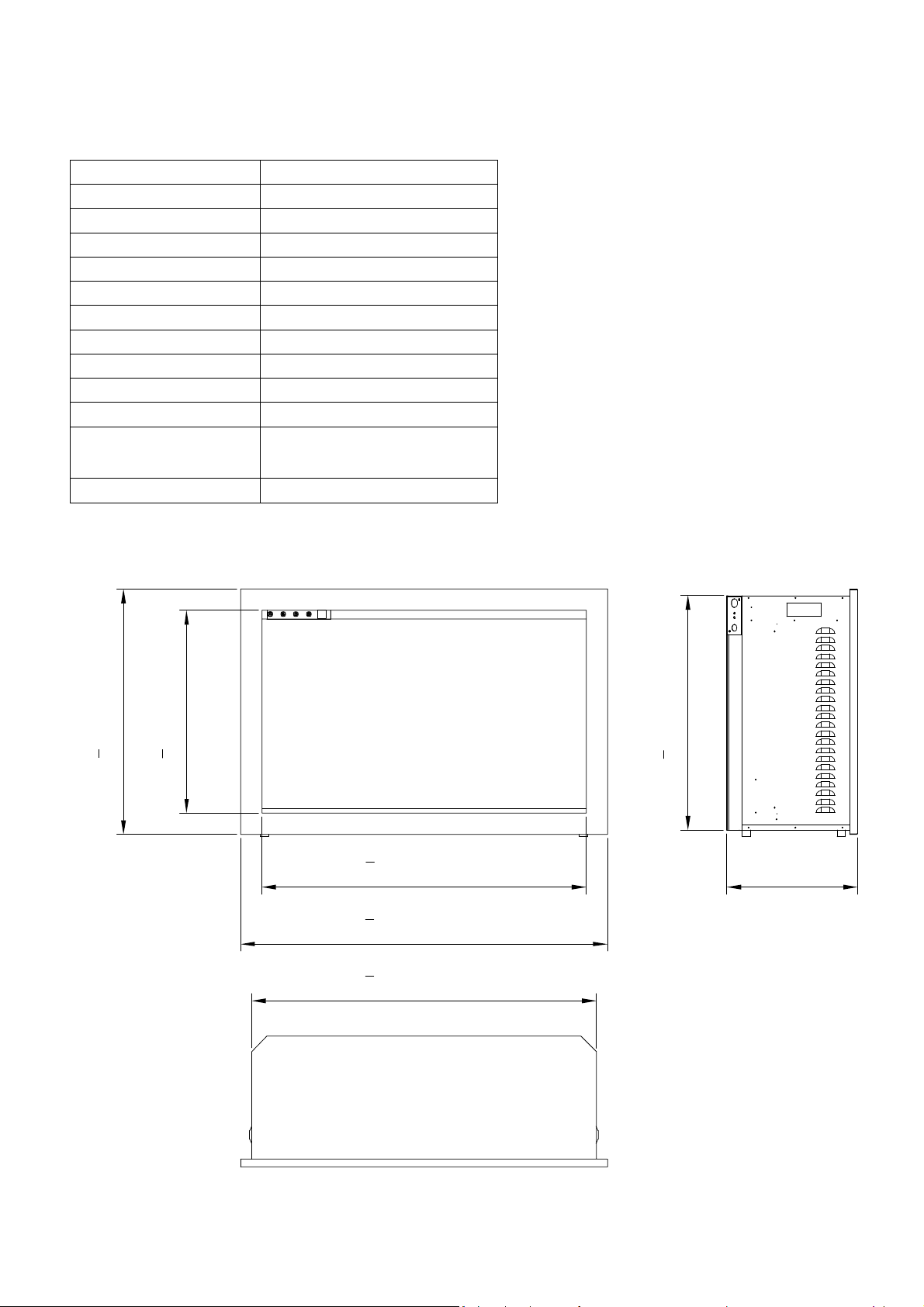

Description
ELECTRIC FIREPLACE
Voltage 120V AC 60Hz
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 27 3/8" or 69.4 cm
Appliance Height 16 3/4" or 42.5 cm
Appliance Depth 12" or 30.6 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
TRD - 26
BTU 5118
Size
26 1/4" x 17 1/4"
66.74 cm x 43.77 cm
27
3
8" [694mm]
23
3
8" [594mm]
171
8" [435mm]
131
4" [335mm]
163
4" [425mm]
12" [305.8mm]
251
4
Watts 1500W Max
220-240V AC 50-60Hz

TRD - 30
Description
ELECTRIC FIREPLACE
Voltage
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 31 1/2" or 79.9 cm
Appliance Height 19 1/8" or 48.5 cm
Appliance Depth 12" or 30.6 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU
Size
30 3/8" x 19 5/8"
77.24 cm x 49.77 cm
311
2" [799mm]
191
2" [495mm]
151
2" [395mm]
271
2" [699mm] 12" [305.8mm]
191
8" [485mm]
29
3
8" [747mm]
5118
Watts 1500W Max
220-240V AC 50-60Hz

8
TRD - 33
Description
ELECTRIC FIREPLACE
Voltage
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 33 7/8" or 86 cm
Appliance Height 21 5/8" or 55 cm
Appliance Depth 12" or 30.6 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU
Size
32 3/4" x 22 1/8"
83.24 cm x 56.27 cm
337
8" [859.4mm]
225
8" [575mm]
183
4" [475mm]
297
8" [759.4mm]
31
3
4" [807.4mm]
12" [305.8mm]
215
8" [550mm]
5118
Watts 1500W Max
220-240V AC 50-60Hz

9
TRD - 38
Description
ELECTRIC FIREPLACE
Voltage
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 39 1/4" or 99.6 cm
Appliance Height 27 1/4" or 69.1 cm
Appliance Depth 13" or 33.1 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU
Size
38 1/8" x 27 3/4"
96.94 cm x 70.37 cm
271
4" [691mm]
391
4" [996mm]
351
4" [896mm]
275
8" [701mm]
235
8" [601mm]
13" [330.8mm]
371
8" [944mm]
5118
Watts 1500W Max
220-240V AC 50-60Hz

10
TRD - 44
Description
ELECTRIC FIREPLACE
Voltage
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 45 1/4" or 115 cm
Appliance Height 31 5/8" or 80.3 cm
Appliance Depth 14 3/8" or 36.58 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU
Size
44 1/4" x 32 1/8"
112.34 cm x 81.57 cm
32" [813mm]
281
8" [713mm]
451
4" [1150mm]
41
3
8" [1050mm] 14
3
8" [365.8mm]
315
8" [803mm]
431
4" [1098mm]
5118
Watts 1500W Max
220-240V AC 50-60Hz

11
TRD - 48
Description
ELECTRIC FIREPLACE
Voltage
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 49 1/4" or 115.2 cm
Appliance Height 41 5/8" or 105.7 cm
Appliance Depth 14 3/8" or 36.6 cm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
BTU
Size
48 1/4" x 42 1/8"
122.54 cm x 106.97 cm
42" [1067mm]
381
8" [967mm]
491
4" [1252mm]
45
3
8" [1152mm] 14
3
8" [365.8mm]
415
8" [1057mm]
471
4" [1200mm]
5118
Watts 1500W Max
220-240V AC 50-60Hz

12
INSTALLATION- BUILT-IN
NOTE: Due to the many different materials used to build walls, it is highly
you consult your local builder before you install this appliance on a wall.
Preparation
1.
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains, drapes, fur
2.
Mark the desired location on the floor and store the appliance in a safe, dry and dust free
place.
3.
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at least
1/4” (6mm) around the edge of the appl
with local and national codes and other applicable regulations.
Prior to installing, test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 olt groun
INSTALLATION
1. Unscrew 4 screws and t
ake off the trim. (NOTE: Keep hold of the front glass as it may fall
down automatically when the trim is removed.)
NOTE: Due to the many different materials used to build walls, it is highly
recommended that
you consult your local builder before you install t
his appliance on a wall.
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains, drapes, fur
niture, bedding, paper, etc.
Mark the desired location on the floor and store the appliance in a safe, dry and dust free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at least
1/4” (6mm) around the edge of the appl
iance. Any new wiring must be done in compliance
with local and national codes and other applicable
regulations.
Prior to installing, test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 olt grou
nded outlet.
ake off the trim. (NOTE: Keep hold of the front glass as it may fall
down automatically when the trim is removed.)
recommended that
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away
niture, bedding, paper, etc.
Mark the desired location on the floor and store the appliance in a safe, dry and dust free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at least
iance. Any new wiring must be done in compliance
Prior to installing, test the appliance to make sure the appliance is fully operational by
ake off the trim. (NOTE: Keep hold of the front gla
ss as it may fall
Screws locations
Magnetic stones locations

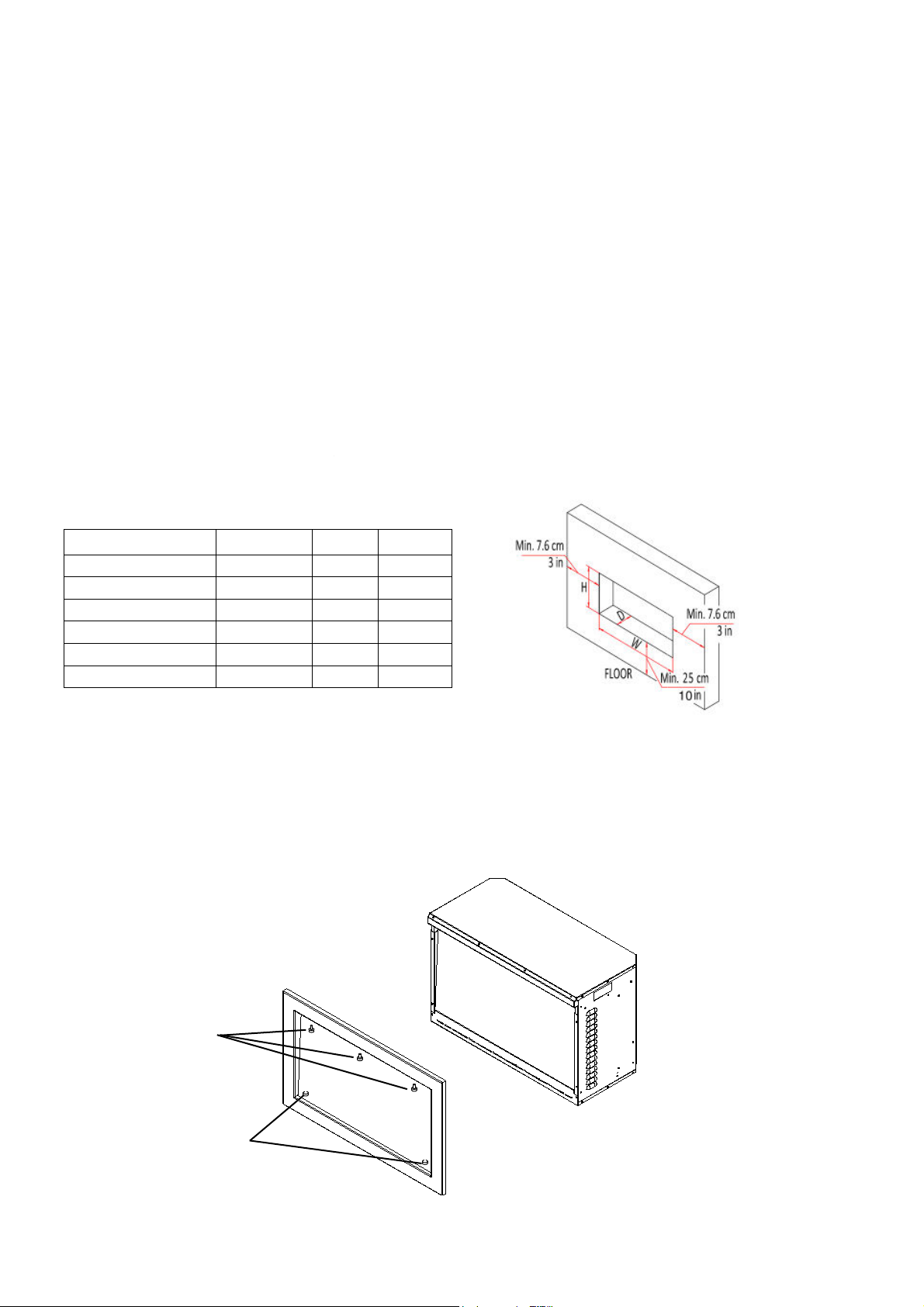

The rough wall opening size of the fireplace:
W(“)
D(“)
TRD-26 26 1/4
TRD-30 30 3/8
TRD-33 32 3/4
TRD-38 38 1/8
TRD-44 44 1/4 1
5 3/8
TRD-48 48 1/4 1
5 3/8
The rough wall opening size of the fireplace:
D(“)
H(“)
13 17 1/4
13 19 5/8
13 22 1/8
14 27 3/4
5 3/8
32 1/8
5 3/8
42 1/8
Fireplace removal should be a simple process. The reason for removal of a fireplace
may vary and include changing the PCB, heater and fan.
NOTE:
Take note of the air intake vent located at the bottom and behind the front trim.

2.

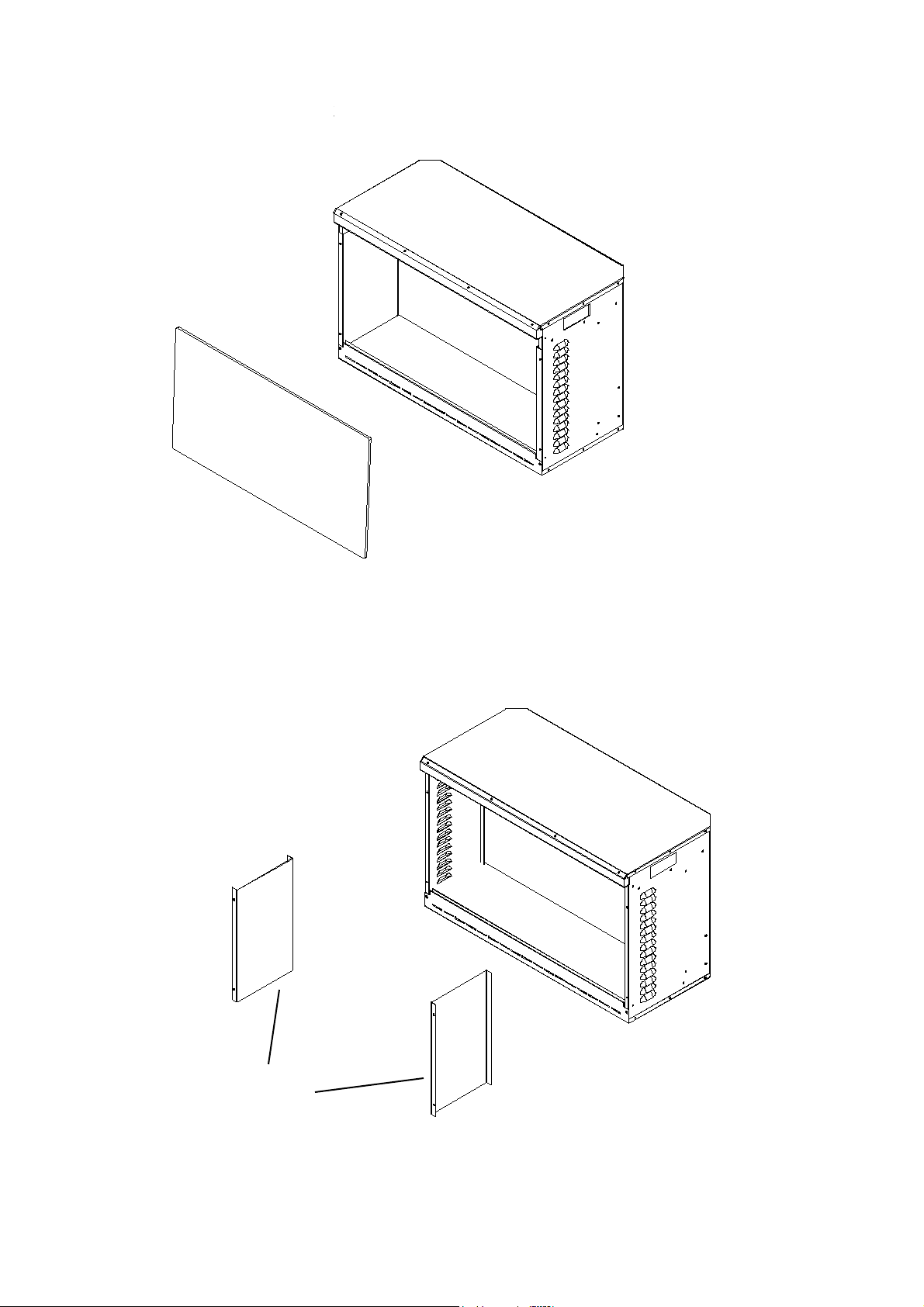

When the trim is removed, take off the front glass panel.
13
When the trim is removed, take off the front glass
panel.
Inner side panels
3. Unscrew the
screws located on each
screws located on each
side and take off the inner side steel panels.
side and take off the inner side steel panels.

4.
Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make
sure that the fireplace fits the wall opening well and there is no gap between the trim and the
wall after installation)
5.
Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.
14
Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make
sure that the fireplace fits the wall opening well and there is no gap between the trim and the
Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.
Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make
sure that the fireplace fits the wall opening well and there is no gap between the trim and the
Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.
Screw the appliance onto the wall

6.
Remove the trim following STEP 1. Screw back the inner side steel panels.
7. Put back the front glass pan

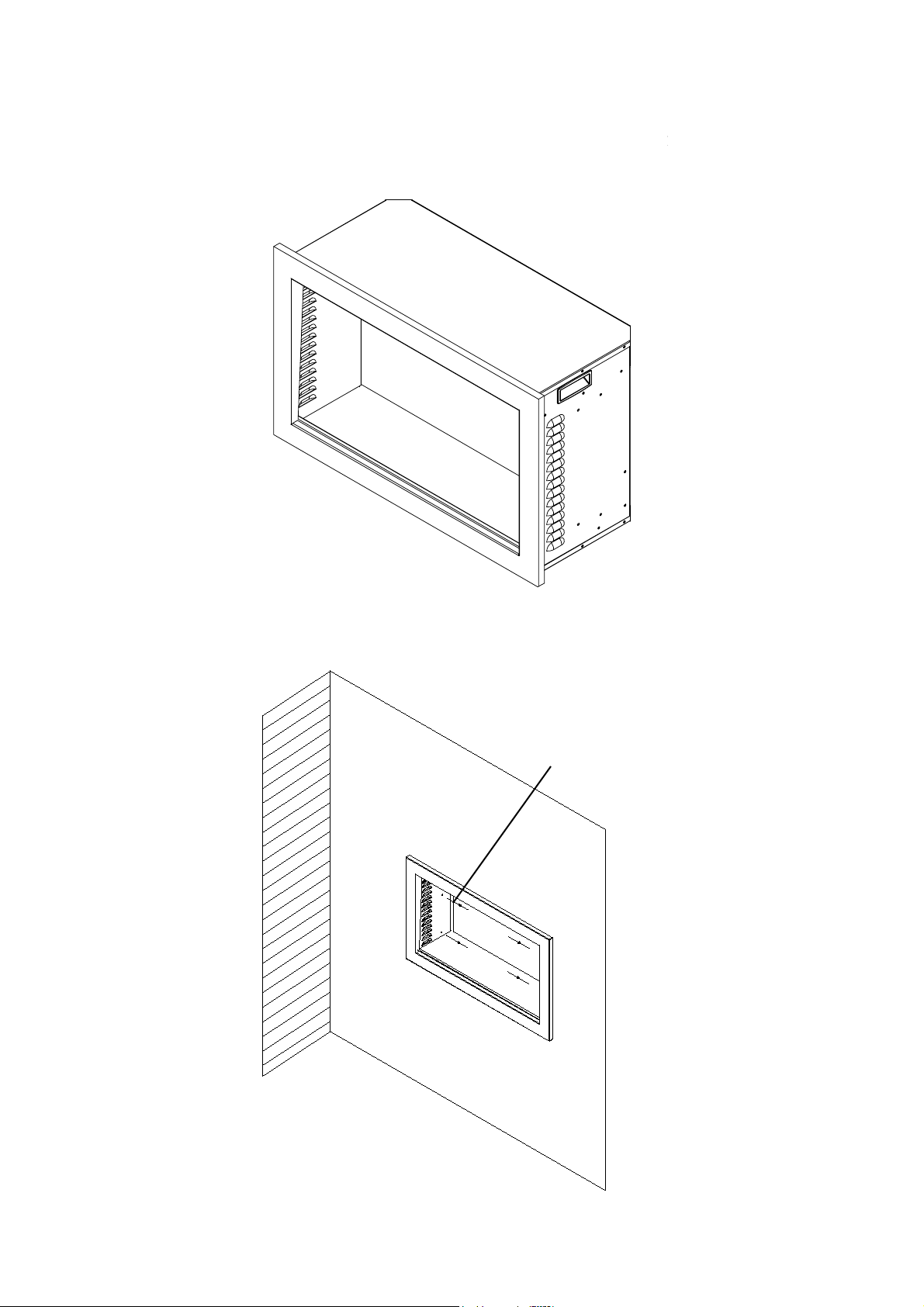

el and screw back the trim after you finish the media decoration.
15
Remove the trim following STEP 1. Screw back the inner side steel panels.
el and screw back the trim after you finish the media decoration.
Remove the trim following STEP 1. Screw back the inner side steel panels.
el and screw back the trim after you finish the med
ia decoration.

16
MEDIA OPTIONS
Your fireplace ships with a 10 piece Birch Log Set, two (2) bags of Smoke Glass, one (1)
bag of Black ermiculite and one (1) bag of White ermiculite.
SMOKE GLASS ERMICULITE
11-PIECE BIRCH LOG SET
MEDIA INSTALLATION
Unscrew 4 screws and take off the trim. (NOTE: Keep hold of the front glass as it may fall
down automatically when the trim is removed.)
INSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
installing the fire glass.
Screws locations
Magnetic stones locations

1
OPERATION

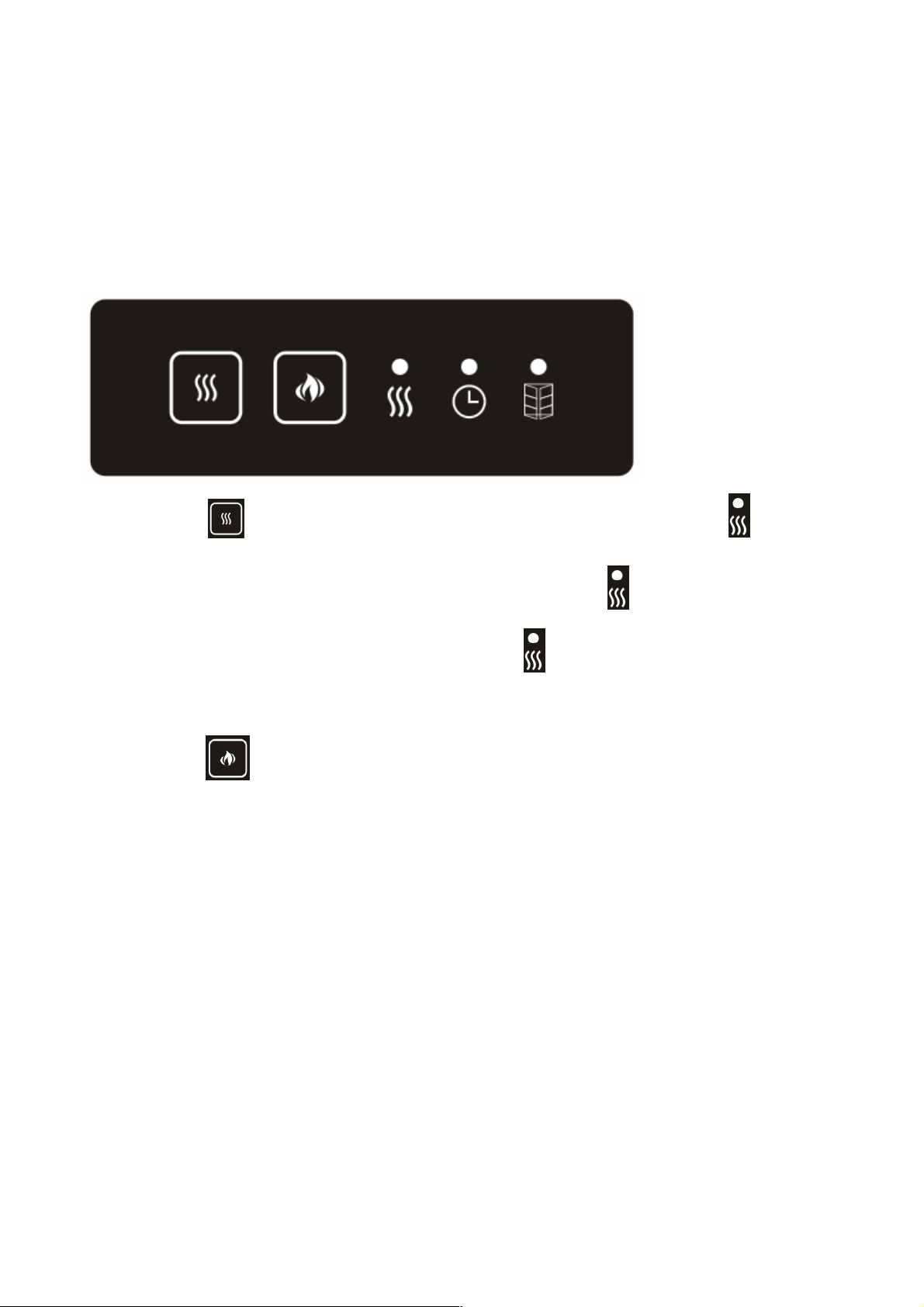

The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
1、 Press key . Press for the first time，heater work at 1500W, indicator ights red.
Press for the second time, heater work at 750W，indicator ights b ue. Press for the
third time, the heating e ement turns off, indicator extinguishes.
Note: after the heating e ements are turned on manua y, the heating e ements work but
are not contro ed by the temperature sensor.
2、Press key . Press for the first time and the charcoa and f ame is in the highest
brightness. Press for the second time ,the charcoa and f ame is in medium brightness.
Press for the third time ,the charcoa and f ame is in ow brightness. Press for the fourth time ,
the charcoa and f ame goes out. Then it circu ates in turn.
MANUAL OPERATION

18
REMOTE CONTROL OPERATION

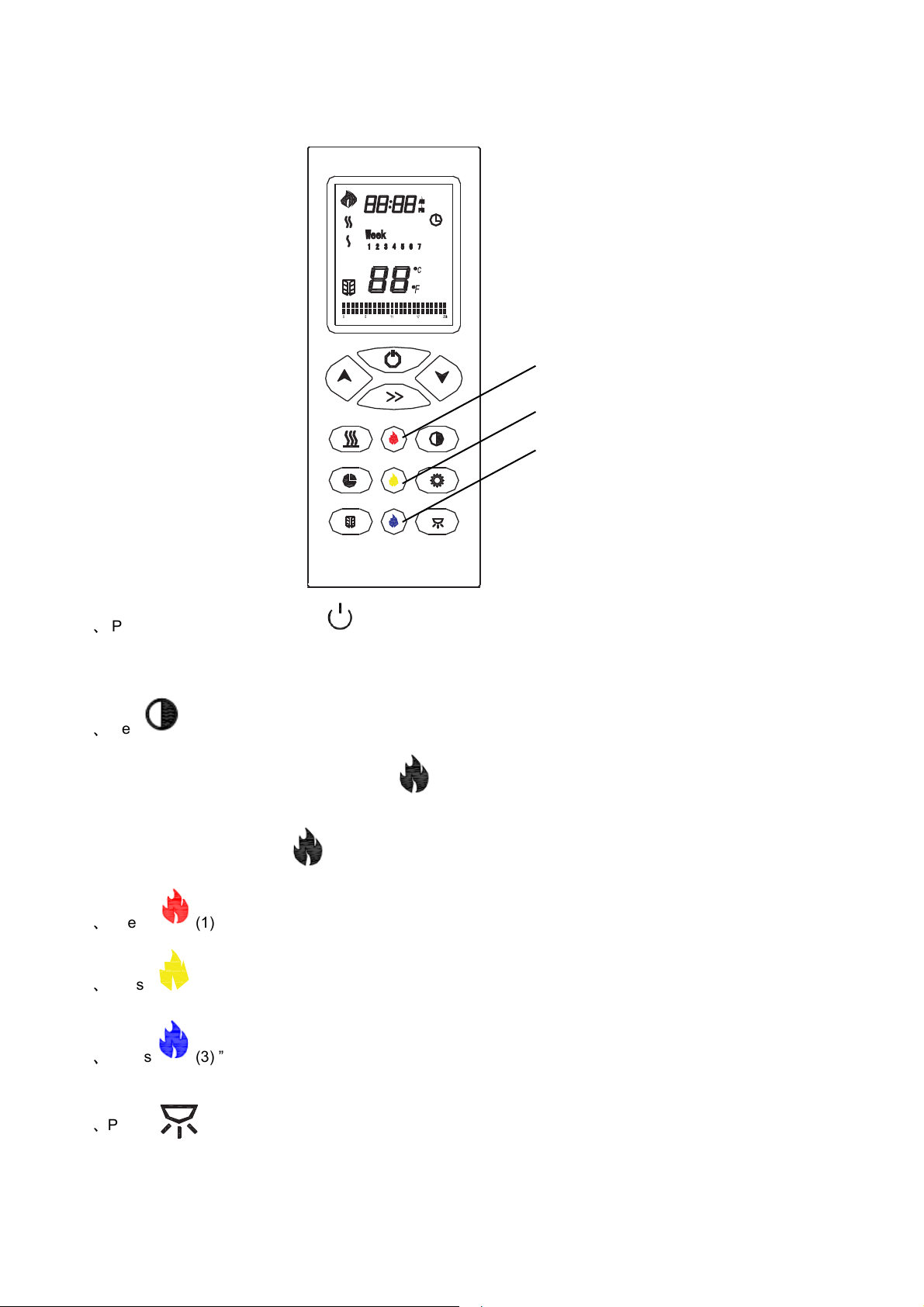

6 、 Press“ ”to turn on, turn off and adjust top ight co ors. The buzzer beeps once when the key is pressed;
1 、 Press the remote contro ’s key“ ”, its screen turns on, the f ame ignites and the f ame icon appears on
the LCD screen of the remote contro . Week, time (24h system), and temperature setting are disp ayed
norma y. Press it again, the screen of the remote contro wi turn off;
2
、 Key“ ”, f ame and charcoa contro switch. In case of ON, press once, the f ame and the charcoa bed
go out, the LCD screen does not disp ay . Press it again and the f ame and the charcoa bed turn on,
the LCD screen disp ays . The buzzer beeps once when the key is pressed;
3
、 Press“ (1) ”to adjust the red f ame. The buzzer beeps once when the key is pressed;
4 、 Press“ (2) ” to adjust the ye ow f ame. The buzzer beeps once when the key is pressed;
5
、 Press“ (3) ” to adjust the b ue f ame. The buzzer beeps once when the key is pressed;
1
2
3

19
7、Press the heating key“ .” Press for the first time ,the heating e ements work at 1500W,
the LCD screen disp ays , the indicator on the machine ights red. Press a second
time , the heating e ements work at 750W, the LCD screen disp ays , the indicator
on the machine ights b ue. Press a third time and the heating e ements turn off, the LCD
screen does not disp ay the function icon, the indicator on the machine goes off. The
buzzer beeps once when the key is pressed;
Note: in case the heating e ements are turned on by remote contro , whether the heating
e ements work or not depends on the temperature setting and ambient temperature. They
work on y when the temperature setting is above the ambient temperature.
8、Press key“ ”“ ” to adjust the temperature setting between 7 and 30 ℃ . The
buzzer beeps when the key is pressed;
9、Press shift key“ ”. Press once, the corresponding figure f ashes. Press “ ” “
”
now to set current time and week. The buzzer does not beep when the key is pressed;
10、Press timing parameter setting key“ .” Press for the first time and the LCD screen
disp ays to indicate Monday. Now the temperature setting f ashes, press “ ” to
set the timing temperature for Monday, press key “ ” to confirm and then press “ ”
the time setting for timing.. The disp ayed time parameter is “00-23.” Press “ ”
to set the current operating state of timing function; indicates that the timing is on
current y and the contro temperature is the temperature setting, indicates that the
timing is on current y and the contro temperature is the temperature setting minus 3 ℃, No
disp ay indicates timing is off current and the heating e ements do not work. Corresponding
point f ashes when setting. Press for the second time, it disp ays , set the parameters

for Tuesday. Press for the 7th time and it disp ays . Press for the 8th time and it exits
and recovers to the current week day;
11、Press“ .” Press for the first time and the timing function turns on, the LCD screen
disp ays
, the machine’s indicator ights green. Press again to turn off, icon
on the LCD screen goes off. After the timing function is turned on, it works according
the parameter settings. The LCD screen
ights up according to corresponding parameter settings;
Note: when the time, week and timing parameters are changed, you need to switch on-off
the timing key to transfer the timing parameters to the machine. After the machine has
received them correct y, the buzzer wi beep once.
12、 Press“ ”. Press once to turn on the Open Window function, the LCD screen disp ays
icon , the indicator on the machine ights ye ow. Press again to turn it off, the LCD
screen does not disp ay icon
and the indicator on the machine goes off. The
buzzer beeps when the key is pressed;
After the Open Window function is turned on, the program first y detects if the heating
function is turned on. If it is turned on, the program wi save the current ambient temperature
va ue and detects the ambient temperature change once per 12 minutes. When the
decrease in the ambient temperature detected within 30 minutes exceeds 4 ℃ ,the
program wi deem that the window is open and stop heating, and the Open Window
indicator on the machine wi f ash rapid y. After it has stopped heating for 70 minutes,
the program starts to detect if the window is c osed, and the indicator f ashes s ow y. It
heats for 6 minutes every 30 minutes (position H2). If the temperature rise is more than 2 ℃ ,
the window is considered as c osed, and the indicator stops f ashing.
20
