Ametek Reichert 7 Series Operating and maintenance manual

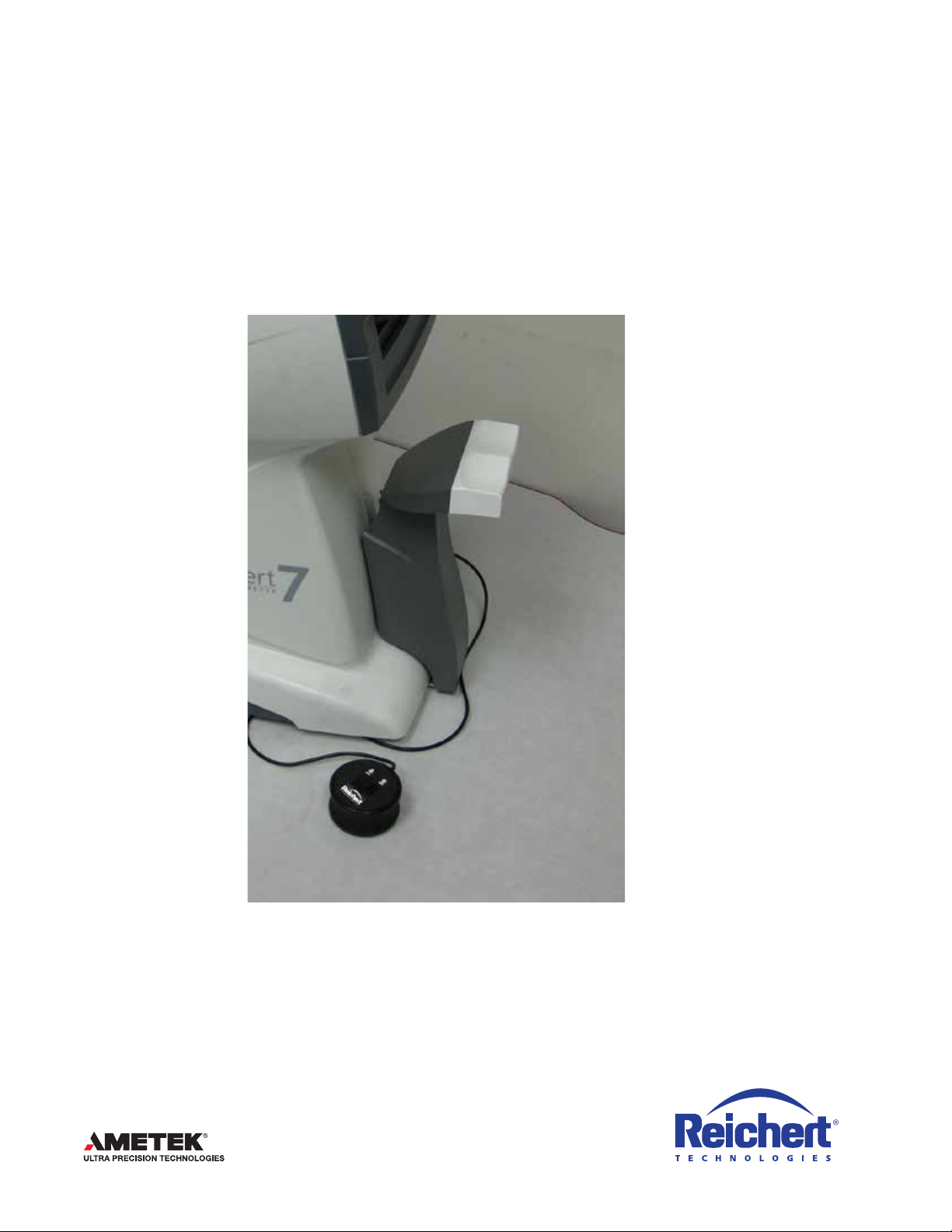

Reichert®7 Series Chinrest
Installation Procedure

Contents
Warnings & Cautions.................................................................................... 3
Symbol Information....................................................................................... 4
Introduction................................................................................................... 5
Instrument Setup
Unpacking Instructions..................................................................... 6
Parts Identication ........................................................................... 6
Installation........................................................................................ 7
Instructions for Use
Chinrest Operation........................................................................... 8
Cleaning & Maintenance
External Cleaning ............................................................................ 9
Troubleshooting ............................................................................................ 9
General Specications ................................................................................10
Warranty ..................................................................................................... 11
©2014 AMETEK, Inc.
Reichert and Reichert Technologies are registered trademarks of Reichert, Inc.
AMETEK is a registered trademark of AMETEK, Inc.
All other trademarks are property of their respective owners.
The information contained in this document was accurate at time of publication. Specifications subject to change without notice.
Reichert, Inc. reserves the right to make changes in the product described in this manual without notice and without incorporating
those changes in any products already sold.
ISO 9001/13485 Certified – Reichert products are designed and manufactured under quality processes meeting ISO 9001/13485
requirements.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, recording, or otherwise, without the prior written permission of Reichert, Inc.
Caution: Federal law restricts this device to sale by or on the order of a licensed physician. Rx only.

16049-101 Rev. D 3
Warnings & Cautions
Reichert Technologies®is not responsible for the safety and reliability of this instrument when:
• Assembly, disassembly, repair, or modication is made by unauthorized dealers or persons
• Instrument is not used in accordance with this User’s Guide.
WARNING: AN INSTRUCTION THAT DRAWS ATTENTION TO RISK OF INJURY OR DEATH.
WARNING: UNITED STATES FEDERAL LAW AND EUROPEAN REGULATIONS REQUIRE THAT
THIS DEVICE BE PURCHASED ONLY BY A PHYSICIAN OR A PERSON ACTING ON BEHALF OF A
PHYSICIAN.
WARNING: THIS INSTRUMENT SHOULD BE USED IN STRICT ACCORDANCE WITH THE
INSTRUCTIONS OUTLINED IN THIS USER’S GUIDE. THE SAFETY OF THE OPERATOR AND THE
PERFORMANCE OF THE INSTRUMENT CANNOT BE GUARANTEED IF USED IN A MANNER NOT
SPECIFIED BY REICHERT TECHNOLOGIES.
WARNING: DO NOT REPAIR OR SERVICE THIS INSTRUMENT WITHOUT AUTHORIZATION FROM
THE MANUFACTURER. ANY REPAIR OR SERVICE TO THIS INSTRUMENT MUST BE PERFORMED BY
EXPERIENCED PERSONNEL OR DEALERS WHO ARE TRAINED BY REICHERT SO THAT CORRECT
OPERATION OF THIS INSTRUMENT IS MAINTAINED OR SERIOUS INJURY TO THE OPERATOR OR
PATIENT MAY OCCUR.
WARNING: MODIFICATIONS TO THIS INSTRUMENT ARE NOT ALLOWED. ANY MODIFICATION TO
THIS UNIT MUST BE AUTHORIZED BY REICHERT SO THAT CORRECT OPERATION IS MAINTAINED
OR SERIOUS INJURY TO THE OPERATOR OR PATIENT MAY OCCUR.
WARNING: IF THIS INSTRUMENT IS MODIFIED, APPROPRIATE INSPECTION AND TESTING MUST BE
CONDUCTED TO ENSURE CONTINUED SAFE USE OF THIS INSTRUMENT.
WARNING: ENSURE THAT THE VOLTAGE APPLIED TO THE UNIT IS THE SAME AS THE VOLTAGE
THAT IS INDICATED ON THE DATA PLATE OR DAMAGE TO THE INSTRUMENT AND/OR INJURY TO THE
OPERATOR OR PATIENT MAY OCCUR.
WARNING: THE AREA BELOW THE CHINREST MAY CREATE A “PINCH HAZARD.” DO NOT PLACE
FINGERS BETWEEN THE CHINREST AND THE CHINREST BASE OR INJURY MAY OCCUR WHEN THE
CHINREST IS LOWERED.
CAUTION: AN INSTRUCTION THAT DRAWS ATTENTION TO RISK OF PRODUCT DAMAGE.
CAUTION: THE INTERNAL CIRCUITRY OF THE INSTRUMENT CONTAINS ELECTROSTATIC
DISCHARGE SENSITIVE DEVICES (ESDS) THAT MAY BE SENSITIVE TO STATIC CHARGES
PRODUCED BY THE HUMAN BODY. DO NOT REMOVE THE COVERS WITHOUT TAKING PROPER
PRECAUTIONS.
CAUTION: DO NOT USE SOLVENTS OR STRONG CLEANING SOLUTIONS ON ANY PART OF THIS
INSTRUMENT AS DAMAGE TO THE UNIT MAY OCCUR. SEE MAINTENANCE SECTION FOR DETAILED
CLEANING INSTRUCTION.
CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE
CONTROL OF REICHERT INC. OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS.
CAUTION: DO NOT AUTOCLAVE OR DISINFECT USING HIGH TEMPERATURES EXCEEDING THE
RECOMMENDED TEMPERATURES INDICATED IN THE SPECIFICATIONS SECTION OF THIS MANUAL
OR DAMAGE TO THE UNIT MAY OCCUR.

16049-101 Rev. D4
Symbol Information
The following symbols appear on the instrument:
Caution symbol indicating important operating and maintenance
instructions that are included in this User’s Guide.
Type B Applied Part
Protective Earth Connection
Date of Manufacture
REF Catalog Number
SN Serial Number
Waste of Electrical and Electronic Equipment
Compliance to Medical Device Directive 93/42/EEC
Accompanying Documents must be consulted
Authorized Representative in European Community
Fragile Contents in Shipping Container - handle with care
Keep Dry - Package shall be kept away from rain
2014
Symbol Information

16049-101 Rev. D 5
Introduction
Congratulations on your purchase of the Reichert®7 Series Chinrest.
This User’s Guide is designed as a training and reference manual for operation, maintenance, and trouble-
shooting. We recommend that you read it carefully prior to use and follow the instructions in the guide to
ensure optimum performance of your new instrument. Properly trained eyecare professionals such as
ophthalmologists, optometrists, opticians and eye care technicians should operate this instrument.
Please retain this guide for future reference and to share with other users. Additional copies can be
obtained from your authorized Reichert, Inc. dealer or contact our Customer Service department directly
at the address on the back cover:
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Indications for use
This device is an accessory for a tonometer which measures intraocular pressure to aid in the screening
and diagnosis of glaucoma.
Contraindications
None

16049-101 Rev. D6
Unpacking Instructions
Great care has been taken to deliver your new Reichert 7 Series Chinrest to you safely. Please read the
User’s Guide before operating the unit.
Remove the following contents from its box.
• Chinrest Assembly
• Hardware Package
• User Guide (P/N 16049-101)
• Up/Down Switch (P/N 16049-815*)
(*Note: maximum length not to exceed 36 inches (92.0 cm)
Parts Identication
(Refer to Figure 1-1)
1. Chinrest Assembly: Chinrest that the patient can use as a support during measurements.
2. Chinrest Mounting Bracket: Bracket of the Chinrest that attaches to the underside of the Reichert 7.
3. Mounting Hardware: Hardware for the Chinrest and switch.
• 4 screws:
(attaches the chinrest mounting bracket to the unit)
• 3 rubber pads (optional use):
(attaches to the bottom of the switch)
• 1 hook-and-loop fastener (optional use):
(attaches to the bottom of the switch on the Reichert 7)
4. Up/Down Switch: Toggle Switch that moves the Chinrest up or down.
Instrument Setup
Figure 1-1, Parts Identication
1
2
3
4

16049-101 Rev. D 7
Installation
Install the Reichert 7 Series Chinrest assembly according to the
following procedure.
Note: The Reichert 7 Series Chinrest is compatible with the
Reichert 7 and Reichert 7CR.
1. Set the Reichert 7 on its side so that the Chinrest assembly
can be installed onto the bottom of the unit. (Refer to
Figure 1-2)
2. Remove the two screws that secure the connector access
plate. Remove the access plate and attach the screws
from where they were removed to secure the connector
interface plate. Put the access plate in with the shipping
container for future use, if needed.
3. Attach the Chinrest assembly connector to its mating
connector on the bottom of the Reichert 7.
(Refer to Figure 1-3)
4. Attach the connector from the UP/Down Switch to the back
side of the Chinrest assembly (Refer to Figure 1-4) and
run the cable behind the chinrest assembly, between the
chinrest assembly and the patient side of the instrument.
Continue routing the cable under the instrument so that it is
out of view to the patient.
5. Position the Chinrest assembly so that the mounting holes
on the Chinrest assembly align with the holes on the bottom
of the unit. (Refer to Figure 1-5)
6. Secure the Chinrest assembly to the bottom of the Reichert
7 with the screws supplied with the Chinrest assembly.
7. Attach the three rubber bumpers or the hook-and-loop
fasteners to the bottom of the UP/Down Switch as desired.
If using the Hook-and-loop fasteners, secure the other side
to the other desired surface. (e.g., unit, table, etc.). (Refer to Figure 1-6)
Note: There are no fuses in this instrument and disconnection of the Reichert 7 Series Chinrest is per-
formed by removing the connection from the bottom of the instrument.
Instrument Setup (Continued)
Figure 1-3,
Up/Down
Switch Connector
Connector Access Plate
Figure 1-4, Switch Connector
Figure 1-5, Switch Connector
Mounting Screw Holes
Figure 1-6, Switch Bumpers
Rubber Bumpers
Figure 1-2, Reichert 7 Bottom

16049-101 Rev. D8
Chinrest Operation
The Chinrest assembly is a device that assists patient
alignment during measurement. It allows patients that have
difculty holding still during a measurement to have an
additional reference point for reducing movement. The Up/
Down Switch should be set on the table next to the unit so
that it is easily accessible to operate.
Note: The canthus marks on the side of the unit should be
aligned vertically near the apex of the eye.
To change the height of the chinrest: (Refer to Figure 1-7)
• Press the up button on the Up/Down Switch to move the
chinrest up
• Press the down button on the Up/Down Switch to move
the chinrest down.
DOWN UP
Figure 1-7, Up/Down Switch
Instructions for Use

16049-101 Rev. D 9
Cleaning & Maintenance
Perform the following procedures as need to keep this instrument operating correctly.
CAUTION: DO NOT USE ALCOHOL, SOLVENTS OR STRONG CLEANING SOLUTIONS OR DAMAGE
TO THE UNIT WILL OCCUR.
External Cleaning
Remove power from the Reichert 7 and clean the external surfaces of the Chinrest using a clean, soft
cloth lightly moistened with a mild detergent solution (1 cc of liquid dish soap to one liter of clean, ltered
water (ltered below 5 microns)). Do not allow the mild detergent solution to drip inside the Reichert 7 or
Chinrest Assembly or damage may occur.
There is no scheduled maintenance required for this product.
Fuse Replacement
There are no fuses in this product.
Troubleshooting
The following chart provides details of common complaints and solutions for the Reichert 7 Series
Chinrest.
WARNING: DO NOT REMOVE THE OUTSIDE COVERS OF THE UNIT OR ATTEMPT TO REPAIR ANY
INTERNAL PARTS. REPAIR AND SERVICE OF THE UNIT MUST BE PERFORMED BY EXPERIENCED
REICHERT PERSONNEL OR AUTHORIZED DISTRIBUTORS WHO ARE TRAINED BY REICHERT.
Details Probable Cause Solution
Chinrest does not
move Up or Down.
• Chinrest is not connected to
the Reichert 7.
• Up/Down Switch is not
connected to Reichert 7.
• Circuit board in the Chinrest
assembly is defective.
• Attach connector to the Reichert 7.
• Attach the connector from the switch
to the Reichert 7.
• Replace the Chinrest circuit board.
Chinrest moves left and
right and is not locked
in position.
• Chinrest mounting bracket is
loose.
• Tighten mounting bracket on the bot-
tom of the Reichert 7.

16049-101 Rev. D10
General Specifications
REF 16049
Physical Dimensions
Size:
Height: 11.0 in. (28.0 cm)
Width: 7.25 in. (18.4 cm)
Depth: 8.00 in. (20.3 cm)
Weight, unpacked:
2.59 lbs. (1.17 Kg)
Electrical
Voltage: 24 VDC
Fuses: None
Operational Conditions
Environmental:
The environmental conditions are as follows:
Operating:
Temperature 10° C (50° F) to 35° C (95° F)
Relative Humidity: 30% to 75%
Atmospheric Pressure: 80 (23.6 in. Hg) to
106 kPa (31.3 in. Hg)
Transportation & Storage:
Temperature -40° C (-40° F) to +70° C (158° F).
Relative Humidity: 10% to 80%
Atmospheric Pressure: 50 (14.8 in. Hg) to
106 kPa (31.3 in. Hg)
Disposal
This product does not generate any environmentally hazardous residues. At the end of its product service
life, follow your local laws and ordinances regarding the proper disposal of this equipment.
Software Revision
There is no software associated with this instrument.
Guidance Tables
Refer to Reichert 7 User’s Guide (P/N 16050-101) for details regarding IEC 60601-1-2 guidance tables.
10°C
35°C
30%
75%
106 kPa
80 kPa

16049-101 Rev. D 11
Warranty
This product is warranted by Reichert, Inc. (“Reichert”) against defective material and workmanship under normal use for
a period of one year from the date of invoice to the original purchaser. (An authorized dealer shall not be considered an
original purchaser.) Under this warranty, Reichert’s sole obligation is to repair or replace the defective part or product at
Reichert’s discretion.
This warranty applies to new products and does not apply to a product that has been tampered with, altered in any way,
misused, damaged by accident or negligence, or that has the serial number removed, altered or effaced. Nor shall this
warranty be extended to a product installed or operated in a manner not in accordance with the applicable Reichert
instruction manual, nor to a product that has been sold, serviced, installed or repaired other than by a Reichert factory,
Technical Service Center, or authorized Reichert, Inc. dealer.
Lamps, bulbs, charts, cards and other expendable items are not covered by this warranty.
All claims under this warranty must be in writing directed to the Reichert factory, Technical Service Center, or authorized
instrument dealer making the original sale and must be accompanied by a copy of the purchaser’s invoice.
This warranty is in lieu of all other warranties implied or expressed. All implied warranties of merchantability or tness for
a particular use are hereby disclaimed. No representative or other person is authorized to make any other obligations for
Reichert. Reichert shall not be liable for any special, incidental, or consequent damages for any negligence, breach of
warranty, strict liability or any other damages resulting from or relating to design, manufacture, sale, use or handling of the
product.
PATENT WARRANTY
If notied promptly in writing of any action brought against the purchaser based on a claim that the instrument infringes
a U.S. Patent, Reichert will defend such action at its expense and will pay costs and damages awarded in any such
action, provided that Reichert shall have sole control of the defense of any such action with information and assistance (at
Reichert’s expense) for such defense, and of all negotiation for the settlement and compromise thereof.
PRODUCT CHANGES
Reichert reserves the right to make changes in design or to make additions to or improvements in its products without
obligation to add such to products previously manufactured.
CLAIMS FOR SHORTAGES
We use extreme care in selection, checking, rechecking and packing to eliminate the possibility of error. If any shipping
errors are discovered:
1. Carefully go through the packing materials to be sure nothing was inadvertently overlooked when the unit was
unpacked.
2. Call the dealer you purchased the product from and report the shortage. The materials are packed at the factory and
none should be missing if the box has never been opened.
3. Claims should be led within 30 days.
CLAIMS FOR DAMAGES IN TRANSIT
Our shipping responsibility ceases with the safe delivery in good condition to the transportation company. Claims for loss
or damage in transit should be made promptly and directly to the transportation company.
If, upon delivery, the outside of the packing case shows evidence of rough handling or damage, the transportation
company’s agent should be requested to make a “Received in Bad Order” notation on the delivery receipt. If within 48
hours of delivery, concealed damage is noted upon unpacking the shipment and no exterior evidence of rough handling
is apparent, the transportation company should be requested to make out a “Bad Order” report. This procedure is
necessary in order for the dealer to maintain the right of recovery from the carrier.

Reichert Technologies
3362 Walden Ave
Depew, NY 14043
USA
Toll Free 888-849-8955
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.reichert.com
AMETEK GmbH
Business Unit Reichert
Carl-von-Linde-Strasse 42
85716 Unterschleissheim/Munich
Germany
Email: [email protected]
Tel: [phone]
Fax: [phone]
ISO-9001/13485 Certied
16049-101 Rev. D
September 10, 2014
