Amewi Bonanza A36 ST User manual

Assembly Instructions
Before commencing assembly, pleass read instruction thoroughly
Beechcraft Bonanza A36 ST
A36ST Technical data:
Specification:
Wingspan: 1280mm
Length: 1030mm
Weight: 1384g / 1442g
Configuration
Radio: 6CHanneL 2.4G radio
Motor: 3715 980KV
ESC: 30A / 50A
Battery: 11.1V 2200mA 20C lipo / 14.8V 2200mA 20C lipo
Servo: 9g * 1PCS + 17g * 3PCS / 9g * 2PCS + 17g * 3PCS
Charger: 3S lipo balancer and adapter / 4S lipo balancer
and 3A adapter
Propeller: 1070 3blades
Item No. 24068

Welcome!
AMEWI TRADE e.K.
Is a young, fresh, international Import and Wholesale company in the RC and Toy
industry located in Paderborn.
Our product range contains over 6000 articles.
Containing to it are Cars, Helicopters, Quadrocopters, Boats and Tanks including a
lot of extra parts and all needed spare parts.
Our distribution network contains over 450 specialist dealers and online shops.
AMEWI Trade e.K. is an Wholesale Company.
We only distribute our goods to retailers.
IF you are an End-Customer who is buying AMEWI-Products , you contract with your
retailer.
In case of warranty please always contact your retailer.
This plane is not a toy. It is not suitable for persons below aged 14.Please read
the manual –really read it please ! As beginner, please search the help of an
experienced RC Modeler to help you on first usage.
This plane and its parts have to be kept away from children aged 3 years and below.
Single parts could be swallowed and cause danger of suffication.

Notice: The car comes completly assembeled, but Responsibility
for last steps and fort he usage belongs exclusivly to the user
AMEWI excludes an assumption of liability, because an verification
is not possible.
Security Notice
Only use your RC Car and TX for what it was ment to.
Never run your car in road traffic or in thunderstorms.
Use very carefully or stop usage as soon as people or animals surrounding.
When running your car in the rain, water could get into electronic parts and cause
damage. This can cause a short with malfunctioning consequences.
Each time before running your car, test the Receiver and Transmitter if working
properly.
Also please do a range check before running your car.
Don’t run your car if any part is not working properly.
Warranty
We ensure, that this model from the time of purchease is free of production and
material faults.
This warranty claims no parts or parts damaged by usage according to changes or
damage caused by the usage of other materials than described in the manual.
As soon as the car is used, the user takes over the full liability by himself.
Warranty or Damages Claim because of inappropriate usage have to be be declined
because the usage is outside our influence.
Excluded from warranty are: Warranty or Damages Claim because of inappropriate
usage, normal wearout, or lacks that influence the worth of the product only a
minimum.
In the form of interventions from not authorized AMEWI retailers and usage of not
original spare parts and parts the warranty expires.

Hinweise zur Konformität
Dieses Modell wurde nach dem derzeit aktuellen Stand der Technik gefer gt. Das Produkt erfüllt die Anforderungen der
geltenden europäischen und na nalen Richtlinien. Die CE-Konformität wurde nachgewiesen. Die Firma AMEWI Trade e.K.
erklärt hiermit, dass dieses Produkt den grundlegenden Anforderungen und den übrigen einschlägigen Bes mmungen der
Richtlinie 2014/53/EU (RED) entspricht.
Weitere Fragen zum Produkt und zur Konformität richten Sie bi e an:
AMEWI Trade e.K., Nikolaus-O -Str. 6, 33178 Borchen, Fax: [phone], Email: [e-mail].
Sicherheits- und Gefahrenhinweise
Achtung! Bei Schäden, die durch Nichtbeachten dieser Bedienungsanleitung verursacht werden, erlischt der
Anspruch auf Gewährleistung! Für Folgeschäden übernehmen wir keine Ha ung! Bei Sach- oder
Personenschäden, die durch unsachgemäße Handhabung oder Nichtbeachten der Sicherheitshinweise
verursacht werden, übernehmen wir keine H ung!
Achtung! Aus Sicherheits- und Zulassungsgründen (CE) ist das eigenmäch e Umbauen und/oder Verändern des
Gerätes nicht gesta et. Zerlegen Sie es das Modell nicht.
Achtung! Kleinteile. Ers ungs- oder Verletzungsgefahr durch Kleinteile.
Achtung! Das Produkt ist kein Spielzeug und nicht für Personen unter 14 Jahren geeignet!
Das Produkt darf nicht feucht oder nass werden.
Das Fahrzeug darf nur auf gla n, ebenen und sauberen Flächen verwendet werden.
Durch Herunterfallen aus bereits geringer Höhe wird das Produkt beschädigt.
Der gleichze ge Betrieb von Fahrzeugen der gleichen Sende-/Empfangsfrequenz ist nicht möglich, da sich diese
gegensei g beeinflussen.
Hinweise zu Batterien / Hinweise zur Batterieentsorgung
Achtung! Ba en / Akkus gehören nicht in Kinderhände.
Ein Wechsel der Ba en oder Akkus ist nur durch einen Erwachsenen durchzuführen. Niemals
wiederaufladbare Akkus mit Trockenba en mischen. Niemals volle mit halbleeren Akkus/Ba erien mischen.
Niemals Akkus verschiedener Kapazität mischen. Versuchen Sie niemals Trockenba ien zu laden. Achten Sie
auf die rich e Polarität. Defekte Akkus/Ba erien sollten ordnungsgemäß (Sondermüll) entsorgt werden. Den
Ladevorgang niemals unbeaufsich durchführen. Bei Fragen zur Ladezeit lesen Sie die Bedienungsanleitung
oder wenden Sie sich an den Hersteller.
Entsorgungshinweise
Die Firma AMEWI ist unter der WEEE Reg. Nr. DE93834722 bei der ung EAR angemeldet und recycelt alle
gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den
Hausmüll! Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß den geltenden gesetzlichen
Vorschri n. Sie als Endverbraucher sind gesetzlich (Ba ieverordnung) zur Rückgabe aller gebrauchten
Ba en und Akkus verpflichtet, eine Entsorgung über den Hausmüll ist untersagt!
Schadsto a ge Ba erien/Akkus sind mit nebenstehenden Symbolen gekennzeichnet, die auf das Verbot der
Entsorgung über den Hausmüll hinweisen. Die zusätzlichen Bezeichnungen für das ausschlaggebende
Schwermetall sind: Cd=Cadmium, Hg=Quecksilber, Pb=Blei (Bezeichnung steht auf Ba erie/Akku z.B. unter den
links abgebildeten Mülltonnen-Symbolen).
Durch die RoHS Kennzeichnung bestä der Hersteller, das alle Grenzwerte bei der Herstellung beachtet
wurden.
Mit dem Recyclingsymbol gekennzeichneten Ba erien können Sie in jedem Altba ie -Sammelbehälter (bei den
meisten Supermärkten an der Kasse) entsorgen. Sie dürfen nicht in den Rest- bzw. Hausmüll.
Die Firma AMEWI Trade e.K. beteiligt sich am Dualen System für Verkaufsverpackungen über die Firma Landbell
AG. Die verwendeten Verpackungen werden von Partner-Unternehmen (Entsorgern) bei den privaten
Endverbrauchern (Haushalten, „Gelber Sack“, „Gelbe Tonne“) abgeholt, sor ert und ordnungsgemäß verwertet.
Die Teilnahme an einem Dualen System trägt zur CO2-Einsparung teil.

Declaration of Conformity
This product has been manufactured according to actual technical standards. The product is matching the requirements of the
exis ng european and na nal guidelines. The Declara on of Conformity has been proofed. AMEWI Trade e.K. declares that this
product is matching the basic requirements and remaining regula ns of the guideline 2014/53/EU (RED).
The declara ons and documents are stored at the manufacturer and can be requested and applied there.
For add onal ques ons to the product and conformity please contact:
AMEWI Trade e.K., Nikolaus-O -Str. 6, DE-33178 Borchen, Fax: [phone], Email: [e-mail].
Security and Hazard Warnings
Attention! For damage, caused by disregarding of the manual, warranty expires !
We are not liable for secondary failures, material or personal damage, caused by inproper usage or disregarding
the security no es.
Attention! Based on security and registra on (CE) reasons, it is forbidden to modify the product personally. Do
not disassemble the product.
Attention! Small parts. Danger of suffoca n or risk of injury caused by small parts.
Attention! Suitable for people aged 14+ !
The product is not allowed to get moist or wet. The product is only allowed to be used on flat and clean surfaces.
Even a drop down from a small height can cause damage to the product. Usage of more then one Products of
same Frequency at the same me is not possible, because it will affect each other.
Battery Notice and Battery Disposal
Attention! Ba y do not belong in childrens hands. A change of the ba y has to be done by an adult person.
Never mix chargable ba ies with non-chargable ba es. Never mix fully charged ba eries with almost emtpy
ba es. Never mix ba ies of different cap es. Never try to charge dry ba es. Take care of the correct
polarity. Defec ve ba s belong to special waste. Never leave a charging ba y una ended. For ques ons
about the charging e please read the manual or ask the manufacturer.
Disposal
The company AMEWI is registered below the WEEE Reg. Nr. DE93834722 at the founda n EAR and recycles all
used electronic parts properly. Electric and electronical products are not allowed to put in household garbage.
Please dispose the product at the end of the life me accroding to the actual laws. You as a customer are
responsible by law for the return of all used ba es, a disposal over the household garbage is forbidden !
Ba es containing hazardous substances are marked with the alongside symbols, which point to the
prohib on of disposal in household garbage.
Add onal nota ons for the cri heavy metal are: Cd=Cadmium, Hg=Quecksilver, Pb=lead (Label is placed on
the ba es, for example below the bo om le trash symbols).
Based on RoHS labeling the manufacturer confirmes, that all limit values were taken care of at the me of
manufacturing.
Ba es labeled with the recycling symbol can be put into used ba y colle ng tank.
(Most supermarkets have)
They are not allowed to be put into local household garbage.
AMEWI Trade e.K. is involved in the dual system for boxing over the company Firma Landbell AG.
All used boxes are collected from partner companies (waste disposal contractor) at private customers (local
household), sorted and properly u . The Involvement in a Dual Systems helps to save CO² Emissions.

1
Battery and Charging
1. Please do not repair and modify the airplane with non-factory parts. The responsibility is
yours if you do.
2. Please do not mix new and old batteries, or alkaline and rechargable batteries. Use only
fresh alkline batteries, and be sure to install them with the correct polarity.
3. Do not fly the model over roads, railways, near power lines, near airports, or over people
or structures.
1. This RC model is not a toy. The owner / pilot is responsible for any damage to persons or
propety that results from the use of this producer
2. It is very important to follow All instructions for setting up and debugging the model
before attempting to flight
3. The manufacturer and their distributors decline any and all responsibility for any liability
arising from the use of this product
1. Do not charge or use the battery near fire or high temperature, or tinder.
2. Do not leave the battery alone during charging, and remove from charge as soon as the
charge cycle is complete.
3. Keep children away from the battery and charger.
4. Do not disassemble or modify the battery or charger in any way.
5. Do not exhaust the battery cycle, or it will cause the battery permenently damaged.
6. Allow the battery to cool before attempting to recharge it after flying.
7. Do not use any charger except for the factory provided one.
8. Read and follow all instructions...misuse of this Lithium polymer battery or the charger
can result in fire or explosion
Safety Precautions

2
CG
4. Do not fly or launch the model towards people’s faces.
5. Do not fly in strong winds or rain or thunderstorms.
6. Keep your hands and face away from the propeller.

3

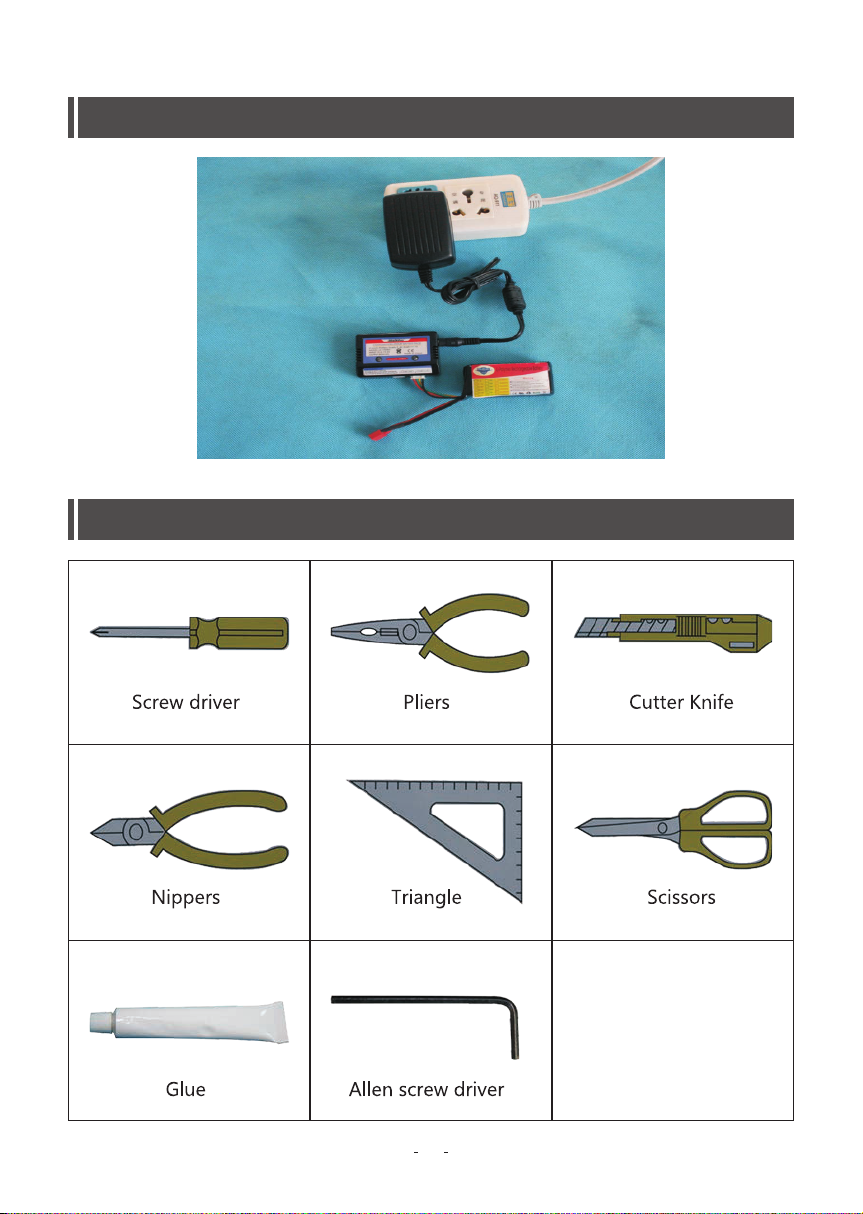

Pictures of Battery Charging
The Use of Tools

Component
4
Fuselage, Main wing, Elevator, Rudder, Transmitter, Adapter, Balancer, Manual, Propeller,
Propeller spinner, Battery, Control rod, Accessories package, Canopy and decoration
X4 X4
X4 X4
Hom Hom
3x15mm
Rod Rod adjuster
Assembly Instructions

5

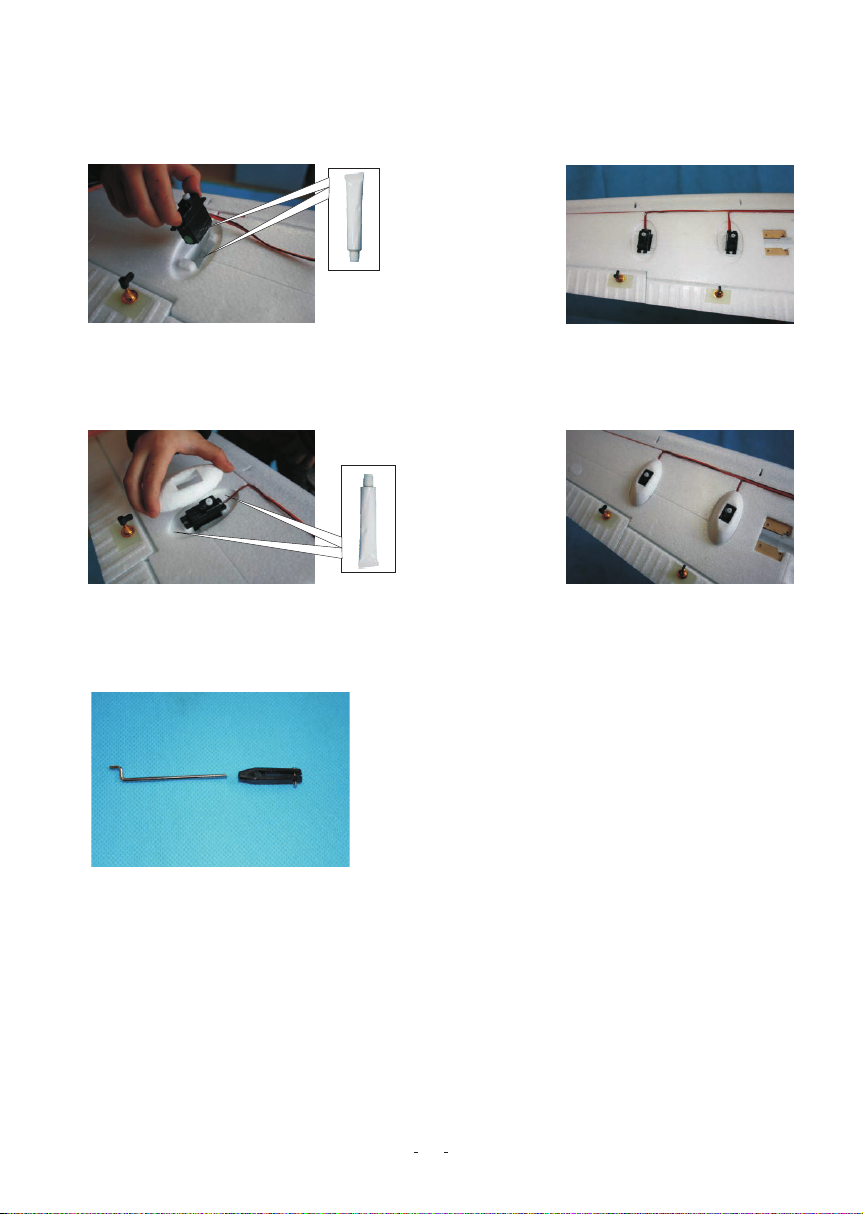

Main wing servos assembly
Assembly the aileron servo and flaps servo to the indication position by glue as picture
Servo protector assembly
Apply glue to the protector then fix it to the appointed place as picture
Clevis assembly
Turn the clevis clockwise into the control rod as picture shown
Main wing control wire assembly
First insert the (z) end of the control wire into the servo arm, then fix the servo arm to the
servo by screw as picture

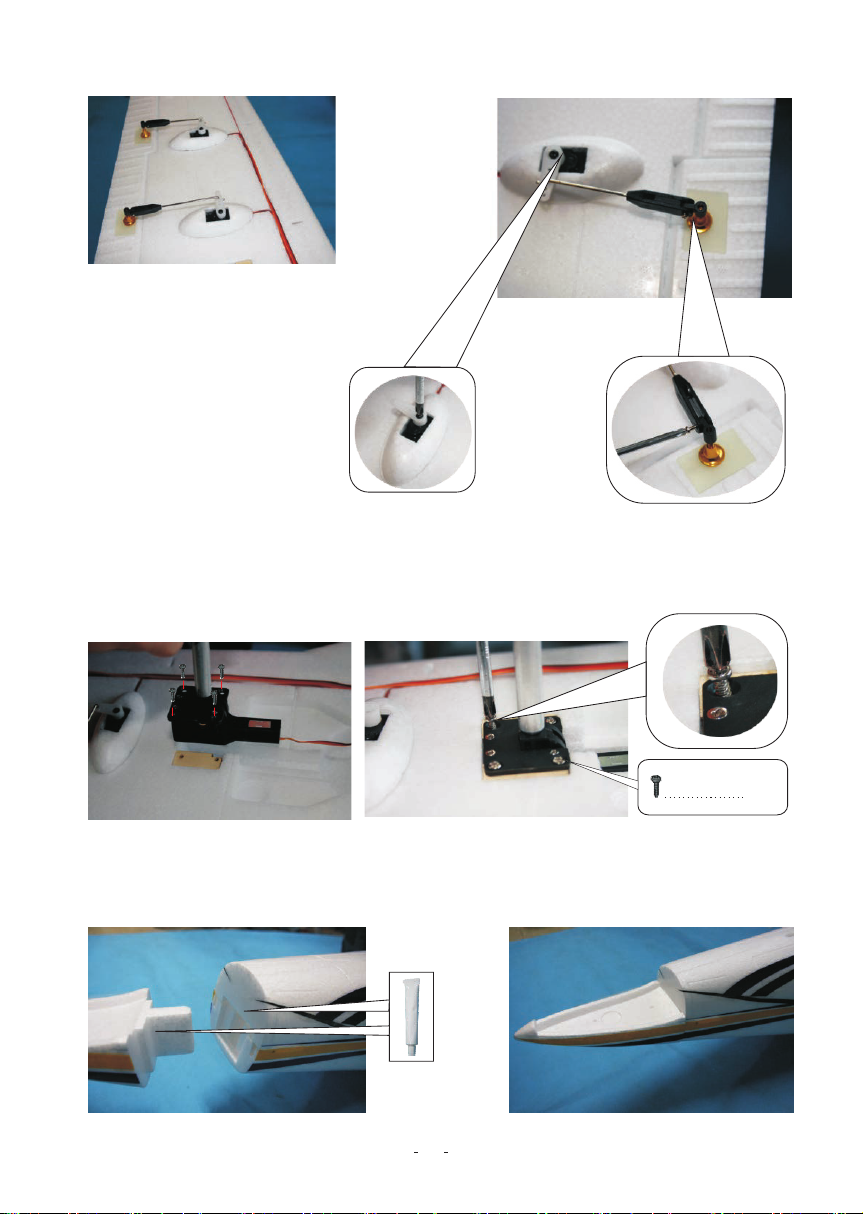

6
Main landing gear assembly
Fix the laning gear to the appointed place on the main wing by screw as picture
X 8
Screw
Tail assembly
Apply the glue to the interface then fix together as picture shown

7
Install the adjustable horn of tail wing as picture shown
X6
X6
X6
X6
Hom
Hom
4x15mm
Rod
Rod adjuster
Tail wing assembly

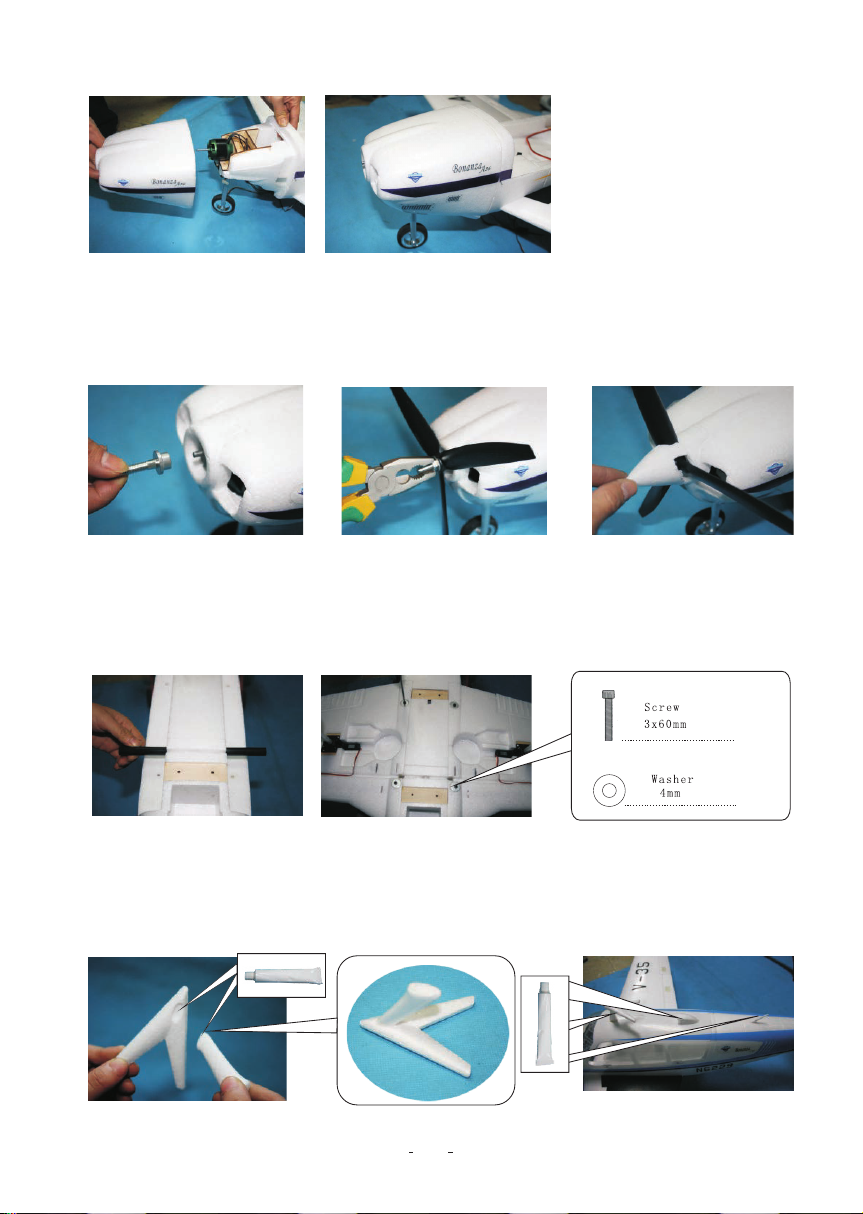

(A36) Install rudder and elevator to the fuselage tail then fix them with screw provided
Screw
3x60mm
X2

8

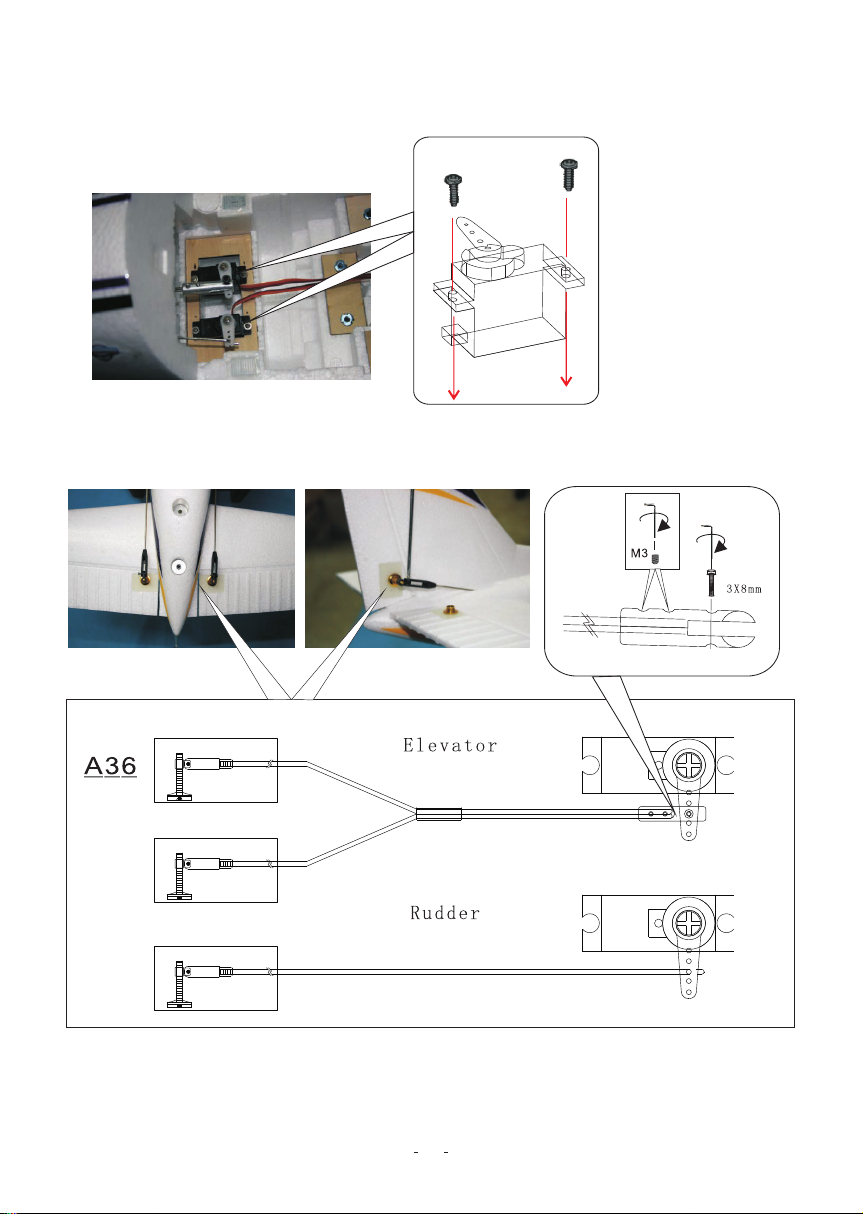

(A36) Elevator servo / Steering servo assembly(as picture shown)
(A36) Elevator control wire / Rudder canopy decortion assembly as picture shown
E l e v a t o r R u d d e r

9
2. Install the V-tail horn as picture shown
X4 X4
X4 X4
Hom Hom
4x15mm
Rod Rod adjuster
(V35) V tail assembly

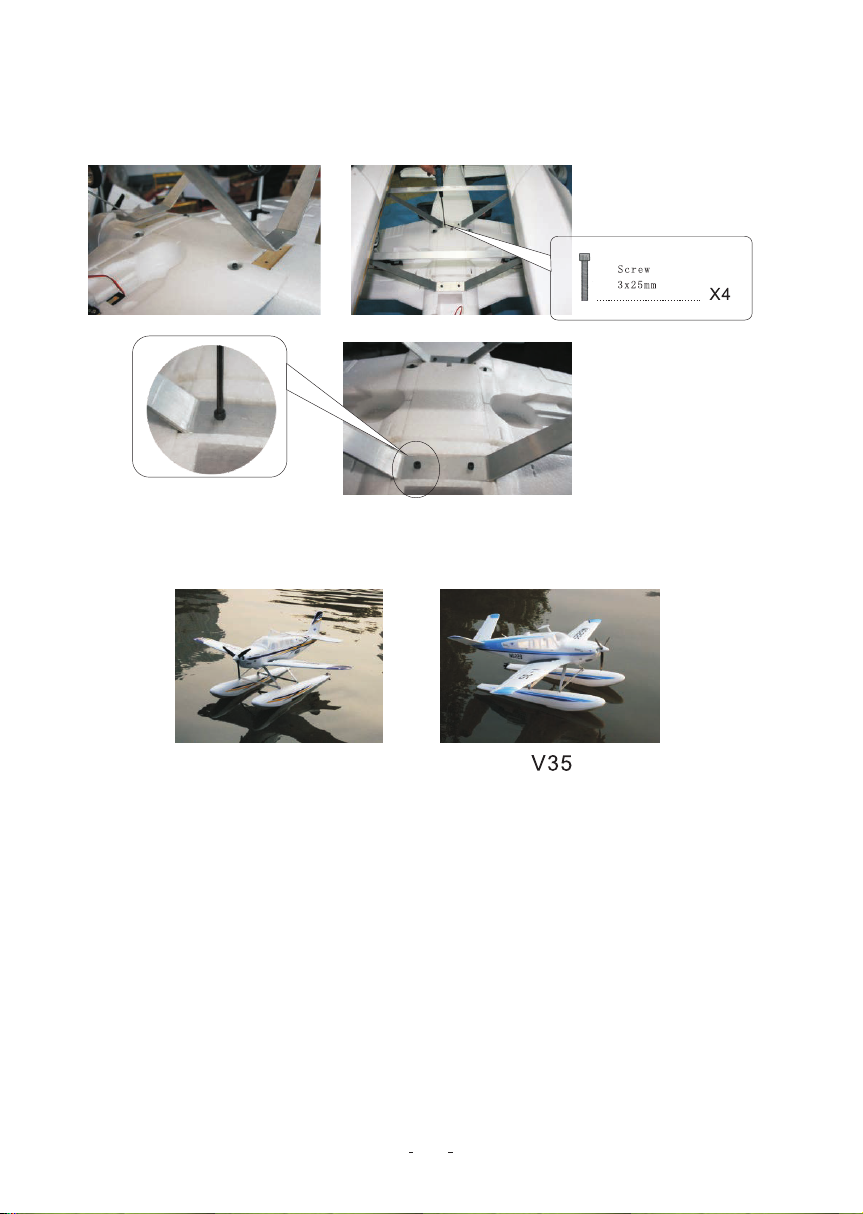

1. Apply the glue to the interface then fix both parts together as picture shown
3. Install the V-tail to the fusealge and fix it by screw provided as picture shown

(V35) V-tail servo assembly as pictures shown
V-tail Control wire assembly as pictures shown
10
Screw
3x60mm
Screw
3x60mm X2
Screw
3x60mm
Elevator

Motor assembly
Fix the to the motor mount with screw provided as pictures shown
Cowl assembly
Install the cowl into the front of the fuselage as picture show
3 X 1 0 m m
Screw
X4
X4
X 4
11
Front landing gear assembly
Fix the to the motor mount with screw provided as pictures shown
Steering servo assembly
Apply the glue to the servo interface and fix it to the appointed in front of fuselage, then
control wire as picture shown

Propeller assembly
Fix the propeller adapter to the motor shaft, finally install the propeller spinner as pictures
shown
Main wing assembly
First, put the carbon fibre through the fuselage, then connect the two halves togetger
and fix it to the fuselage with screw provided as pictures shown
X4
X4
12
Canopy decoration assembly
Apply the glue to the canopy and fuselage appointed insterface, then fix the decoration to
as pictures shown

Receiver assembly
Connect all wires into the channels, then apart the mask and fix it as picture shown
Radio power battery assembly
Install the transmitter battery, be sure that the throttle is in the off position. Then turn on
the power and check controls.
13
Battery assembly
Connect the battery to the ESC and fix it into the place appointed, then put the canopy
back to the fuselage as pictures shown

Water Float Assembling Instructions
Float assembly
Put the two aluminum frame to the float and fix them by screw procided as pictures shown
Float servo assembly
Apply the glue to the servo and fix it into the place appointed as pictures shown
Control rod and servo protector of float assembly
14

Float installation
Fix the float to the underside of fuselage with screw provided as pictures shown
15
A36
