AMF Reece S-101 User manual

3-1
S-101
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
TABLE OF CONTENTS
Covers & Supporting Members ............................................................................... 3-2
Drive Shaft.................................................................................................................. 3-6
Main Cam and Brake Band ...................................................................................... 3-8
Starting lever and switch lever assembly ............................................................ 3-10
Combination Lateral Lever .................................................................................... 3-12
Flybar Control & Turning Sectors &Levers ........................................................ 3-14
Race............................................................................................................................ 3-16
Thread Take up & Looper Drive ........................................................................... 3-20
Upper Thread Trimmer............................................................................................ 3-22
Clamp Yoke Assembly ........................................................................................... 3-24
Cutting Lever Assembly ......................................................................................... 3-28
Length Gauge ........................................................................................................... 3-30
Stitch Feed ................................................................................................................ 3-32
Three Fork Lever ..................................................................................................... 3-34
Rocking Lever .......................................................................................................... 3-36
Needle Bar Drive and Vibrator .............................................................................. 3-40
Needle Bar and Gear .............................................................................................. 3-42
Thread Handling ...................................................................................................... 3-44
Regular Table............................................................................................................ 3-48
Tools, Supples & Accessories................................................................................ 3-50
From the library of: Superior Sewing Machine & Supply LLC

3-2
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

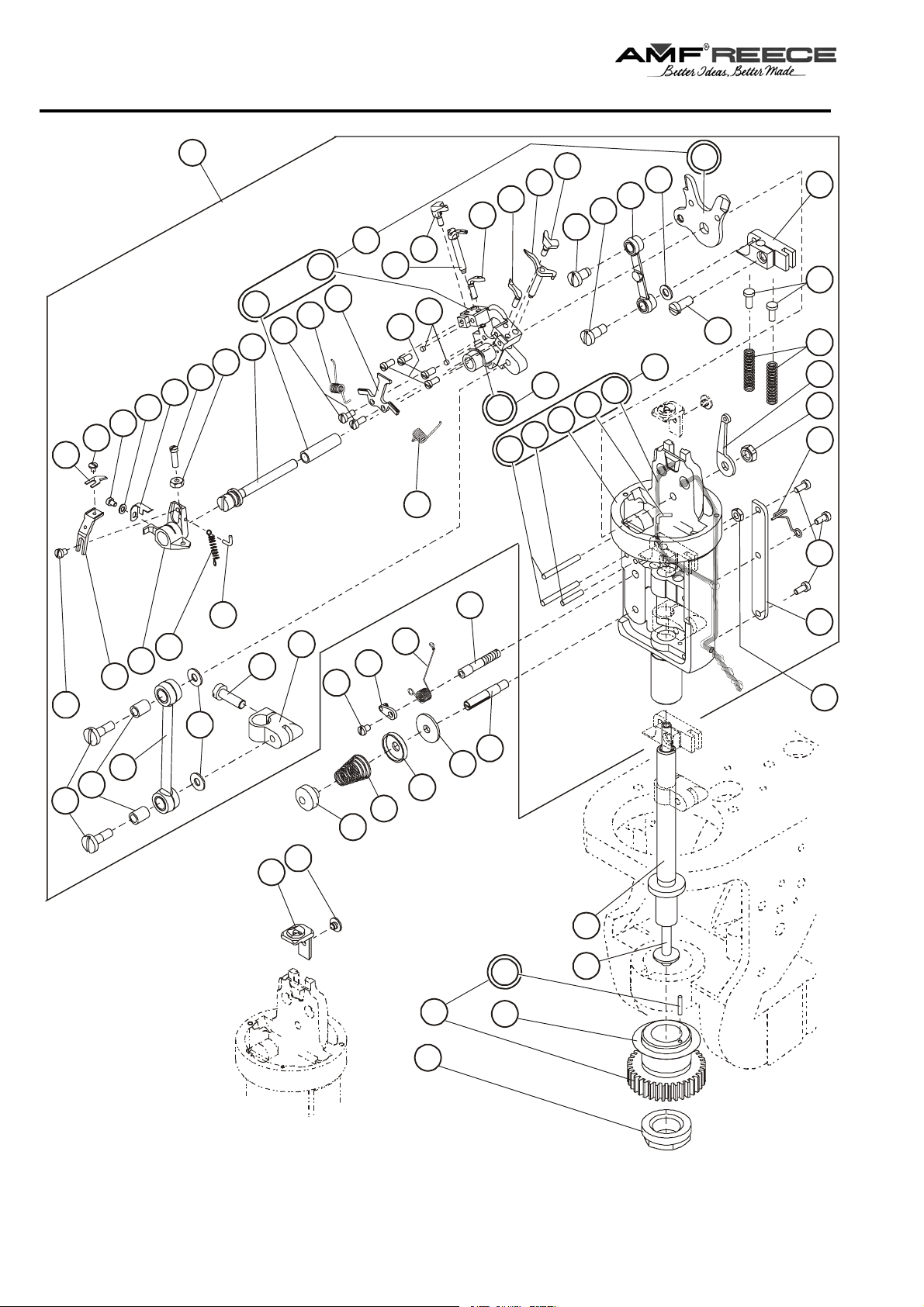

S-101 COVERS & SUPPORTING MEMBERS
5
60
64
65
61
54
55
56
57
55
58
56
55
59
55
57
51
52
51
50
52
53
62
49
33 34
8
9
11
14
6
15
7
76
6
5
4
3
2
13
16
17
18
19
20
12
23
24
22
25
26
21
27
24 22
24
1
40 41
29
30
47
46
31
36 37
35
44 45
39
42
38
43
48
10
28
63
32
From the library of: Superior Sewing Machine & Supply LLC

3-3
S-101
Released 09/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
DET PART NUMBER DESCRIPTION QTY.
01 10.1194.0.023 Top Right Cover Assembly 1
02 10.1194.0.020 Cover Support (1)
03 10.1194.0.008 Hinge (1)
04 01.1194.0.019 Hinge Support (1)
05 01.4472.0.000 Washer (3)+2
06 01.4407.0.000 Lock Washer (3)+2
07 01.2247.0.003 Screw (3)+2
08 01.2247.0.001 Screw (3)
09 12.8000.1.001 Label (1)
10 10.1194.0.004 Right Bottom Cover (1)
11 01.3402.0.000 Nut (3)
12 01.5062.0.000 Spring Washer 1
13 10.1151.0.000 Screw 1
14 10.1082.0.051 Plate - Cover *Front Assembly 1
15 10.1082.0.001 Plate (1)
16 01.3040.0.000 Knob (1)
17 01.2101.0.000 Screw (1)
18 10.1145.2.000 Shield 1
19 01.4672.0.002 Lock Washer 1
20 01.2078.0.000 Screw 1
21 10.1194.0.024 Top Right Cover Assembly 1
22 01.2241.0.103 Screw (4)+2
23 10.1194.0.009 Clip (1)
24 01.4406.0.000 Lock Washer (4)+2
25 01.3401.0.000 Nut (2)
26 01.4411.0.000 Washer (2)
27 01.2241.0.103 Screw (2)
28 10.1194.1.012 Hinge (1)
29 10.5001.2.051 Line Stand Assembly 1
30 10.5001.2.000 Stand (1)
31 05.1385.0.000 U - Chanel Eding (1)
32 01.7329.0.000 Oilite Bushing (2)
33 01.3001.0.000 Nut (2)
34 10.5002.0.000 Thread Guide (1)
35 01.2888.0.402 Screw (1)
36 10.2003.0.000 Hinge Screw 1+(1)
37 01.3014.0.000 Nut (1)
38 10.0625.0.000 Cover Front 1
39 01.2050.0.000 Screw (1)
40 01.4019.0.000 Washer (1)
41 10.5006.1.000 Clip (1)
42 10.5005.1.900 Cover (1)
43 01.3040.0.000 Knob (1)
44 10.2004.1.000 Screw 1
45 10.2005.0.000 Latch 1
46 01.2340.0.000 Screw 2
47 10.5019.0.000 Bracket 1
48 10.5021.0.000 Oil Pan 1
49 10.1194.0.025 L.H. Cover Aqssembly 1
50 01.5123.0.000 Spring (1)
COVERS & SUPPORTING MEMBERS
From the library of: Superior Sewing Machine & Supply LLC

3-4
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101 COVERS & SUPPORTING MEMBERS
5
60
64
65
61
54
55
56
57
55
58
56
55
59
55
57
51
52
51
50
52
53
62
49
33 34
8
9
11
14
6
15
7
76
6
5
4
3
2
13
16
17
18
19
20
12
23
24
22
25
26
21
27
24 22
24
1
40 41
29
30
47
46
31
36 37
35
44 45
39
42
38
43
48
10
28
63
32
From the library of: Superior Sewing Machine & Supply LLC

3-5
S-101
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
COVERS & SUPPORTING MEMBERS
DET PART NUMBER DESCRIPTION QTY.
51 01.4407.0.000 Lock Washer (6)
52 01.3402.0.000 Nut (6)
53 10.1194.0.010 Hinge (1)
54 10.1194.2.006 Left Bottom Cover (1)
55 01.4472.0.000 Washer (6)
56 01.2247.0.003 Screw (3)
57 01.2247.0.001 Screw (3)
58 10.1194.1.005 Top Left Cover (1)
59 10.1194.0.028 Latch (1)
60 10.1081.0.000 Screw 1
61 10.1080.0.000 Cover 1
62 01.2547.1.441 Screw 4
63 10.2017.0.000 Hinge Screw 1
64 10.1001.7.050 Head White 1
65 01.1147.0.003 Screw 1
From the library of: Superior Sewing Machine & Supply LLC

3-6
Released 01/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

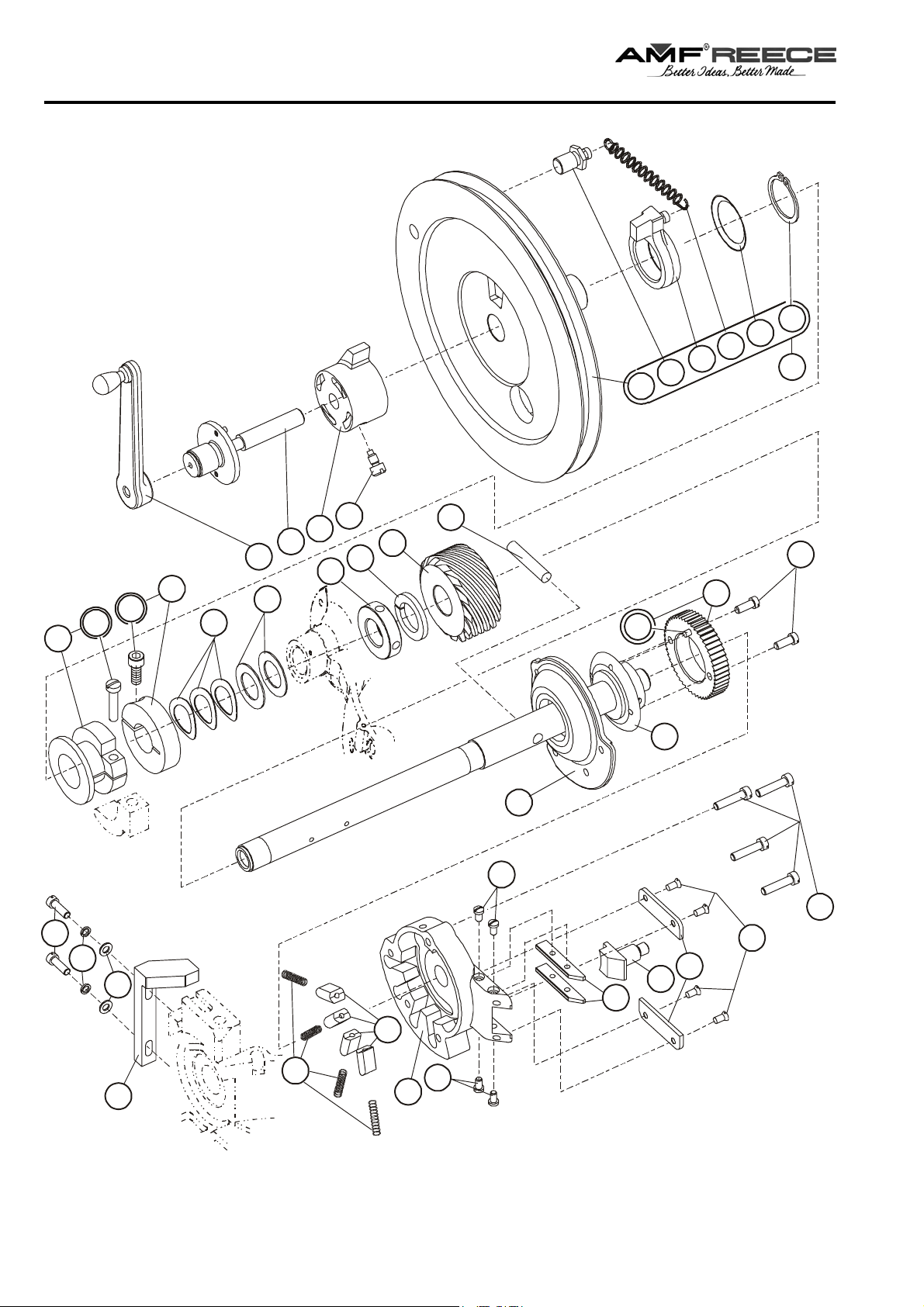

S-101 DRIVE SHAFT
1
3
4
5
6
7
2
11
8
9
10 14
15
16
12
13
18 19 17
26
27
28
25
21
22
24
20
29
30
31
32
37
33
35
36
34
30
23
39
38
From the library of: Superior Sewing Machine & Supply LLC

3-7
S-101
Released 01/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
DRIVE SHAFT
DET PART NUMBER DESCRIPTION QTY.
01 10.3039.1.050 Cutting Wheel Assembly 1
02 01.6422.0.005 Retainer Ring (1)
03 01.4764.0.000 Washer (1)
04 01.5017.0.000 Spring (1)
05 10.3042.0.000 Dog Strike (1)
06 10.3040.1.000 Anchor Stud (1)
07 10.3039.0.000 Left Pully (1)
08 10.1194.0.013 Screw 1
09 10.1194.0.007 Hub 1
10 10.1194.0.016 Floating Shaft 1
11 10.1194.0.014 Crank Handle 1
12 10.3051.0.000 Drive Pin 1
13 10.3050.0.000 Worm Gear 1
14 01.4009.0.000 Lock Washer 1
15 10.3049.0.000 Collar 1
16 01.4007.0.000 Washer 2
17 01.5683.0.000 Curved Spring Washer 3
18 10.3045.0.000 Shifter Spool 1
19 01.2035.0.000 Screw (1)
20 01.2002.0.000 Screw 2
21 10.3148.0.000 Ratchet 1
22 01.6023.0.000 Pin (1)
23 10.3047.1.050 Worm Shaft Assembly 1
24 10.3054.2.000 Inner Case Cover 1
25 01.2037.0.000 Screw 4
26 01.2075.0.000 Screw 4
27 10.3080.0.000 Outer Plate 2
28 13.3079.0.000 Slide Stud 1
29 10.3082.0.000 Inner Plate 2
30 01.2008.0.000 Screw 4
31 10.3053.1.000 Pawl Case 1
32 10.3052.0.000 Pawl 4
33 01.5018.0.000 Spring 4
34 13.3083.0.000 Suppert 1
35 01.4412.0.000 Washer 2
36 01.4572.0.000 Lock Washer 2
37 01.2128.0.000 Screw 2
38 01.2493.0.000 Screw (1)
39 10.3046.0.000 Friction Collar 1
From the library of: Superior Sewing Machine & Supply LLC

3-8
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

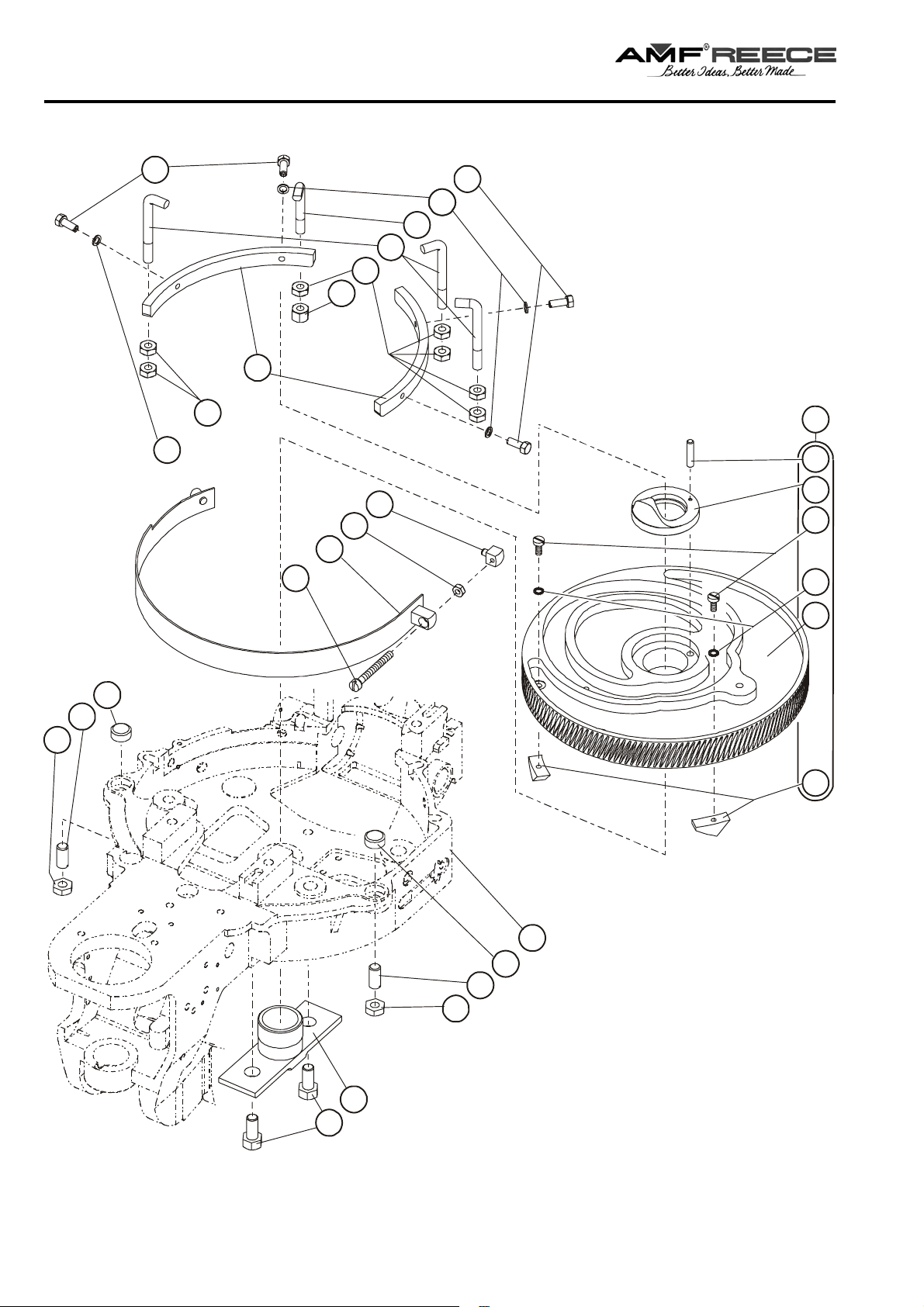

S-101 MAIN CAM AND BRAKE BAND
92 1
3
4
5
6
7
5
2
24
8
9
10
11
12 25
13
14
15
16
12
13
14
17
18
19
20
23
21
22
From the library of: Superior Sewing Machine & Supply LLC

3-9
S-101
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
MAIN CAM AND BRAKE BAND
DET PART NUMBER DESCRIPTION QTY.
01 01.2386.0.000 Screw 2
02 01.4018.0.000 Washer 4
03 10.3066.0.008 Short Hook 1
04 10.3066.0.011 Long Hook 3
05 01.3007.0.000 Nut 6
06 01.3059.0.000 Nut 1
07 10.3035.1.000 Hold Down Gib 2
08 01.6345.0.000 Lug 1
09 01.3005.0.000 Nut 1
10 10.3036.0.000 Brake Band 1
11 01.2033.0.000 Screw 1
12 10.3028.0.000 Button 2
13 01.2067.0.000 Adjustments Screw 2
14 01.3015.0.000 Nut 2
15 10.3027.0.000 Cam Center 1
16 01.2031.0.000 Screw 2
17 10.3064.0.830 Main Cam Assembly 1
18 — Pin (1)
19 10.3062.1.000 Cam - Cutting* CB/CA (1)
20 01.2347.0.000 Screw (2)
21 01.4061.0.000 Washer (2)
22 14.3064.0.001 Main Cam (1)
23 10.3061.0.300 Wedge - Clamping CB/CA (2)
24 01.2388.0.000 Screw 2
25 10.3001.3.000 Cam Case 1
From the library of: Superior Sewing Machine & Supply LLC

3-10
Released 09/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101

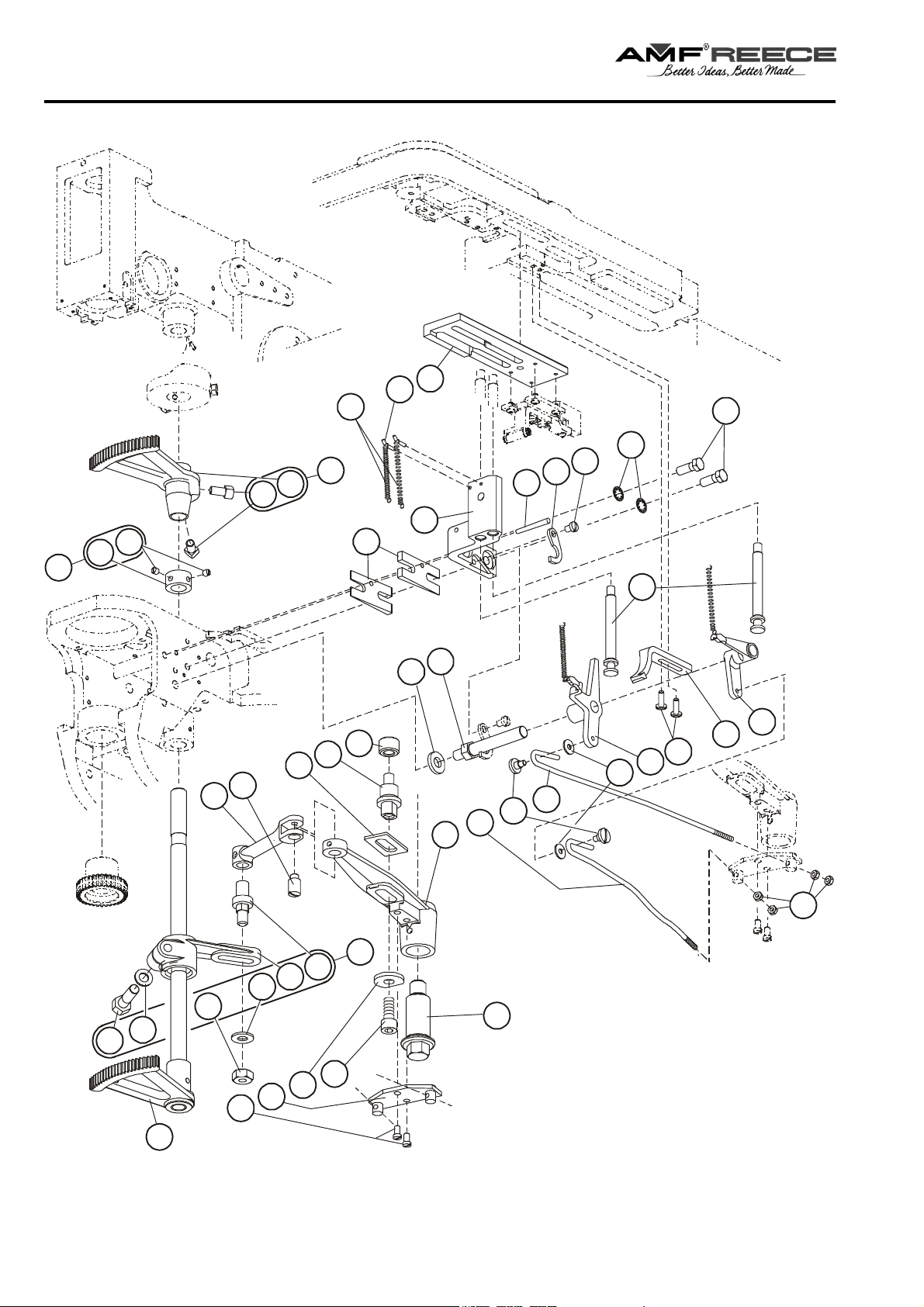

STARTING LEVER AND SWITCH LEVER ASSEMBLY
11
10
9
8
28
7
6
5
4
2
33
17
19
18
16
27 29 30 31
20
14
12
15
22
21
38
24 25
26
13
32 34 35 39
23
3637
1
From the library of: Superior Sewing Machine & Supply LLC

3-11
S-101
Released 10/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
STARTING LEVER AND SWITCH LEVER ASSEMBLY
DET PART NUMBER DESCRIPTION QTY.
01 10.2008.0.000 Nut 1
02 01.4063.0.000 Washer 1
03
04 10.2073.0.000 Latch Assembly 1
05 01.2386.0.000 Screw (1)
06 01.6135.0.000 Pin (1)
07 01.5473.0.000 Spring 1
08 10.2072.0.000 Plate 1
09 10.2012.0.000 Switch Lever 1
10 10.2070.1.000 Block 1
11 10.2071.0.000 Lever 1
12 01.3007.0.000 Nut 1
13 See Page 3-6 Shifter Spool Assembly —
14 10.3031.0.000 Shifter Shoe 1
15 01.2032.1.000 Screw 1
16 10.2014.0.000 Pivot Screw 1
17 10.2015.0.000 Plunger 1
18 01.5020.0.000 Spring 1
19 14.2013.0.000 Starting Lever 1
20 01.2004.0.000 Screw 1
21 08.6850.4.000 Washer 1
22 01.5055.0.000 Spring 1
23 17.0031.1.401 Pin (1)
24 17.0094.5.309 Felt Pad 1
25 10.3032.1.000 Screw 1
26 10.3029.1.000 Shifting Lever 1
27 01.2071.0.000 Screw 1
28 01.5019.0.000 Spring 1
29 10.2011.0.000 Pivot Screw 1
30 12.2010.0.000 Trip 1
31 01.2041.0.000 Screw 1
32 01.4522.0.000 Washer 1
33 01.1147.0.002 Screw 1
34 10.1180.0.000 Block 1
35 01.1100.0.000 Shoulder Screw 1
36 10.1181.0.000 Latch Assembly 1
37 01.6982.0.002 Pin (1)
38 12.1015.0.001 Pin 1
39 01.5048.0.000 Spring 1
From the library of: Superior Sewing Machine & Supply LLC

3-12
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101

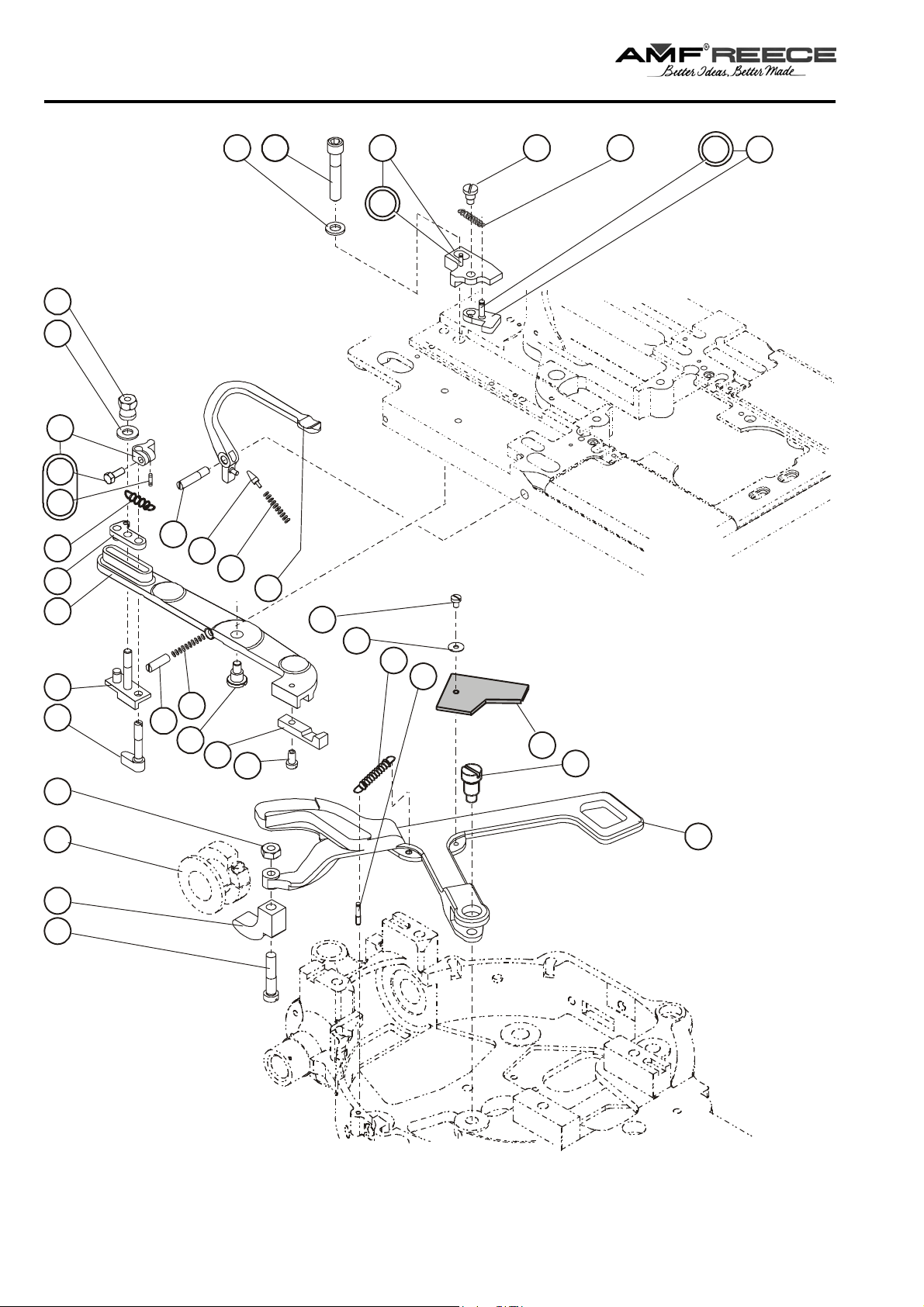

COMBINATION LATERAL LEVER
1
7
65432
12
11 10 98
13 14 15 16 17 18
20
21
19 22 23 24 25 26 27
From the library of: Superior Sewing Machine & Supply LLC

3-13
S-101
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
COMBINATION LATERAL LEVER
DET PART NUMBER DESCRIPTION QTY.
01 10.3033.0.017 Block 1
02 01.2412.0.000 Screw 2
03 10.2258.0.000 Cover 1
04 01.5172.0.000 Spring 1
05 10.2259.0.000 Plunger 1
06 10.2257.0.000 Shifter 1
07 10.2260.0.001 Guide Plate*7mm 1
07 10.2260.0.200 Guide Plate 1
07 10.2260.0.217 (CB-RL only) 1
07 10.2260.0.167 (VA-XL only) 1
08 10.2006.2.000 Bedplate Stud 1
09 10.2007.0.000 Roll 1
10 01.7043.0.000 Roll 1
11 01.7023.0.000 Roll 1
12 10.3034.0.258 Upper Lateral Lever* AF 1
13 01.2016.0.000 Screw 1
14 01.4522.0.000 Washer 1
15 10.3019.1.006 Lower Lateral Lever* AF 1
16 10.3300.0.006 Lower Lateral Extension 1
17 01.4063.0.000 Washer 2
18 01.2085.0.000 Screw 2
19 10.3302.0.000 Link 1
20 10.3301.1.006 Screw 2
21 01.3013.0.000 Nut 1
22 01.4005.0.000 Washer 1
23 10.3303.0.000 Combination Lever 1
24 10.3020.0.006 Stud AF 1
25 01.7004.0.000 Roll 1
26 01.2324.0.000 Screw 1
27 10.2001.4.250 Bedplate 1
From the library of: Superior Sewing Machine & Supply LLC

3-14
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101
9
7
654
2
8
3
1
15
14 13 12 11
10
20
19 18
26 25
27
21
23
22
17
29 28
30
31
32
40 39
38
37 36 35 34
24
33
42
47
43
44
45
46
41
16
FLYBAR CONTROL & TURNING SECTORS &LEVERS
From the library of: Superior Sewing Machine & Supply LLC

3-15
S-101
Released 10/2005
E-mail: [e-mail]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
FLYBAR CONTROL & TURNING SECTORS &LEVERS
DET PART NUMBER DESCRIPTION QTY.
01 10.2255.2.150 Cam Plate * Flybar CA 1
01 10.2255.3.200 Cam Plate * Flybar CB 1
02 01.6982.0.001 Pin 2
03 01.5054.0.000 Spring 2
04 10.1075.1.051 Line*Uper Sector Lever Assembly 1
05 10.1075.1.000 Upper Sector (1)
06 01.2014.0.000 Screw (2)
07 10.2028.0.000 Screw (2)
08 10.3010.0.000 Collar (1)
09 10.3010.0.051 Line*Collar Assembly 1
10 01.2088.0.000 Screw 2
11 01.4046.0.000 Lockwasher 2
12 01.2006.0.000 Screw 1
13 10.3262.0.250 Latch 1
14 01.6031.0.000 Taper Pin 1
15 14.3251.1.000 Bracket 1
16 10.3250.1.000 Spacer 2
17 10.3252.1.000 Pin 2
18 01.1447.0.000 Stud AF 1
19 01.4701.0.000 Washer 1
20 10.3018.0.000 Roll*CA 1
21 14.3017.0.000 Sector Stud 1
22 14.3015.0.802 Plate 1
22 10.3026.0.000 Stud 1
24 10.3012.0.000 Link 1
25 10.3254.0.000 RH. Actuator Pin 1
26 10.2256.0.000 Bracket 1
27 01.2043.0.000 Screw 2
28 10.3253.0.000 Actuator 1
29 01.4472.0.000 Washer 2
30 10.3259.1.001 R.H. Wire Rod 1
31 01.1432.0.000 Screw 2
32 10.3259.1.002 L.H. Wire Rod 1
33 14.3015.0.000 Sector Lever 1
34 10.3011.0.051 LineShort Sector Lever Assembly 1
35 10.3013.0.000 Short Sector Lever Stud (1)
36 10.3011.0.000 Short Sector Lever (1)
37 01.4005.0.000 Washer 1
38 01.3013.0.000 Nut (1)
39 01.4522.0.000 Washer 1
40 01.2016.0.000 Screw (1)
41 01.3016.0.000 Nut 4
42 10.3016.0.000 Pivot Stud 4
43 01.1594.0.000 Screw 1
44 01.4154.0.000 Washer 1
45 10.3258.0.000 Wire Bracket 1
46 01.2079.0.000 Screw 2
47 10.3009.0.000 Lower Sector Assembly 1
From the library of: Superior Sewing Machine & Supply LLC

3-16
Released 09/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101
31
29
30
43
44
45
46
22
24
2
323
25
4
5
6
7
19
27
28
8
9
10
12
21
20
13
14
15
16
18 17
53
54
51
52
39
38
34
42
40
41
47
48
65
66
33
35
36
37
32
56
57
58
59
60
61
62
63
64
50 49
71
69
72
68
67
70
34
11
26
55
1
19
73
RACE
From the library of: Superior Sewing Machine & Supply LLC

3-17
S-101
Released 09/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
RACE
®
DET PART NUMBER DESCRIPTION QTY.
01 10.4001.0.150 Race Assembly * AF/CA 101 1
02 10.4006.0.000 R.H. Spreader Stop (1)
03 14.4008.1.000 R.H. Spreader (1)
04 10.4004.0.000 Blind Looper (1)
05 14.4005.0.000 Eye Looper (1)
06 10.4007.0.000 L.H. Spreader Stop (1)
07 14.4009.1.000 L.H. Spreader (1)
08 10.4010.2.000 Needle Guard (1)
09 01.5620.0.000 L.H. Spring (1)
10 01.2073.0.000 Screw (2)
11 14.4201.0.000 Stud (1)
12 01.3025.0.000 Nut (1)
13 01.2361.0.000 Screw (1)
14 10.4203.0.000 Retaining Spring (1)
15 01.4015.0.000 Washer (1)
16 01.2318.0.000 Screw (1)
17 01.2667.0.000 Screw (1)
18 14.1197.1.000 Trimmer Knife (1)
19 10.9008.0.050 Looper Carrier/Spreader Wedge Assembly CB (1)
20 10.4002.1.000 Looper Carrier ((1))
21 10.4003.0.000 Bushing ((1))
22 14.4011.0.200 Sprader Wedge S101 ((1))
23 01.4012.0.000 Washer (1)
24 14.4015.1.000 Sprader Link (1)
25 10.4016.0.000 Screw (1)
26 10.4017.0.000 Screw (1)
27 10.4039.0.000 Felt Pad (2)
28 01.2001.0.000 Screw (4)
29 10.4018.0.000 Crosshead Spreader (1)
30 10.4019.0.000 Pin (2)
31 01.2059.0.000 Screw (1)
32 14.4001.0.150 Race Assembly*AF-CA (1)
33 07.0401.0.009 Wick ((1))
34 12.1010.0.012 Pin (1+(1))
35 14.4001.0.904 Race ((1))
36 01.6013.0.000 Pin ((1))
37 01.6018.0.000 Pin ((2))
38 01.5919.0.000 R.H. Spring (1)
39 01.5041.0.000 Spring (1)
40 10.4202.0.000 Trimmer Holder (1)
41 10.1198.1.000 Knife Holder (1)
42 01.2081.0.000 Screw (1)
43 01.5026.0.000 Spring ((2))
44 10.4035.0.000 Cord Guide (1)
45 01.3005.0.000 Nut (1)
46 05.1368.0.000 Guide Thread (1)
47 01.2073.0.000 Screw (3)
48 10.4026.0.000 Crosshead Guide (1)
49 10.4021.0.000 Crosshead Looper (1)
50 01.2024.0.000 Screw (1)
From the library of: Superior Sewing Machine & Supply LLC

3-18
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101
31
29
30
43
44
45
46
22
24
2
323
25
4
5
6
7
19
27
28
8
9
10
12
21
20
13
14
15
16
18 17
53
54
51
52
39
38
34
42
40
41
47
48
65
66
33
35
36
37
32
56
57
58
59
60
61
62
63
64
50
49
71
69
72
68
67
70
34
11
26
55
1
19
73
RACE
From the library of: Superior Sewing Machine & Supply LLC

3-19
S-101
Released 09/2004
E-mail: [email protected]; [email protected] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
RACE
®
DET PART NUMBER DESCRIPTION QTY.
51 01.4013.0.000 Washer (2)
52 14.4013.1.000 Looper Link (1)
53 01.7022.0.000 Bushing (2)
54 01.1006.0.000 Screw (2)
55 01.3001.0.000 Nut 1
56 10.4037.0.000 Stud 1
57 01.5027.0.000 Check Spring 1
58 10.4036.0.000 Check.Spring Arm 1
59 01.2081.0.000 Screw 1
60 10.4029.0.000 Stud 1
61 10.4032.0.000 Thin Disc 1
62 10.4031.0.000 Heavy Disc 1
63 01.5028.0.000 Spring 1
64 10.4030.0.000 Nut 1
65 01.2056.0.000 Screw 1
66 10.4012.0.004 Throat /Plate* AF-CB/CA-R-RE 1
67 See Page 3-20 Spreader Spindle —
68 01.6004.0.000 Pin (1)
69 14.4025.0.901 Gear 1
70 See Page 3-20 Spindle Looper —
71 01.4081.0.005 Shim (.005")
71 01.4081.0.006 Shim (.006")
71 01.4081.0.008 Shim (.008")
71 01.4081.0.009 Shim (.009") 1
71 01.4081.0.010 Shim (.010")
71 01.4081.0.011 Shim (.011")
71 01.4081.0.012 Shim (.012")
72 01.3018.0.000 Nut 1
73 07.0401.0.000 Felt 1
From the library of: Superior Sewing Machine & Supply LLC

3-20
Released 09/2005
E-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]
S-101 THREAD TAKE UP & LOOPER DRIVE
38
37
21 22
12345678910 12
11
36
25
39
40
35 41
28
29
45 44
42
43
23
26
27
13
14
15
16 17
20 16
18
19
31
34
33
32
30
24
From the library of: Superior Sewing Machine & Supply LLC
