AMF Reece S-101 User manual

MODEL S-101
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
PART NUMBER 97. 1000.0.003
AMF is trademark of AMF Group,
Inc.
09/2004

2-14

MODEL S-101
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
PART NUMBER 97. 1000.0.003
AMF is trademark of AMF Group,
Inc.
09/2004

2-13

EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
EYELET BUTTONHOLE MACHINE
PARTS AND SERVICE MANUAL
S-101
S-101
S-101 S-101
S-101 S-101

2-13

Warranty Registration Card
(Please Fax or Mail immediately after installation)
Note: All Warranty Claims Void, unless Registration Card on file at AMF Reece HQ
Machine model number:
(S101, S100, S104, S211, Decostitch, S4000 BH, etc)
Manufacturer‘s serial or production number:
Installation Site Information:
Customer‘s Name:
Customer‘s Mailing Address:
Customer‘s Telephone Number:
Supervising Mechanic‘s or Technician‘s Name:
Signature of Supervising Technician:
AMF Reece Technician‘s Name:
AMF Reece Technician‘s Signature:
Type of garment produced at this location?
Average Daily Production Expected from this machine?
(number of buttonholes, jackets sewn, pants produced, buttons sewn, etc)
Any special requirements required at this location?
What other AMF Reece Machines are at this location?
How can we serve you better?
Tovární 582, 796 25 Prostìjov, Czech Republic
Fax: [phone], e-mail: [email protected], website: www.amfreece.com

LIMITEDWARRANTYONNEWAMFREECEEQUIPMENT
Warrantyprovisions:
A ninety (90) day limited service labor warranty to correct defects in installation, workmanship, or material without charge for
labor. This portion of the warranty applies to machines sold as ”installed” only.
A one (1) year limited material warranty on major component parts to replace materials with defects. Any new part believed
defective must be returned freight prepaid to AMF Reece, Inc. for inspection. If, upon inspection, the part or material is deter-
mined to be defective, AMF Reece, Inc. will replace it without charge to the customer for parts or material.
Service labor warranty period shall begin on the completed installation date. Material warranty shall begin on the date the
equipment is shipped from AMF Reece, Inc.
Exclusions:
Excludedfromboth service laborwarrantyand materialwarrantyare: (1) Consumable partswhichwould be normally considered
replaceable in day-to-day operations. These include parts such as needles, knives, loopers and spreaders. (2) Normal adjustment
and routine maintenance. This is the sole responsibility of the customer. (3) Cleaning and lubrication of equipment. (4) Parts
found to be altered, broken or damaged due to neglect or improper installation or application. (5) Damage caused by the use of
non-Genuine AMF Reece parts. (6) Shipping or delivery charges.
There is no service labor warranty for machines sold as ”uninstalled”.
Equipment installed without the assistance of a certified technician (either anAMF Reece Employee, a Certified Contractor, or
that of anAuthorized Distributor) will have the limited material warranty only. Only the defective material will be covered. Any
charges associated with the use of an AMF Reece Technician or that of a Distributor to replace the defective part will be the
customer’s responsibility.
NOOTHERWARRANTY,EXPRESSORIMPLIED,ASTODESCRIPTION,QUALITY,MERCHANTABILITY,andFITNESSFOR
APARTICULARPURPOSE,ORANYOTHERMATTERISGIVENBYSELLERORSELLER’SAGENTINCONNECTIONHERE-
WITH. UNDERNOCIRCUMSTANCESSHALLSELLERORSELLER’SAGENTBELIABLEFORLOSSOFPROFITSORANY
OTHERDIRECTORINDIRECTCOSTS,EXPENSES,LOSSESORDAMAGESARISINGOUTOFDEFECTSINORFAILUREOF
THEEQUIPMENTORANYPARTTHEREOF.
WHATTODOIFTHEREISAQUESTIONREGARDINGWARRANTY
If a machine is purchased through an authorizedAMF Reece, Inc. distributor, warranty questions should be first directed to that
distributor. However, the satisfaction and goodwill of our customers are of primary concern toAMF Reece, Inc. In the event that
a warranty matter is not handled to your satisfaction, please contact the appropriate AMF Reece office:
Europe/Africa/Americas
Prostejov, Czech Republic
Phone: [phone]
Fax: [phone]
e-mail: [email protected]
SouthwestAsia
Istanbul, Turkey
Phone: [phone]
Fax: [phone]
e-mail: [email protected]
SoutheastAsia
Kowloon, Hong Kong
Phone: [phone]
Fax: [phone]
e-mail: [e-mail]

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-8

e-mail: [email protected]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
S-101
1-9
CONTENTS
SHEET NO.
INSTRUCTION FOR INSTALLATION ON REECE INDIVIDUAL TABLES ............ 1-1
STOP MOTION ADJUSTMENTS ................................................................................... 1-2
MODEL 101 - SETTING UP INSTRUCTIONS.............................................................. 1-3
THREADING DIAGRAMS .............................................................................................. 1-4
MODEL 101 - OPERATING INSTRUCTIONS ............................................................... 1-7
ADJUSTMENTS THAT DETERMINE THE CHARACTER OF THE BUTTONHOLE
Needle information ............................................................................................... 1-8
Adjusting the bite and cutting space .................................................................... 1-9
To adjuste the clamp spread ................................................................................. 1-9
Adjusting the number of stitches per inch in a buttonhole ................................ 1-10
Increasing or decreasing of number of stitches in the eye independently
of the sides ............................................................................................................. 1-10
Tension ................................................................................................................... 1-10
MACHINE ADJUSTMENTS - CORRECTIVE AND MAINTENANCE
Needle bar and race line up adjustment ............................................................... 1-11
Equalizing the loopers .......................................................................................... 1-12
Looper and spreader adjustment .......................................................................... 1-13
To adjust play in split collar yoke ........................................................................ 1-14
To line up and adjust the cutting lever................................................................. 1-14
Adjusting the clamp operating mechanism ......................................................... 1-15
To adjust the trip lever .......................................................................................... 1-16
To correct distortion of eye................................................................................... 1-16
To adjust the roll pressure on length gauge ......................................................... 1-16
To adjust the rocker arm and stop motion ........................................................... 1-17
Adjusting the stop latch on stitching wheel ........................................................ 1-18
Adjusting the trigger setting mechanism ............................................................. 1-18
To adjust the timing of the L.H. handwheel in relation to rocker shaft and
lever........................................................................................................................ 1-18
To adjust L.H. handwheel to disengage at the stopping position
of the machine ....................................................................................................... 1-19
To adjust for friction on worm shaft .................................................................... 1-19
To adjust for friction on main shaft ..................................................................... 1-19

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-10
CONTENTS
CUT BEFORE - MACHINE ADJUSTMENTS ............................................................... 1-20
CORD TRIM
Threading diamgrams ........................................................................................... 1-23
Upper thread draw-off and tension adjustments ................................................. 1-24
Thread pick-up adjustments ................................................................................. 1-24
Under thread draw-off and tension release.......................................................... 1-24
Thread trimmer and thread retainer ..................................................................... 1-25
To set the under thread quide ............................................................................... 1-26
Shear adjustment ................................................................................................... 1-26
To adjust the hold down finger............................................................................. 1-26
ADJUSTMENT FOR THE ADJUSTABLE FLY BAR MACHINE ............................... 1-27
CUT BEFORE ENDGING MACHINE ............................................................................ 1-29
NEEDLES ........................................................................................................................... 1-30

e-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
S-101
1-1
Description Eyelet Buttonhole Sewing Machine
Sewing Speed Up to 1,600 spm
Stitch Type 401 two thread chainstitch
Stitch Density 3 to 16 s/cm (7 to 40 spi)
Buttonhole Lenght 13 to 32 mm ( 1/2" to 1 1/4")
Automatic Cutting Lenght N/A
Eze Shape (X; Y) mm No Eye; 2,7 x 4,3
End Shape flibar, open end
Stitch Bite 2 to 4 mm
Automatic Thread Triming AF - top thread only
Lubrication Semi - automatic wicking system
Electrical Supply 230V, 50/60Hz, 3 Ph
400V, 50/60Hz, 3Ph
230V, 50/60Hz, 1Ph
110V 60Hz 1Ph
Dimensions (crated)
Sewing Head
Lenght 70 cm (27" 1/2")
Width 55 cm (21" 1/2")
Height 75 cm (29 1/2")
Weight 74 kg (163 lbs)
Table
Lenght 114 cm (45")
Width 68 cm (27")
Height 40 cm (16")
Weight 80 kg (176 lbs)
Overall Dimensions
Floor Plan 110 x 60 cm (43" x 24")
Table Height 70 cm (27 1/2") adjustable to 90 cm (35")
EQUIMENT FAMILIARIZATION
Y
X

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone]+ (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-2

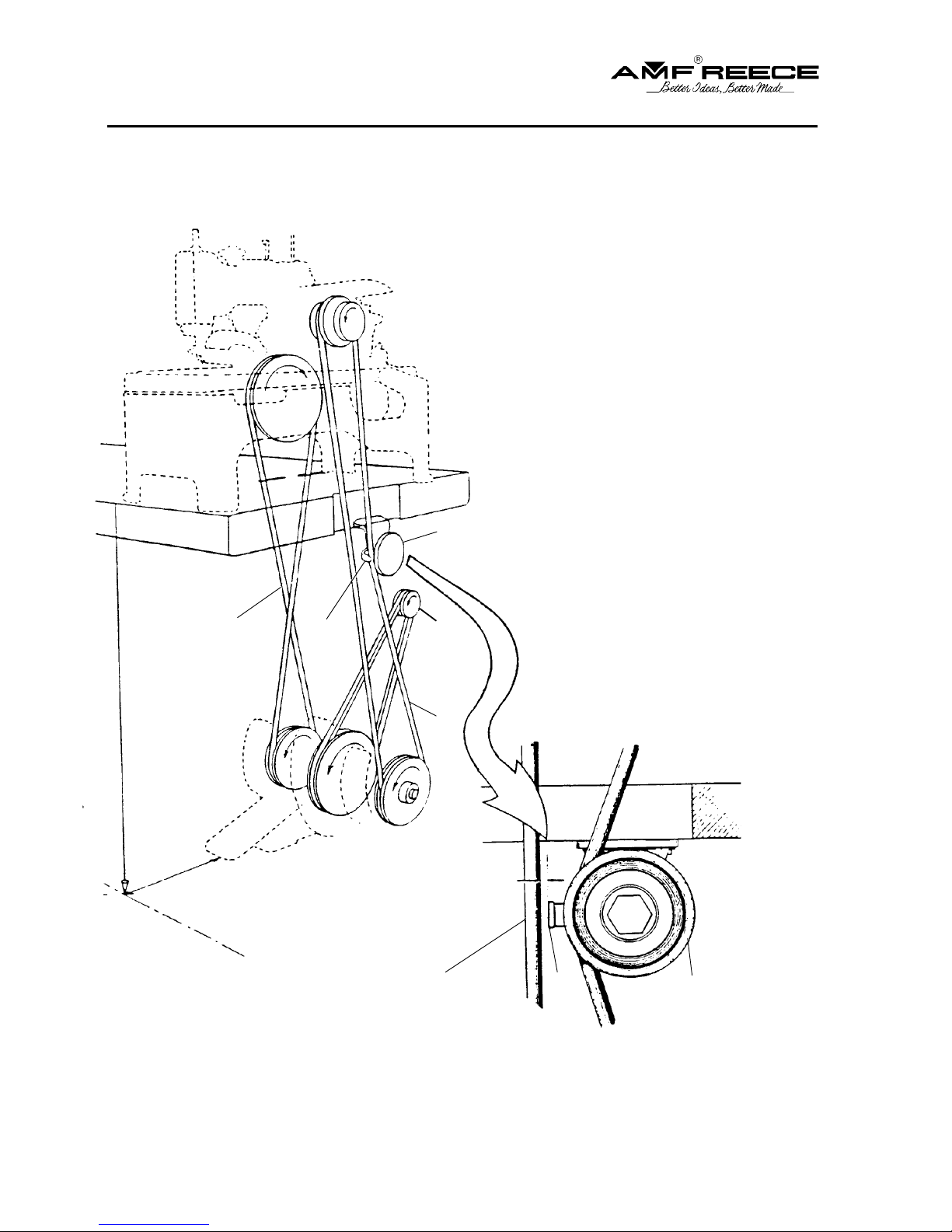

INSTRUCTIONS FOR INSTALLATION ON REECE INDIVIDUAL TABLES
Parts and Belting for this installation are contained in
the accessory box which accompanies each machine.
1. Be certain that Motor Pulley rotates in direction of
arrow. If not, motor rotation must be corrected before
operating machine.
2. Check with a plumb line to see that the heel of
Transmitter Pedal is 6“ in back of front edge of the
table.
3. Place the Machine on the Table between the belt
slots and even with front edge of Table. Install crossed
Belt oand open Belt p. The rear leg of Belt pmust
pass between the Idle Pulley qand Belt Guard r.
4. Adjust Machine sideways as necessary so that Belt
pis central in its belt slot, and attach Machine to
Table with 4 wood screws.
5. Crank the Machine head to the rearmost point of its
travel and adjust Idle Pulley q, to provide
approximately 1/4“ clearance between Belt Guard r
and the front leg of Belt p.
o
q
p
p
q
r
r
6“ Approx 1/4“
n

e-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
S-101
1-3
101 Stop Position - all 101 models except the Eyelet and Cross Oval -
when the head of the machine is all the way forward.
1) Page 16, Figure 5 and 6 - Machine in stop position and the stitch
wheel locked up. Check Roll 10.1122.0.000 ‘ on the 10.1120.0.000
Link. It should rest lightly on the 10.2018.1.000 ’ Length Gauge.
Adjust by turning Adjustment Screw 10.2066.0.000 uon Bracket
10.1127.3.000.
2) Page 17, Figure 1A - Machine in stop position - locked up. Roll
01.7002 pshould lightly contact the low point of the cam on the inside
of the Hand Wheel 10.1088.0.050. Adjust by loosening screw
10.1114.0.000 ron Three Forked Lever 10.1113.0.000 s. Recheck
adjustment number 1.
3) Page 18, Figures 4 and 5 - While holding turning pressure on
the Hand Wheel,
10.1088.0.050, crank the machine back by using the Cutting Wheel
10.3039.0.000 instead of the Crank 10.3037.1. (On Cut Before
machines, use the crank until after cutting or remove cutting steel.)
The 10.1089.0.000 Dog von the 10.1088.0.000 Hand Wheel
should disengage the 10.1099.0.000 Bolt on the Rocking Lever
as the 10.3038.1 Striker on the crank disengages the 10.3042.2
Dog on the cutting wheel. Adjust by loosening Clamp Screw
01.2035.0.000 on Shifter Spool 10.3045.0.000 and moving in or
out to suit.
4) Page 17, Figure 3-A - Crank the machine back until the
10.1122.0.000 Roll tis on the high point of the 10.2018 Length
Gauge u. In this position, the 10.1085.0.000 Lever should be
approximately 1/16“ from the 10.1102.0.000 Dog (not shown).
Adjust by loosening nut 10.3005 and positioning. Set the rise and
fall of the 10.1085 Lever so that its lowest point is approximately
1/16“ below the top of the 10.1102.0.000 Dog. Adjust by
positioning 10.1087.0.000 Bracket.
Check 10.1124.0.000 Lever wfor correct clearance of Dog on the
Three Forked Lever (10.1113.0.000) - sby lifting 10.1118.0.000
Lever, which releases the 10.1120.0.000 Roll tand lets the
10.1124.0.000 wtake over. The 10.1102.1.000 should not move
more than 2/3 of the distance to 10.1085.0.000. Adjust
10.1124.0.000 to suit.
5 & 6) Page 19, Figure 1.
5) Stop position 1/64“ between points (rand s).
6) Crank machine through cycle until 10.3039.0.000 Cutting Wheel
(Fig.1) shifts part way out as Lever w(10.1124.0.000, Fig. 3-A,
Page 17) is released. When one stitch more is taken by turning the
hand wheel, the cutting wheel shifts all the way out and the hand
wheel is locked up. Contact points at (rand s) should just clear
when the cutting wheel moves out. If hitting, adjust wheel inward
by loosening screw . Figure 5, Page 18 and tapping wheel.
Recheck adjustment 3. If compensation between these two
adjustments is not possible, the lower prong of the Three Forked
Lever has to be bent (removed from machine).
The full thickness .060“ (1/16“) is used to measure
the clearance between the end of the Flyover Lever
and the Rocking Lever Dog when the roll reaches
the highest point on the Length Gage.
Corner Step, 1/32“ measures distance between Dogs
on Cutting Wheel and Crank when machine is in
home locked position.
0.20“ Step at one end measures space between end of
Flyover Lever and Rocking Lever Dog when Three
Forked Lever is held by Trip Lever and Flyover Lever
is at its lowest point.
The Depth of the Step, .062“ measures the distance
that the lower tip of the Flyover Lever should be below
the top of the Rocking Lever Dog under the same
circumstances.
STOP MOTION ADJUSTMENTS

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone]+ (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-4
Before operating the machine by hand or power, remove the two shipping pins nshown Fig.1, which
are easily identified by a red tag tied to each - these pins nare installed at the factory to lock the
Head oand Bed Plate ptogether as a protection against shipping damages.
Set up machine in accordance with the instructions on the installation template that is sent with
each new machine. This template shows two different installations depending on direction of
rotation of the power shaft. The one marked „Preferred Installation“ on which the left hand
machine belt is crossed and the
right hand one open, should
always be employed when the
machine is installed on a Reece
Individual Motorized Table. The
„Preferred Installation“ should also
be used whenever possible in cases
where the machine is installed on a
line shaft table.
In the event that the machine
should be disassembled at any
time, the correct line-up of the
Head oon the Bed Plate pcan be
re-established by using one of the
shipping pins nin the follower
manner:
Turn the left hand crank handle until
shipping pin hole qFig. 2 in the
Head ocorresponds with shipping
pin hole rin Bed Plate p. If holes
qand rdo not line up exactly,
loosen clamp screw uFig. 2 and
move the Head oof machine to left
or right until holes qand rline up
when tested with the shipping pin.
If no shipping pin is available,
proceed as outlined above, but match
line son Head owith line ton
Bed Plate pas illustrated Fig. 2.
Important - Before tightening clamp
screw u, press lever 1-C19 v
upward on the stud to lightly contact
the shoulder of the Cam Case w.
Note - Do not follow these line-up
instructions on Adjustable Fly Bar
machines. Use the instructions on
Sheet 28.
MODEL 101 - SETTING UP INSTRUCTIONS

e-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
S-101
1-5
UPPER SYSTEM
Thread is
between
tension discs
Long groove
Detail
Use T-20 thrading wire for
threading needle bar
Detail
Spread washer so that
thread will rest in notch
THREADING OF FIXED TYPE TENSIONS
Split disc type Solid roller type
To needle bar To needle bar
From thread
supply
From thread
supply
Note: Thread makes approximately one full turn
around the roller on this tension.
THREADING OF ROCKING TYPE TENSIONS
Split disc type Solid roller type
To needle bar To needle bar
From thread
supply
From thread
supply
Note: Thread makes approximately 1 1/2 turns
around the roller on this tension.
Note: Refer to sheet 23 for additional information on threading Cord Trim Machines.
THREADING DIAGRAMS

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone]+ (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-6
LOWER SYSTEM
Turn L.H. handwheel until
race and loopers are in front.
Thread as shown.
Threading details for
split disc tension
Threading details for
solid roller tension
CORD THREADING DIAGRAM
Throat plate Race
Crank machine until race faces as
shown.
Note:
Cord may also be led from rear
of machine through guide A, and
up through the race and throat
plate as shown.
Note: Refer to Sheet 23 for threading diagrams on Cord Trim Machines.
THREADING DIAGRAMS

e-mail: [email protected]; [e-mail] ; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
S-101
1-7
1. Remove the needle and test it for straightness, insert as below.
Tension discs
Needle bar
Needle holding screw
Insert the needle as high as it will go
(with long groove square with
machine and on same side as is the
tension disc). Tighten this screw
securely!
2. Put on the belts
Caution!
Before power is applied with foot treadle - see that needle bar is at its highest point - locked,
and machine at its most forward position
3. Depress the treadle on transmitter to start belts.
4. Insert work under the clamp arm and feet.
Starting lever Work
Clamp
feet
5. Depression of the starting lever will complete one buttonhole and automatically release work and
stop.
MODEL 101 - OPERATING INSTRUCTIONS

S-101
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone]+ (Service), [phone] (Spare Parts); Fax: [phone]
Revised 09/2004
1-8
Provision is made on this machine to meet any emergency arising during the making of the buttonhole.
To extract work in case of unthreading or mislocation:
Proceed as follows: 1. Press pedal on transmitter to stop belts.
2. Pull lever nin direction of arrow toward operator.
3. Turn R. H. handwheel (knurled rim) in direction of arrow until locked.
4. Move clamp lever oaway from operator to release work - and
withdraw it.
5. Pull clamp lever odown again in direction of operator.
6. Press pedal - the machine will now complete its cycle and return to its
starting position without sewing.
A complete cycle under power, including the
cutting operation - may be made without
sewing.
Lift up the lever qand hold - depress the
starting lever pand let go of lever qafter the
machine has travelled a short distance - the
machine will thereafter complete its cycle and
cut fabric without stitching. It can be stopped in
any desired position with the transmitter pedal.
MODEL 101 - OPERATING INSTRUCTIONS
