AMF REECE S100 Quick start guide

MODEL S-311
ELECTRONIC EYELET BUTTONHOLE
MACHINE
PARTSAND SERVICE MANUAL
MACHINE SERIAL No.
PARTNUMBER 97. 1930.0.002
AMF is trademark of AMF Group, Inc.
This manual is valid fromthe machine serial No.:N190801
(versionACL:No. :N 190791)
03/2012

LIMITEDWARRANTYON NEWAMFREECE EQUIPMENT
Warrantyprovisions:
A ninety (90) day limited service labor warranty to correct defects in installation, workmanship, or material without charge for
labor. This portion of the warranty applies to machines sold as ”installed” only.
A one (1) year limited material warranty on major component parts to replace materials with defects. Any new part believed
defective must be returned freight prepaid to AMF Reece, Inc. for inspection. If, upon inspection, the part or material is deter-
mined to be defective, AMF Reece, Inc. will replace it without charge to the customer for parts or material.
Service labor warranty period shall begin on the completed installation date. Material warranty shall begin on the date the
equipment is shipped from AMF Reece, Inc.
Exclusions:
Excludedfromboth servicelabor warranty andmaterial warrantyare: (1)Consumable partswhich would benormally considered
replaceable in day-to-day operations. These include parts such as needles, knives, loopers and spreaders. (2) Normal adjustment
and routine maintenance. This is the sole responsibility of the customer. (3) Cleaning and lubrication of equipment. (4) Parts
found to be altered, broken or damaged due to neglect or improper installation or application. (5) Damage caused by the use of
non-Genuine AMF Reece parts. (6) Shipping or delivery charges.
There is no service labor warranty for machines sold as ”uninstalled”.
Equipment installed without the assistance of a certified technician (either anAMF Reece Employee, a Certified Contractor, or
that of anAuthorized Distributor) will have the limited material warranty only. Only the defective material will be covered. Any
charges associated with the use of an AMF Reece Technician or that of a Distributor to replace the defective part will be the
customer’s responsibility.
NOOTHERWARRANTY,EXPRESSORIMPLIED,ASTODESCRIPTION,QUALITY,MERCHANTABILITY,andFITNESSFOR
APARTICULARPURPOSE,ORANYOTHERMATTERISGIVENBYSELLERORSELLER’SAGENTINCONNECTIONHERE-
WITH. UNDERNOCIRCUMSTANCESSHALLSELLERORSELLER’SAGENTBELIABLEFORLOSSOFPROFITSORANY
OTHERDIRECTORINDIRECTCOSTS,EXPENSES,LOSSESORDAMAGESARISINGOUTOFDEFECTSINORFAILUREOF
THEEQUIPMENTORANYPARTTHEREOF.
WHATTODOIFTHEREISAQUESTIONREGARDINGWARRANTY
If a machine is purchased through an authorizedAMF Reece, Inc. distributor, warranty questions should be first directed to that
distributor. However, the satisfaction and goodwill of our customers are of primary concern toAMF Reece, Inc. In the event that
a warranty matter is not handled to your satisfaction, please contact AMF Reece office:
([phone]
([phone]
servi[email protected]
Prostejov, Czech Republic
Phone:
Fax:
e-mail:

Warranty Registration Card
(Please Fax or Mail immediately after installation)
Note:All Warranty ClaimsVoid,unless Registration Cardon file atAMF ReeceHQ
Machinemodelnumber:
(S100, S101, S104, S105, S 311, Deco, S4000 , EBS Mark II, ES505, etc)
Manufacturer‘sserialorproduction number:
Installation Site Information:
Customer‘sName:
Customer‘sMailing Address:
Customer‘sTelephoneNumber:
SupervisingMechanic‘sorTechnician‘sName:
SignatureofSupervisingTechnician:
AMFReeceTechnician‘sName:
AMFReeceTechnician‘sSignature:
Typeofgarmentproducedatthislocation?
AverageDailyProductionExpectedfromthismachine?
(number of buttonholes, jackets sewn, pants produced, buttons sewn, etc)
Anyspecialrequirementsrequiredatthislocation?
WhatotherAMFReeceMachinesare atthislocation?
Howcanweserveyoubetter?
Tovární 837, 798 11 Prostejov, Czech Republic
Fax: [phone], e-mail: [email protected], website: www.amfreece.com

S-311
Revised 02/2009
E-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]-i
A - INTRODUCTION
1. Basic information ............................................................................................................................ 1-1
2. Safety labels and device ................................................................................................................. 1-2
3. General machine parts descriptions ................................................................................................. 1-3
4. Specification ................................................................................................................................... 1-4
5. Buttonhole description .................................................................................................................... 1-6
6. Instructions for operator safety and maintenance of the machine S-311......................................... 1-7

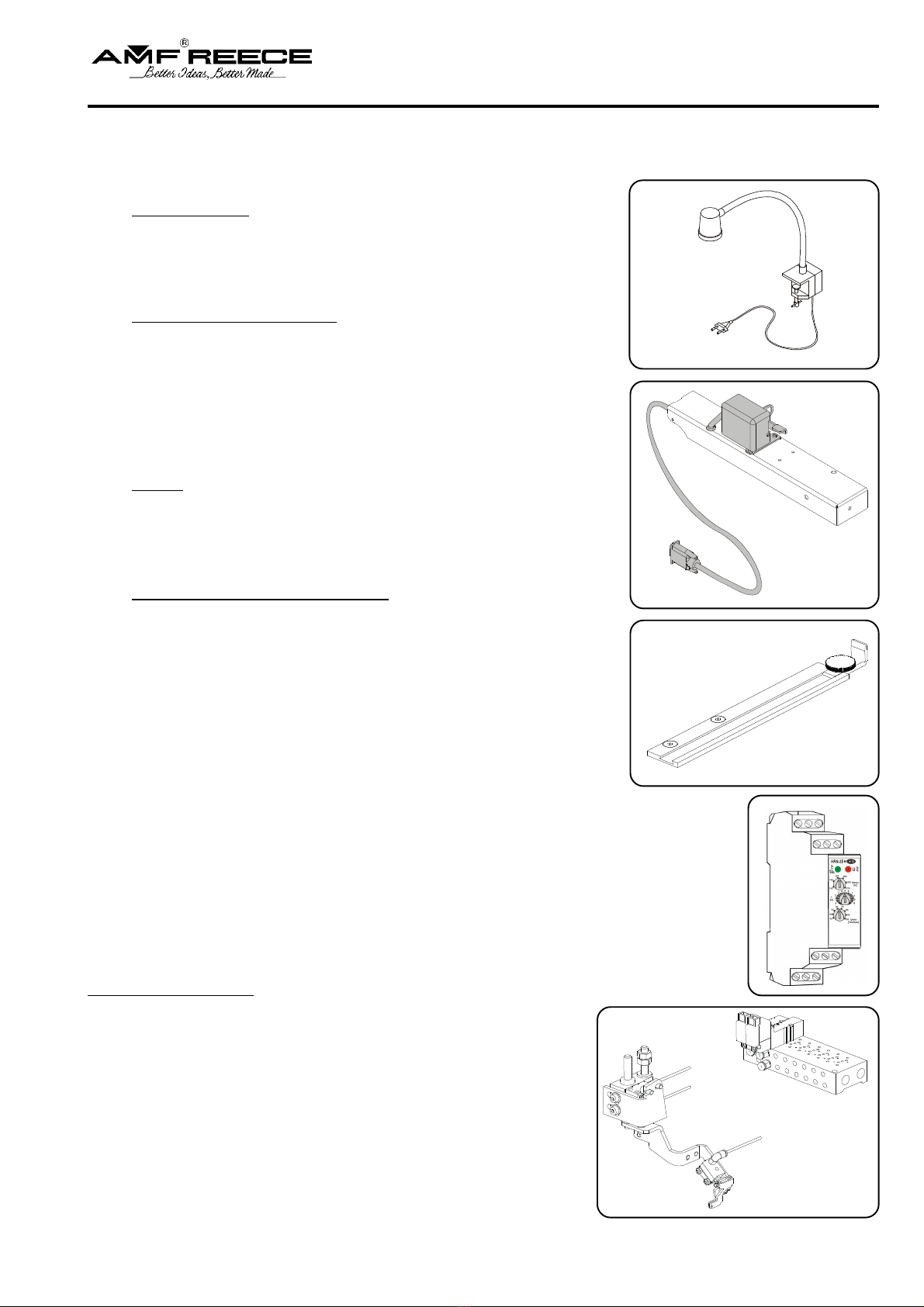

7. Special device................................................................................................................................. 1-9
7.1.Working light ................................................................................................................................. 1-9
7.2.Manual machine control ................................................................................................................ 1-9
7.3.Ruler .............................................................................................................................................1-9
7.4.Voltage guard - relayHRN35.........................................................................................................1-9
7.5.Thread nipper ................................................................................................................................1-9
B - MACHINE ASSEMBLY
1. Content of the shipping box ........................................................................................................... 1-10
2. Table adjustment ............................................................................................................................ 1-10
3. Connection of the machine head with the control box ................................................................... 1-12
S-311 RDE - Pneumatic system connection ................................................................................. 1-13
S-311 AF - Pneumatic system connection ..................................................................................... 1-14
S-311 CT - Pneumatic system connection .................................................................................... 1-15
S-311 LTT - Pneumatic system connection .................................................................................. 1-16
4. Belt tension .................................................................................................................................... 1-17
5. Power and air connection ............................................................................................................... 1-18
6. Thread stand installation ................................................................................................................. 1-19
7. Lubrication ..................................................................................................................................... 1-20
C - PROPER APPLICATION
1. Power up / home position ................................................................................................................ 1-21
2. Needle installation............................................................................................................................ 1-22
3. Threading ........................................................................................................................................ 1-23
D - MACHINE CONTROLS
1. Operation ....................................................................................................................................... 1-26
2. Display information ........................................................................................................................ 1-28
3. The buttonhole shape setting .......................................................................................................... 1-29
4. Buttonhole parameters adjustment ................................................................................................. 1-30
5. Buttonhole parameters adjustment ................................................................................................. 1-31
6. The sewing speed setting................................................................................................................ 1-32
7. Sewing speed setting for the round eye (AF, RDE) ....................................................................... 1-33
8. Buttonhole counters ....................................................................................................................... 1-34
TABLE OF CONTENTS

Revised 02/2009
E-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
S-311
1-ii
9. Setting the cutting ........................................................................................................................... 1-35
10. The round eye cutting setting ......................................................................................................... 1-36
11. Service mode.................................................................................................................................. 1-37
12. Cycle mode .................................................................................................................................... 1-38
13. The buttonhole programming ......................................................................................................... 1-39
14. The electronic system error messages ............................................................................................. 1-40
15. Manual cut mode ........................................................................................................................... 1-40
16. PLC adjustment by machine type .................................................................................................. 1-40
E - STANDARD MACHINE ADJUSTMENT
1. Standard buttonhole shapes set by the manufacturer ...................................................................... 1-41
2. The sewing drive sensor plates adjustment..................................................................................... 1-42
3. The bedplate home position adjustment.......................................................................................... 1-43
4. The race mechanism adjustment..................................................................................................... 1-44
5. The sewing mechanism height control............................................................................................ 1-45
6. Mechanism adjustment for material clamping ................................................................................. 1-46
7. Spreading of a material ................................................................................................................... 1-47
8. Adjustment of the cutting mechanism............................................................................................. 1-48
9. Setting the needle bar height........................................................................................................... 1-51
10. Spreader and looper cam adjustment ............................................................................................. 1-52
11. Loopers adjustment ........................................................................................................................ 1-52
12. Spreaders adjustment ..................................................................................................................... 1-53
13. Adjustment of the bite mechanism .................................................................................................. 1-54
14. Upper thread trimming mechanism - AF/LTT .............................................................................. 1-55
15. Adjustment of the upper thread pick-up height............................................................................... 1-56
16. Upper trimming and lower interception - CT .................................................................................. 1-57
17. Mechanismus adjusting for CT gimp .............................................................................................. 1-60
18. The trimming mechanism adjustment - LTT ................................................................................... 1-61
19. Setting the thread tension and thread draw off................................................................................ 1-61
20. Voltage guard ................................................................................................................................. 1-65
F - MACHINE MAINTENANCE
1. Cleaning and maintenance of the machine...................................................................................... 1-66
2. Periodic maintenance ...................................................................................................................... 1-68
3. Scheme of the lubrication distribution ............................................................................................. 1-69
4. Machine lubrication ........................................................................................................................ 1-70
5. Machine disposal ............................................................................................................................ 1-72
G - DOCUMENTATION

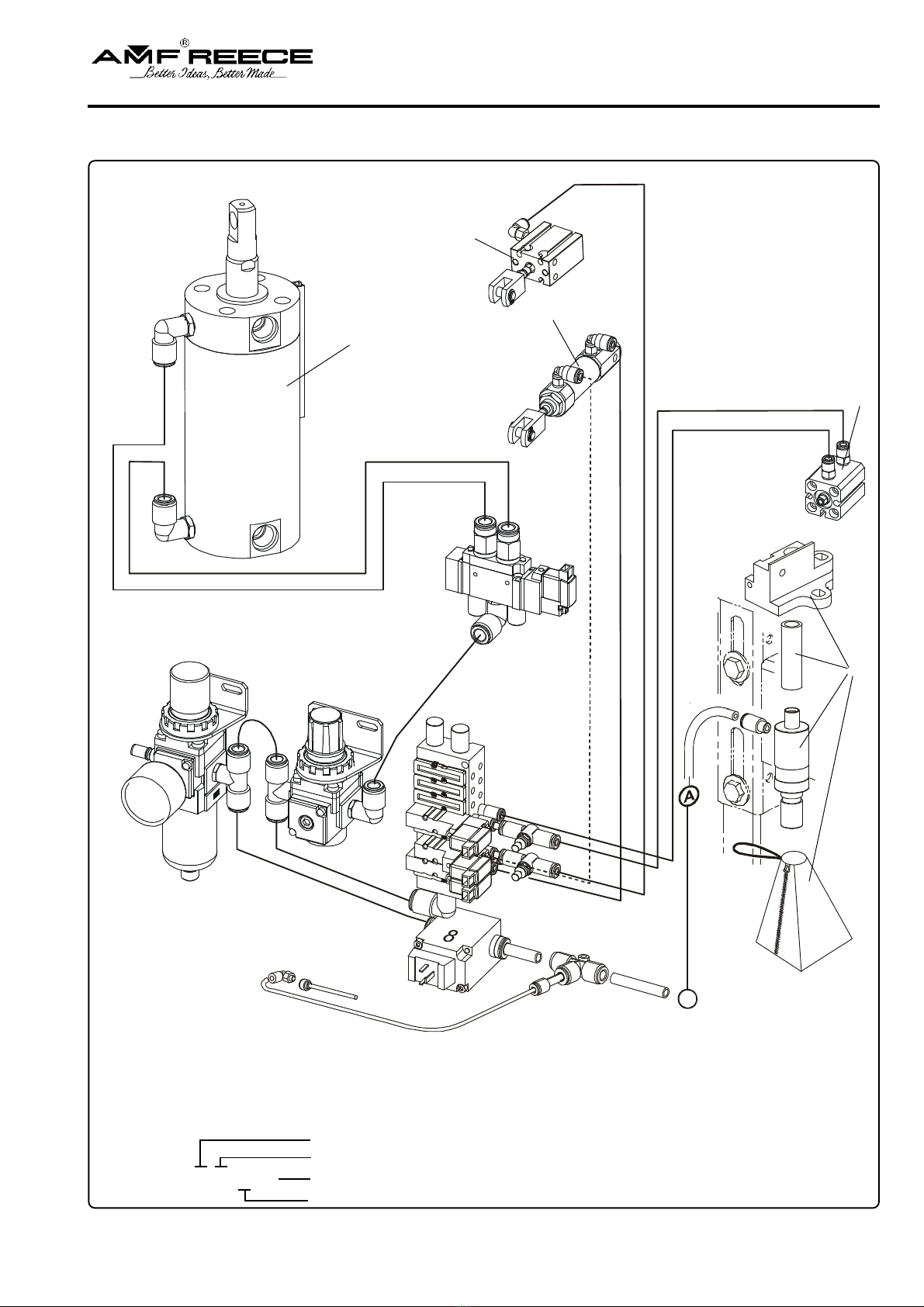

Pneumatic diagram ............................................................................................................................... 1-73
Electrical diagram ................................................................................................................................ 1-74
TABLE OF CONTENTS

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
S-311
1-1
1. BASIC INFORMATION
Sewing machine S-311 is determined to sew buttonholes for outwears. Buttonholes type are listed on page
no. 1-6. The sewing machine S-311 is designed and produced to be simple for operation and very reliable.
Important design goals have been made to provide a safe machine that is simple and inexpensive to
maintain.
Sewing machine S-311 has four basic models:AF, CT, LTT and RDE.
Special electronic and mechanical safety devices protect the operator and the machine. There is a special
power lock out switch that permits the machine to be locked in the off position, so that it cannot be cycled
accidentally.There is a low air pressure detector that will not permit machine operation if air pressure is
dangerouslylow.
There are safety-warning labels on the machine in all areas that require special care. These must not
be removed. If they are lost replace them immediately.
You are the most important safety equipment of all. Be sure you understand the proper operation of
the machine. Never remove safety mechanisms or labels. We have made every effort to provide the
safest possible machine, but without complete knowledge of how this machine operates, and the use
of proper care by the operator, this machine can cause serious injury or death. That is why there are
safety warnings throughout these instructions that carry one of these messages.
Machine types are listed in the table on the manual page no. 1-4, 1-5.
DANGER! Possible loss of life.
WARNING! Possible serious injury or machine damage.
NOTICE! Possible injury or machine damage.
We recommend that service workers from AMF Reece oversee the installation and initial training of your
mechanics and operators.
The most effective safety precaution is a well-managed safety program. Be sure those who use this
machine are properly trained. Never disable safety equipment.
Always wear safety goggles when operating or servicing the machine.
A- INTRODUCTION
CA Cut After
CB Cut Before
AF Adjustable Flybar
CT Cord Trimming of allthreads - short tail of lower thread
LTT Cord Trimming of allthreads - long tail oflower thread
RDE Round Eyelet
EXPLANATION OF ABBREVIATIONS IN THE MANUAL TEXT

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-2
ÊWarning
ËDanger possible injury
ÌCovers removed possible injury
ÍSwitch
ÎGrounding
ÏRotational direction
ÐStandard label

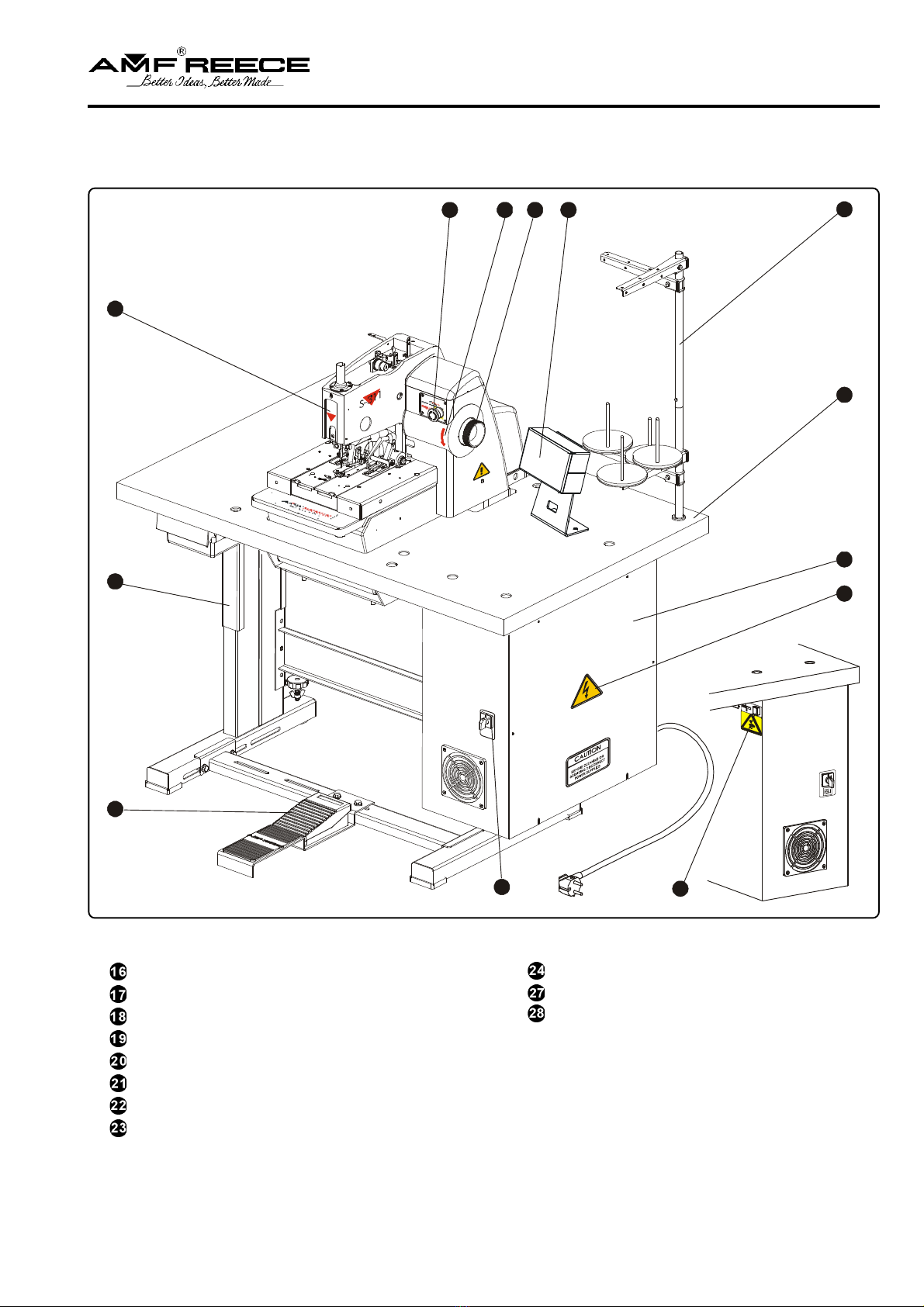

2. SAFETY LABELS AND DEVICE
ÑNeedle bar cover
ÒEye guard
ÓDrive belt cover
Air pressure adjustment knob
Rear cover
Motor pulley cover
Foot pedal
Air pressure switch
A- INTRODUCTION
12
Ë
Í
Î
10 3 8
7
3
Ë
15
28
11
6
1
7
13
21
Ð

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
S-311
1-3

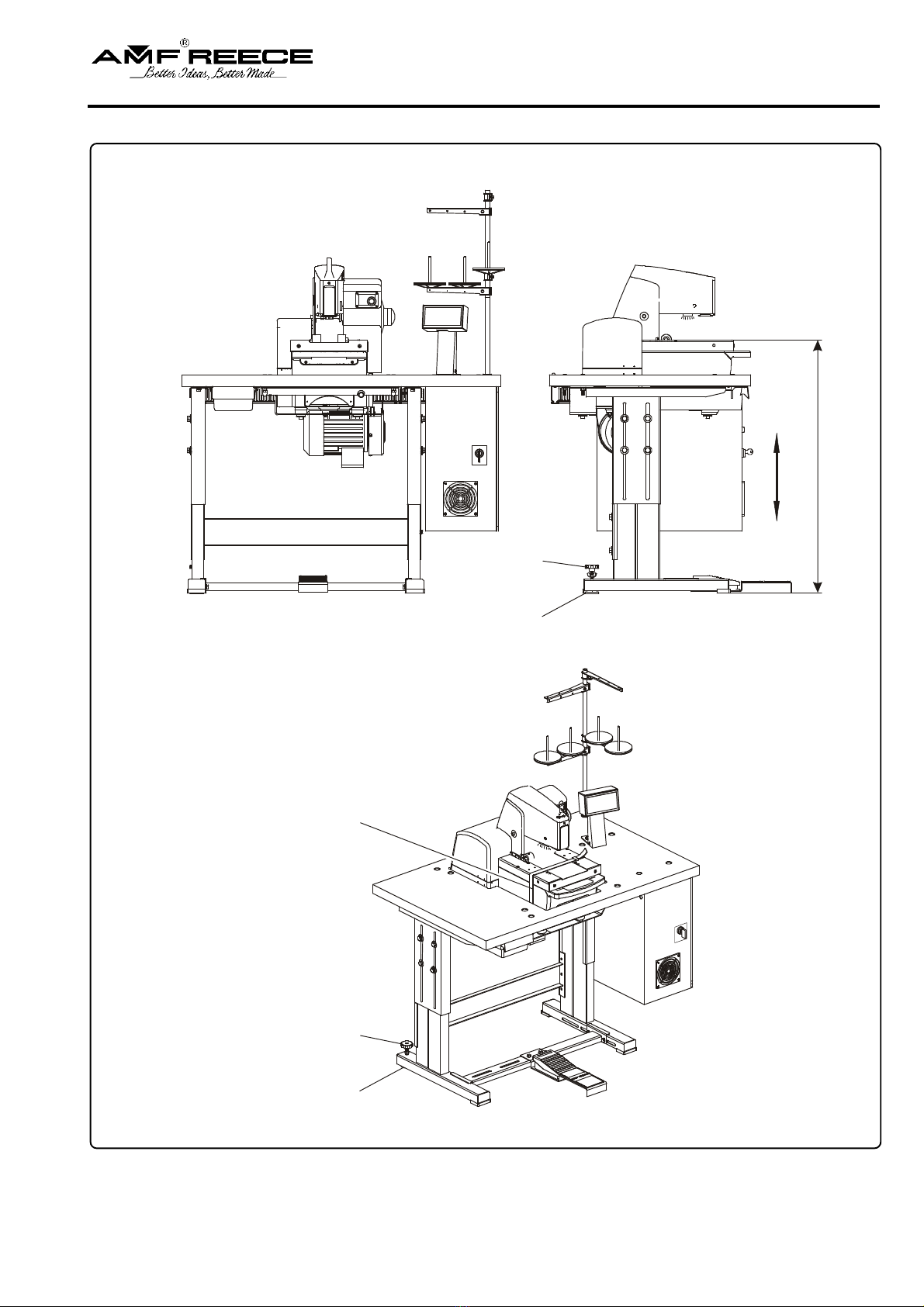

3. GENERAL MACHINE PARTS DESCRIPTIONS
Display
Table
Control box
Hand wheel
Emergency Stop button
Motor
Table top
Thread stand
Main power switch
Cutting activation button

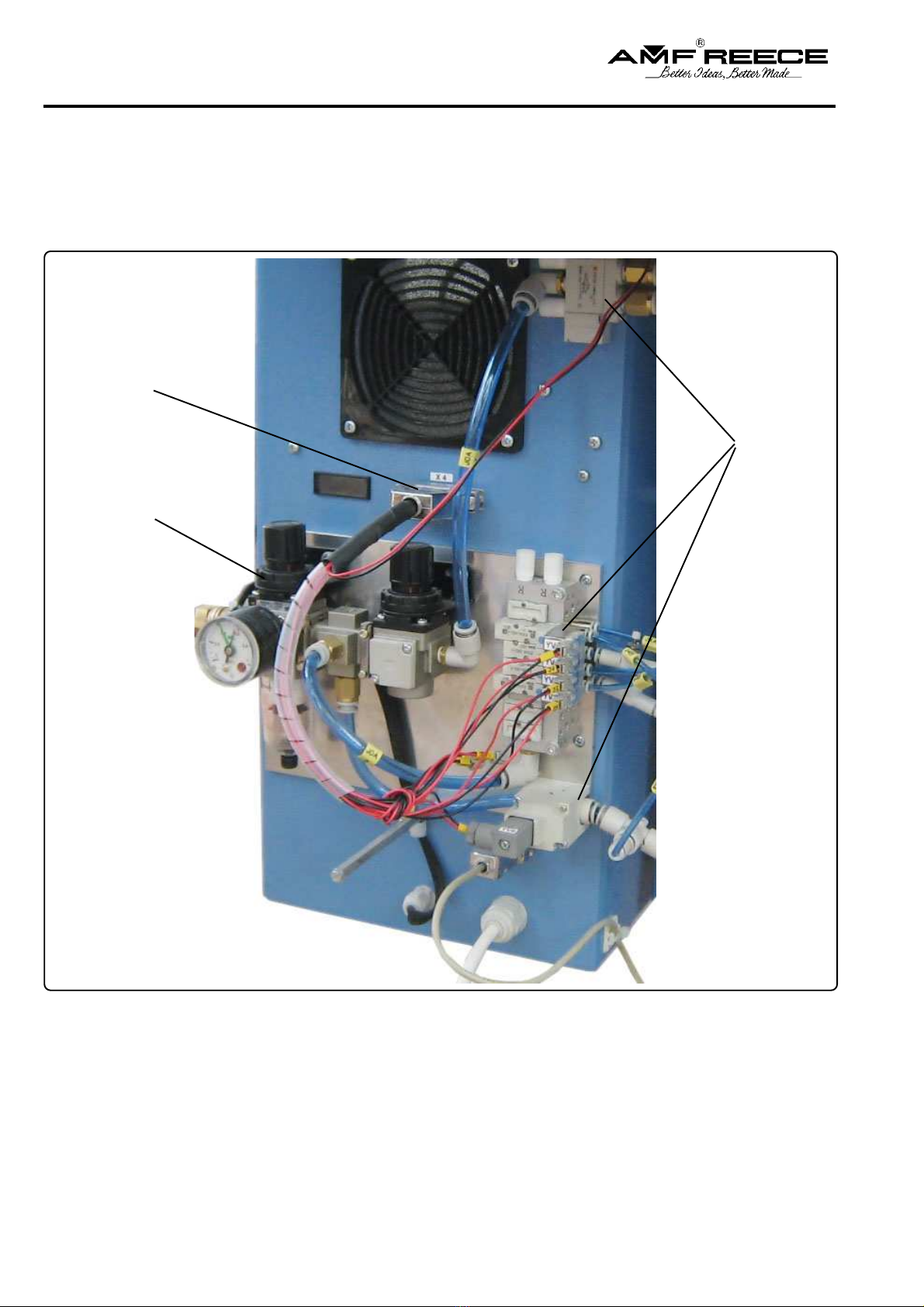

Air pressure regulator
A- INTRODUCTION
17
9
14
20 196 16 23
22
18
1
24
27

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 02/2009
1-4
A- INTRODUCTION

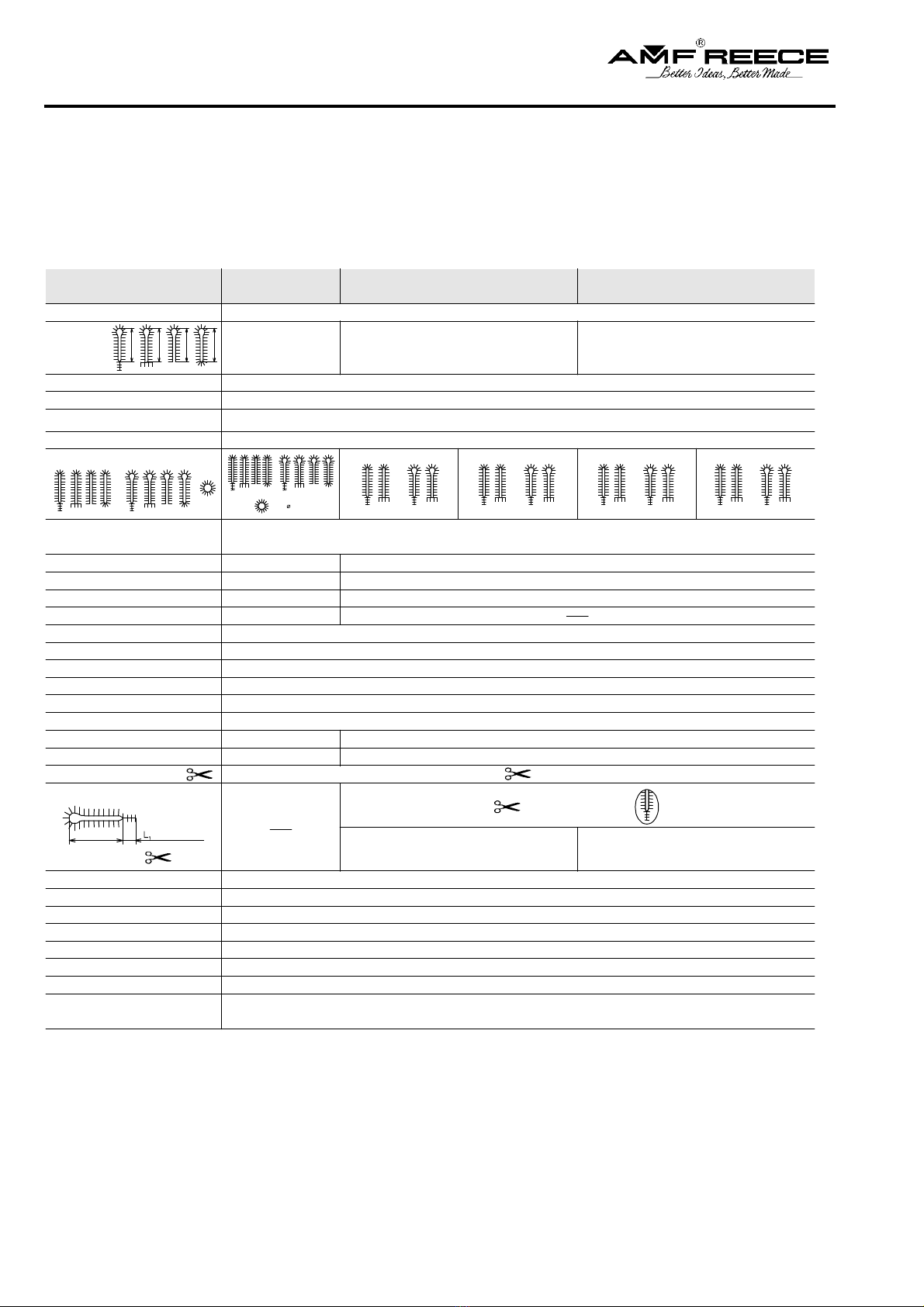

4. SPECIFICATION
* Note: If a customer uses thread size 100 and less, the manufacturer recommends to use the left looper 17.0069.4.019
If you use poor quality threads on the machine, the thread can burn at the needle (producer recommend
decrease machine´s speed).
** Gimp 10 - 30 → CT Throat Plate 10.4012.5.016
30 - 100 →CT Throat Plate 10.4012.1.016
10.4012.2.014
S-311 Elektronic buttonhole machine with chain stitch is possible to use for men`s and women`s wear.
Possible to use gimp thread, not in round eye.
Machine type/model
AF
10 to 50 mm
3,0 - 20,0 mm
4 to 8 mm
4 to 20
4 to 20 12 mm
in 8,0 mm
Cut before (CB), cut after (CA), no cut (OFF)
- 0,50 to +1,2 mm
See section D 3.3
4 to 6 mm
0,5 to 1,5 mm
No eye; 2,2 x 3,0 mm; 2,8 x 4,2 mm; 3,0 x 4,6 mm; 3,2 x 5,0 mm; 3,4 x 4,2 mm
2,1 mm (AF, LTT); 2,3 mm (CT) (± 0,3 mm electronic); 2,7 mm (± 0,3 mm electronic)
2,1 mm (AF, LTT); 2,3 mm (CT) (± 0,5 mm electronic); 2,7 mm (± 0,5 mm electronic)
± 1,5 mm
64 mm
02.0558.0.111 (Nm 100) 02.0558.1.112 (Nm 110)
80, 100, 120, gimp size 10-30 standard ** 80, 100, 120, gimp size 30-100
L =14 to 24mm
L+L = 21 to 31mm
1
0,55 MPa = 80 PSI
530 mm (height) x 370 mm (width) x 560 mm (depth)
730 mm (height) x 1100 mm (width) x 700 mm depth) + 150 mm distance
64 kg
175 kg
1NPE~60Hz 230 V/TN/S; 1NPE~50Hz 230 V/TN/S
Min. 10A Characteristic C (EN60947-2)
L =86,9db; L =74,8 db; Noise measurement according to EN ISO 3746:1995
wA pfA
L = 22 to 32mm
L+L
1
= 29 to 39mm
according to IEC 364-3, IEC 364-5-51 temperature from +5°C to 40°C, relative air humidity from 30 to 8 0%
14 to 24mm 22 to 32mm
1000 to 2000 stitches/min (500 to 1000 rev/min of the drive shaft)
0,5 to 2,0 mm (increments of 0,1 mm)
Sewing speed
Stitch Density
Buttonhole style
Eye type
Flybar length
Length of the cross bar
Number of stitches in the eye
Number of stitches in the round end
Clamp foot height (max)
Maximum work thickness
Buttonhole Cutting Mode
Cutting Space
Cut position (Y axis)
Bedplate movement
Needle system
Recommended threads*
Upper thread trimming
Lower thread and gimp trimming
Cutting space
Operating Condition
Air pressure
Machine db Level
Machine Head Dimension
Machine Head Weight
Table Dimensions
Machine Weight
Electrical requirements
Line Circuit Breaker
Bite Range Elecctronic
Bite Range Elecctronic (???)
The length
of hole
CT 14 - 24 mm CT 22 - 32mm
L = 3 to 7 mm
(Short ends)
max 3,5 mm
0,5 to 1,5 mm
Cross bar density

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 02/2009
S-311
1-5
A- INTRODUCTION
*** When sewing the round end buttonhole with the start in the eye, the machine has to be switched to the AF model and
trim med manualy.
4 to 20
in 8,0 mm
Cut before (CB), cut after (CA), no cut (OFF)
See section D 3.3
0,55 MPa = 80 PSI
530 mm (height) x 370 mm (width) x 560 mm (depth)
730 mm (height) x 1100 mm (width) x 700 mm depth) + 150 mm distance
64 kg
175 kg
1NPE~60Hz 230 V/TN/S; 1NPE~50Hz 230 V/TN/S
Min. 10A Characteristic C (EN60947-2)
L =86,9db; L =74,8 db; Noise measurement according to EN ISO 3746:1995
wA pfA
according to IEC 364-3, IEC 364-5-51 temperature from +5°C to 40°C, relative air humidity from 30 to 8 0%
1000to 2000 stitches/min (500 to 1000 rev/min of the drive shaft)
0,5 to 2,0 mm (increments of 0,1 mm)
Sewing speed
Stitch Density
Buttonhole style
Eye type
Flybar length
Length of the cross bar
Number of stitches in the eye
Number of stitches in the round end
Clamp foot height (max)
Maximum work thickness
Buttonhole Cutting Mode
Cutting Space
Cut position (Y axis)
Bedplate movement
Needle system
Recommended threads*
Upper thread trimming
Lower thread and gimp trimming
Cutting space
Operating Condition
Air pressure
Machine db Level
Machine Head Dimension
Machine Head Weight
Table Dimensions
Machine Weight
Electrical requirements
Line Circuit Breaker
Bite Range Elecctronic
The length
of hole
L
= 3 to 7 mm
Cross bar density
8 to 60
1,5 to 2,5 mm
12 mm 5 mm
- 0,50 to +1,2 mm
4-6 mm 4-8 mm
0,5 - 1,5 mm
No eye; 2,2 x 3,0 mm; 2,8 x 4,2 mm;
3,0 x 4,6 mm; 3,2 x 5,0 mm; 3,4 x 4,2 mm
± 1,5 mm
64 mm 62,5 mm
0.0558.1.112 (Nm 110) 0.0558.0.111 (Nm 100)
80, 100, 120, gimp size 30-100 80, 100, 120
80, 100, 120, gimp size 10-30 standard **
16 to 36 mm
L =
L
10 to 36 mm14 to 32 mm
RDELTTCT 14 - 32 mm
(short ends)
(long ends)
2 to 7 mm
21 to 31 mm
29 to 39 mm
L +3 to 7 mm
Machine type/model
2,1 mm (AF, LTT); 2,3 mm (CT) (
± 0,3 mm electronic); 2,7 mm (± 0,3 mm electronic)
2,1 mm (AF, LTT); 2,3 mm (CT) (
± 0,5 mm electronic); 2,7 mm (± 0,5 mm electronic)
Bite Range Elecctronic (???)

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-6
A- INTRODUCTION
5. BUTTONHOLE DESCRIPTION
ÊÊ
ÊÊ
Ê
ËË
ËË
Ë
The first row of stitches
The second row of stitches
Eye
Cutting space
Stitch density
Bite size
The length of a bar
The length of cutting
ÌÌ
ÌÌ
Ì
ÍÍ
ÍÍ
Í
ÎÎ
ÎÎ
Î
ÏÏ
ÏÏ
Ï
The length of buttonhole
Fly bar AF
Cross bar CRB
Open End
Round End
Buttonhole width
Buttonhole lenght
ÐÐ
ÐÐ
Ð
ÑÑ
ÑÑ
Ñ
ÒÒ
ÒÒ
Ò
ÓÓ
ÓÓ
Ó
1
5
2
3
4
6
8
7
9
14
15
7
10
11
12
13

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
S-311
1-7
6. INSTRUCTIONS FOR OPERATOR SAFETY AND MAINTENANCE OF
THE MACHINE S-311

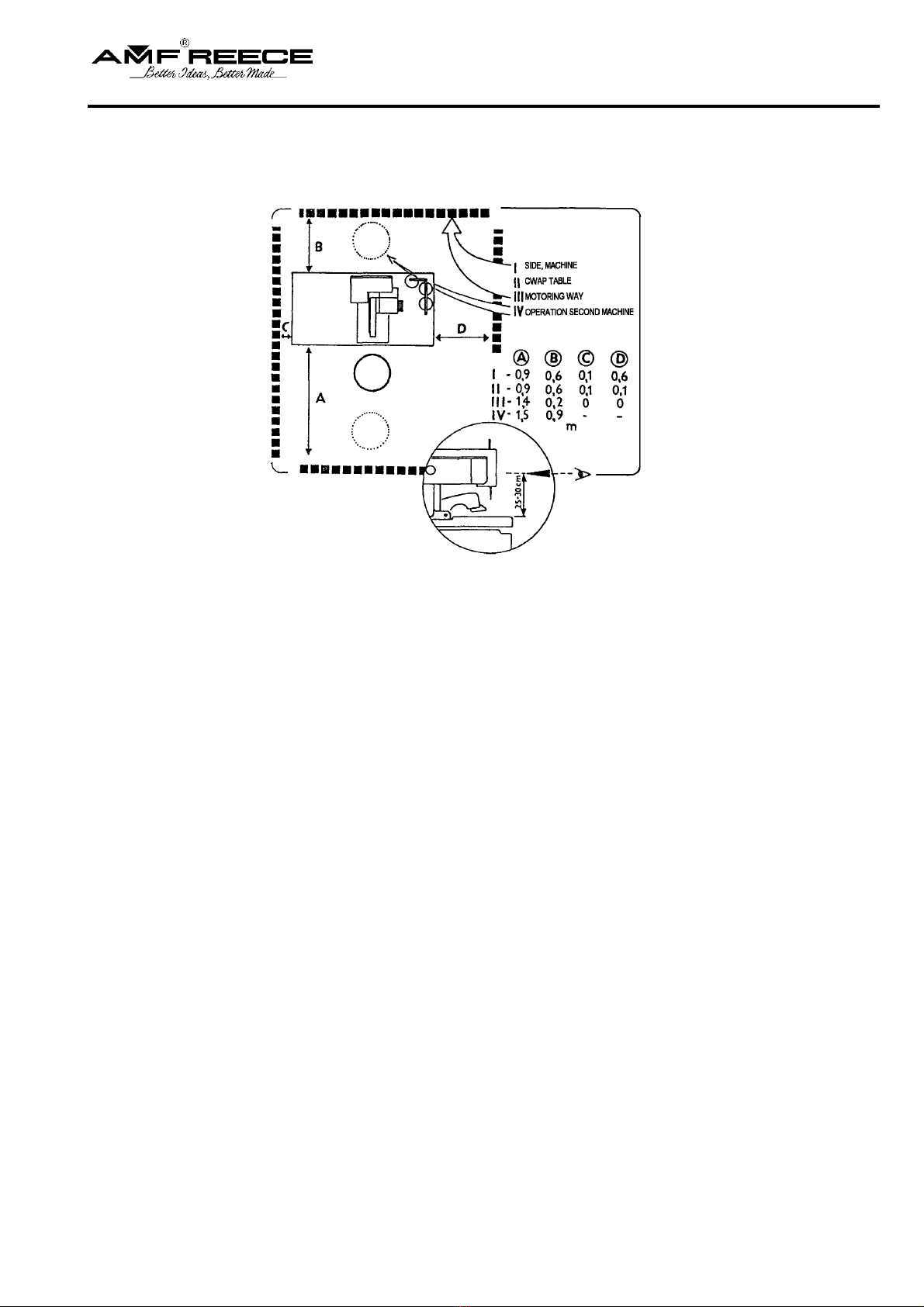

When installing the machine the manufacturer recommends the minimum clearance mentioned above
around the machine. Read all of the instructions that follow. DO NOT PUT THE MACHINE INTO
OPERATION UNTILYOUARE COMPLETELYFAMILIAR WITHALLINSTALLATIONAND
OPERATING INSTRUCTIONS.
DANGER!
-Before connecting the machine to the power supply, be positive that all safety covers are
correctly installed.
-Always engage the power lockout switch, and disconnect the main power supply, before
removing any safety covers.
-Never connect the machine to the power supply when any cover is removed.
-It is forbidden to disconnect all connectors when the machine is switched on and connected to
the power supply. The electrical components and motors can be damaged.
WARNING!
-Locate the Emergency Stop button. Be sure you know how to use it.
-Be sure that you have a reliable and uniform power supply.
-Be sure that all electrical cables are in good condition and have no signs of damage to avoid
electrical shock.
-If any covers become damaged, they must be repaired or replaced immediately.
-Do not touch moving parts of the machine while it is operating.
-Keep clear of the needle.
-Always switch off the main power before changing the needle.
-Before cleaning the machine or performing service to the machine, engage the power lock out
switch or disconnect the main power supply.
-When the machine is not in use engage the power lock out switch or disconnect the main
power supply.
A- INTRODUCTION

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-8
-When this machine is used incorrectly, or is incorrectly maintained, it can be dangerous.
-Everyone who uses this machine, or maintains this machine, must be completely familiar with
this manual.
CAUTION!
-Perform all regular service as described in this manual.
-If there is any problem with the power supply, turn off the main power switch.
-Do not remove, paint over, damage or in any way change safety labels. If a safety label
cannot be easily read, replace it.
-Long hair and loose clothing may be dangerous near any machinery. Always contain long hair
and avoid loose clothing, so that it cannot be caught by machinery and cause injury.
-Never use this machine while under the influence of drugs or alcohol.
-If anything seems to be operating incorrectly in the machine call for maintenance assistance
immediately.
-Be sure that there is adequate light for safe operation. Anormal minimum light level is 750
lux.
A- INTRODUCTION

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 02/2009
S-311
1-9
A- INTRODUCTION
7.2.Manual machine control Ë
- order number 03.5519.0.007
- allows to change the foot machine control for manual
by switch installation on the table and changing the
cables
7. SPECIAL DEVICE
7.1. Working light Ê
- order number 12.0008.4.875
7.4. Voltage control - relay HRN 35 Í
-order number 06.1900.0.000
The machine operation is ensured when the power supply is in rangeAC
230V
± 10 % (EN 60204-1). The manufacturer recommends to equip the
machine with the relay HRN-35 in case of larger fluctuation of power
supply.
It prevents the machine from damage and in case of large decrease of power supply, the
operator is informed by error message.
If the power supply range is exceeded - max 250V and min 190V the voltage guard -
relay HRN-35 which ensures that machine does not start.After the power supply is in
required range, it is possible to start the machine.
7.3.Ruler Ì
- order number 03.5511.0.003
Ê
Ë
Ì
Í
Î
7.5. Thread nipper ÎÎ
ÎÎ
Î
-order number 03.5519.4.013
This equipment is used to hold the upper thread at the beginning of
sewingcycle.
It eliminates the skipping of stitches at the beginning of sewn but-
tonhole, especially when sewing the fly bar.
It is supplied as standard to the following versions: LTT,AF+I and
CT+I ( Indexer for sewing the jackets ).

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-10
2. TABLE ADJUSTMENT
2.1. After you will unpack the machine, move the machine to its appointed place. The machine is
supplied with the stand with standart height for working in seat. For another stand
implementation is necessary to make an agreement with the customer.The recommended height
of the stand (table) is 870 mm. Tighten the screws Ëvery well.
2.2. To stabilize the table, use the floor pads Ì, which are controlled by hand screw Í. Check the
levelness of the adjusted table.
2.3 Eliminate the shipping band Î, which holds the head in place. If transporting machine to a
different location, it is necessary to fasten the table to prevent shifting in transit.
1. CONTENT OF THE SHIPPING BOX
1.1. If it is not mentioned otherwise during ordering, the shipping
containerusuallycontains:
—assembled machine on the stand with
electroinstalation
—box with the accessories
(specification in the spare parts
section)
—dis-assembled thread stand ÊÊ
ÊÊ
Ê
—operation manual with the spare parts
manual
1.2. When unpacking the container, follow labels which are on a cover.
CAUTION: If the container was damaged during the transport, inform the carrier. Check the contents
of the container with order. In the event of an error, immediately inform the manufacturer- late
notification of an error in shipment may result in loss of claim.
ÊÊ
ÊÊ
Ê
B- MACHINE ASSEMBLY

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
S-311
1-11
B- MACHINE ASSEMBLY
8
7
0
m
m
Í

Ë

Ë

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-12
3. CONNECTION OF THE MACHINE HEAD WITH THE CONTROL BOX
3.1. The control box Êcontains the control system, regulator Ëand valve terminal Ìfor
controlling the pneumatic cylinders.
B - MACHINE ASSEMBLY
3.2. The machine is connected from the plant. If disassembled, connect the machine as follows:
-blue pneumatic tubes J1A/B — J9A/B connect with equally marked electromagnetic valves.
-cables for stepping motors marked X,Y, R connected with equally marked cables.
-remaining cable is used for sensor and switches connection with box.
Ê
Ë
Ì

e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
S-311
1-13
B - MACHINE ASSEMBLY
S-311 RDE - PNEUMATIC SYSTEM CONNECTION
ÊÊ
ÊÊ
Ê clamp feet up/down
ÌÌ
ÌÌ
Ì upper thread draw-off
ÍÍ
ÍÍ
Í upper thread trimming
ÏÏ
ÏÏ
Ï cutting
ÑÑ
ÑÑ
Ñ suction air distribution
0, 1, 2 — X => distribution from a regulator
0, 1, 2 — X pneumatic cylinder identification (the first number is 0 but is not marked)
A; B; C
Tubes
identification JXXX
A
J6A
J6B
J1B
J4B
J4A
J3B
J3A
J0A
J8A2
J8A1
4 bar
6 bar
41
3
6
J0A
Ê
Ï
ÍÍ
ÍÍ
Í
ÌÌ
ÌÌ
Ì
ÑÑ
ÑÑ
Ñ

S-311
e-mail:[e-mail]; [e-mail];website: www.amfreece.com
Phones: [phone] (Service); [phone] (Spare Parts); Fax: [phone]
Revised 04/2007
1-14
B - MACHINEASSEMBLY
S-311 AF - PNEUMATIC SYSTEM CONNECTION
ÊÊ
ÊÊ
Ê clamp feet up/down
Ëclamp feet spreading
ÌÌ
ÌÌ
Ì upper thread draw-off
ÍÍ
ÍÍ
Í upper thread trimming
ÏÏ
ÏÏ
Ï cutting
ÑÑ
ÑÑ
Ñ suction air distribution
0, 1, 2 — X => distribution from a regulator
0, 1, 2 — X pneumatic cylinder identification (the first number is 0 but is not marked)
A; B; C
Tubes
identification JXXX
A
J6A
J6B
J1B
J4B
J4A
J3B
J2B
J3A
J0A
J8A2
J8A1
4 bar
6 bar
41
32
6
J0A
Ê
Ï
ÍÍ
ÍÍ
Í
ÌÌ
ÌÌ
Ì
ÑÑ
ÑÑ
Ñ
Ë
