amiad SAF-1500 Manual

AMIAD Water Systems
SAF-1500 FILTER
Serial number:
Order number:
Catalog number:
Filtration degree:
Tested by:
Installation, Operation and Maintenance
Instructions
910101-000102 / 07.2019

SAF - 1500 910101-000102 07.2109 Page 2 of 26
AMIAD Water Systems
SAF-1500 FILTER –User Manual
Disclaimer:
Copyright © 2017 Amiad Water Systems Ltd. All rights reserved.
The contents of this document, including without limitation all information and materials, images, illustrations, data, drawings, names and any other such
materials that appear in this document are the sole property of Amiad Water Systems Ltd., including any intellectual property rights, whether registered or
not, and all know-how contained or embodied therein. Amiad may alter, remove or change the Content without any further notice. You may not reproduce,
copy, modify, create derivative works from, sell or participate in any sale of, or exploit in any way, in whole or in part, any of this document or its content.
The confidential nature of and/or privilege in the file enclosed is not waived or lost as a result of a mistake or error in this file.If you received this file in
error, please notify Amiad immediately at [email protected] .
This document does not replace any certified drawing, procedure or information provided by Amiad in reference to a specific customer, site or project.
Amiad assumes that all users understand risks involved within this file and/or its attached materials.This document is given in good faith and is not intended
to impose any obligation to Amiad. While every effort has been made to ensure the information in this manual is accurate and complete, we would
appreciate if you can bring any errors or omissions to the knowledge of Amiad or consult Amiad experts or its authorized representatives if you have any
questions.
Amiad Water Systems Ltd. D.N. Galil Elyon 1, 1233500, Israel | Tel: [phone] | Fax: [phone] | Email: [email protected]

SAF - 1500 910101-000102 07.2109 Page 3 of 26
TABLE OF CONTENTS
SAF-1500 FILTER –User Manual .................................................................................................................................................... 2
TECHNICAL SPECIFICATIONS.......................................................................................................................................................... 4
General ...................................................................................................................................................................................... 4
Flushing data.............................................................................................................................................................................. 4
Control and electricity ............................................................................................................................................................... 4
Construction materials .............................................................................................................................................................. 4
Standard filtration degrees........................................................................................................................................................ 4
SAFETY INSTRUCTIONS .................................................................................................................................................................. 5
General Safety Instructions ....................................................................................................................................................... 5
Installation ................................................................................................................................................................................. 5
Commissioning........................................................................................................................................................................... 6
Operation and Control............................................................................................................................................................... 6
Maintenance.............................................................................................................................................................................. 7
DIMENSIONAL AND RECOMMENDED INSTALLATION DRAWING .................................................................................................. 8
DIMENSIONAL DRAWING –Standard SAF 1500 ............................................................................................................................ 8
DESCRIPTION OF FILTER OPERATION........................................................................................................................................... 10
INSTALLATION.............................................................................................................................................................................. 12
MAINTENANCE ............................................................................................................................................................................ 14

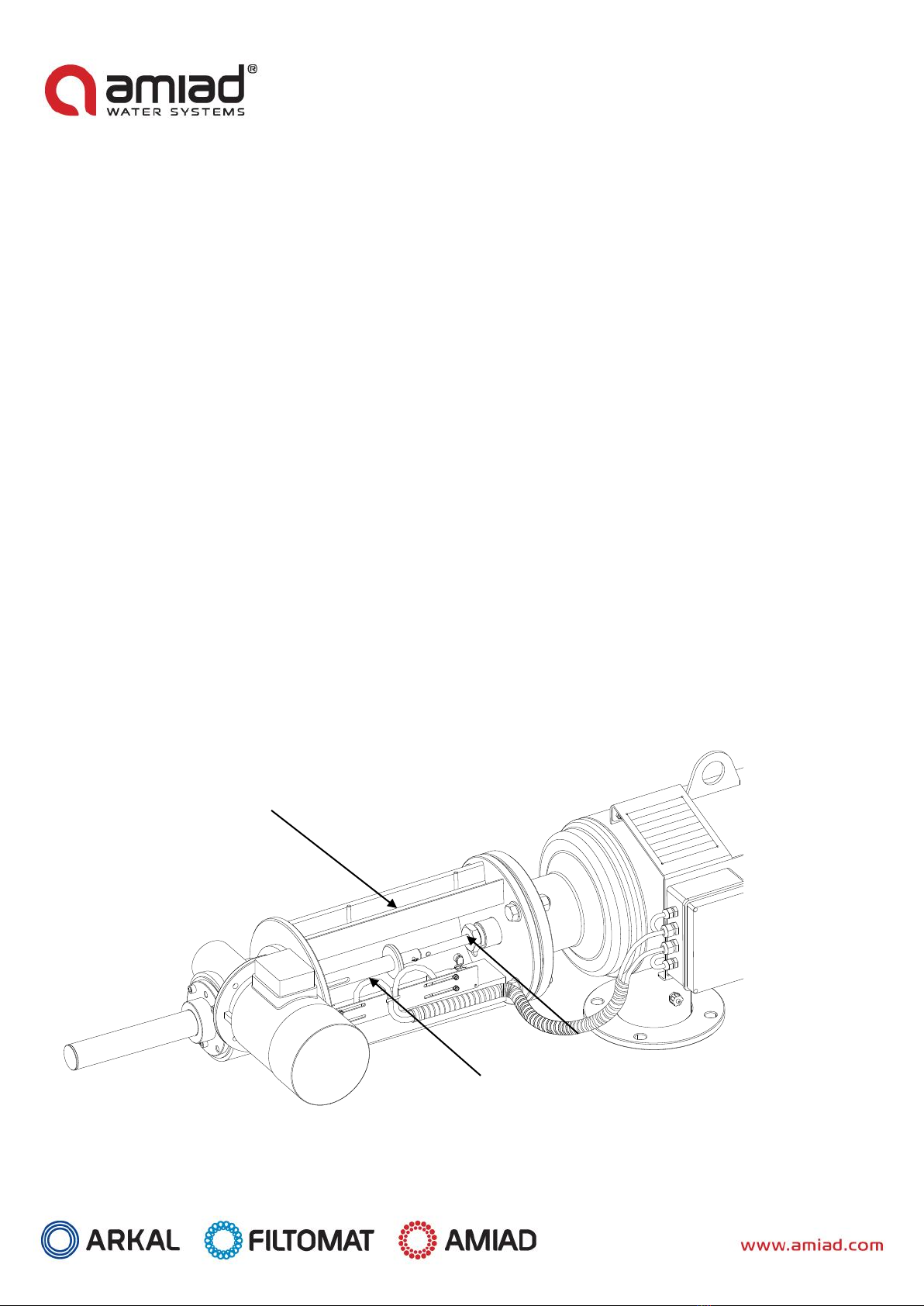

DISMANTLING AND ASSEMBLING THE FILTER COMPONENTS .................................................................................................... 16
PARTS LIST –Standard SAF-1500................................................................................................................................................. 18

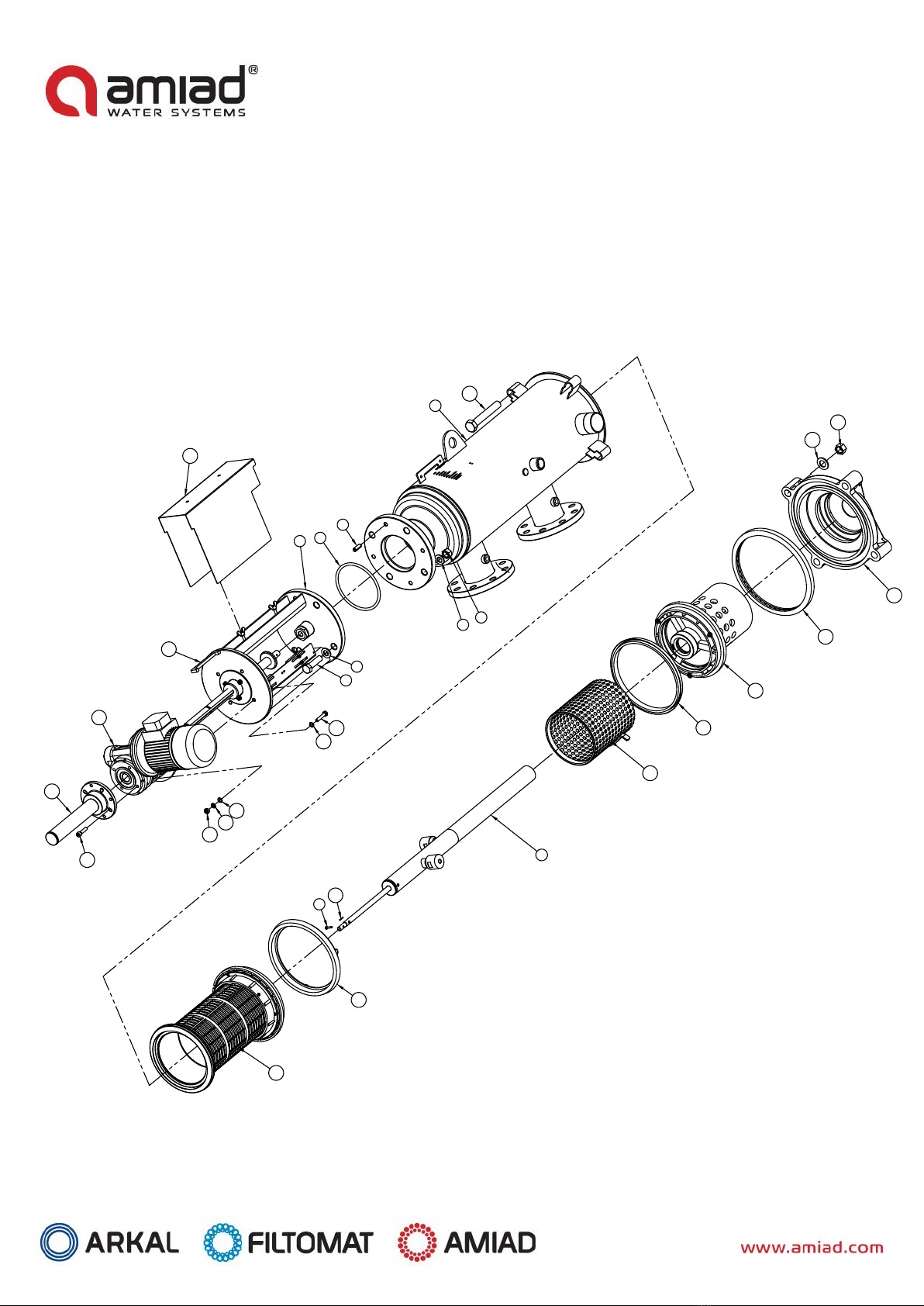

PARTS DRAWING - Standard SAF-1500 Section 1: Page 1 .......................................................................................................... 20
PARTS DRAWING - Standard SAF-1500 Section 1: Page 2 ........................................................................................................... 20
PARTS SCHEDULE & DRAWING –Standard SAF-1500 Filter ........................................................................................................ 21
Section 2: Drive Shaft Housing..................................................................................................................................................... 22
PARTS SCHEDULE & DRAWING –Standard SAF-1500 Filter Section 3: Scanner......................................................................... 23
PARTS SCHEDULE & DRAWING - Standard SAF-1500 Filter Section 3: SLN Scanner................................................................... 24
AMIAD LIMITED WARRANTY........................................................................................................................................................ 25
With any inquiry please quote Filter Serial Number, located on the filter housing.

SAF - 1500 910101-000102 07.2109 Page 4 of 26
TECHNICAL SPECIFICATIONS
General
Maximum flow rate
80 m3/h
350 USgpm
Consult manufacturer for optimum flow
depending on filtration degree & water quality.
Min. working pressure
1.5 bar
21 psi
or lower if pressure is increased for flushing
Max. working pressure
10 bar
150 psi
16 bar = 240 psi upon request
Filter area
1,500 cm2
233 in2
Inlet/Outlet diameter
50,80,100 mm
2", 3", 4"
Flange / Threads standards as per request.
Filter housing diameter
250 mm
10"
Epoxy-coated steel, or other on request.
Max. working temp.
800C
1760F
Weight
50 mm (th)= 82 Kg
50 mm (fl)= 84 Kg
80 mm = 85 Kg
100 mm = 88 Kg
2"(th) = 181 lb.
2"(fl) = 185 lb.
3" = 190 lb.
4" = 194 lb.
Flushing data
Exhaust valve
50 mm
2"
Flushing cycle time
15 seconds
15 seconds
Flushing water per cycle
25 liter
6.6 gallon
at 2 bar (30 psi)
Minimum flow for flushing
6 m3/h
26 USgpm
at 2 bar (30 psi)
Control and electricity
Control voltage
24V AC (12V or 24V DC upon request)
Electric motor
1/4 HP 50 / 60 Hz, 35 / 42 Gear output R.P.M.
Rated operation voltage
3 phase 220 / 380 / 440 V, 50 / 60 Hz
Single phase 110 / 220 V, 50 / 60 Hz
DC 12V or 24V (upon request)
Current consumption
0.6 Amp. (with 3 phase 380 / 440 V)
Construction materials
Filter housing and lid
Epoxy-coated carbon steel 37-2 (Stainless Steel 316 available on request).
Screens
Stainless Steel 316
Cleaning mechanism
Stainless Steel 316, POM, PVC
Exhaust valve
Epoxy-coated cast iron, Natural Rubber
Seals
Synthetic Rubber
Control system
Aluminum, Brass, Stainless Steel, PVC
Standard filtration degrees
Stainless Steel Weave Wire Screen
micron
500
300
200
130
100
80
50
20
10
mm
0.5
0.3
0.2
0.13
0.1
0.08
0.05
0.02
0.01

SAF - 1500 910101-000102 07.2109 Page 5 of 26
SAFETY INSTRUCTIONS
General Safety Instructions
➢Amiad filtration products always operate as components in a larger system. It is essential for the system designers, installers and
operators to comply with all the relevant safety standards.
➢Prior to installation, operation, maintenance or any other type of action carried out on the filter, read carefully the safety, installation
and operation instructions.
➢During installation, operation or maintenance of the filter all conventional safety instructions should be observed in order to avoid
danger to the workers, the public or to property in the vicinity.
➢Please note: The filter enters into a flushing mode automatically, without prior warning.
➢No change or modification to the equipment is permitted without a written notification given in advance by the manufacturer or by
its representative, on the manufacturer’s behalf.
➢Always observe standard safety instructions and good engineering practices whilst working in the filter’s vicinity.
➢Use the filter only for its intended use as designed by Amiad, any misuse of the filter may lead to undesired damage and may affect
your warranty coverage. Please consult with Amiad prior to any non-regular use of this equipment.
Installation
General
➢Install the filter according to the detailed Installation Instructions provided with the filter by the manufacturer and according to the
description given in this manual.
➢Make sure to leave enough clearance so as to enable easy access for future treatments and safe maintenance operations.
➢The user should arrange suitable lighting at the area of the filter to enable good visibility and safe maintenance.
➢The user should arrange suitable platforms, ladders and safety barriers to enable easy and safe access to the filter without climbing
on pipes and other equipment. The user should verify that any platform, barrier, ladder or other such equipment is built, installed
and used in accordance with the relevant local authorized standards.
➢Check and re-tighten all bolts during commissioning and after the first week of operation.
➢Use only appropriate standard tools and equipment operated by qualified operators when installing, operating and maintaining the
filter.
➢When installation is required in hazardous environment sites, underground or high above ground, make sure that the site design and
the auxiliary equipment are appropriate and that installation procedures are carried out in accordance with the relevant standards
and regulations.
➢Ensure walking areas about the installation are slip free when wet.
Shipment and transporting
➢Shipping and transporting the filter must be done in a safe and stable manner and in accordance with the relevant standards and
regulations.
➢For shipping, lifting and positioning the filter, use only approved lifting equipment and authorized employees and contractors.
Electricity
➢Electric wiring should be performed by an authorized electrician only, using standardized and approved components.
➢Install a lockable main power cut-off switch close to the control panel.
➢If due to site constraints, the control panel is installed without a clear line-of sight of the filter, an additional lockable power
disconnect cut-off switch should be installed near each filter unit.
➢Installation of the filter should be performed so as to avoid direct water splashing on the electrical components or on the control
panel.

SAF - 1500 910101-000102 07.2109 Page 6 of 26
Pneumatics
➢Install a lockable main cut-off switch, featured with a pressure release mechanism, on the compressed air supply line close to the
control panel.
➢If the control panel is installed far away and there is no eye contact with the filter, a lockable compressed air cut-off switch, featured
with a pressure release mechanism, should be installed near each filter unit.
➢The user should make sure that the compressed air supplied to the filter never exceeds the maximum designated pressure for this
filter. An air-pressure reduction valve should be installed on the compressed air supply line upstream of the filter’s pneumatic inlet
port.
Hydraulics
➢Extra safety devices should be installed on hot water applications to avoid skin burn danger.
➢The user should install a manual Water Cut-off Valve next to the filter’s inlet port.
➢In cases where the downstream piping network downstream of the filter is pressurized an additional manual Water Cut-off Valve
should be installed next to the filter outlet port.
➢The user should make sure that the system includes a Pressure Release / Drainage Valve to enable release of residual pressure prior
to any maintenance procedure performed on the filter.
➢The user should make sure that the filter is never exposed to water pressure exceeding the maximum designated pressure for this
filter, if needed a Pressure Reduction Valve should be installed upstream of the filter’s water inlet port.
➢Please note that the maximum working pressure indicated at the filter’s specifications table includes the pressure caused by fluid
hammer and pressure surge effects.
Civil Engineering
➢Make sure that the filter installation is done by Amiad qualified technicians.
➢Make sure that any civil engineering work at the installation site such as construction, lifting, welding, etc. is done by qualified
workers / technicians / contractors and in accordance with the relevant local standards.
➢While using lifting equipment, make sure that the filter or the lifted part is chained securely and in
a safe manner.
➢Do not leave lifted equipment if there is no necessity. Avoid working below lifted equipment.
➢Wear a safety helmet while using lifting equipment.
➢Make sure that the flooring is sloped for drainage and to avoid accumulation of liquids.
Commissioning
➢Read carefully the Commissioning and the First Start-up Operation instructions prior to any attempt to operate the filter.
➢In order to achieve maximum performance and smooth operation of the filter it is crucial to perform the Startup and First Operation
procedures exactly as described in this manual.
➢Commissioning the filter should be done by an authorized Amiad technician, do not attempt to commission the filter unaccompanied
since this may lead to undesired damage and may affect your warranty coverage.
Operation and Control
➢Do not operate the filter before reading carefully and being familiar with its operation instructions.
➢Observe the safety stickers on the filter and never perform any operation contradicting the instructions given.
➢Never operate or use the filter for purposes other than its original design and operational envelope.

SAF - 1500 910101-000102 07.2109 Page 7 of 26
Maintenance
Before any maintenance or non-regular operation please read the following:
➢Servicing the filter should be done only by technicians authorized by Amiad.
➢Disconnect the filter from the power supply and lock the Main Power Switch.
➢Disconnect the compressed air supply, release the residual pressure and lock the Pneumatics Main Valve.
➢Disconnect the filter from the water system by closing and securing the Manual Inlet Valve. In cases where the downstream piping
network is pressurized, close and secure the Manual Outlet Valve also.
➢Release the residual water pressure by opening the Pressure Release / Drainage Valve.
➢Empty the filter by opening the Drainage Valve.
➢In hot water systems wait till the filter components cool off to a safe temperature.
➢Place warning signs around the work area as required by the local standards and procedures.
➢Inspect the filter’s safety stickers and replace any damaged or faded sticker.
Mechanical
➢When working on the filter use only appropriate standard tools.
➢Always open and close valves slowly and gradually.
➢Remove grease and fat material residues in order to avoid slipping.
➢Before disconnecting the filter from the water supply, electricity and pneumatics and before releasing the filter’s residual pressure do
NOT:
oloosen or unscrew bolts
oremove any protection cover
oopen any service port flange
➢Avoid splashing and water leakage so as to minimize slippage, electrification or damage to the equipment, caused by moisture.
➢While using lifting equipment, make sure that the filter or the lifted part is chained securely and in
a safe manner.
➢Do not leave lifted equipment if there is no necessity. Avoid working below lifted equipment.
➢Wear a safety helmet, goggles, gloves, and any other personal safety equipment required by the local standards and regulations.
➢Human entry into a filter must be done in accordance with the relevant local safety instructions, standards and regulations for
working in hazardous environment.
➢Manual cleaning of filter media using high water pressure or steam should be performed in accordance with the cleaning system
instructions, the local standards and regulations and without endangering the operator or the vicinity
➢Manual cleaning of filter element using acid or other chemical agents should be performed in accordance with the relevant material
safety instructions, the local standards and regulations and without endangering the operator or his vicinity.
Before returning to regular operation
➢Re-assemble any protection covers or protection mechanisms removed during service or maintenance operations.
➢Make sure that all the tools, ladders, lifting devices, etc. used during the maintenance procedures are taken away from the filter area
and stored
➢In order to return the filter to regular operation, follow the First Start-up Operation instructions as detailed in your user manual.
➢For filters used in potable water systems it is required to disinfect the filter according to the local water authority standards and
regulations before putting it back to service.

SAF - 1500 910101-000102 07.2109 Page 8 of 26
DIMENSIONAL AND RECOMMENDED INSTALLATION DRAWING
Drawing No. 1: Modular configuration
Drawing No. 2: In-line configuration
Key:
Dimensions: mm (inches)
1. 3" SAF 1500
2. 3" inlet butterfly valve
3. 3" by-pass valve
4. 3" downstream valve
5. 3" non-return check valve
* Minimum distance required for
maintenance.

SAF - 1500 910101-000102 07.2109 Page 9 of 26
* APPROX. HEIGHT REQUIRED FOR MAINTENANCE.
D
E
F
C
123 4
B
A
32
1 5
4 6 78
A
B
SHEET 1 OF 4
6
578
SUBJECT/PROJECT:
PART NAME/TITLE: CAT. NO:
MATERIAL:
DRAWN
CHECKED
APPROVED
NAME DATE
08/04/2014
Confidential property information. DRW. NO:
041001-XXXXXX
SIZE: A3
Rev.
C
D
E
F
SCALE: 1:10
Amiad Water Systems Ltd.
reserves the rights to make changes.
All copy rights reserved to
Amiad Water Systems Ltd.
041001-XXXXXX
0
SAF-1500 C/ST Filter Polyester Scanner
SAF-1500 C/ST Filter Polyester Scanner
ITAIZ
REV. DATE DESCRIPTION NAME
1726.5 REF (*2537)
350 REF 343 REF
195 REF
C.O.G
OUTLET INLET
Z
Y
235 REF
430 REF
C.O.G Z
X
335 REF
C.O.G
X
Y
KG
112
AXIS INCH MM
X 2.17 55
Y -20.14 -511.5
Z 9.17 233
CENTER OF G RAVITY
W EIG HT
POUN DS
246.4
DIMENSIONAL DRAWING –Standard SAF 1500

SAF - 1500 910101-000102 07.2109 Page 10 of 26
DESCRIPTION OF FILTER OPERATION
Filtering process:
The SAF-1500 is a sophisticated yet easy-to-operate automatic filter, with a self-cleaning mechanism driven by an electric
motor. The SAF-1500 is designed to work with various types of screens in filtration degrees from 500 to 10 micron, and is
available in 2", 3" and 4" inlet/outlet diameter.
The filter is available in "In-Line" configuration as well as in "Modular" configuration.
The water enters through the inlet pipe into the coarse screen from outside in, and through the fine screen from inside out.
The "filtration cake" accumulates on the fine screen surface and causes head loss to develop.
The coarse screen is designed to protect the cleaning mechanism from large dirt particles. It should not accumulate large
quantities of suspended solids and is not cleaned automatically.
Self-cleaning process:
The SAF 1500will start the self-cleaning process when the pressure differential across the screen reaches a pre-set value or a
predetermined lapse of time.
Cleaning of the filter element is carried out by the suction scanner which rotates in a spiral movement while removing the
filtration cake from the screen and expels it out through the exhaust valve.
The rotation of the scanner is operated by a 2-way (fwd/rev) drive unit that is attached to the scanner by a threaded shaft
which provides the linear movement.
The exhaust valve is activated for the duration of the cleaning cycle by a 3-way solenoid. During the self-cleaning process,
which takes approximately 20 seconds, filtered water continues to flow downstream.
Different modes of filtration:
The filtration system may be found in one of the following modes:
1. Filtering mode: This is the normal function condition. Flushing is not occurring and the power light on the control board is lit.
2. Flushing mode: A mode in which the flushing process is in progress. The motor and exhaust valve are operating according to
the program.
3. Continuous flushing mode: It is possible to activate the self-cleaning mechanism continuously by changing the switch near the
timer in the control board to "CONT." position.
4. Malfunction mode: During malfunction mode the self-cleaning operation is stopped, the malfunction light on the control
board is turned on and an external output is activated with 24V AC.
Water Outlet
Junction Box
Water Inlet
Control Filter
Exaust Valve
Drive Unit
Pressure Differntial Switch

SAF - 1500 910101-000102 07.2109 Page 11 of 26
The filtration system may enter a malfunction mode in the following cases:
1st. When there is a continuous signal from the pressure differential switch for a duration of more than the pre-
set time. This means that the self-cleaning process is not successful.
2nd. When the motor protector was activated, either manually or due to over load.
3rd. As a result of a malfunction in the limit switches.
Initiation of self-cleaning:
The filter will enter the self-cleaning process as a result of any of the following causes:
1. A signal from the Pressure Differential Switch (PDS) - The PDS which is situated on the filter body, sends an electric signal
when the pressure differential across the screen reaches the pre-set value (usually 0.5 bar =7 psi). The control board registers
the signal and operates the flushing process according to its program.
2. Manually pressing the "TEST" push button at the control board.
3. The TIMER installed in the control board allows operation of self-cleaning process at time intervals that can be set up,
independent from the head loss factor. The timer resets after every flushing cycle.
4. A signal from Continual flushing switch - This switch in the control board allows operation in continuous flushing mode;
meaning, the filter is flushing itself all the time regardless of flow rate or water quality.
Control system:
Two types of control boards are available: PLC Type and Relay Type. See Appendix A or B for details.

SAF - 1500 910101-000102 07.2109 Page 12 of 26
INSTALLATION
Design recommendations:
1. If flow increases and pressure drops dramatically for a long period of time during network filling-up, it is recommended that
a pressure sustaining valve is installed downstream. The pressure sustaining valve will ensure a controlled filling-up of the
line.
2. If continual water flow is essential even during maintenance period, it is recommended that a manual or automatic by-pass
is installed, and the isolating valves will be used to isolate each filter unit.
3. In places where there is an expected temporary worsening of water quality, it is possible to operate an emergency flushing
program. In order to do so, a hydraulic controlled valve has to be installed downstream. For details, please consult the
manufacturer.
Installation instructions:
1. Install the filter horizontally in a way which will allow convenient approach and enough space to dismantle the filter for
maintenance purposes.
2. Ensure the direction of flow according to the arrows marked on the filter housing.
3. It is recommended to install a mechanical non-return valve downstream of the filter.
4. Connect a minimum of 2" pipe to the exhaust valve. The exhaust pipe should be designed so that it creates minimal
resistance to flow of 6 m3/h (26 USgpm).
5. If the system is designed to operate with working pressure higher than 6 bar (85 psi), it is recommended that a manual valve
is installed on the exhaust pipe, in order to enable regulation of the flushing flow rate.
6. The user should arrange suitable lighting at the area of the filter to enable good visibility and safe maintenance.
7. The user should arrange suitable platforms and safety barriers to enable easy access to the filter without climbing on pipes
and other equipment.
IMPORTANT !!
Prevent static back-pressure or reverse flow through the filter.
Install a manual or a hydraulic valve downstream of the filter.
Electric wiring
1. Install the control board in a dry and protected place (It is possible to order a special control board for severe out-door
installation).
For single phase or DC power supply, please refer to the electrical drawing inside the control board.
2. Power connection to the control board:
a. Connect a three-phase power source through a semi-automatic switch, or 16 Amp. fuse to the L1 L2 L3 connectors at
the terminal strip in the control board.
b. Ground the control board.
3. Power connection to the motor:
Connect the drive unit to the control panel by means of a 4 x 2.5 mm (12 or 14 AWG) wire in flex-conduct. Use a long
enough cable to allow removal of the drive unit and placing it near the filter for maintenance, without having to
disconnect it from the cable. (It is recommended that this installation meets or exceeds local or national electrical
codes, this is a "high" voltage connection).
4. Control wiring:
Connect between the control junction box and the control board by means of 6 x 1.5 mm 2 (16 AWG) wire in flex-conduct.
The numbers on the terminals in the board and in the junction box are identical.

SAF - 1500 910101-000102 07.2109 Page 13 of 26
Start-up and first operation
1. Make sure all the electric wiring is correct, according to the enclosed drawings.
2. Switch the control & 24V circuit breakers and the motor protector to ON. The motor will start operating *.
1. The suction scanner shaft should turn clockwise and move towards the filter housing until it reaches limit switch "A". If the
motor rotates in the opposite direction, disconnect the electricity immediately and change the direction of the motor
rotation by changing between two phases.
2. The motor must stop when the limit switch plateb reaches limit switch "A" and causes it to operate.
3. Operate a "dry" flushing cycle by pressing on the "TEST" push button. Make sure all flushing stages occur as described in
the filter description chapter of this manual.
4. Open the inlet valve to the filter, while the outlet valve remains closed or with an open by-pass valve (This will keep the
flow in the filter at a minimum), and operate a flushing cycle.
5. Make sure the exhaust valve opens and all stages of the flushing cycle are carried out. Attend to leakage, if any.
6. Close the 1/4" valve at the low pressure point of the pressure differential switch for 5 seconds. The PDS hand will move to
the red area and the filter will start the flushing process. Open the 1/4" valve.
1. Gradually open the outlet valve and/or close the by-pass valve. Operate the filter at the designed hydraulic conditions.
2. Set the timer for 6-8 hours.
7. Check and re-tight all bolts after the first week of operation.
* When using Control board type "C" (Relay type) it is necessary to press the "Test" push button in order to start the motor
operation for the first time.
Limit Switch "B"
Limit Switch "A"
Limit Switch Plate

SAF - 1500 910101-000102 07.2109 Page 14 of 26
MAINTENANCE
General inspection
In order to check the proper operation of the filter, close the low-pressure 1/4" valve to the pressure differential switch for a
period of 5 seconds. This will initiate the self-cleaning cycle: Check that the exhaust valve opens, that the scanner moves
forwards, and when it reaches the limit switch - verify that the exhaust valve closes.
Weekly maintenance:
1. Check that the filter operates properly, following a general inspection.
2. Clean the 3/4" filter (close the 3/4" valve and operate a flushing cycle in order to release pressure and then open the
bowl).
3. Check that there is grease on the drive shaft, and drive bushing. Add grease if necessary.
4. Take care of any leakage from the scanner shaft. If necessary, replace the sealing nut internal O-Ring.
Changing the sealing nut internal O-ring:
1. Close the inlet valve to the filter and release the pressure.
2. Remove the cover (29) from the drive shaft housing (4) by unscrewing the wing nuts (29).
3. If the Suction Scanner is in the outer position, operate a flushing cycle and bring it to the inner position.
4. Remove the Split pin (10) and pull out the connecting pin (9).
5. Operate a flushing cycle.
6. Stop the motor operation when the drive shaft reaches half way of its movement. The drive shaft is now separated from the
Suction Scanner.
7. Unscrew the sealing nut (7.5).
8. Remove the used internal O-ring and clean the O-ring seat.
9. Insert a new O-ring (16 p.24).
10. Apply some grease on the external O-ring and on the shaft.
11. Tighten the sealing nut (14 p.24).
12. Re-connect the drive shaft to the suction scanner shaft.
13. Operate the control board and open the filter inlet valve.
Maintenance prior to long term cessation of filter operation:
The following must be done if the filter will not be in operation for more than a month.
1. Operate a flushing cycle (If possible, with a closed downstream valve).
2. Disconnect the power supply to the control board.
3. Release pressure from the filter.
4. Grease the drive shaft and the drive bushing.
5. Clean the 3/4" control filter.
6. Clean the coarse screen.

SAF - 1500 910101-000102 07.2109 Page 15 of 26
Maintenance prior to re-operation:
1. Connect the control board to the power supply.
2. Check proper operation of the filter.
3. Grease the drive shaft and the drive bushing.
4. If necessary, change the Sealing nut internal O-Ring.
IMPORTANT!!
THE DRIVE SHAFT MUST BE LUBRICATED WITH HEAVY-DUTY, WATER RESISTANT GREASE THAT WILL
NOT OXIDIZE. (SHELL, DARINA EP-2 OR SIMILAR).
Cleaning the coarse screen:
Close the filter inlet valve.
2. Release pressure from the filter by operating a flushing cycle.
3. Remove the filter lid (17), pull out the flushing chamber (15) with its seal.
4. Pull out the coarse screen (11) and clean it.
5. Insert the coarse screen (11) in its position, so that it rests on its supports.
6. Insert the flushing chamber into the lid (15+17), Make sure the seal is on top of the chamber centering ring with its opening
facing the inner side of the filter housing. The insertion should be done at a slight angle and in a circular motion.
7. Close and tighten the filter lid.

SAF - 1500 910101-000102 07.2109 Page 16 of 26
DISMANTLING AND ASSEMBLING THE FILTER COMPONENTS
Prior to opening the filter perform a flush cycle by pressing the "TEST" push button.
Dismantling the screens:
1. Close the filter inlet and outlet valves and release the pressure by operating a flushing cycle, Disconnect power supply from
the control board.
2. Release the lid bolts (19,20) from their nuts and remove the lid (17).
3. Pull out the flushing chamber (15) with its seal (13).
4. Pull out the coarse screen (11) and clean it if necessary.
5. Pull out the upper cylinder seal (12).
6. Pull the screen (14) out of the filter housing.
7. If required, remove the lower screen seal (12).
Assembly:
1. Verify presence of the lower screen seal (12) on the screen edges.
2. Insert the screen into the filter housing (1) while the support legs point upwards. After pushing the screen all the way in,
rotate the screen so that the legs will support it and lead it to its position. Turn the screen round until the locking pin (on
the inner side of the housing wall) is situated in its slot on the centering ring (14).
3. Insert the cylinder seal (12), so that its open side faces the direction of the filter lid.
4. Clean and apply some grease on the suction scanner pipe and on the O-ring (12) of the suction scanner bearing located in
the flushing chamber.
5. Insert the coarse screen (11) in its position, so that it rests on its supports.
6. Insert the flushing chamber (15), make sure the seal is on top of the chamber centering ring with its opening facing the
inner side of the filter housing. The installation should be done at a slight angle and in circular motion.
7. Assemble the lid on the filter housing. Tighten the bolts (19,20) in a controlled and balanced method.
8. Open the filter inlet and outlet valves and operate the control board.
9. Check proper operation of the filter.
Dismantling the suction scanner:
1. Close the inlet valve to the filter, release the pressure and disconnect power supply from the control board.
2. Remove the cover (29) from the drive shaft housing (4) by unscrewing the wing nuts (23.6).
3. Remove the Split pin (10) and pull out the connecting pin (9).
4. Begin the dismantling procedure as per 1-6 in the chapter "dismantling the screens".
5. Pull the suction scanner (8) in a spiral movement out of the filter housing.
Assembly:
1. Apply some grease on the smooth side of the suction scanner shaft (2 p.22) and insert it through the filter housing.
2. Insert the suction scanner shaft (2 p.22) into the drive shaft (2 p.24). Make sure the holes in the above shafts are parallel.
3. Insert the connecting pin (9) to the parallel hole of the suction scanner shaft (2 p.24) and the drive shaft (2 p.22) and lock it
with the split pin (10).
4. Continue to assemble the parts as per 1-9 in the chapter "Assembling the screens".

SAF - 1500 910101-000102 07.2109 Page 17 of 26
Dismantling the drive shaft housing:
1. Close the inlet valve to the filter, release the pressure and disconnect power supply from the control board.
2. Dismantle the suction scanner and screens as described previously.
3. Remove the limit switch sling (6 p.24) from the drive shaft housing by unscrewing the bolts. Carefully put the limit switch
sling near the filter to avoid any damage to the electrical wires.
4. Remove the drive unit (22) from the drive shaft housing (4 p.24) by unscrewing the nuts from the bolts. By doing so the
drive shaft key (21) will be pulled out.
5. Dismantle the drive shaft housing (4) from the housing flange by unscrewing the bolts.
Assembly:
1. Verify that the O-ring (3) is clean and in its place.
2. Tighten the flange of the drive shaft housing to the filter with bolts.
3. Insert the suction scanner, the fine screen and the coarse screen as described previously.
4. Connect the drive shaft to the scanner shaft using the connecting pin and split pin.
5. Make sure the drive shaft key (21) is fitted properly in the gear box. Thread the drive shaft through the drive unit and make
sure that the drive shaft groove is adjusted in accordance with the drive shaft key.
6. Connect the drive unit (22) to the drive shaft housing (4) with the bolts and tighten them.
7. Assemble the limit switch sling (6 p.24) in its place. Make sure that the Limit Switch Plateis in the middle of the scanner
travel.
8. Operate the control board and make sure the filter is operating properly.
9. Open the inlet and outlet valves and recheck filter operation.

SAF - 1500 910101-000102 07.2109 Page 18 of 26
PARTS LIST –Standard SAF-1500
No.
DESCRIPTION
Qty.
1
Housing 3" SAF-1500
1
2
Slotted Pin 10x30 DIN1481
1
3
O-Ring Seal P2-433 (Drive Unit Adaptor EBS H-SAF) NBR N/F
1
4
Drive Shaft Assembly SAF-1500/3000
1
5
Bolt M16X60 Z.Plated
4
6
Flat Washer M16 Z.Plated
8
7
Hex Nut M16 Z.Plated
4
8
Suction Scanner Assembly SAF-1500
1
9
Connecting Pin (SAF-1500,3000, 4500)
1
10
Split Pin 1.6X12 DIN94 S/ST316
1
11
SAF-1500/3000 Coarse Screen
1
12
Hydraulic Seal AM-02
1
13
Flushing Chamber Seal AM-01
1
14
Weavewire Screen For SAF 3000
1
15
Flushing Chamber (SAF-1500)
1
16
Hydraulic Seal AM-07 (Polyester Lid)
1
17
Lid Polyester SAF-1500,3000
1
18
Hex Bolt Partial Thrd M20x130Z.Plated
4
19
Hex Nut M20 Z.Plated
4
20
Flat Washer M20 Z.Plated
4
21
Drive Shaft Key (SAF)
1
22
Drive Unit 440AC3PH 0.18KW.RMI50 1/28 63 B5
1
23
Hex Bolt Full Thread M8X40 Z.Plated
4
24
Hex Nut M8 Z.Plated
4
25
Flat Washer M8 Z.Plated
8
26
Spring Washer M8 Z.Plated
4
27
Drive Shaft Cover (PVC) SAF
1
28
Socket Head Cap Screw M8x20 S/St304 DIN912
2
29
Drive Shaft Housing Cover SAF 1500
1
30
Insrtumentation Combined Bracket SAF
1
31
Aluminum Amiad Nameplate, CE, En
1
32
Rivet Blind 3x6 DIN7337 S/ST316
4
33
Manometer Valve 1/4" W/ Drain
1
34
Connector 5/16"x1/4"
2
35
L-Connector 5/16"X1/4"
3
36
Electrical Junction Box (SAF)
1
37
Flat Washer M5 DIN125 304
4
38
Hex Nut M5 304 DIN934
4
39
Phillips Pan Machine Screw M5x16 S/St304 DIN7985
4
40
Presostat SUB-AS. Midwest W/O Fitting
1
41
L-Connector 5/16"X1/8"
2
42
Connector 5/16"x1/8"
1
43
Flat Washer M6 DIN125 S/ST316
4
44
Spring Washer M6 DIN127 S/ST316
2
45
Hex Nut M6 DIN934
2
46
Hex Bolt Full Thread M6x20 S/St304 DIN933
2

SAF - 1500 910101-000102 07.2109 Page 19 of 26
No.
DESCRIPTION
Qty.
47
Ball Valve 3/4" M/F (BRASS)
1
48
L-Connector 3/4" F/M Galvanized
1
49
3/4" BSPT AC BLACK SCREEN 200 M
1
50
Raccord Nipple 1/4" for 3/4" Filter
1
51
Raccord Nut 3/4" for 3/4" Filter
1
52
O-Ring Seal P2-112 NBR
1
53
Hydraulic Valve
1
54
Pressure Check Point Connector 1/4"X1/4"
1
55
Solenoid Valve
1
56
Control Tube 5/16" Nylon Air Brake
1.6m

PARTS DRAWING - Standard SAF-1500
Section 1: Page 1
18
1
2
3
67
6
5
23
25
25
26
24
21
4
22
27
28
19
20
17
16
15
13
11
8
14
910
12
29
