Amica AWC150 Installation and operating instructions

www.amica-international.co.uk
AWC150, AWC300
& AWC600
Wine Coolers
Installation, use and maintenance

2
Contents:
3 Important
5 Before first use
6 Notes on use
7 Use and controls
7 Locking and unlocking the control panel
7 Switching the power on and o
8 Changing the temperature
8 Changing the temperature reading (°C/°F)
9 Optimal temperatures for dierent wines
9 Using the internal lighting
9 - 11 Temperature display (set and real)
11 Quiet mode
11 Care and cleaning
12 Removing the shelves
13 Temperature alarm
13 Troubleshooting
15 Installation the wine cooler
16 Installing the handle
17 Reversing the door
20 Adjusting the plinth
21 Electrical information
23 Energy eciency information

3
Important
Amica cannot be held responsible for injuries or losses caused by
incorrect use or installation of this product. Please note that Amica
reserve the right to invalidate the guarantee supplied with this product
following incorrect installation or misuse of the appliance or use in a
commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have
had supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified
personnel.
Do not use the appliance if the plug, the mains cord or the
appliance itself is damaged. If the mains cord is damaged, you
must have it replaced by the manufacturer, or an authorised
service centre or similarly qualified persons in order to avoid a
hazard.
Children should be supervised to ensure that they do not play with
the appliance. Keep the mains cord out of the reach of children.
Do not let the mains cord hang over the edge of the table or
worktop on which the appliance stands, if applicable.

4
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Amica Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (Low
voltage) and requirements of Directive 2014/30/EU (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
Please render the appliance unusable before disposal. This includes
removing the plug and breaking the door fixings to prevent children
being trapped inside the appliance during play, or any other risk of
injury.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

5
Before first use
You must allow the appliance to settle for at least twenty four
hours prior to switching the power on.
It is recommended that you remove all internal and external
packaging and clean the interior of the appliance prior to first use. We
recommend that you use a solution of bicarbonate of soda and warm
water and then thoroughly dry the interior.
The appliance may have an odour to it at first use. This will disappear
as the appliance cools.
Please note:
• The appliance will work continuously until it gets to the correct
temperature. Continuous noise from the compressor and
refrigeration system is normal.
• If the appliance is switched o, you should allow five minutes before
switching it on again to prevent the risk of unnecessary damage to
the compressor.
•The LED display may not show the selected temperature whilst the
appliance first gets to the correct temperature. This is normal, and
the display will be corrected automatically once the appliance has
run for a few hours.

6
Use
• Only store wine in sealed containers.
• Do not overload the cabinet.
• Only open the door when necessary.
• Do not cover the shelves with aluminium foil or anything else that
will prevent air from circulating around the cabinet.
• To prevent damage to the door seal, ensure the door is fully open
before removing the shelves.
• This is a self-defrosting appliance. The compressor will not run
during the thirty minute defrost cycle.

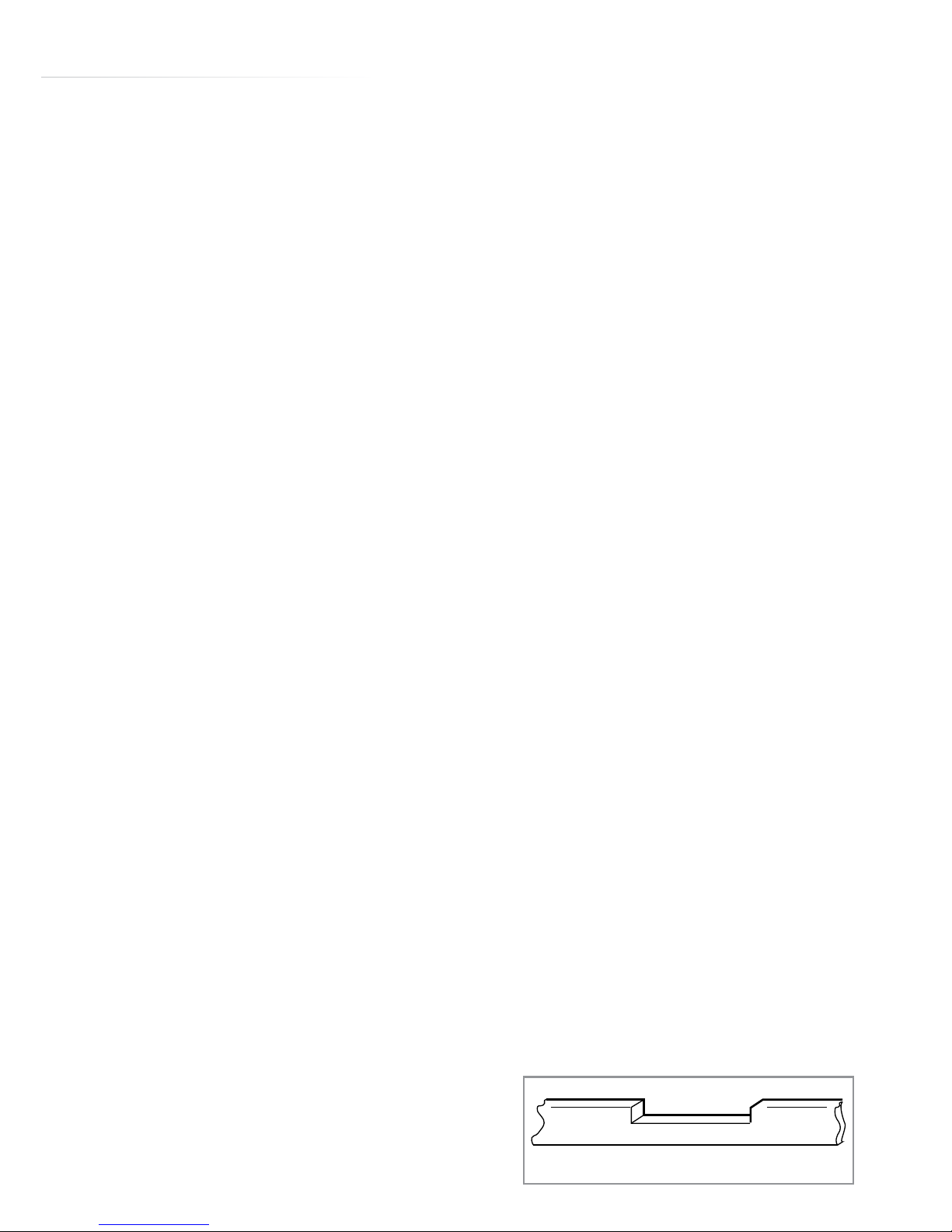

•Do not pull the shelves beyond the anti-stop position (approximately
one third out) when fully loaded.
•This appliance is intended to be used exclusively for the storage of
wine.
•In the event of a power failure, leave the door closed as much
as possible to maintain the internal working temperature. Should
the power failure continue for a prolonged period, you should
take steps to protect the contents of the wine cooler against a
rise in temperature. The wine cooler will remember the selected
temperature settings and revert to these settings once the power is
restored.
This appliance is suitable for use in an extended temperature climate
(ST) and has a normal operating ambient temperature of 18-38°C.
Use of the appliance below 18°C may cause performance issues that
are not indicative of a fault. Normal operation will resume once the
appliance is within the specified range.

7
Use and controls
To lock/unlock the control panel - all models
•Press and hold the power button and the light button for
approximately 4 seconds.
•The control panel locks automatically after approximately 15
seconds of inactivity.
To switch the power on/o - all models
•Press and hold the power button for approximately 4 seconds to
switch the wine cooler on.
•Press and hold the power button for approximately 4 seconds
to switch the wine cooler o.
Key:
1 – Power button
2 – Light button
3 – "+" button
4 – "-" button
Fig. 1
34
12
Key:
1 – Power button
2 – Light button
3 - Temperature display
button
4 – "+" button
5 – "-" button
6 – Zone selection button
123456
AWC300
AWC600
AWC150
34
1 2
Key:
1 – Power button
2 – Light button
3 – "+" button
4 – "-" button

8
To change the temperature - all models
•Unlock the control panel, if necessary.
•Press the or buttons until the required temperature is shown
on the display.
•The display flashes when temperature adjustment is active or a
dierent temperature is being set.
•What the wine cooler display does next is dependent upon what
temperature display you have active (see pages 9-10).
To change the zone control - AWC600
•Unlock the control panel, if necessary.
• Press the button. The 'active' display will flash.
• The temperature ranges are 5-12°C for the upper zone (left display)
and 12-22°C for the lower zone (right display).
To change the temperature reading - AWC300 & AWC150
You can change the temperature display reading from Fahrenheit to
Celsius, or Celsius to Fahrenheit. To do so:
•Ensure the control panel is locked.
• Press and hold the or buttons for approximately 4 seconds.
To change the temperature reading - AWC600
You can change the temperature display reading from Fahrenheit to
Celsius, or Celsius to Fahrenheit. To do so:
•Ensure the control panel is unlocked.
• Press the button.

9
Optimal temperature selection
Below is a table showing the recommended storage temperatures for
dierent types of wine. These are also the ideal drinking temperatures
for most types.
Wine Type
Red Wine 15 - 18ºC (59ºF-64ºF)
Dry ⁄ White Wine 9 - 14ºC (48ºF-57ºF)
Rosé Wine 10 - 11ºC (50ºF-52ºF)
Sparkling Wine 5 - 8ºC (41ºF-46ºF)
To use the internal light
•Unlock the control panel, as per page 7, if necessary.
•Press the light button to switch the light on or o.
Temperature display
This appliance has two options for the temperature display. One option
shows the set or target temperature in the wine cooler. The other option
shows the real temperature within the wine cooler, and can be useful for
actively monitoring the wine cooler's behaviour. Descriptions and further
information on these display options are shown below.
Set temperature display
•The temperature display will show the set temperature (the
temperature that the cooler is working to achieve).

10
•A decimal point '.' next to the temperature signifies that the
wine cooler is working to achieve the set temperature. When the
decimal point disappears, or if it is not present, the cooler's sensor
has detected that the set temperature has been reached. The
decimal point may reappear periodically when the cooling system
kicks in to maintain the temperature.
•The display flashes when temperature adjustment is active or a
dierent temperature is being set.
Real temperature display
•The temperature display will show the real or actual temperature
within the wine cooler.
•A decimal point '.' next to the temperature signifies that the
wine cooler is working to achieve the set temperature. When the
decimal point disappears, or if it is not present, the cooler's sensor
has detected that the set temperature has been reached. The
decimal point may reappear periodically when the cooling system
kicks in to maintain the temperature.
•The display flashes when temperature adjustment is active or a
dierent temperature is being set.
To change the temperature display
•Ensure the control panel is locked.
•Touch and hold the light button and the button for
approximately 2 seconds.
•The display will show '02' or '01', depending upon which display
setting has been active.

11
•Use the button to switch between '02' and '01'. '02' is the
Set temperature display mode and '01' is the Real temperature
display mode. Once the mode you desire is shown on the display,
touch nothing for approximately 5 seconds. The appliance should
beep and switch to the new display mode.
Quiet mode
This appliance has a quiet mode. The appliance should be in this mode
by default. Whilst active, and once the set temperature is reached, the
appliance slows down the internal fan(s) to reduce the running noise.
To deactivate quiet mode
The control panel must be locked (see page 7). Press and hold the light
button for approximately 3 seconds. Depending on whether you
have the display set to Fahrenheit or Centigrade, the °C or °F symbol will
stay solidly lit to indicate that the mode is inactive.
To activate quiet mode
The control panel must be locked (see page 7). Press and hold the light
button for approximately 10 seconds. Depending on whether you
have the display set to Fahrenheit or Centigrade, the °C or °F symbol will
flash to indicate that the mode is active.
Care and cleaning
IMPORTANT: Always disconnect the appliance from the mains
electrical supply before any cleaning or maintenance.

12

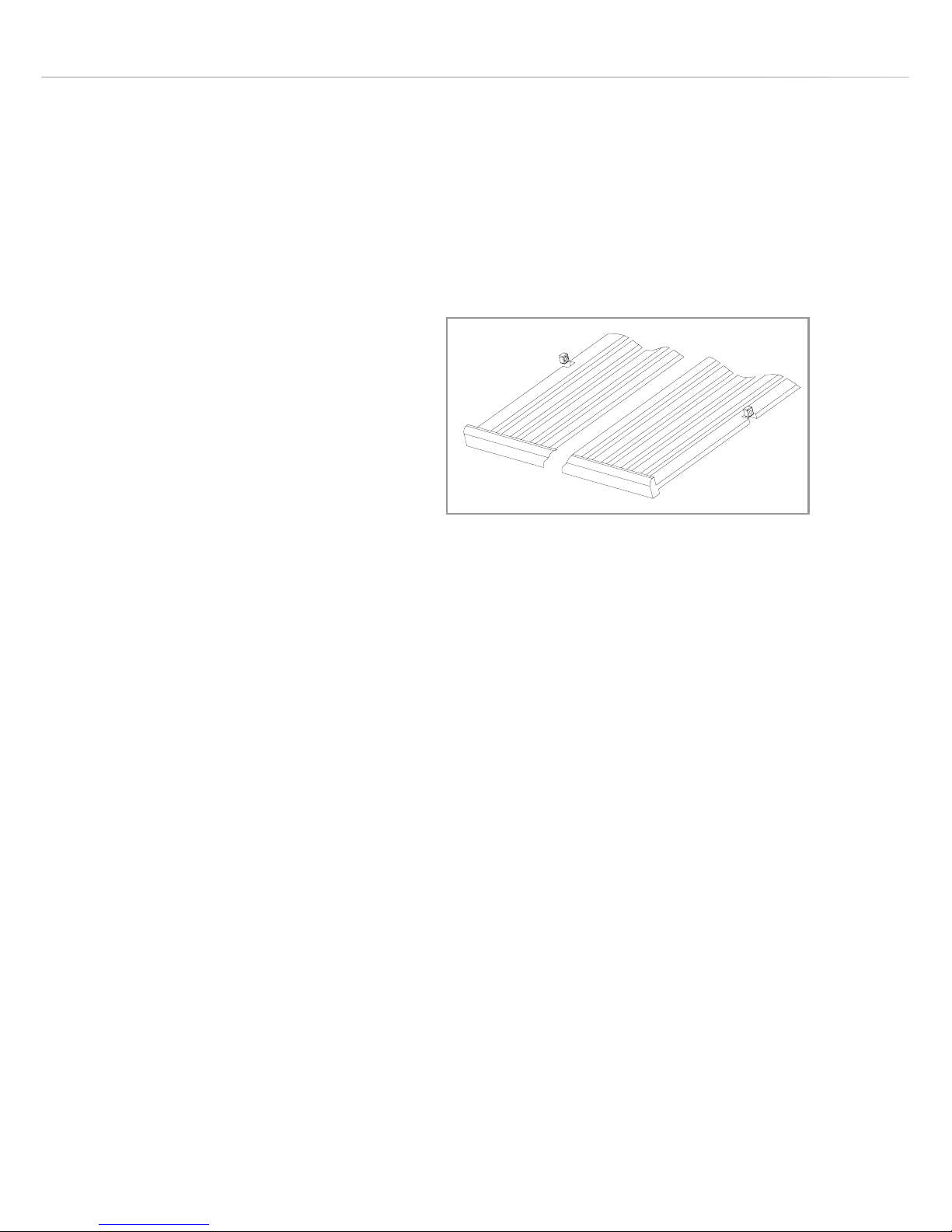

Removing the shelves (AWC300 & AWC600)
•To remove a shelf from the AWC300 or 600, first remove all
bottles from the shelf, then pull the shelf forwards until the groove
on either side of the shelf is level with the plastic peg on either
side of the cabinet (as shown in Fig 2). Then lift the shelf up and
pull forwards.
•To replace the shelves,
follow the steps above in
reverse order.
Cleaning
•Do not use abrasive
products or detergents. After washing, rinse and dry thoroughly.
•The exterior of the appliance and the door seal should be
cleaned using mild soapy water and dried thoroughly.
•The interior cabinet should be cleaned using a solution of
bicarbonate of soda and lukewarm water.
•Clean the shelves separately by hand using soap and water. Do
not put them in the dishwasher.
•Ensure that the cloth is only moist when cleaning the control
panel and electrical parts, and that all water is thoroughly
dried o before reconnecting the power.•Once cleaning is
complete, reconnect the mains electrical supply.
• If the appliance is not to be used for prolonged periods of
time, unplug and clean the appliance thoroughly. The door
should be left slightly ajar to prevent the formation of odours or
condensation.
Fig. 2

13
Temperature alarm
If the temperature rises or falls outside the set temperature range, an
alarm will sound and the display may show a fault.
This may be because:
•The wine cooler has not yet reached the set temperature (when
first switched on) or is taking a long time to reach it.
•There has been a power failure.
•The wine cooler has been overloaded or damaged.
•The door is not closed properly.
•The temperature sensor has failed (see page 15).
Please note: If the wine cooler has overheated and the alarm is
sounding because of this, the system will shut down automatically
after 6 hours of the alarm tripping. The warnings will continue
however.
Troubleshooting
If you have any problems with your appliance, you should check
the troubleshooting guide prior to calling Amica Customer Care.
If the appliance is not working, check
• There is power to the appliance
• The house fuses or circuit breakers are intact and the fuse in the
plug has not blown.
• The plug socket is functioning correctly. To check this, plug another
electrical appliance in to see if the socket is working.
• The ambient temperature is between 18°C to 38°C.

14
The appliance is working, but not very well, check
• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
• The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 18°C to 38°C.
The appliance is noisy, check
• The appliance is level and stable.
• The cooling gas will make some noise, even when the compressor
is not running.
• During operation, it is normal for the fan to run, even when the
compressor is not running.
The appliance is turning cooling on and o frequently
• The internal temperature is fluctuating, causing the system to cool.
The light does not work, check
• There is power to the appliance.
• The house fuses or circuit breakers are intact and the fuse in the
plug has not blown.
• The light button is not set to o (unlock the panel first as per page
7).
Please note:
The LED lighting cannot be replaced without a service call. If the light

15
fails, contact Amica Customer Care.
The door will not close properly, check
• The appliance is level and stable.
• If the door has been removed, it may not have been correctly
refitted.
• Whether the door seal is dirty.
•The shelves are positioned correctly.
The display shows “LL” or “HH”
•The temperature sensor has failed. Please contact Amica Customer
Care.
Installing the wine cooler
This appliance is intended to be installed in a space between two
units. If it is to be freestanding in an open space, ensure that it can
not cause harm nor damage.
The minimum space required is:
AWC150 – 150mm W x 570mm D x 830/890mm H
AWC300 – 300mm W x 570mm D x 830/890mm H
AWC600 – 600mm W x 570mm D x 830/890mm H
Please note: When the product is installed, there should be a
small ventilation gap between the top
of the unit and the underside of the
worktop (6 mm or ¼”).Fig. 3

16
These products should not be installed:
1. In direct sunlight.
2. Adjacent to a heat source (oven or radiator).
3. Below a hob unit.
4. In a damp or wet environment
Where a continuous plinth is to be used, it is necessary to cut a section
out so that the ventilation slots at the front of the appliance are not
obstructed in any way as per Fig 3.
This appliance is designed to fit under worktops between 830 –
890mm in height, using the adjustable plinth plate to ensure that the
feet are concealed from view.
IMPORTANT: Failure to follow the instructions regarding installation
and ventilation may invalidate the warranty supplied with your
appliance.

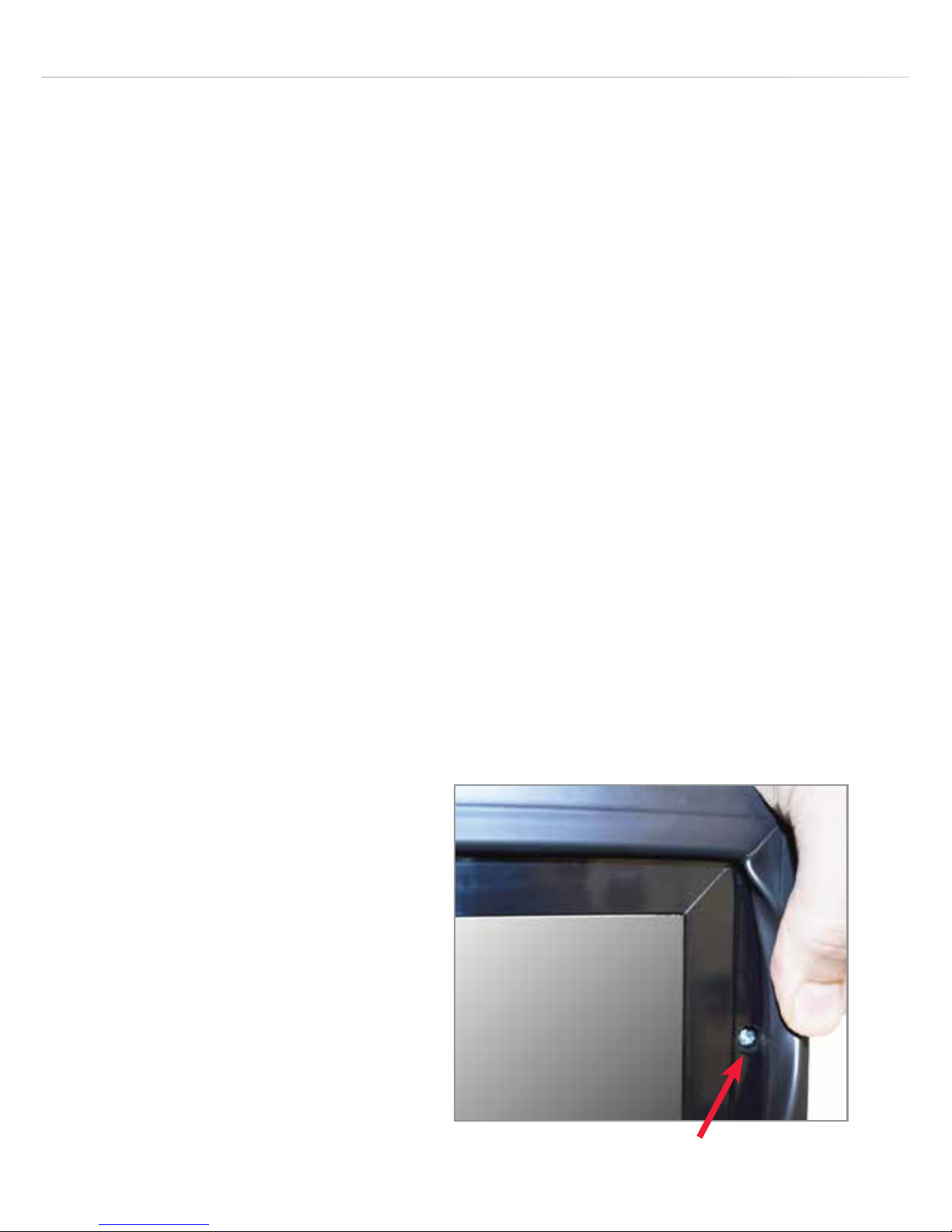

To install the handle
IMPORTANT: DO NOT REMOVE
THE SCREWS FROM THEIR
POSITION IN THE DOOR (Fig.
4) PRIOR TO FITTING THE
HANDLE AS FIXINGS MAY
DROP INTO THE DOOR. The
door seal holds the screws in
place during transit. Do not
overtighten the screws, and do
not use power tools to install
the handle.
Fig. 4
Door glass
Screw hole + screw

17
60o Min.
Screw
Pivot plate
1. Peel back the door seal from the glass side to expose the screw
holes, as per Fig. 4. Place a screwdriver against the screw and
hold it in position.
2. Carefully locate the handle over the fixing screw.
3. Using a screwdriver, tighten the securing screw to fix the handle.
Repeat with the remaining handle fixing screw.
IMPORTANT: Take care, when installing the handle, not to damage
the door. Any damage caused may not be covered by the warranty
supplied with your appliance.
Reversing the door
The following instructions are based
on a wine cooler with the door hinged
on the right hand side. We strongly
recommend seeking the help of at least
one other individual during this process.
Before starting the reversal process,
ensure that you have the left hand
upper and lower hinges. These are
supplied with your product.

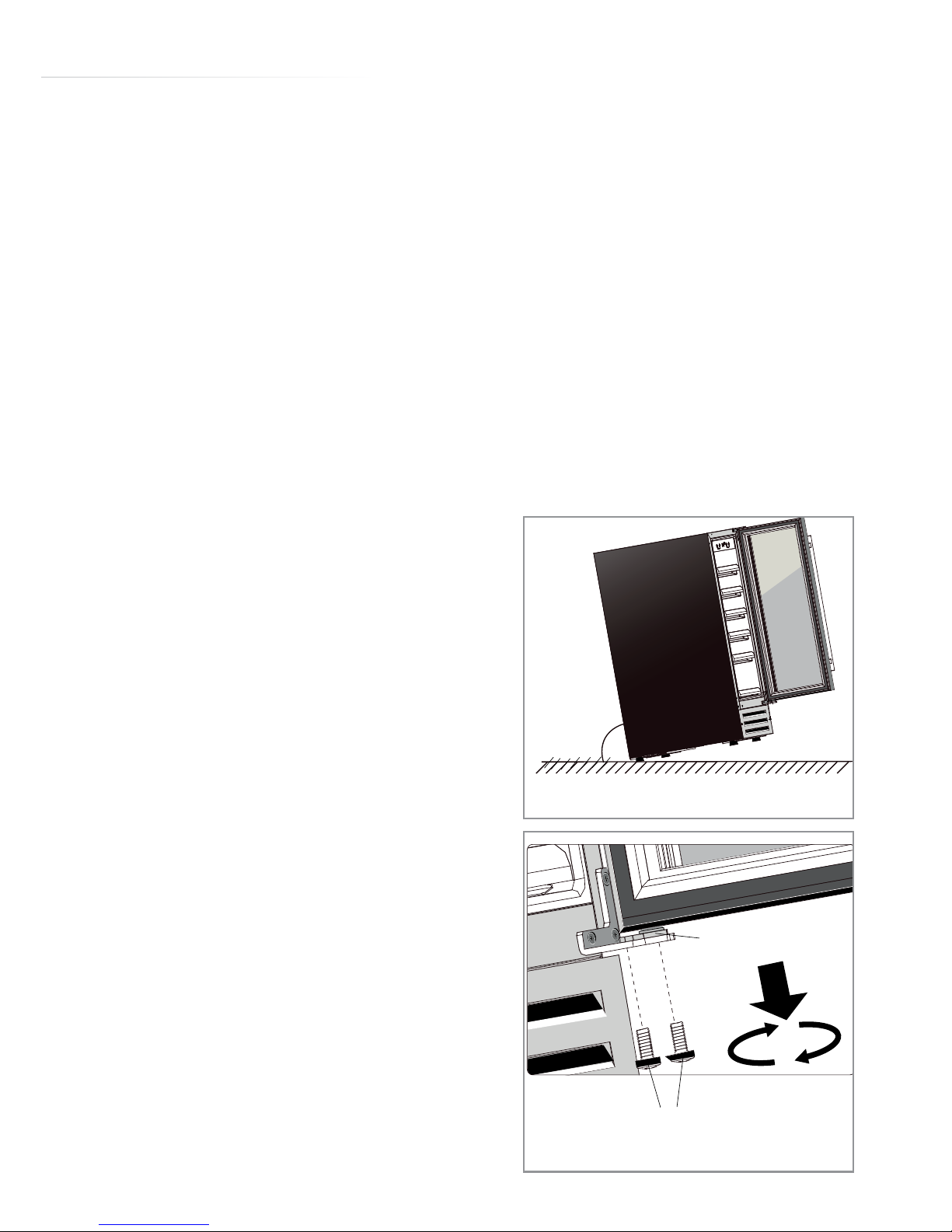

Do not tilt the appliance backwards
further than an angle of 60° (Fig.5).
Fig. 5
Fig. 6

18
Upper Right Hinge
Bottom Right Hinge
Plastic Caps (6pcs)
1. With the help of another, open the
door and support it. Loosen and
remove the two screws from the
pivot plate of the lower right hinge,
as per Fig. 6.
2. Move the door away from the wine
cooler slightly and remove the
pivot plate from the bottom of the
door as per Fig. 7. Lower the door
from the upper hinge and place
it somewhere safe where it will
neither cause nor receive damage.
3. Remove the three screws from
both the upper hinge and the
lower hinge, taking care not to let
them fall, as per Fig. 8. Remove the
hinges and place them somewhere
safe in case they are needed in the
future.
4. Remove the plastic caps from the
left hand hinge positions and fit
them into the now empty right hand
hinge holes, as per Fig. 9.
5. Fit the supplied upper left hinge and
lower left hinge to the appliance
as per Fig. 10. These are mirror
opposites of their right-handed
counterparts.
Fig. 8
Fig. 9
Pivot plate
Door
Fig. 7

19
6. Turn the door around by 180°
(upside down) so that the handle is
now on the right (Fig. 11). Insert the
pivot plate into the now-bottom of
the door as per Fig. 12.
7. Guide the door onto the upper
hinge pivot and manoeuvre the
lower part of the door and pivot
plate onto the lower hinge. Align
the pivot plate holes with the hinge
plate holes.
8. Reinsert the two screws that you
removed in step 1 and tighten them.
Check that the door sits level with
the appliance. If not, the pivot plate
oers some adjustment - loosen the
screws you have just tightened and
adjust the door as necessary.
Fig. 11
Fig. 12
Upper Left Hinge
Bottom Left Hinge
Fig. 10

20
Adjusting the plinth
The pre-fitted plinth/grille for this appliance comes with an adjustable
section. The process for adjusting the plinth trim is simple and is
achieved by following the steps below.
1. Loosen the two screws on each side of the plinth trim (four
altogether).
2. Carefully guide the front trim down until the desired height is
achieved. Tighten the screws.
Pivot plate
Screws (2pcs)
Bottom left hinge
Fig. 13
