DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 7
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 16
Cleaning and maintenance.............................................................................................. 22
Technical data................................................................................................................... 26
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Donotusethecookerintheeventofatechnicalfault.Anyfaultsmustbexedbyan
appropriatelyqualiedandauthorisedperson.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The cooker should not be cleaned using steam cleaning equipment.

5
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Panswiththick,atbasescansaveupto1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating plate.
A saucepan should never be smaller than a
heating plate.
Ensure heating plates and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and make
use of residual heat.
For long cooking times, switch off heating
plates5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

6
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

7

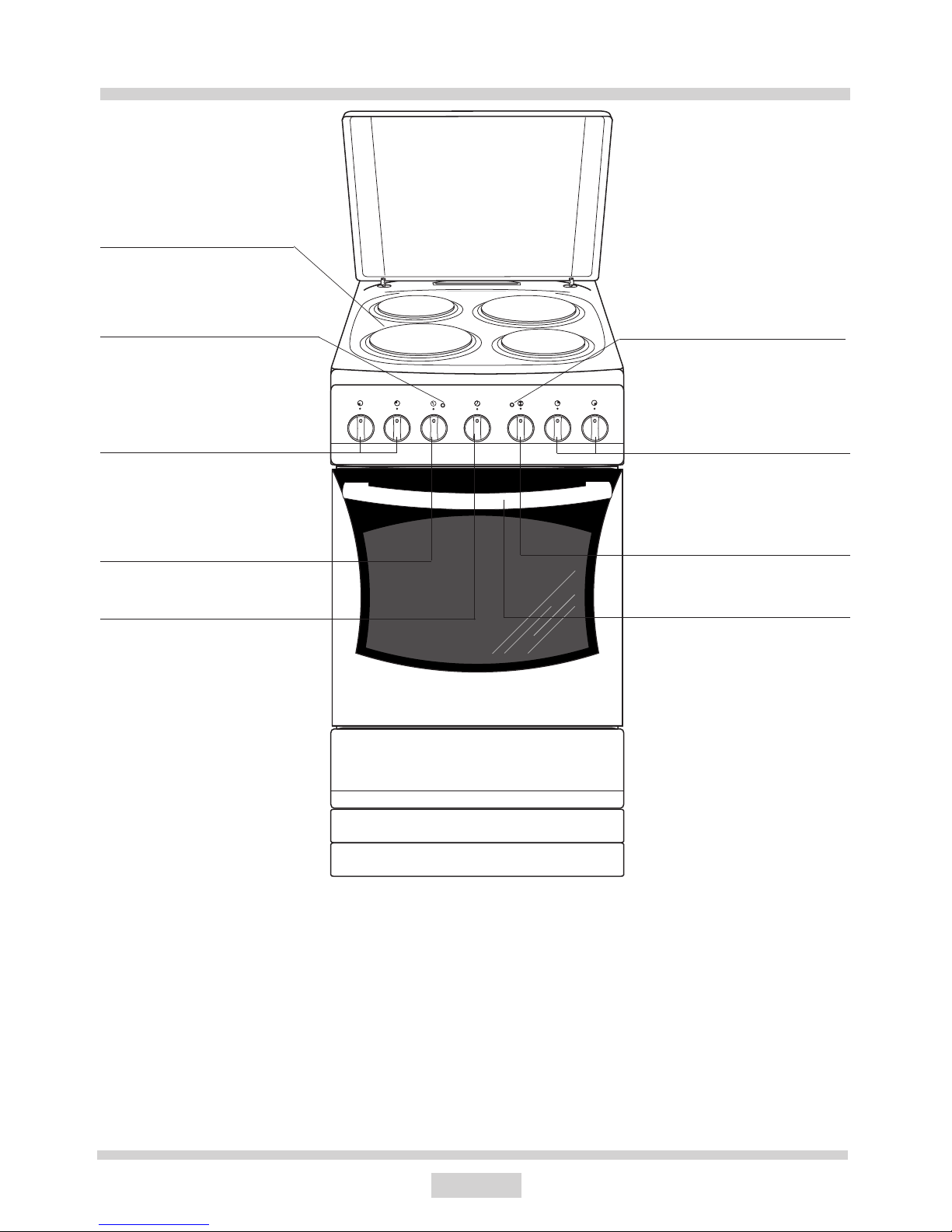

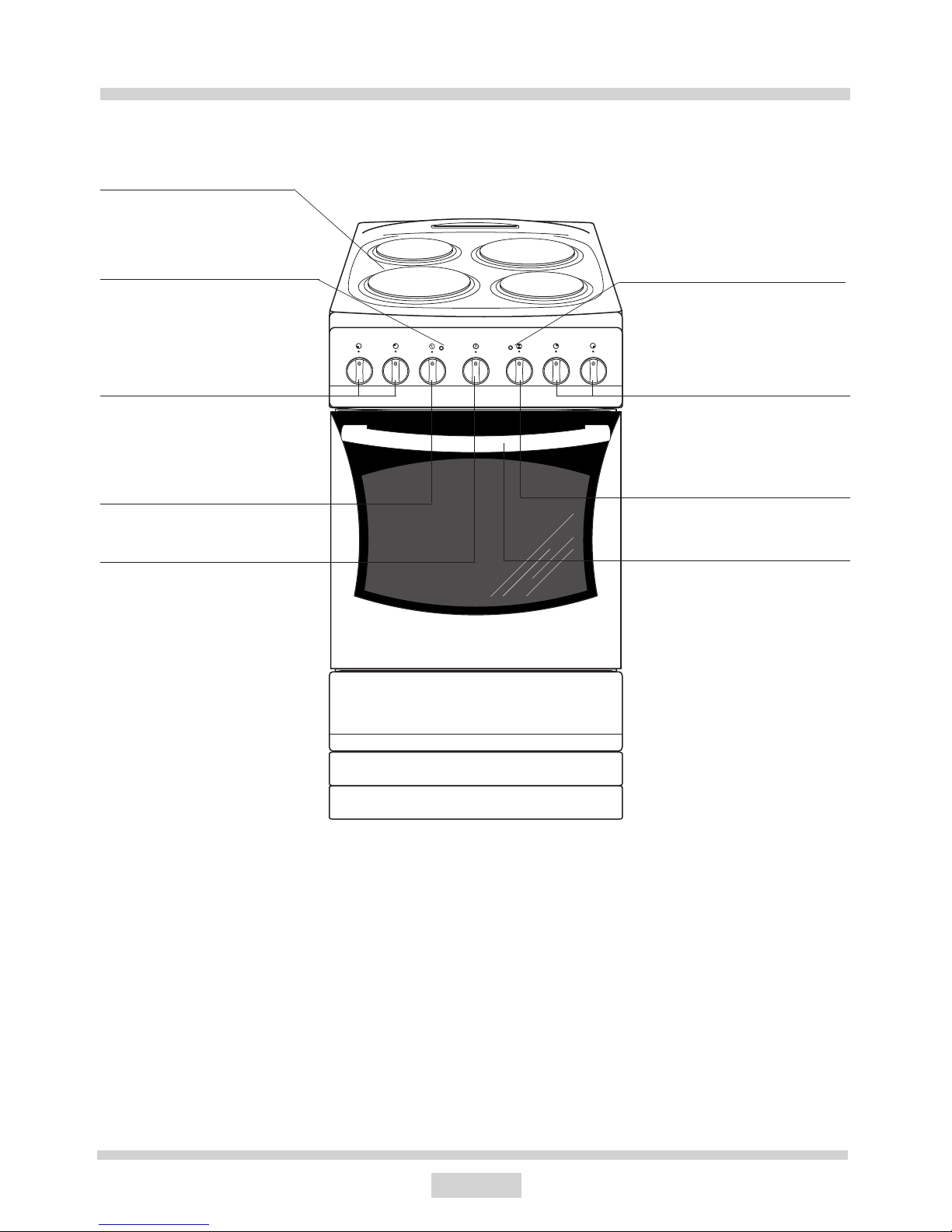

DESCRIPTION OF THE APPLIANCE
1
7
3, 4 5, 6
8
11
10
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating plate control knobs
7Temperatureregulatorsignal light red
8Cooker operation signal light yellow
9 Timer
10 Electric hob
11 Oven door handle
12 Drawer
2
9
12
51EE2.31MFG(W)

8
DESCRIPTION OF THE APPLIANCE
1
7
3, 4 5, 6
8
11
10
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating plate control knobs
7Temperatureregulatorsignal light red
8Cooker operation signal light yellow
9 Timer
10 Electric hob
11 Oven door handle
12 Cover
2
9
51EE2.31MPG(W)
12

9
DESCRIPTION OF THE APPLIANCE
1
7
3, 4 5, 6
8
11
10
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating plate control knobs
7Temperatureregulatorsignal light red
8Cooker operation signal light yellow
9 Timer
10 Electric hob
11 Oven door handle
2
9
51EE2.31MPFG(W)

10
SPECIFICATIONS OF THE APPLIANCE
Oventtings:
Grill grate
(drying rack)
Roasting tray

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have effective ventilation according to the
existingtechnicalprovisions.
The room should be equipped with a ven-
tilationsystemthatpipesawayexhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coatingorveneerusedonttedfurniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor(donotputitonabase).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.

12
1
2
3
3
4
5
230V 1N~
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 32 ampere minimum capacity with
3mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nectedbyaqualiedelectricianwhoismem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 6mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.

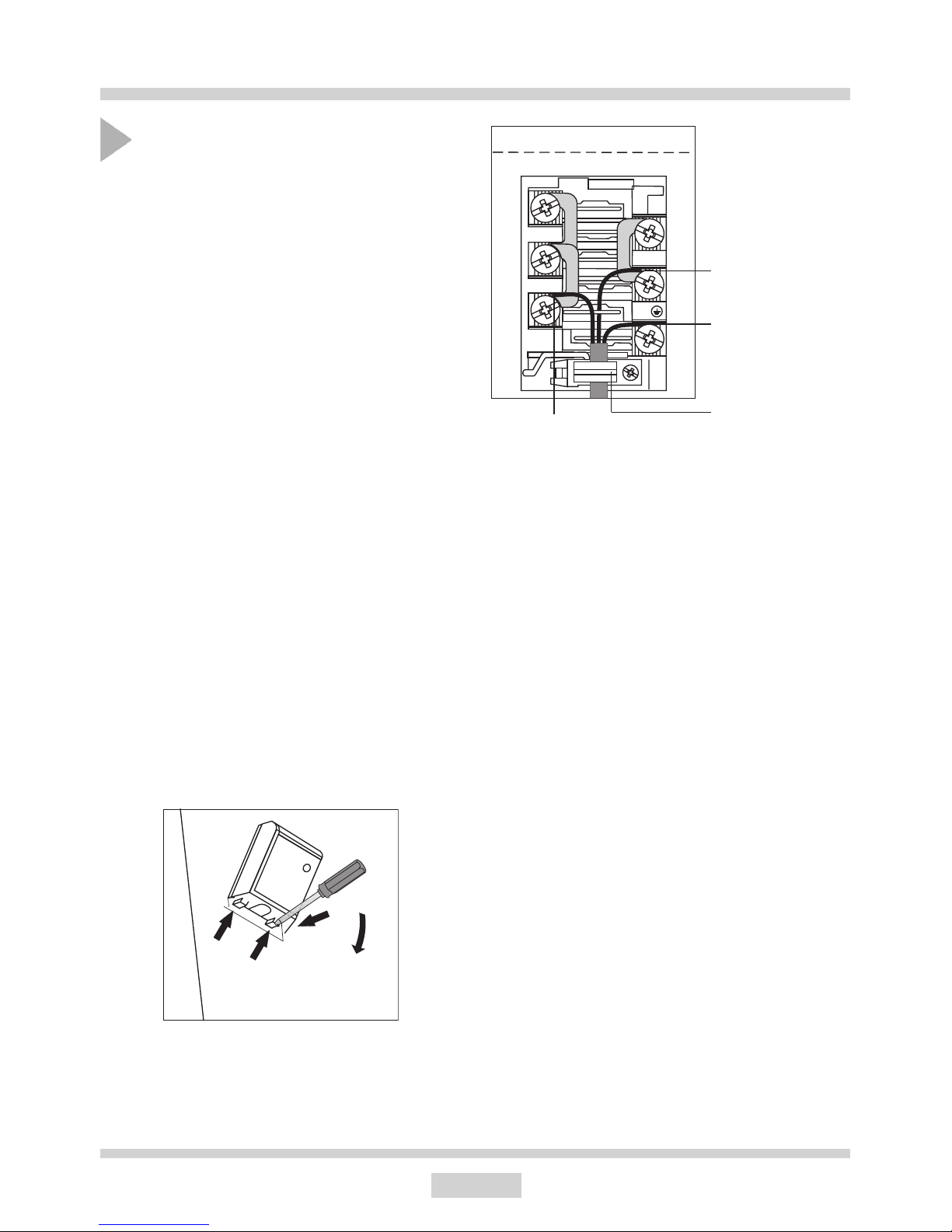

Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
 Closetheterminalbox,ensuringthatthe
cover is engaged on the locking tabs.
Live
(Red or Brown)
Neutral
(Black or Blue)
Earth
(Green / Yellow
or sleeving)
Cable clamp
2
1

13
Remove packaging, clean the interior of the
oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
forapprox.30min.),removeanystainsand
wash carefully; the heating plates of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION
How to use the heating plate
The level of heat can be adjusted gradually
by turning the appropriate knob to the right or
left. Switching on the plate results in a yellow
signal light on the control panel turning on.
An appropriately selected pan saves energy.
Apanshouldhaveathick,atbasewitha
diameter equal to the plate diameter as in that
caseheatistransferredmostefciently.
Caution!
Ensure the heatuiing plate is clean
– a soiled zone does not transfer all
of the heat.
Protect the plate against corrosion.
Switch off the zone before a pan is
removed.
Do not leave pans with prepared
dishes based on fats and oils unat-
tended on the switched – on plate; hot
fatcanspontaneouslycatchre.
0Switch off
MIN. Warming up
1Stewing vegetables, slow cooking
Cooking soups, larger dishes
2Slow frying
Grillingmeat,sh
3MAX. Fast heating up,
fast cooking, frying
Timer

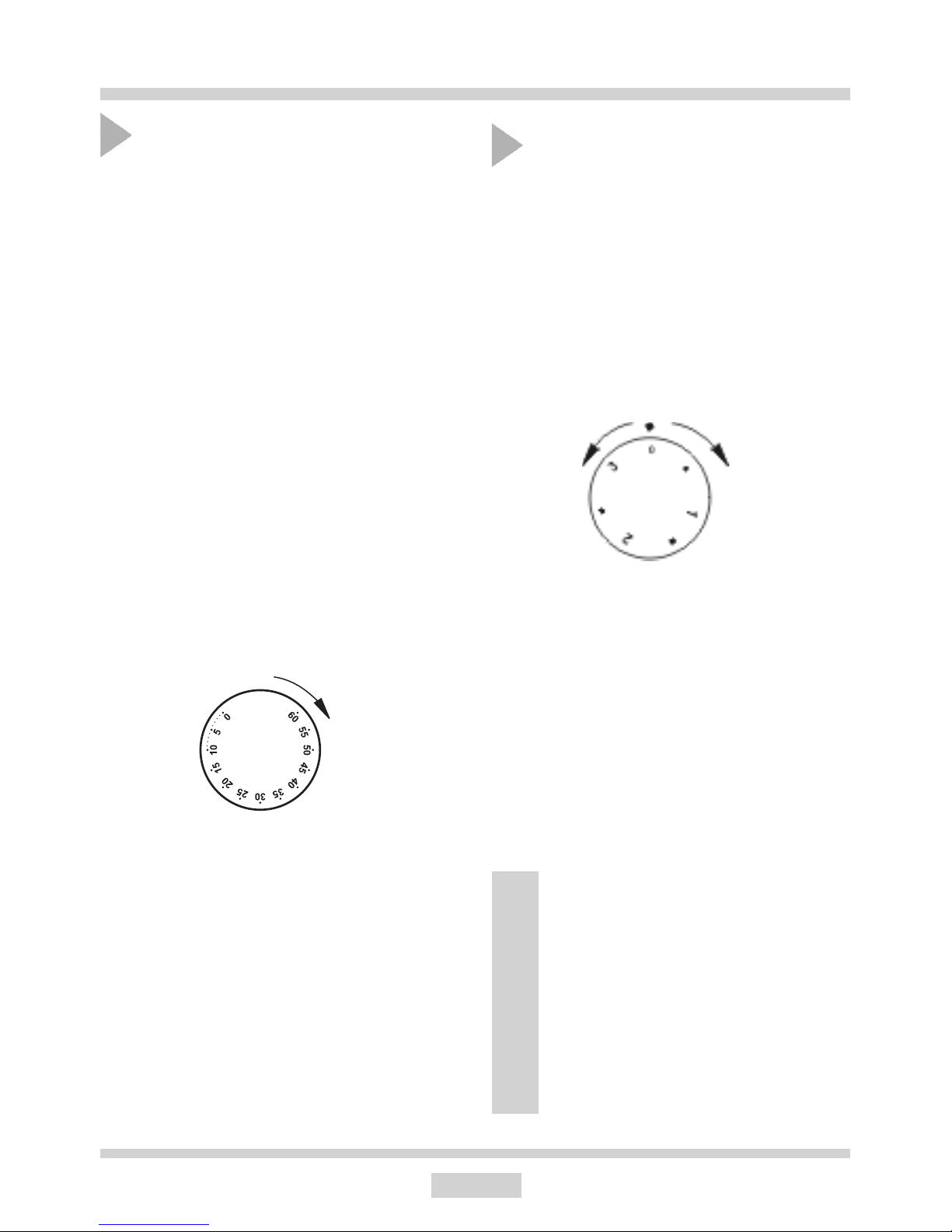

The timer does not control the operation of
the cooker. It is only a sound signal announc-
ing the required completion of short cooking
activities. The measured time range is from
0 to 60 minutes.

14
Oven with automatic air circulation
(including fan)
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the oven function
knob – to set a required function you should
turn the knob to the selected position,
as well as the temperature regulator knob – to
set a required function you should turn the
knob to the selected position.
The oven can be switched off by setting both
of these knobs to the position “”/“0”.
Possible settings of the oven function
knob
Separate oven lighting
By setting the knob to this posi-
tion the lighting inside the oven is
switched on, e.g. use when washing
the oven chamber.
Bottom and top heaters on
Setting the knob to this position
allows the oven to be heated
conventionally.
Caution!
At this oven function knob position,
when setting the temperature regula-
tor to a position other than zero, the
red light may go on, although the oven
is not being warmed up.
Fan, bottom and top heaters
on
At this knob position the oven
executesthecakefunction.Con-
ventional oven with a fan.
Grill heater on
Setting the knob to this position
allows dishes to be grilled on
the grate.
Caution!
When the functions have been
selected but the temperature knob is
set to zero only the fan will be on. With
this function you can cool the dish or
the oven chamber.
Caution!
When selecting any heating func-
tion (switching a heater on etc.) the
oven will only be switched on after
the temperature has ben set by the
temperature regulator knob.
50
100
150
200
250
0
OPERATION
Oven functions and operation.

15
OPERATION
In order to switch on the grill you need to:
set the oven knob to the position marked
with ,
heattheovenforapproximately5minutes
(with the oven door shut).
insert a tray with a dish onto the appropri-
ate cooking level, and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
the oven door shut.
Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
Warning:
The grill should be used with the oven
door shut.
When the grill is in use, accessible
parts can become hot.
It is recommended to keep children
away from the oven.
For grilling with the function grill and com-
bined grill the temperature must be set to
250ºC, but for the function fan and grill it
must be set to a maximum of 200ºC.
Combined grill
(Grill and the top heater)
When the “combined grill” is ac-
tive it enables grilling with the grill
and with the top heater switched on at the
same time. This function allows a higher tem-
perature at the top of the cooking area, which
causes more intense browning of the dish and
permits larger portions to be grilled.
Fan and combined grill on
When the knob is turned to this
position, the oven activates the
combined grill and fan function.
In practice, this function allows
the grilling process to be speeded
up and an improvement in the taste of the
dish. You should only use the grill with the
oven door shut.
Switching on the oven is indicated by red
signal light, turning on. If the red light goes
out, it means the oven has reached the set
temperature. If a recipe recommends plac-
ing dishes in a warmed-up oven, this should
be not done before the red light goes out for
thersttime.Whenbaking,theredlightwill
temporarily come on and go out (to maintain
the temperature inside the oven).

16
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct
heat better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
after switching off the oven it is advisable to leave the cake inside for about 5 min.;
 thebakingparametersgiveninTablesareapproximateandcanbecorrectedbased
onyourownexperienceandcookingpreferences;
 ifinformationgiveninrecipebooksissignicantlydifferentfromthevaluesincluded
in this instruction manual, please apply the instructions from the manual.

17
Oven functions: bottom + top heaters
BAKING IN THE OVEN – PRACTICAL HINTS
TABLE 1: Cakes
Baking in cake tins
Sponge cake/marble cake
Victoria sponge
Base for a layer cake
Sponge layer cake
Teacake
Bread (e.g. wholegrain bread)
Baking on the trays provided with the cooker
Fruit cake (crispy base)
Crumble cake
Sponge roll
Pizza (thin base)
Pizza (thick base)
Baking smaller items
Buns
Puff pastry
Meringues
2
2
2-3
2
2
2
3
3
2
3
2
3
3
3
170-180
160-180
170-180
170-180
160-180
210-220
170-180
160-170
180-200
220-240
190-210
160-170
180-190
90-110
60-80
65-80
20-30
30-40
40-60
50-60
35-60
30-40
10-15
10-15
30-50
10-30
18-25
80-90
CAKE TYPE BAKING
TIME
[min]
TEMPE-
RATURE
[°C]
LEVEL
bottom + top heaters

18
BAKING IN THE OVEN – PRACTICAL HINTS
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water – do
not pour cold water over the meat.
TABLE 1A: Cakes
Oven functions: cake (bottom and top heaters + fan)
80
150
150
150
150
150
150
150
60-70
65-70
60-70
25-35
40-45
30-45
40-55
30-40
BAKING TYPE TEMPERATURE
[°C]
BAKING TIME
[min]
Baking in cake tins
Meringues
Victoria sponge
Teacake
Layer cake
Baking on the trays provided with the cooker
Yeast cake
Crumble cake
Fruit cake
Sponge cake

19
BAKING IN THE OVEN – PRACTICAL HINTS
TABLE 2: Roasting meat
* the gures presented in the table refer to a portion of 1 kg, if the portion is larger than
that an additional 30 – 40 minutes should be added for each additional kilogram.
Oven functions: bottom and top heaters
Caution!
In the middle of the roasting time the meat must be turned over.
It is advisable to roast meat in heatproof ovenware.
BEEF
Roastbeeforllet
rare
oven warmed up
juicy (“medium”)
oven warmed up
“well done”
oven warmed up
Roast joint
PORK
Roast joint
Ham
Fillet
VEAL
LAMB
VENISON
POULTRY
Chicken
Goose(approx.2kg)
FISH
3
3
3
2
2
2
3
2
2
2
2
2
2
250
250
210-230
200-220
200-210
200-210
210-230
200-210
200-220
200-220
220-250
190-200
210-220
per 1 cm
12-15
15-25
25-30
120-140
90-140
60-90
25-30
90-120
100-120
100-120
50-80
150-180
40-55
TYPE OF MEAT
LEVEL
FROM THE BOTTOM TEMPERATURE [°C]
TIME*
IN MINUTES
bottom + top heaters

20
TABLE 3: Grill
Oven functions: grill heater
Pork chop
Pork schnitzel
Shish kebab
Sausages
Roastbeef,(steakapprox.1kg)
Veal cutlet
Veal steak
Mutton chop
Lamb chop
Chicken half (per 500 g)
Fishllet
Trout(perapprox.200–250g)
Bread (toast)
LEVEL
FROM THE
BOTTOM
TEMPERATURE
[°C]
GRILLING TIME [MINUTES]
4
3
4
4
3
4
4
4
4
3
4
3
4
250
250
250
250
250
250
250
250
250
250
250
250
250
8-10
10-12
7-8
8-10
12-15
8-10
6-8
8-10
10-12
25-30
6-7
5-8
2-3
6-8
6-8
6-7
8-10
10-12
6-8
5-6
6-8
8-10
20-25
5-6
5-7
2-3
SIDE 1 SIDE 2
TYPE OF DISH
BAKING IN THE OVEN – PRACTICAL HINTS
During baking you should turn the meat over periodically as well as basting it with its juices
or with hot salty water.
Caution!
TheguresgiveninTablesareapproximateandcanbeadaptedbasedonyourown
experienceandcookingpreferences.
